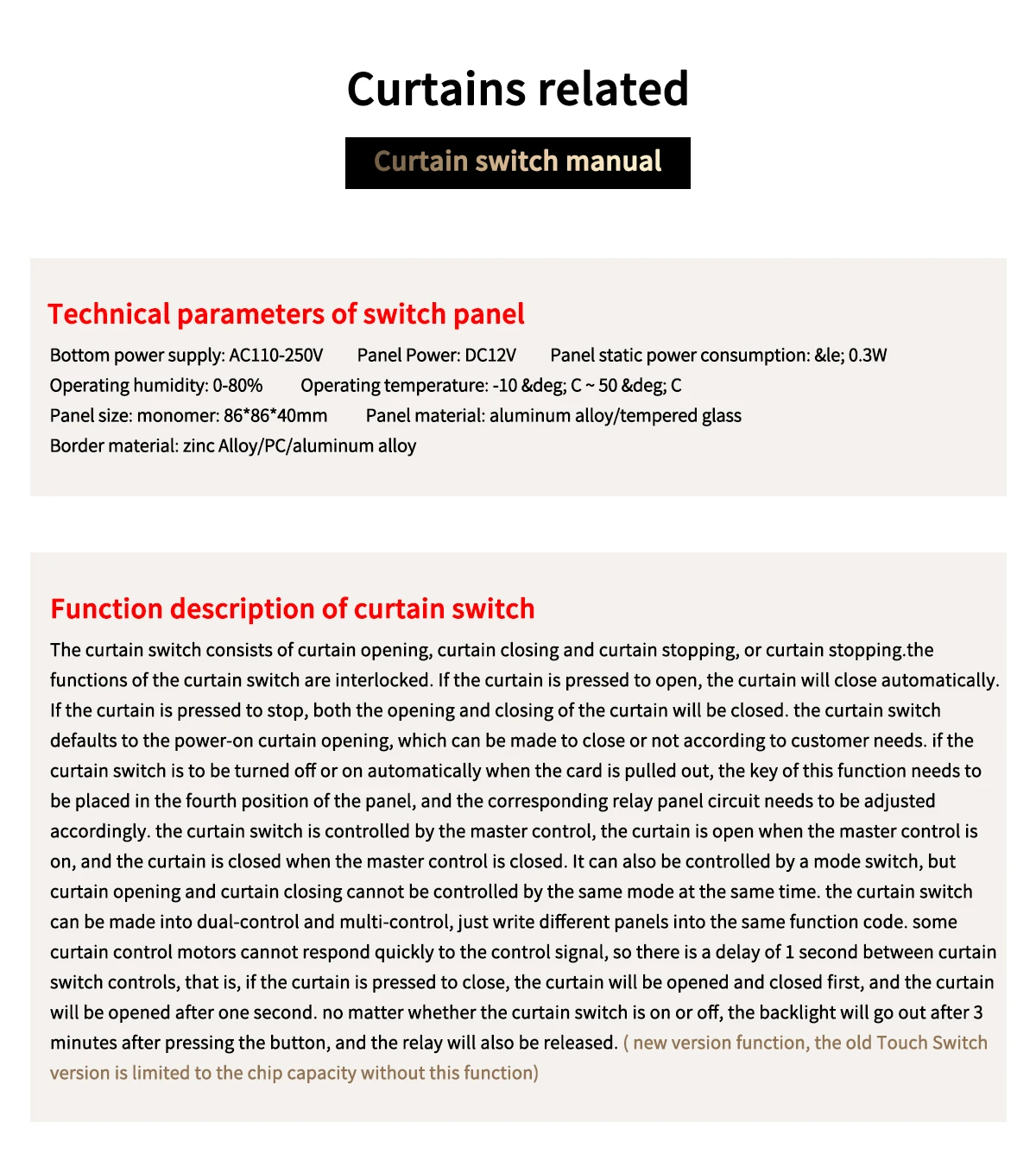

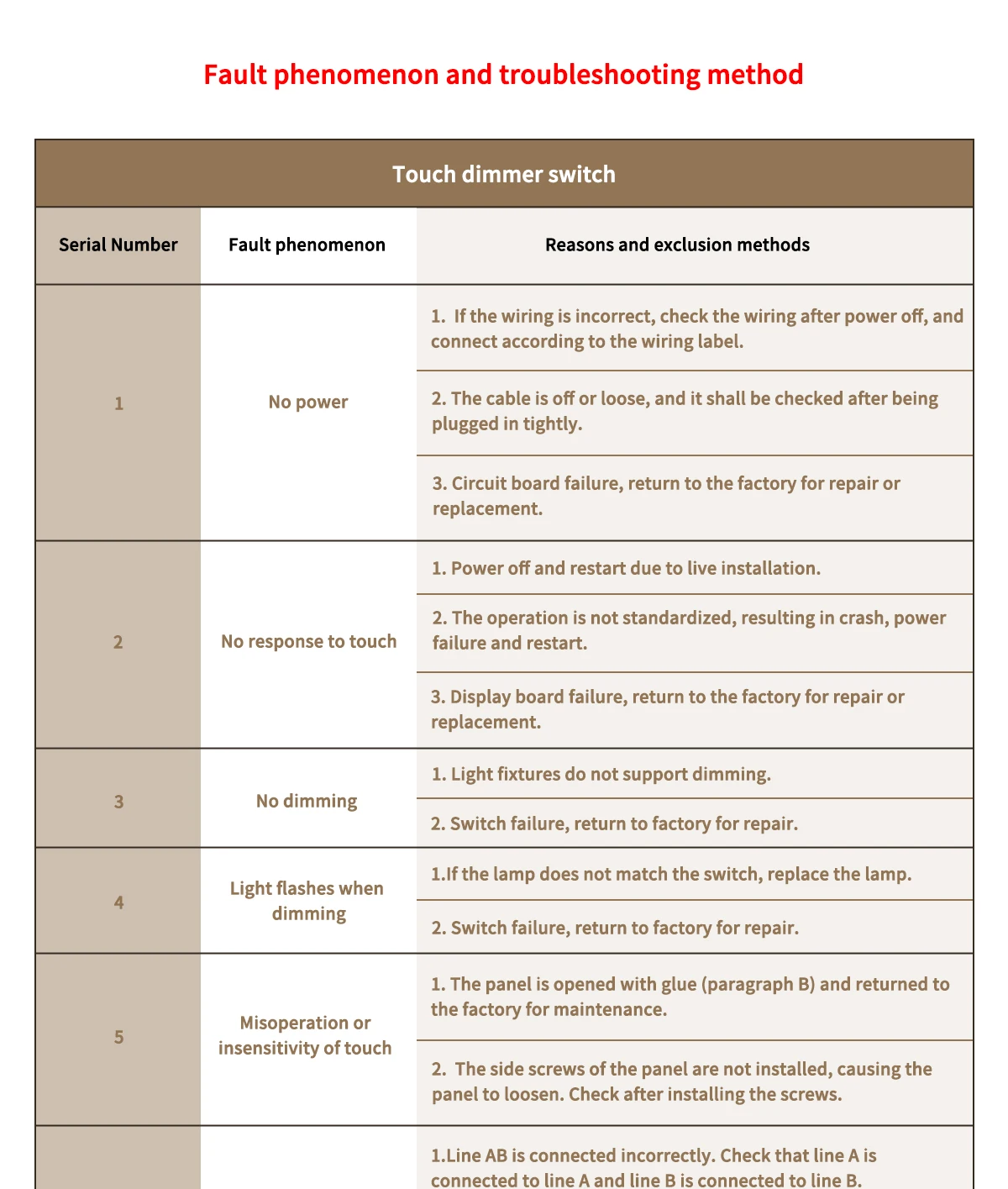

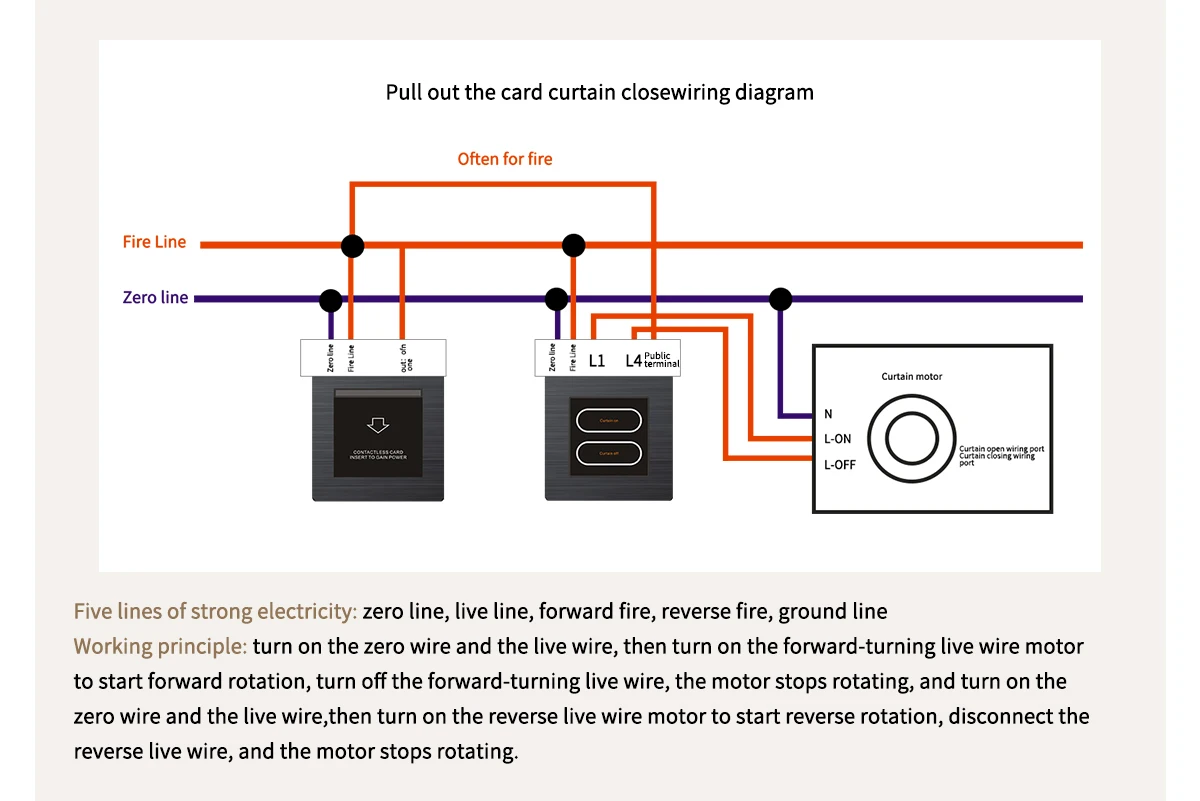

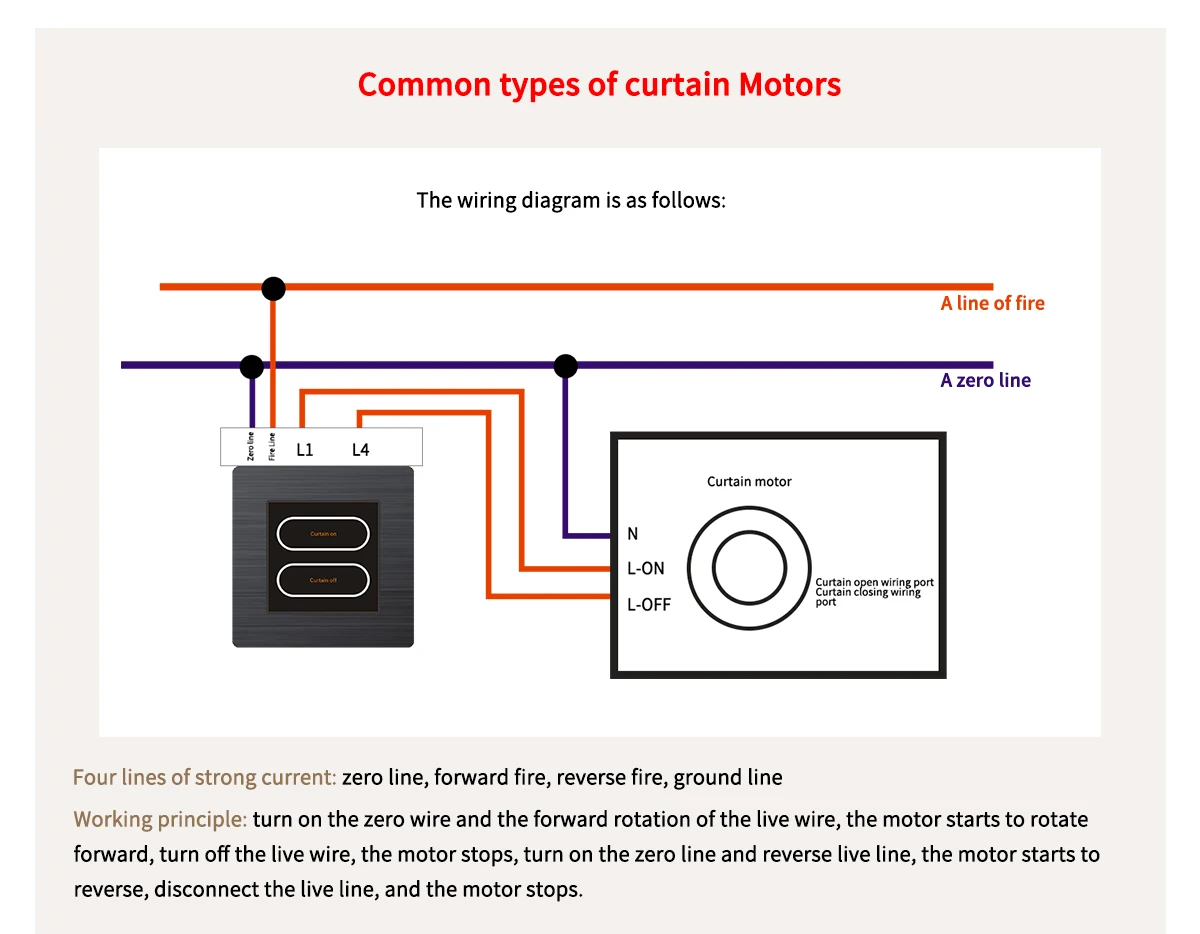

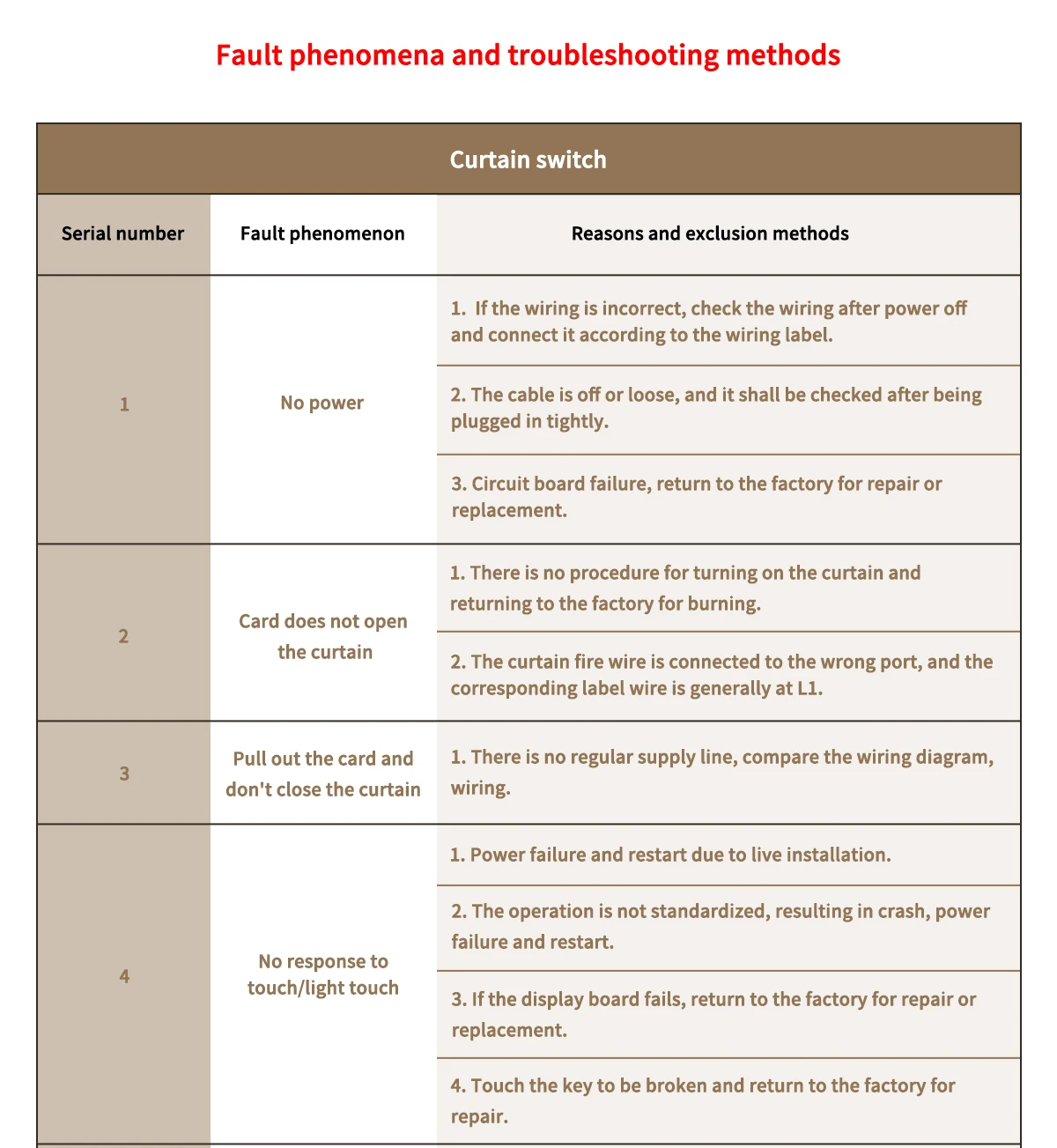

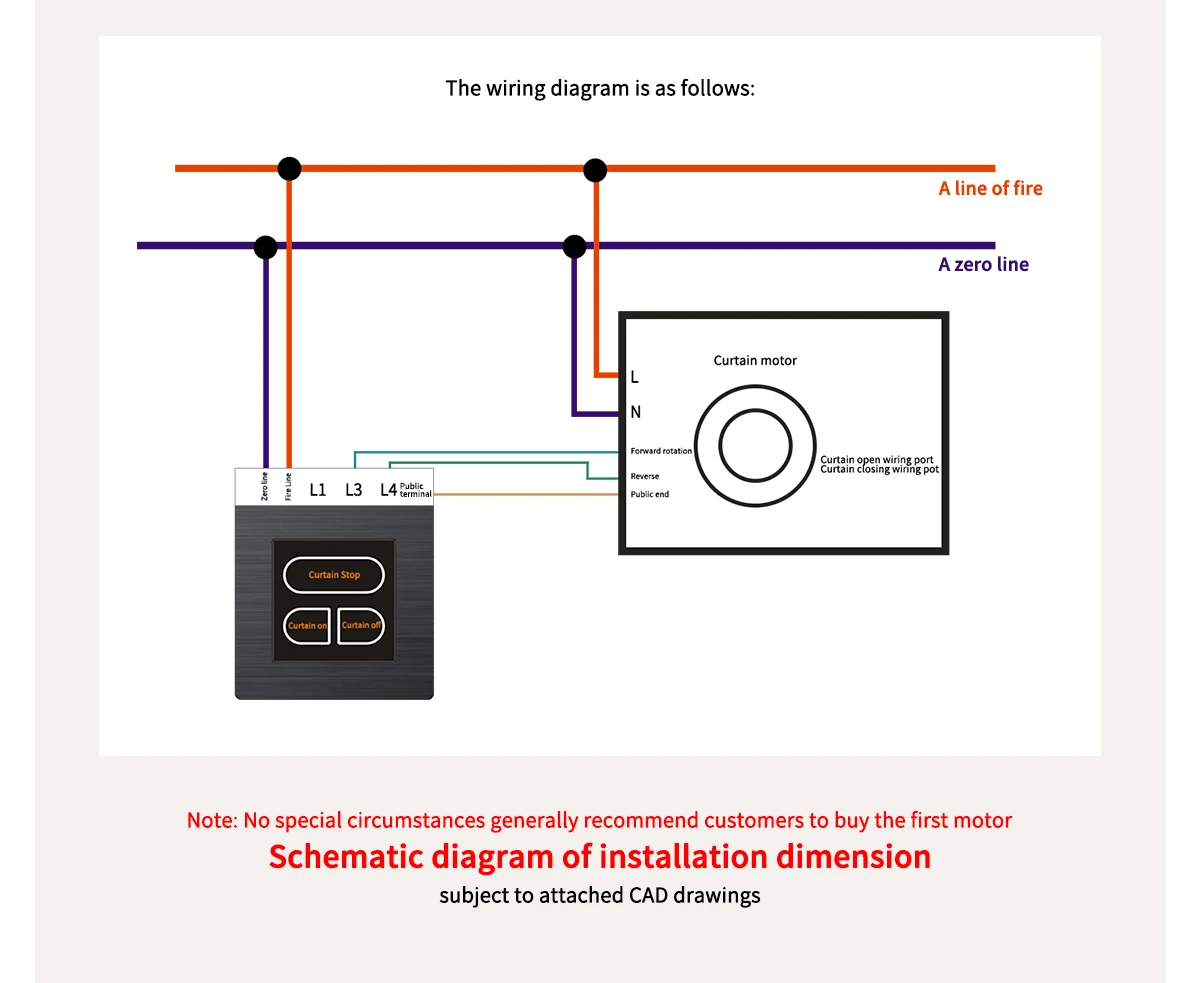

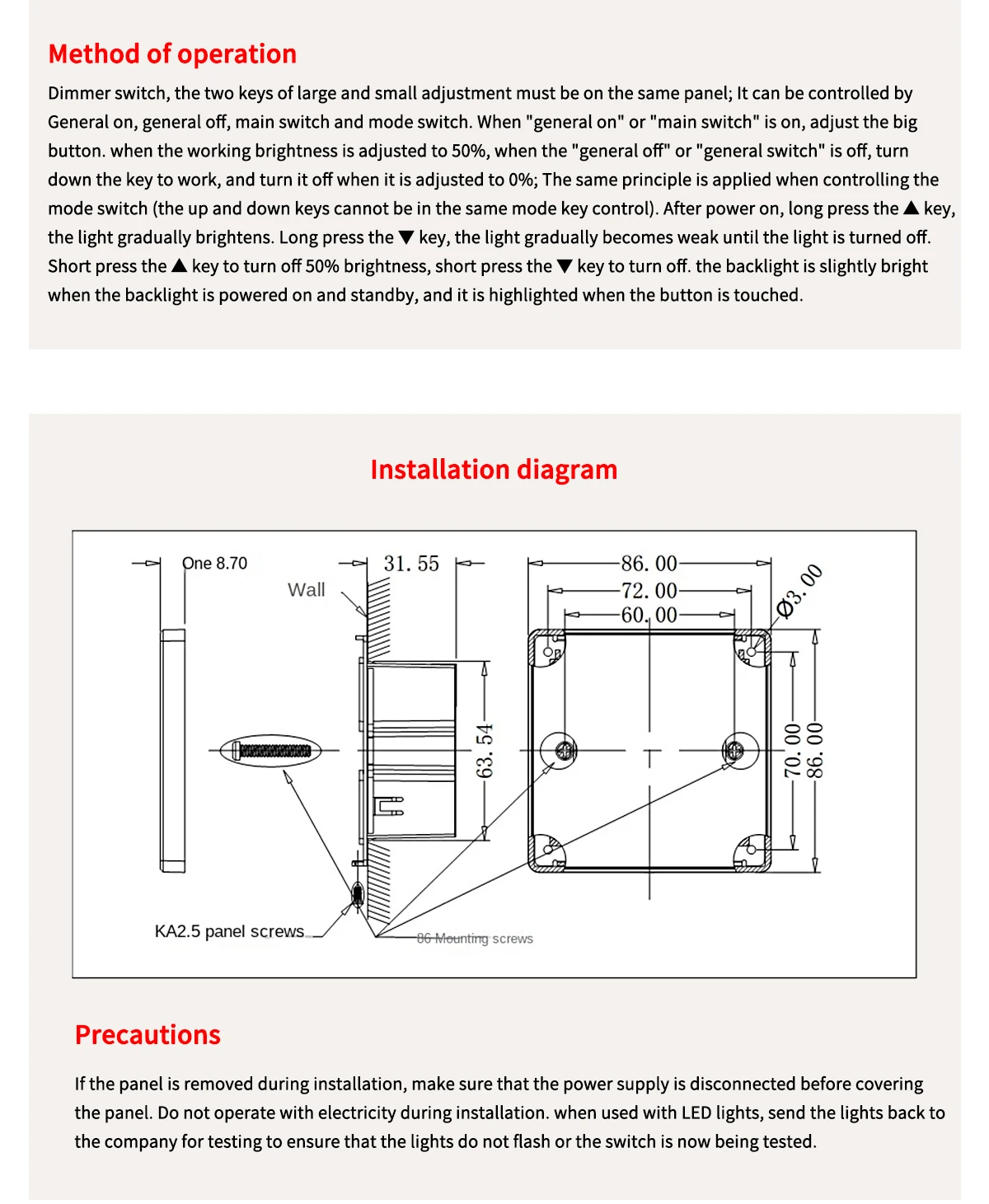

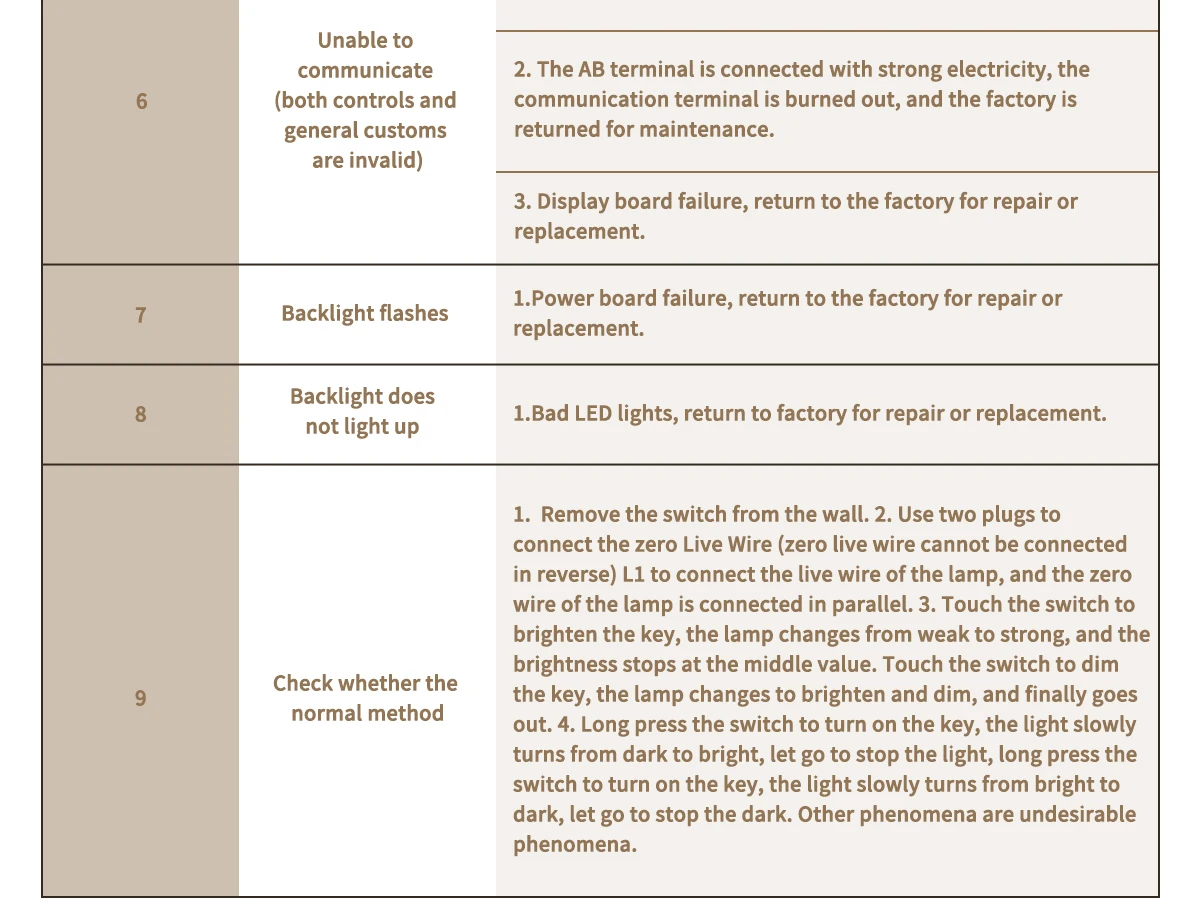

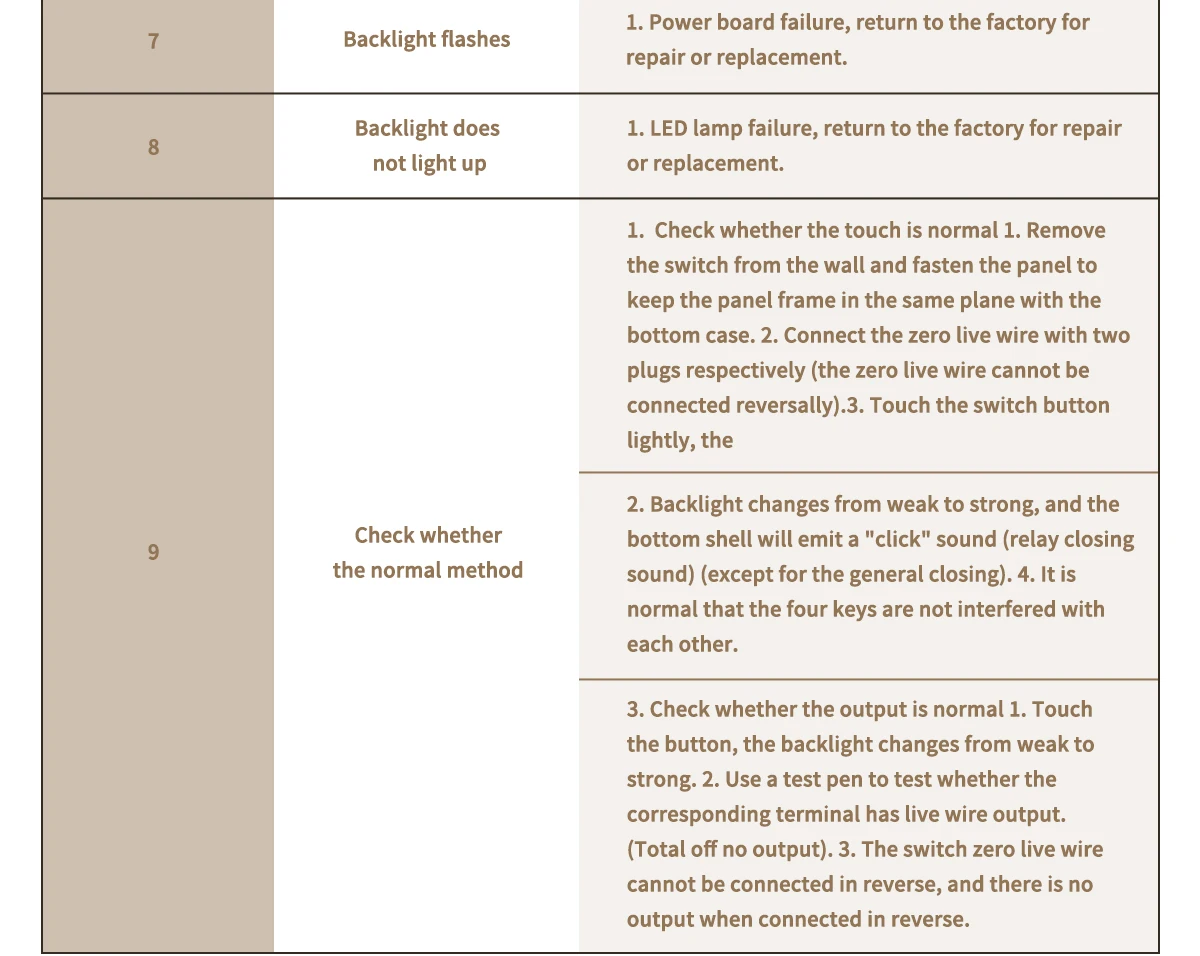

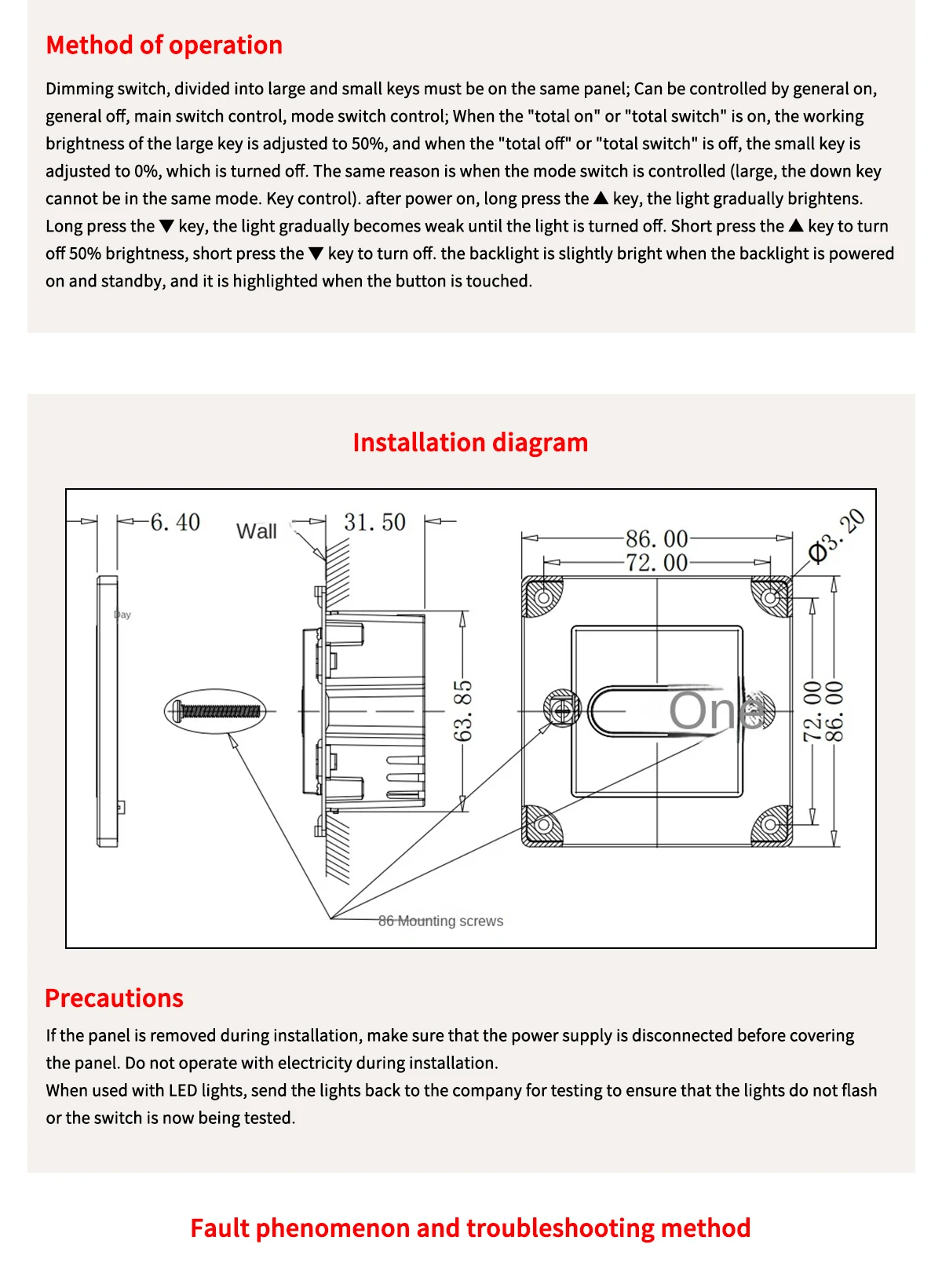

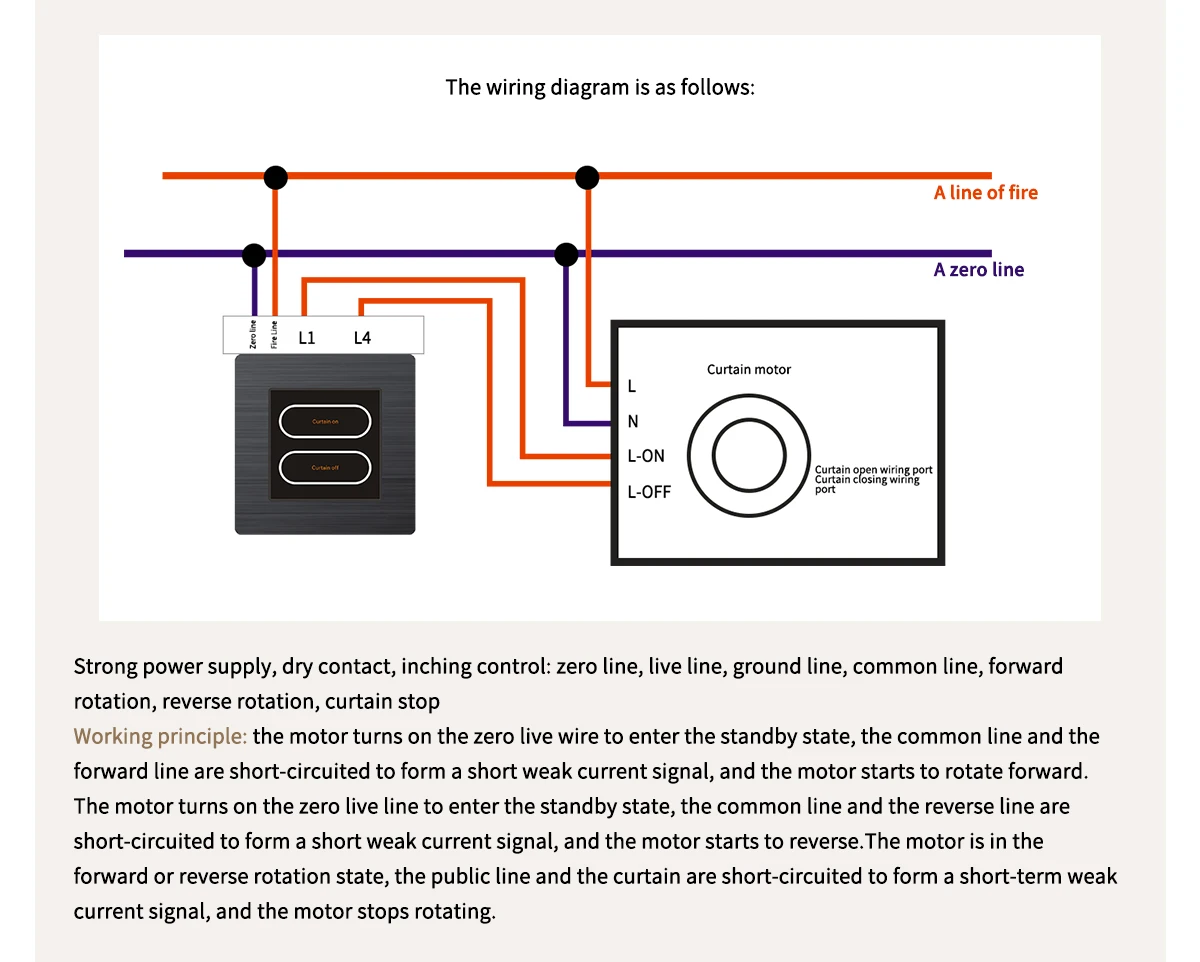

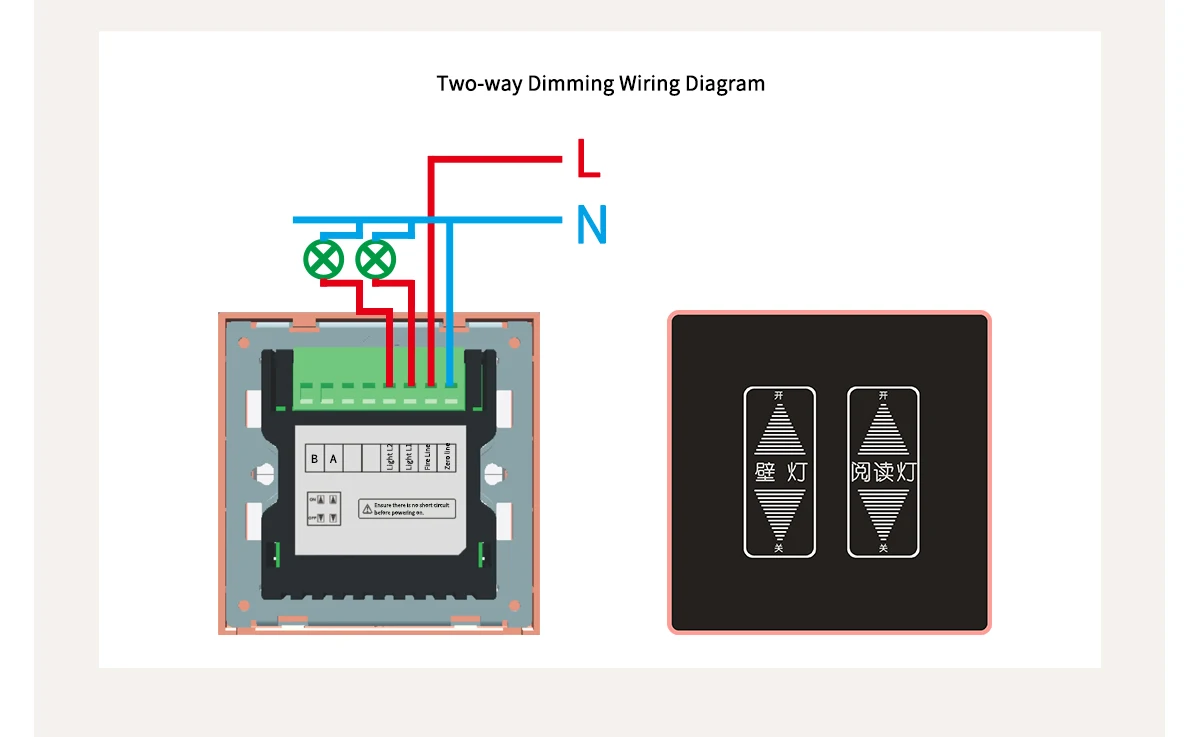

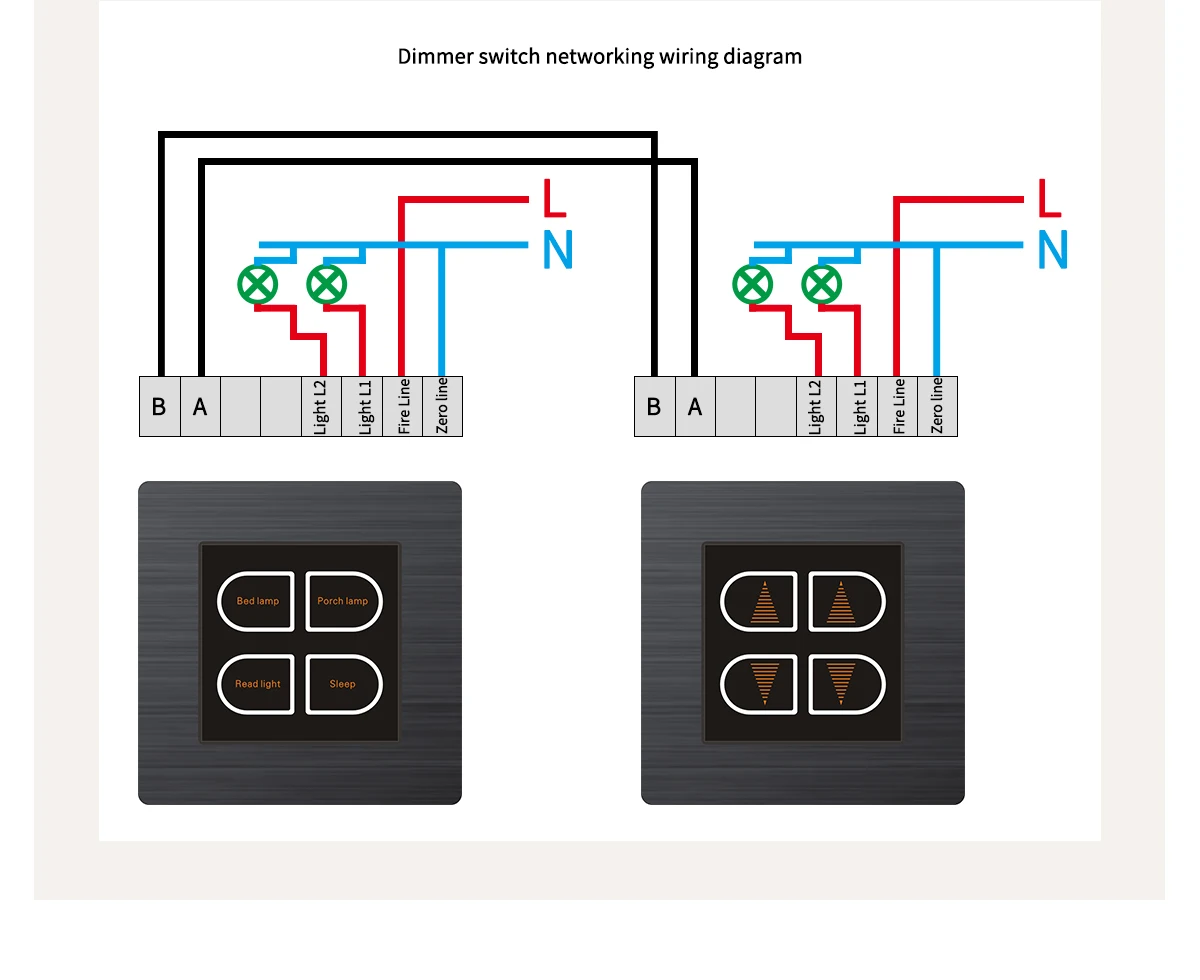

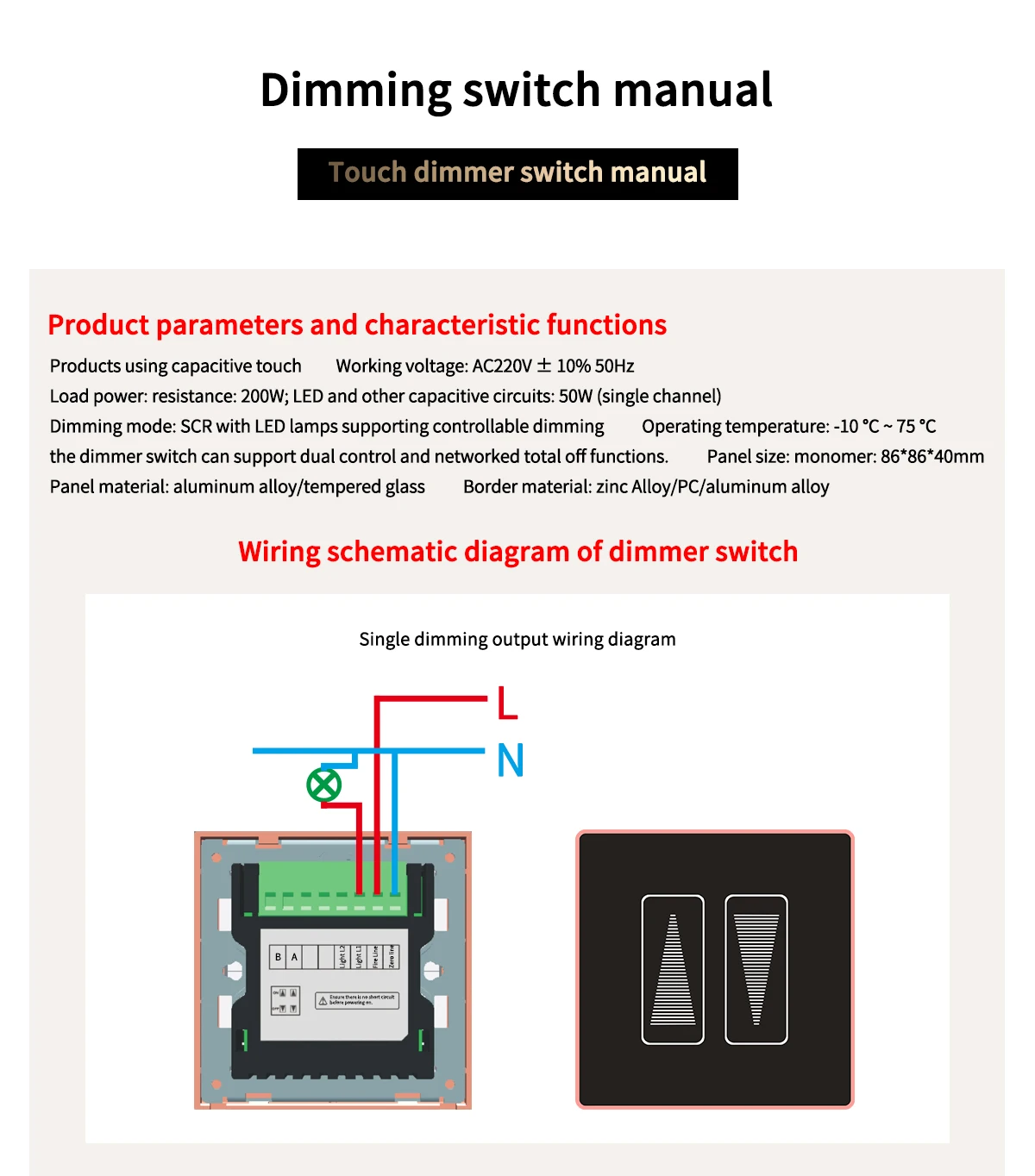

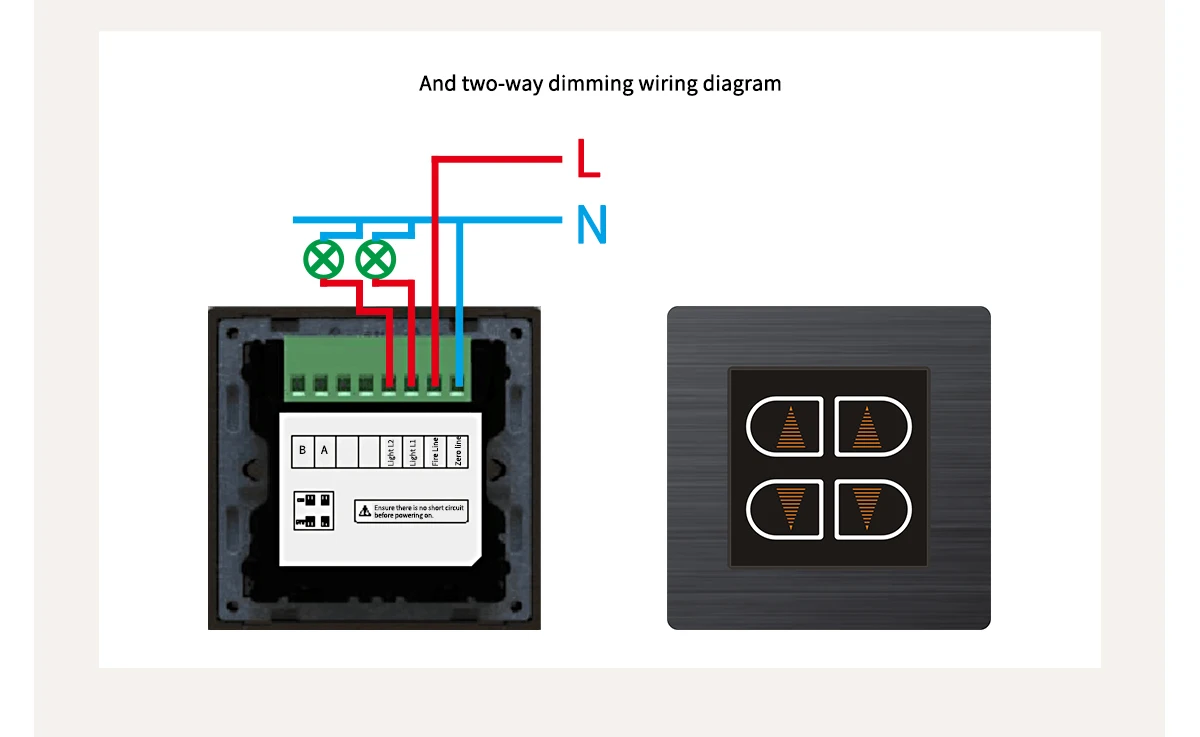

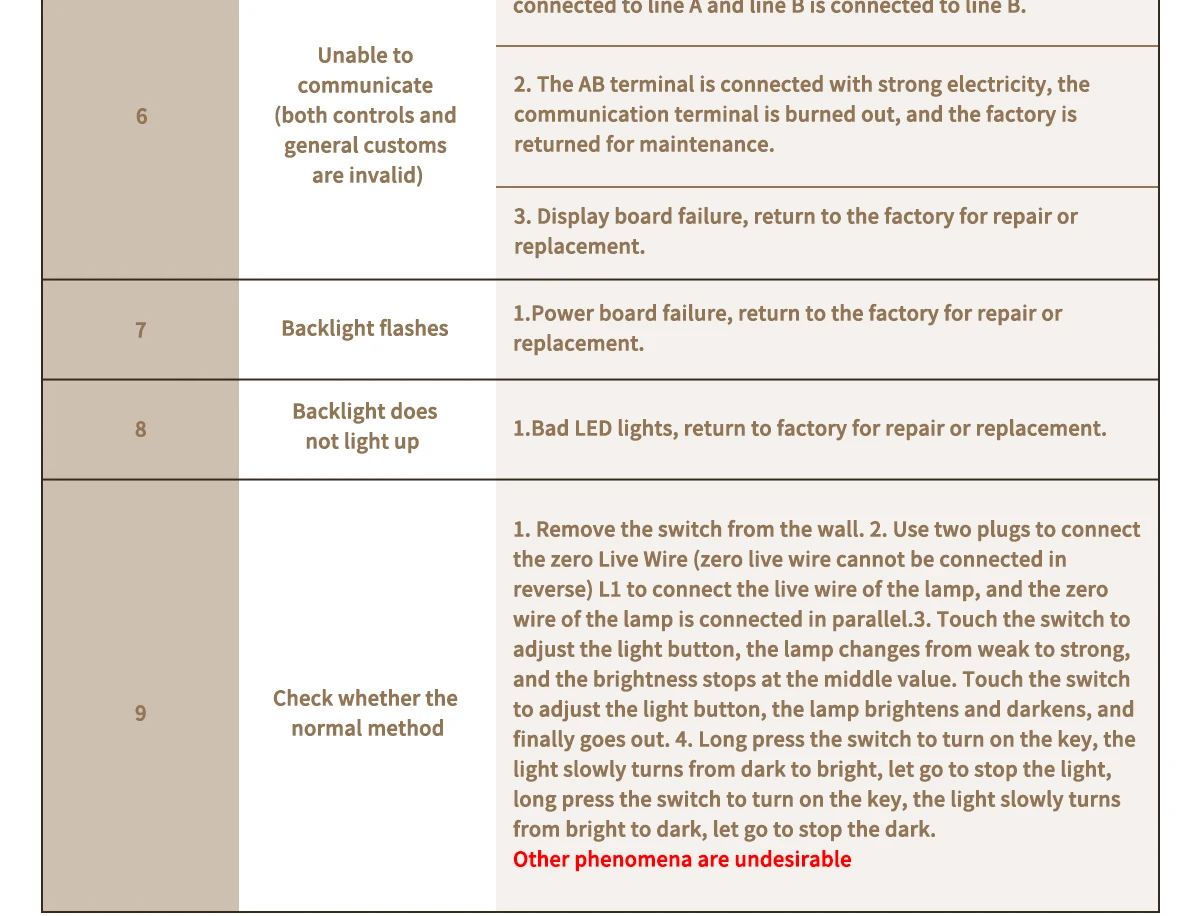

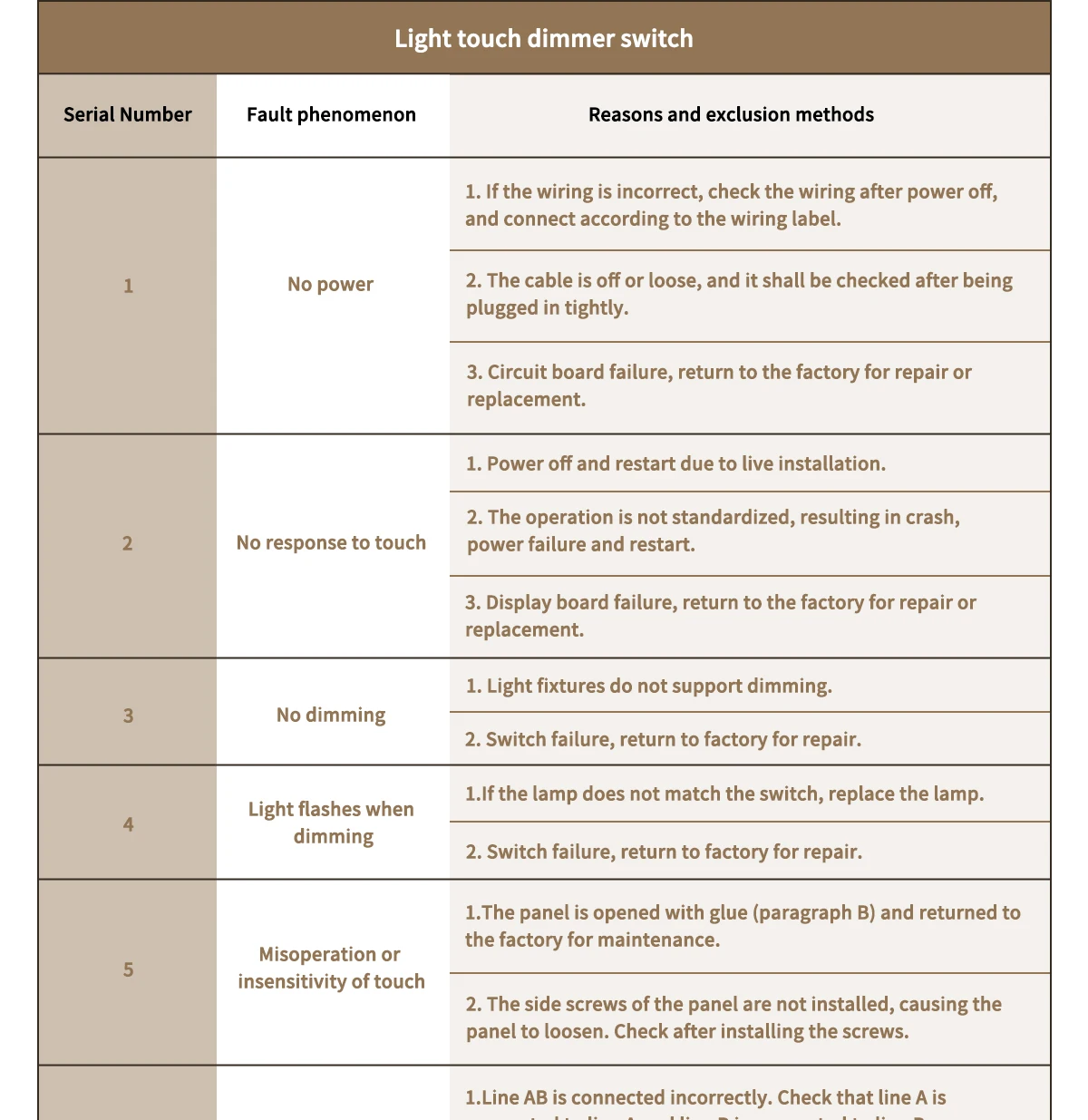

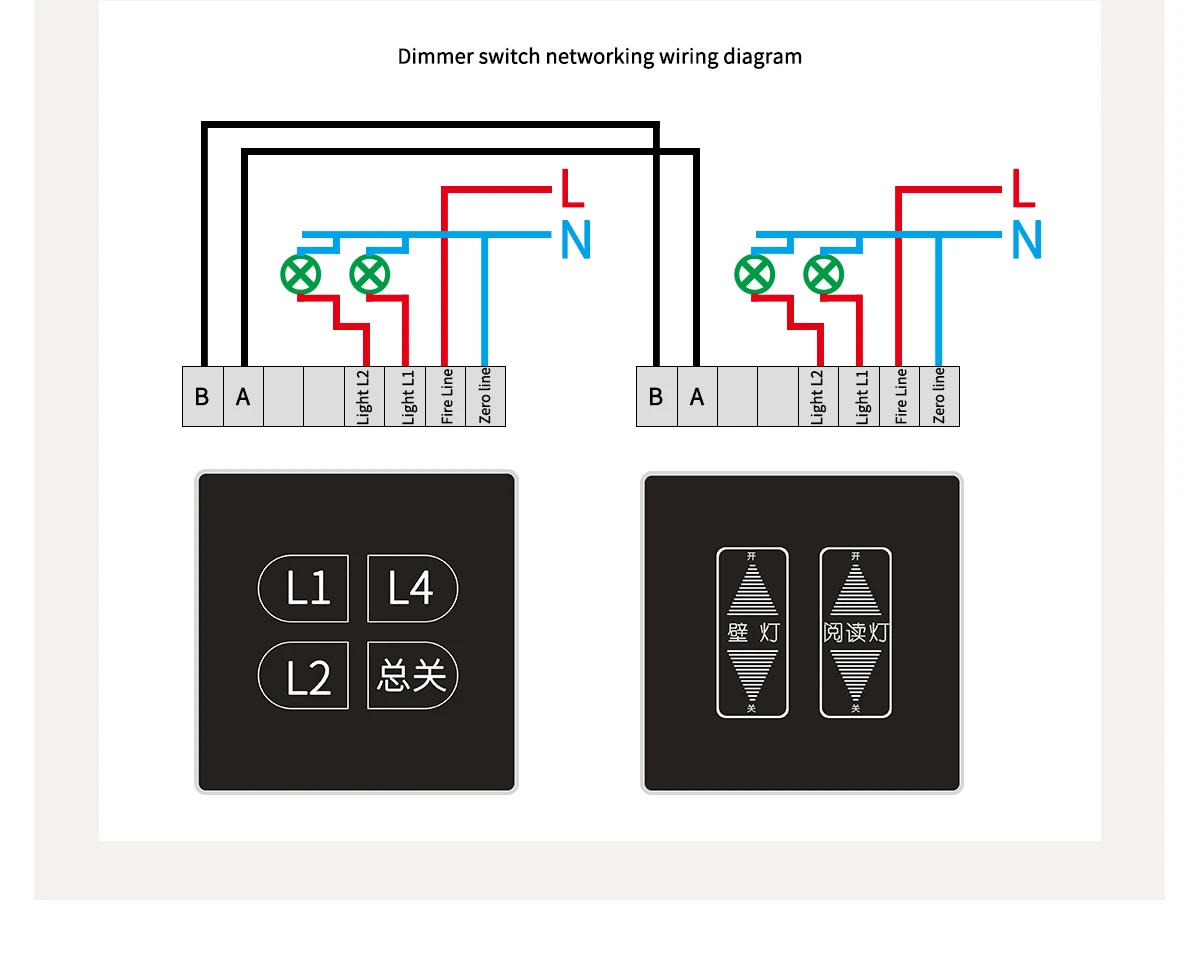

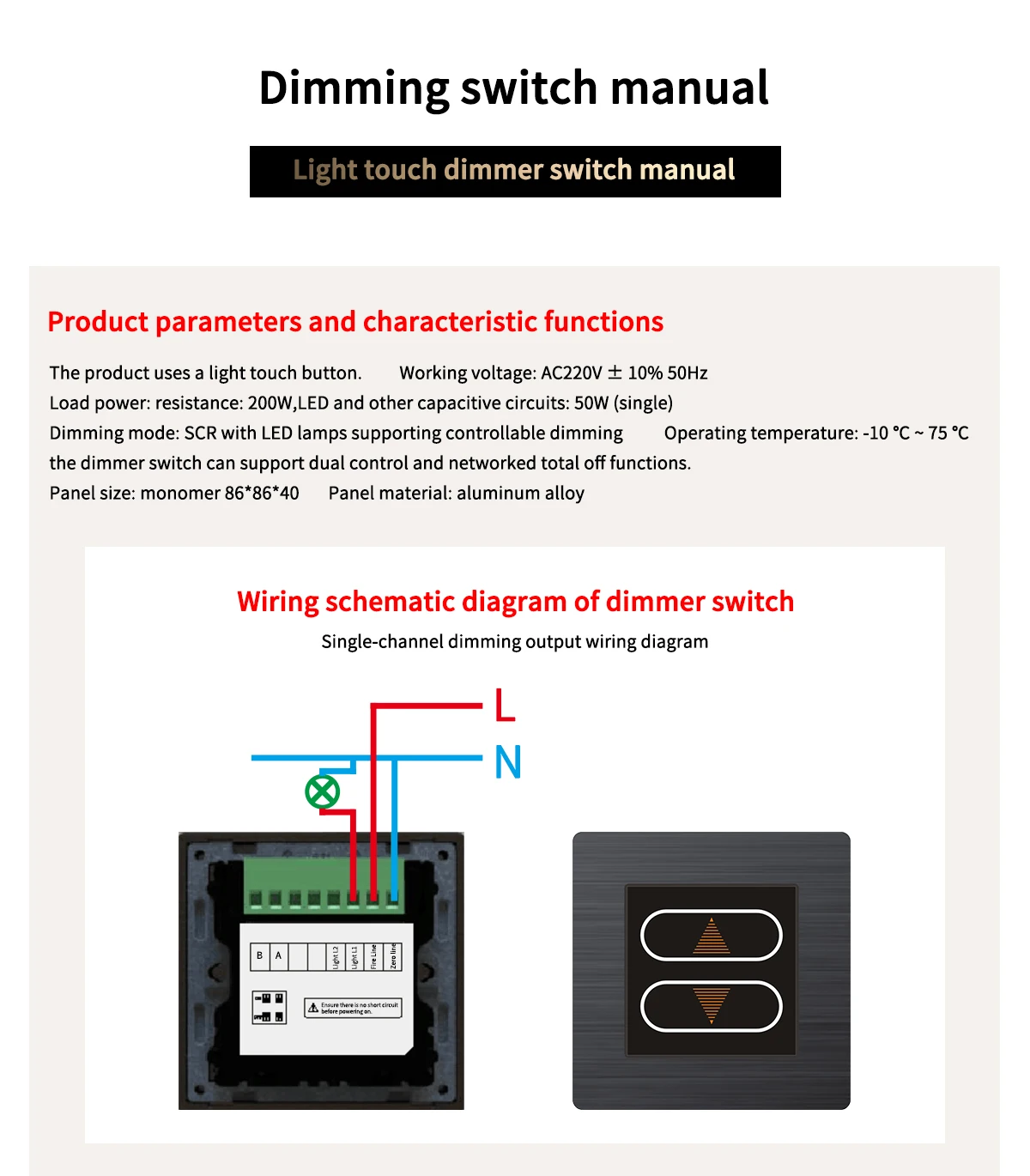

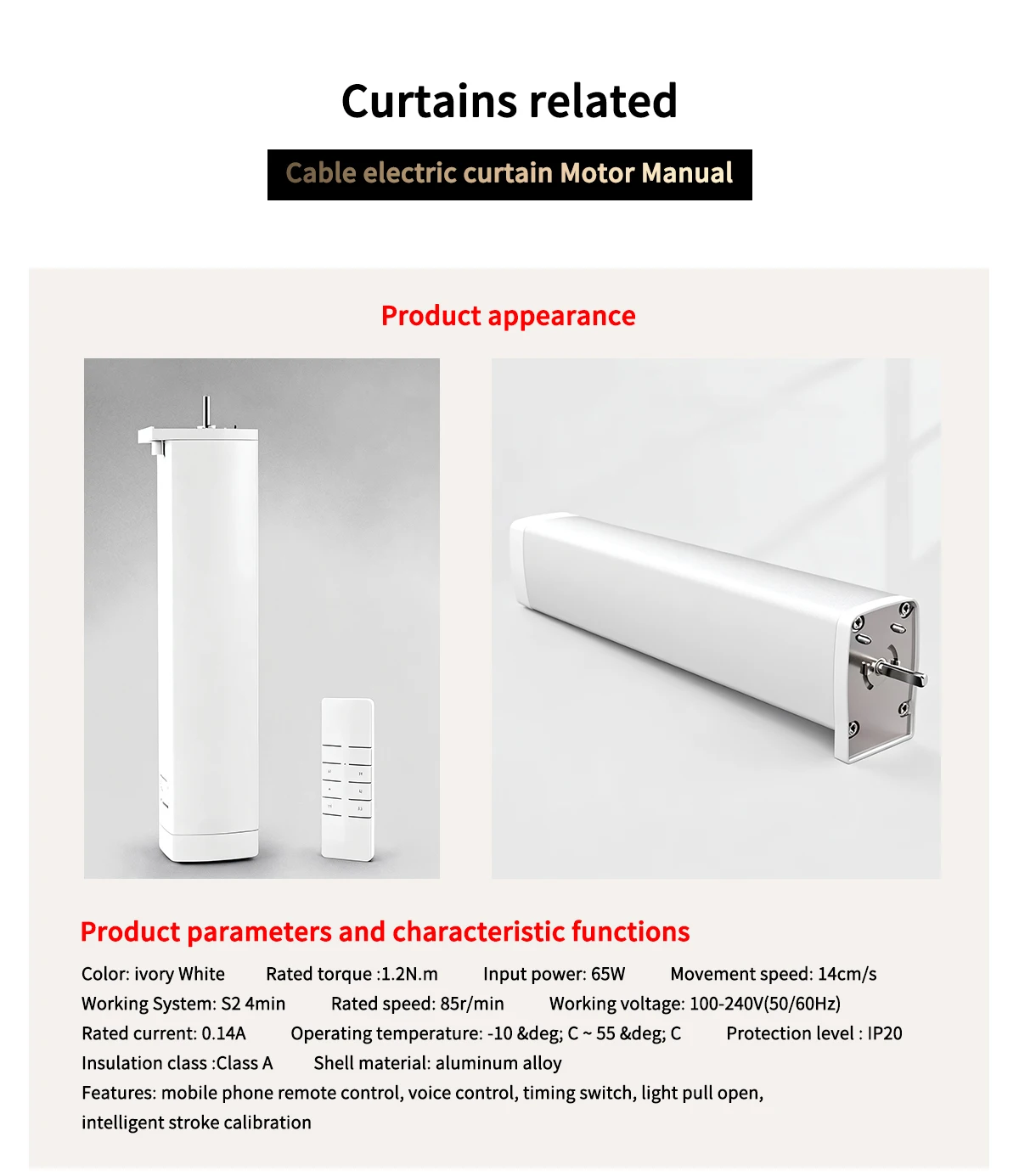

Curtain switch instructions Dimming switch instructions

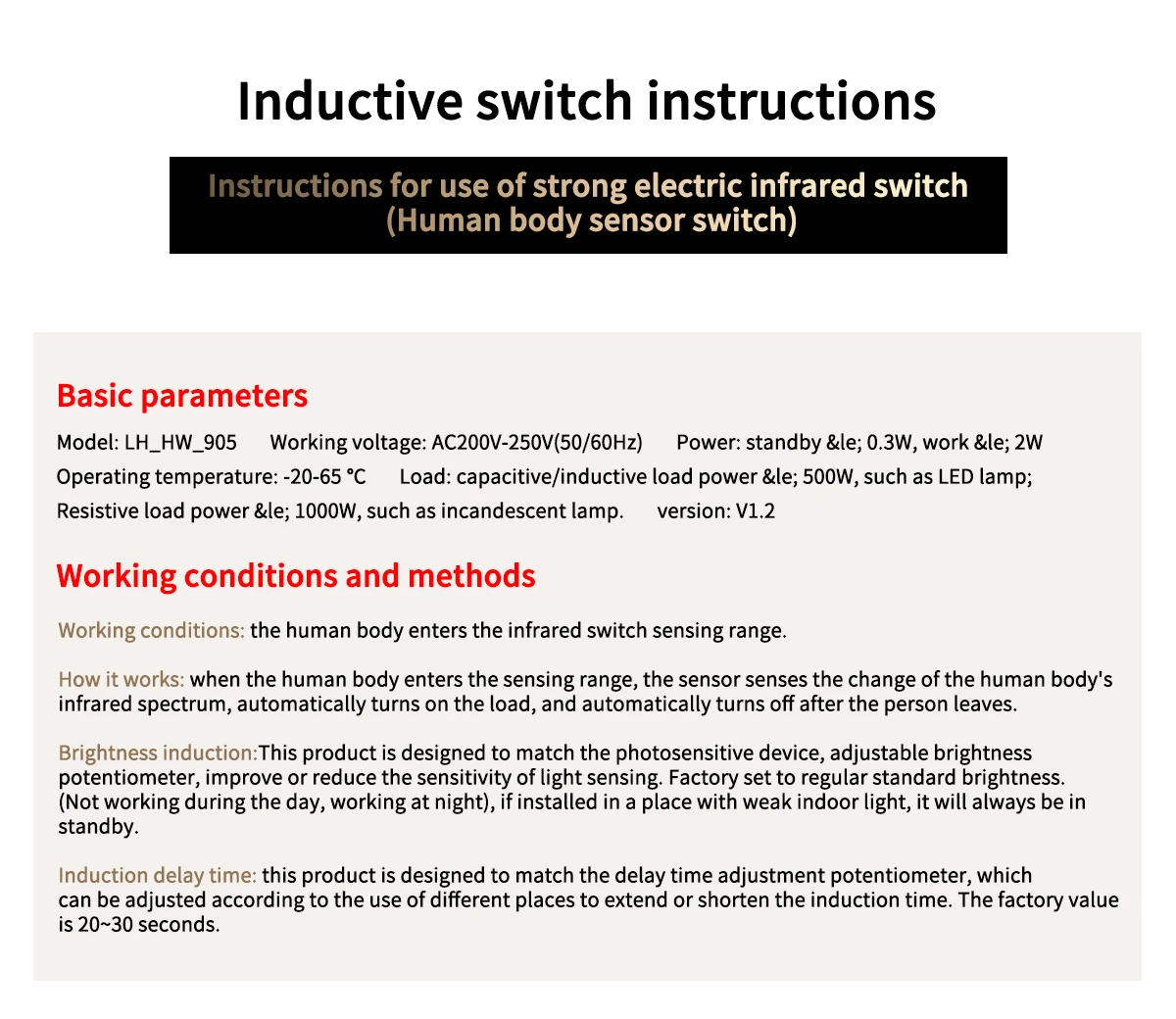

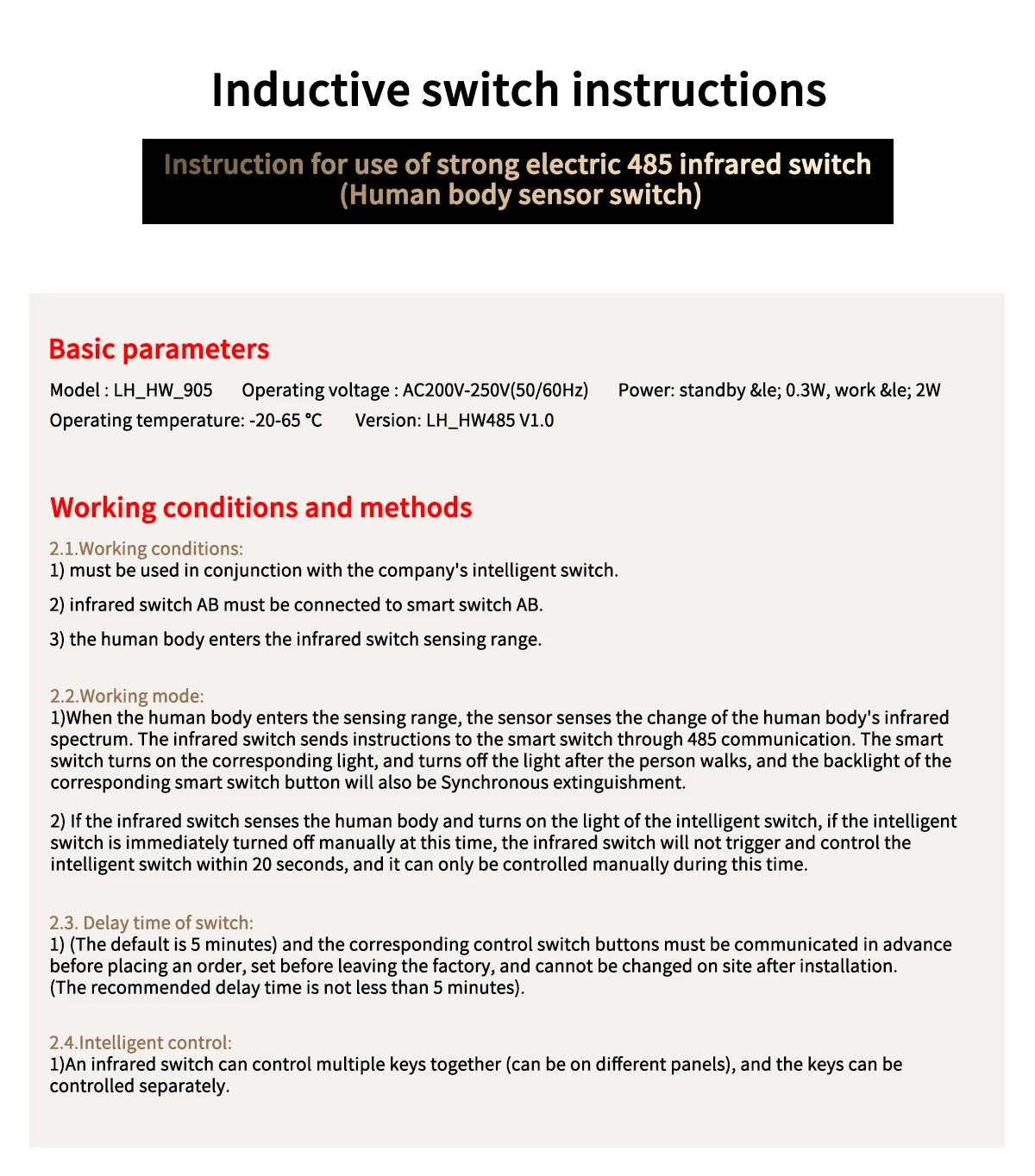

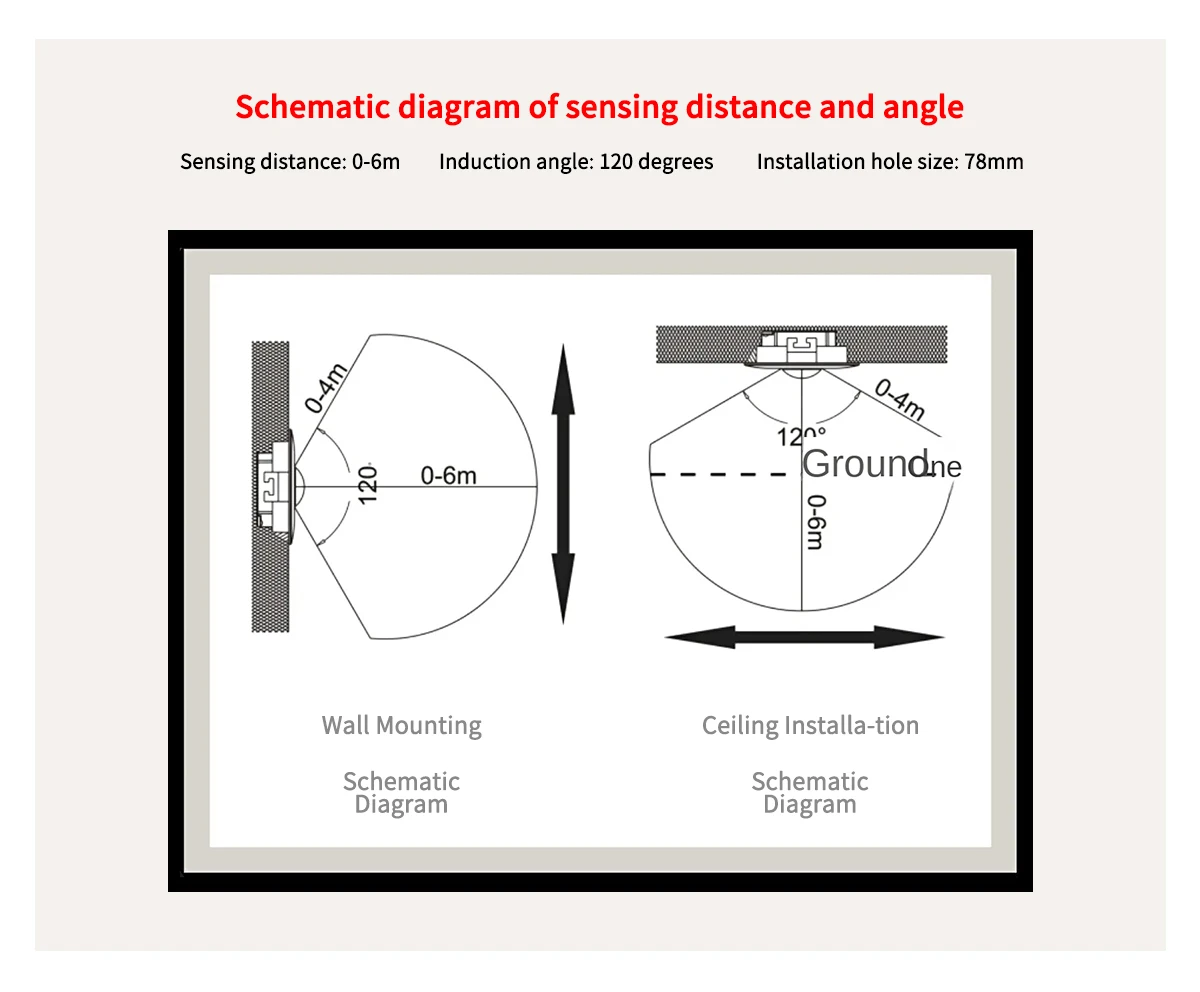

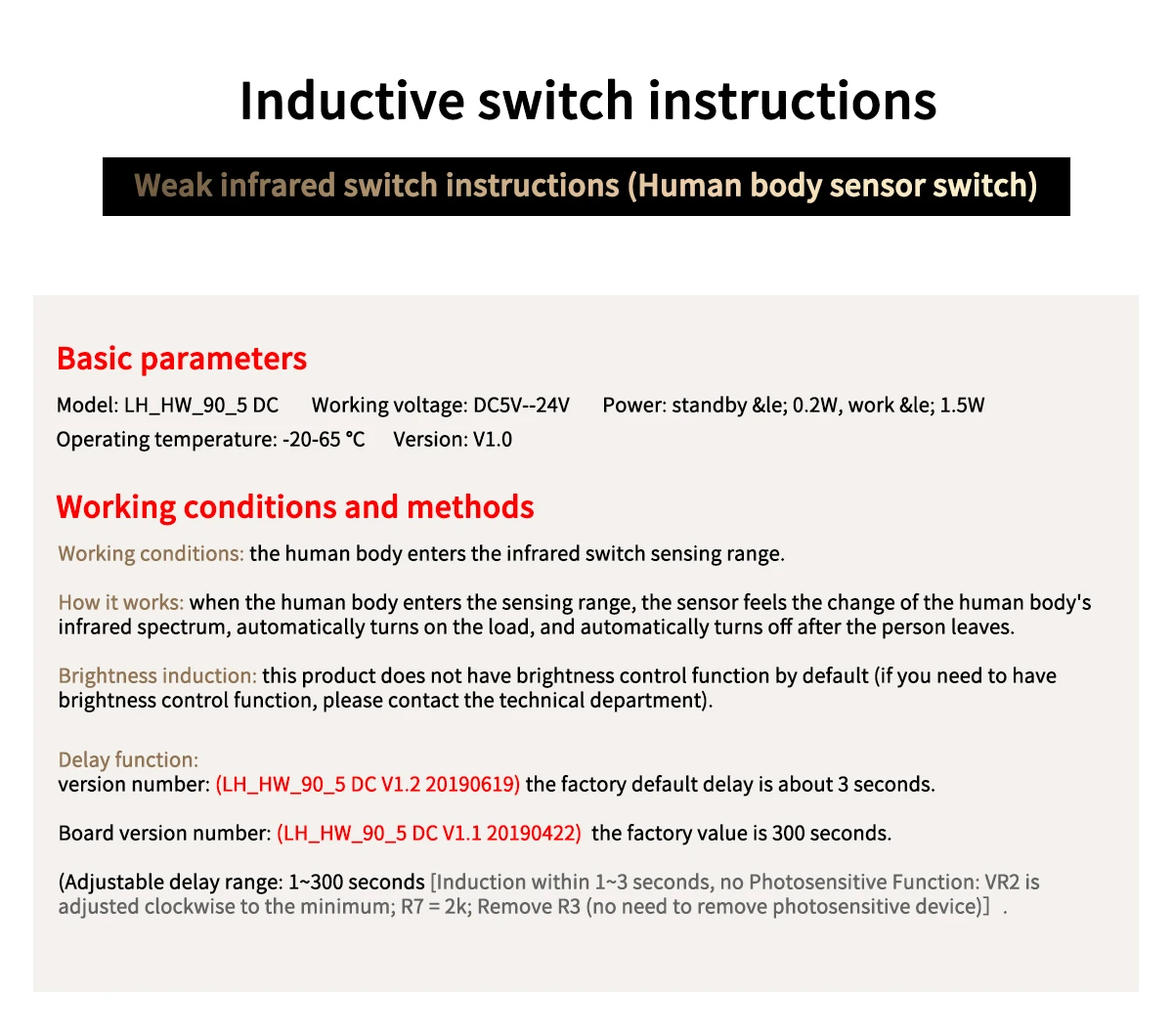

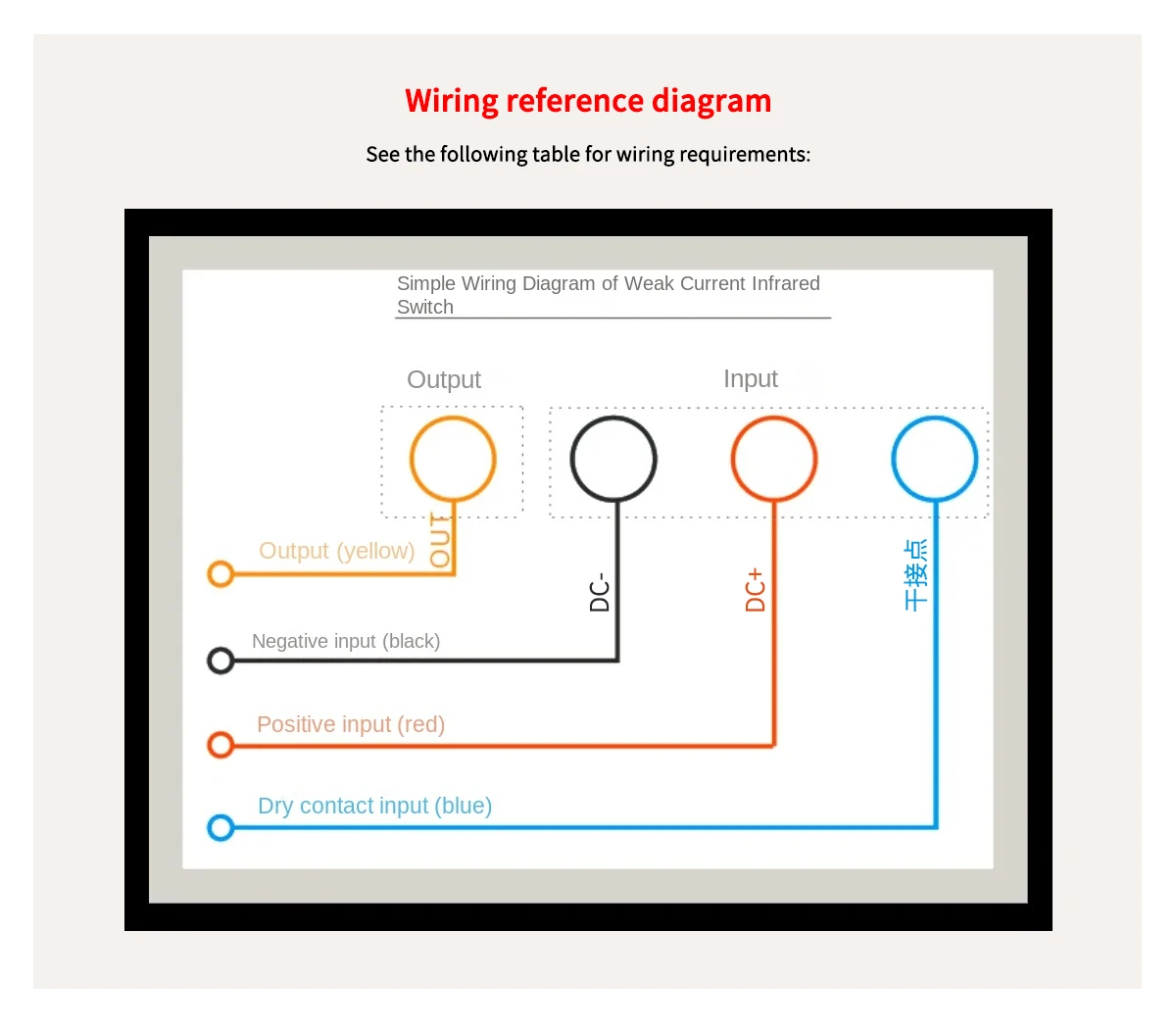

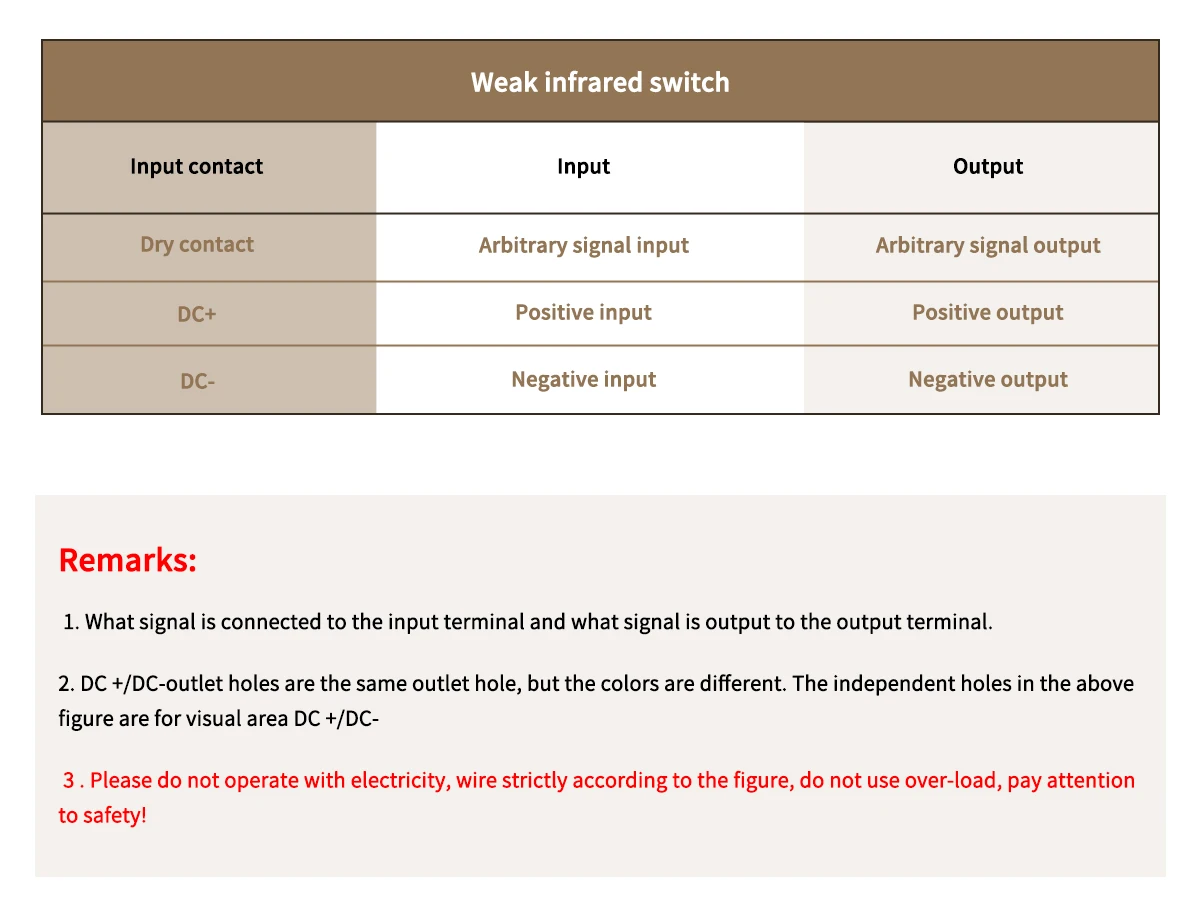

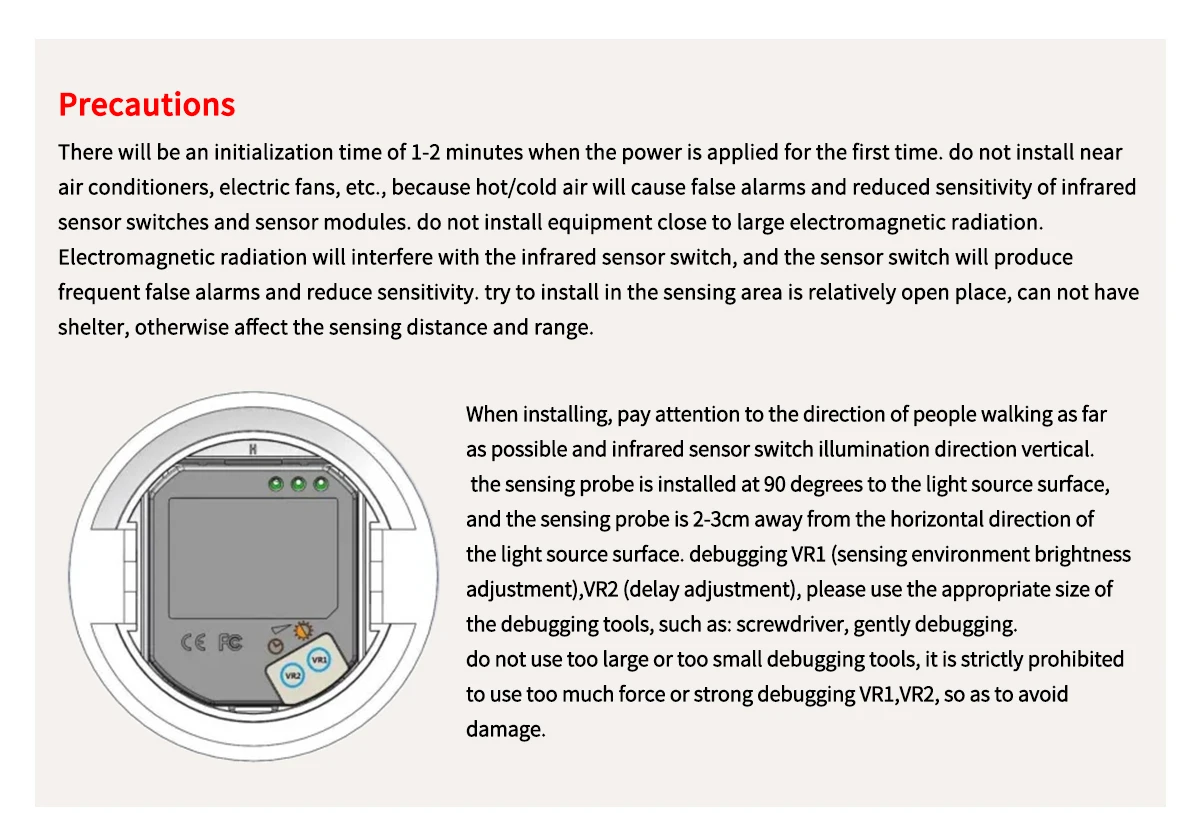

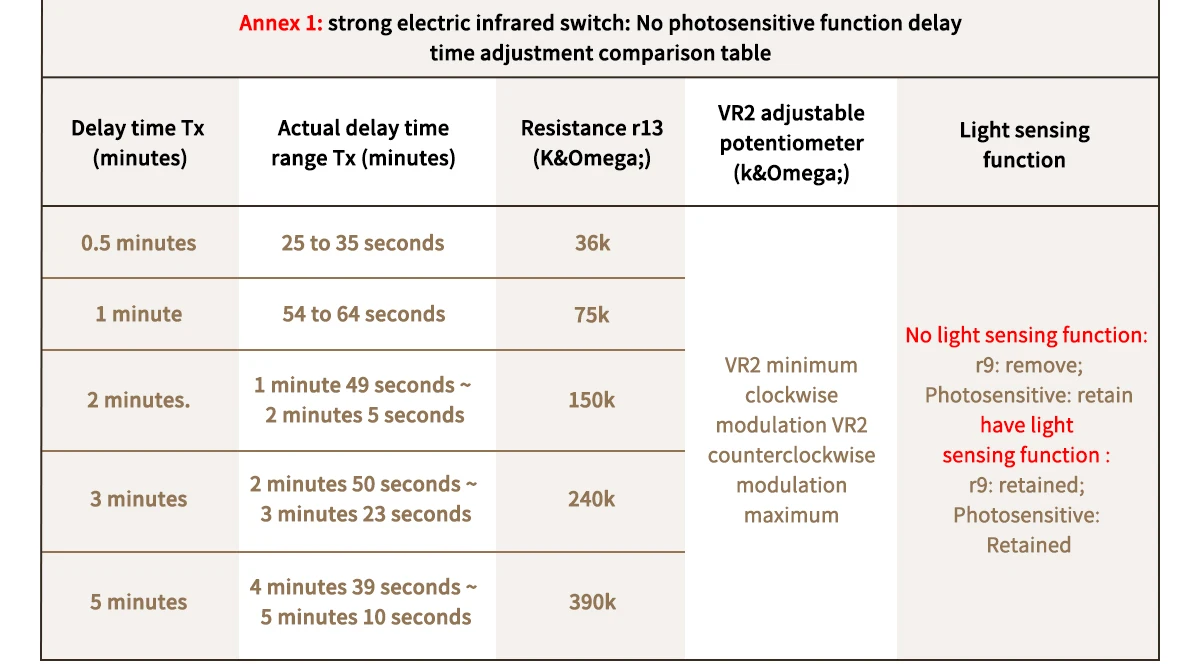

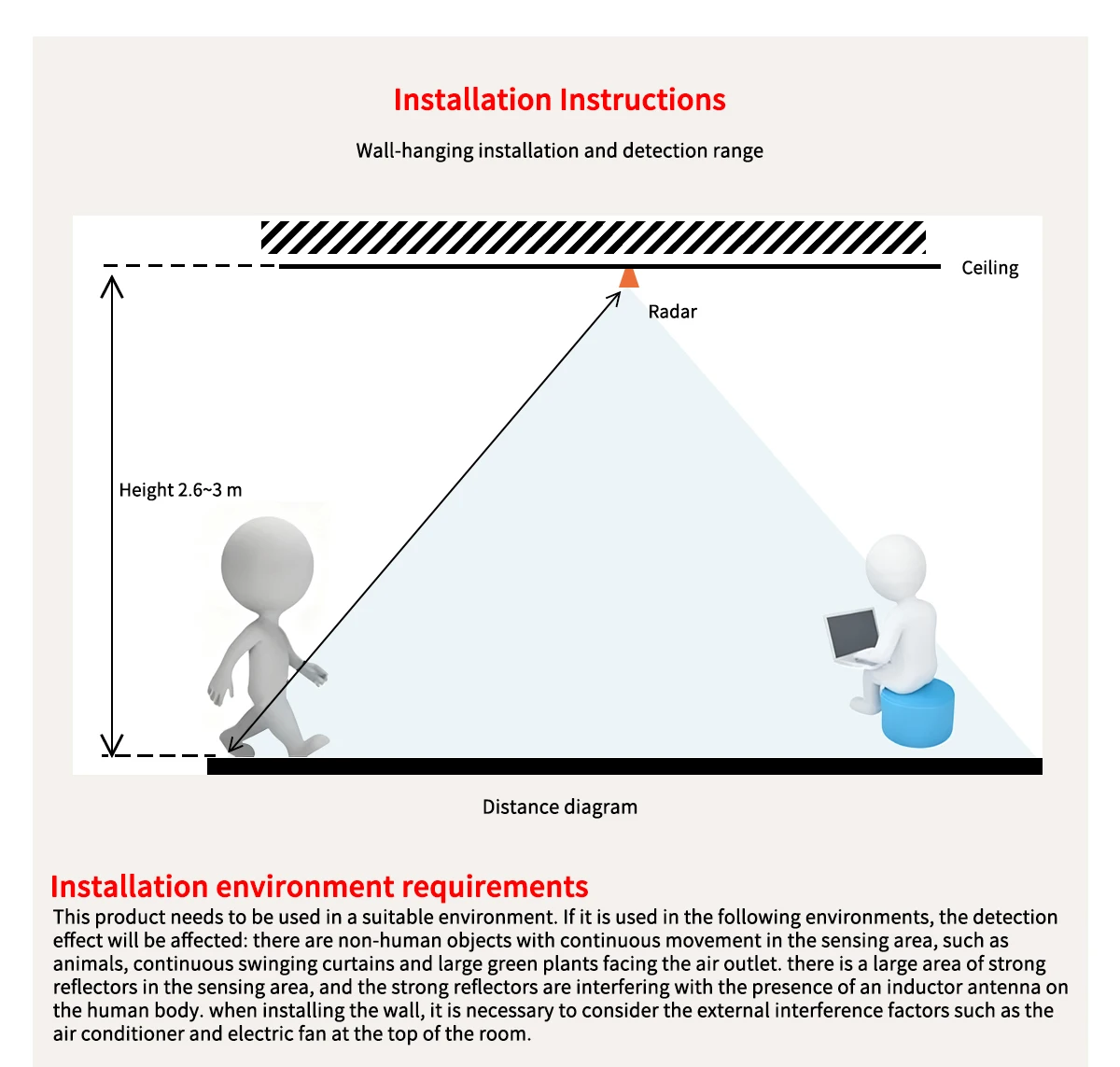

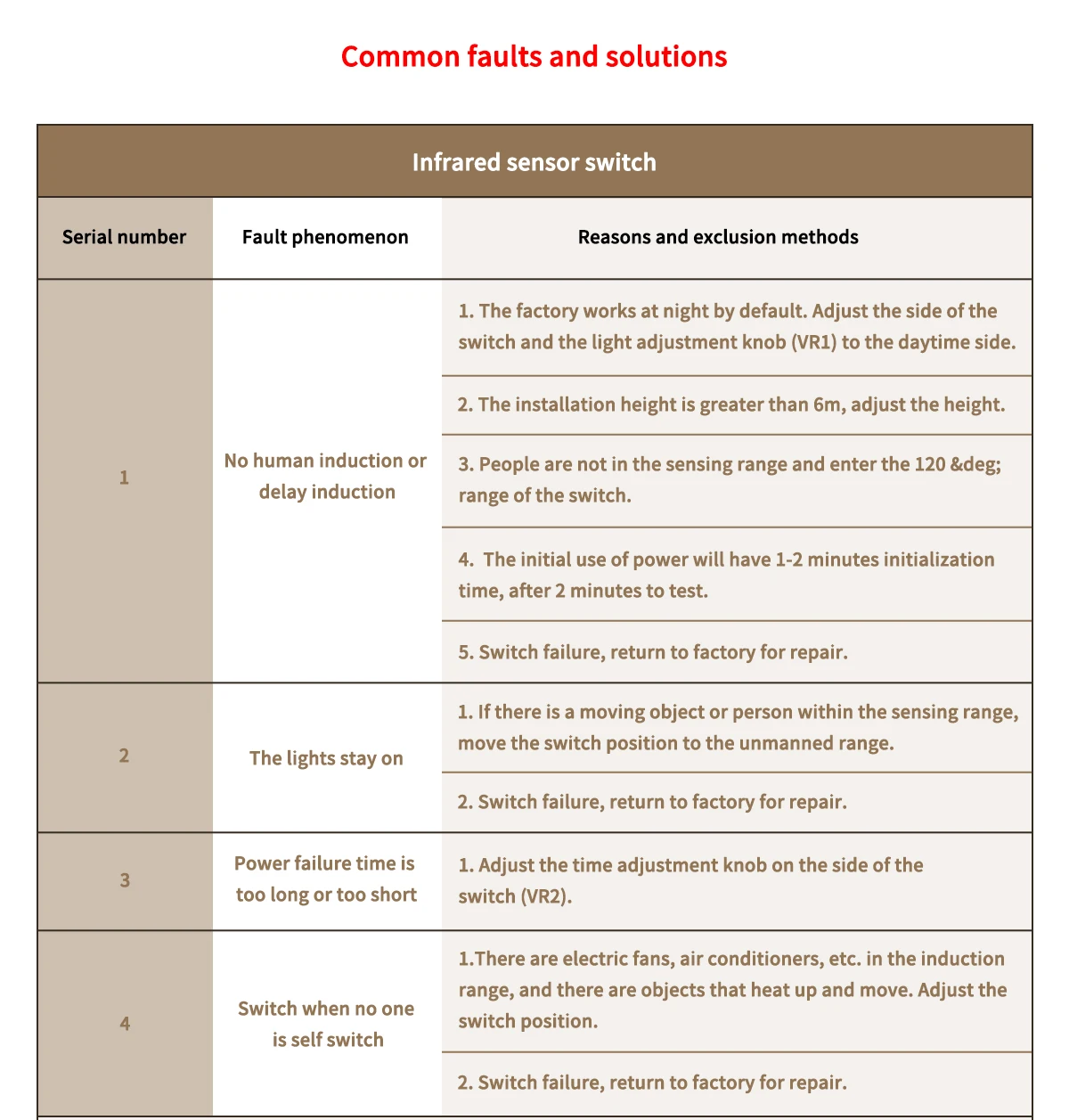

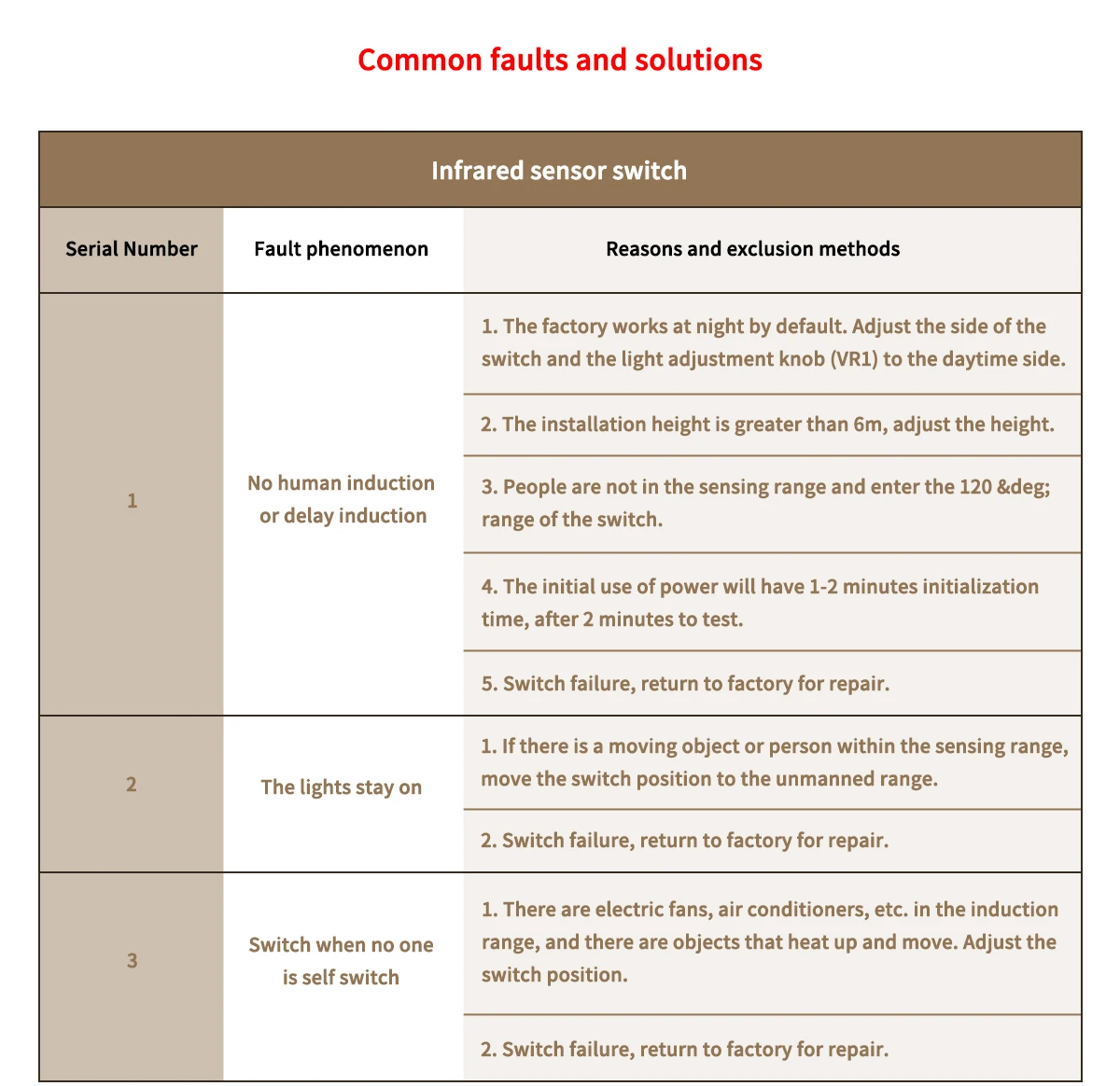

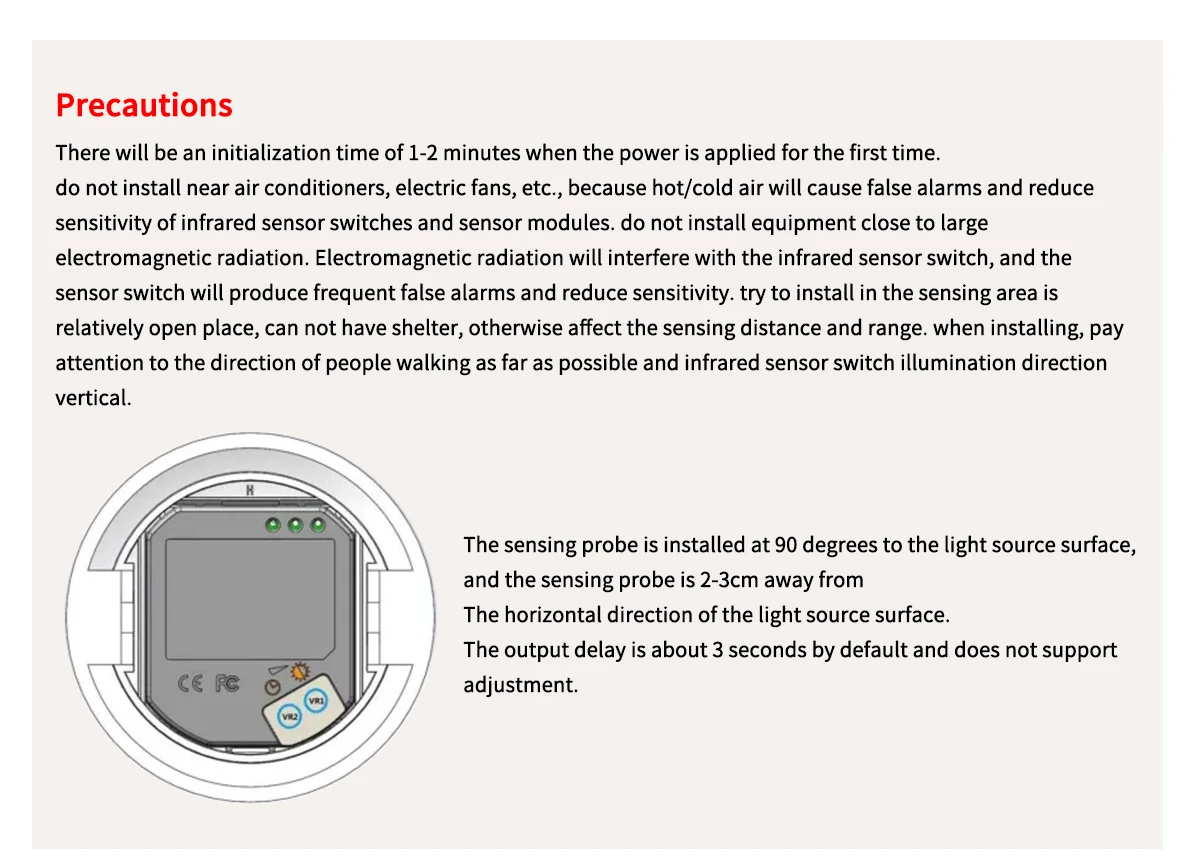

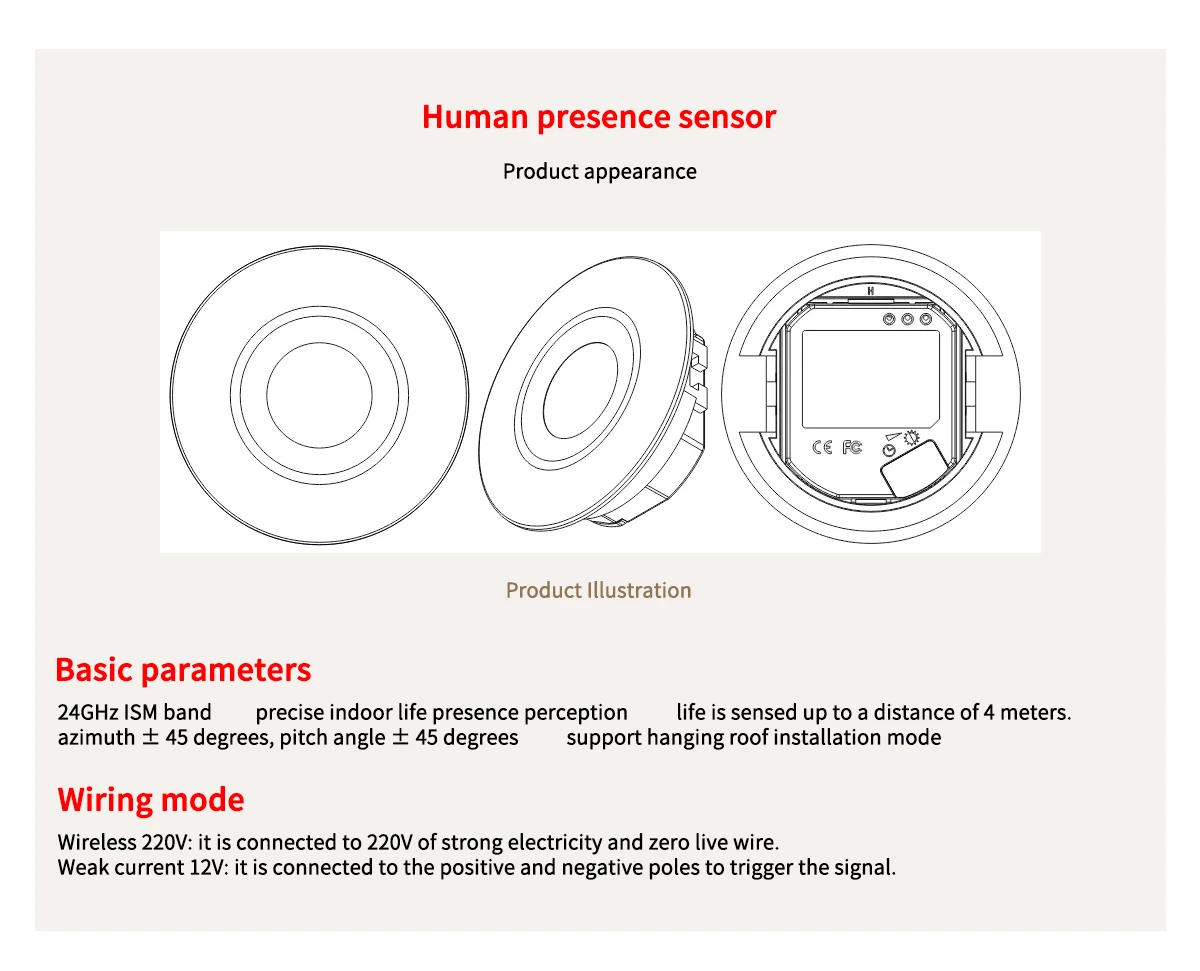

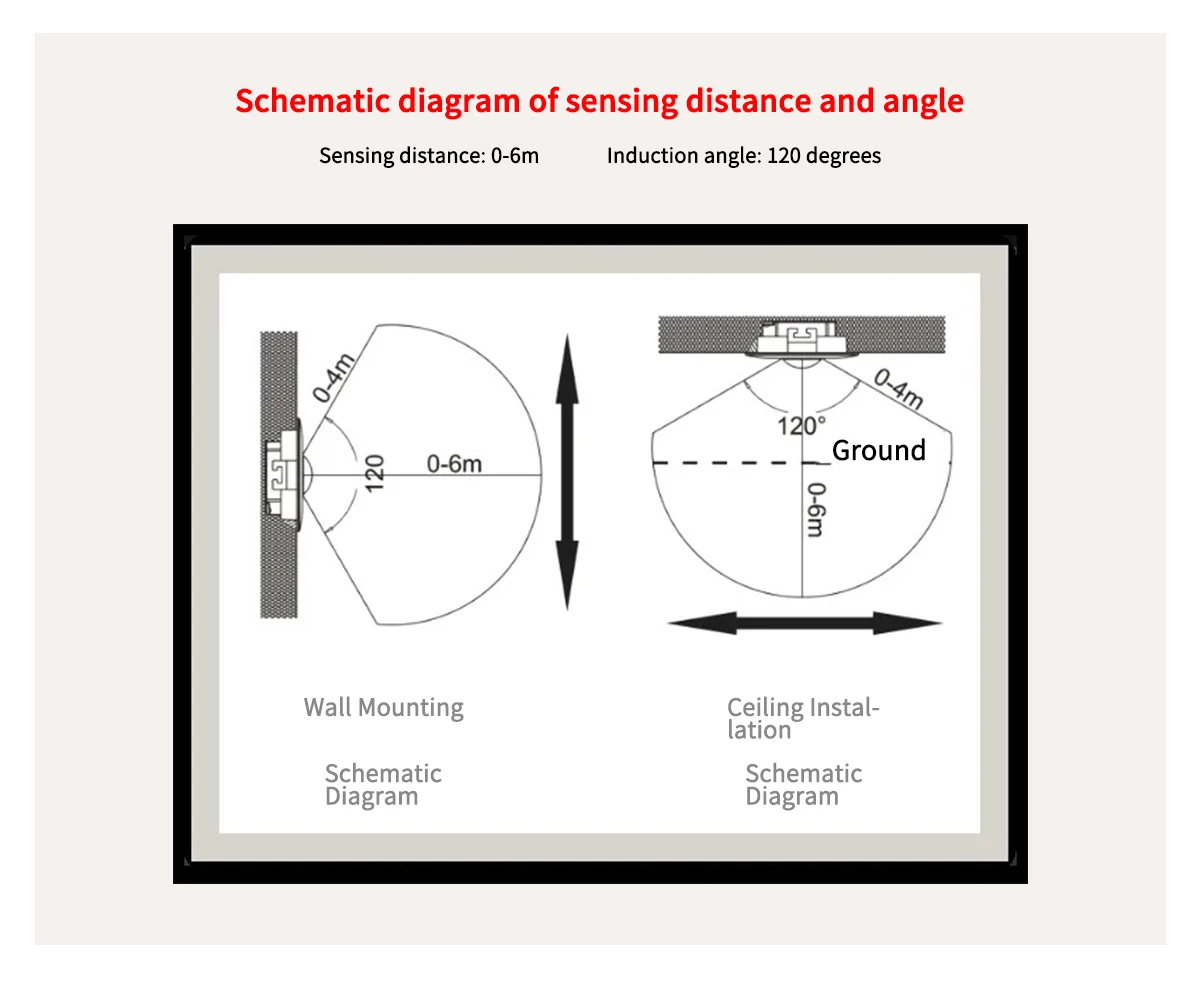

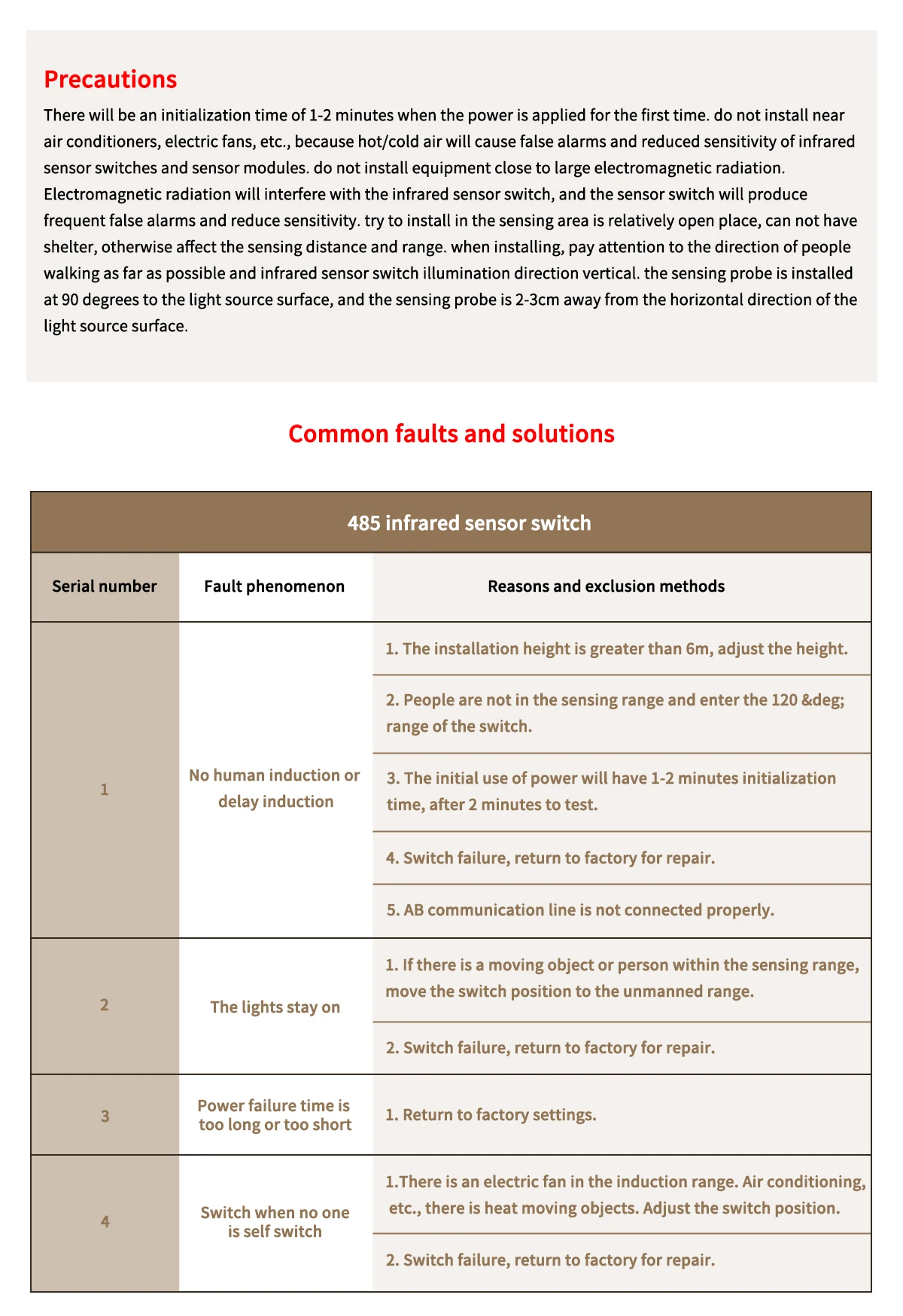

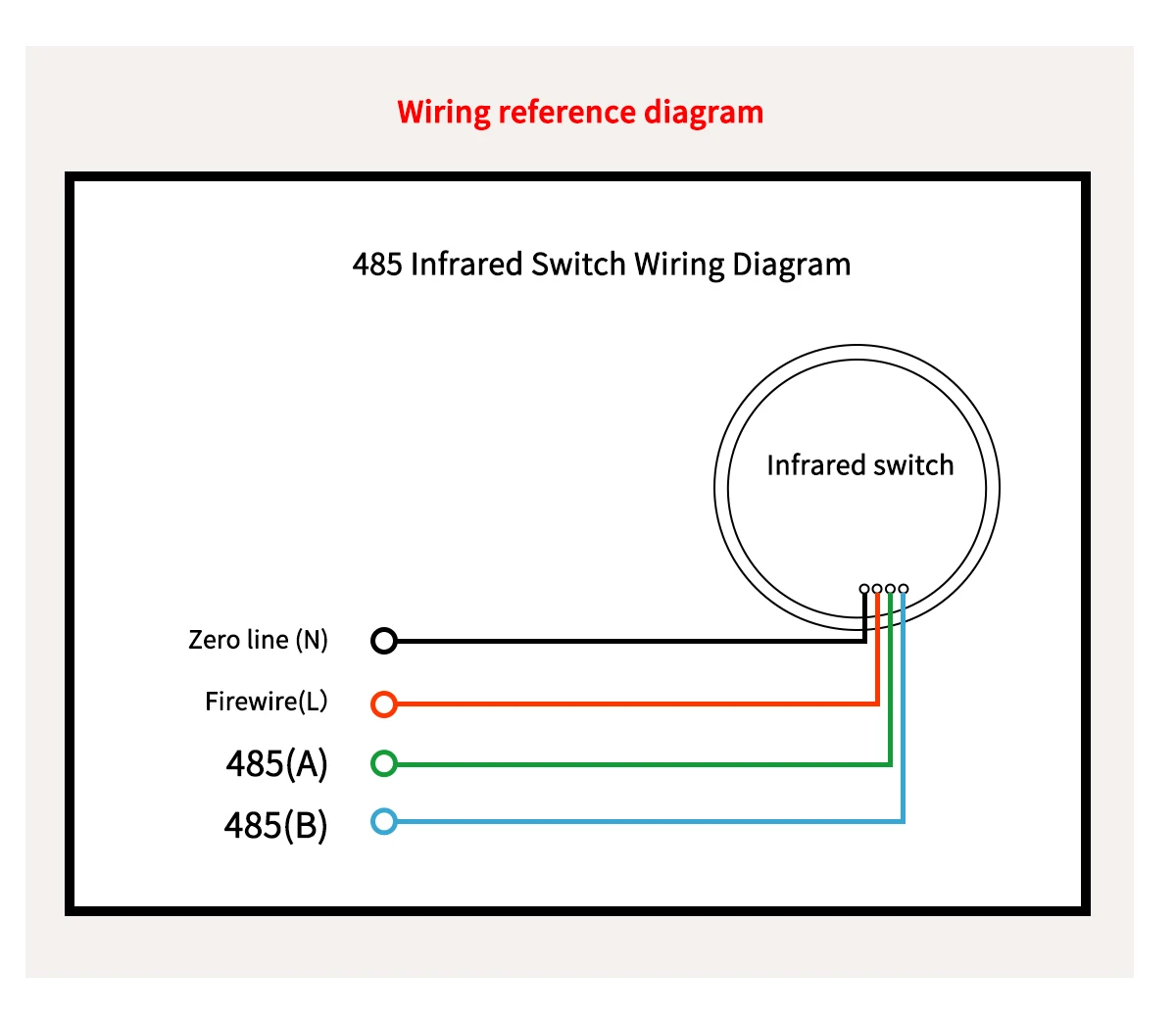

Infrared switch manual
Infrared Converter Manual

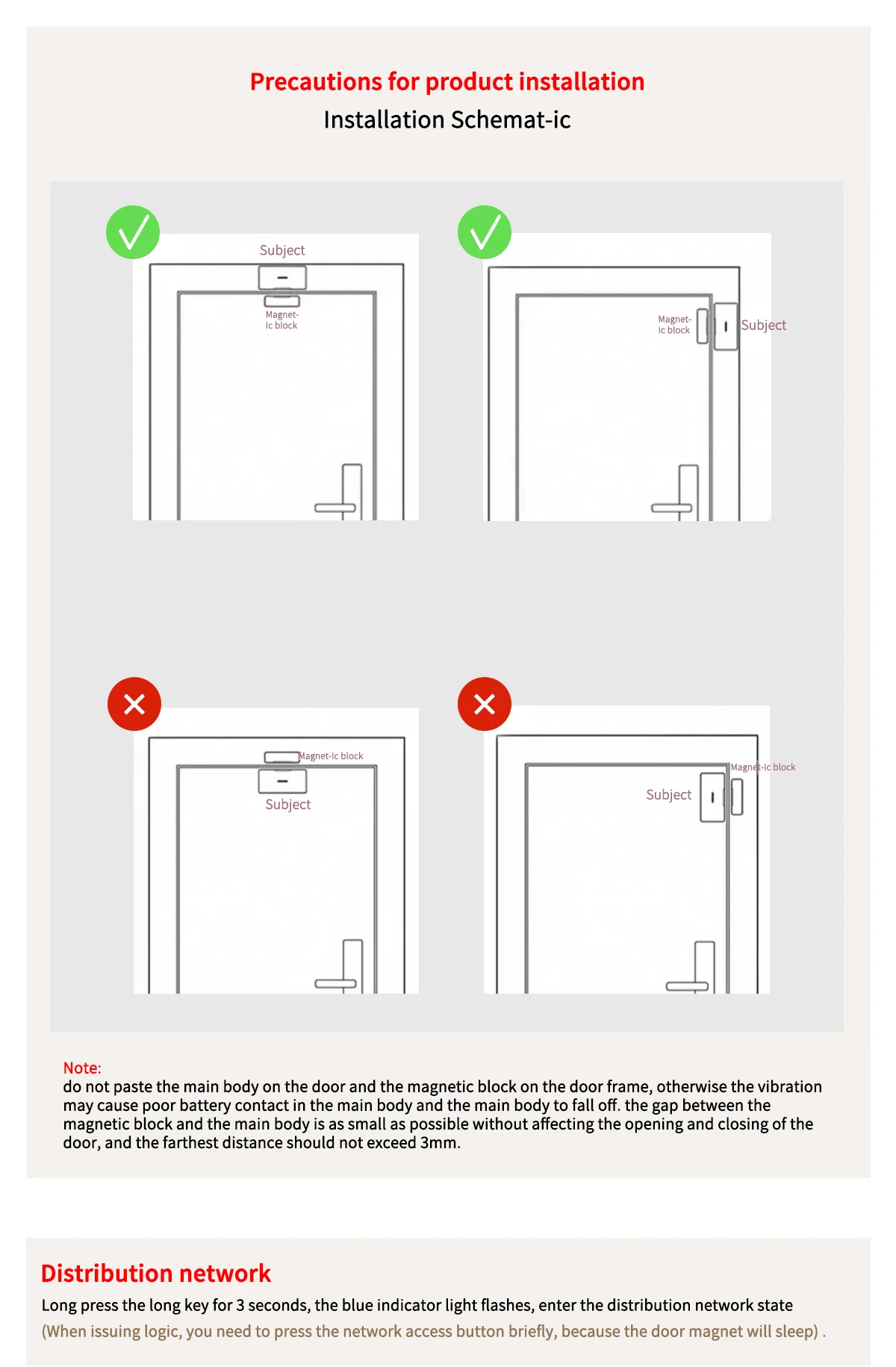

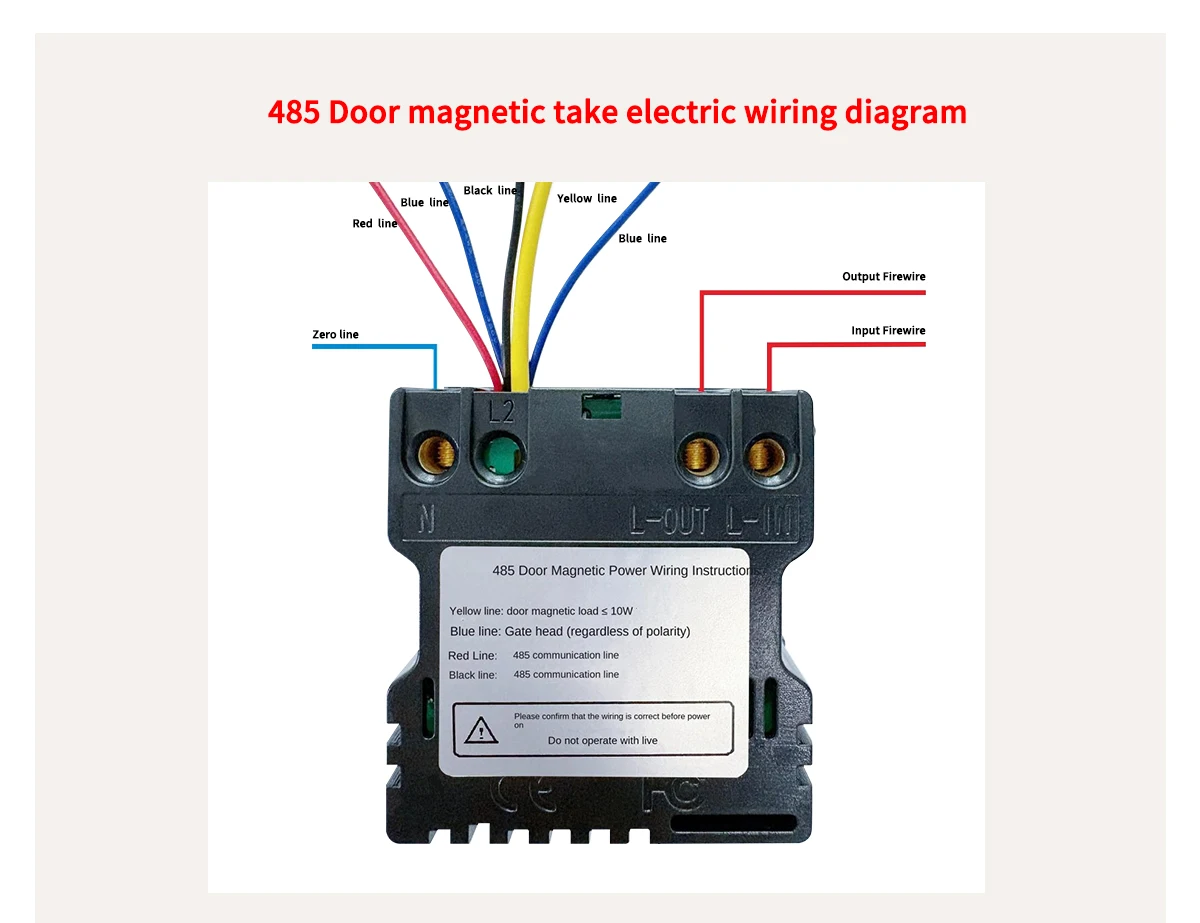

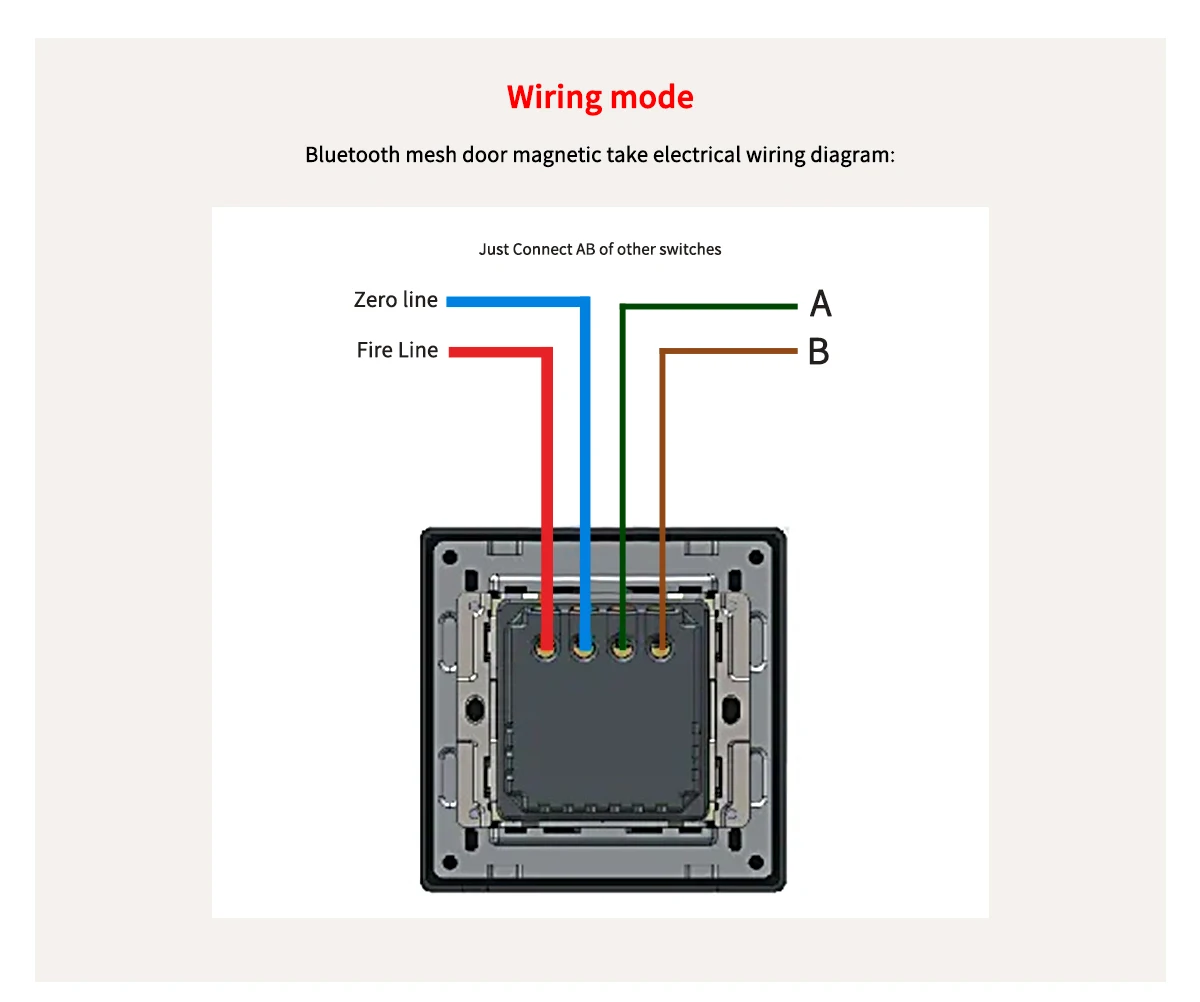

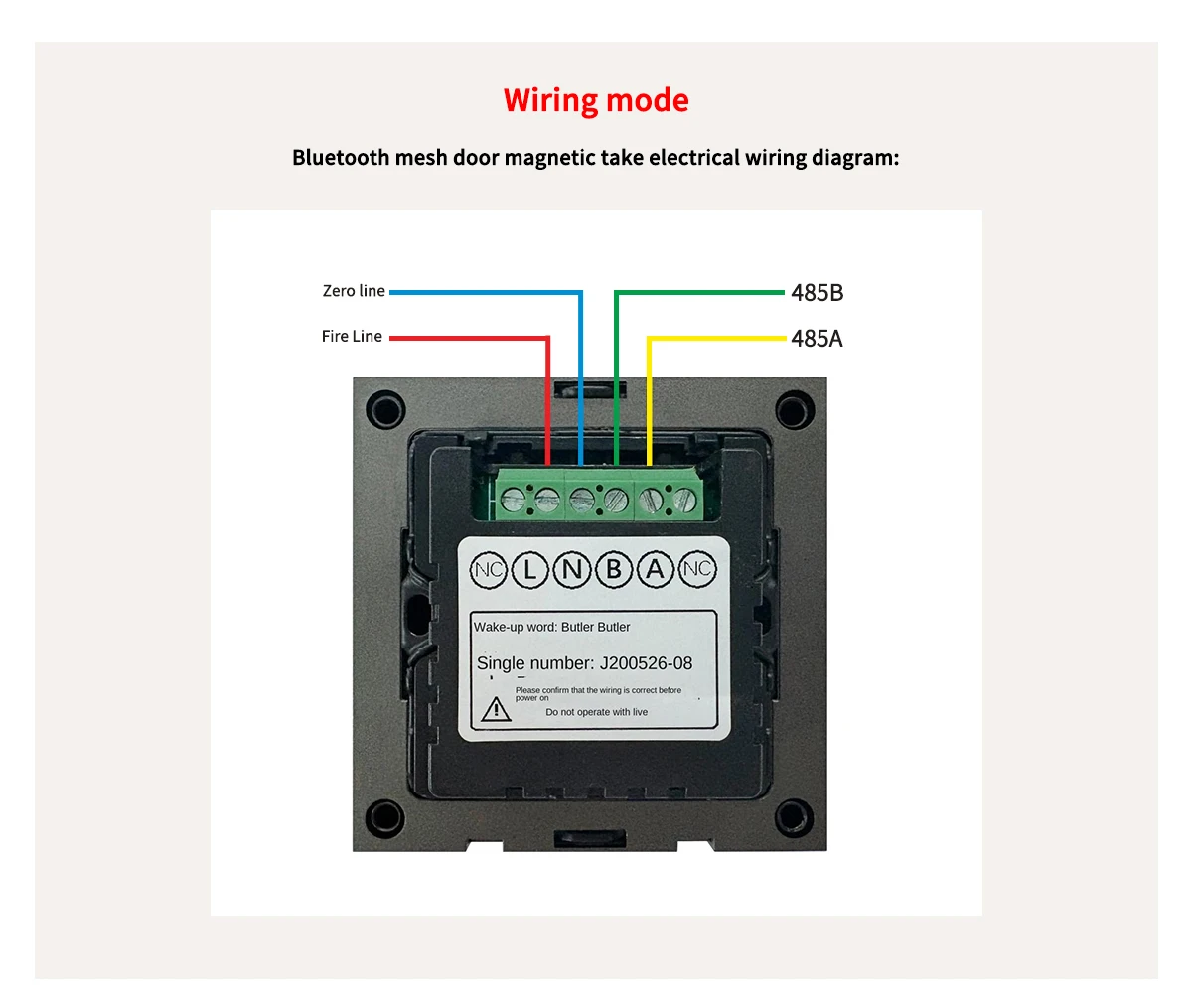

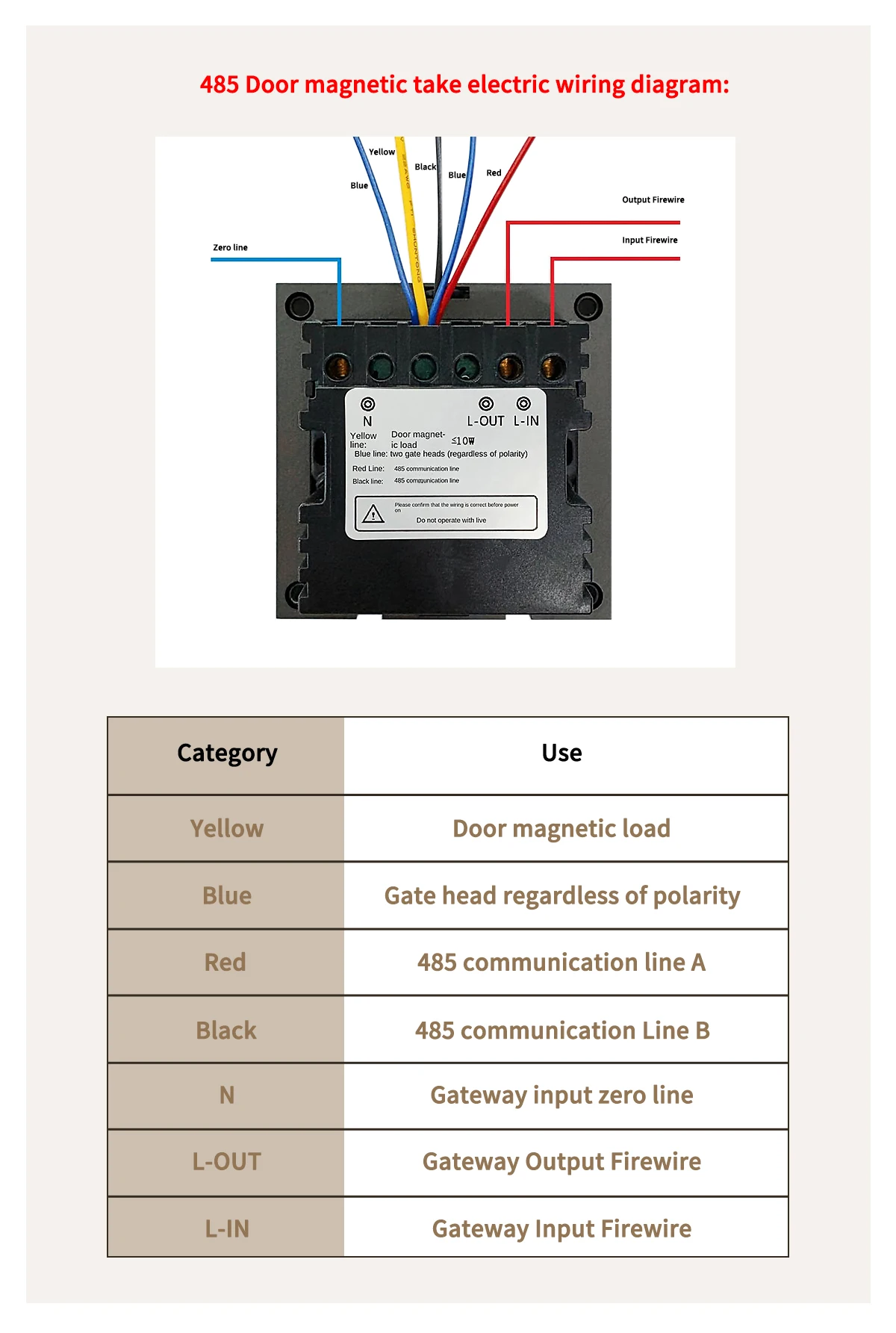

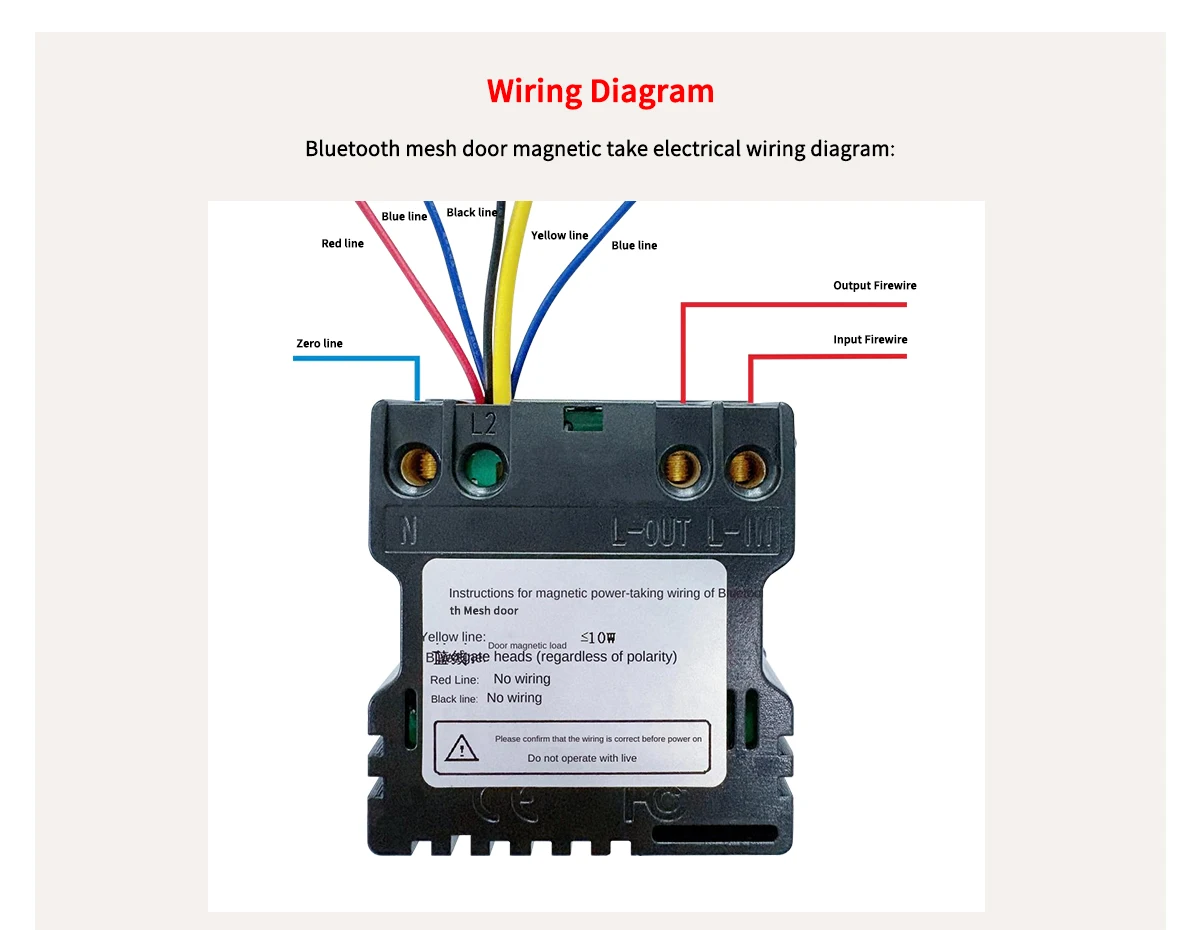

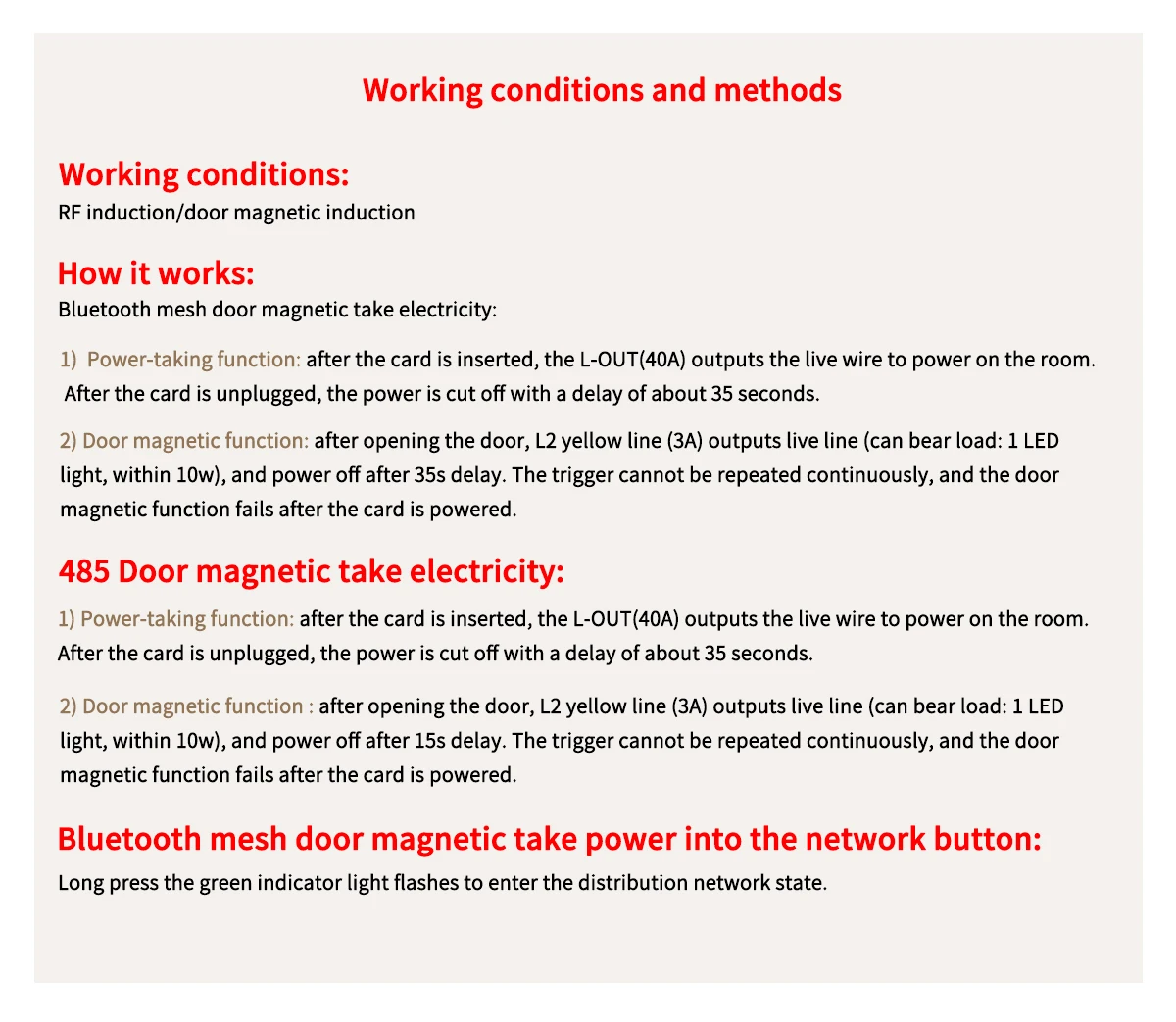

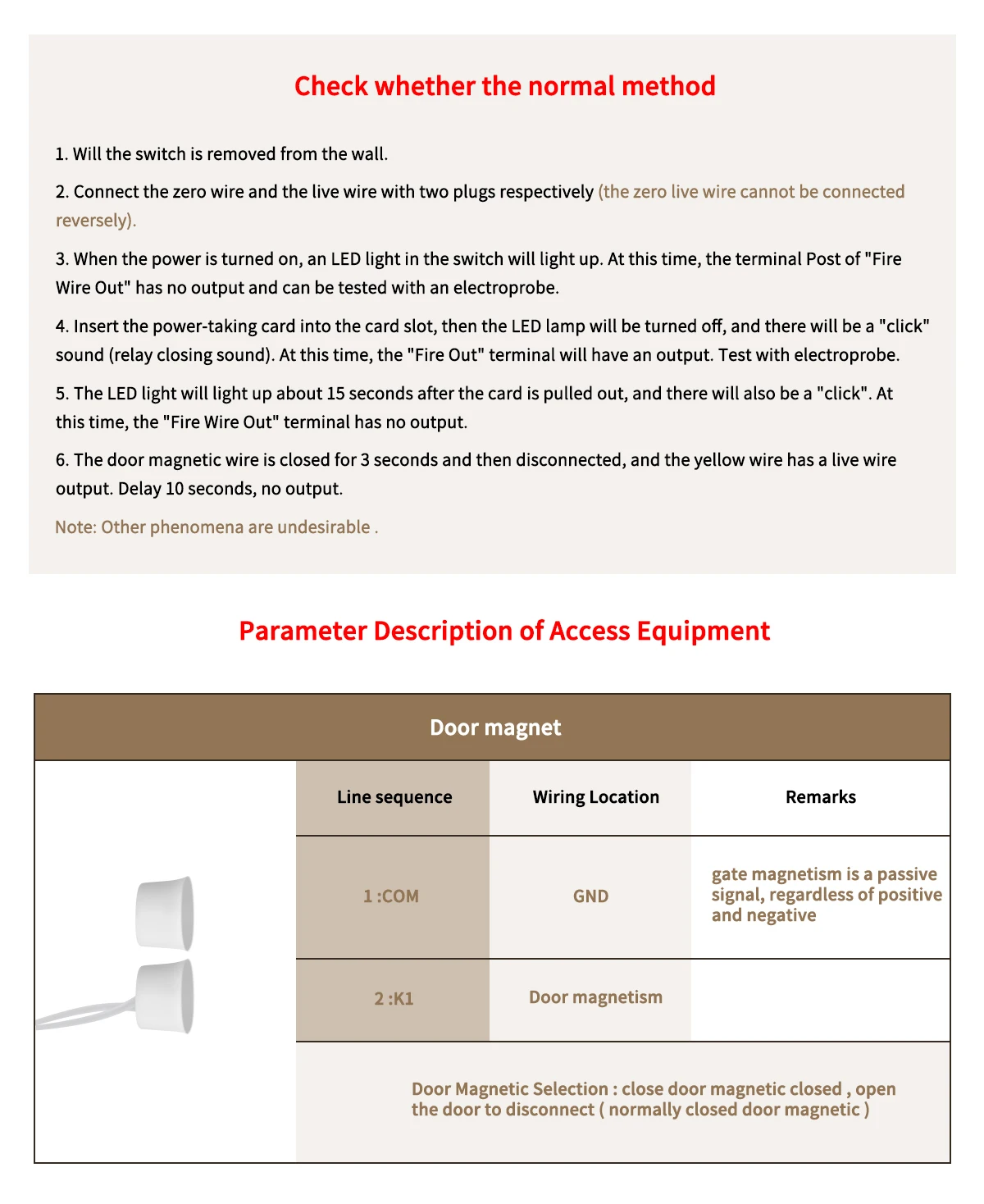

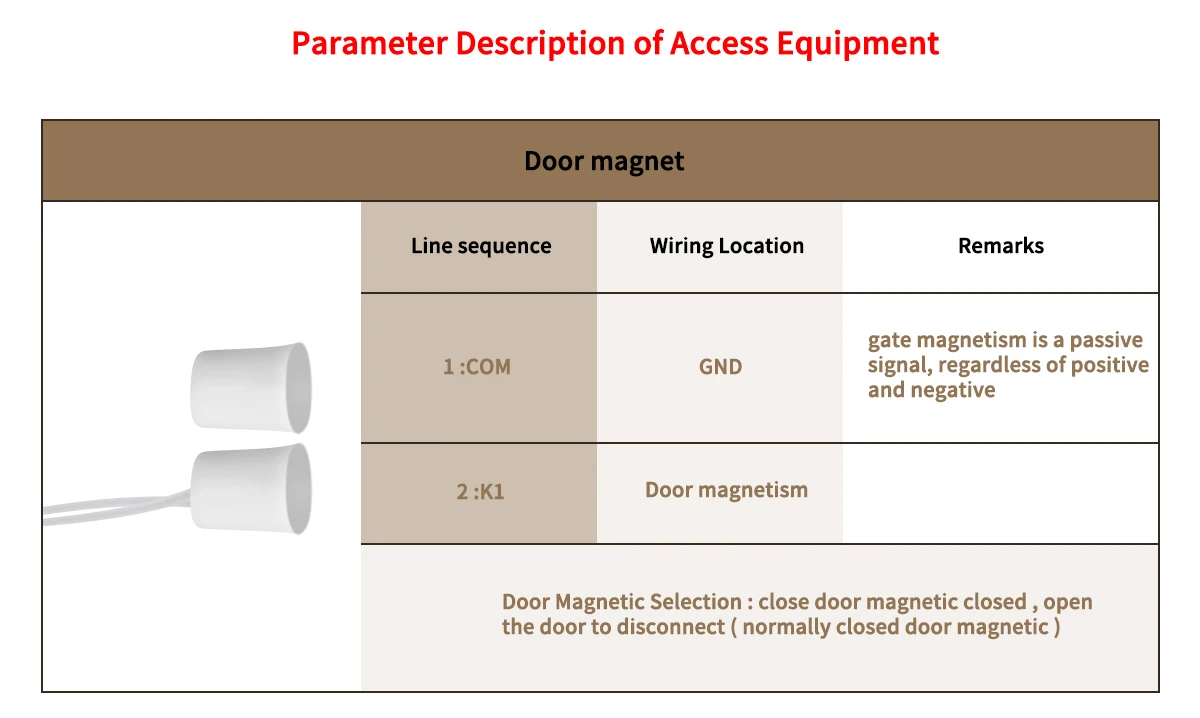

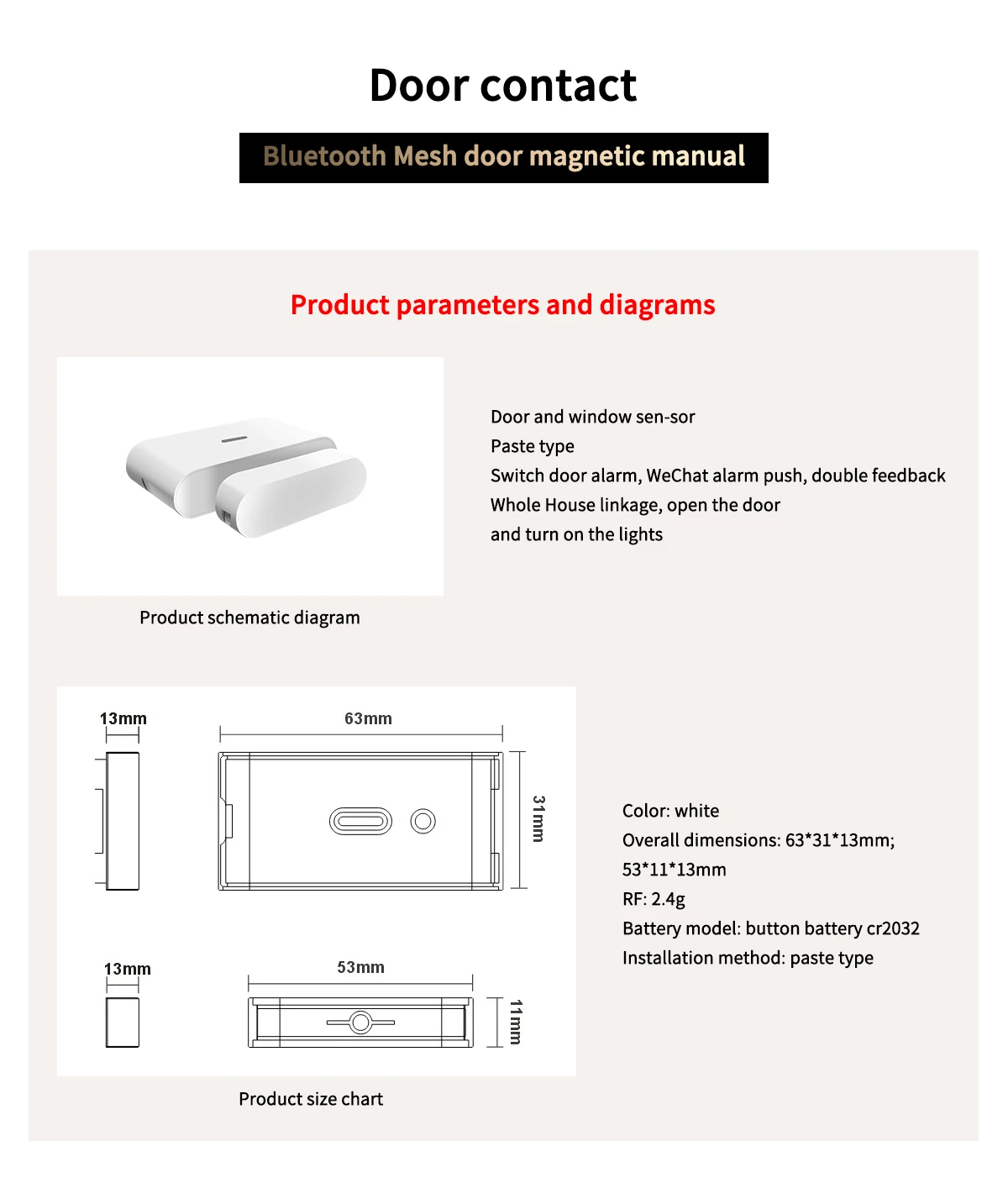

Door Magnetic Switch Manual

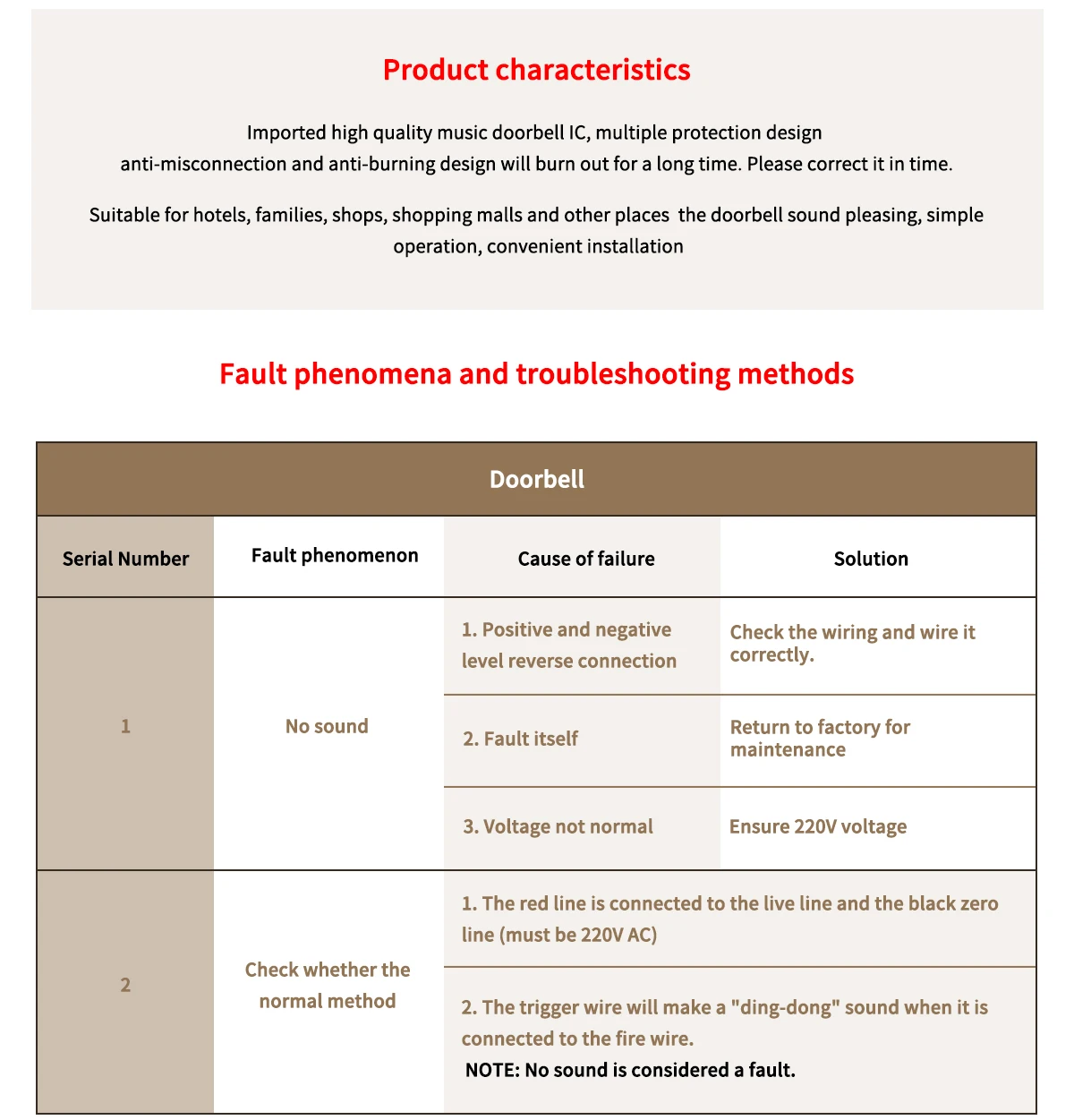

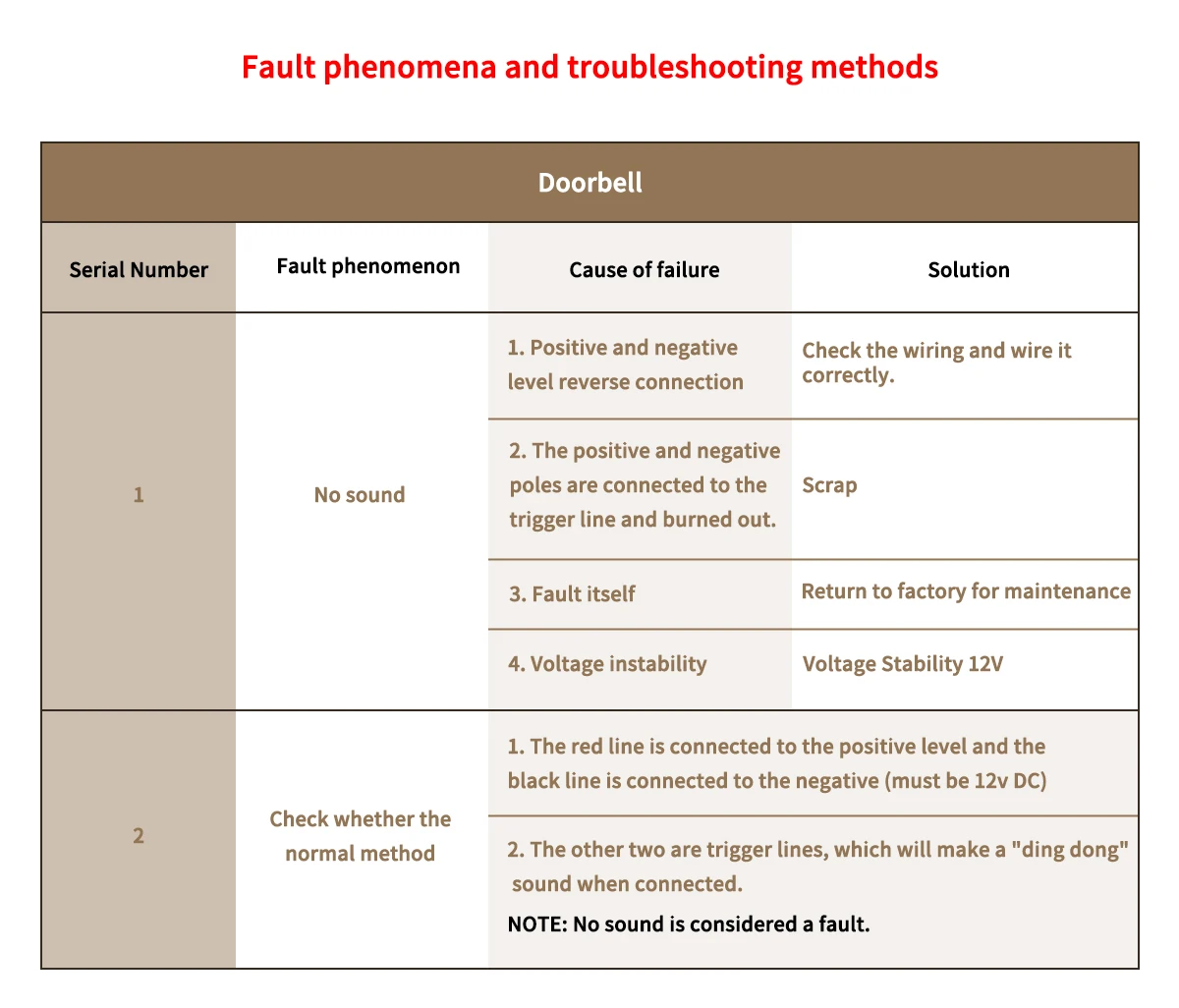

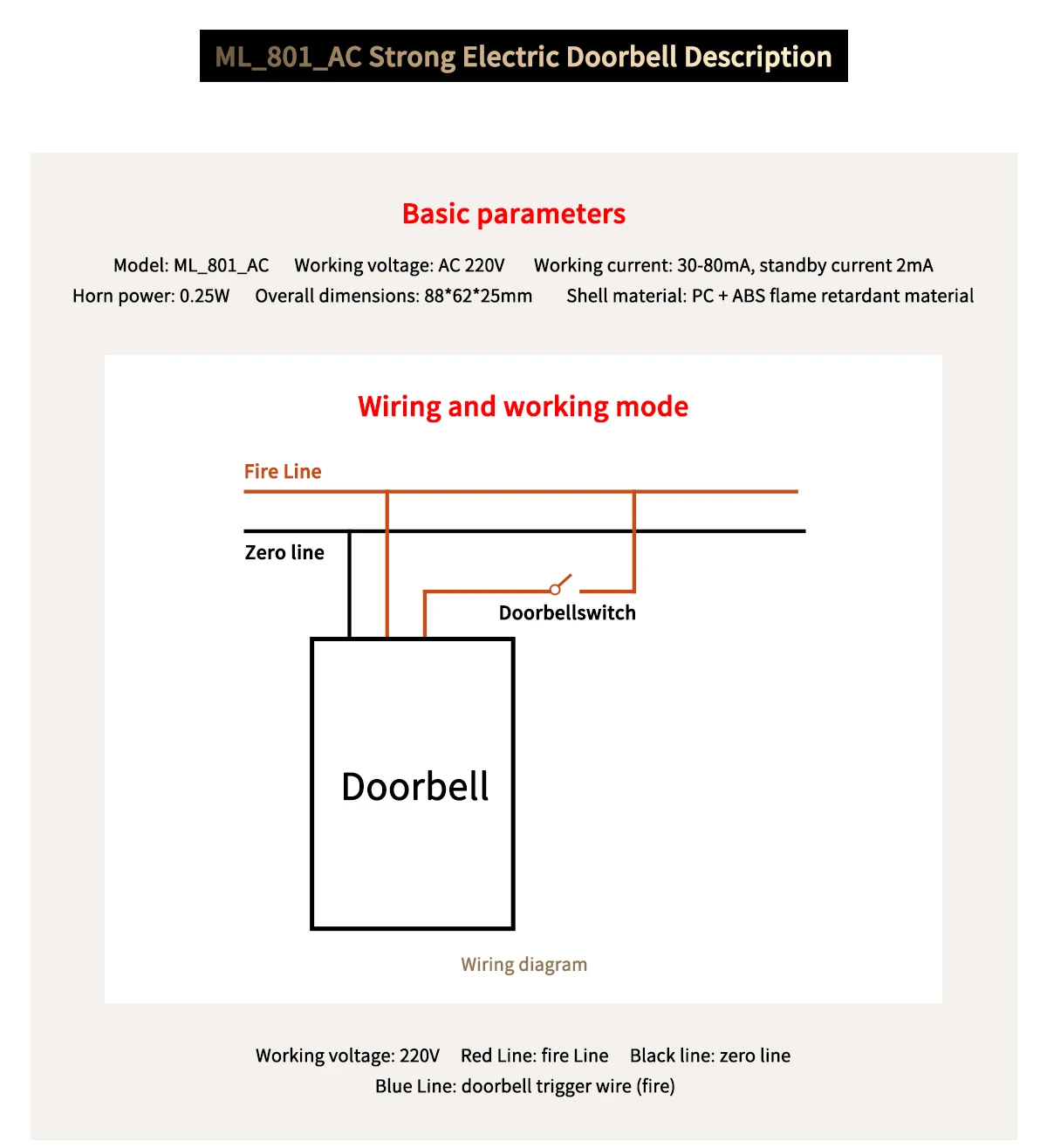

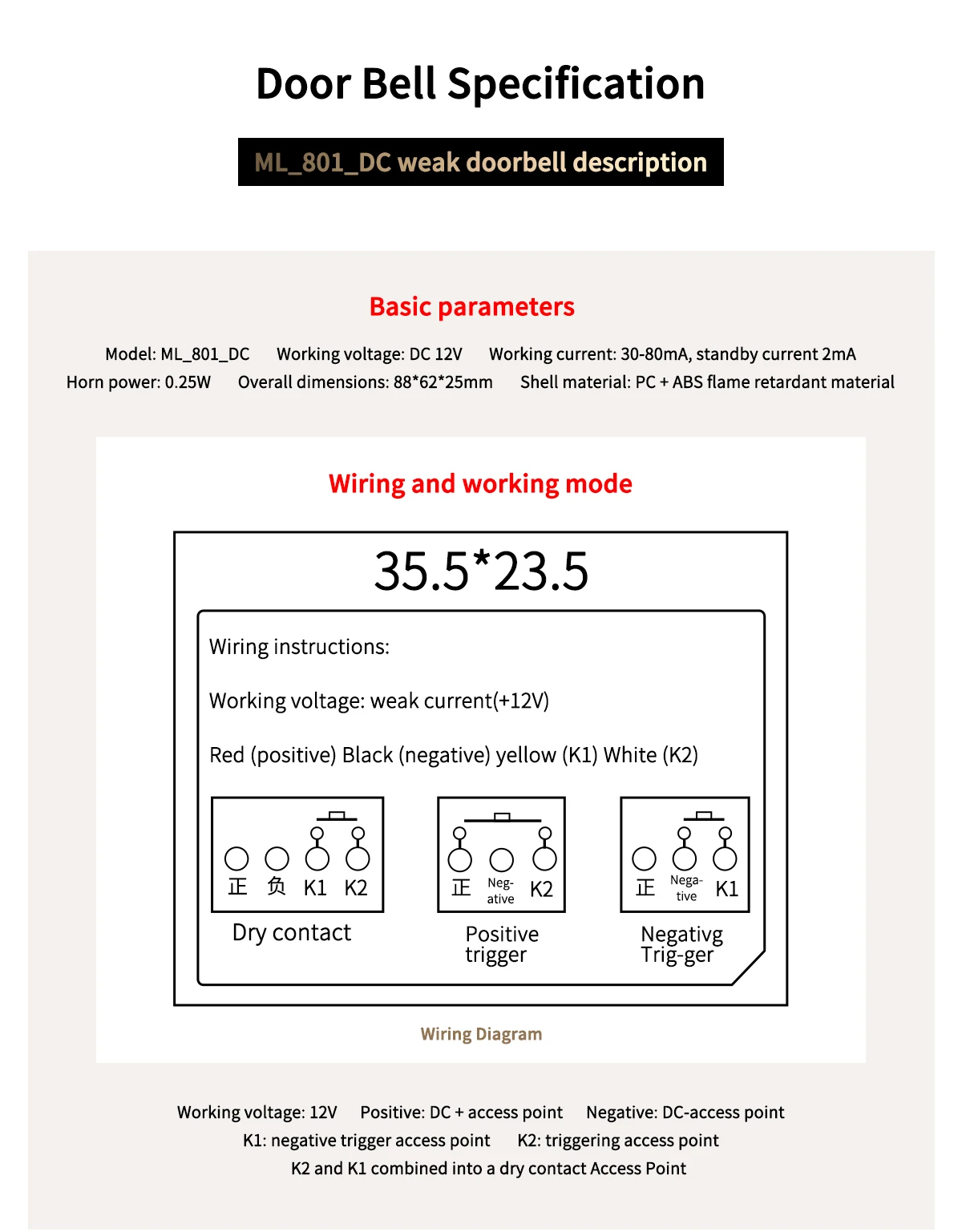

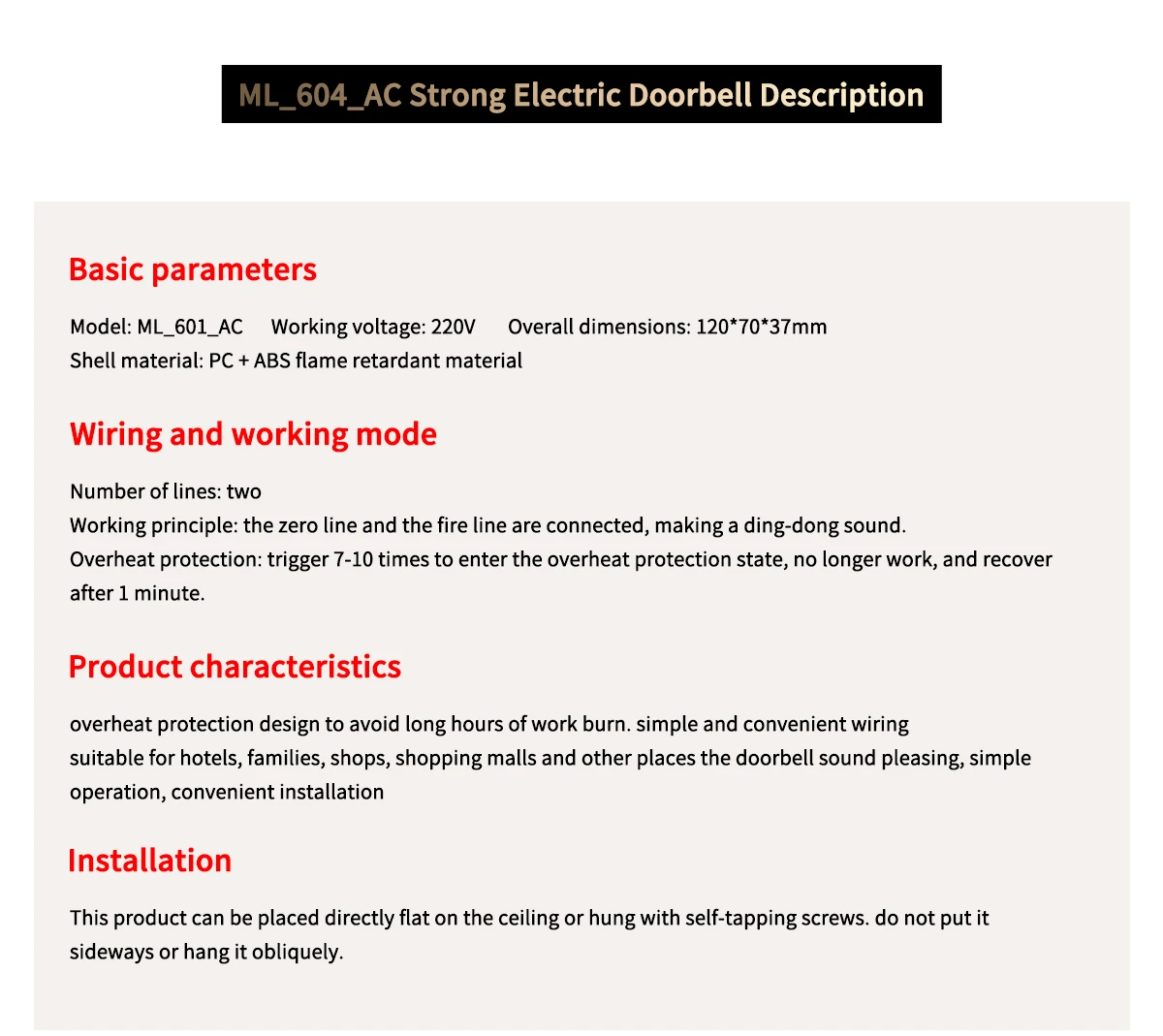

Doorbell manual

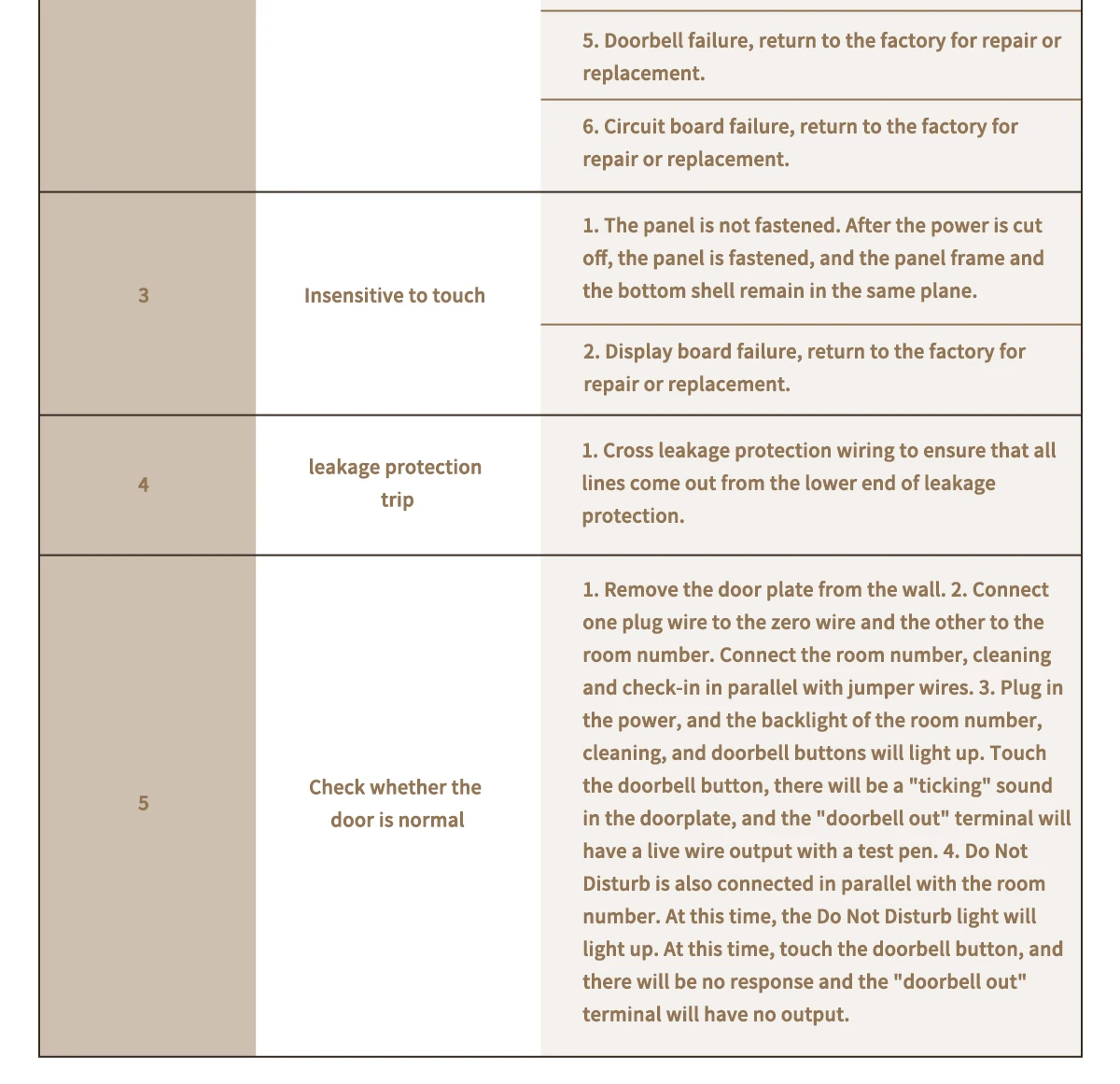

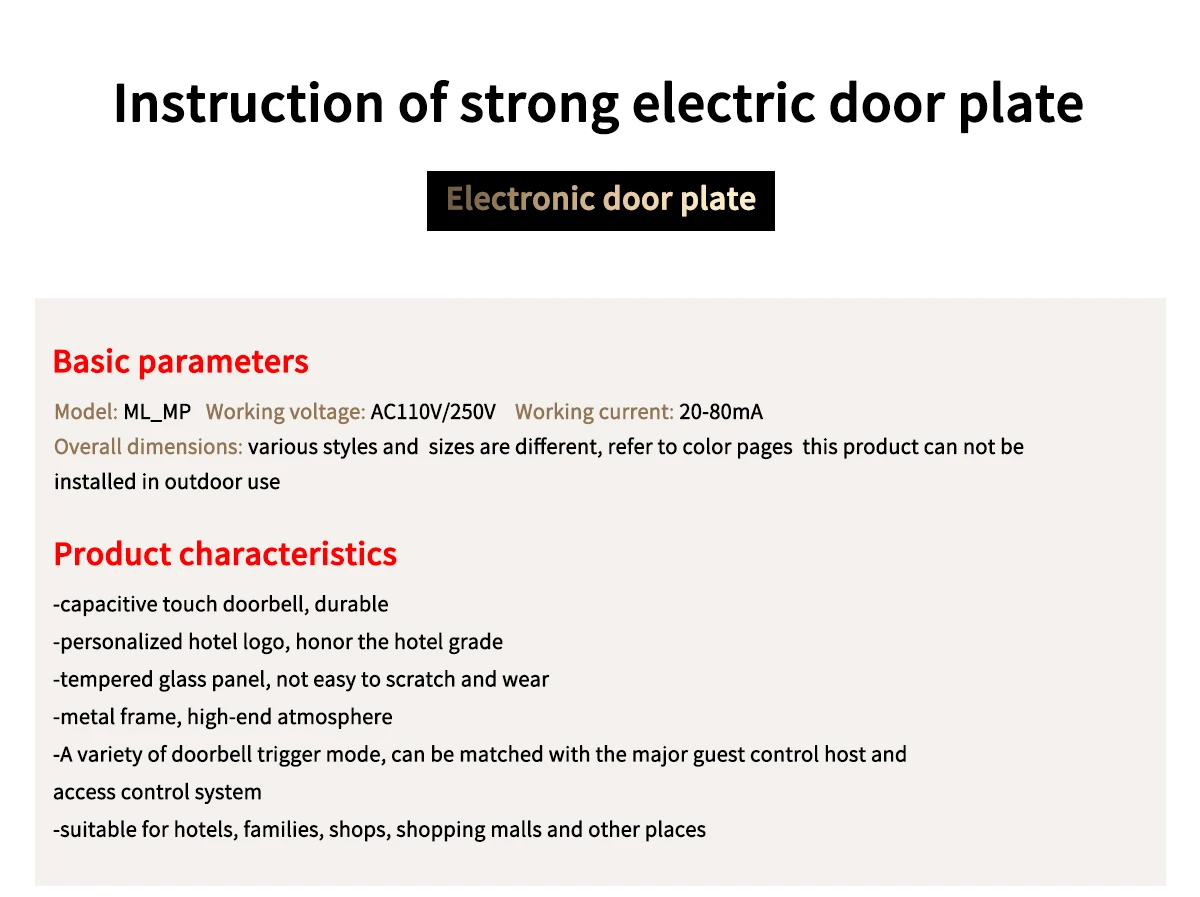

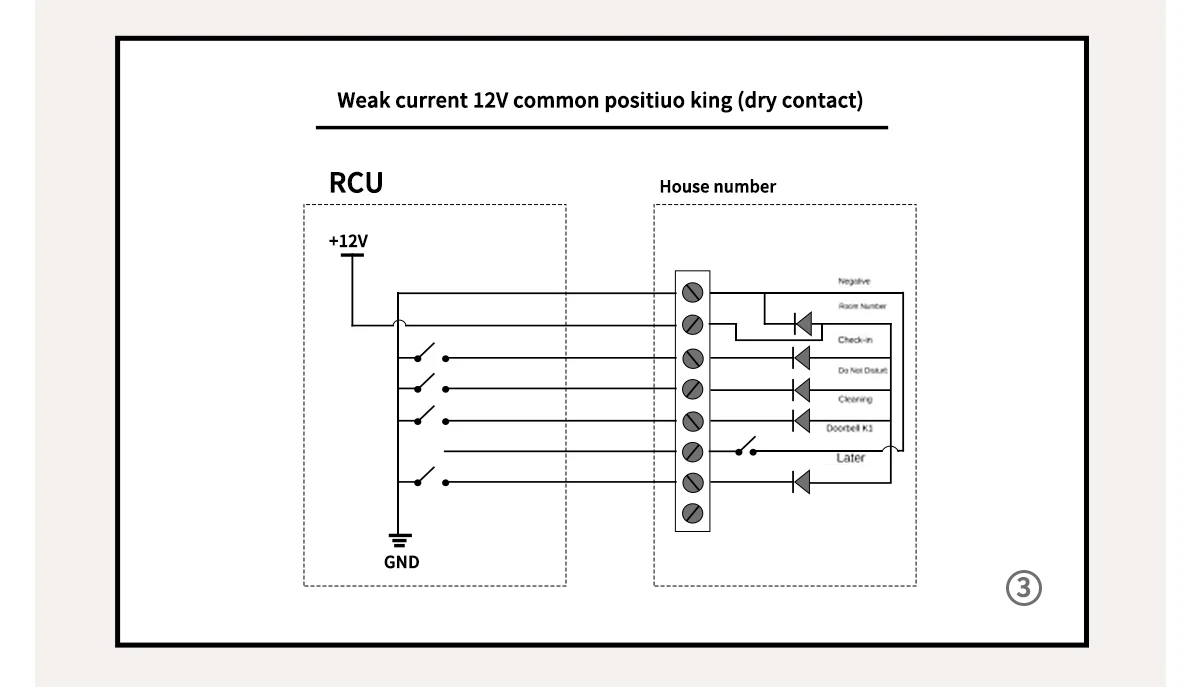

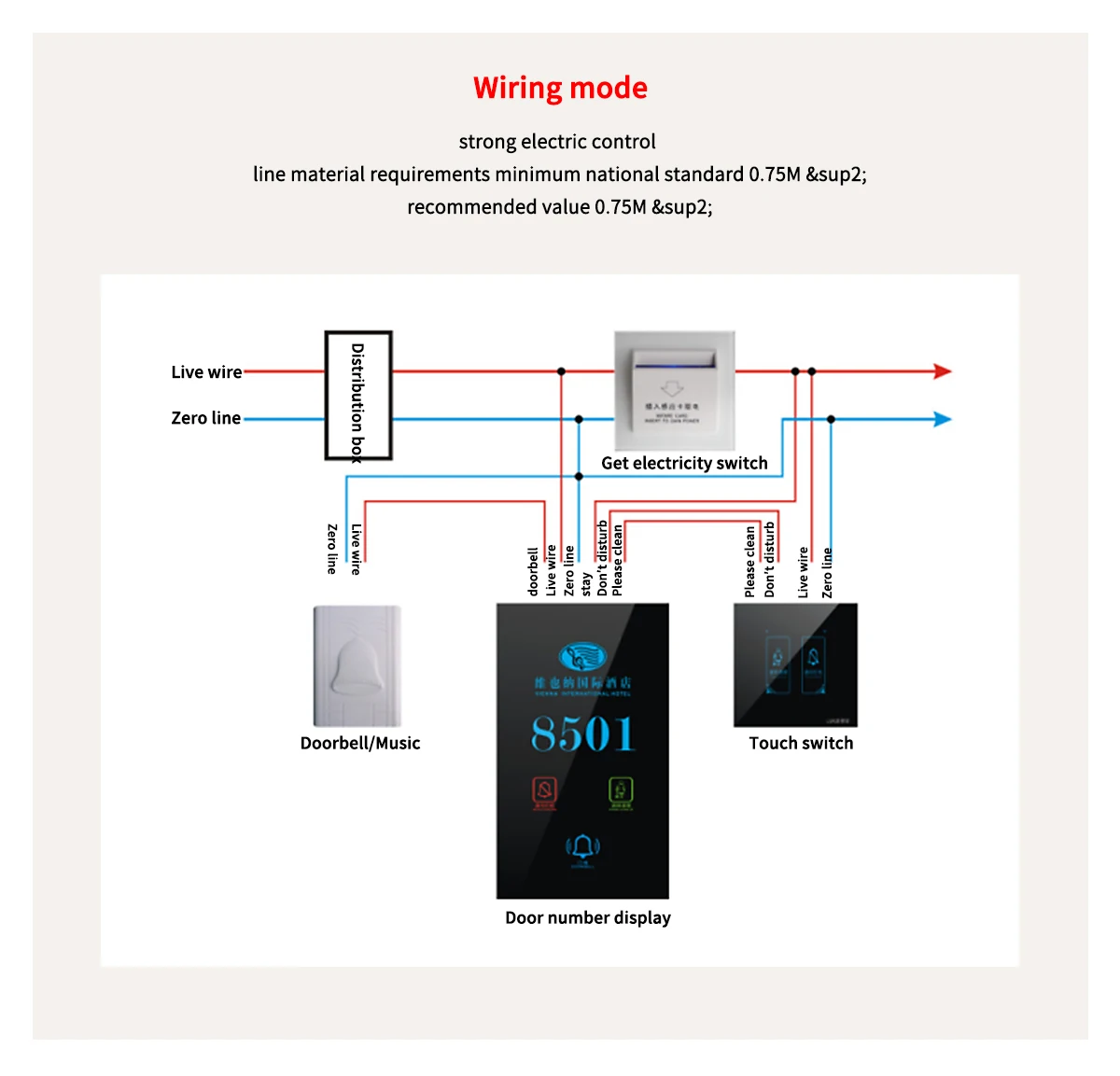

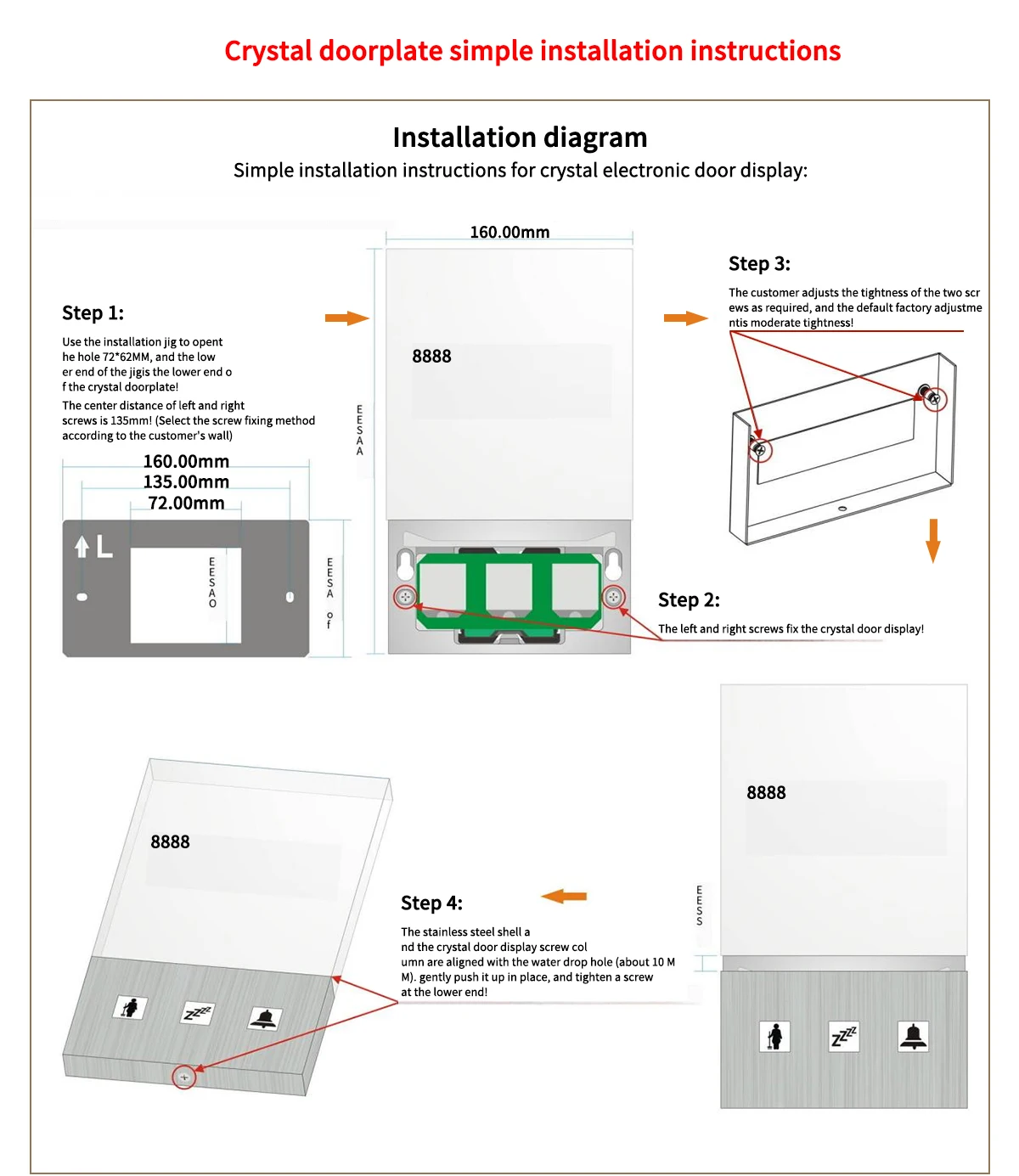

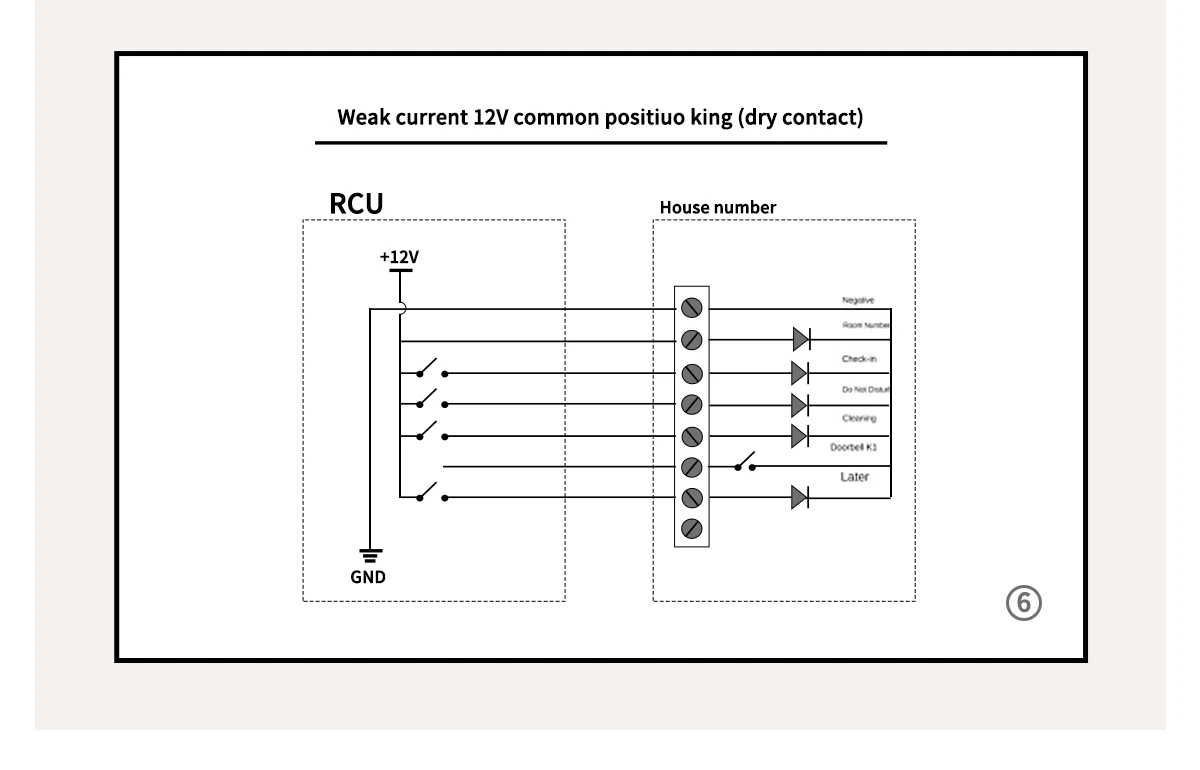

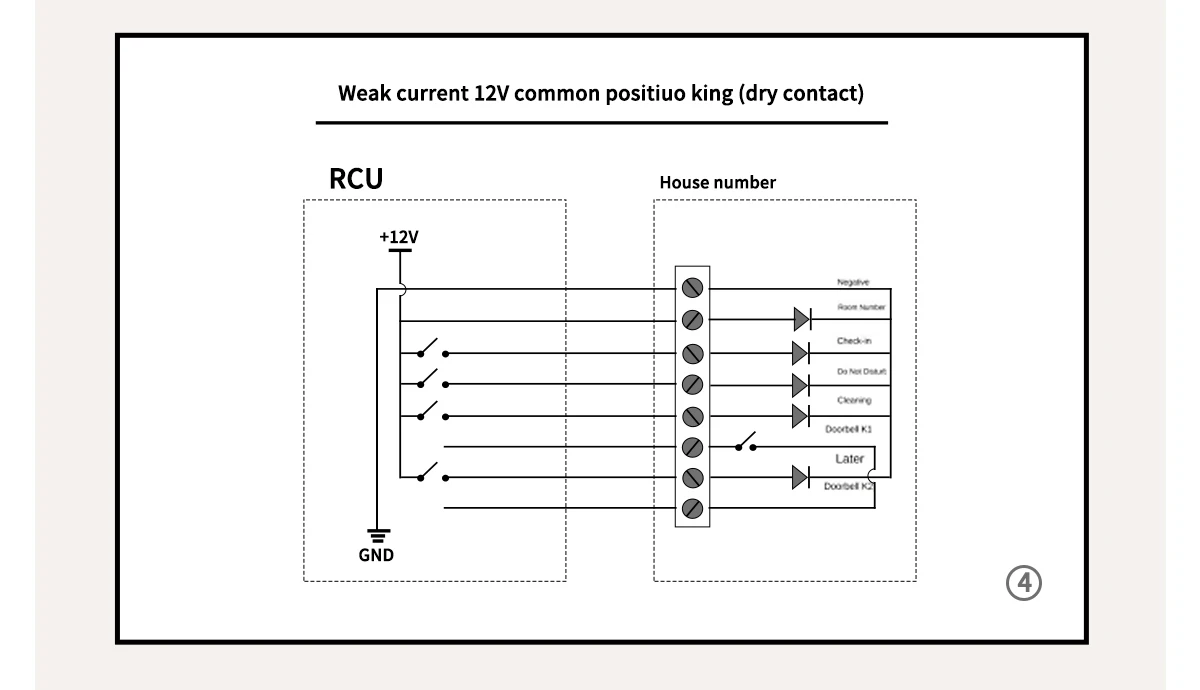

House number manual

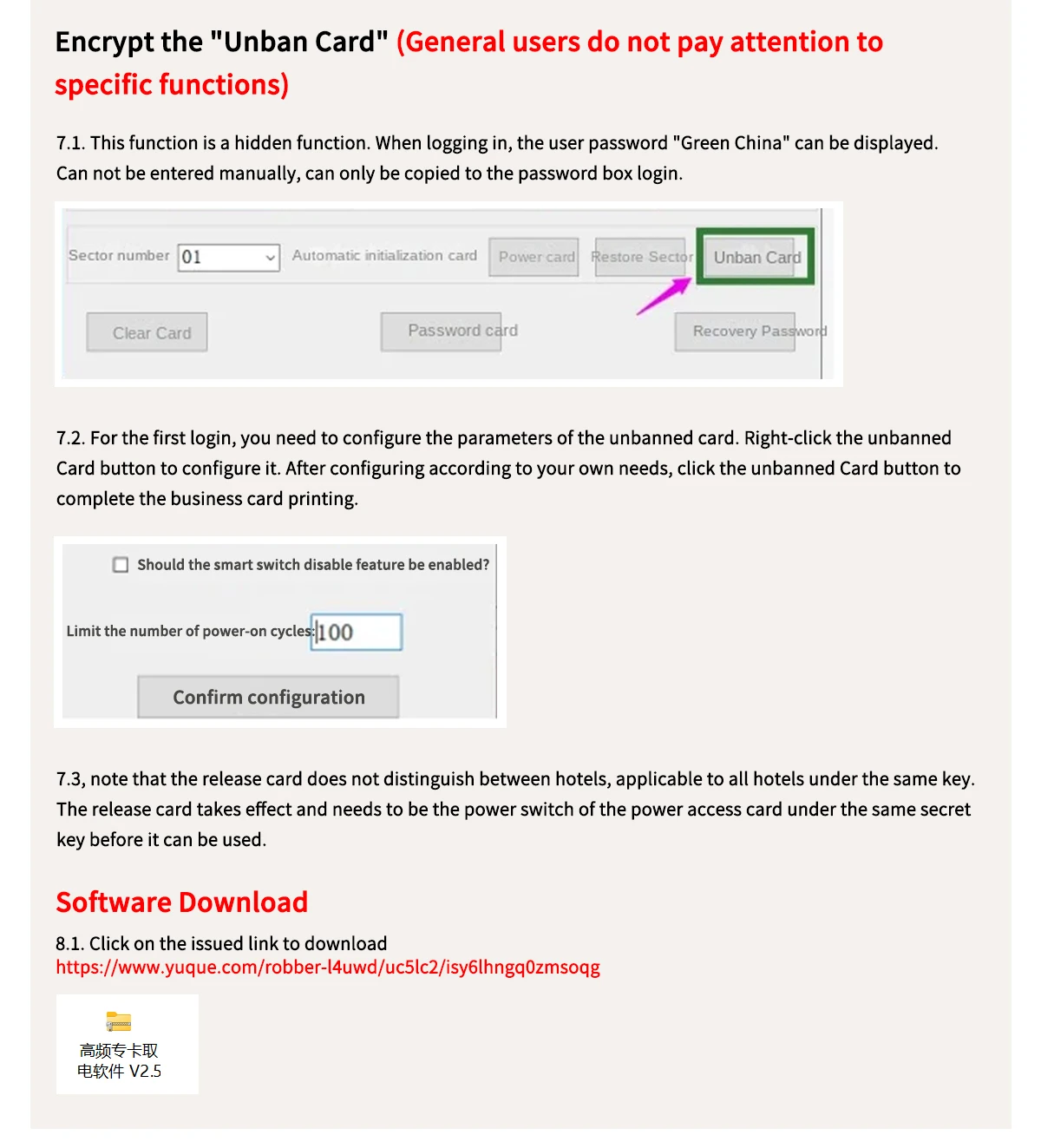

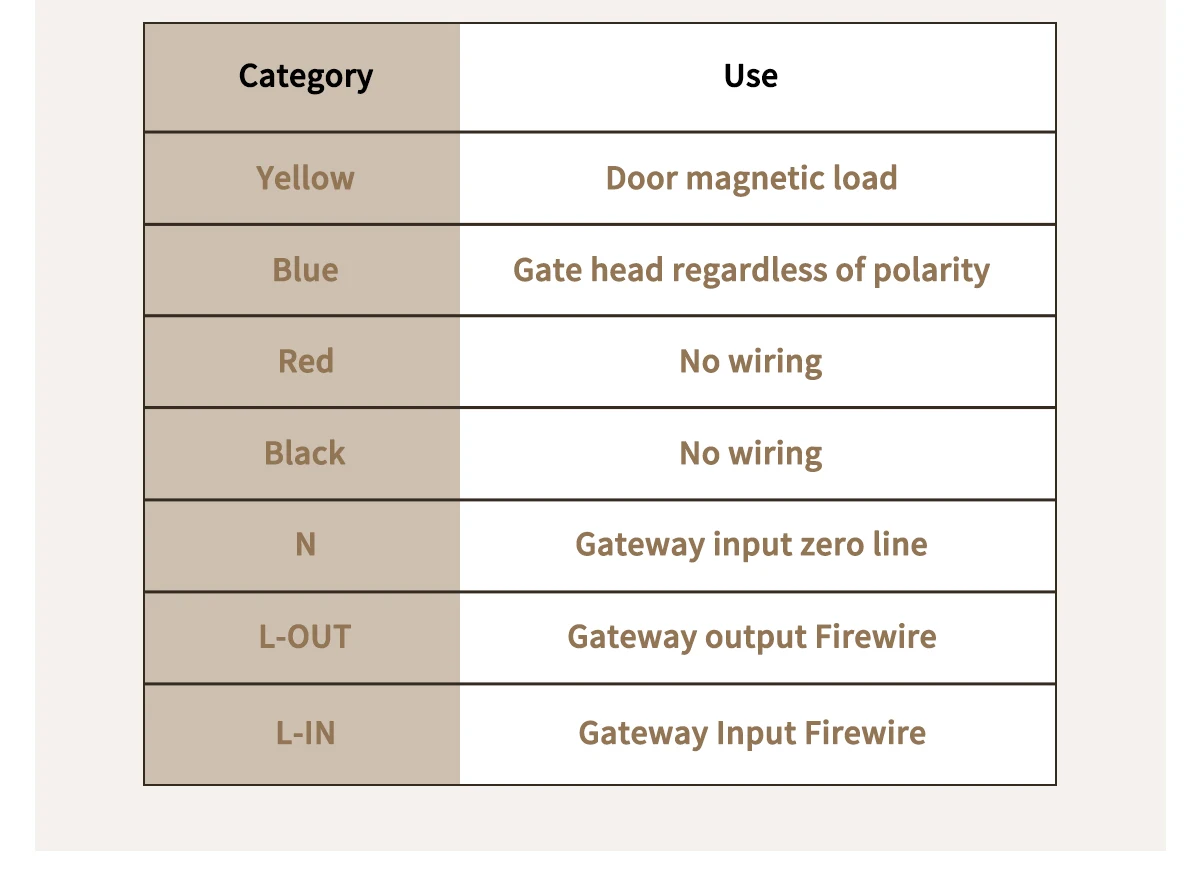

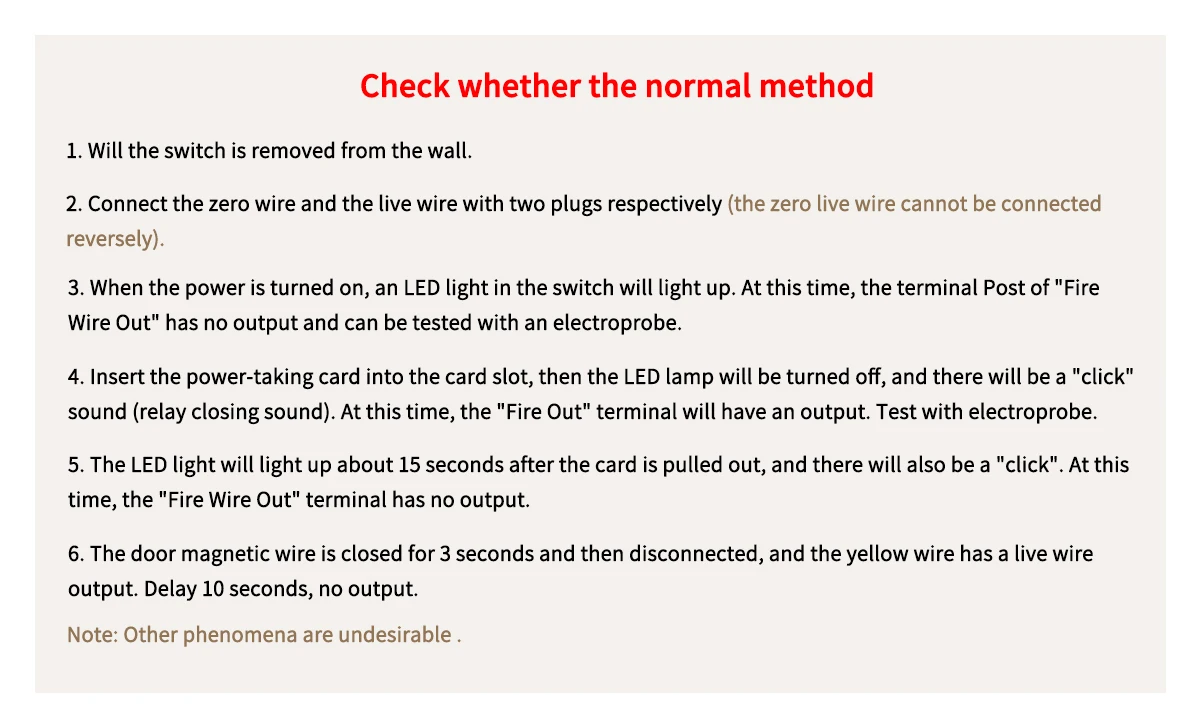

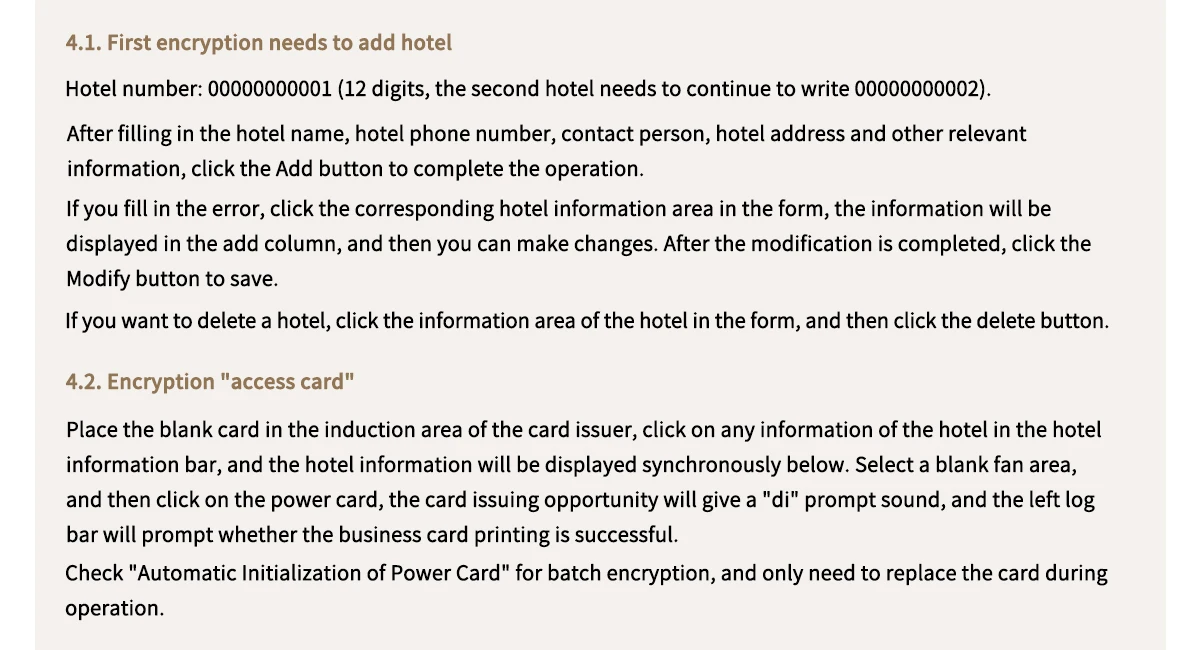

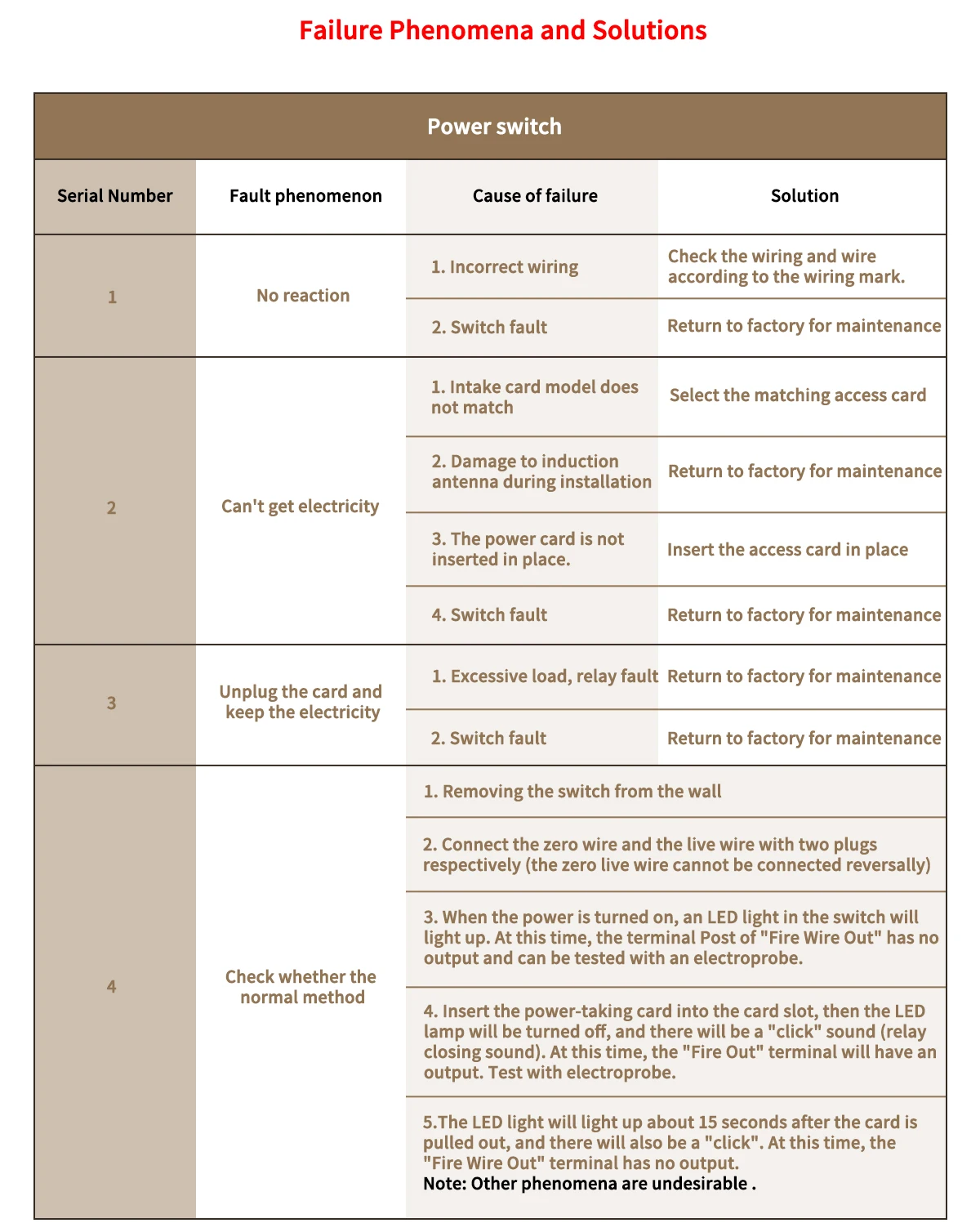

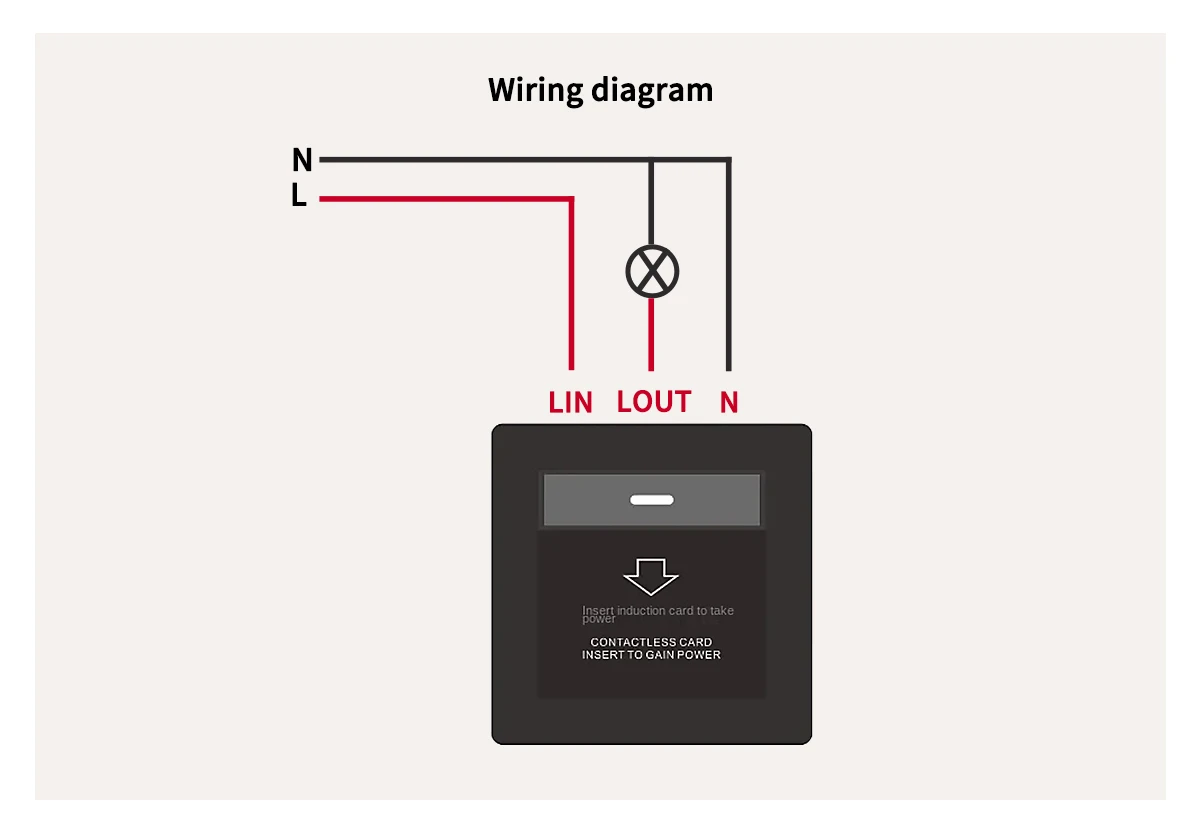

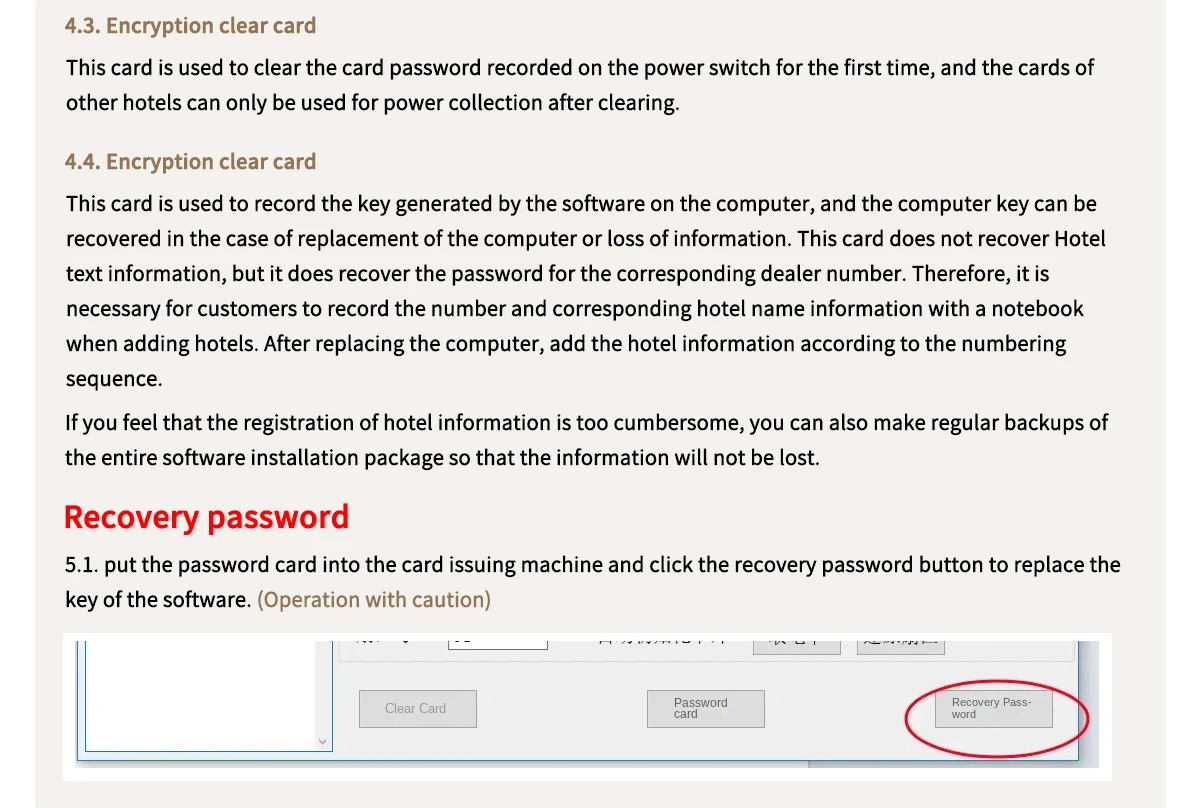

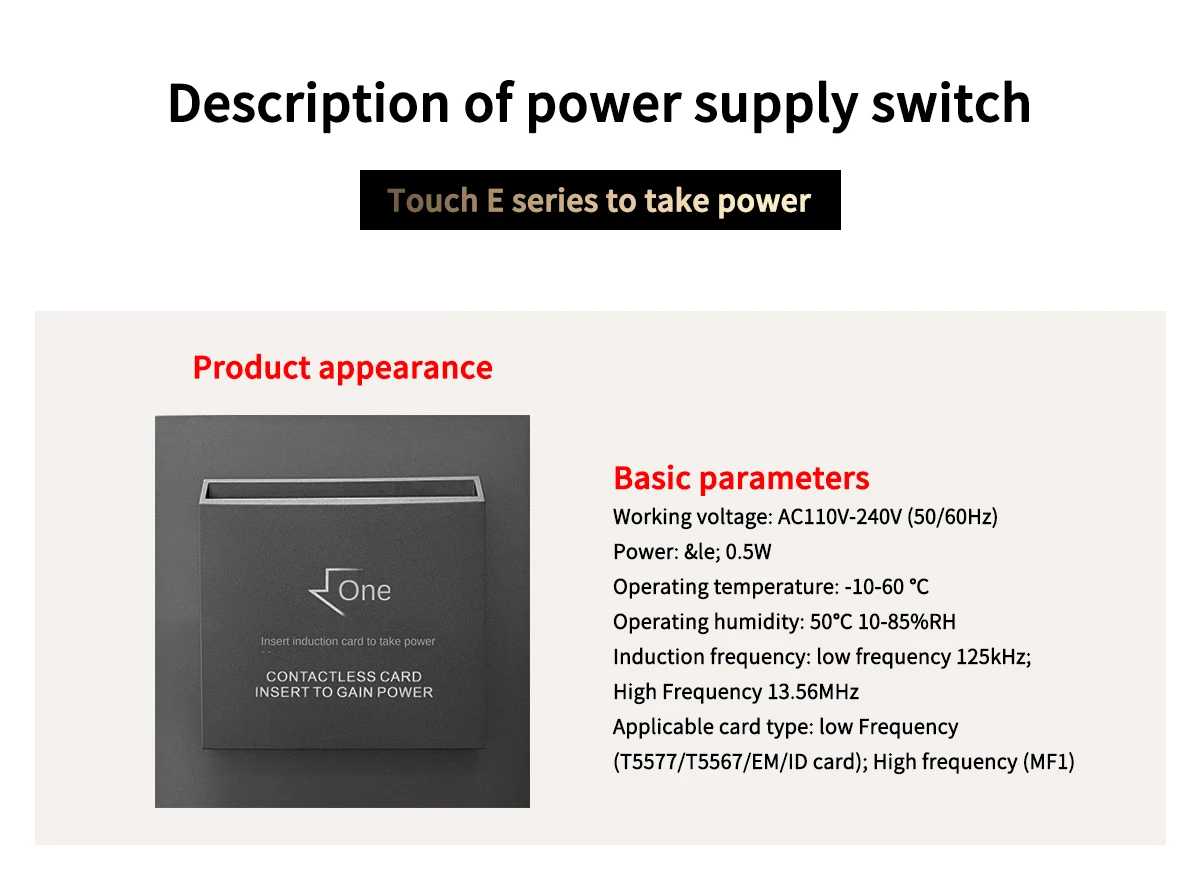

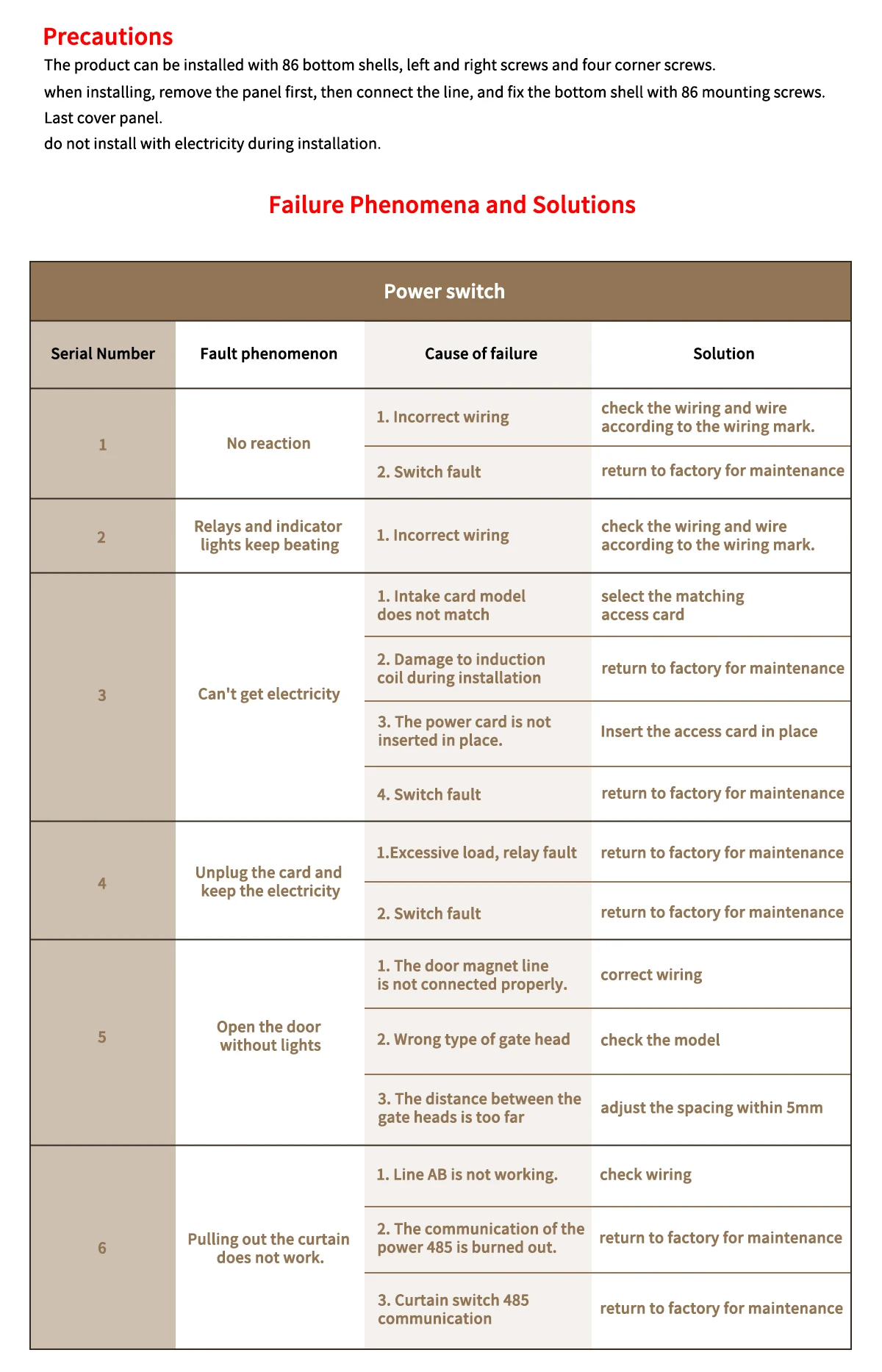

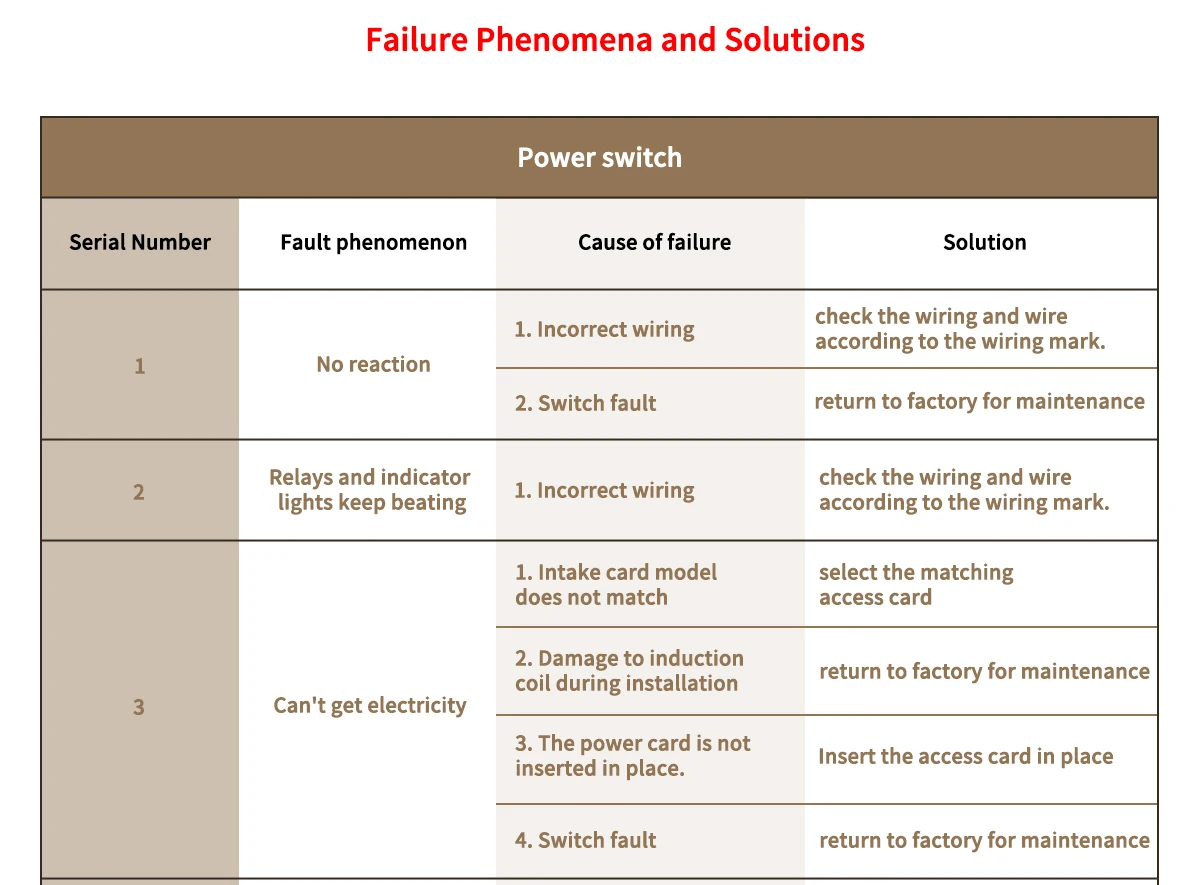

Power switch instructions

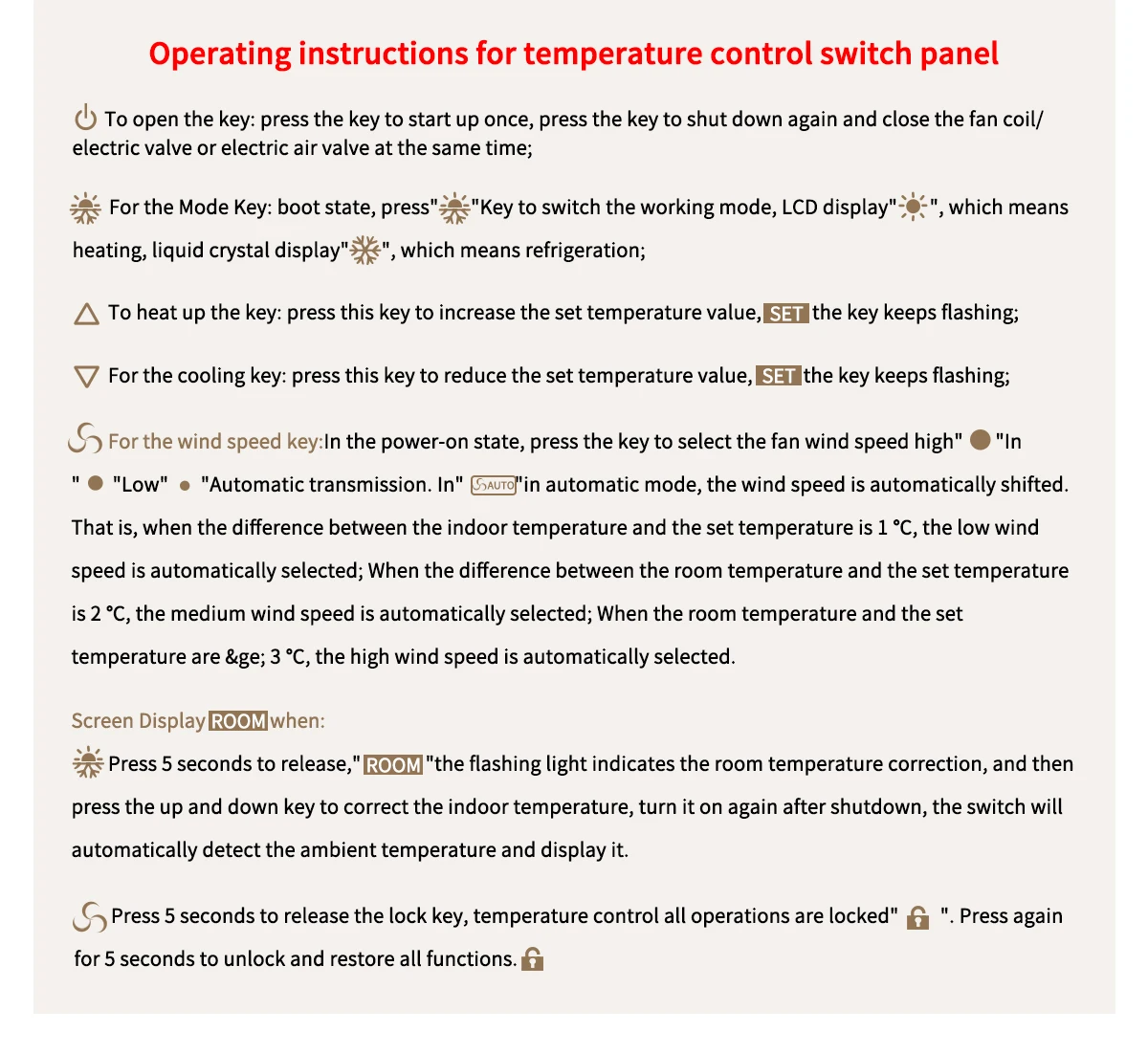

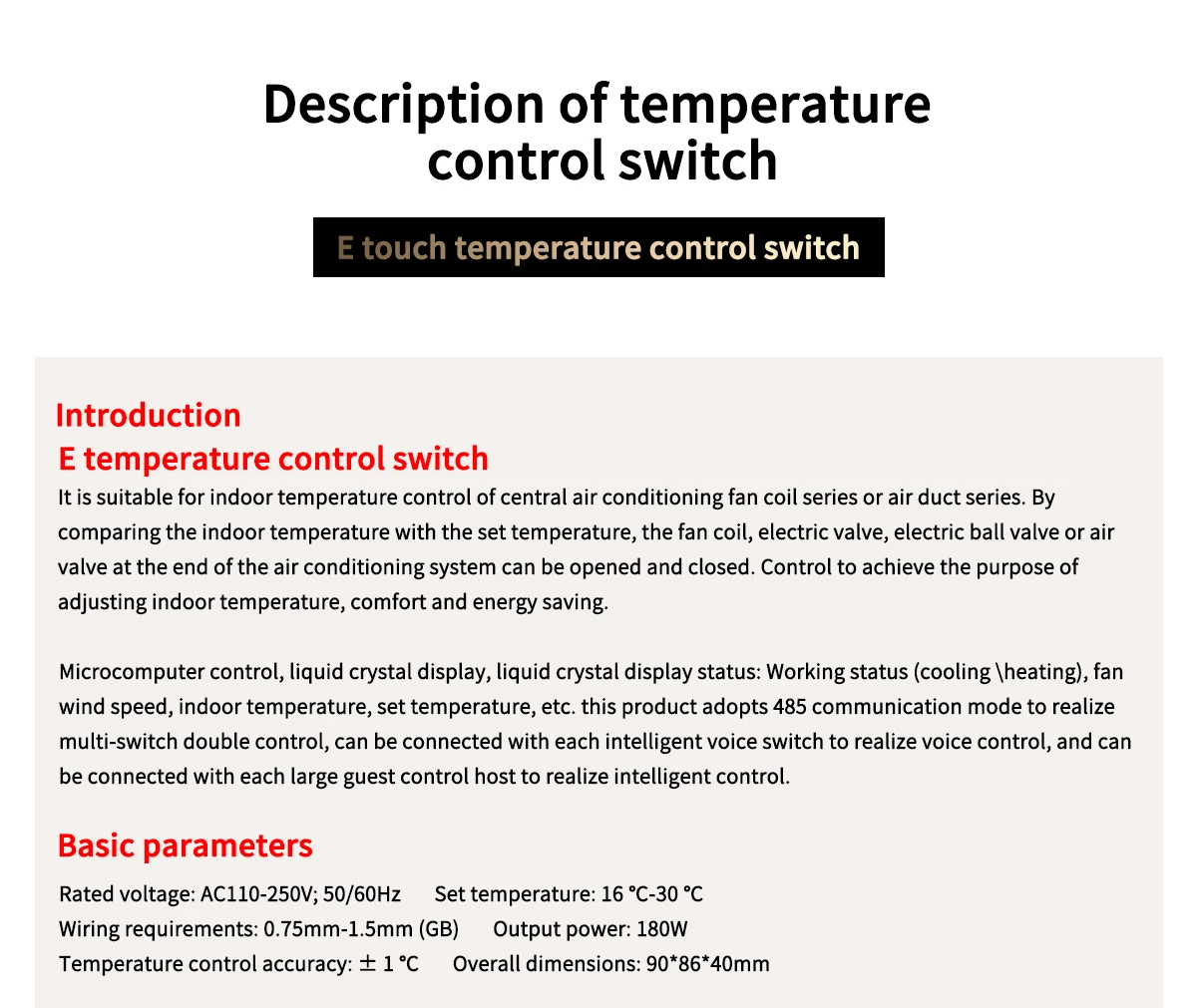

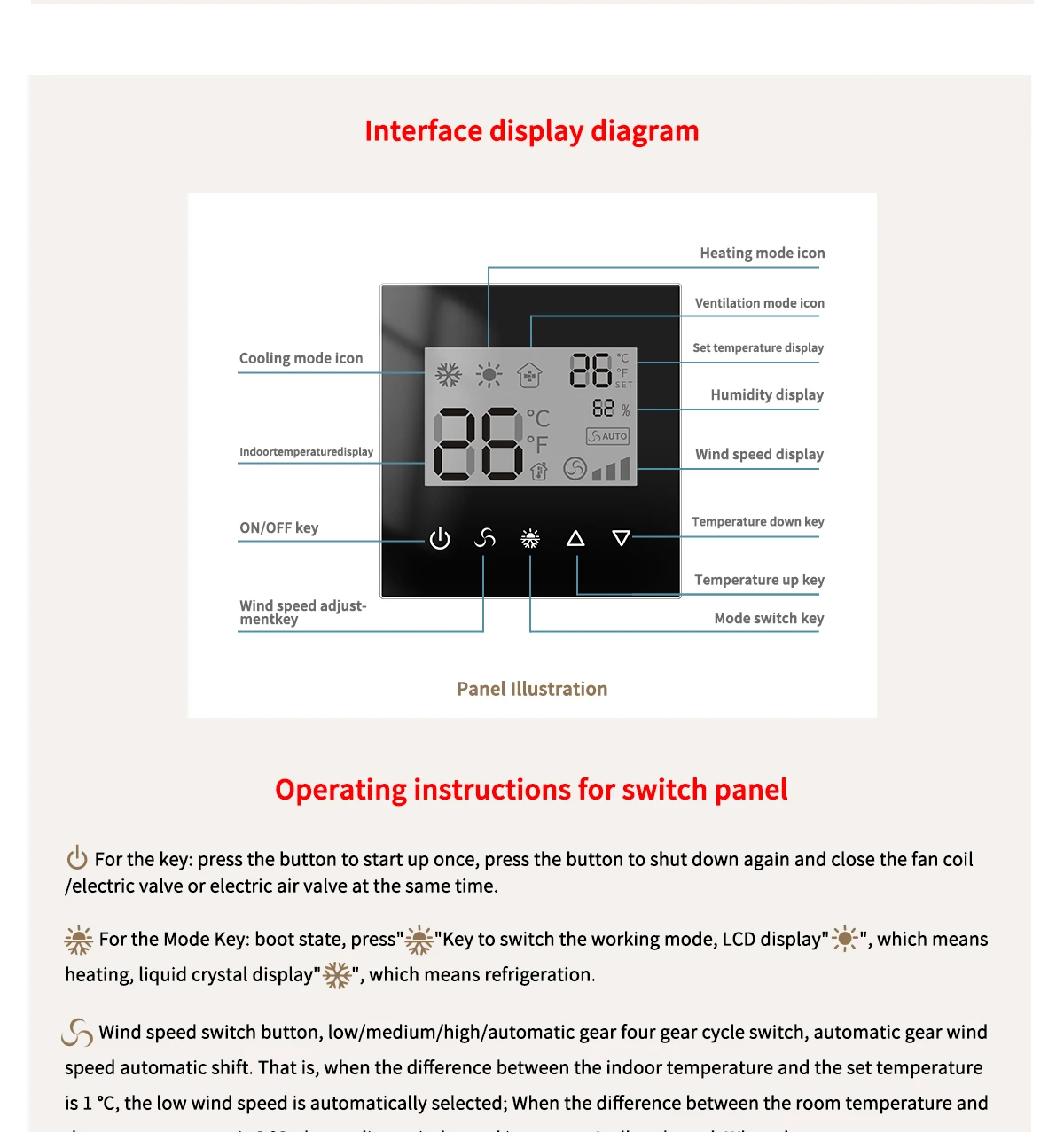

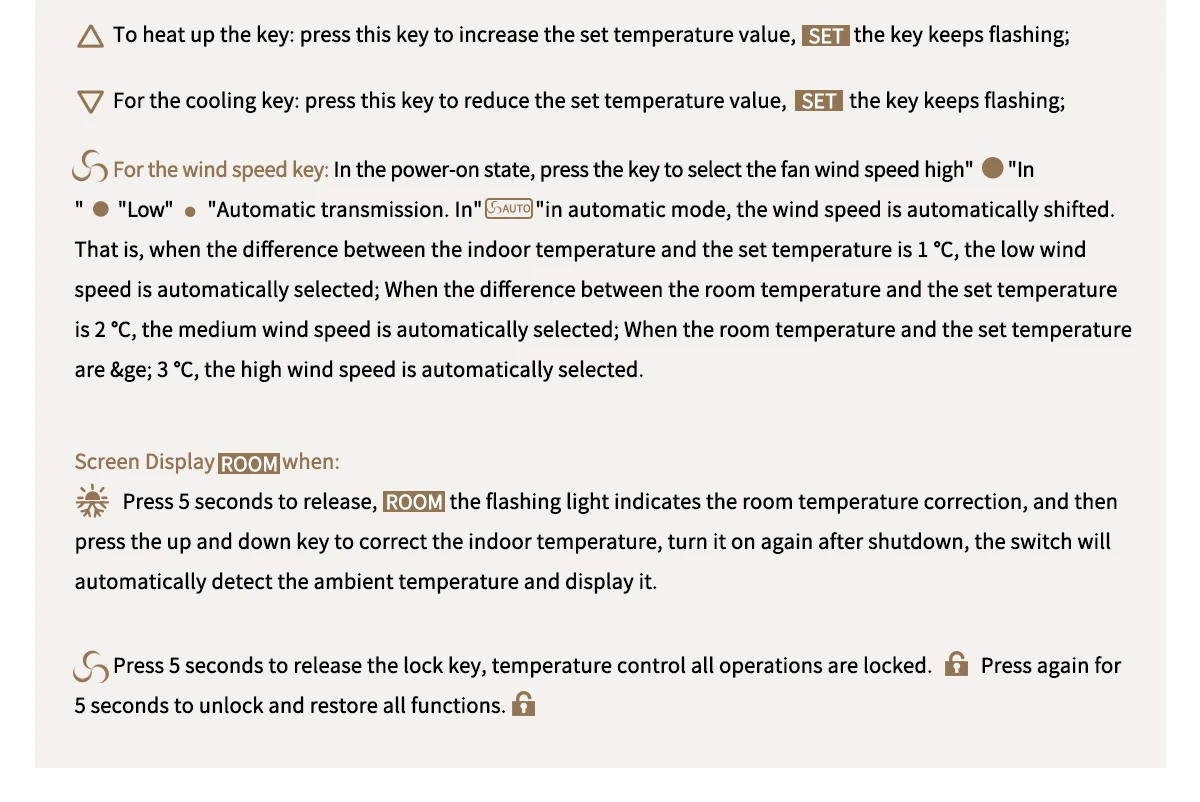

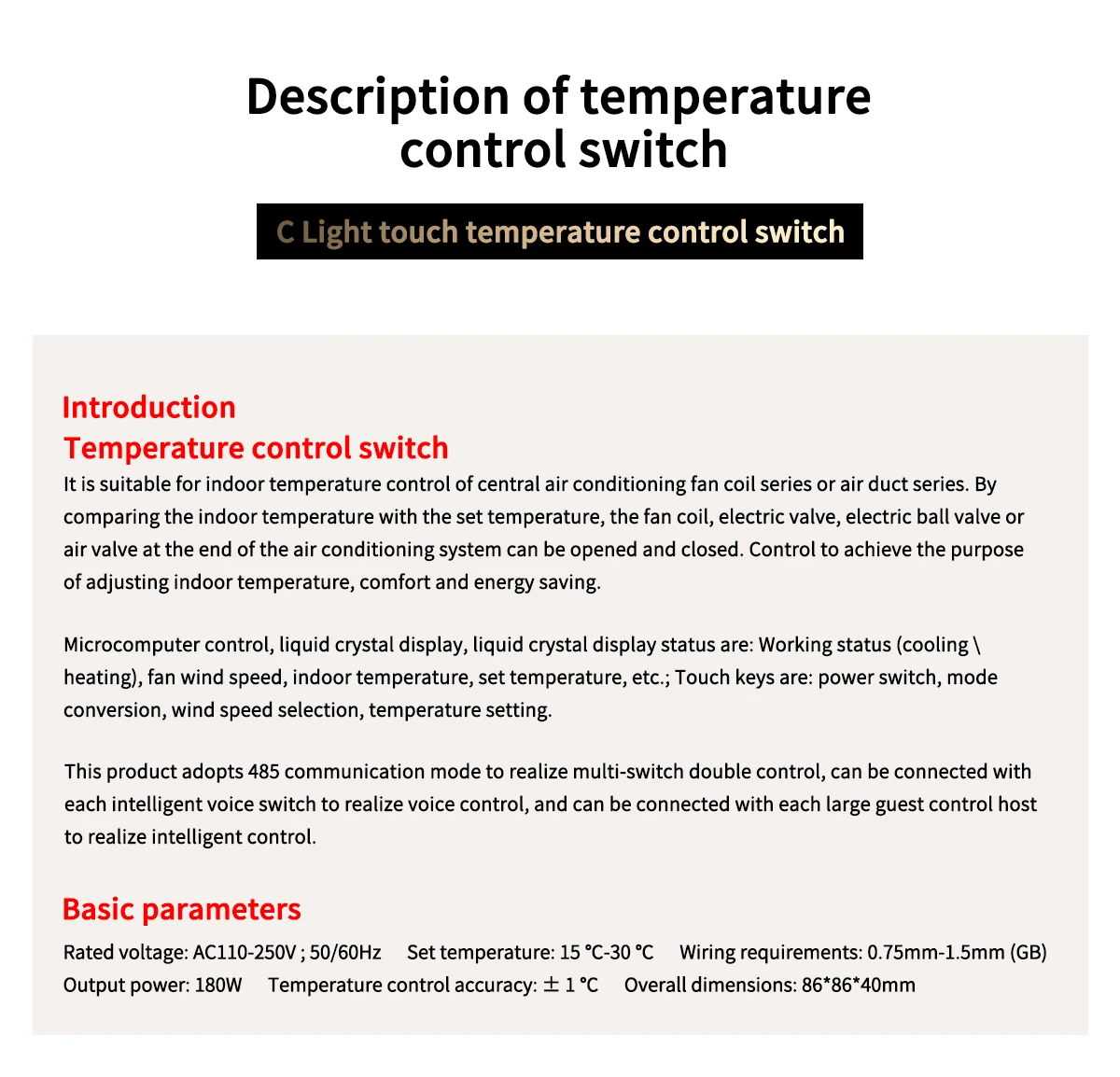

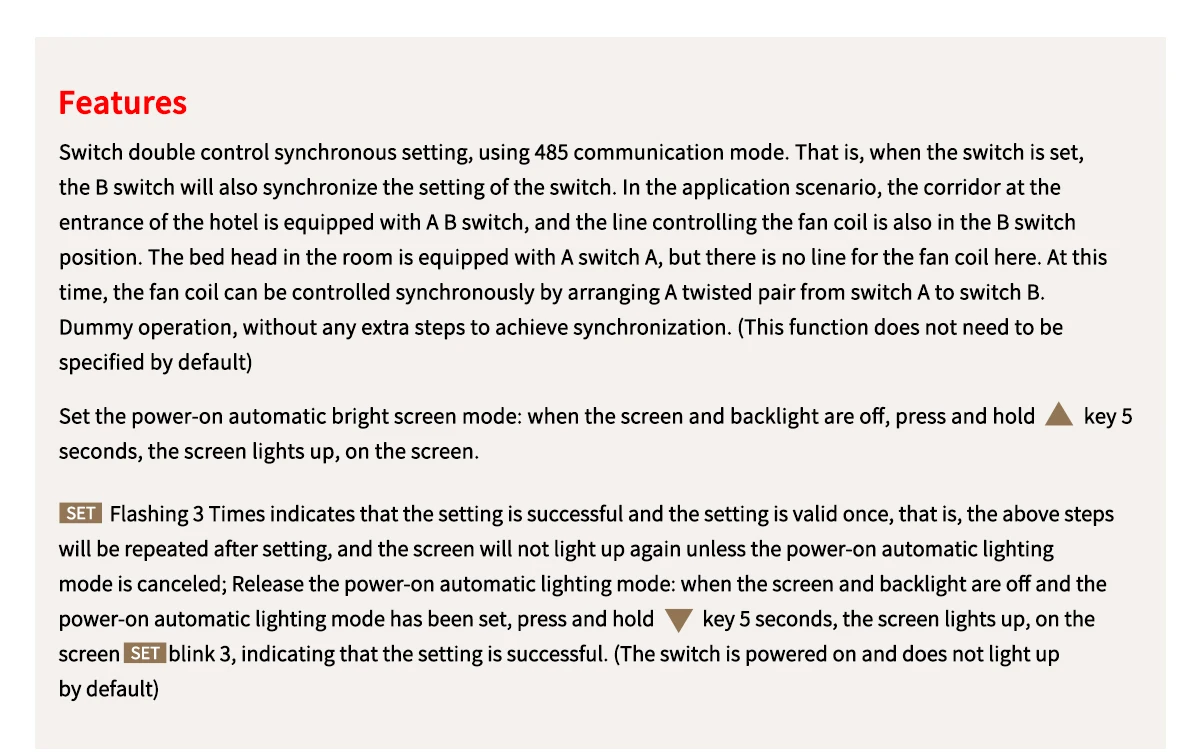

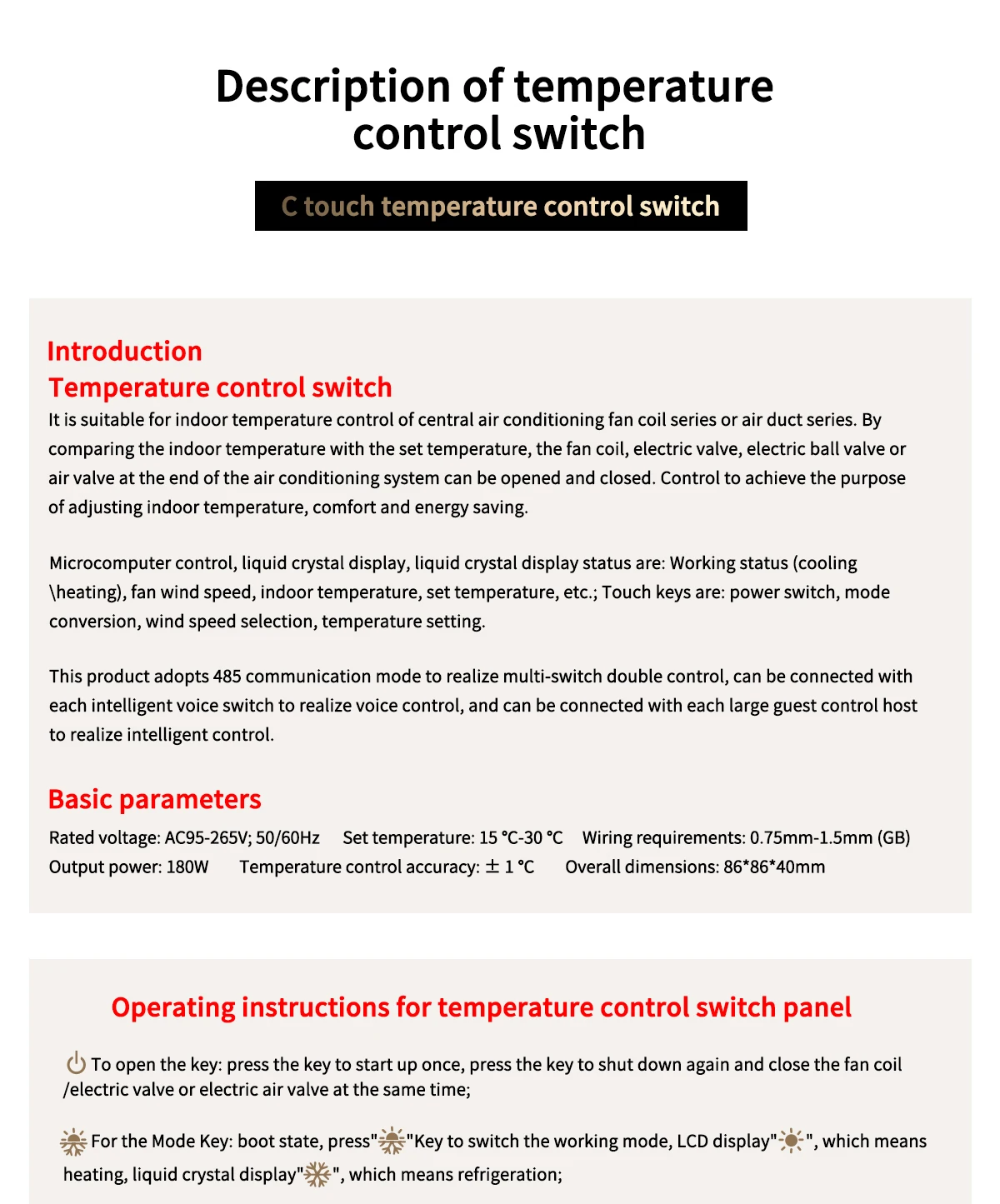

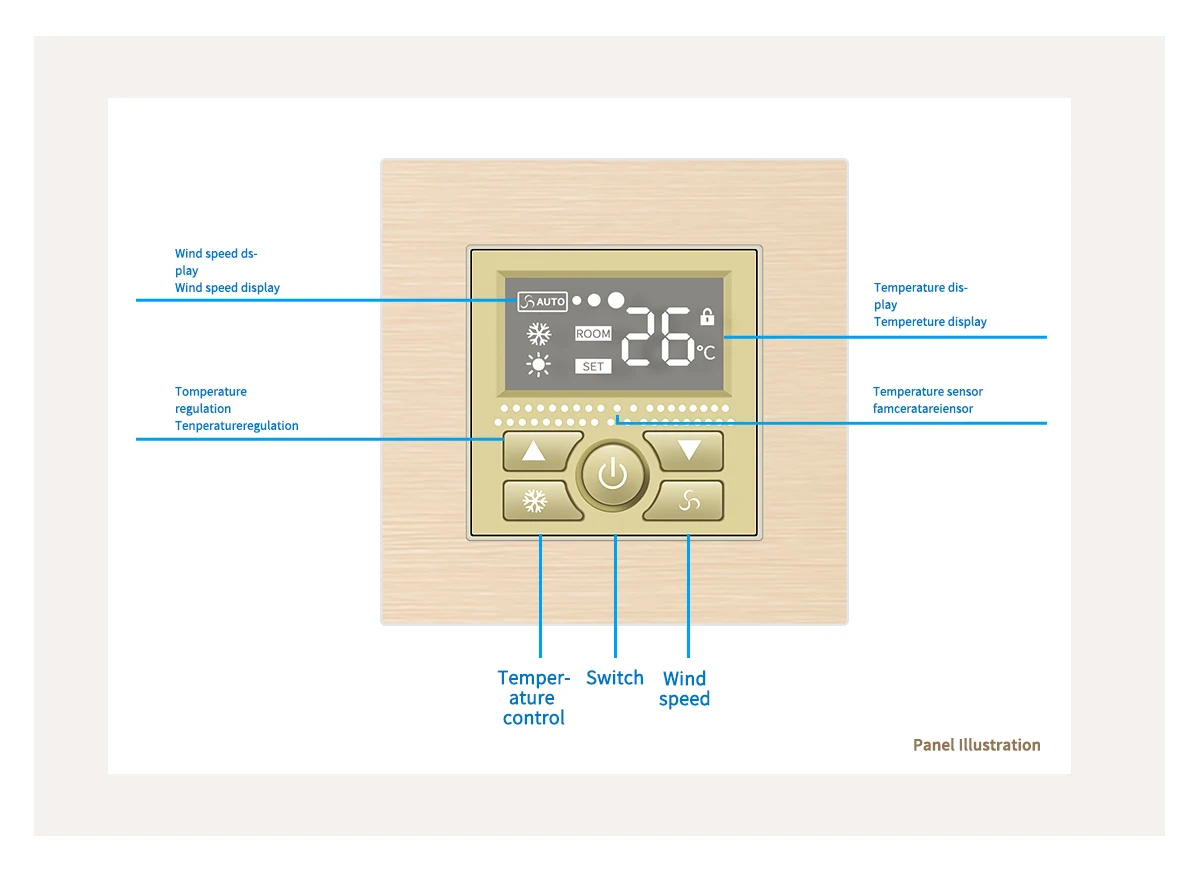

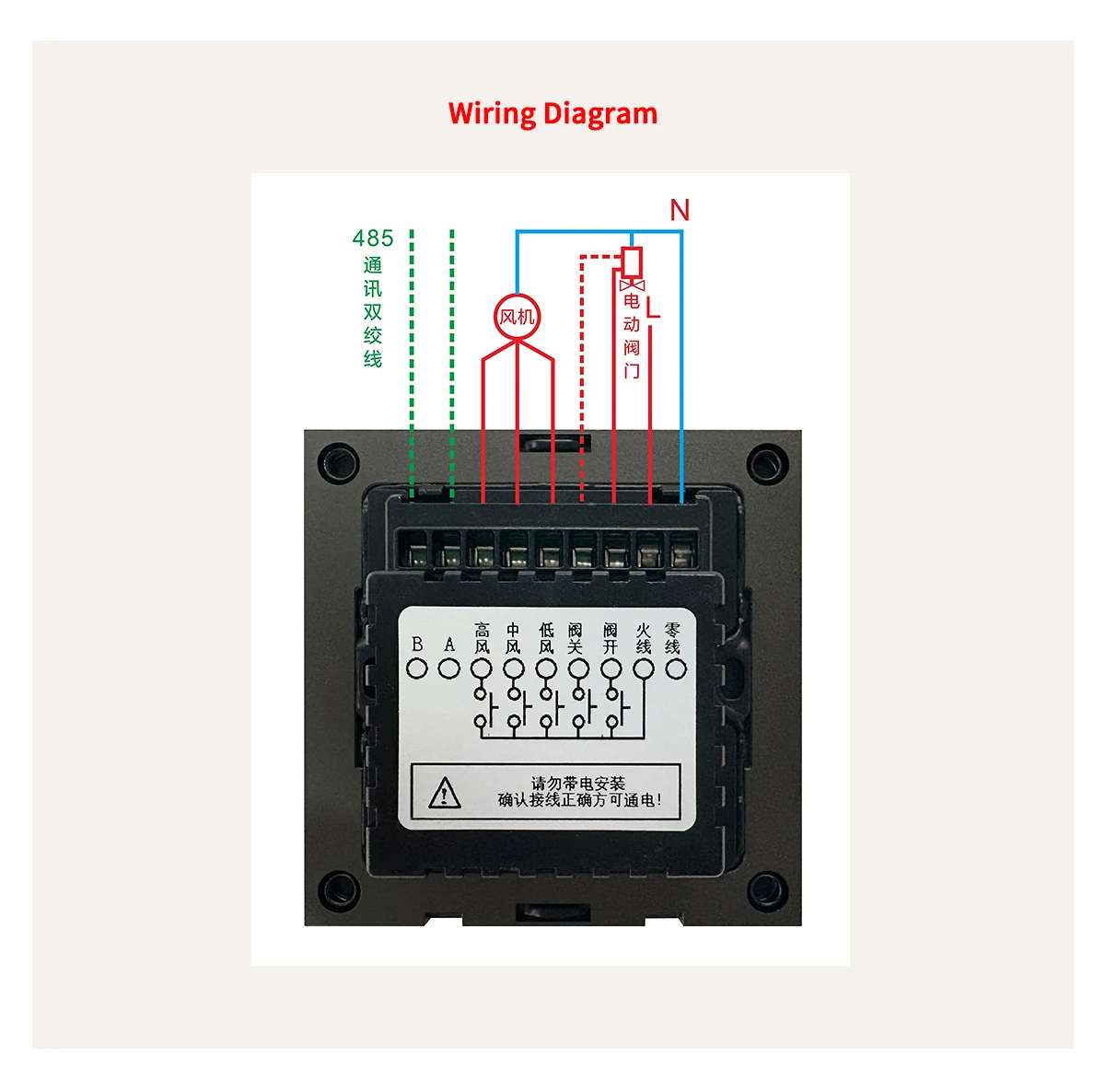

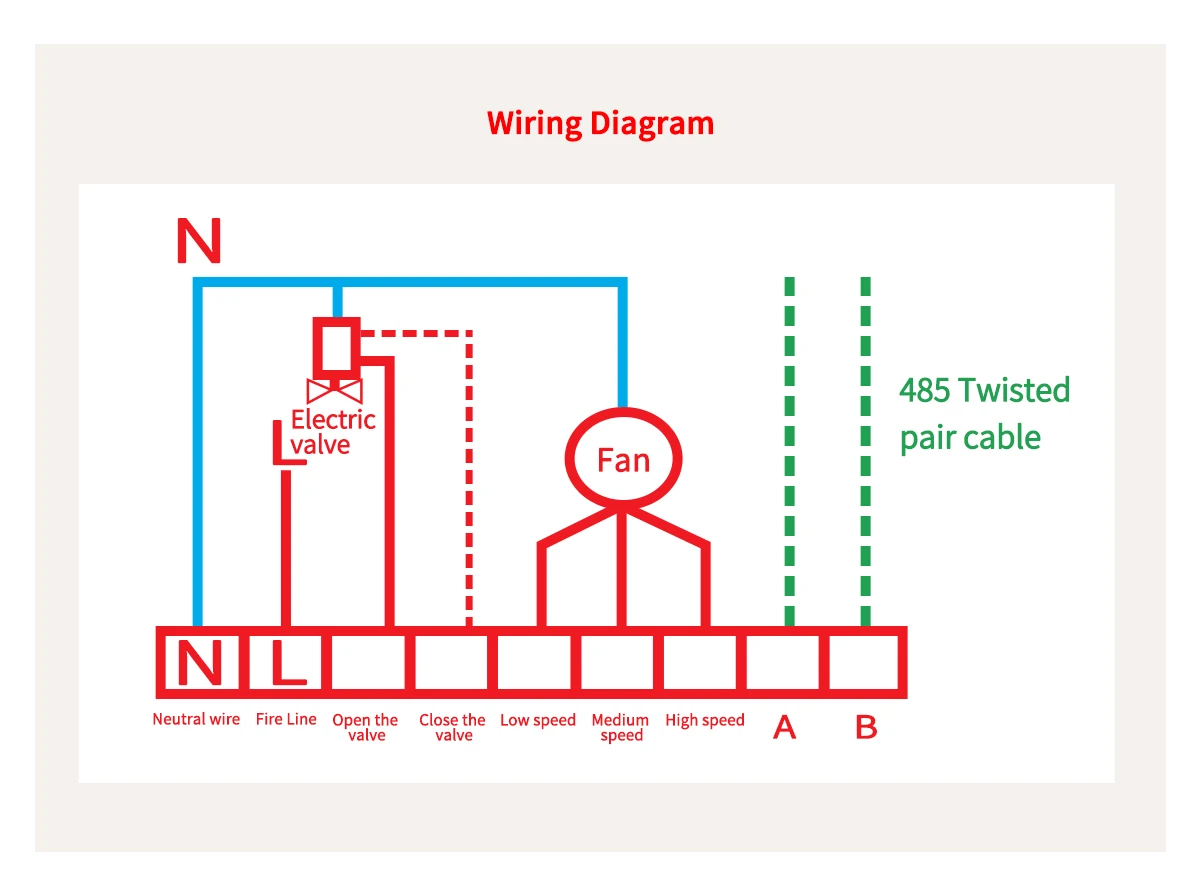

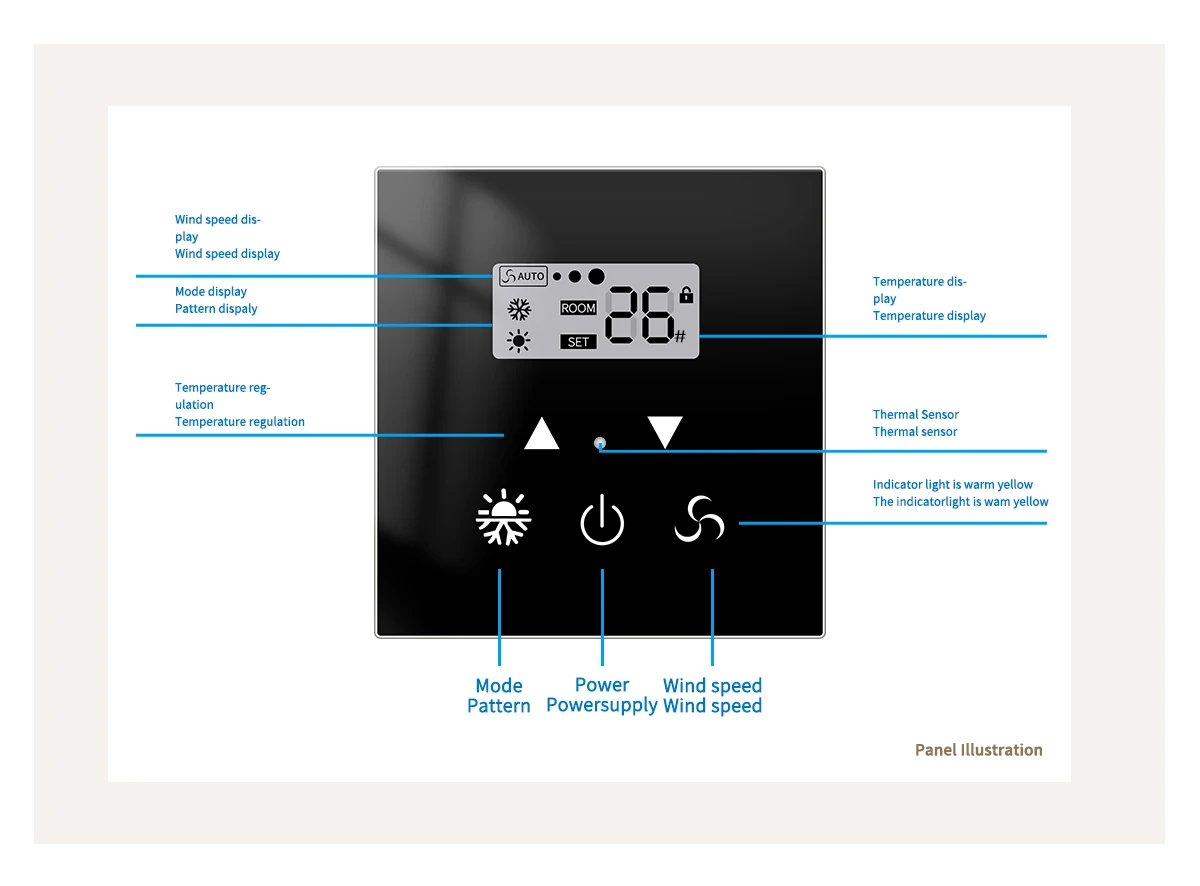

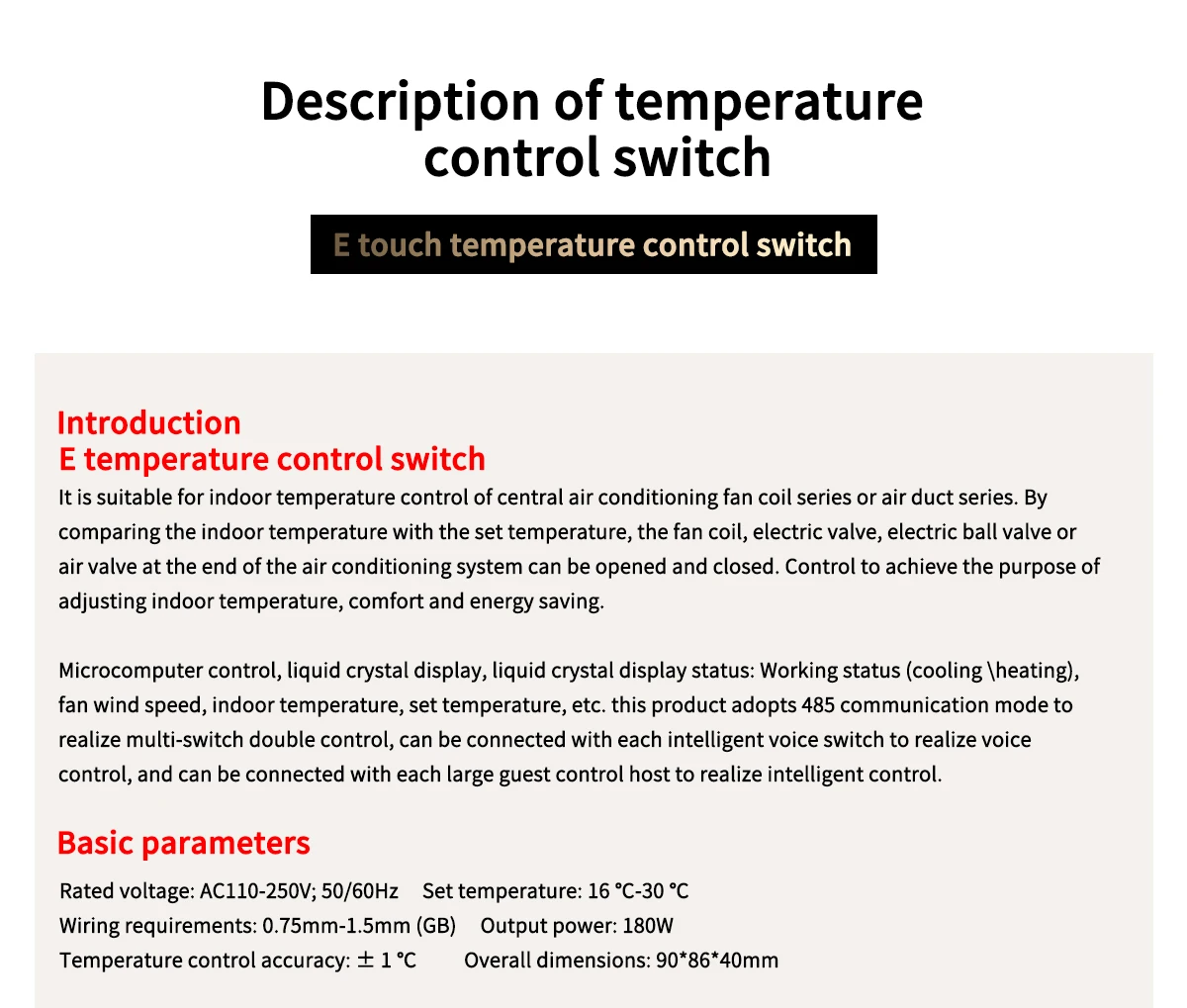

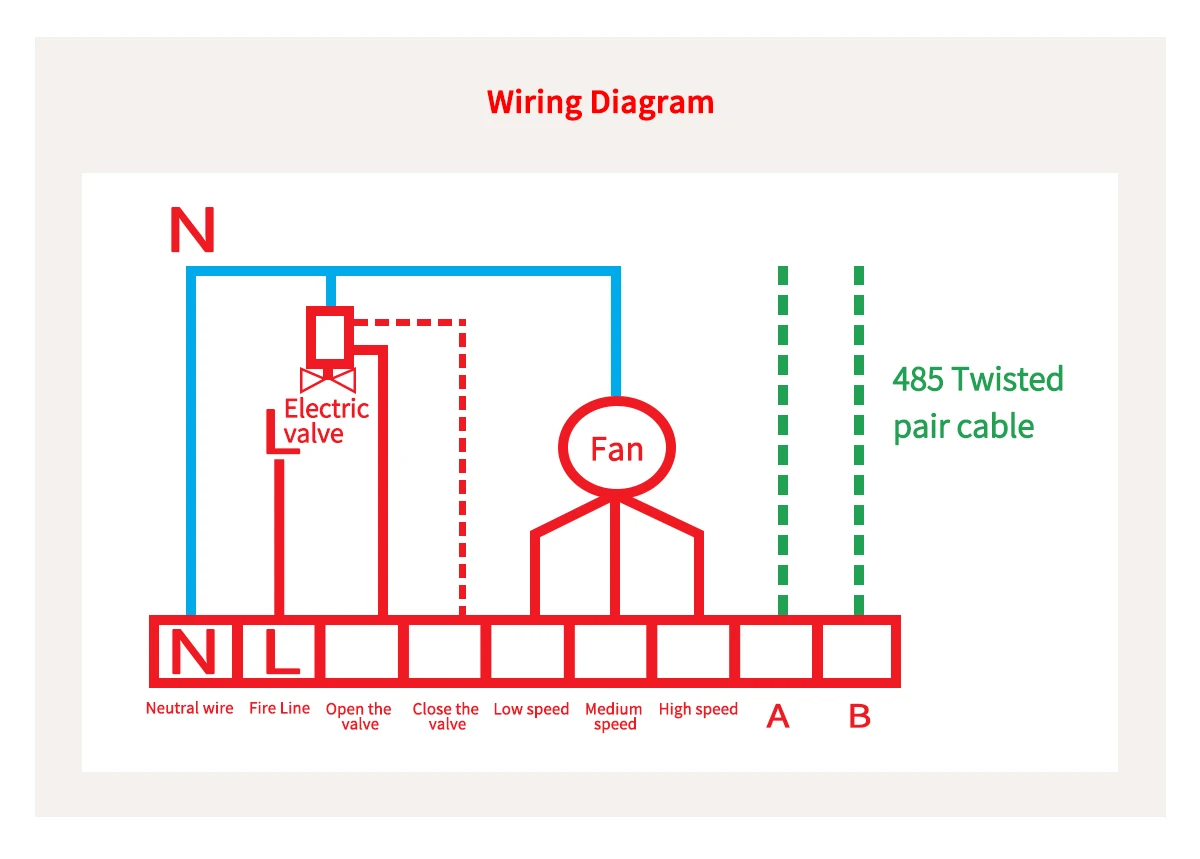

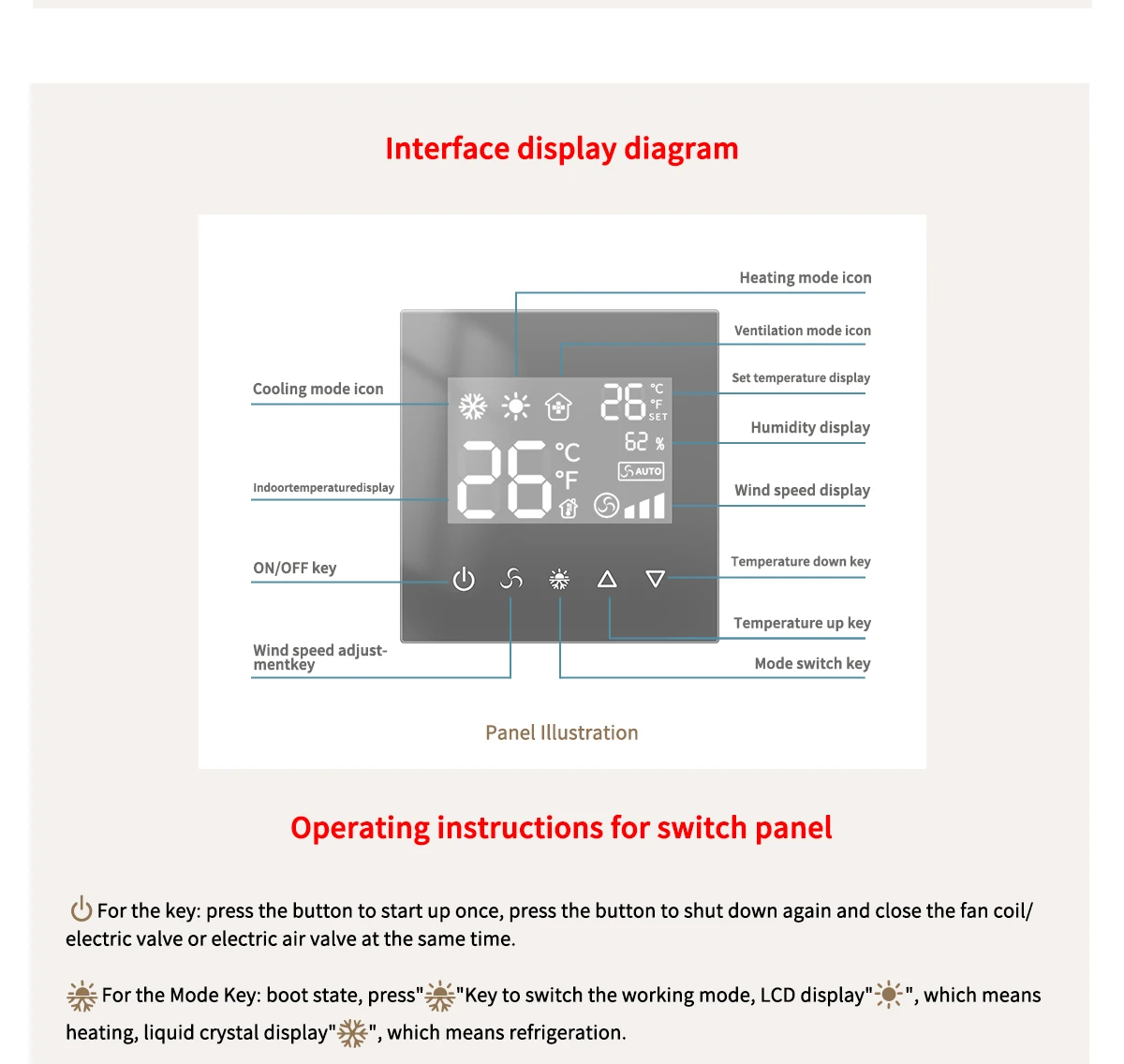

Temperature control switch instructions

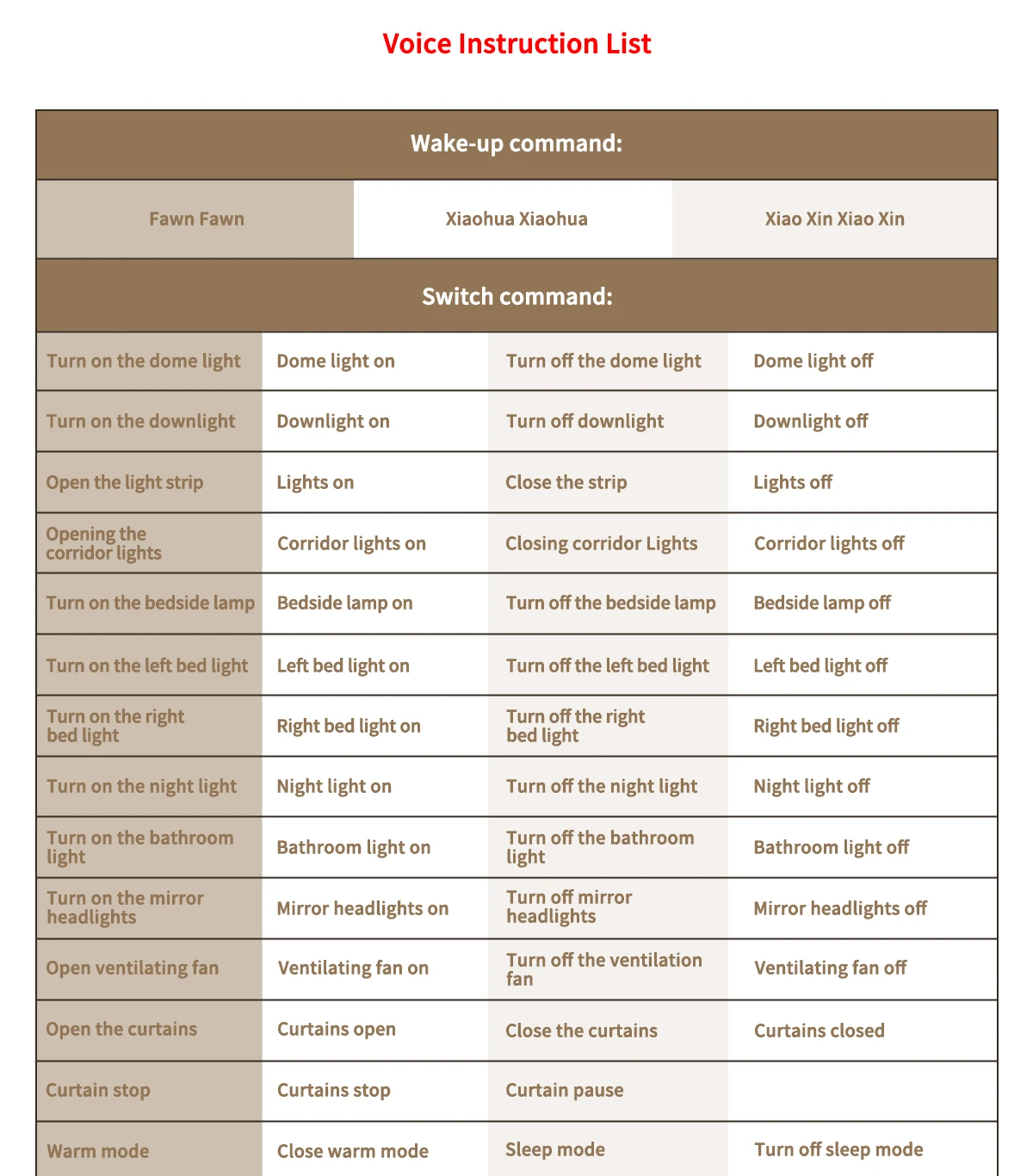

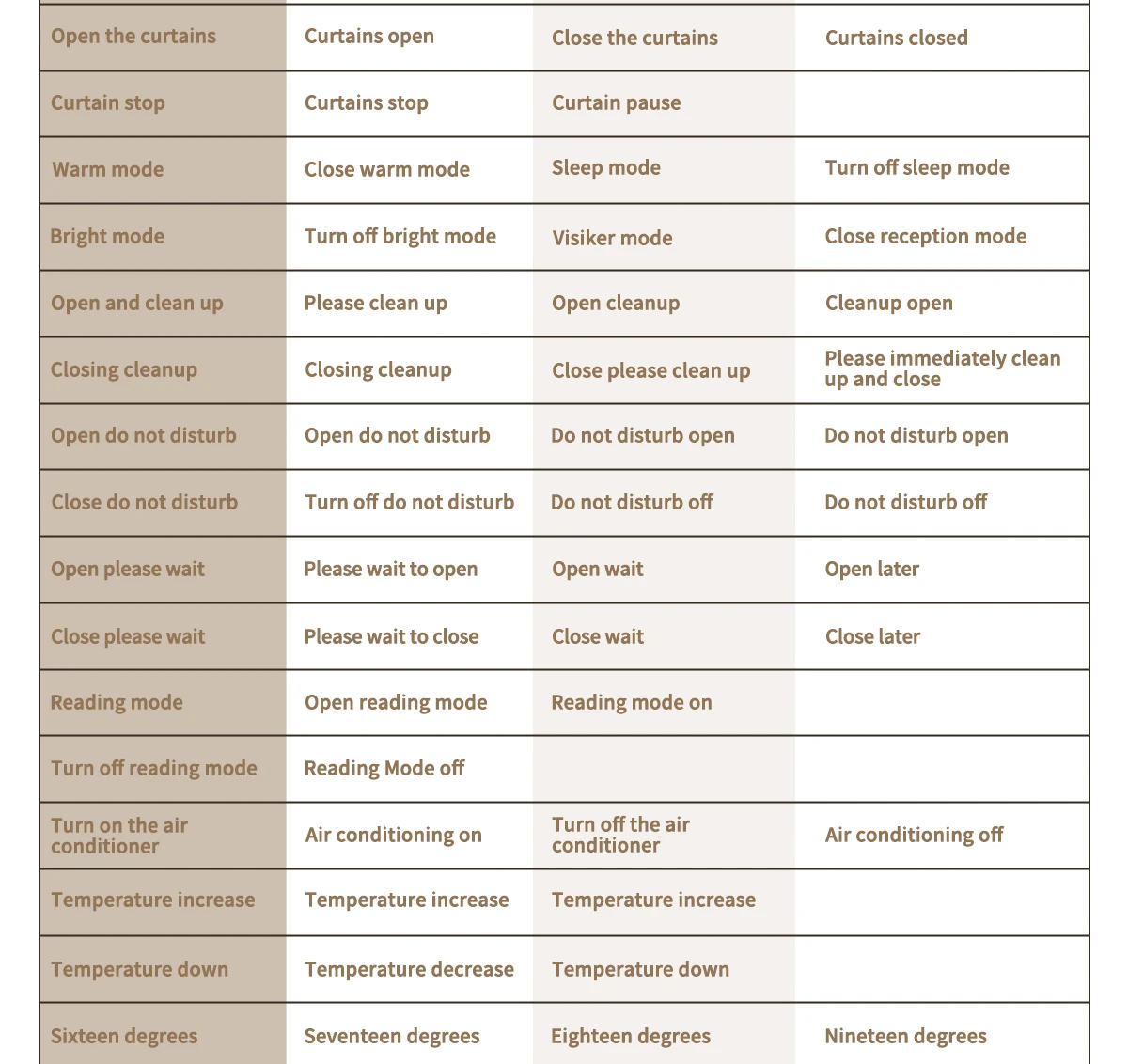

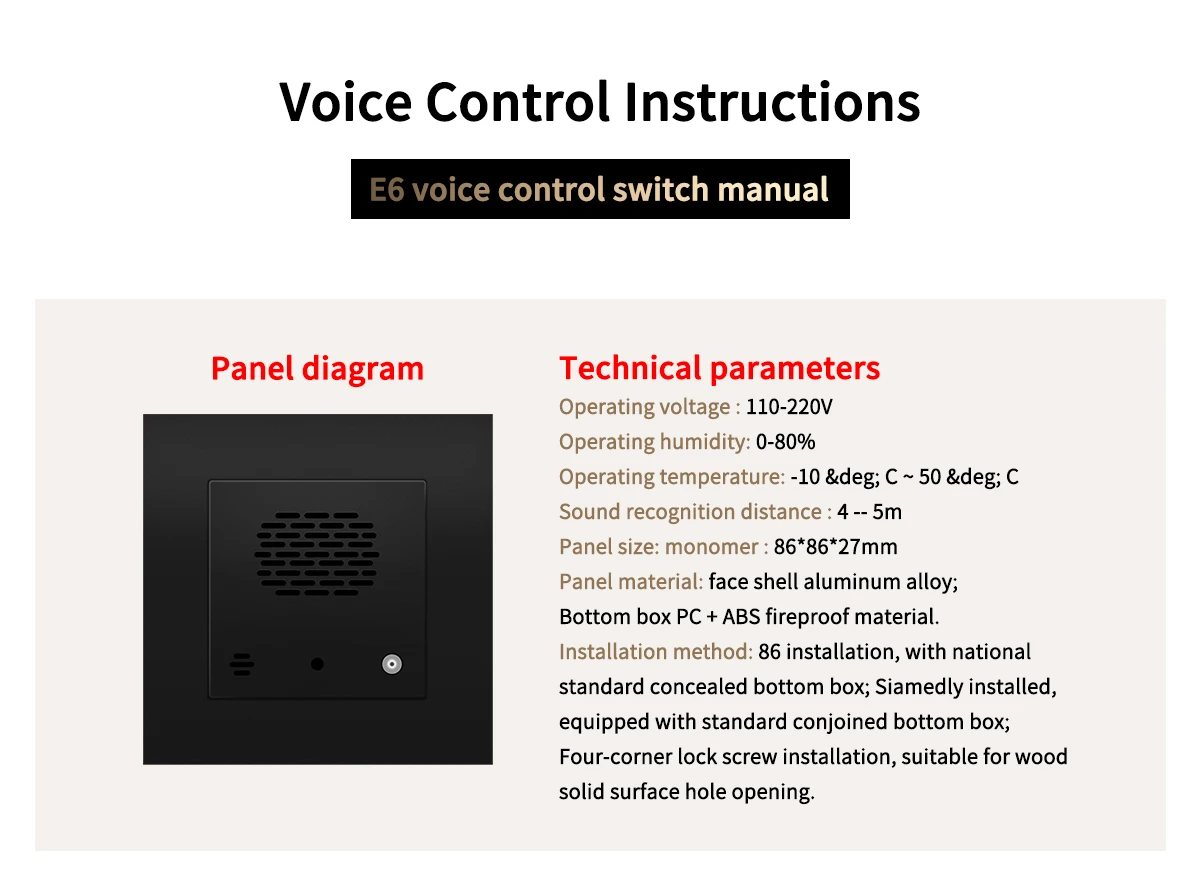

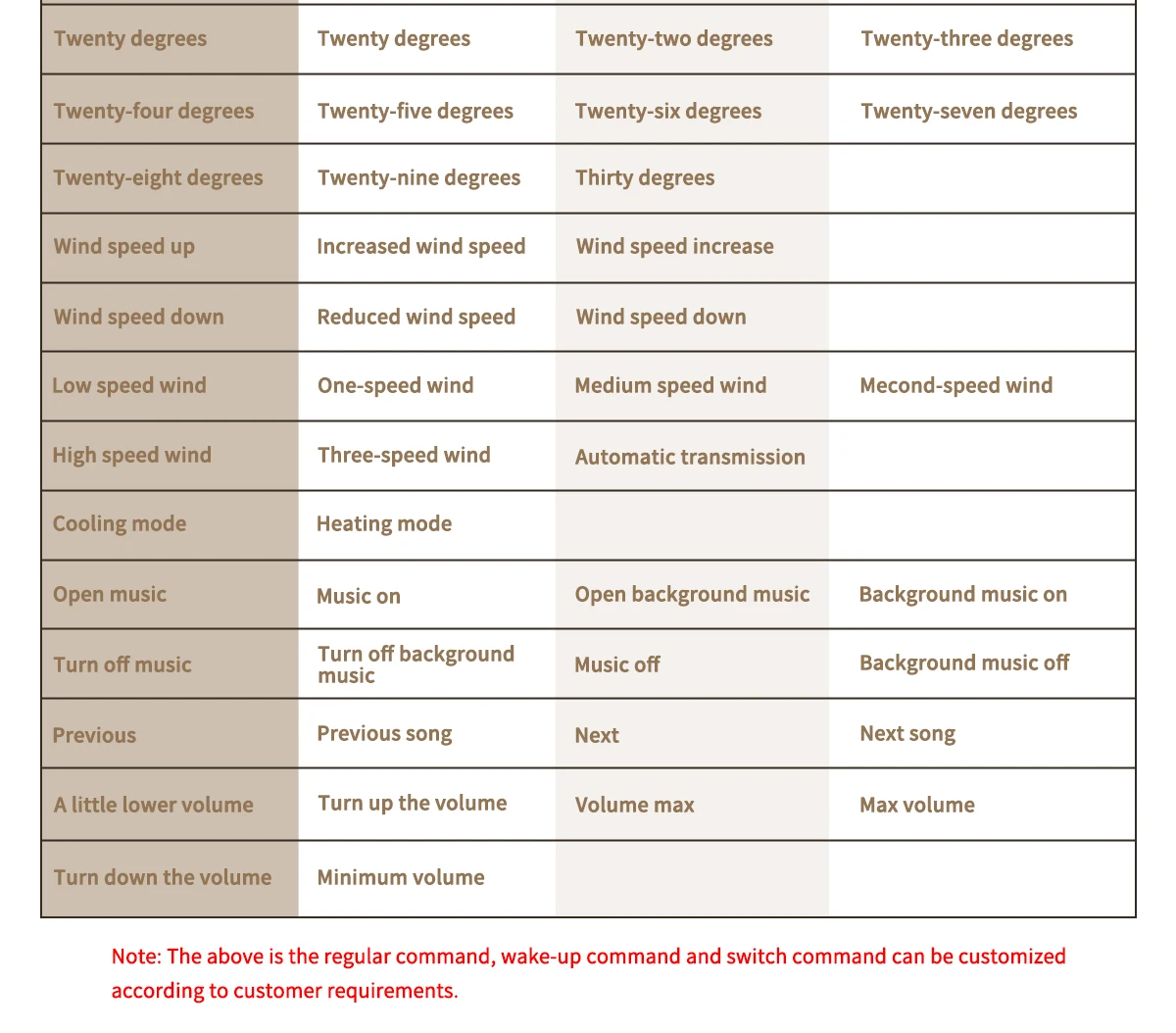

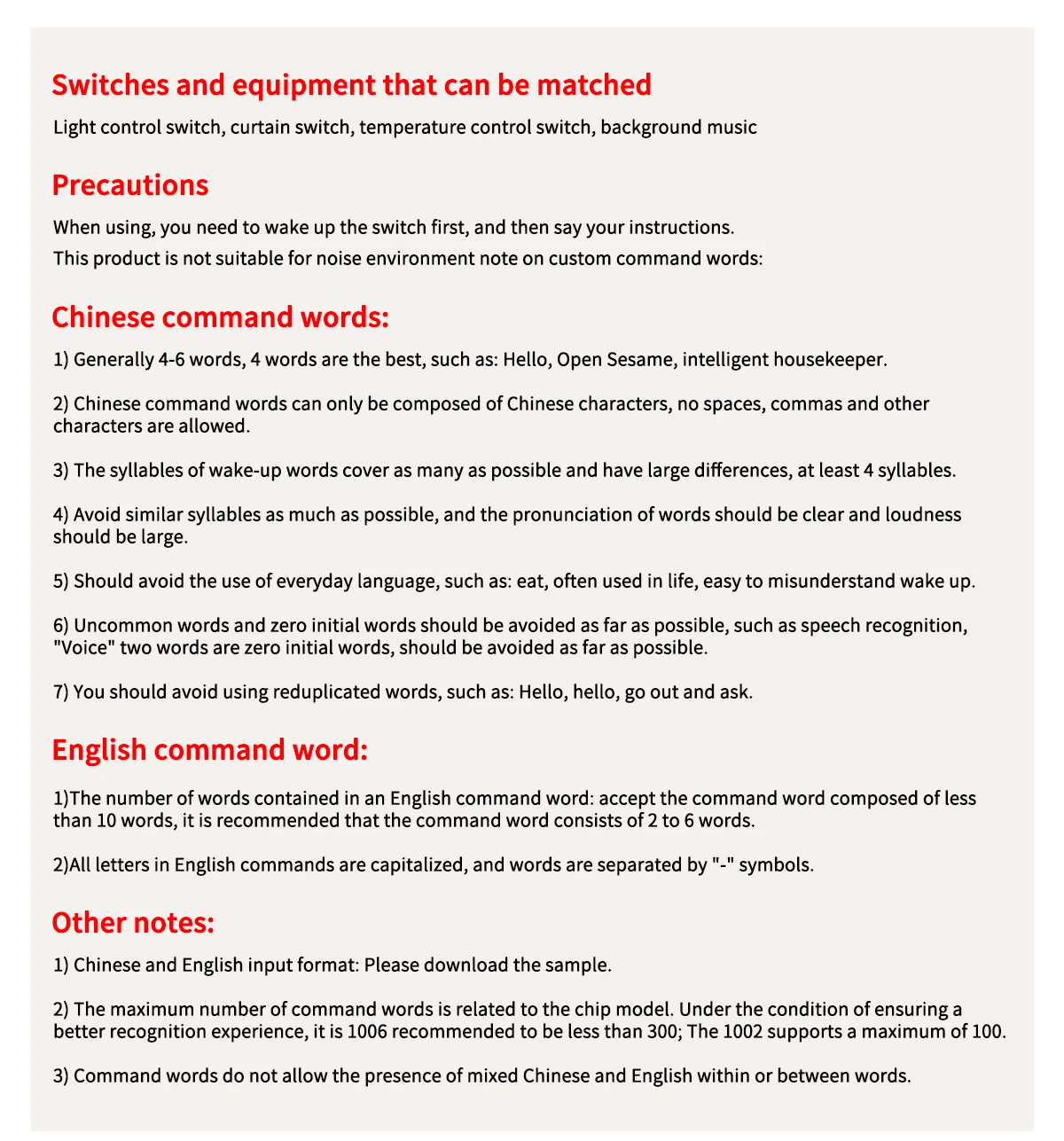

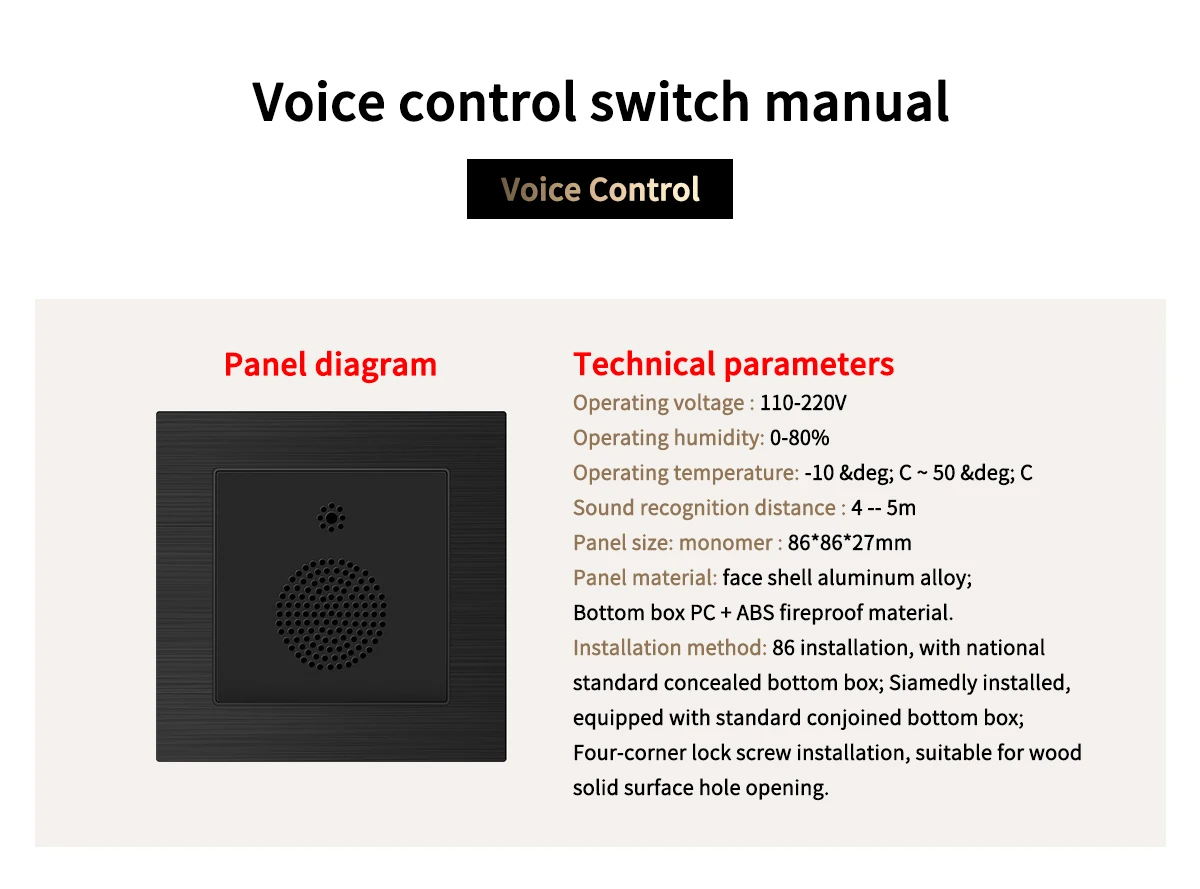

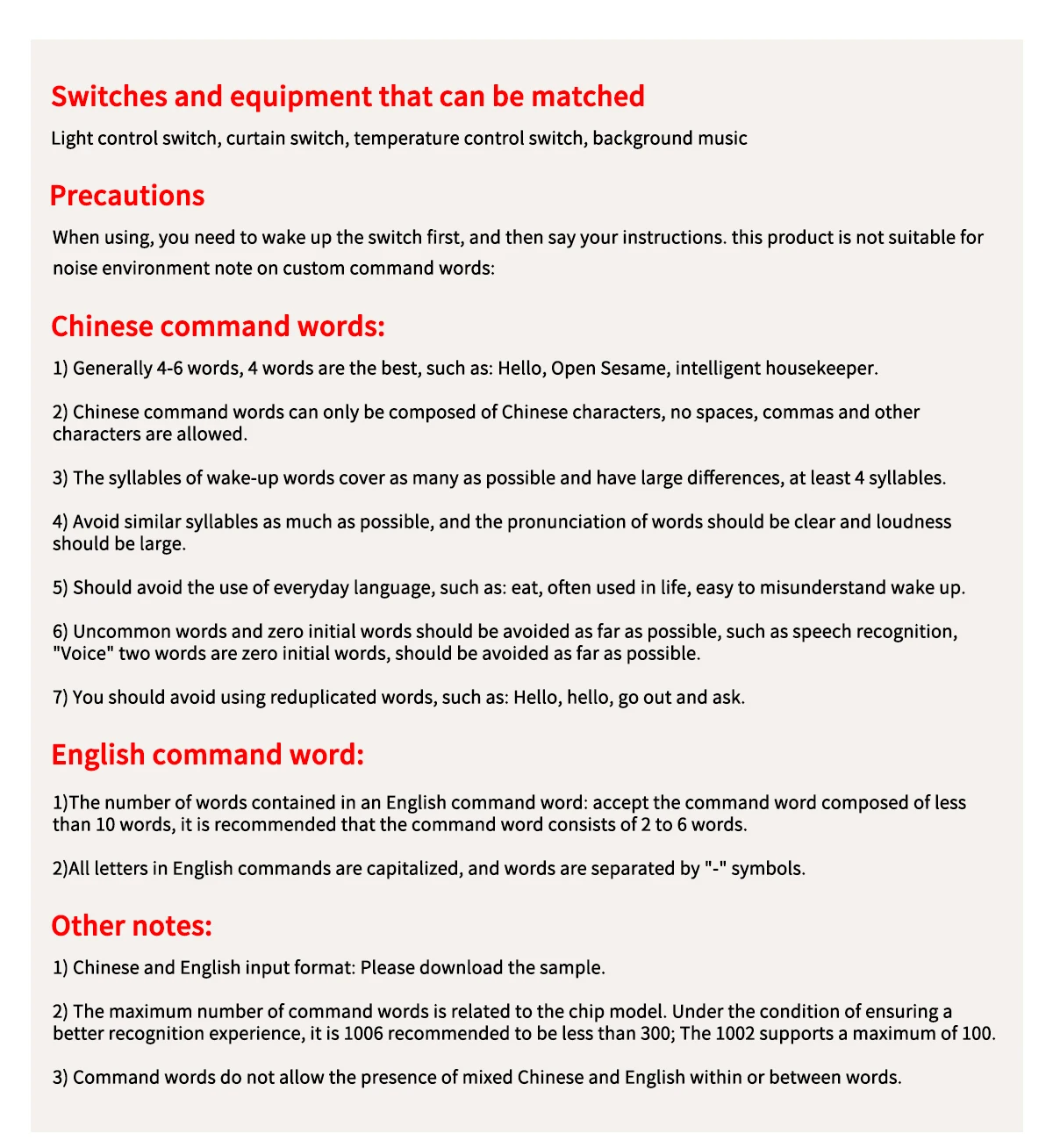

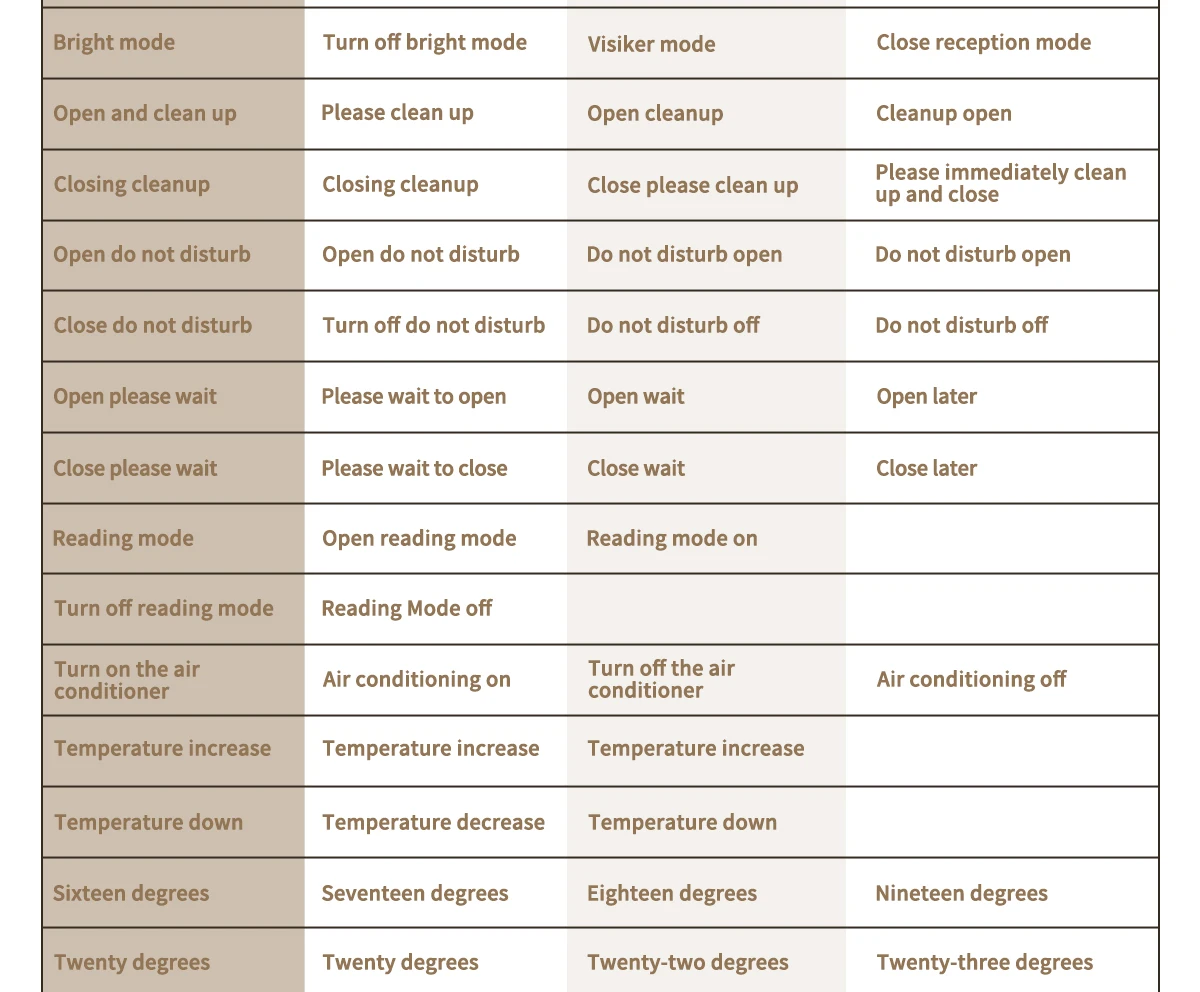

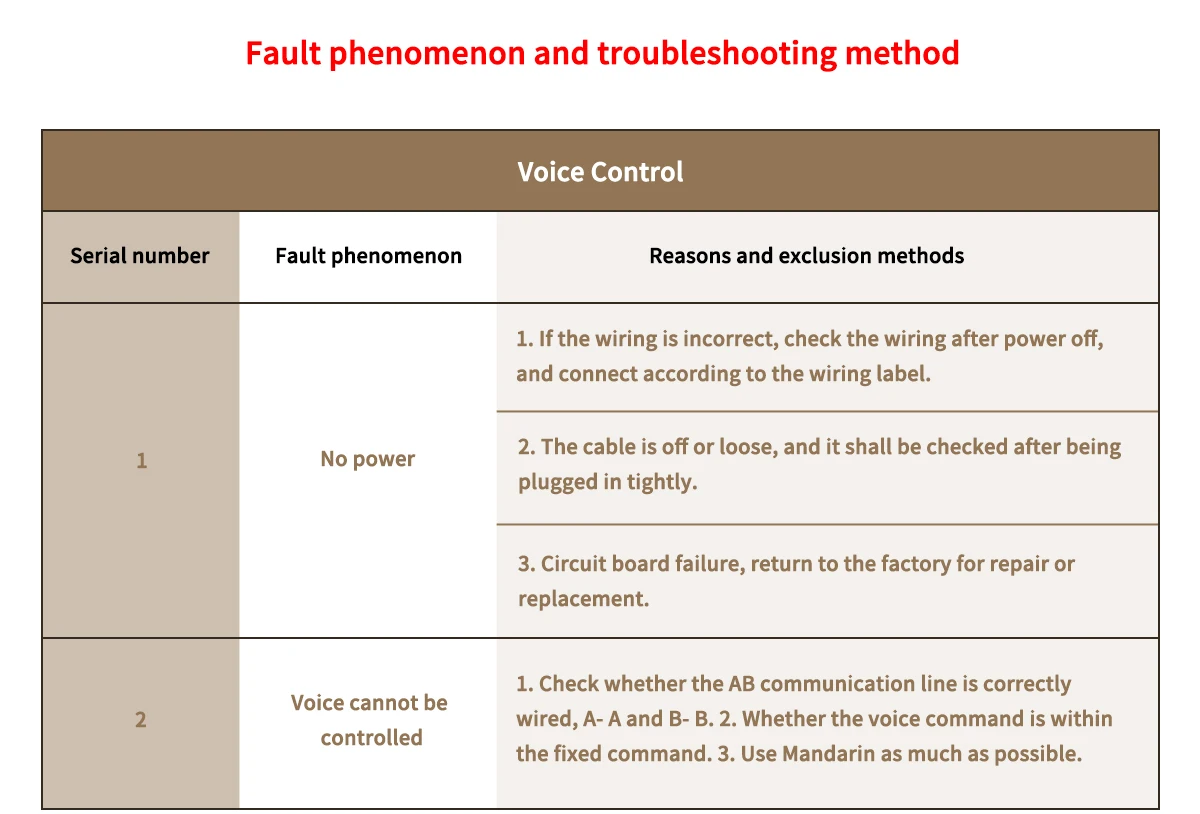

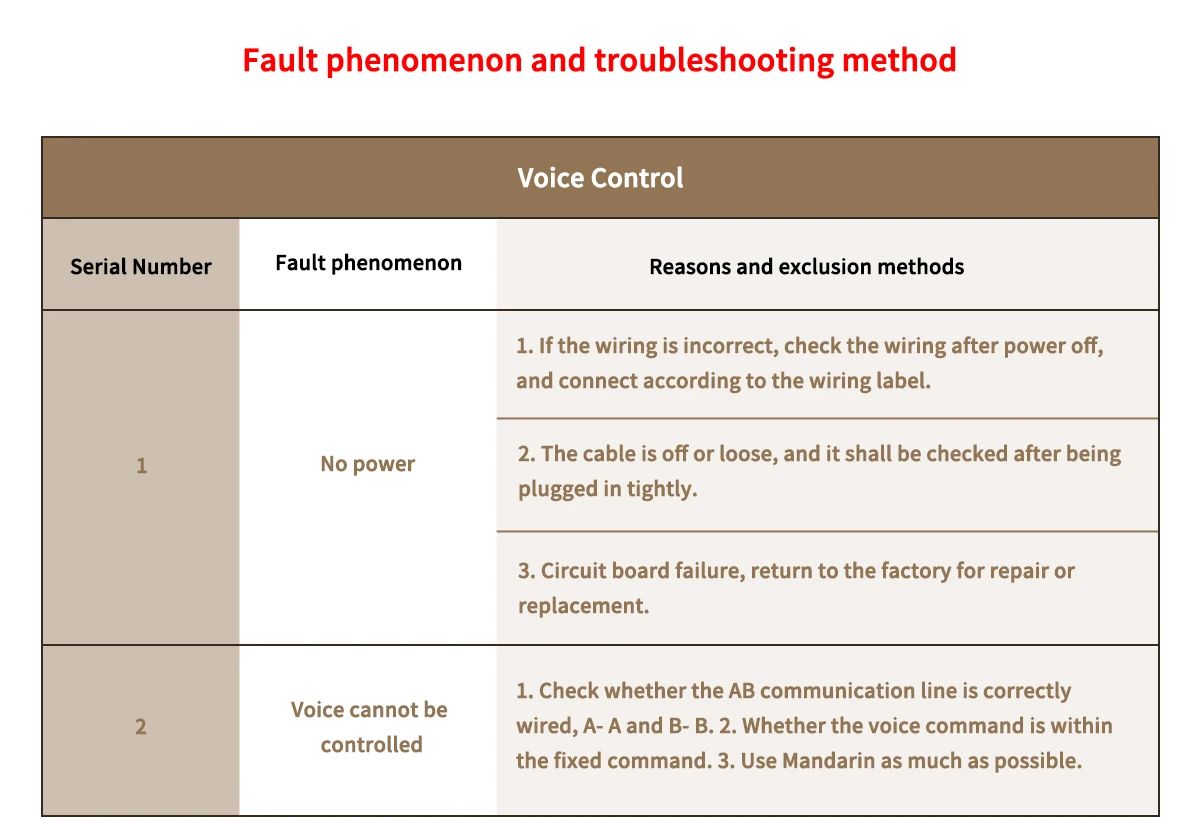

Voice Control Manual: Small Speaker Binding and Related Operation Instructions





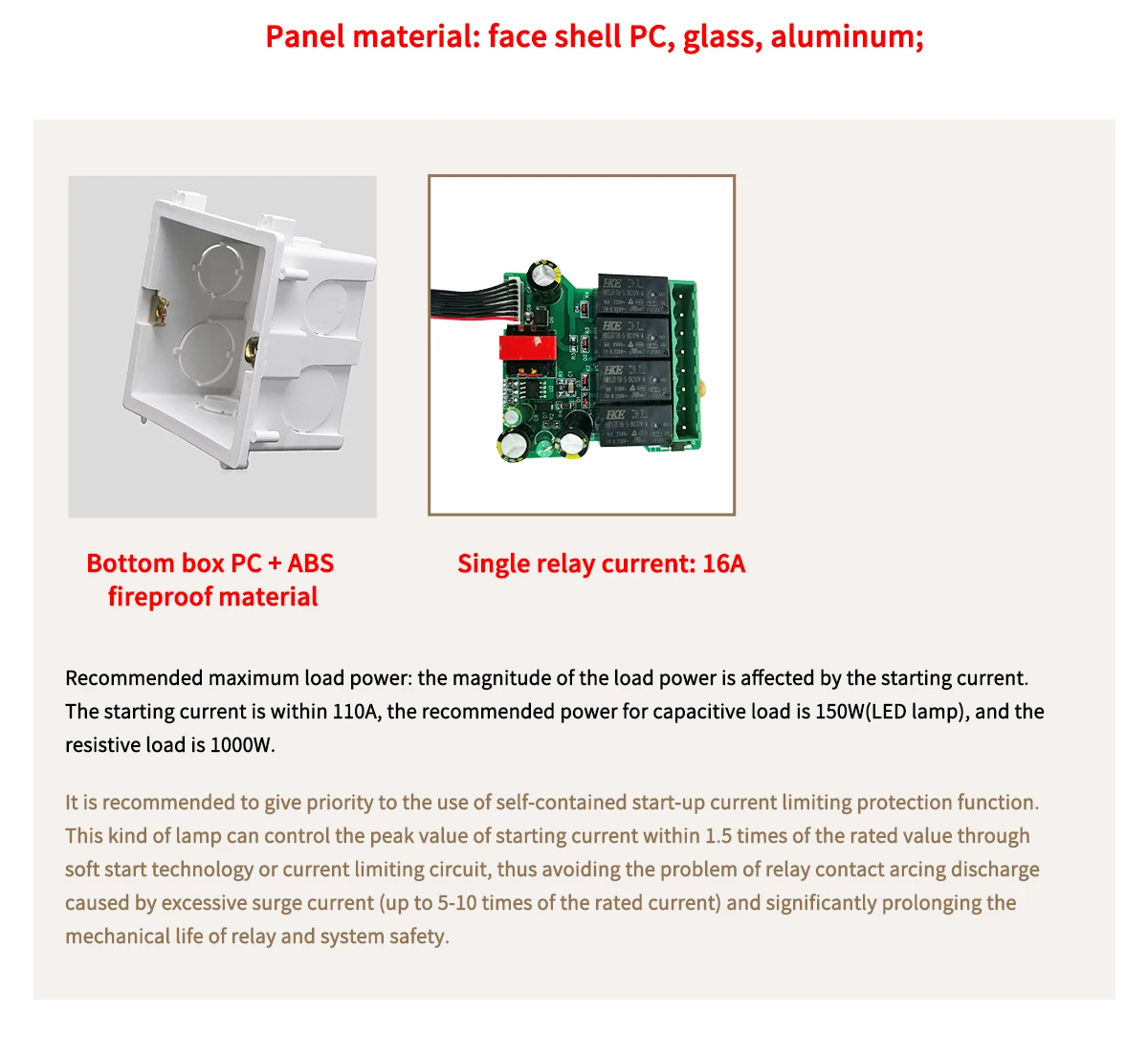

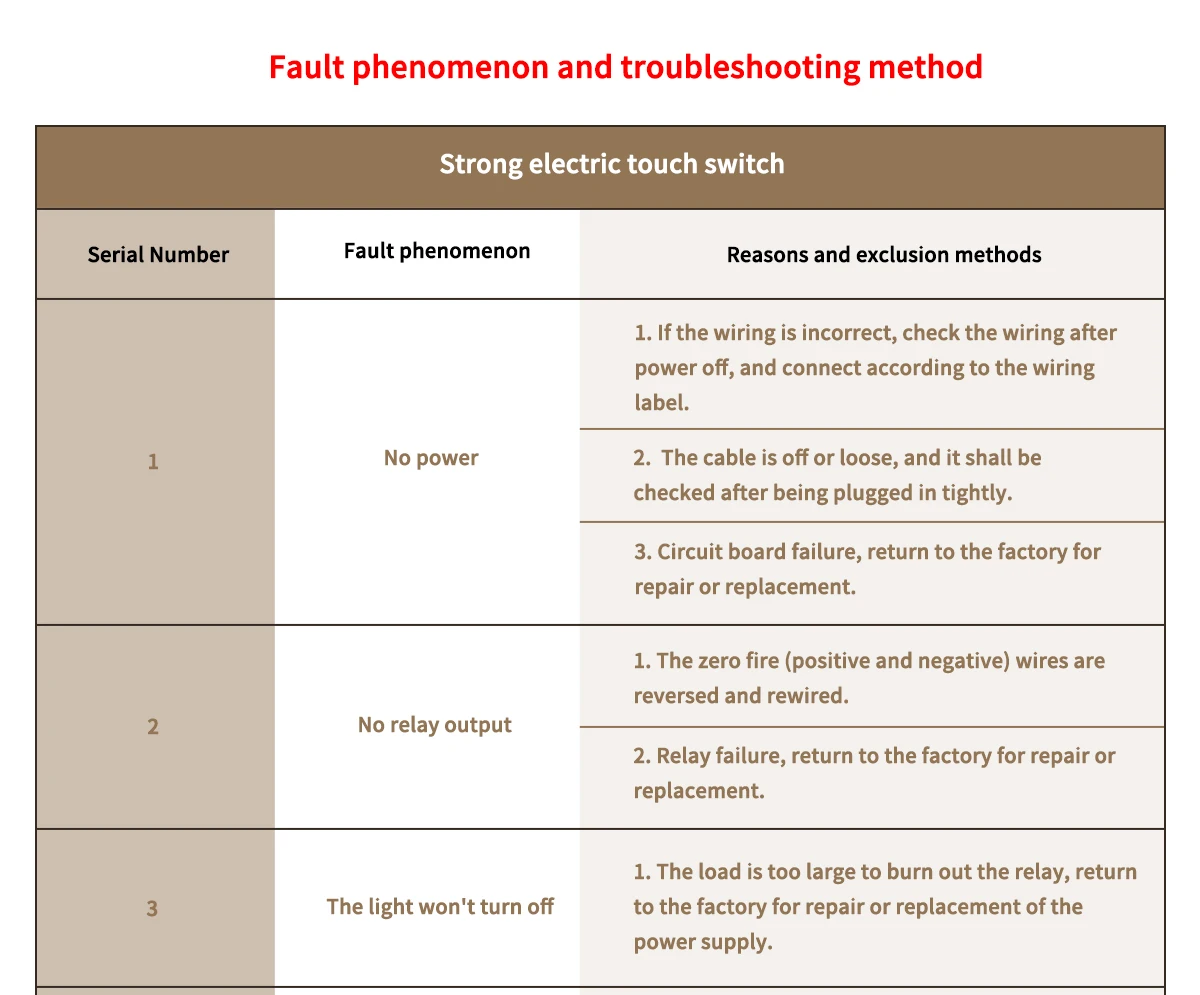

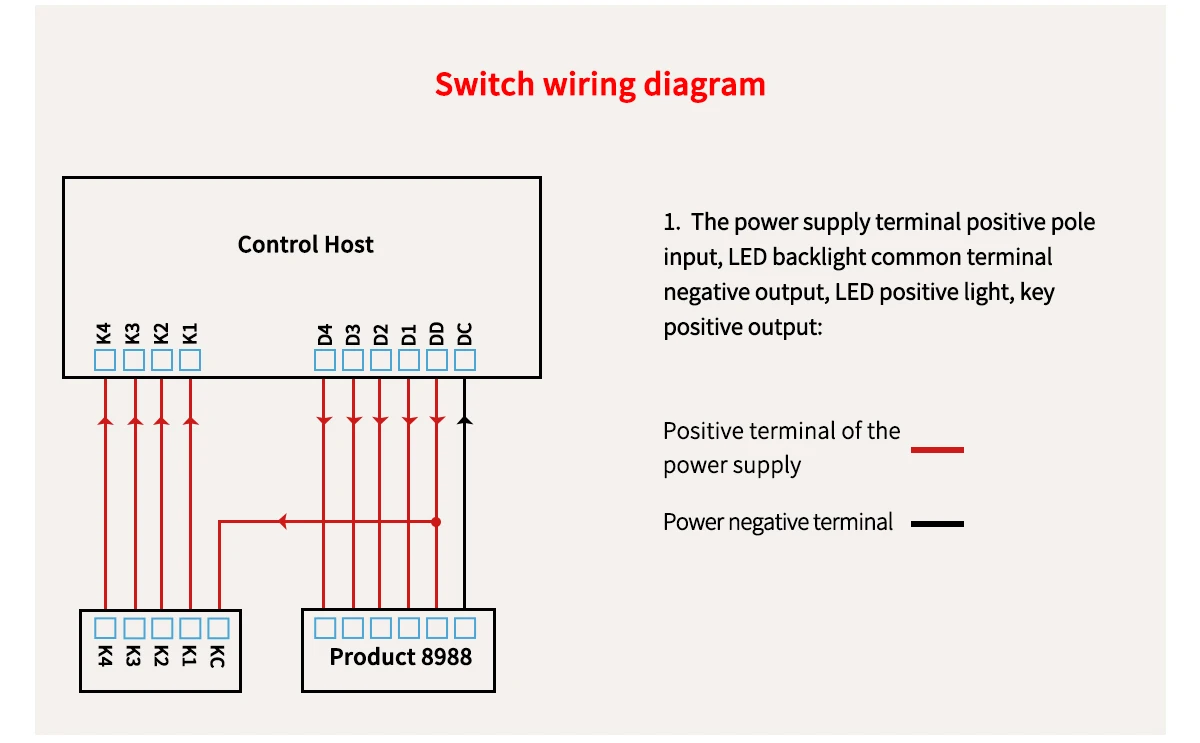

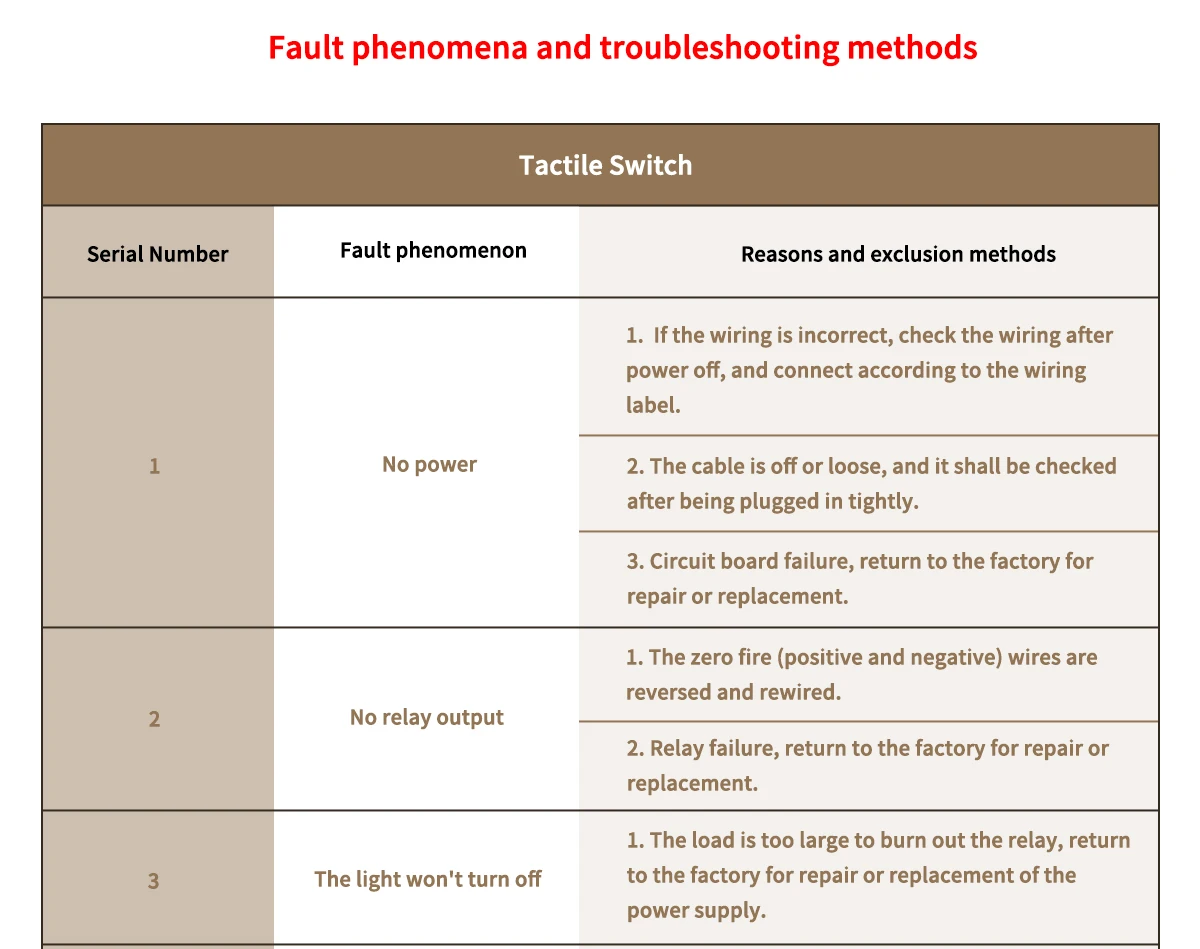

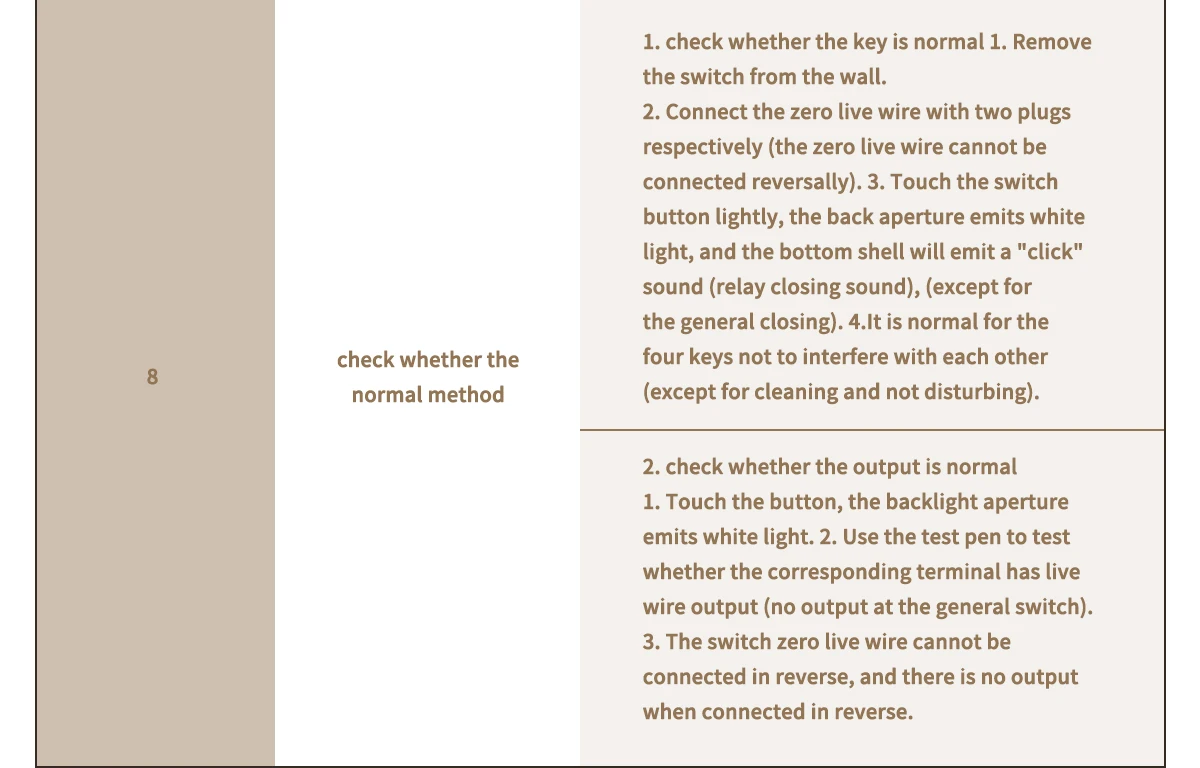

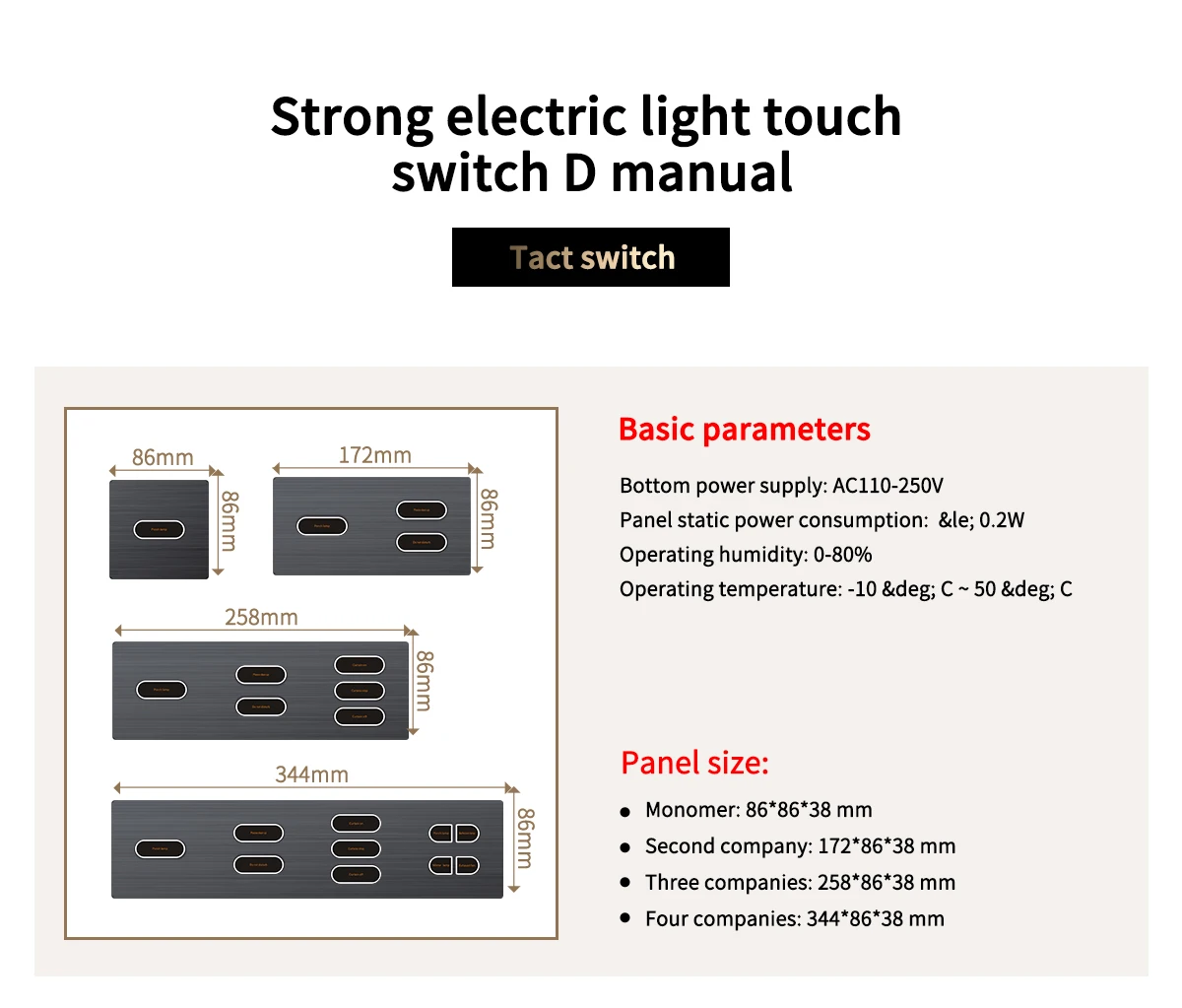

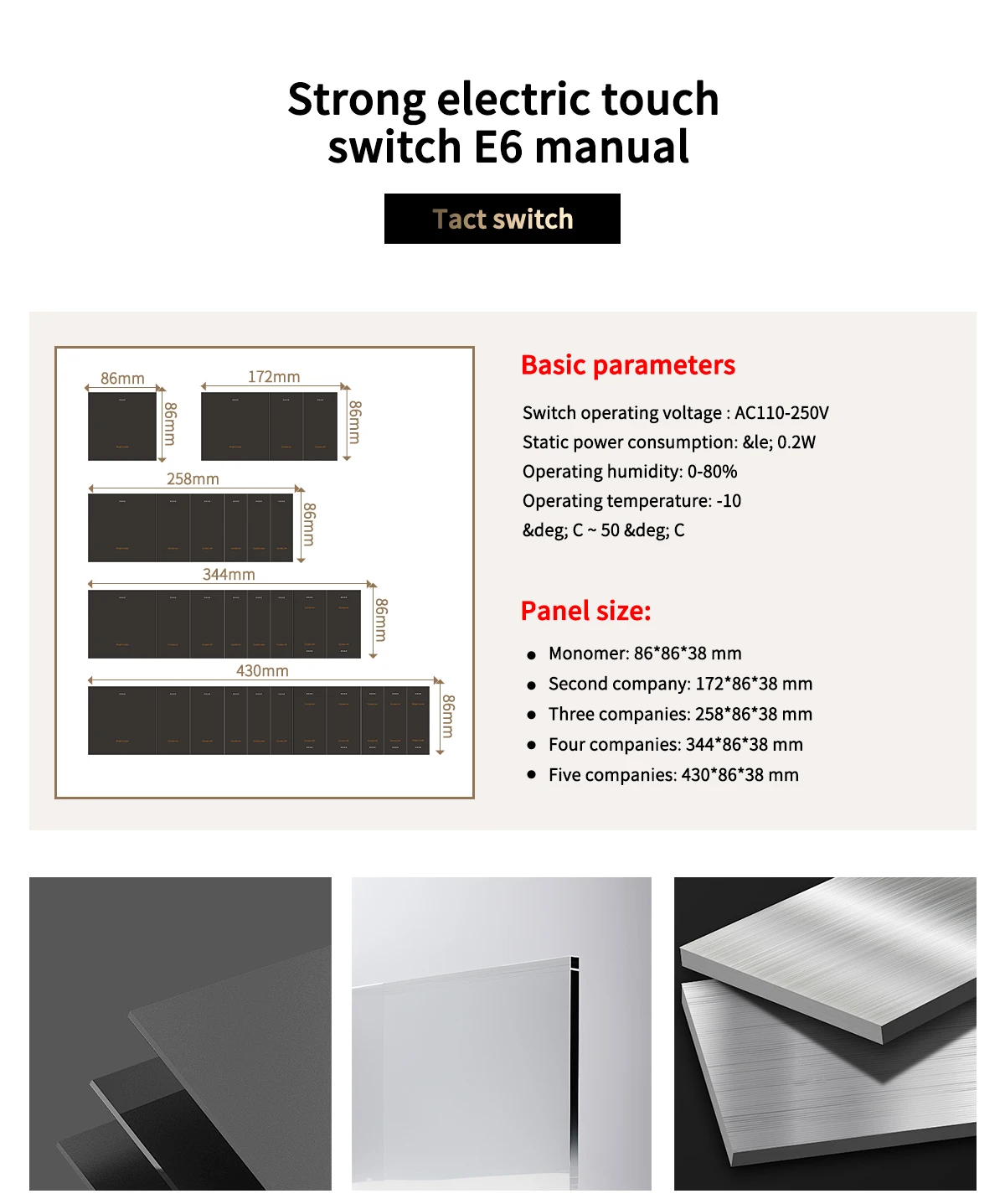

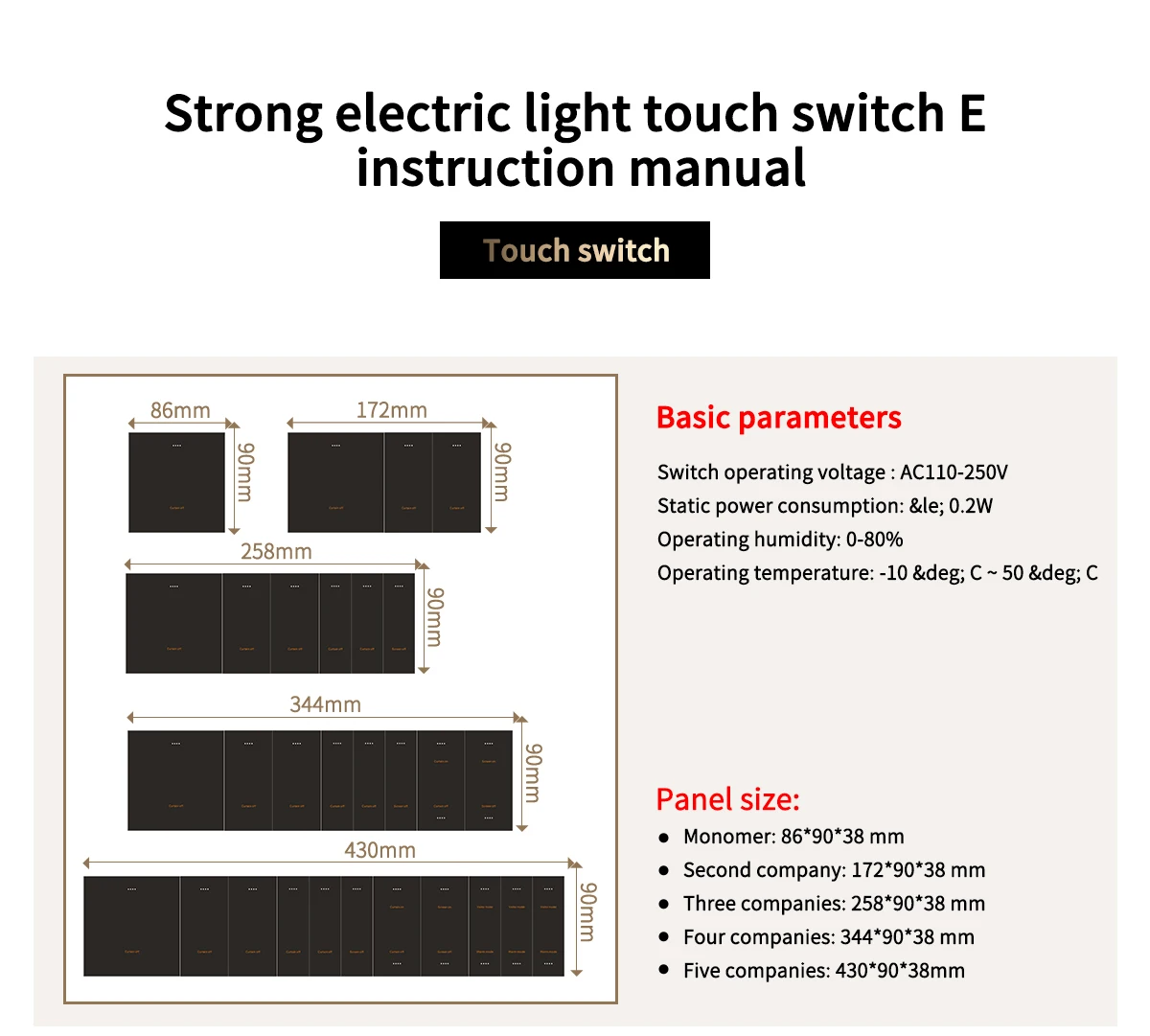

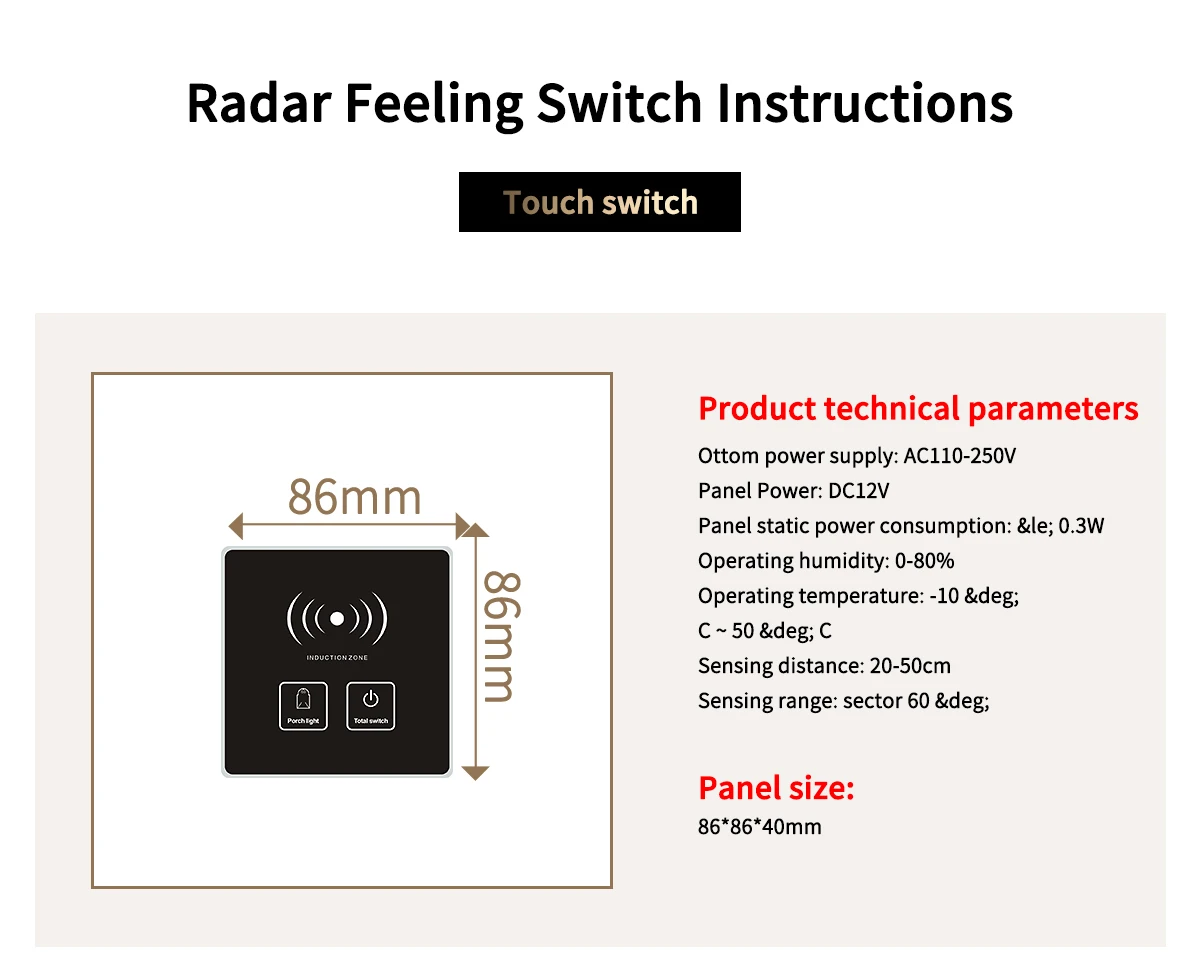

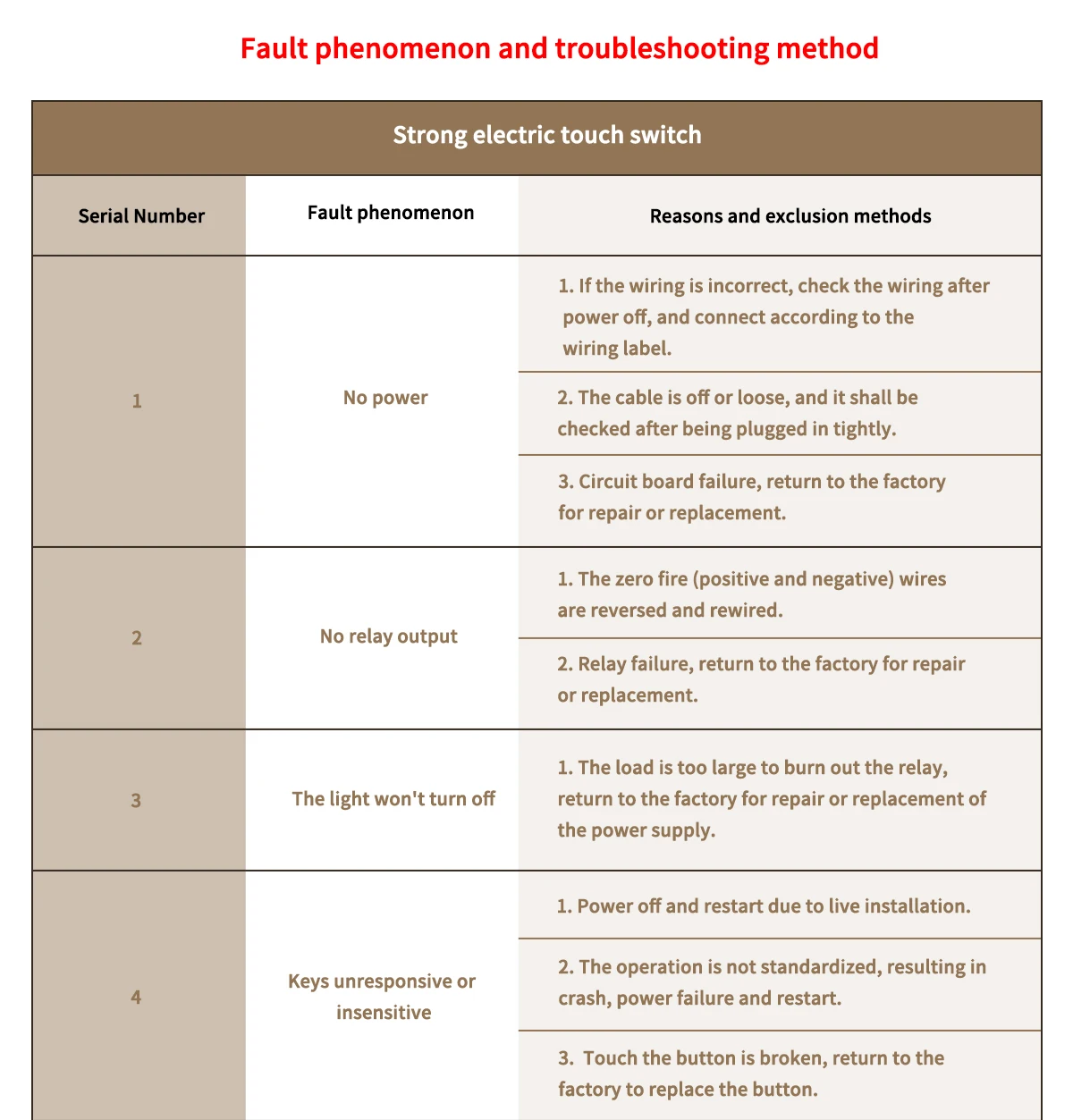

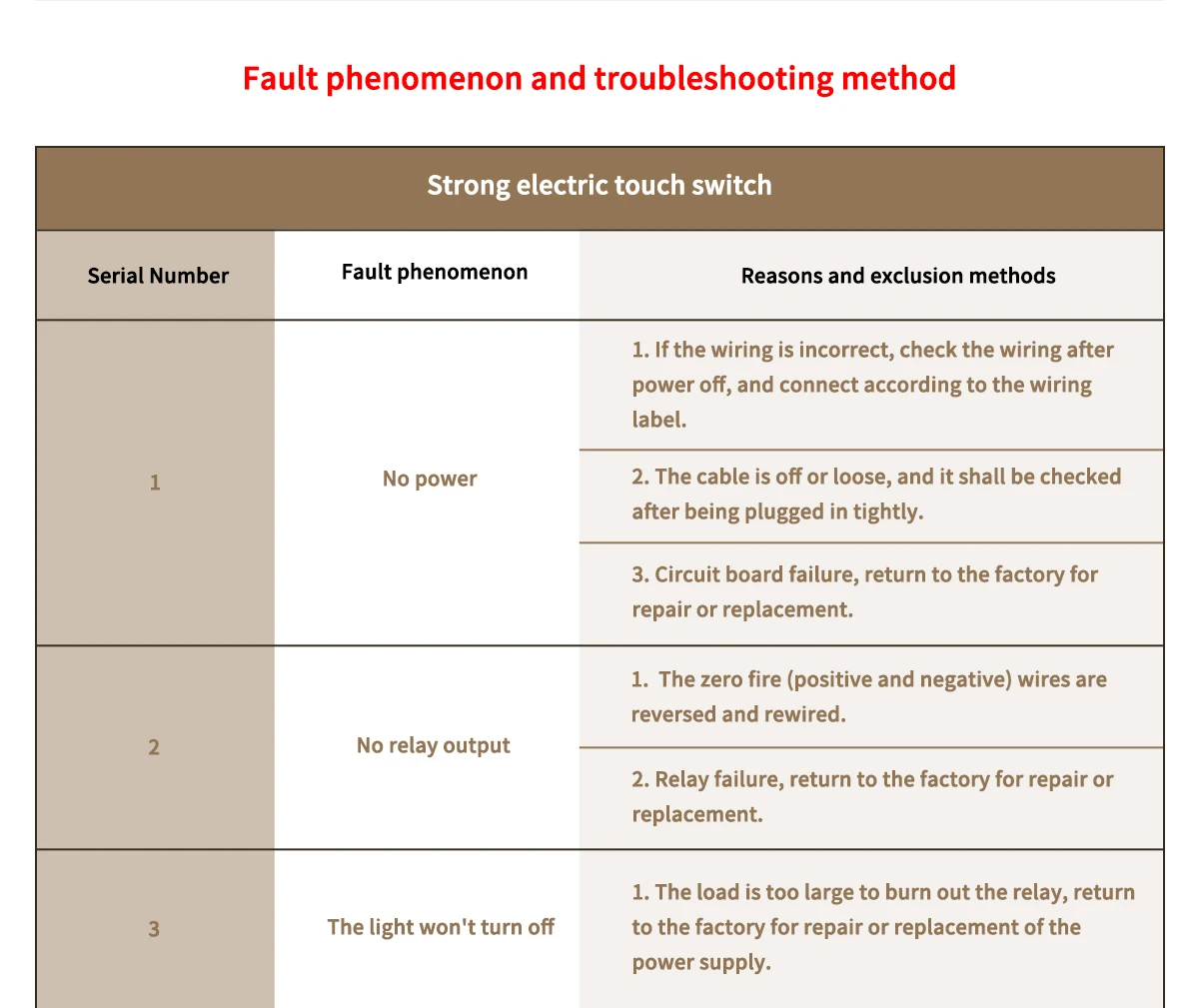

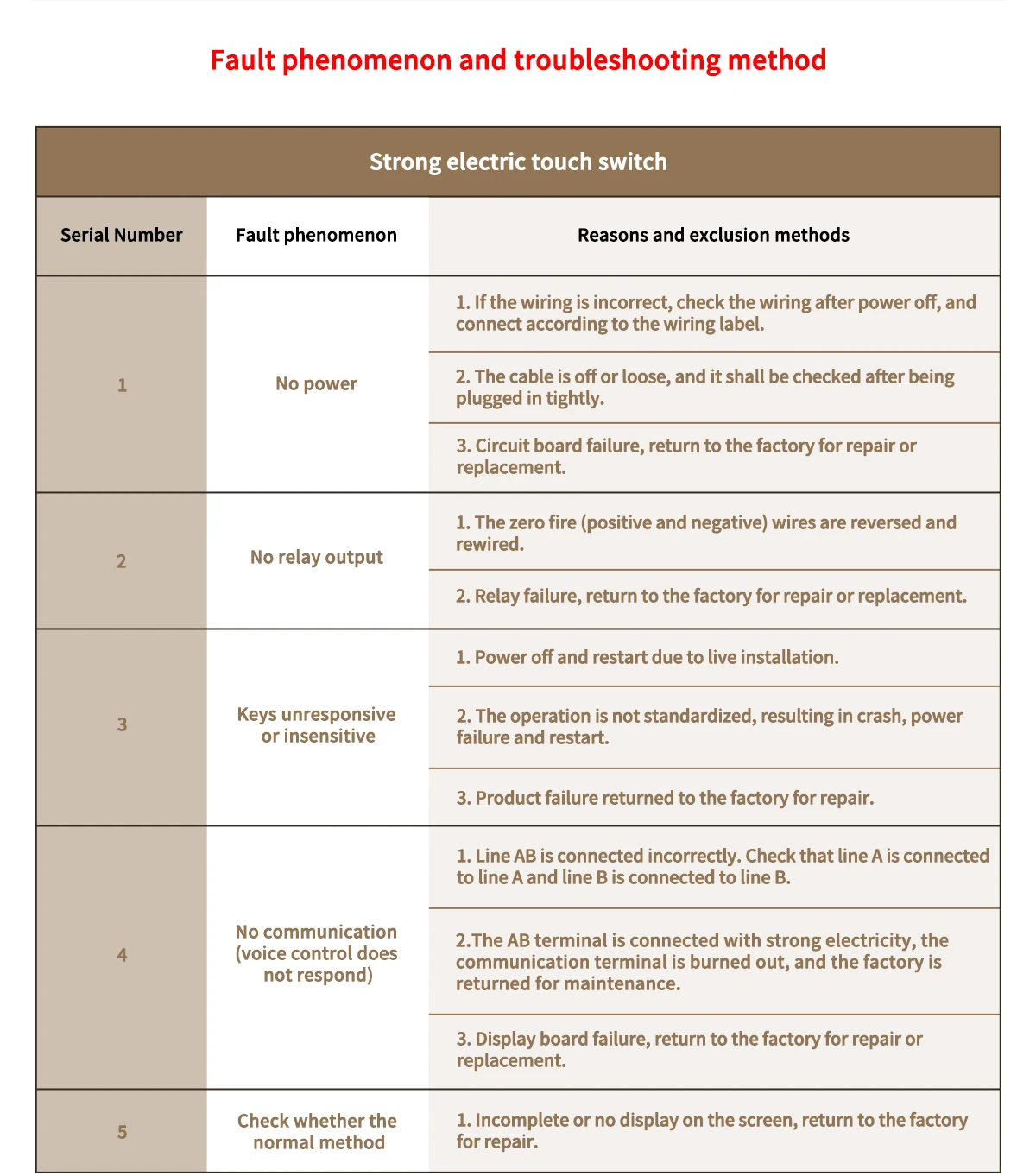

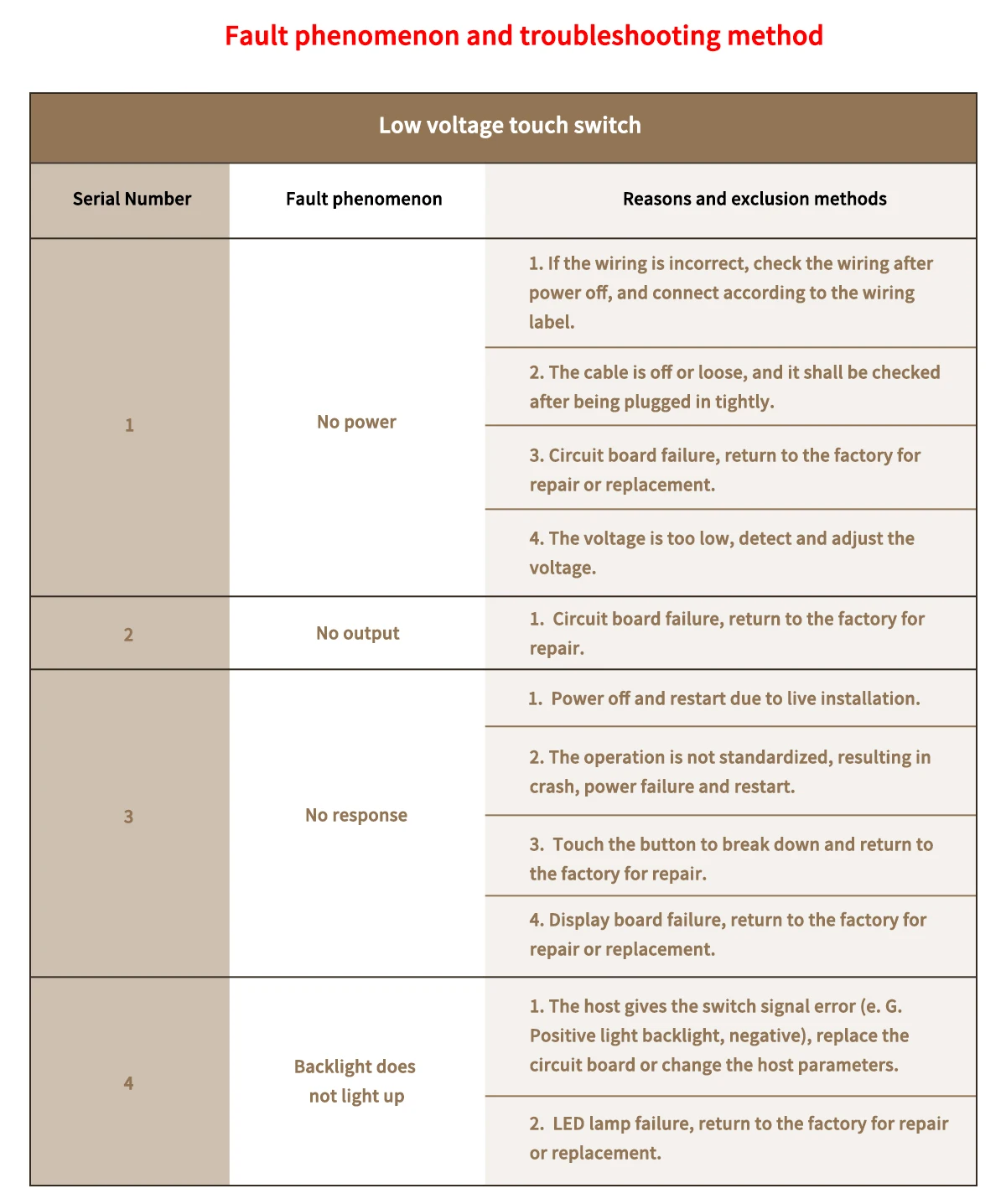

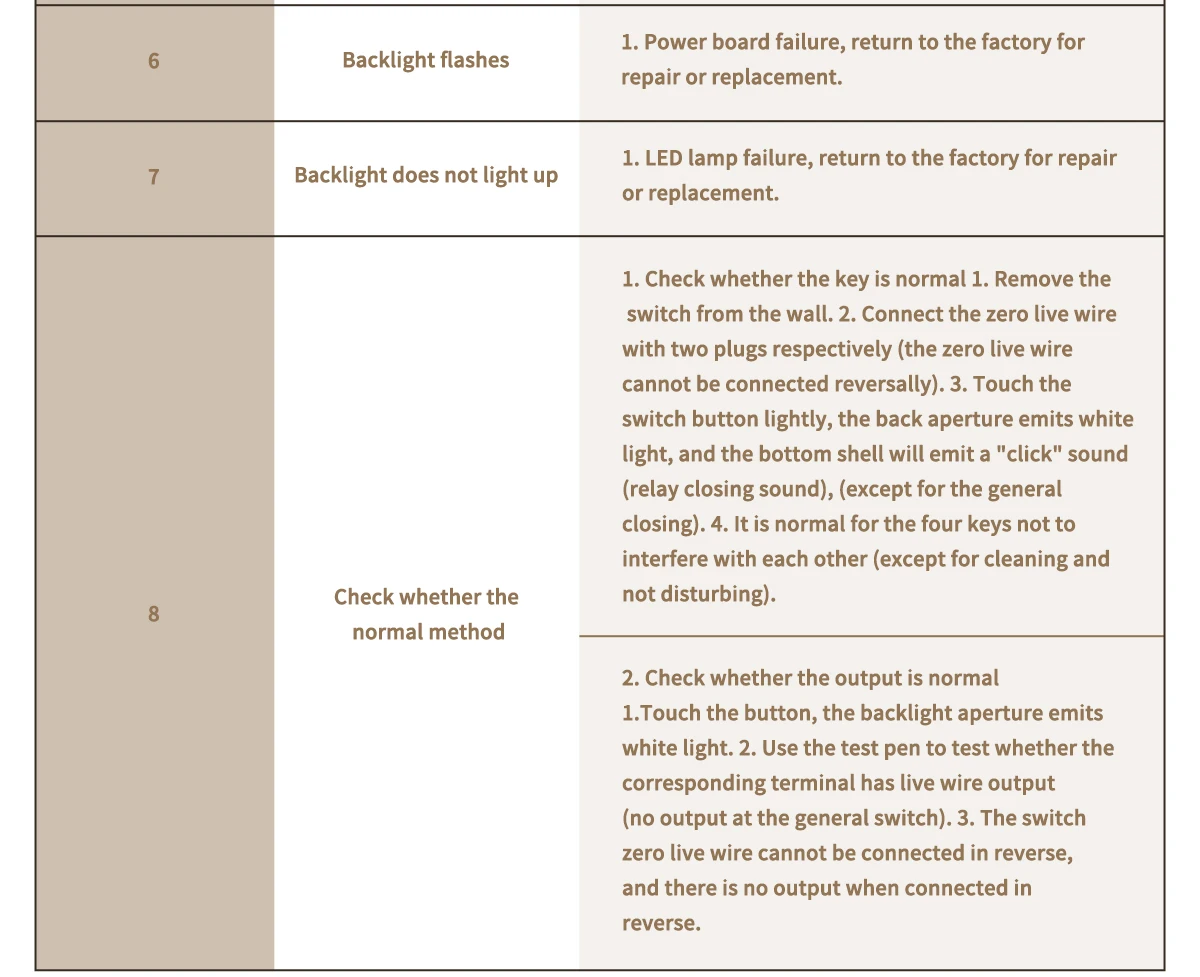

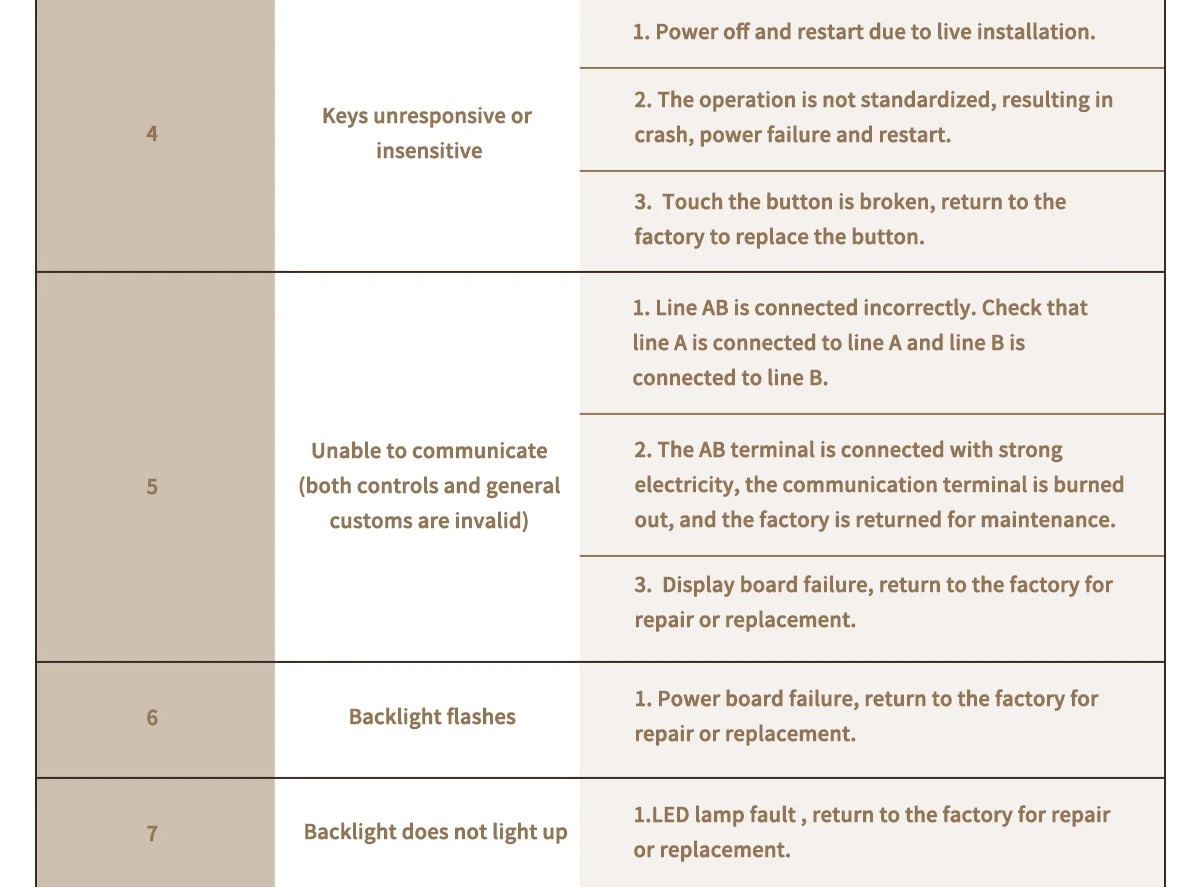

 touch switch



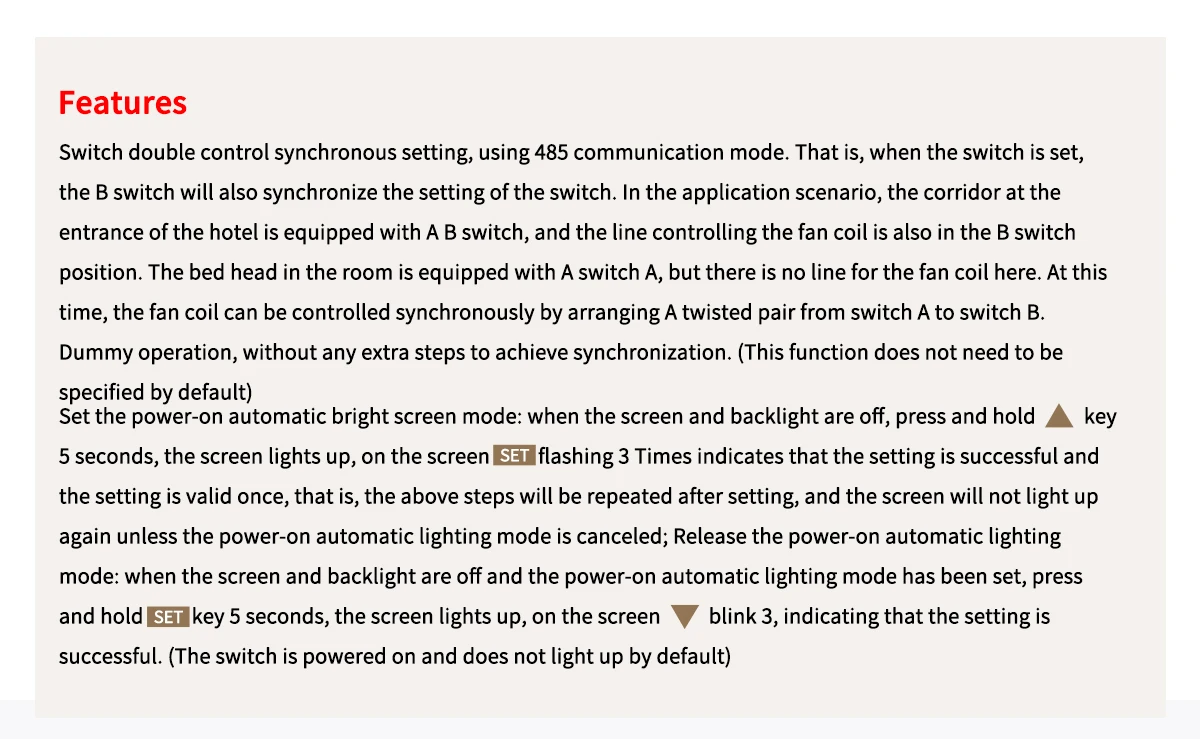

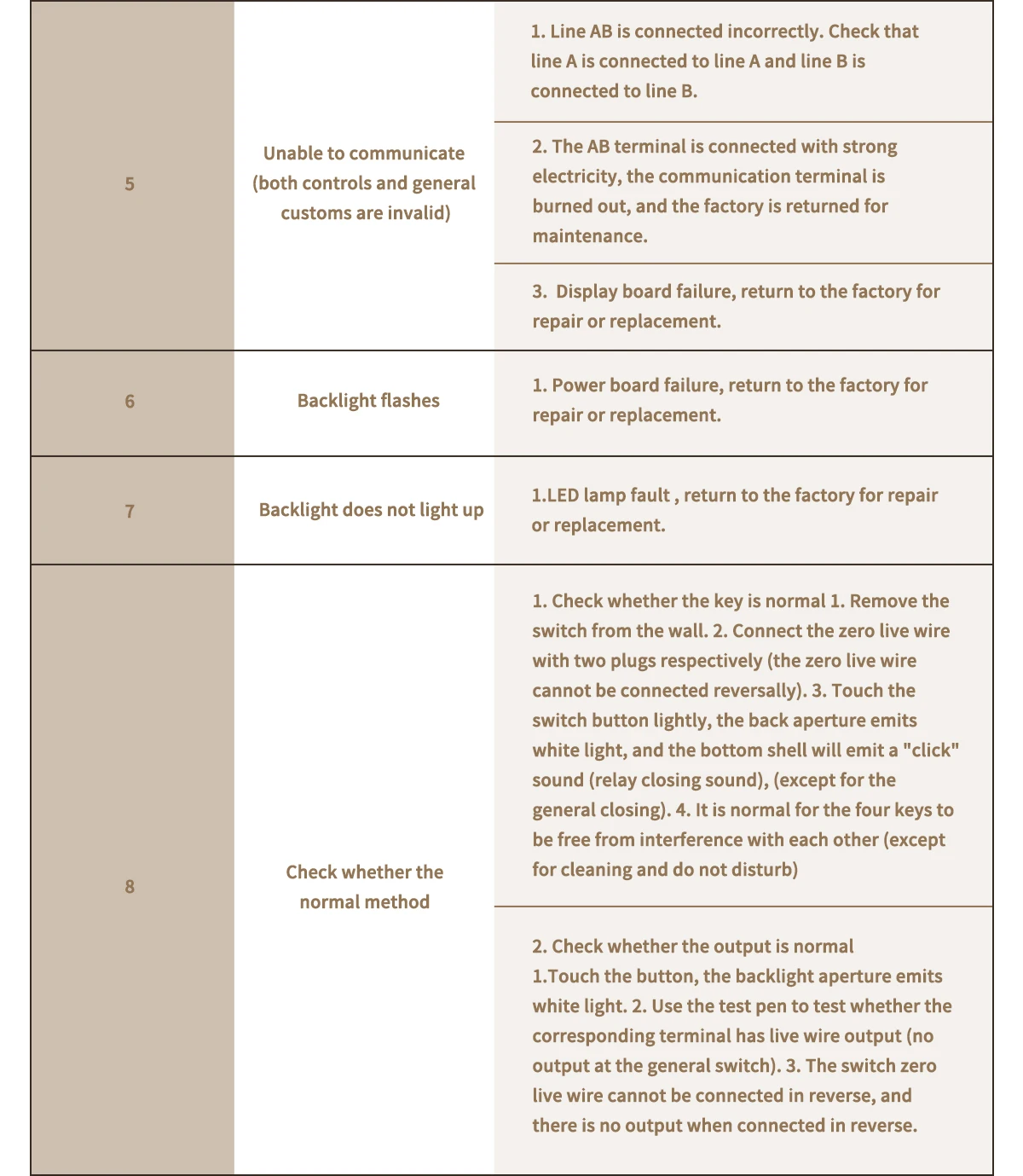

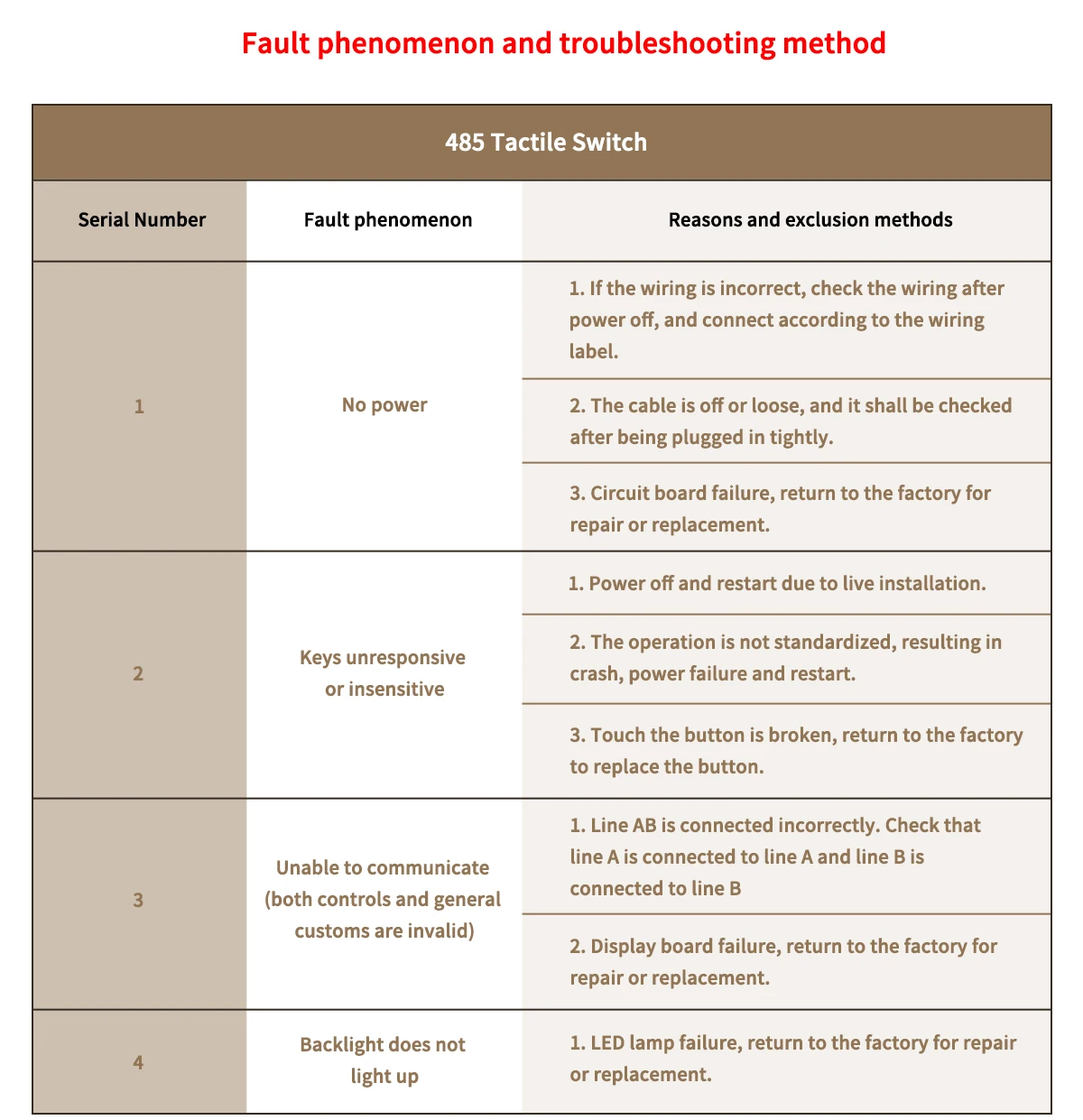

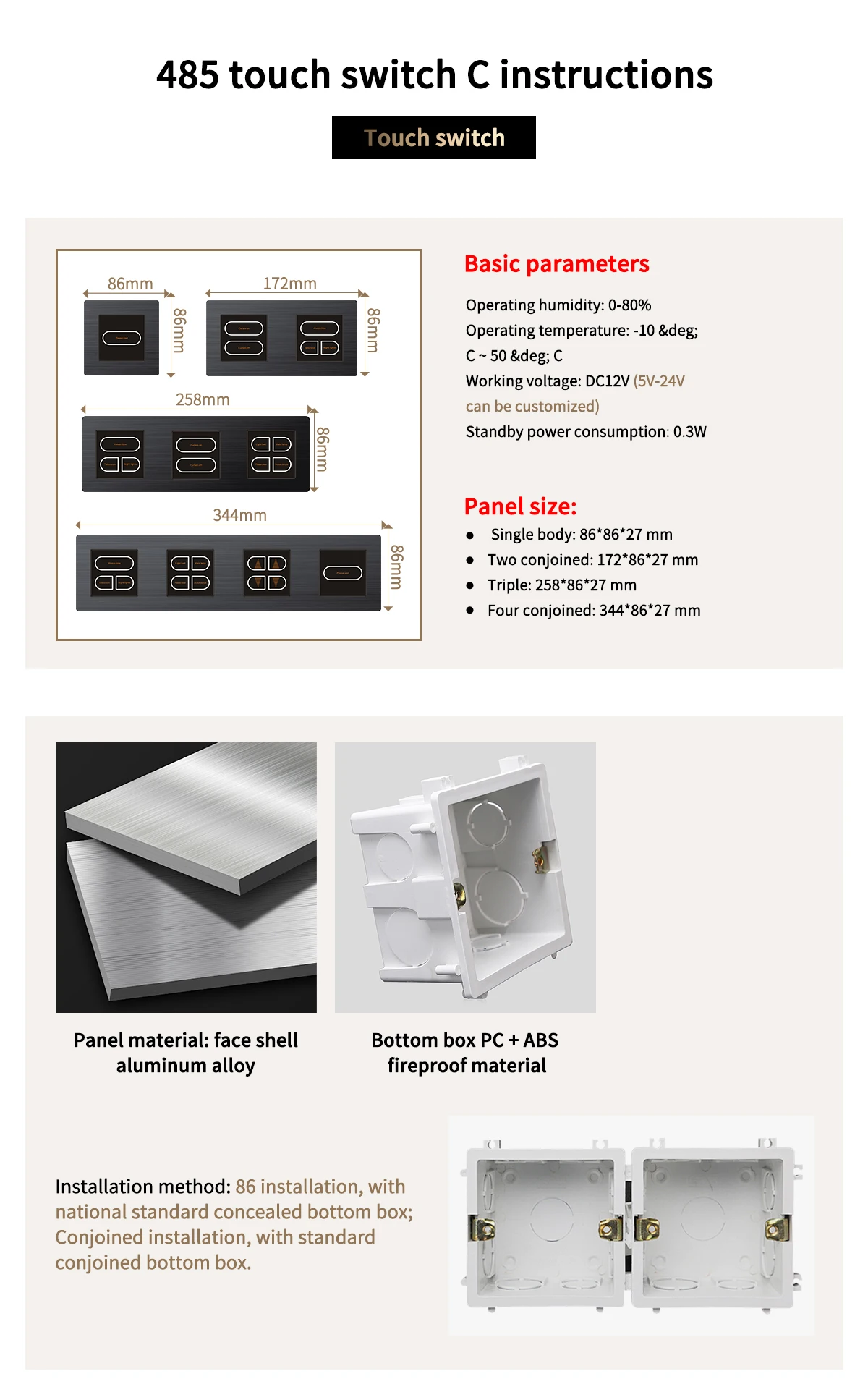

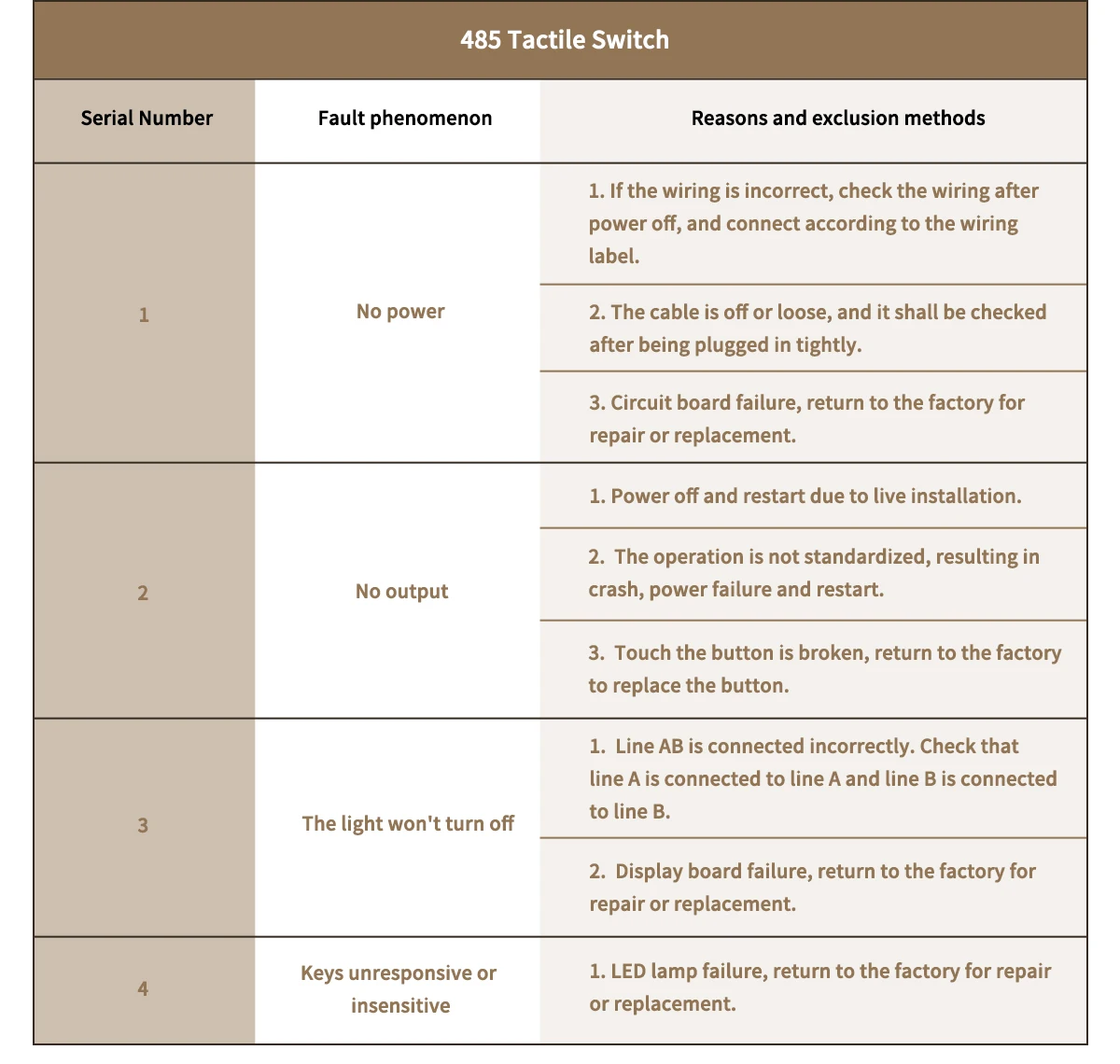

1.485 communication touch switch

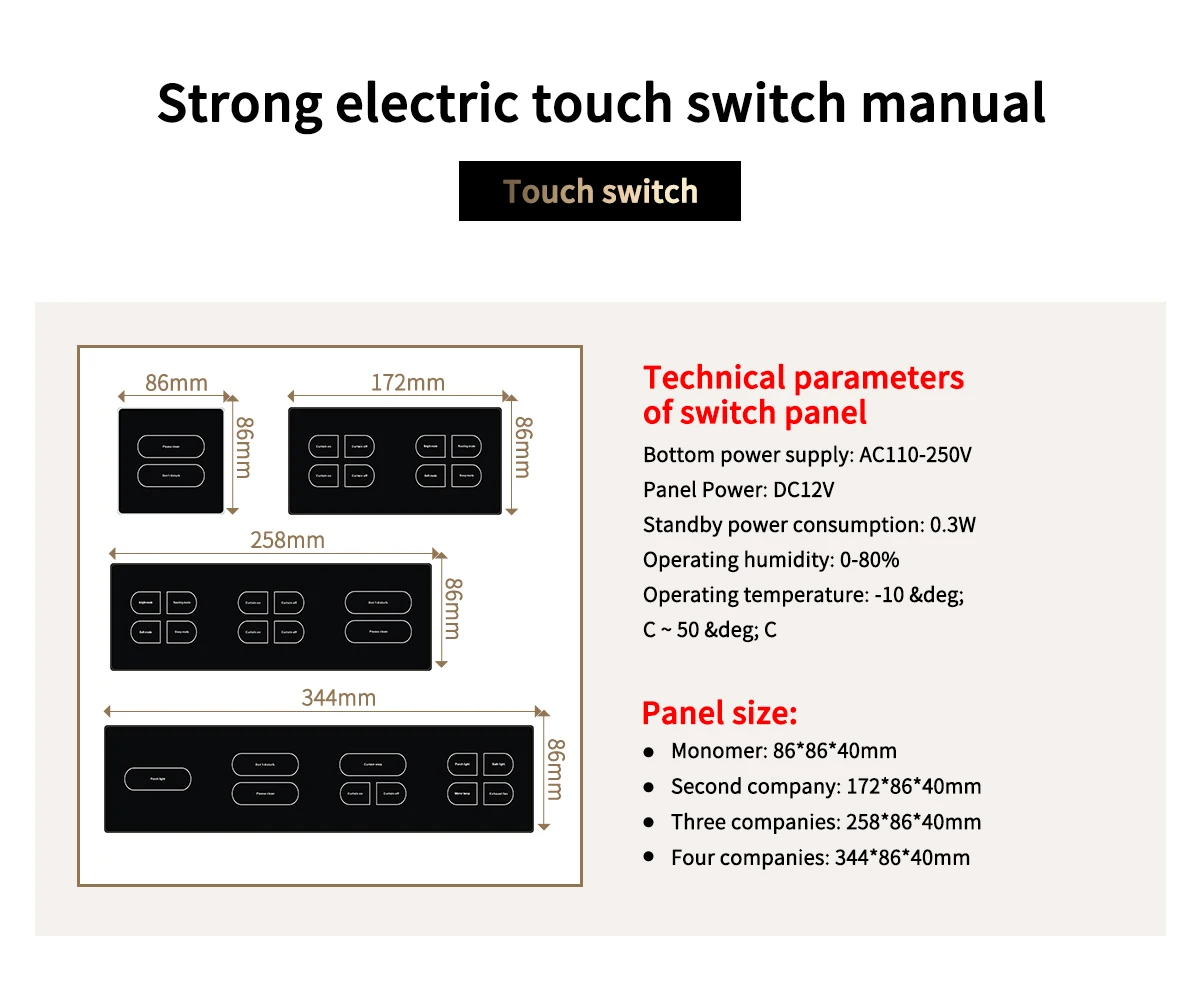

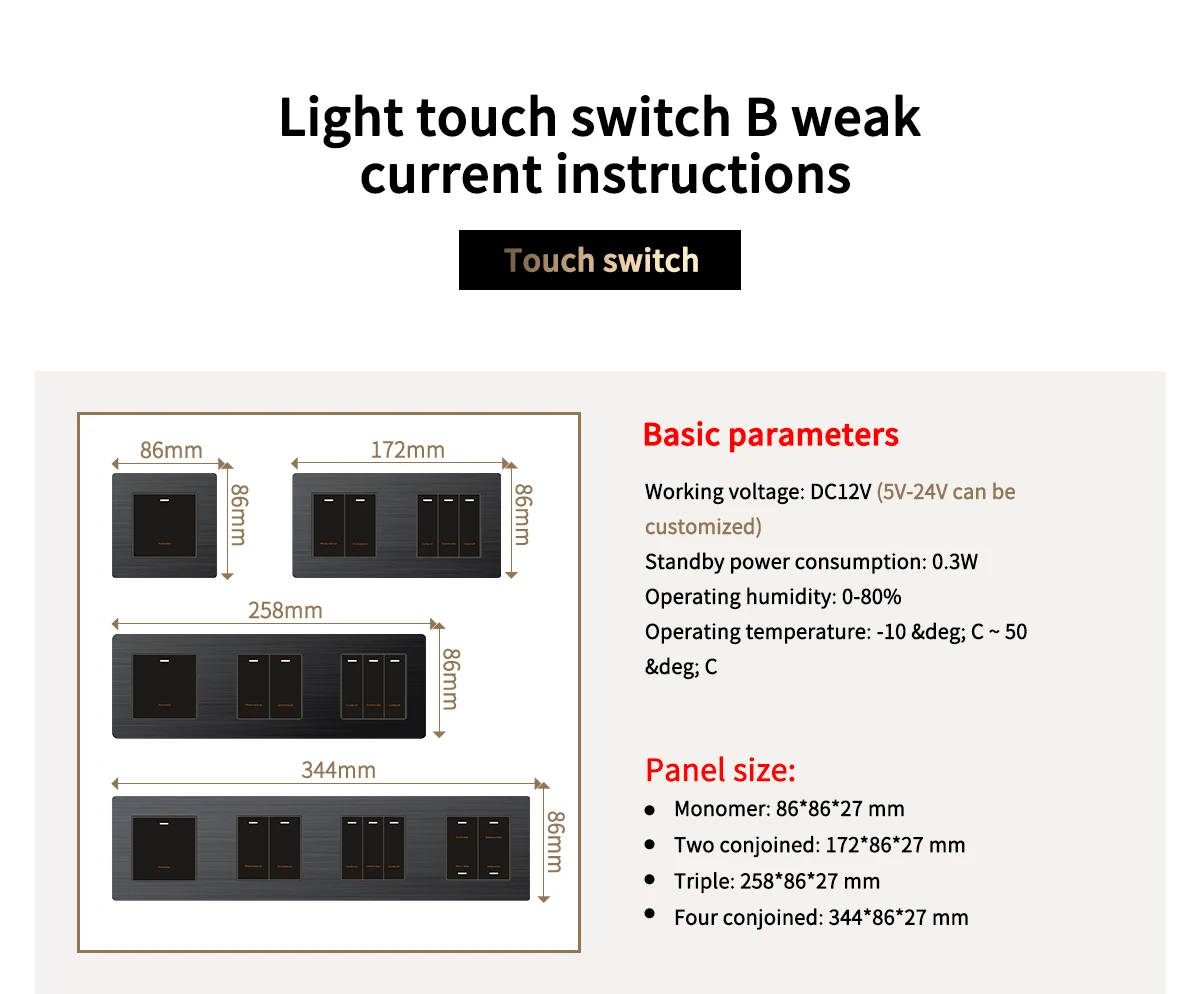

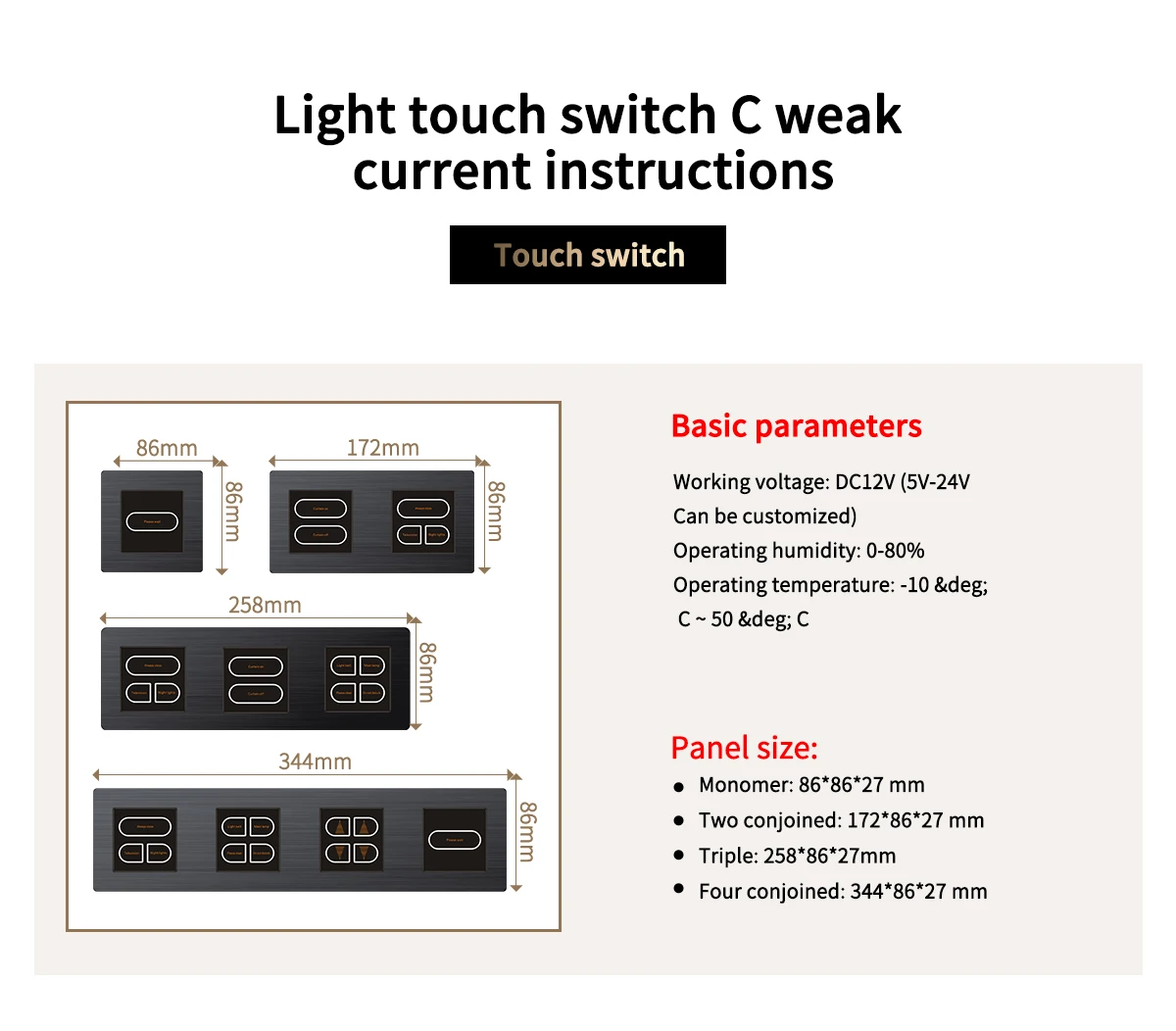

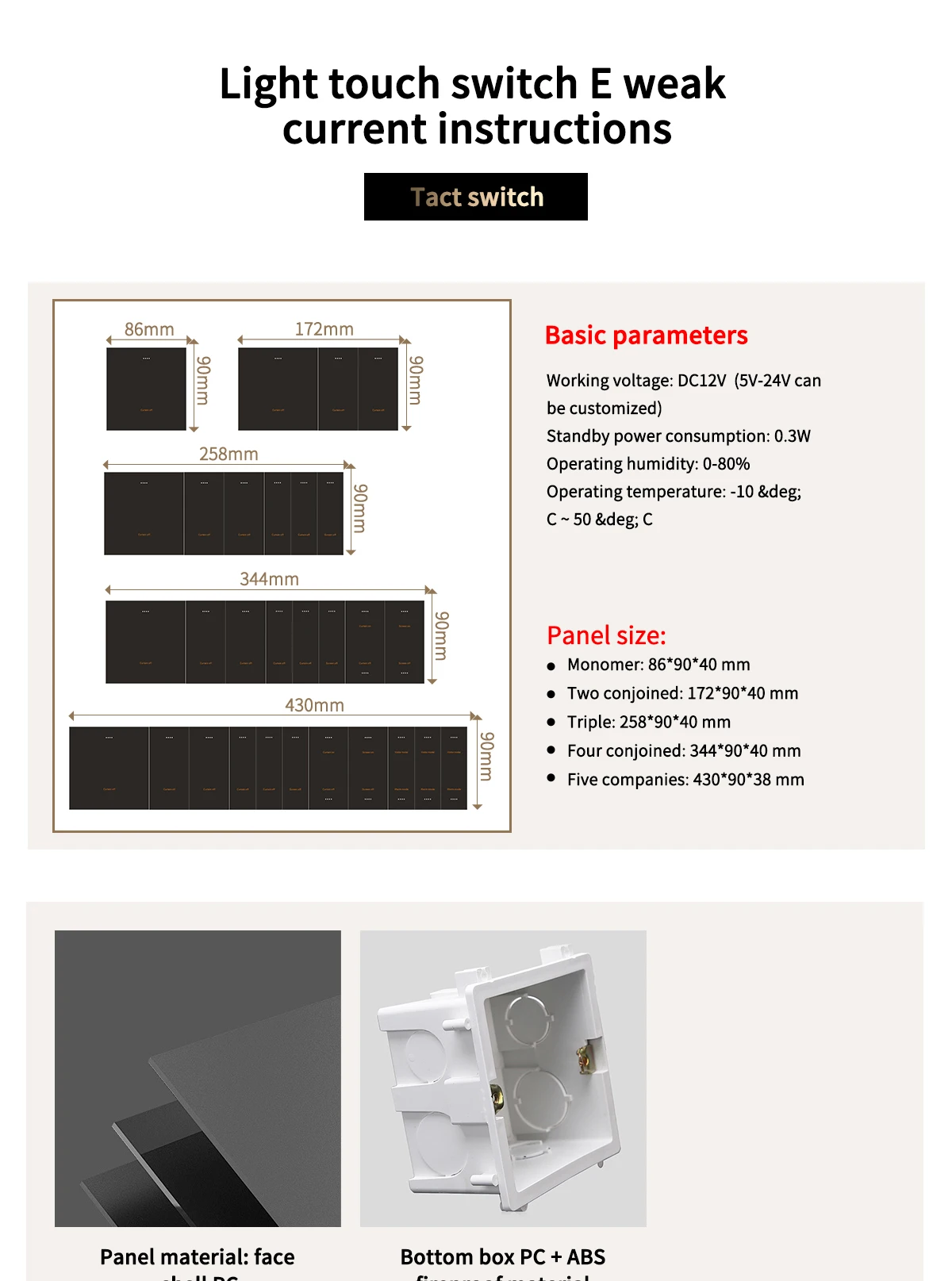

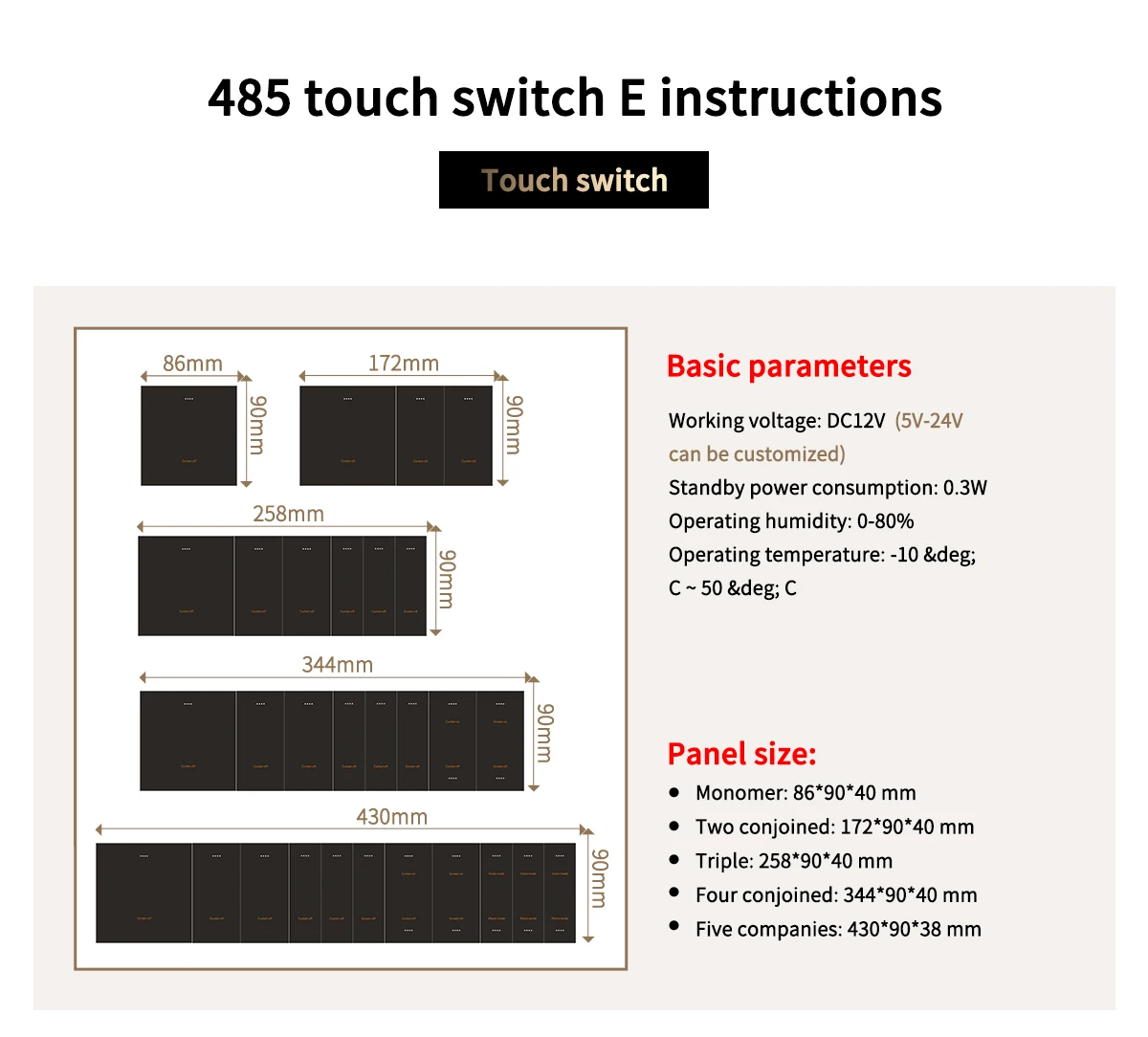

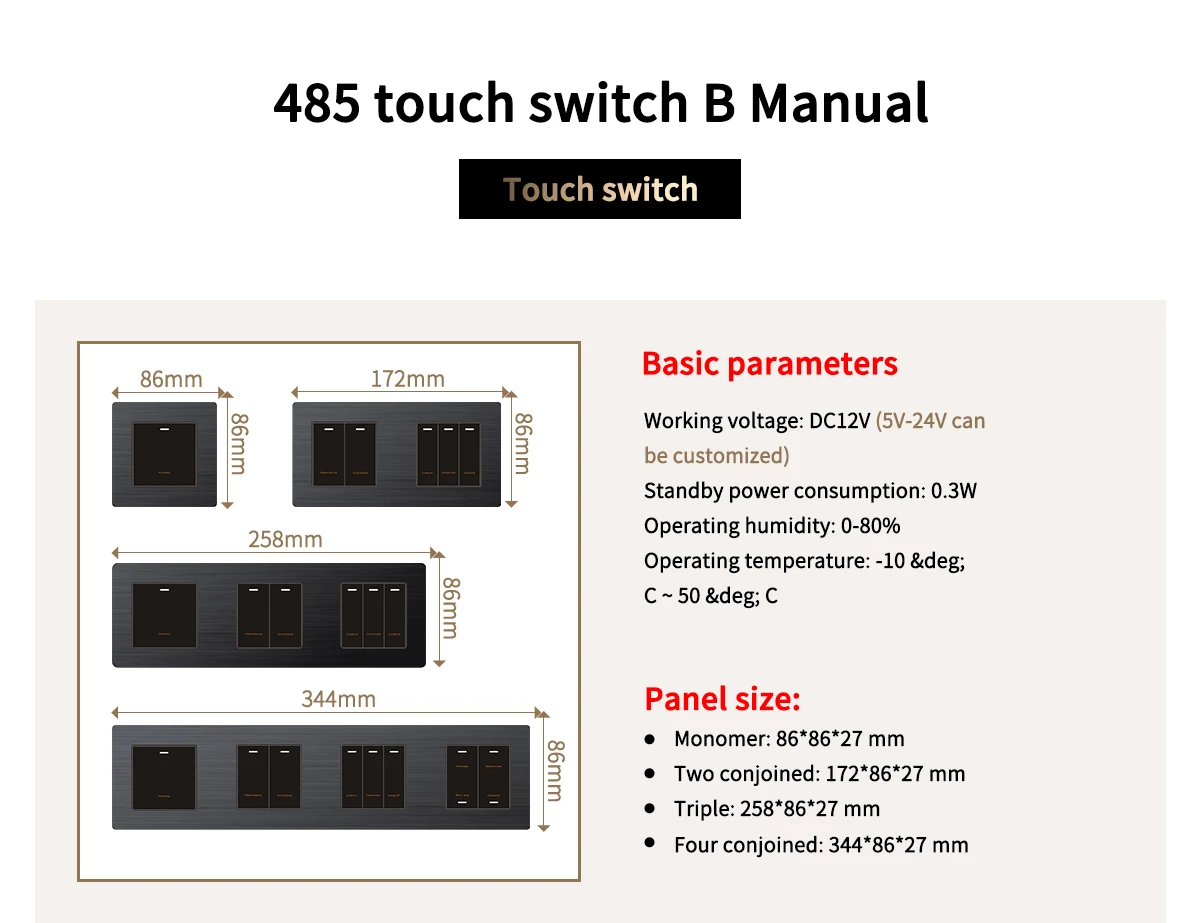

One :technical parameter

         1. Working voltage: DC12V (5V-24V can be customized)
         2. Standby power consumption: 0.3W
         3. Working humidity: 0-80%
         4. Working temperature: -10 ° C to 50 ° C

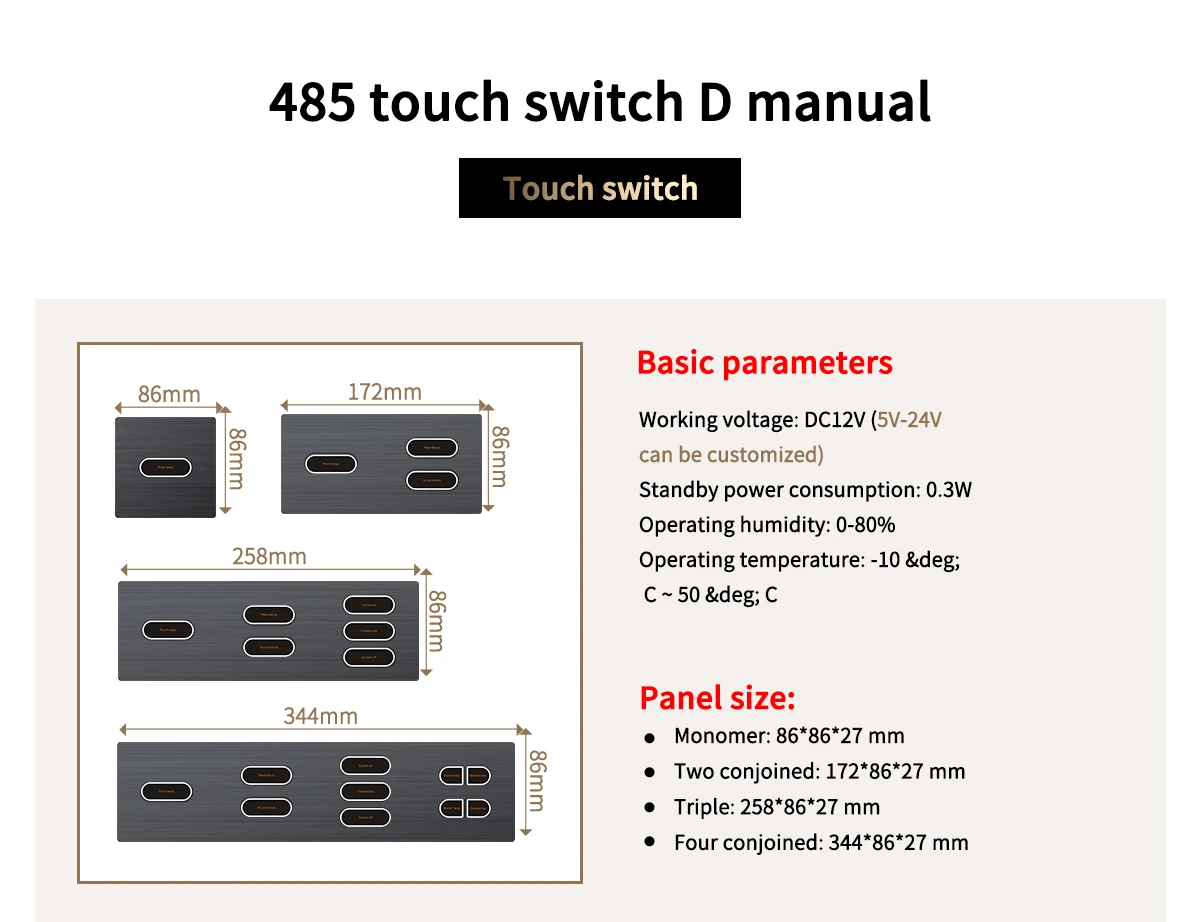

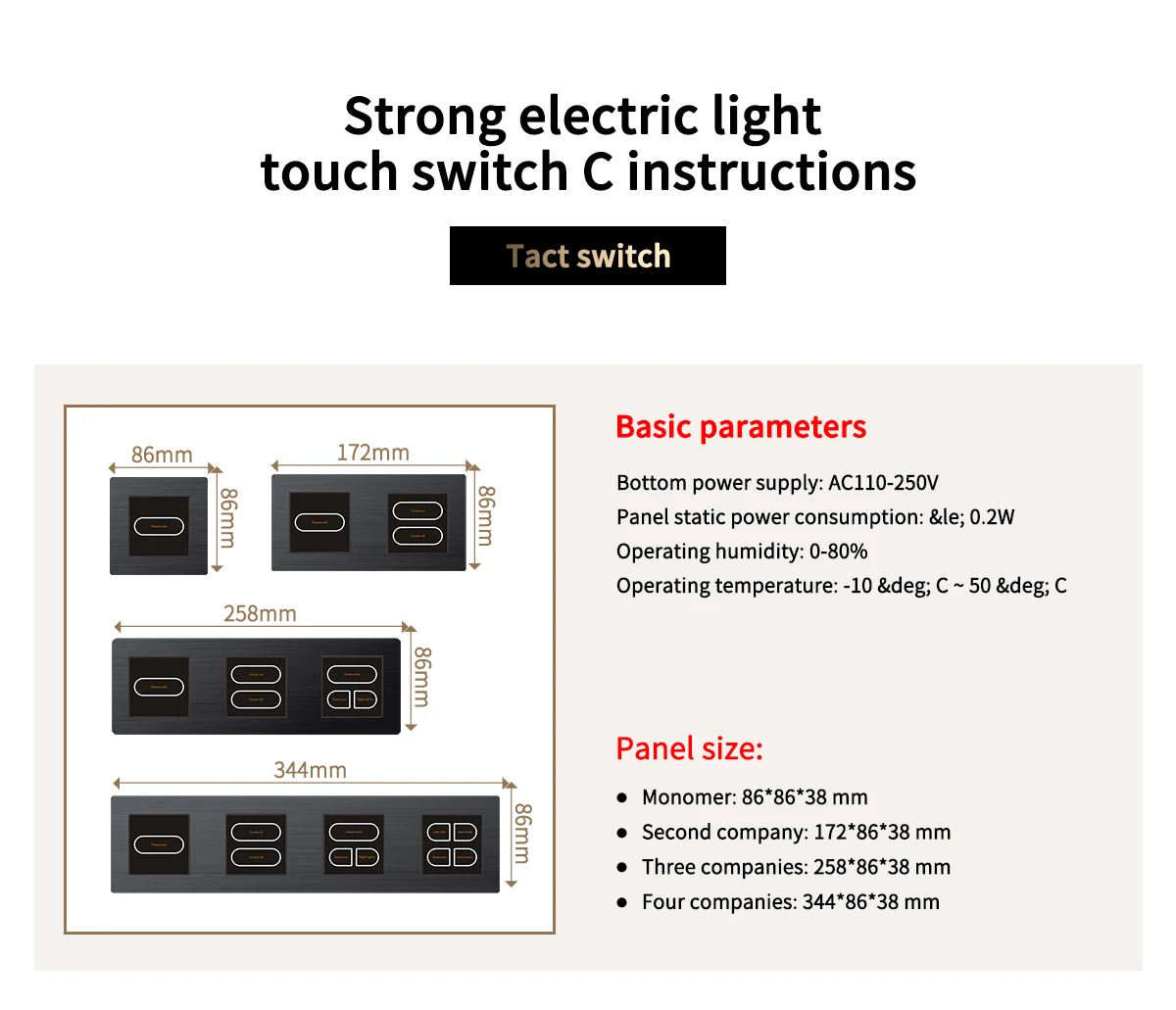

         5. Panel size:
             Single unit: 86 * 86 * 40MM
             Two in one: 172 * 86 * 40MM
             Triple body: 258 * 86 * 40MM
             Four in one: 344 * 86 * 40MM

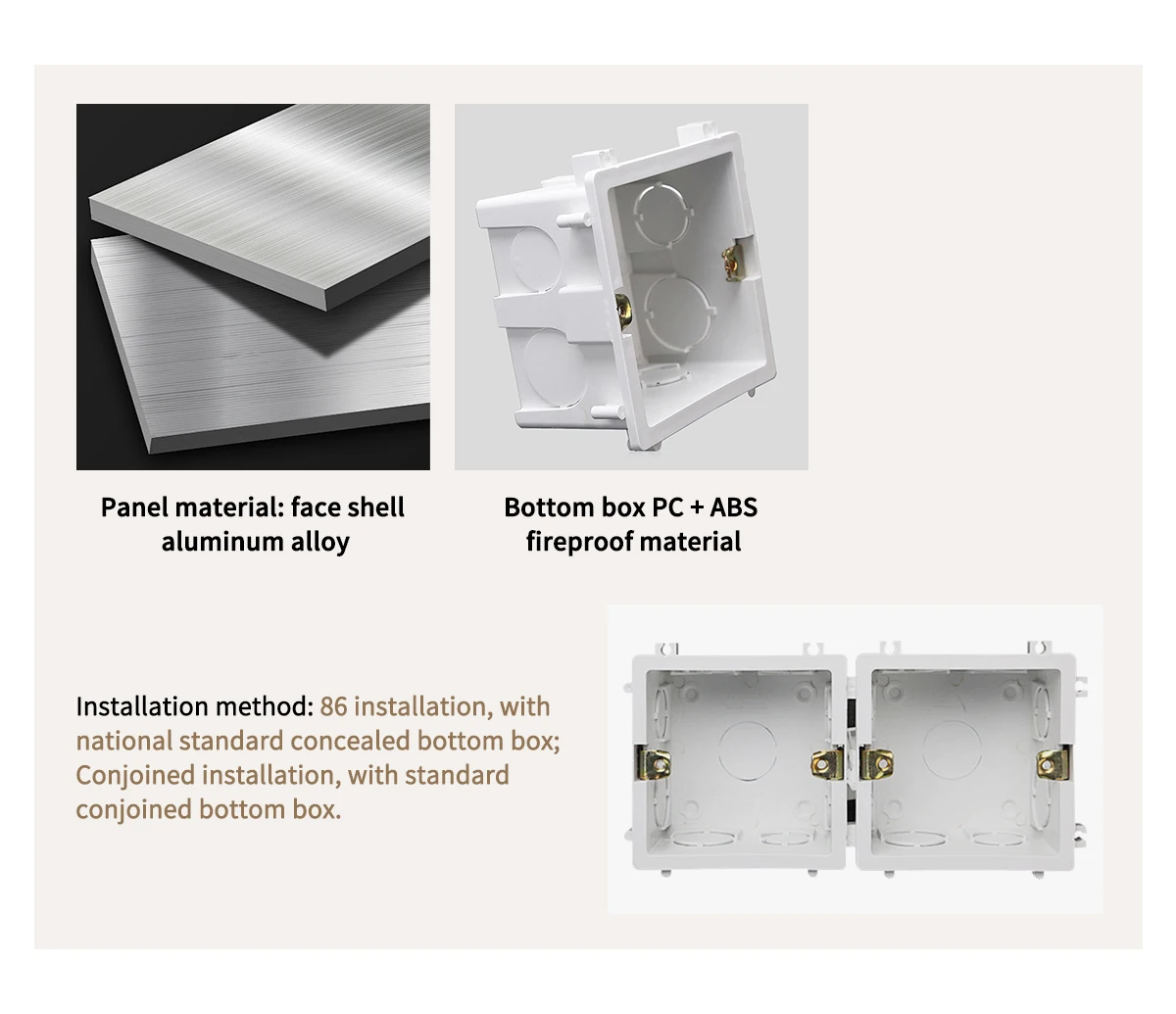

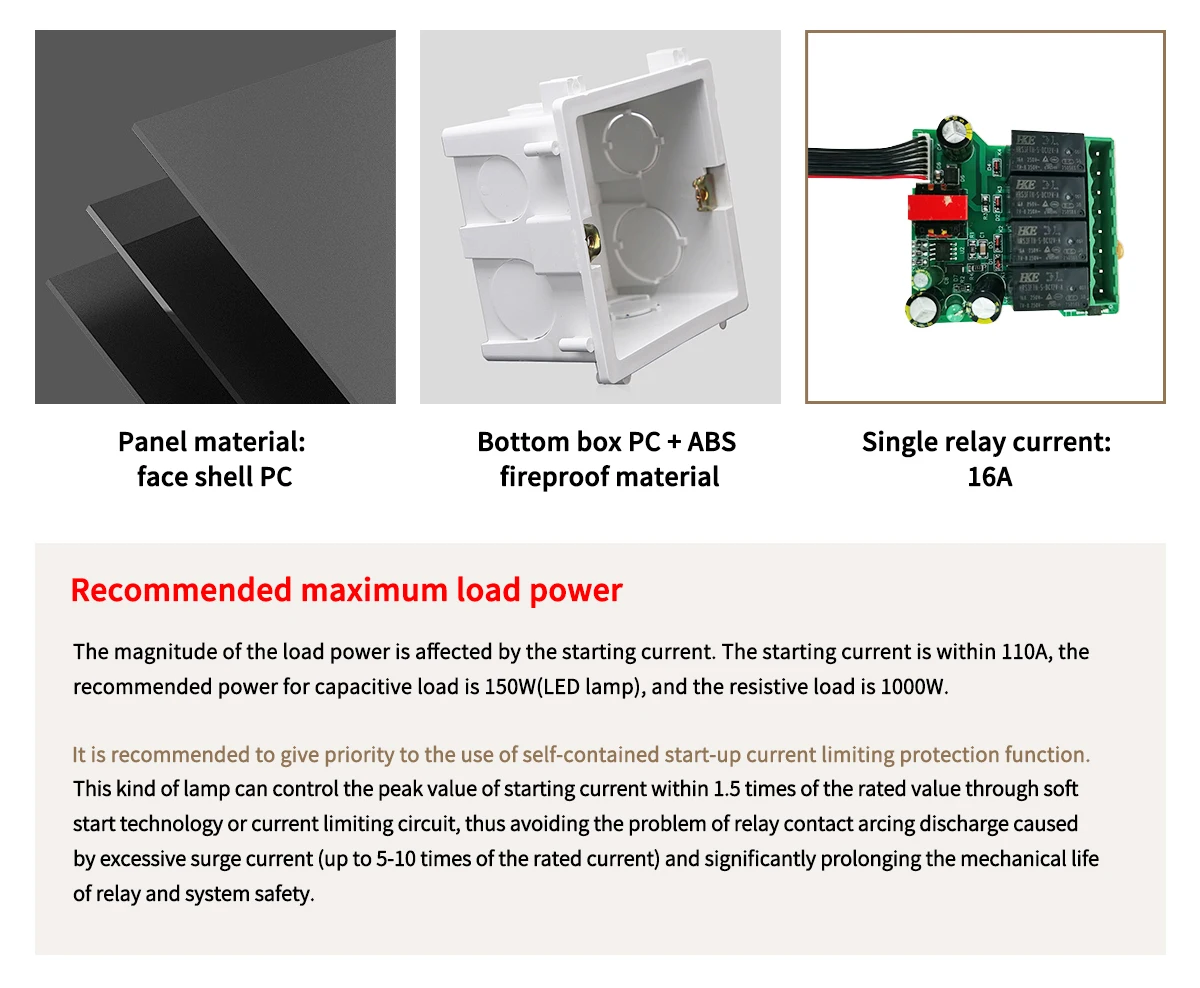

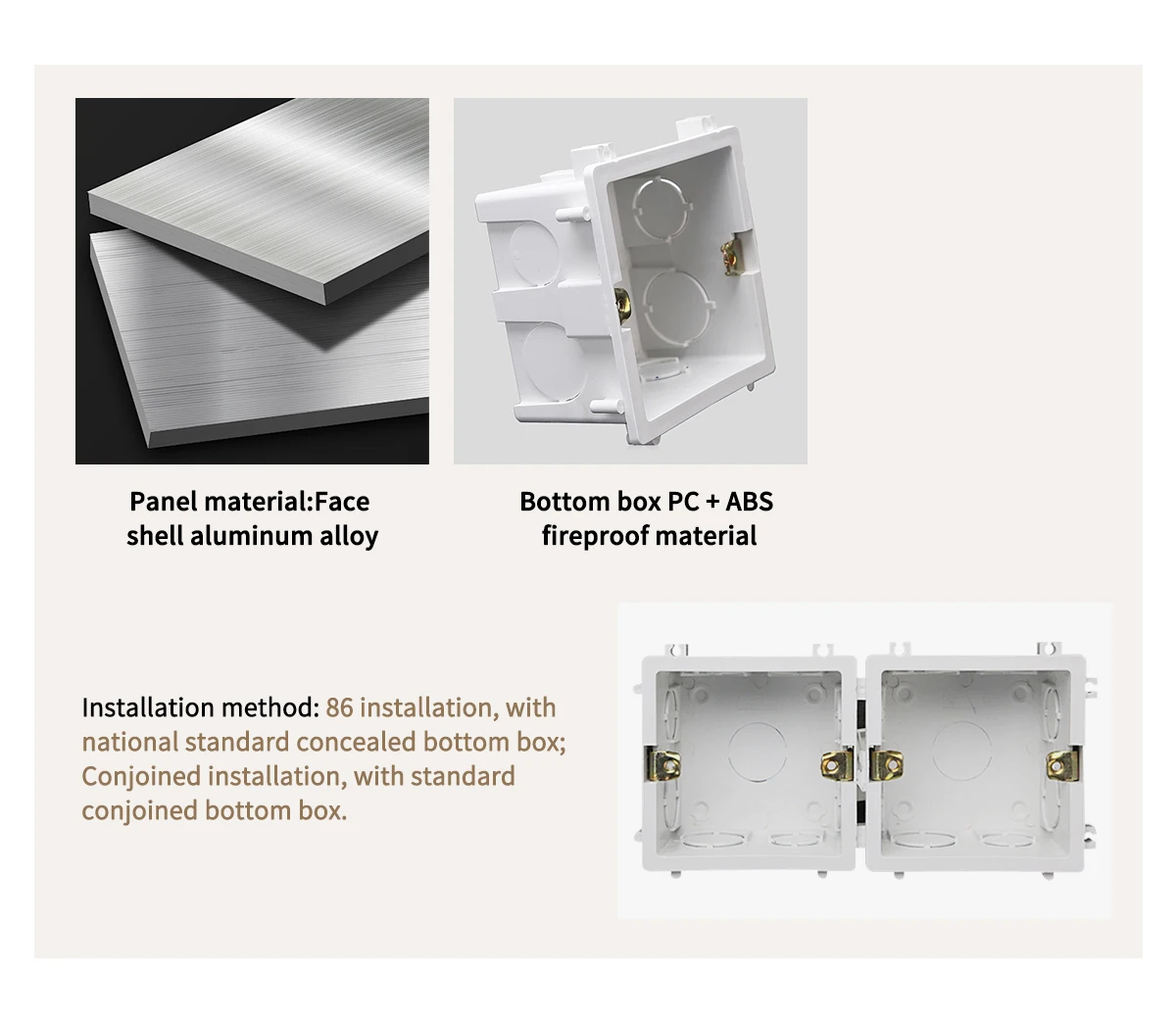

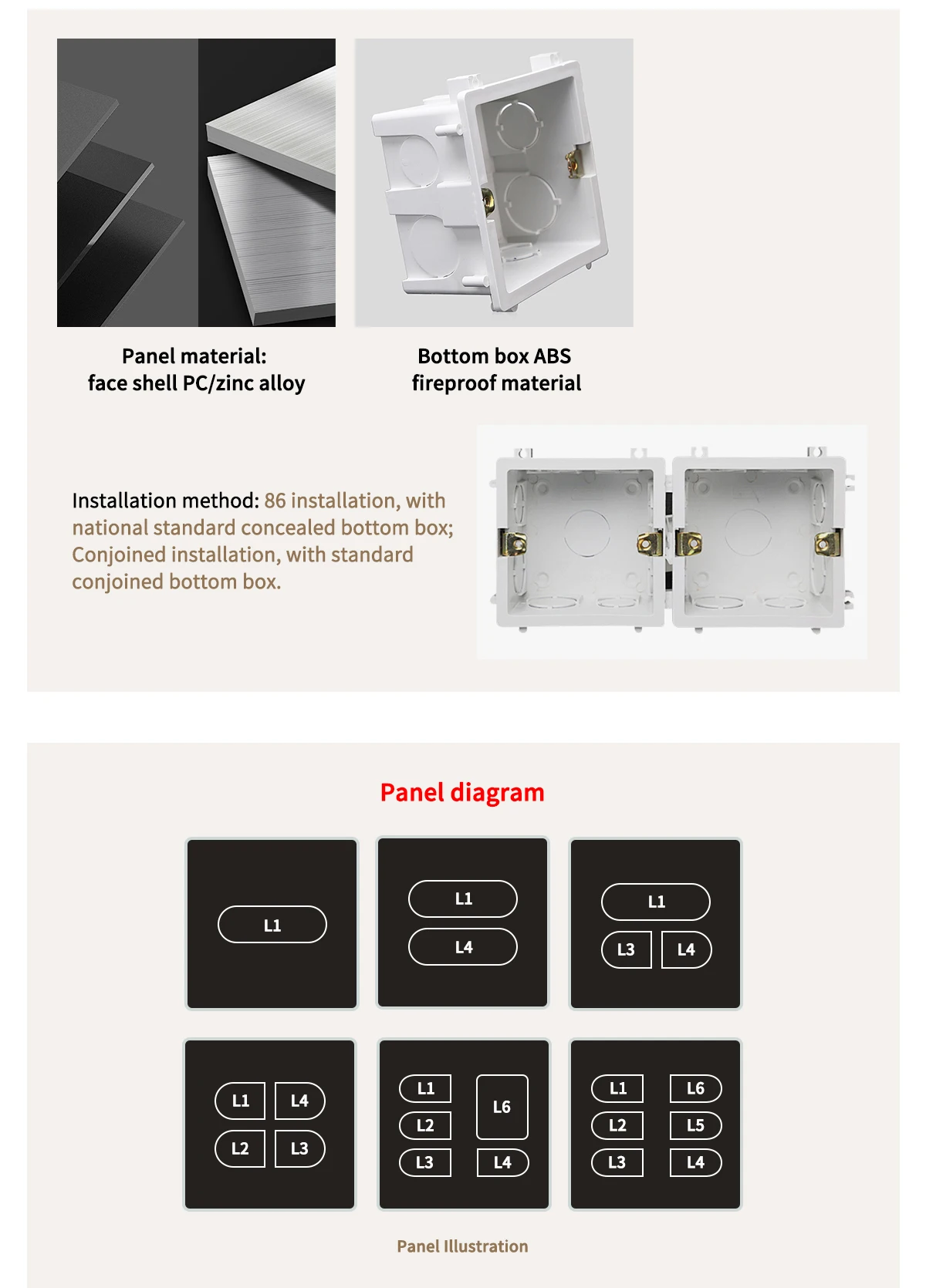

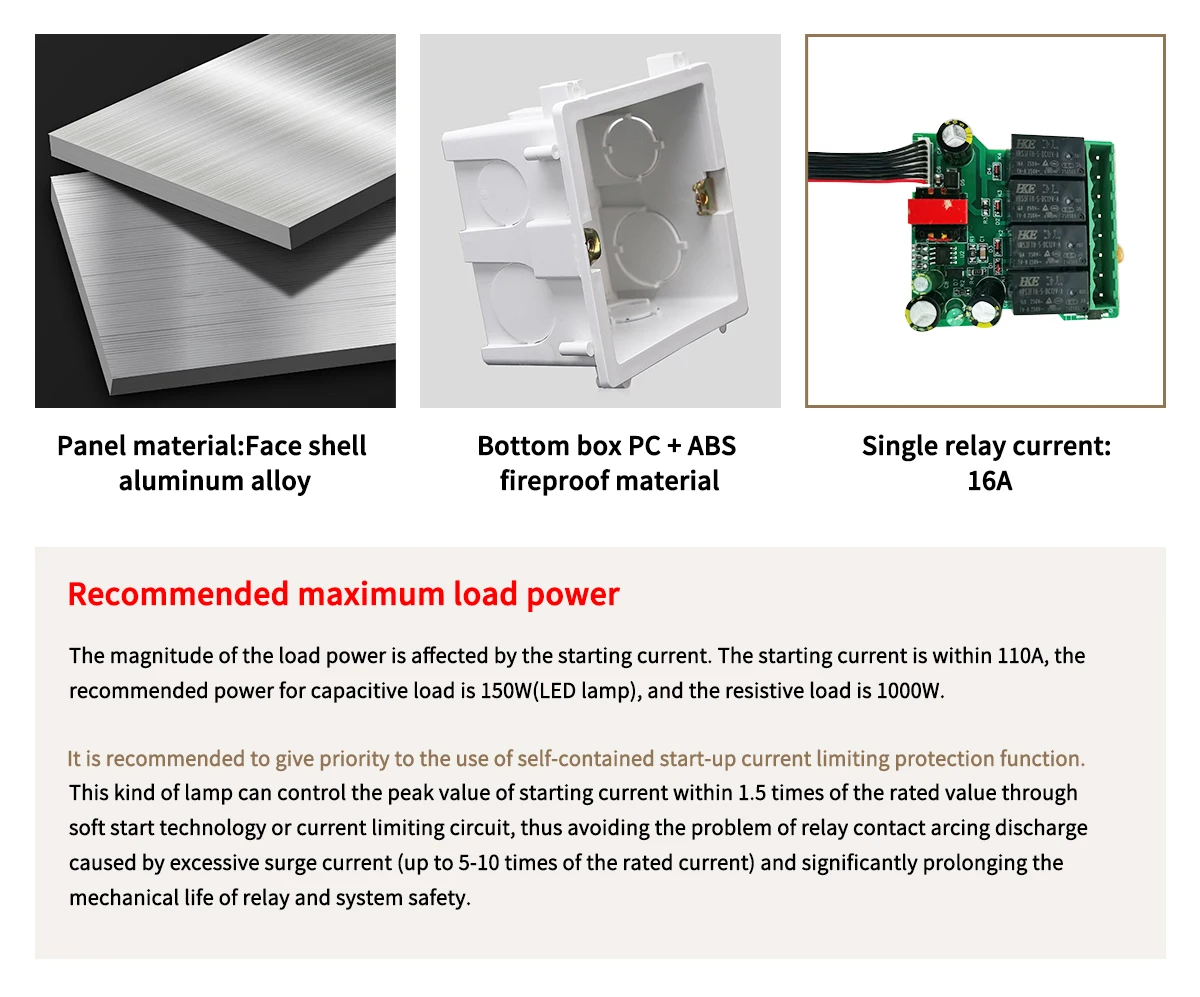

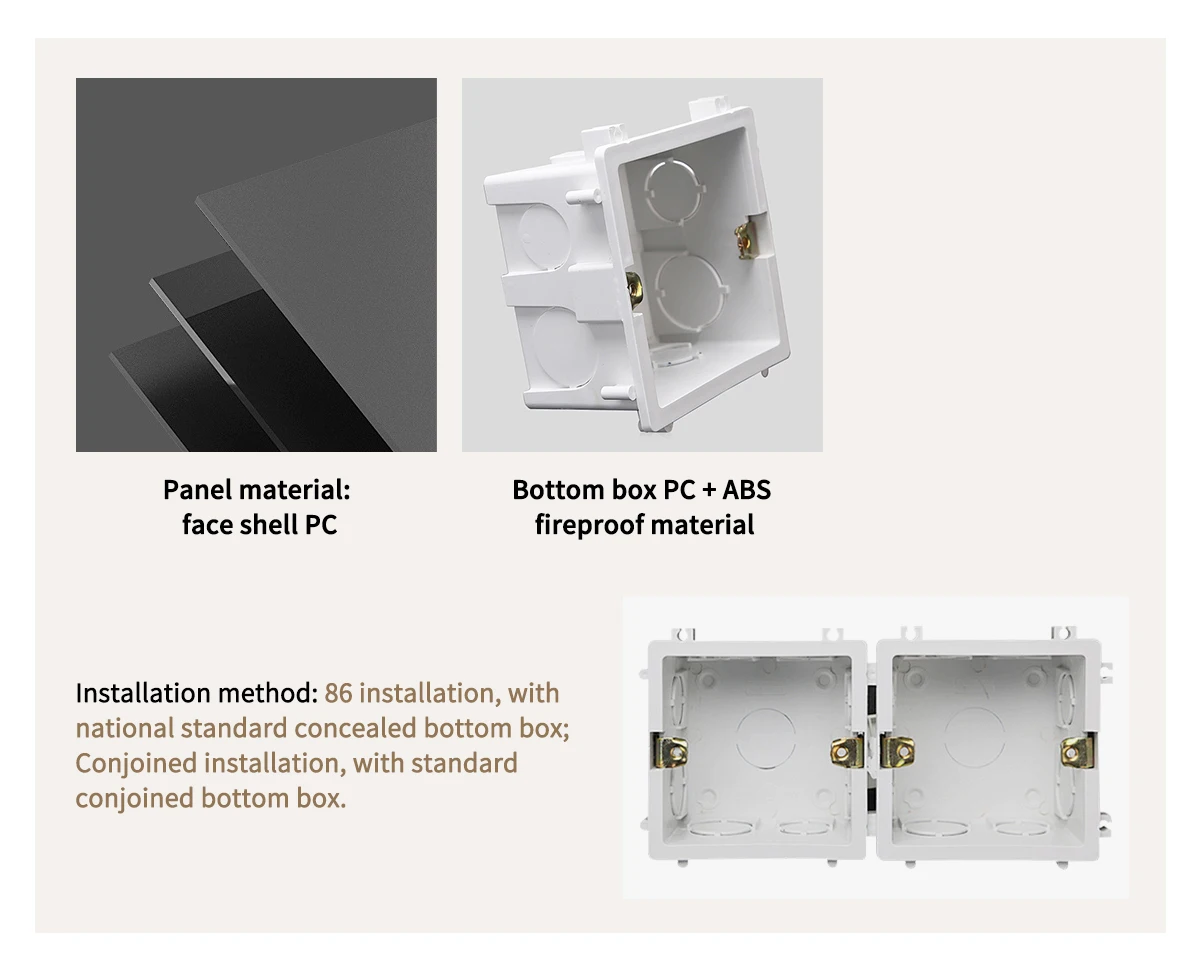

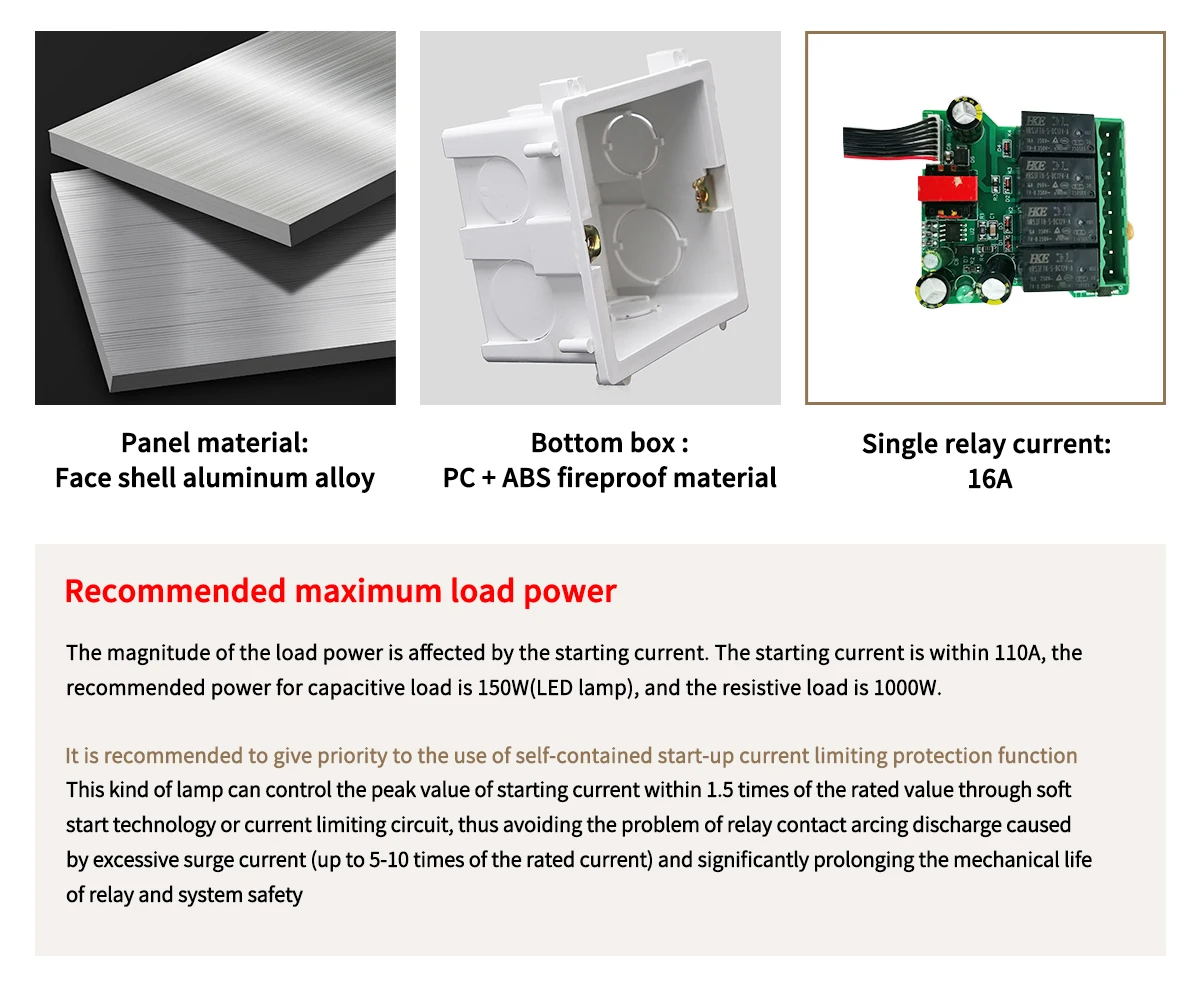

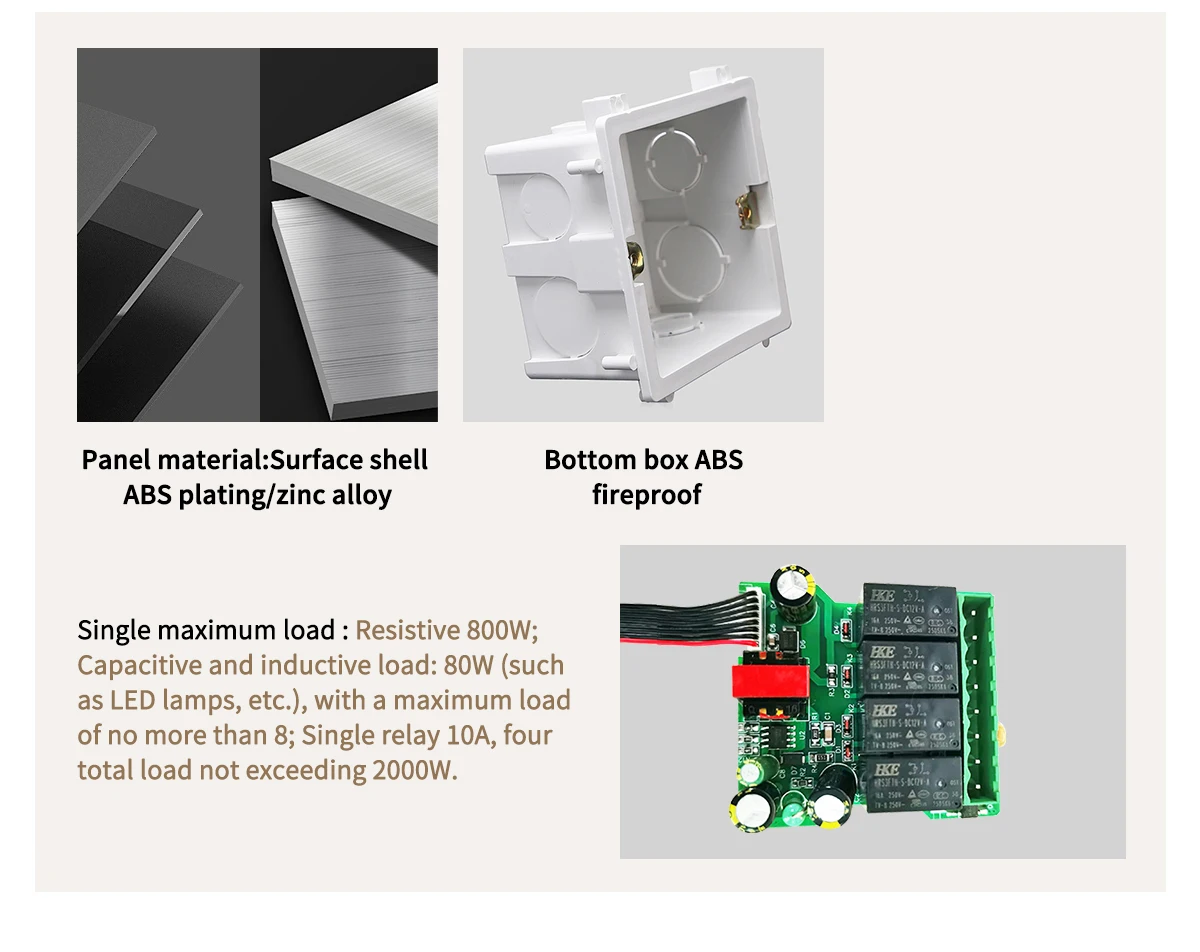

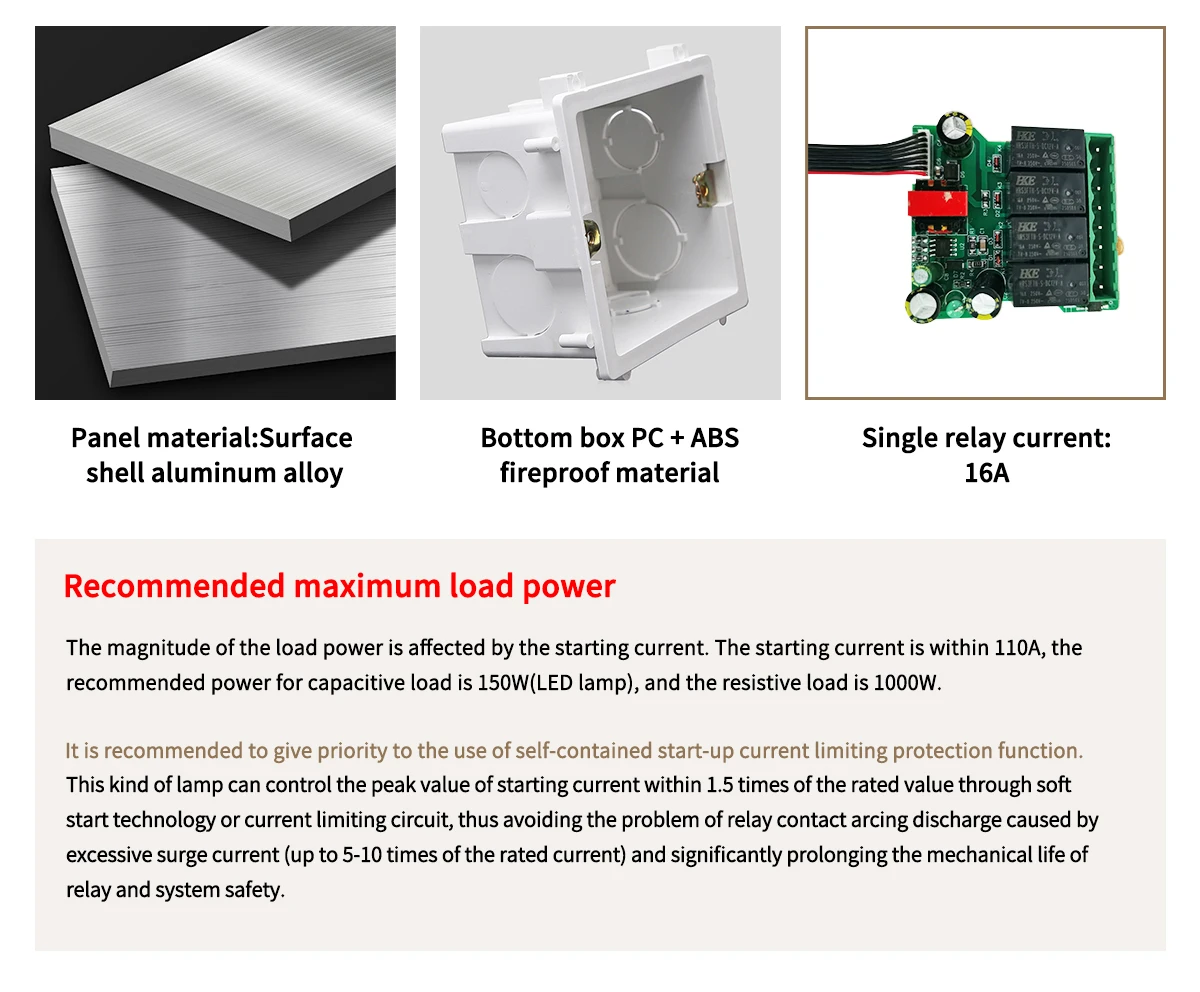

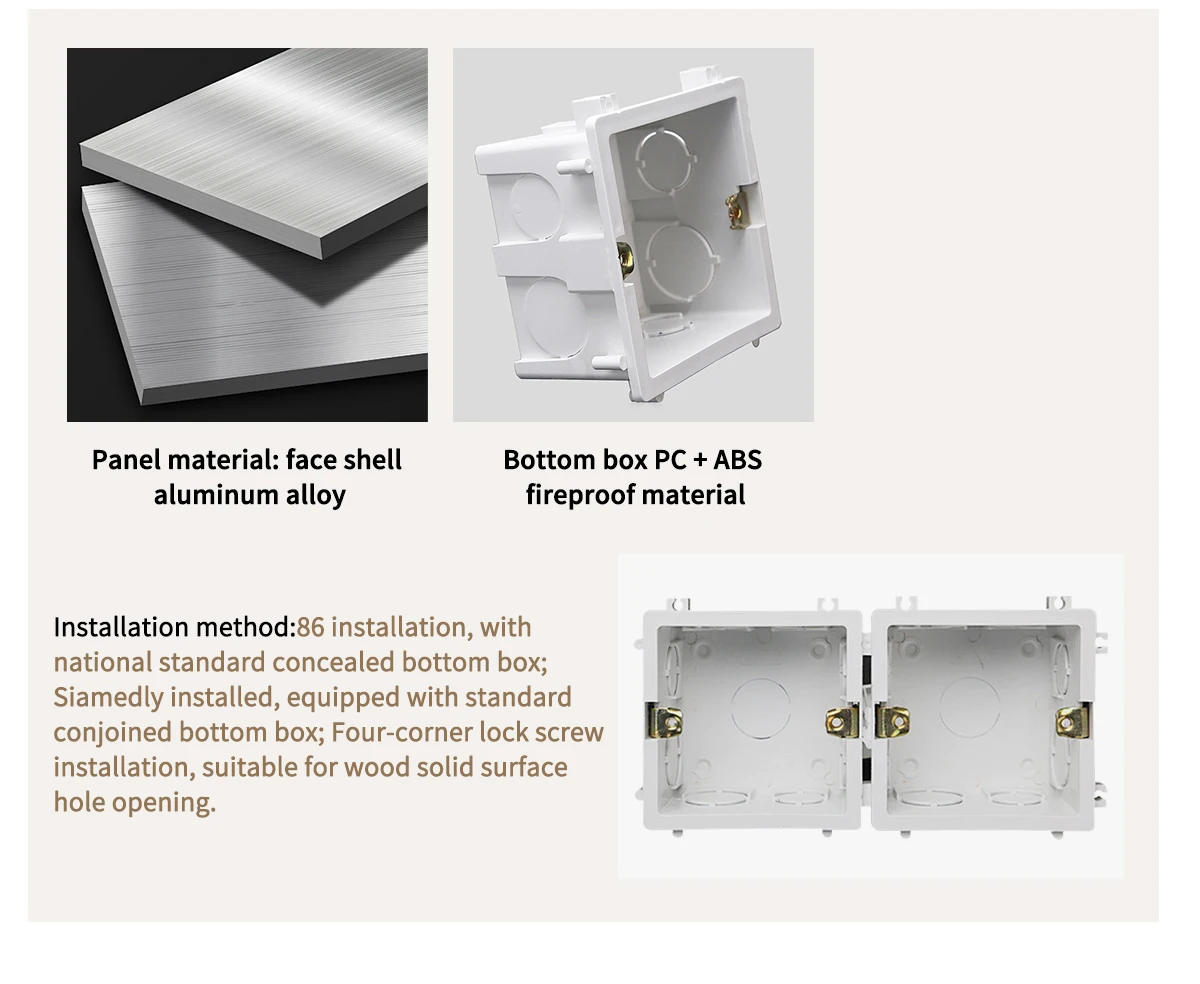

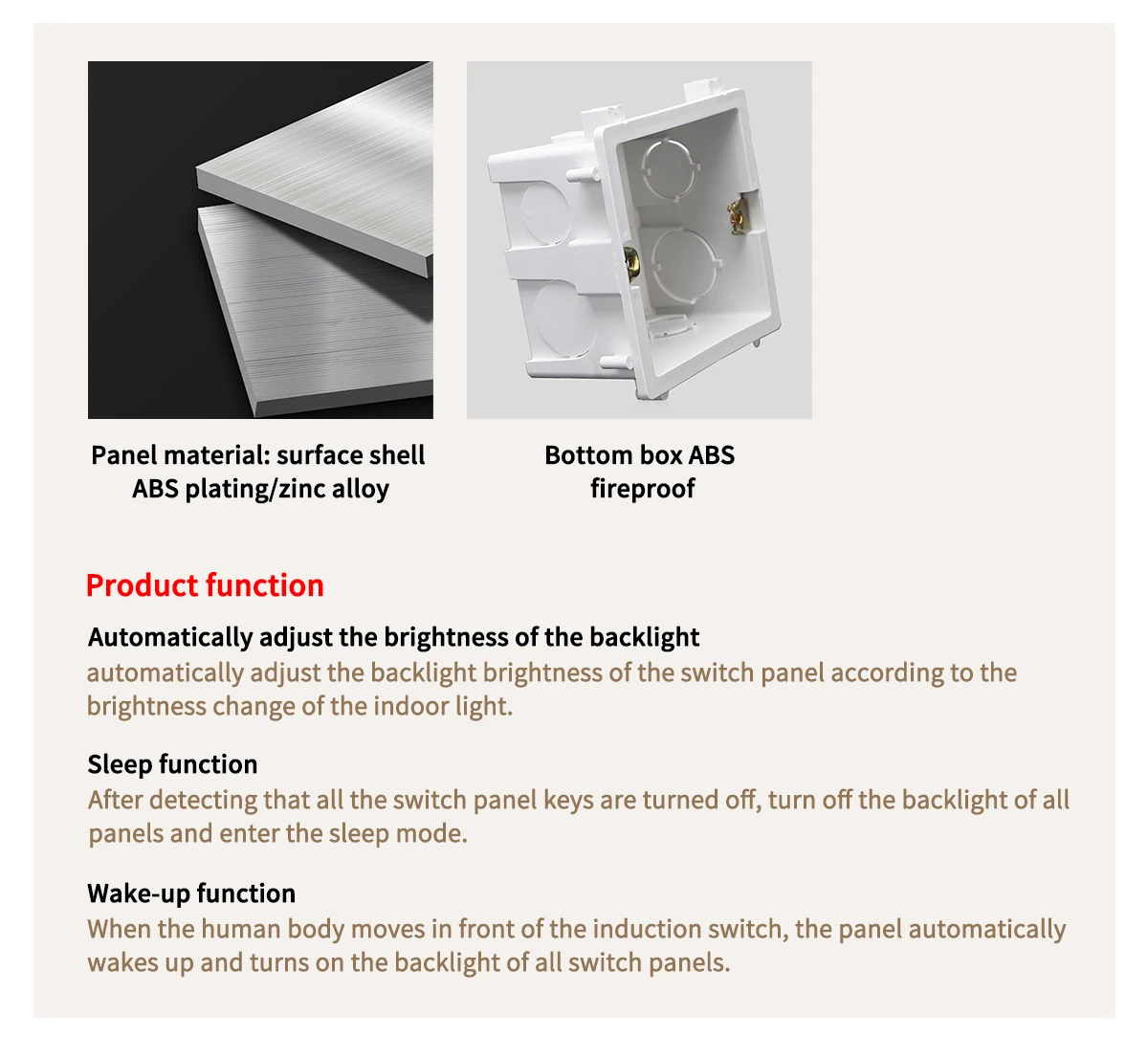

         6. Panel material: face shell PC/zinc alloy, bottom box ABS fireproof material;
         7. Installation method: 86 installation, equipped with a national standard concealed bottom box; Integrated installation, equipped with standard integrated bottom box

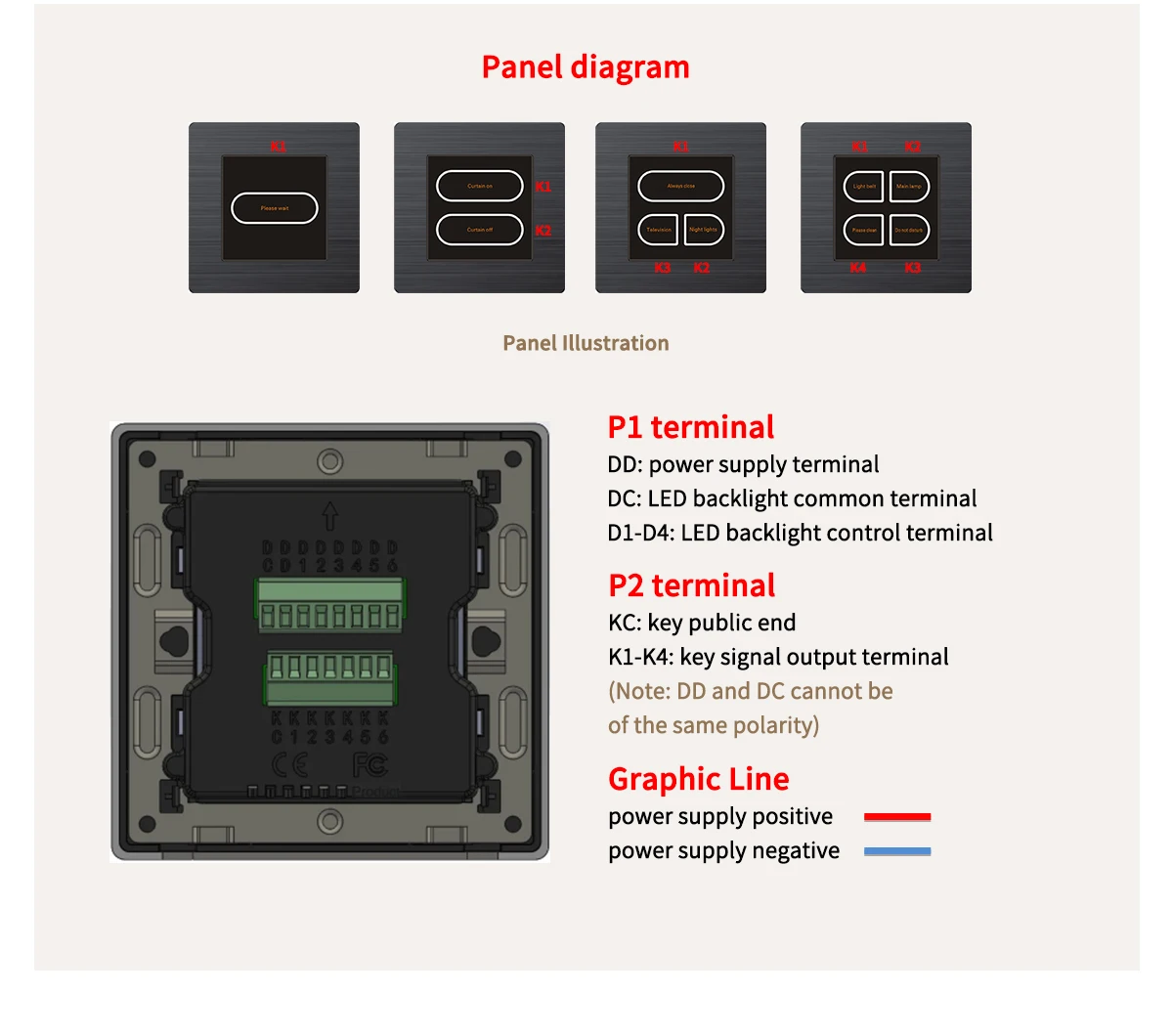

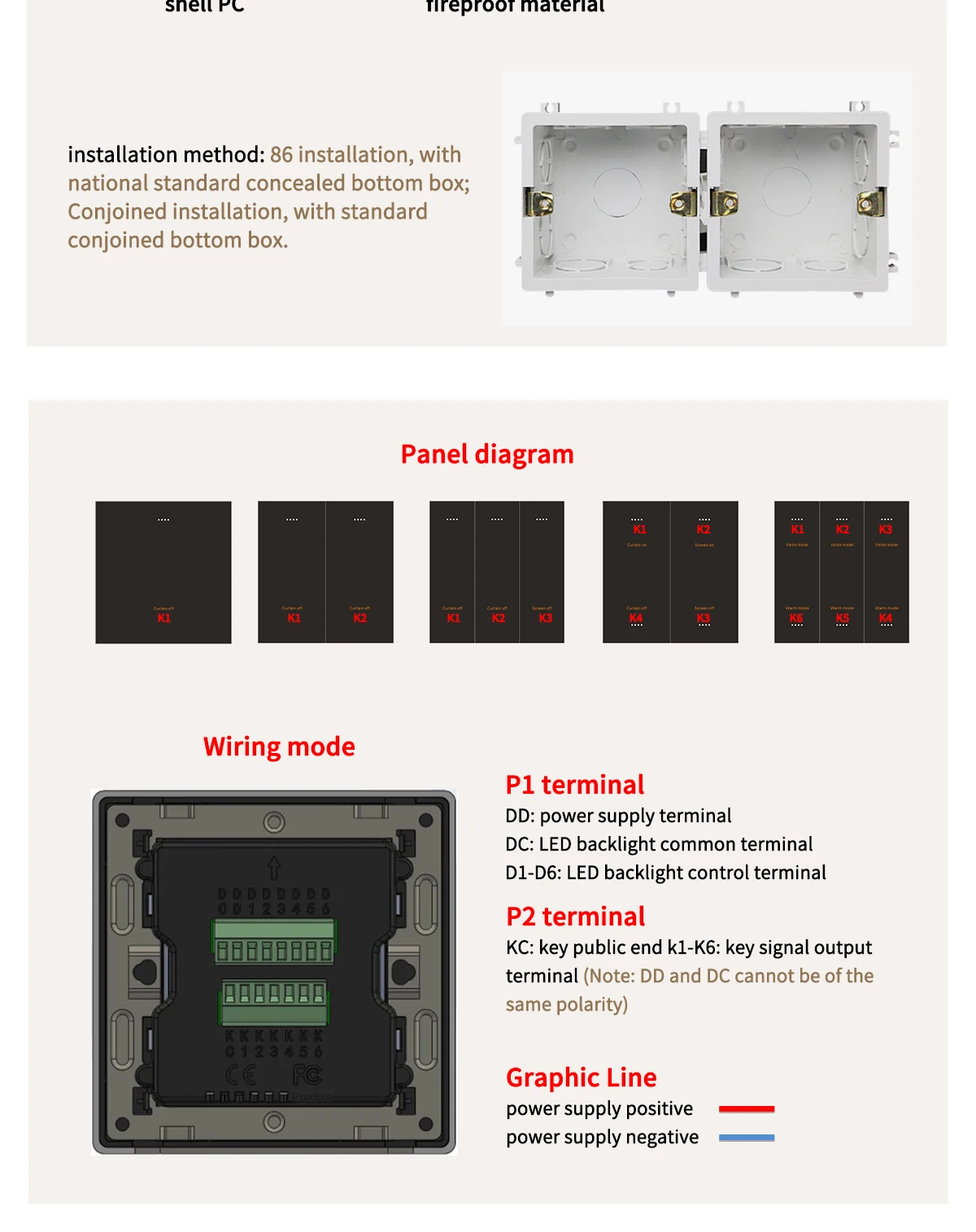

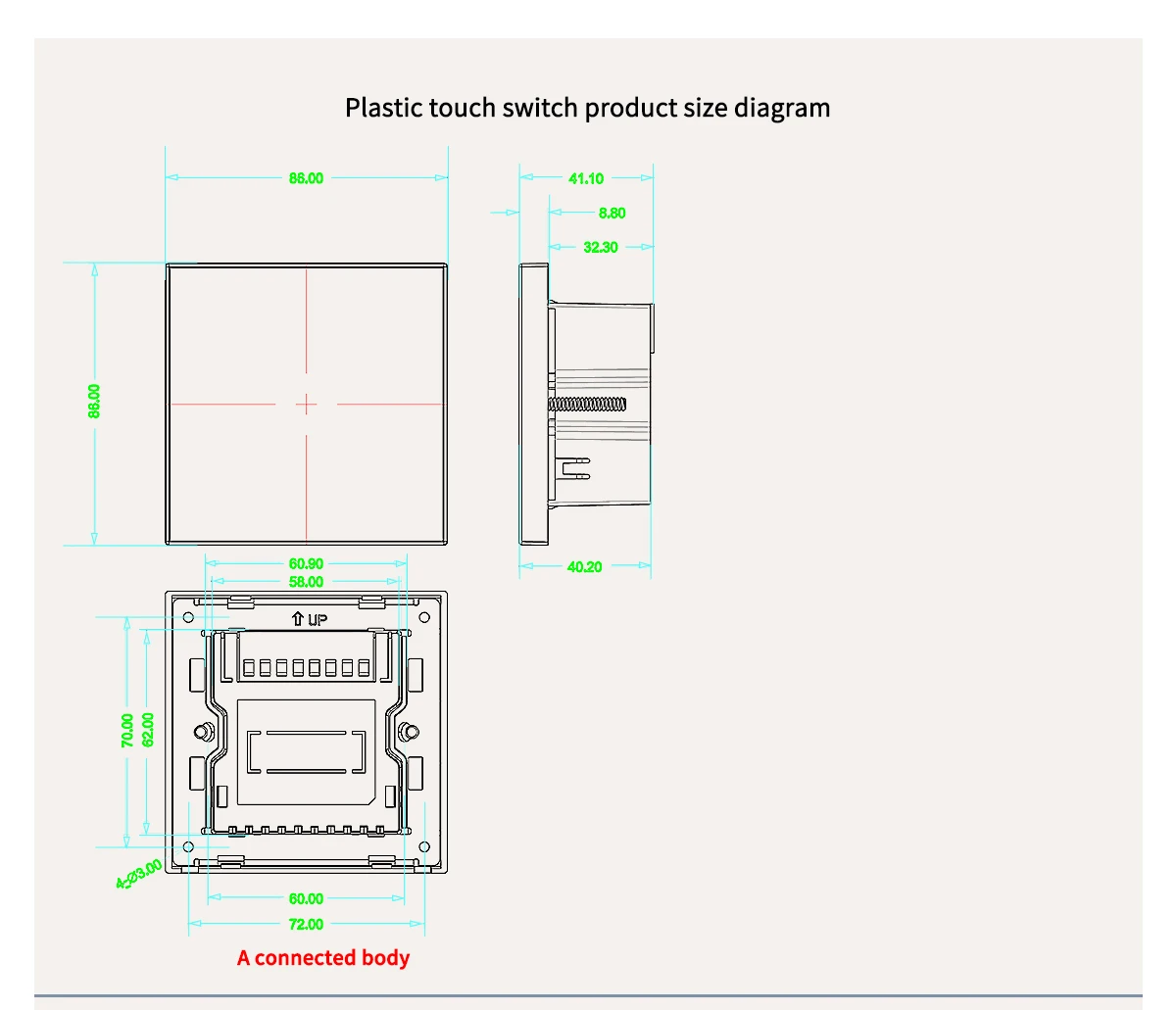

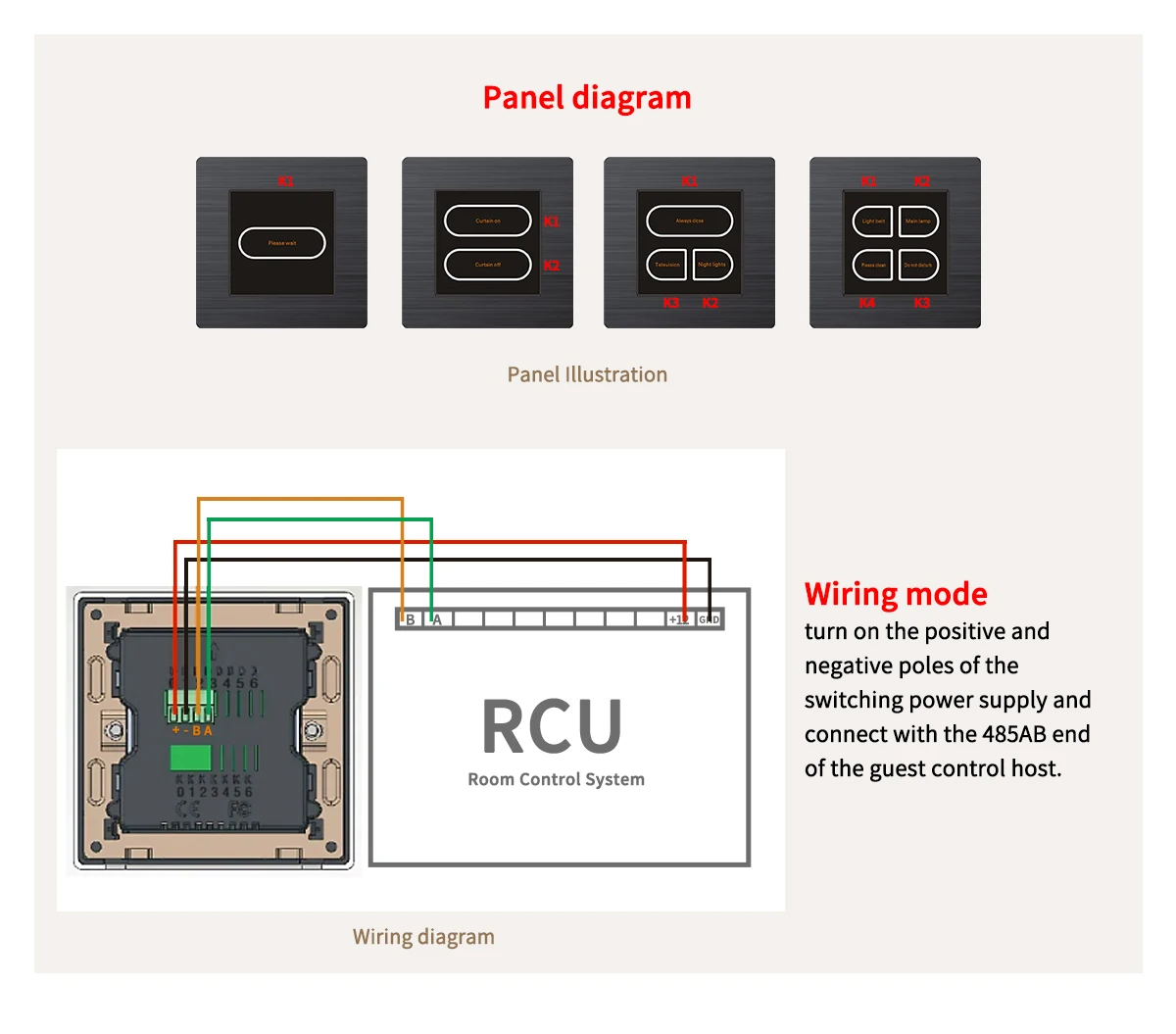

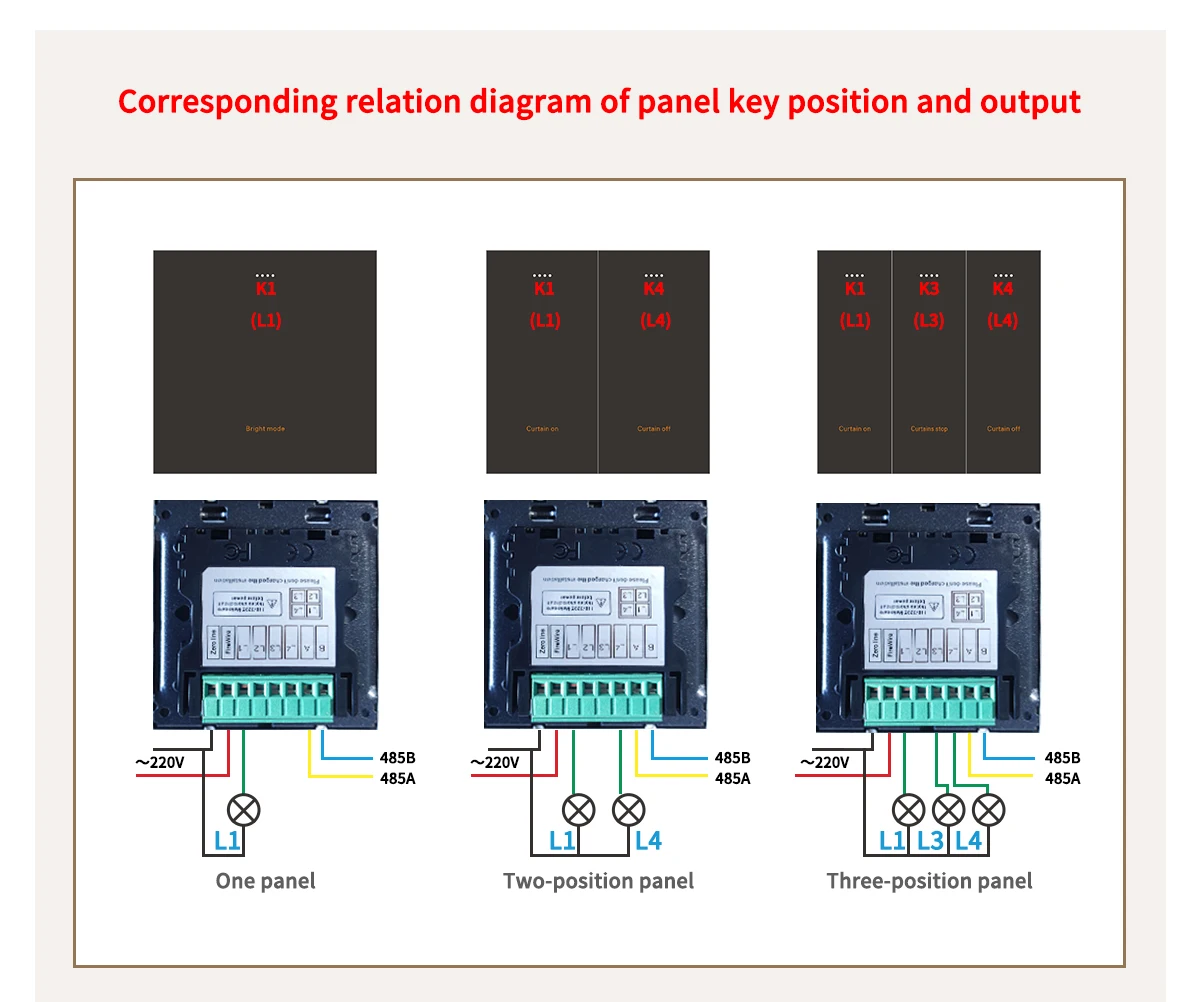

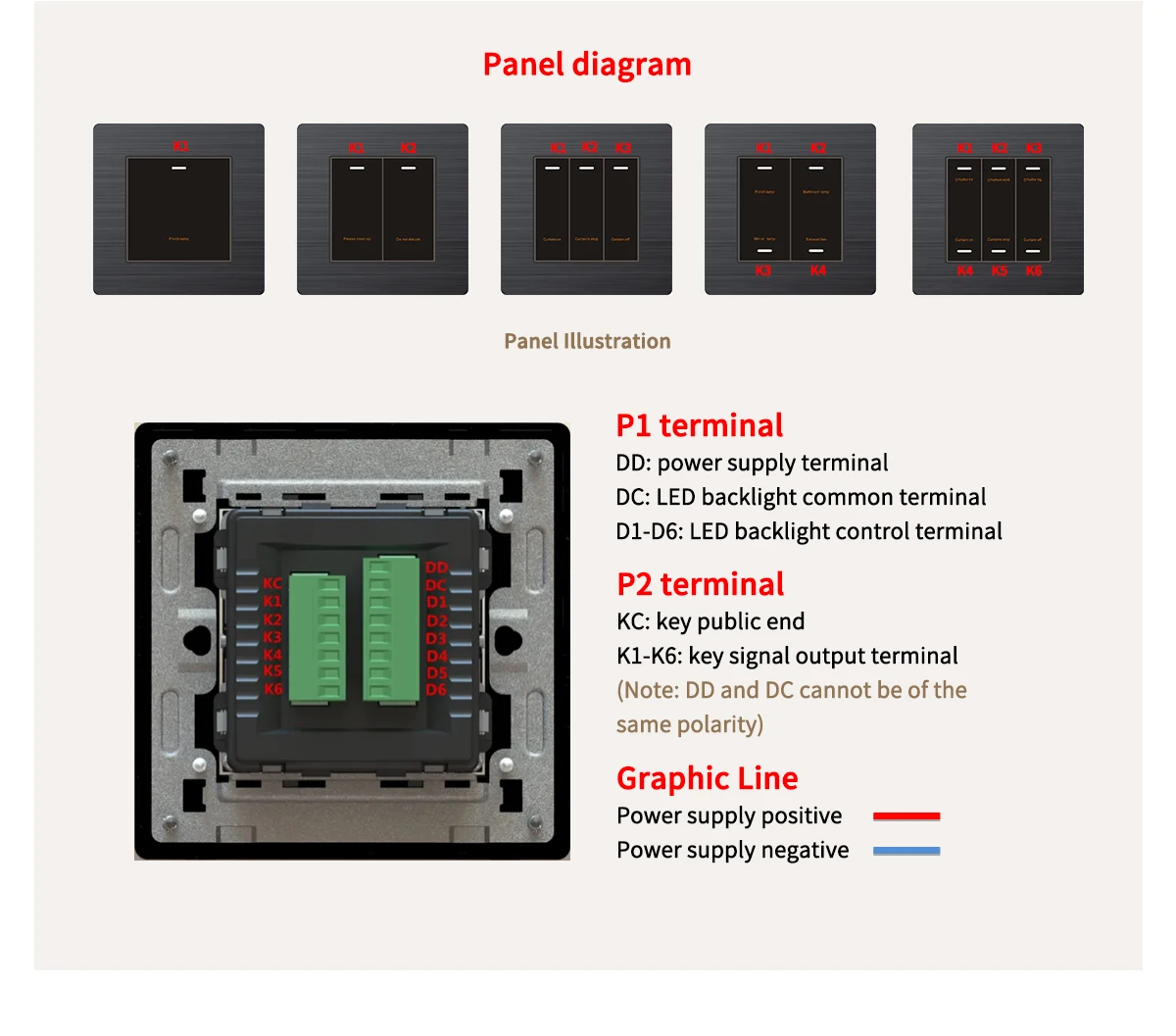

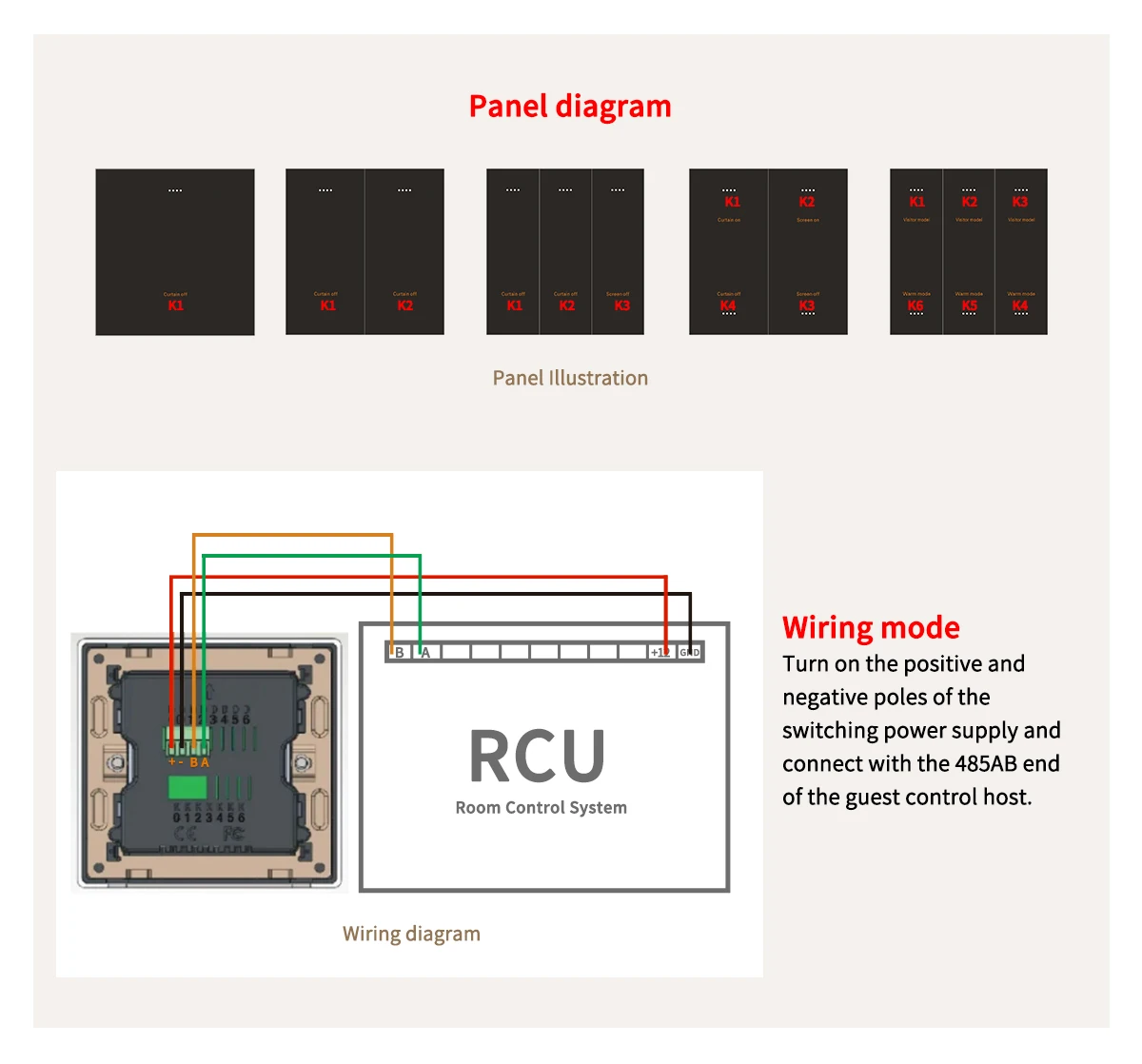

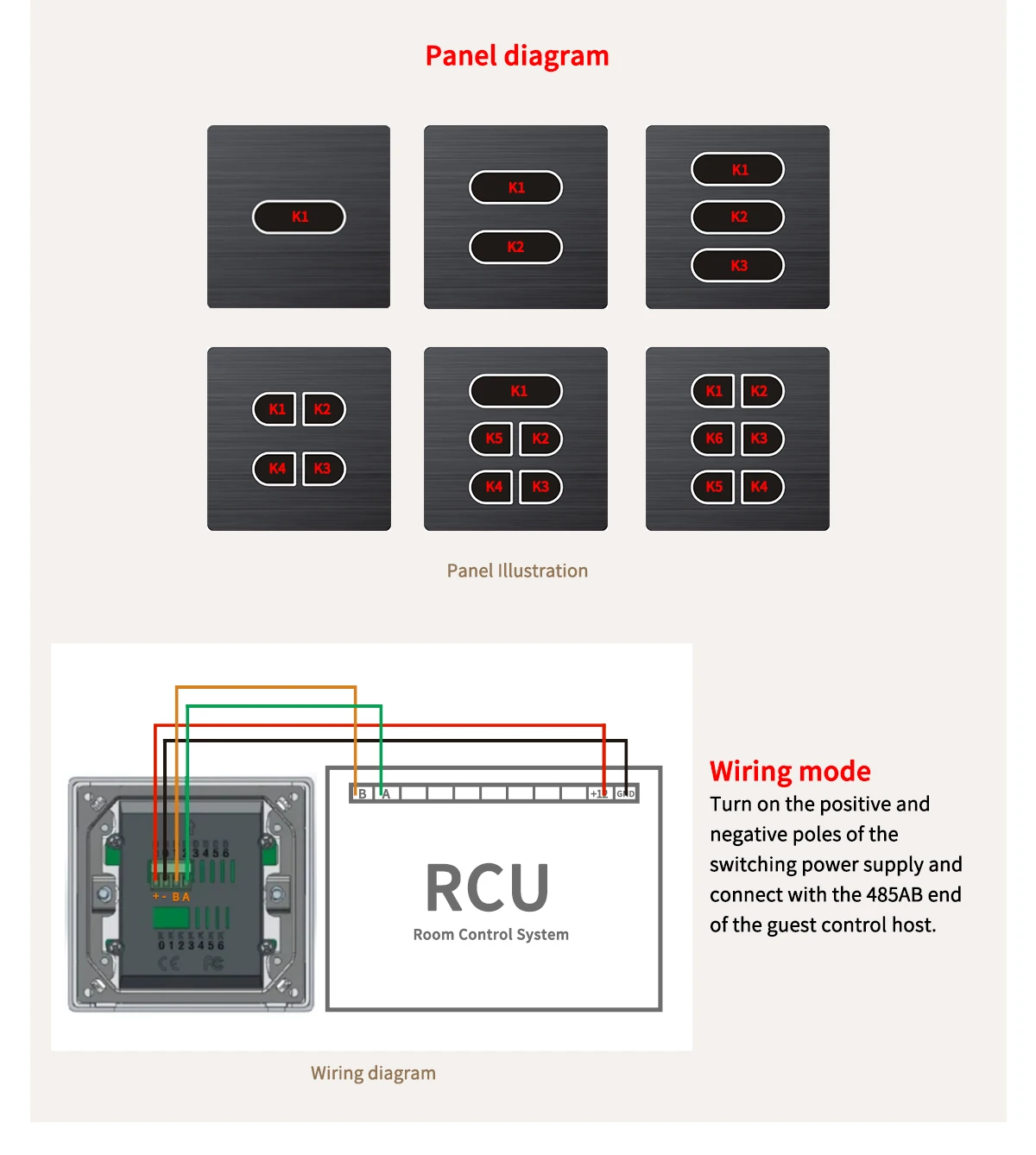

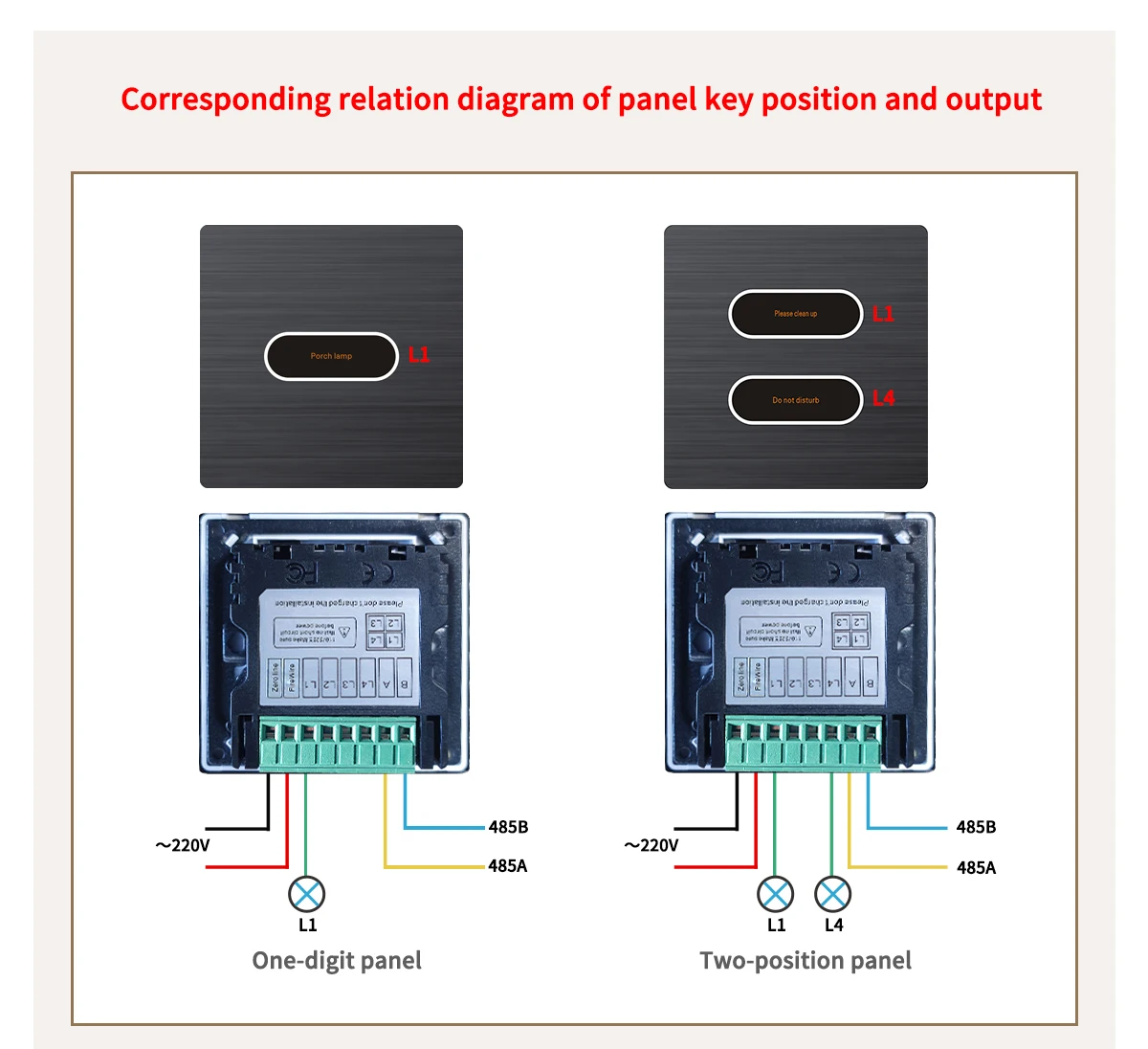

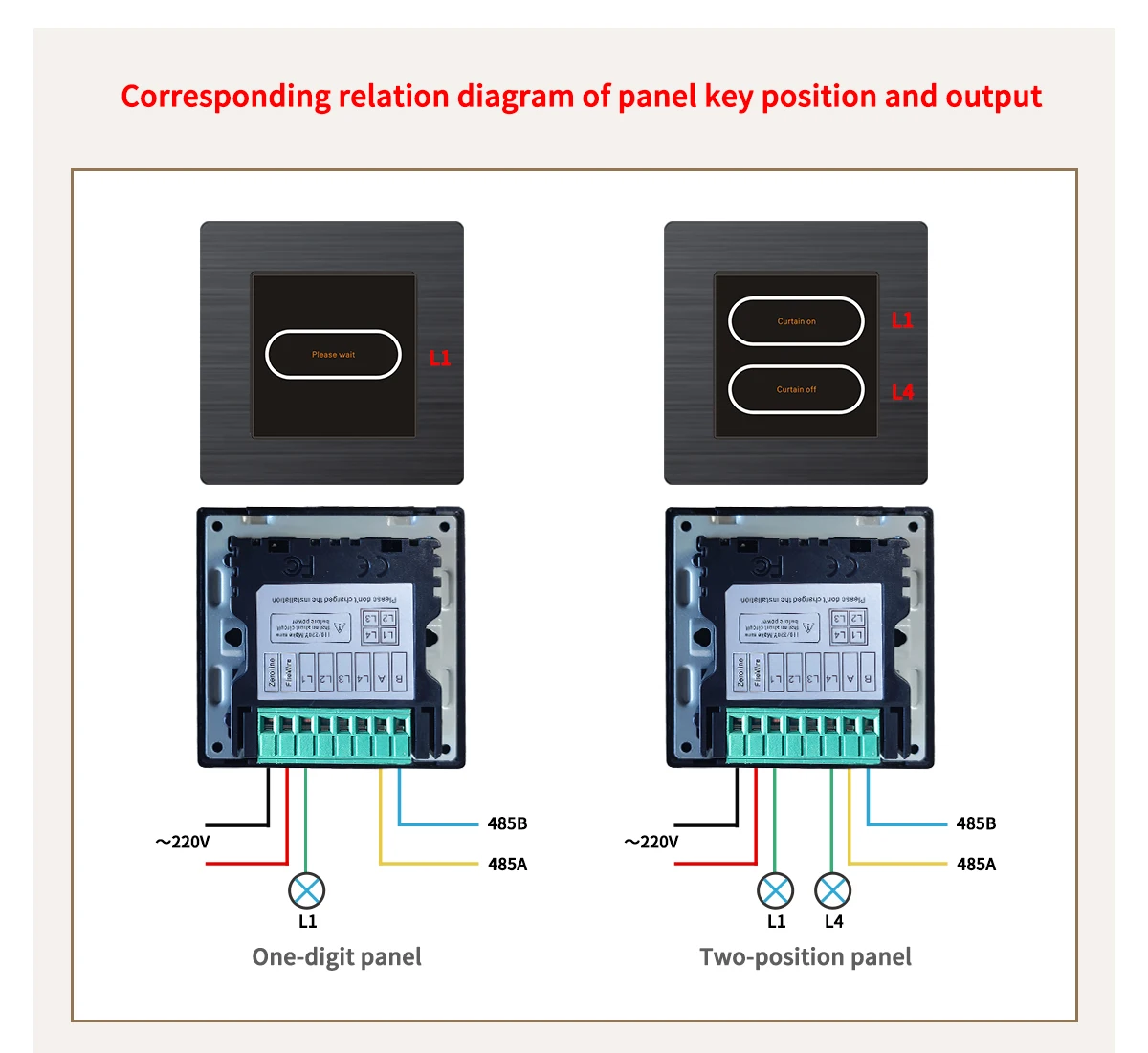

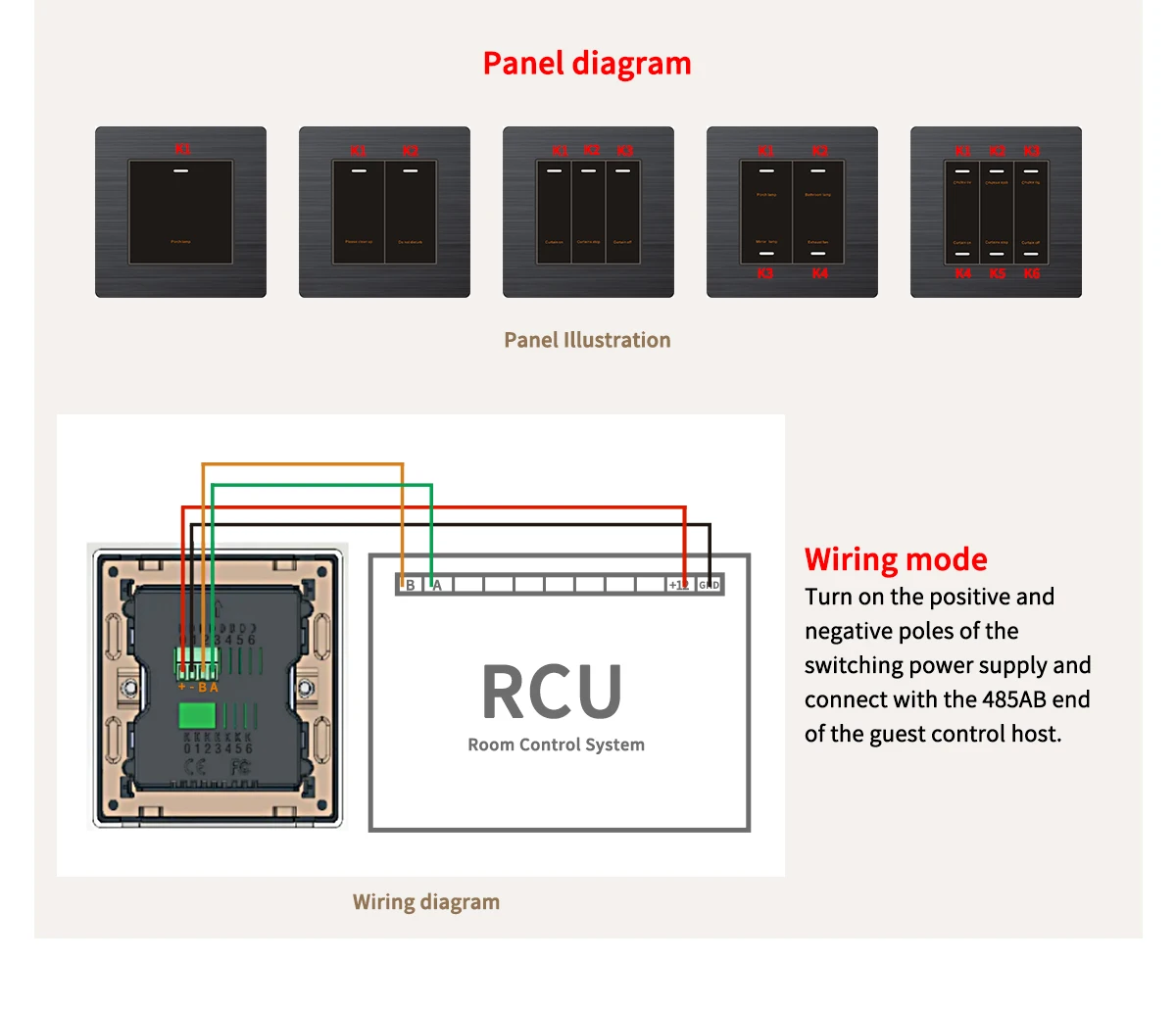

Two:Panel diagram:

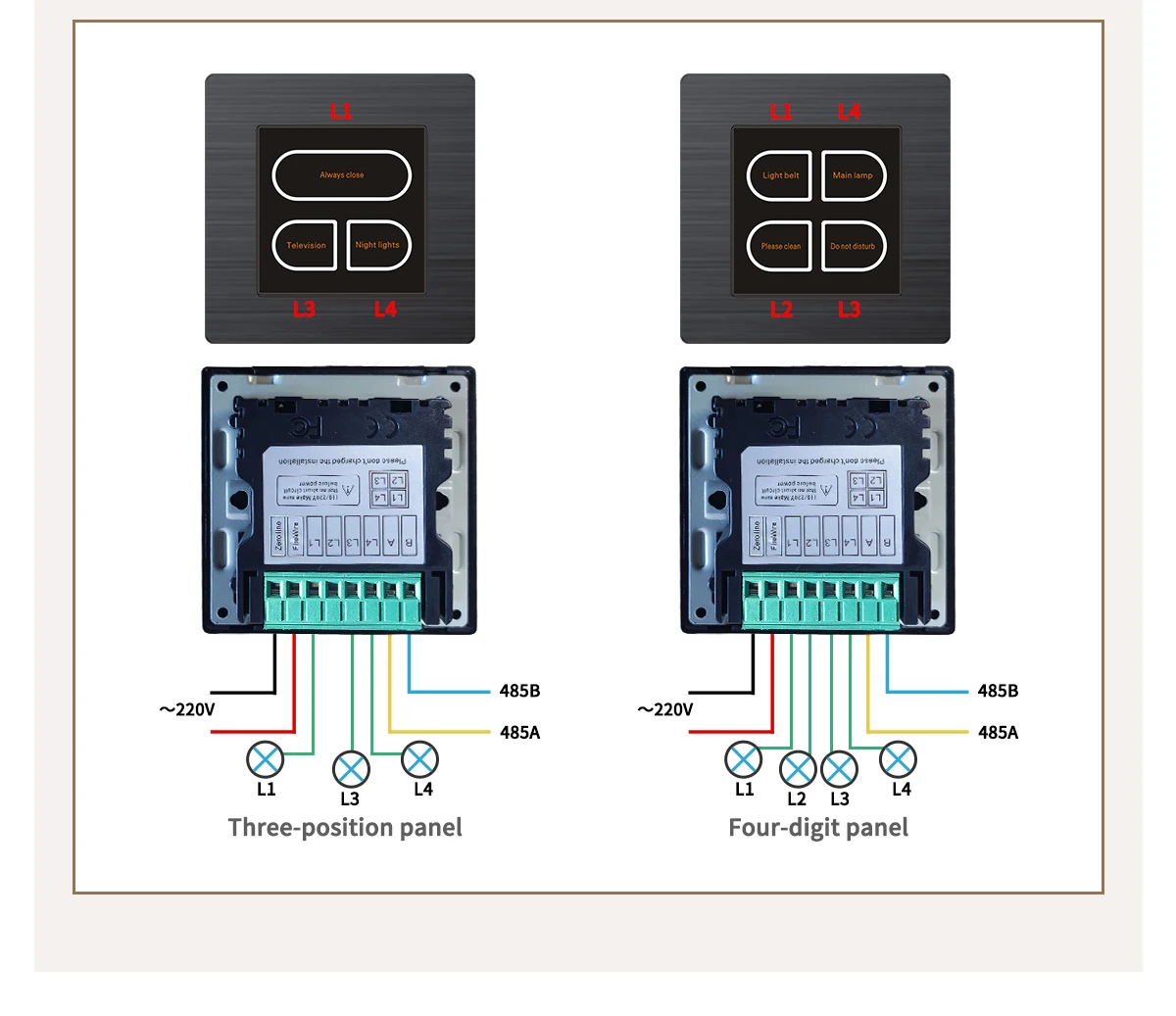

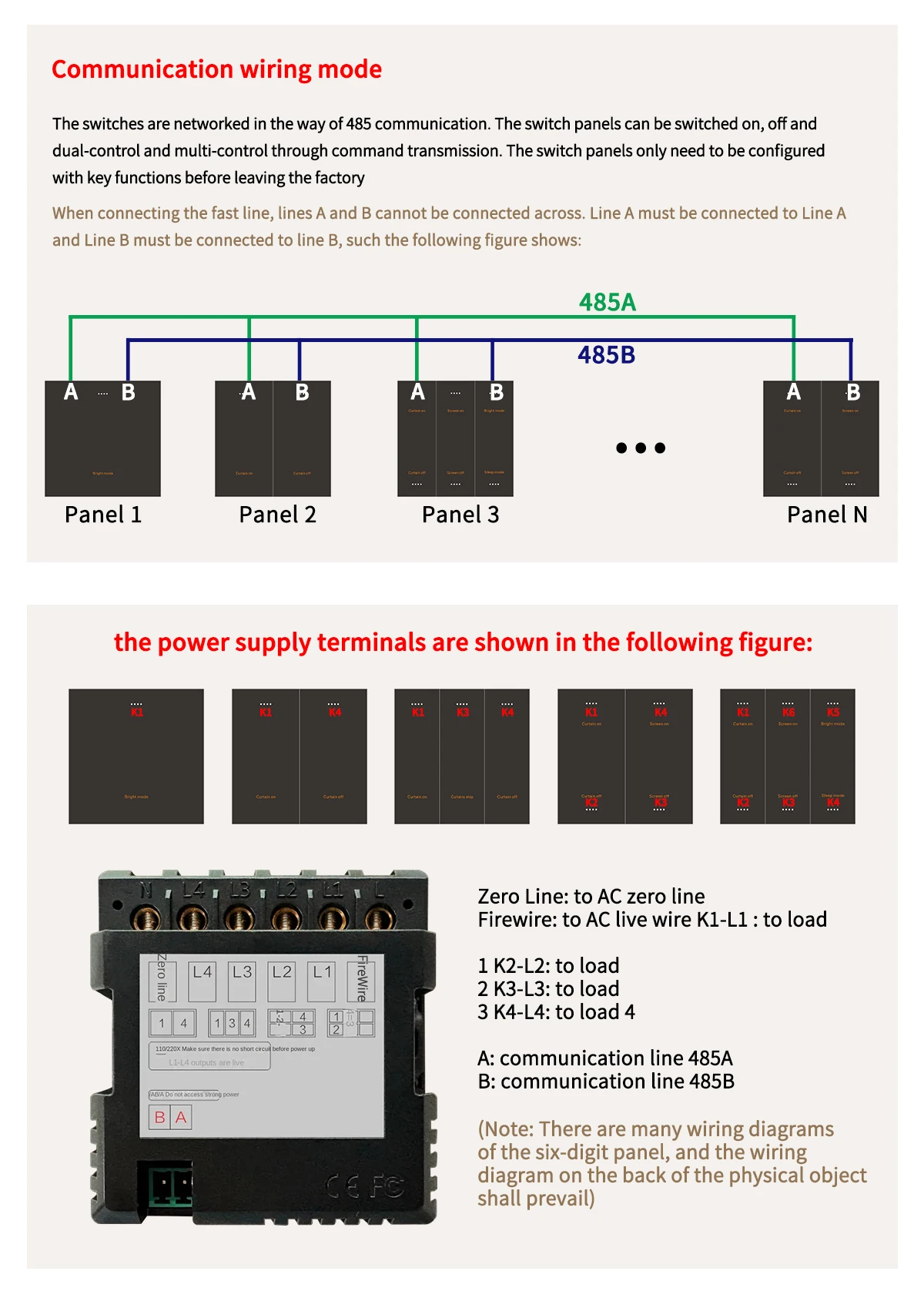

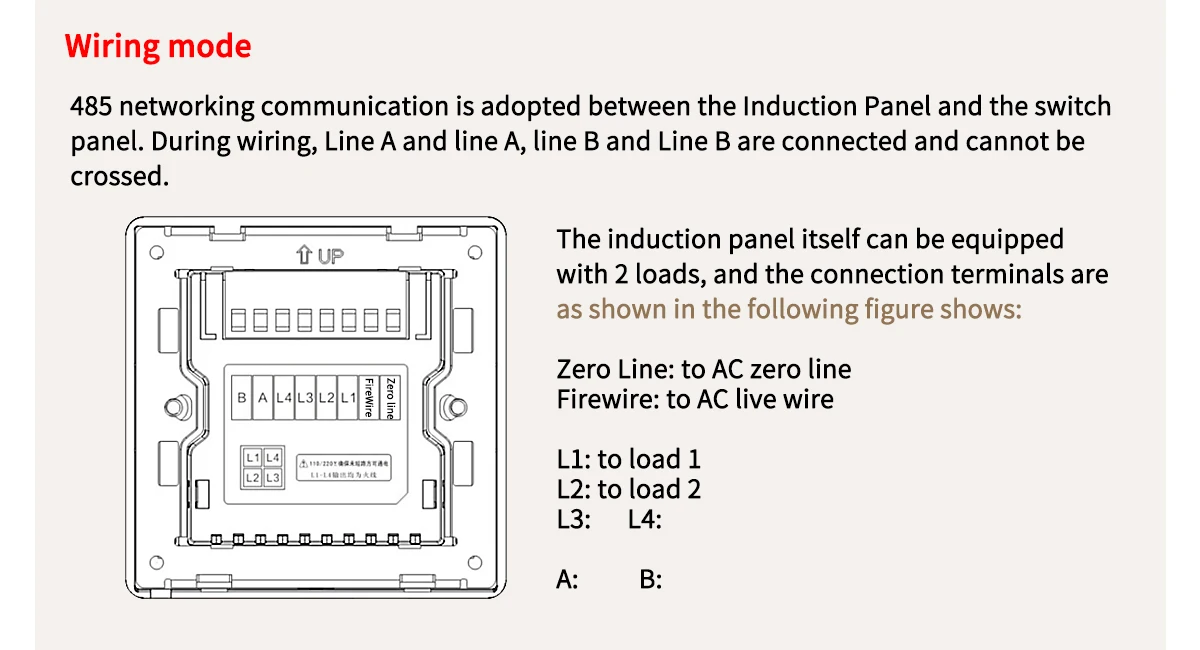

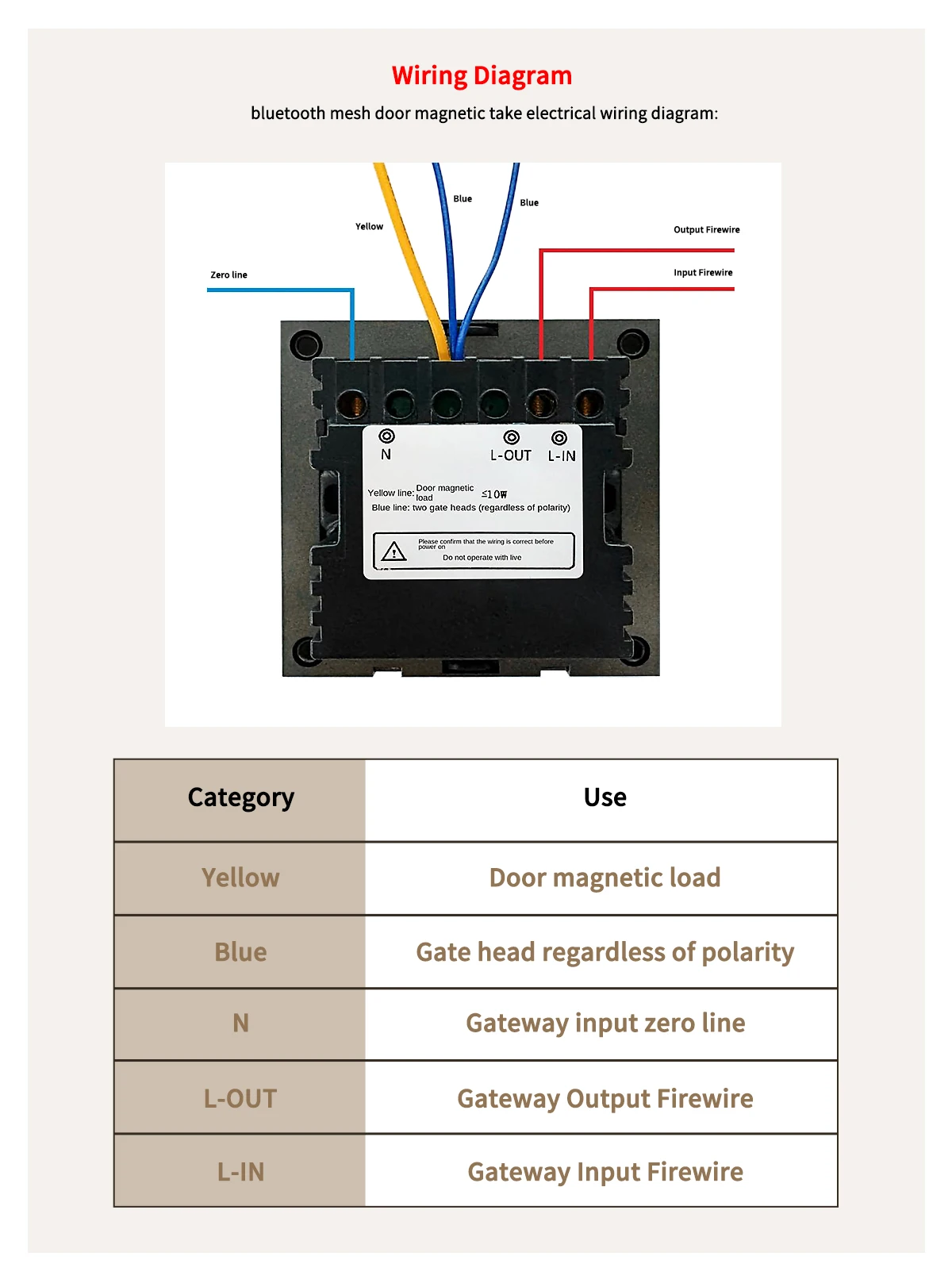

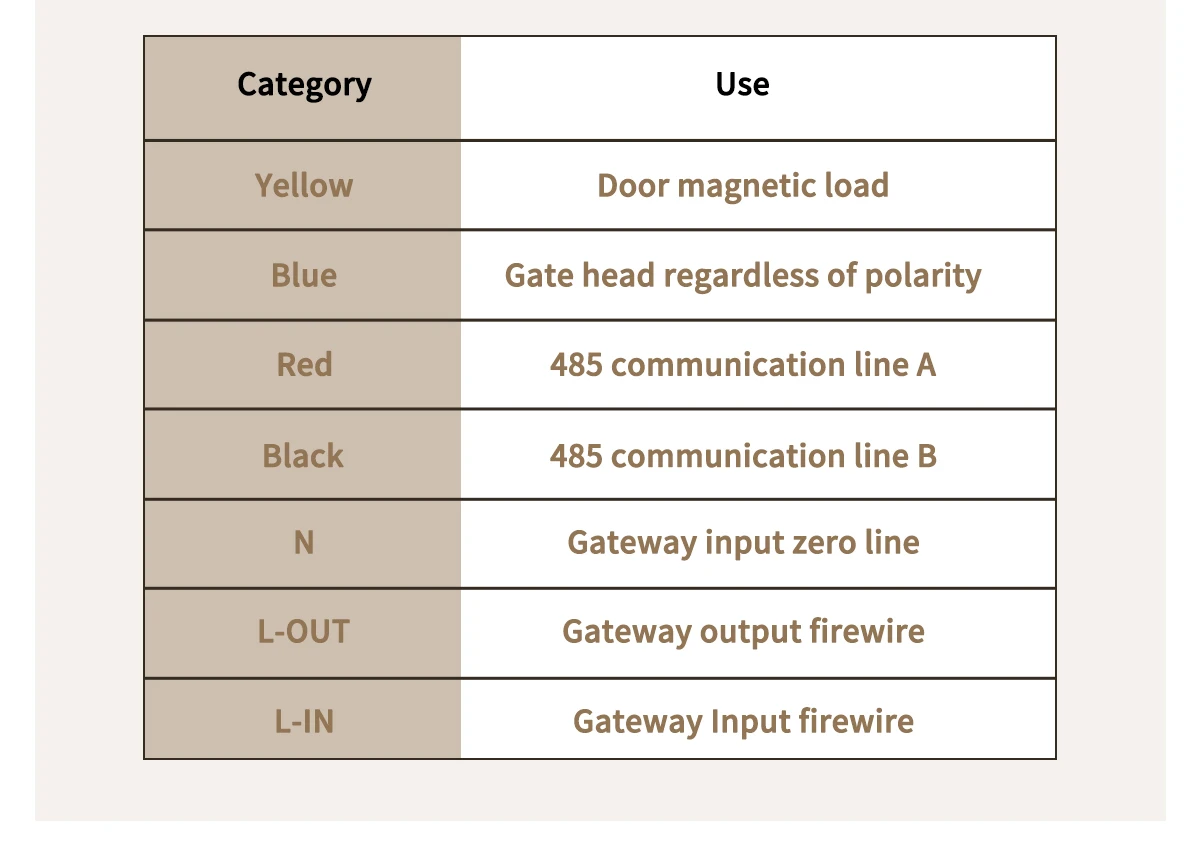

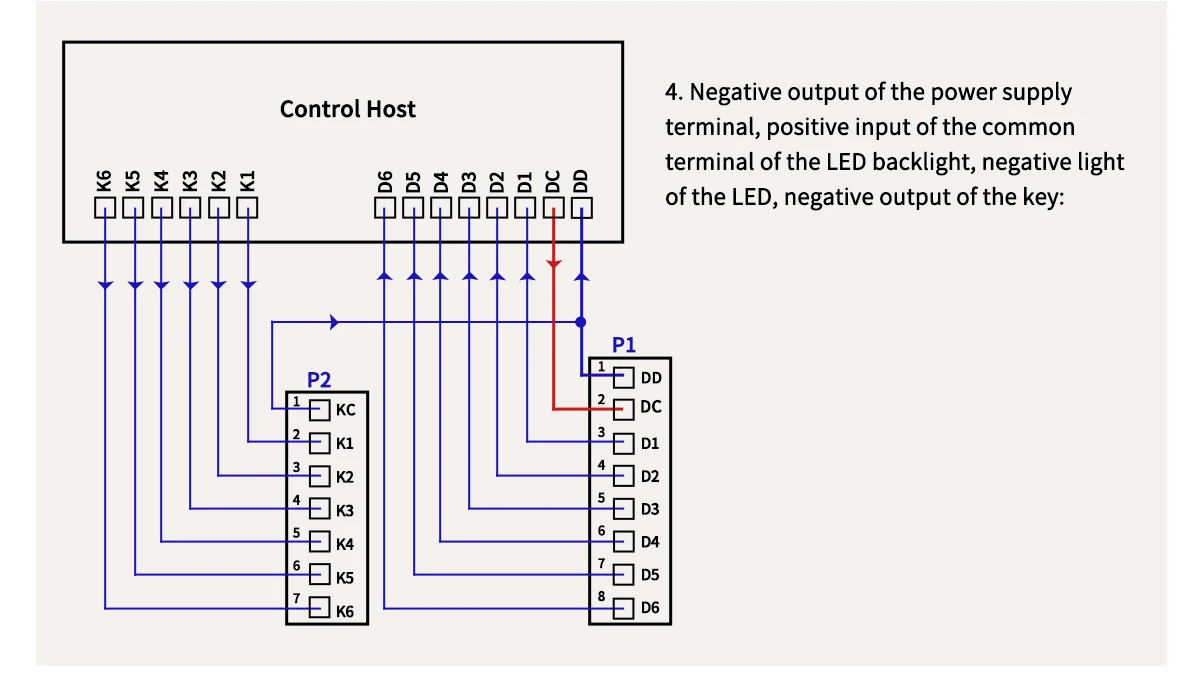

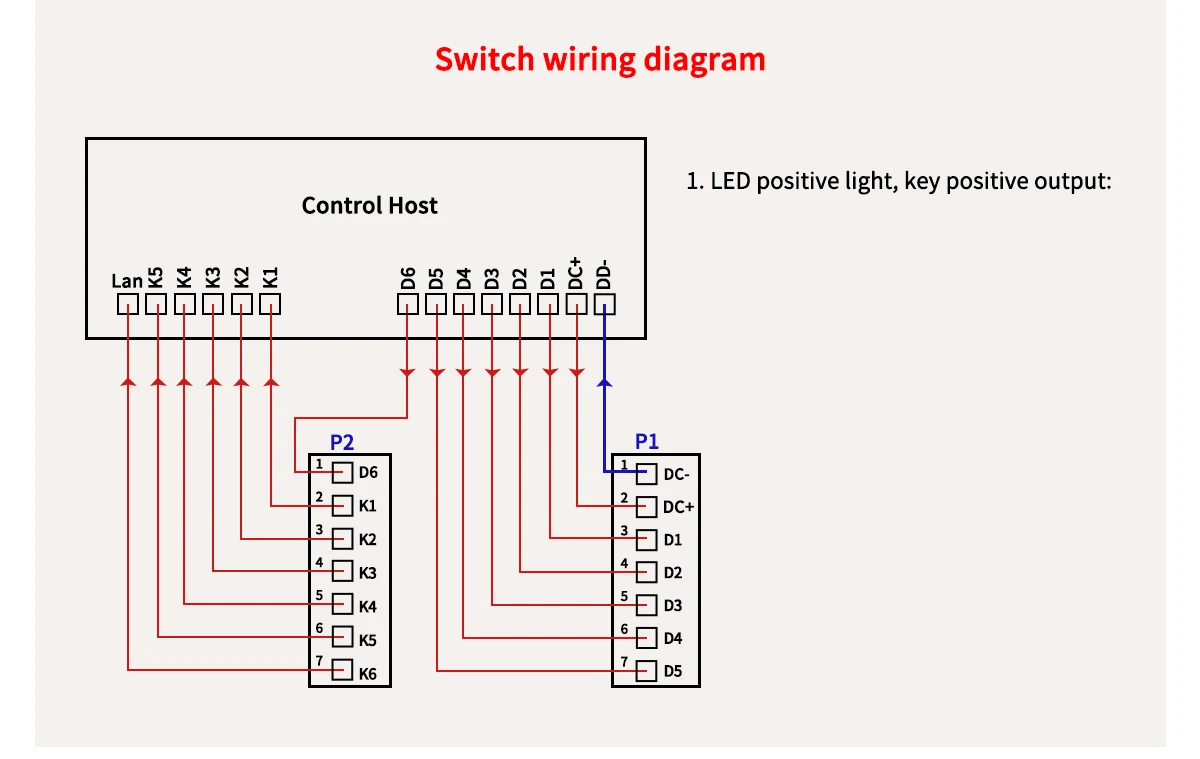

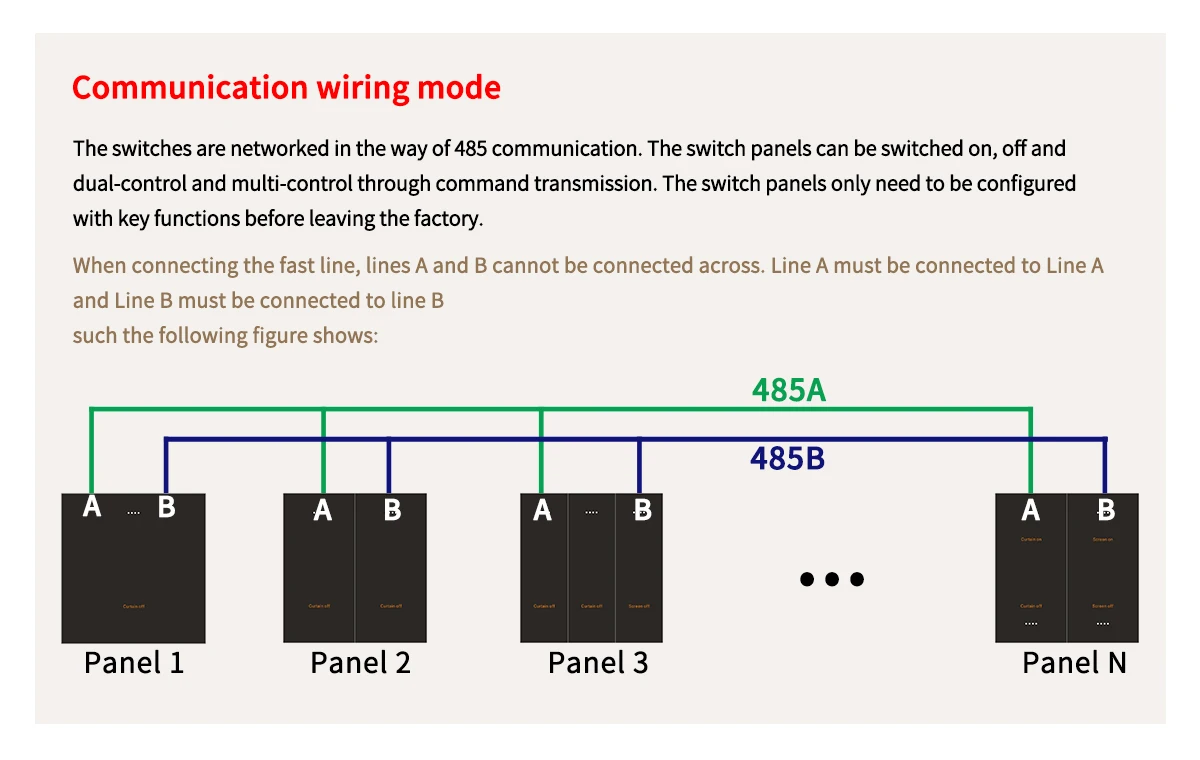

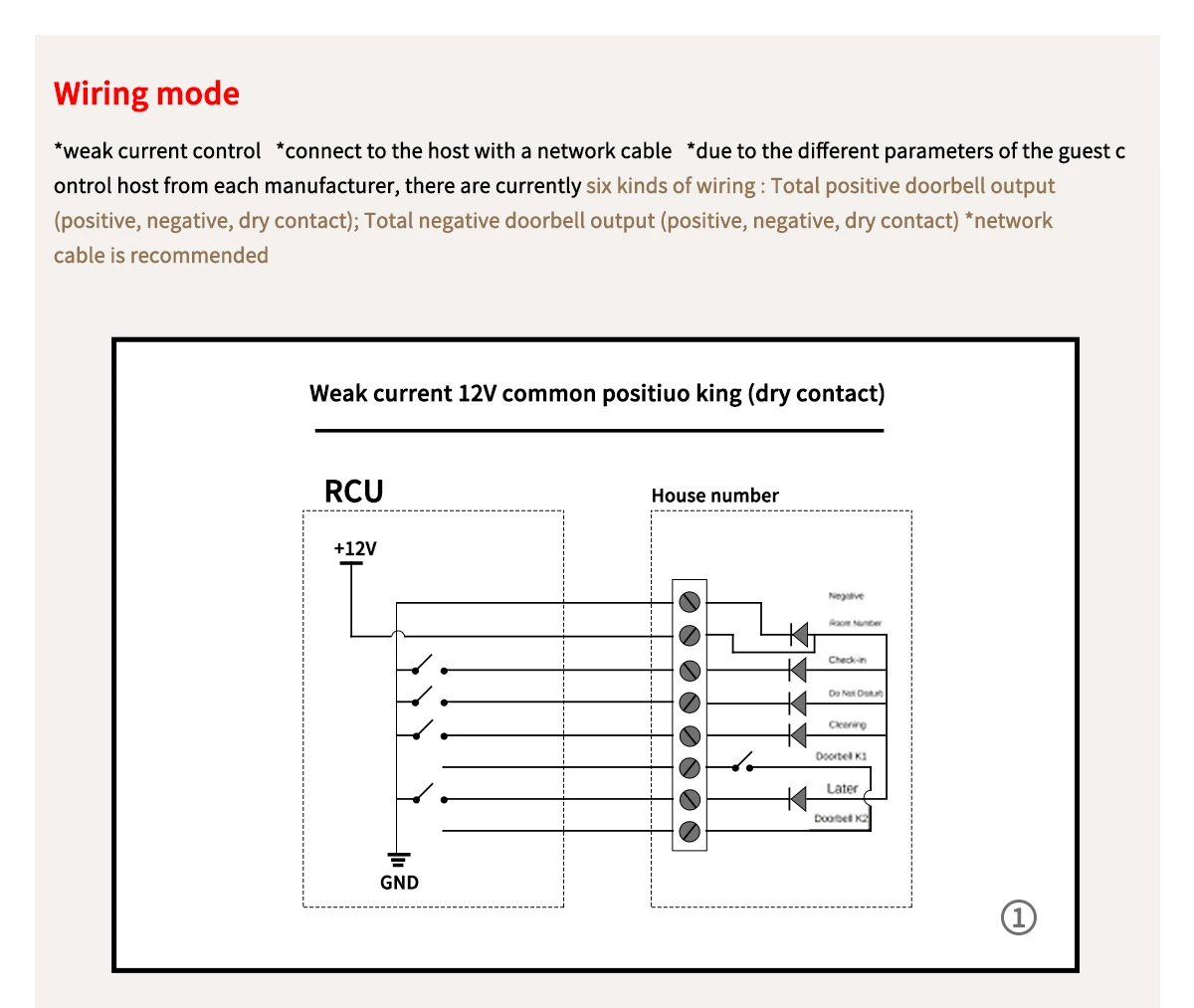

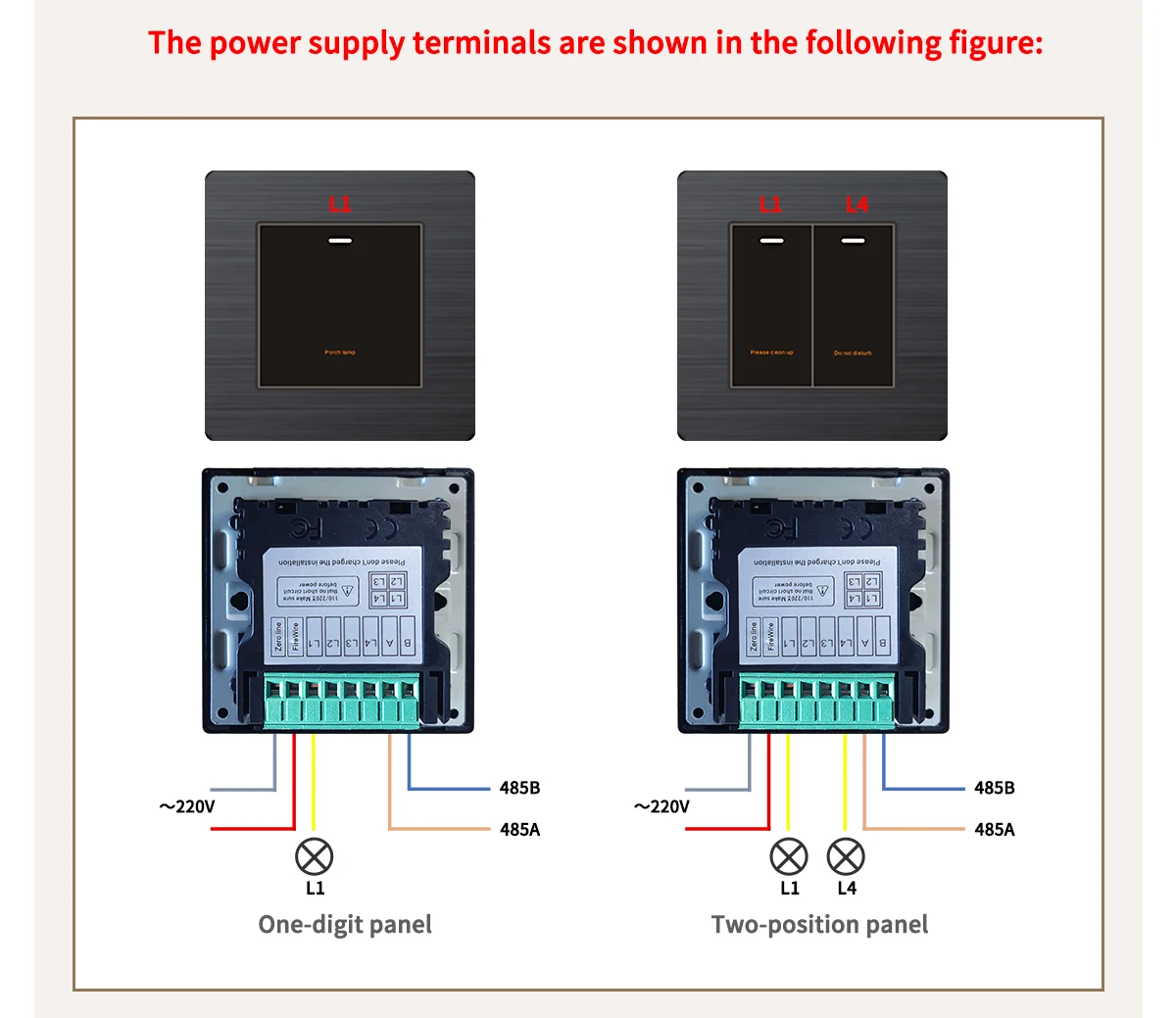

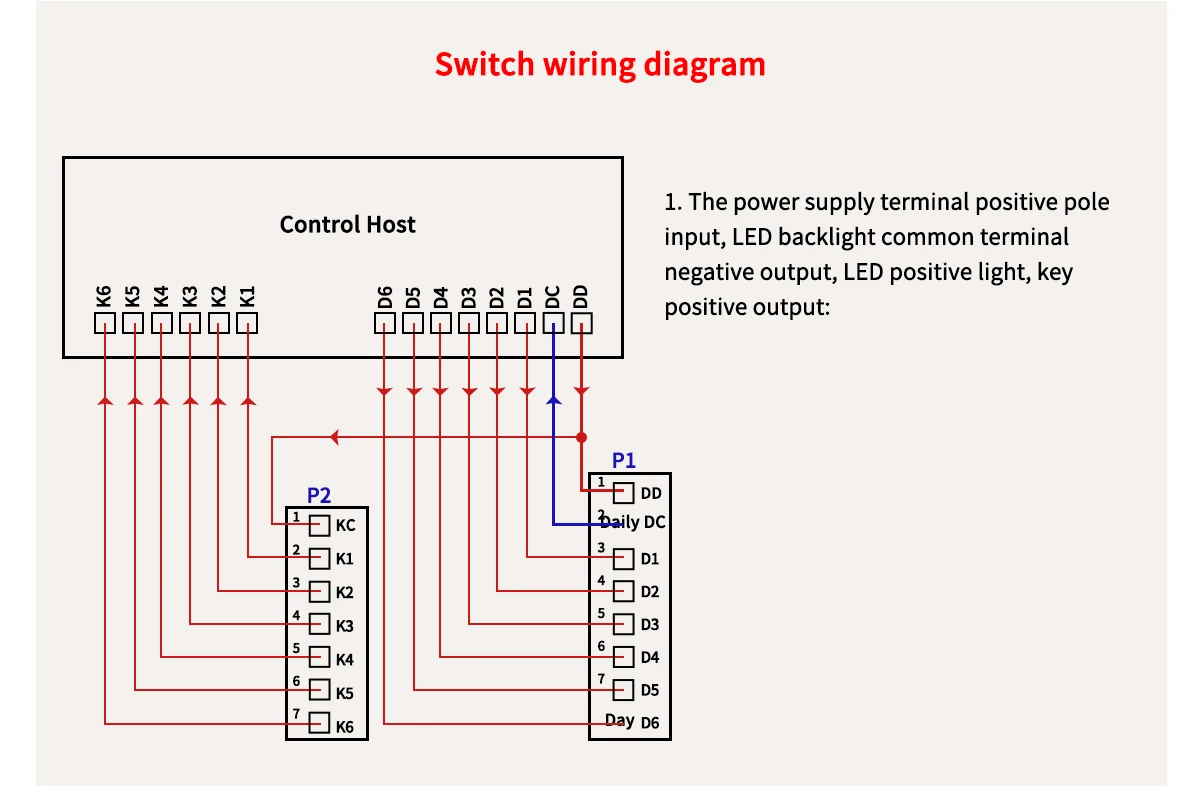

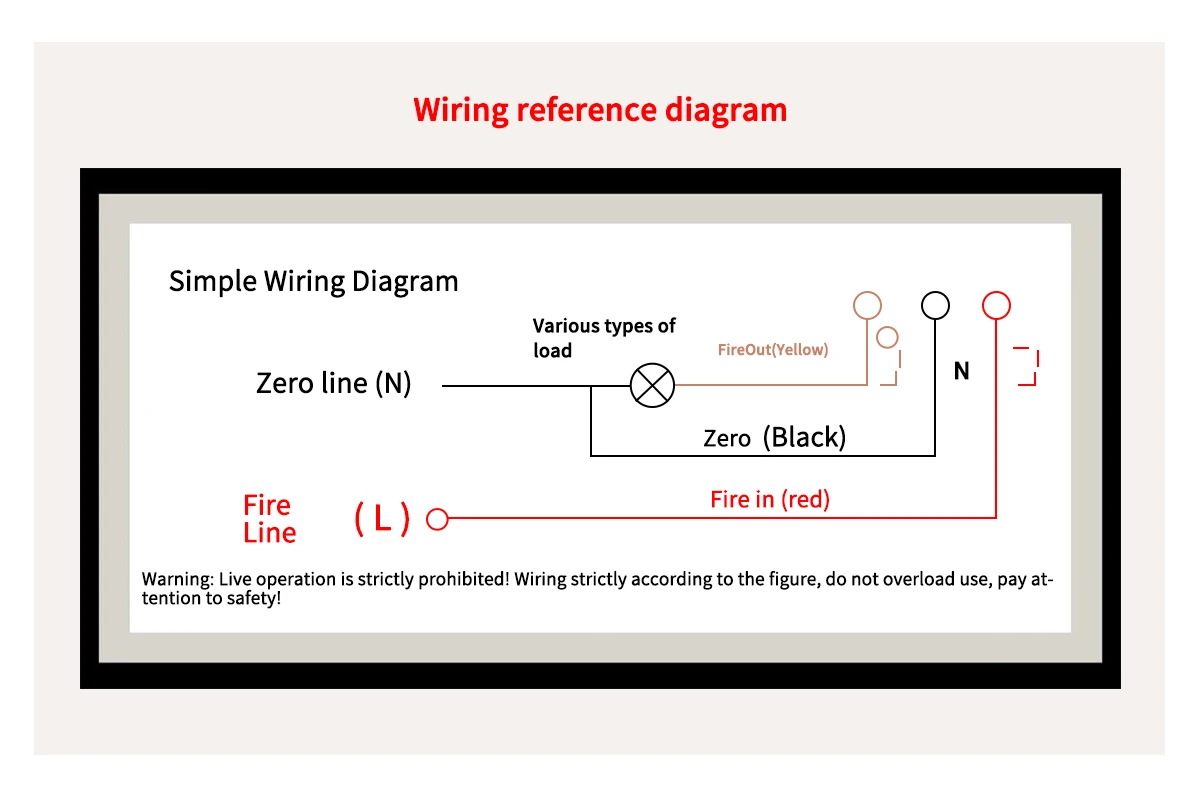

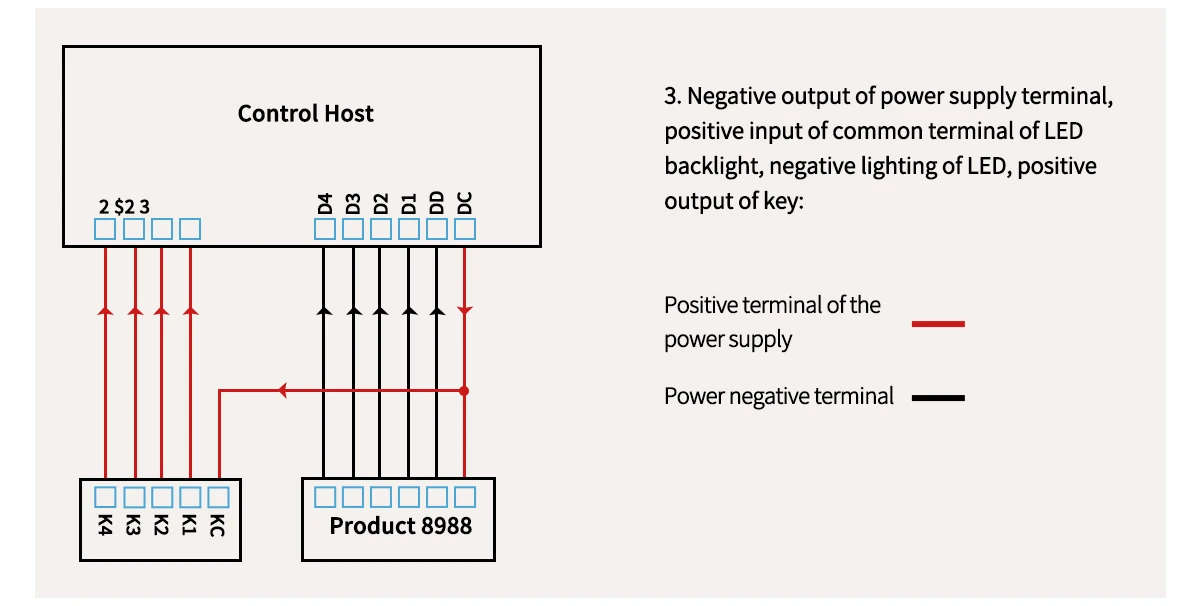

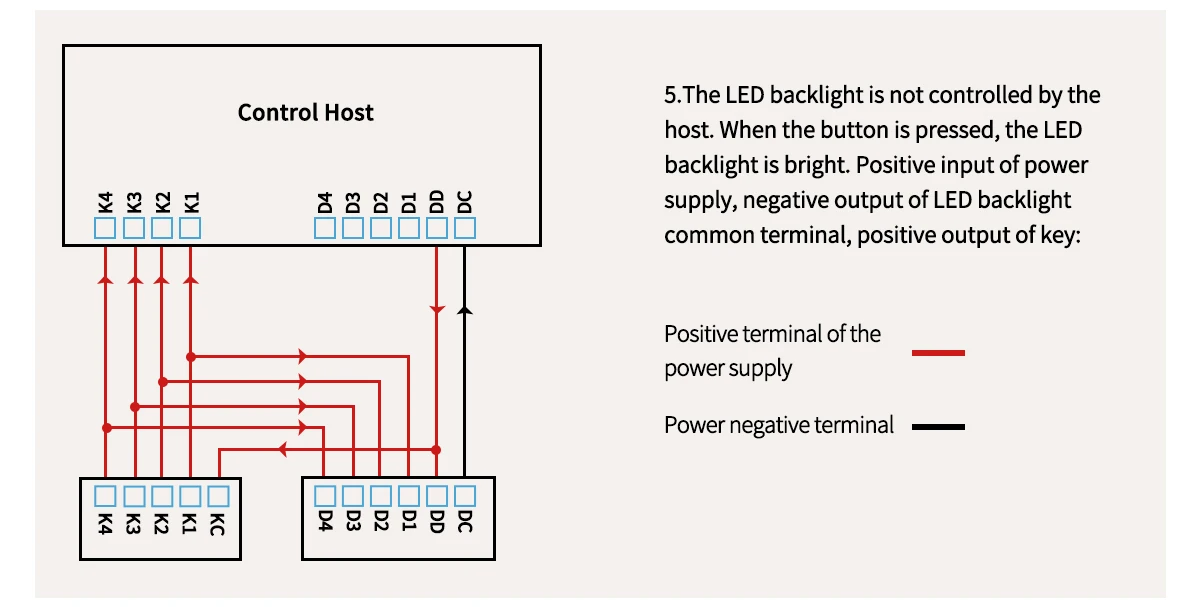

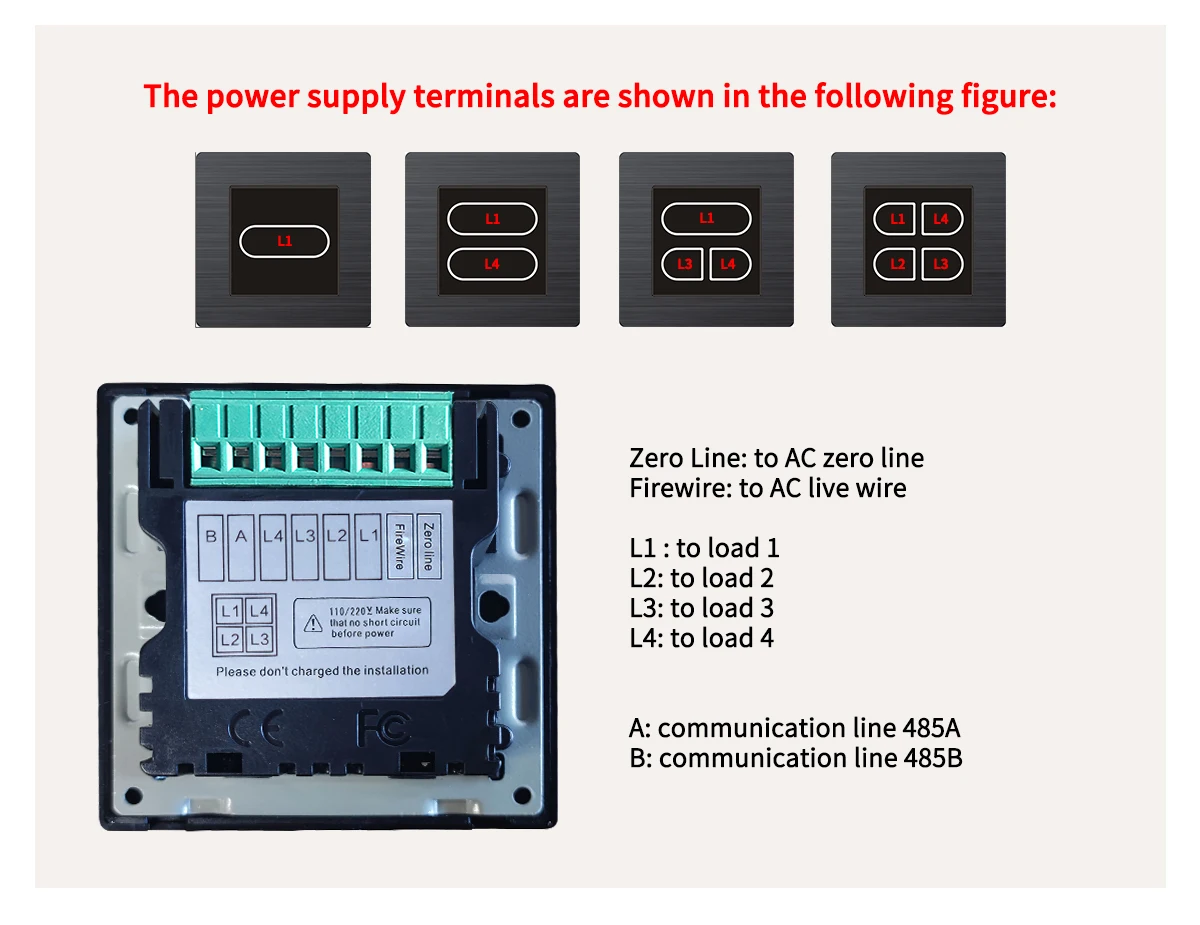

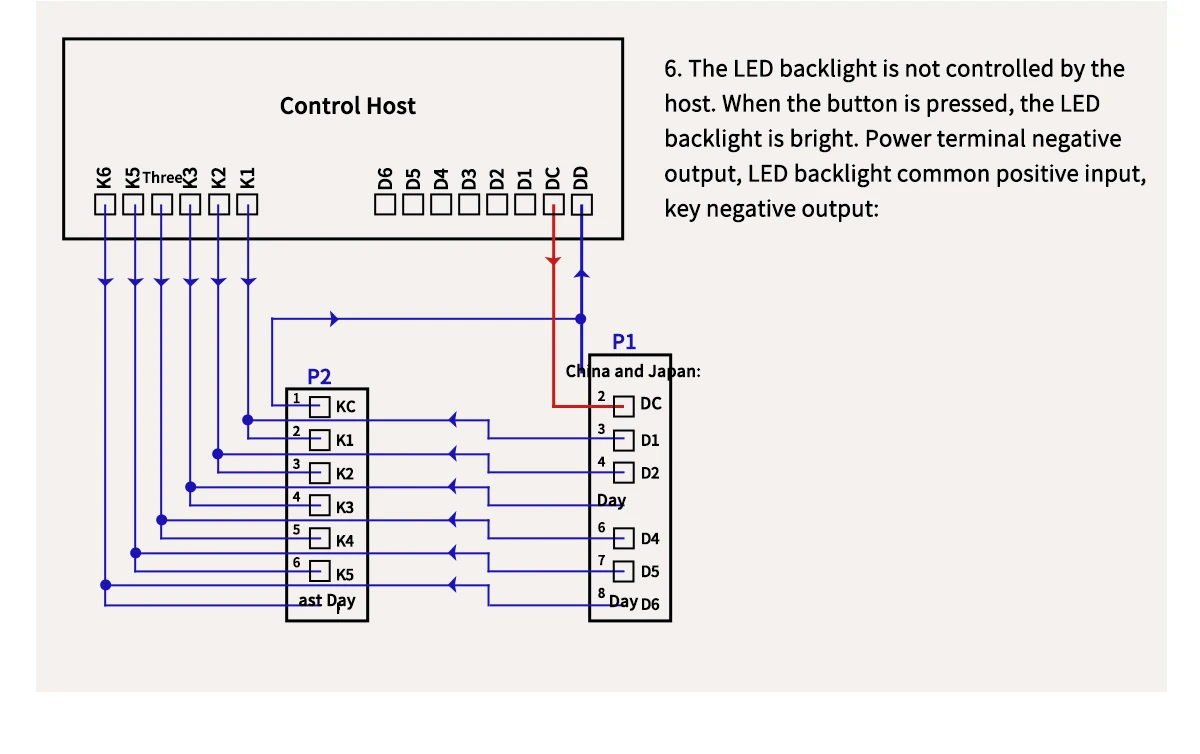

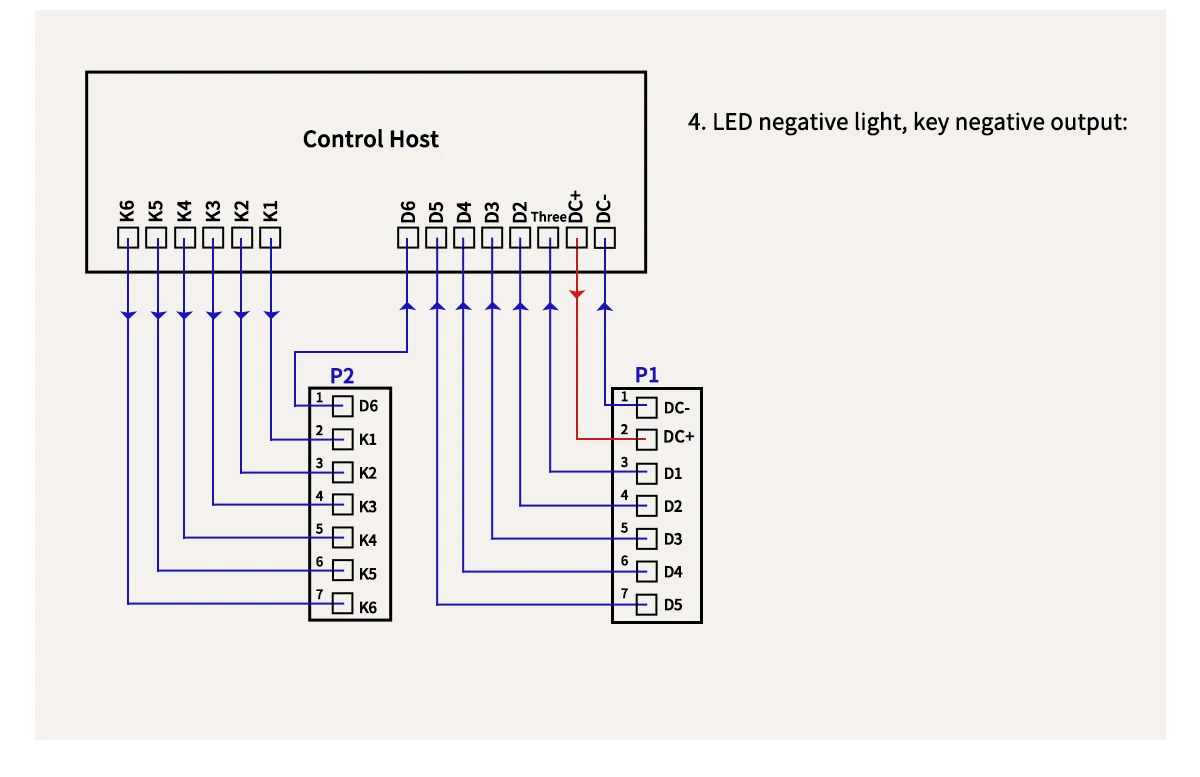

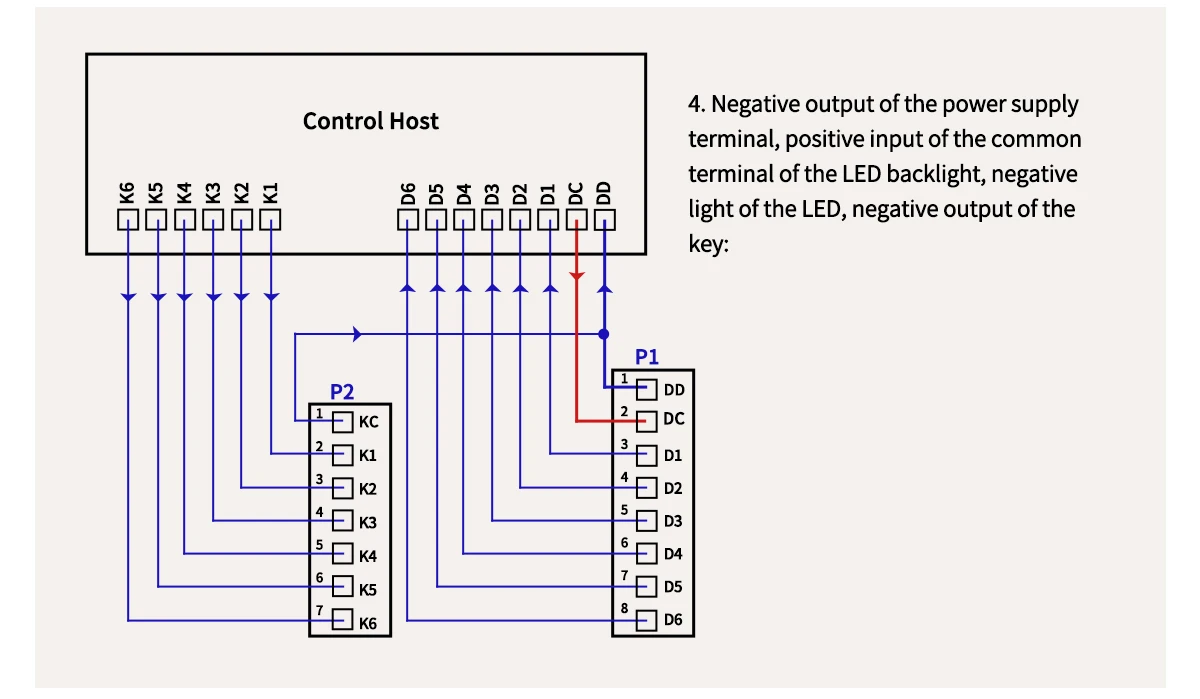

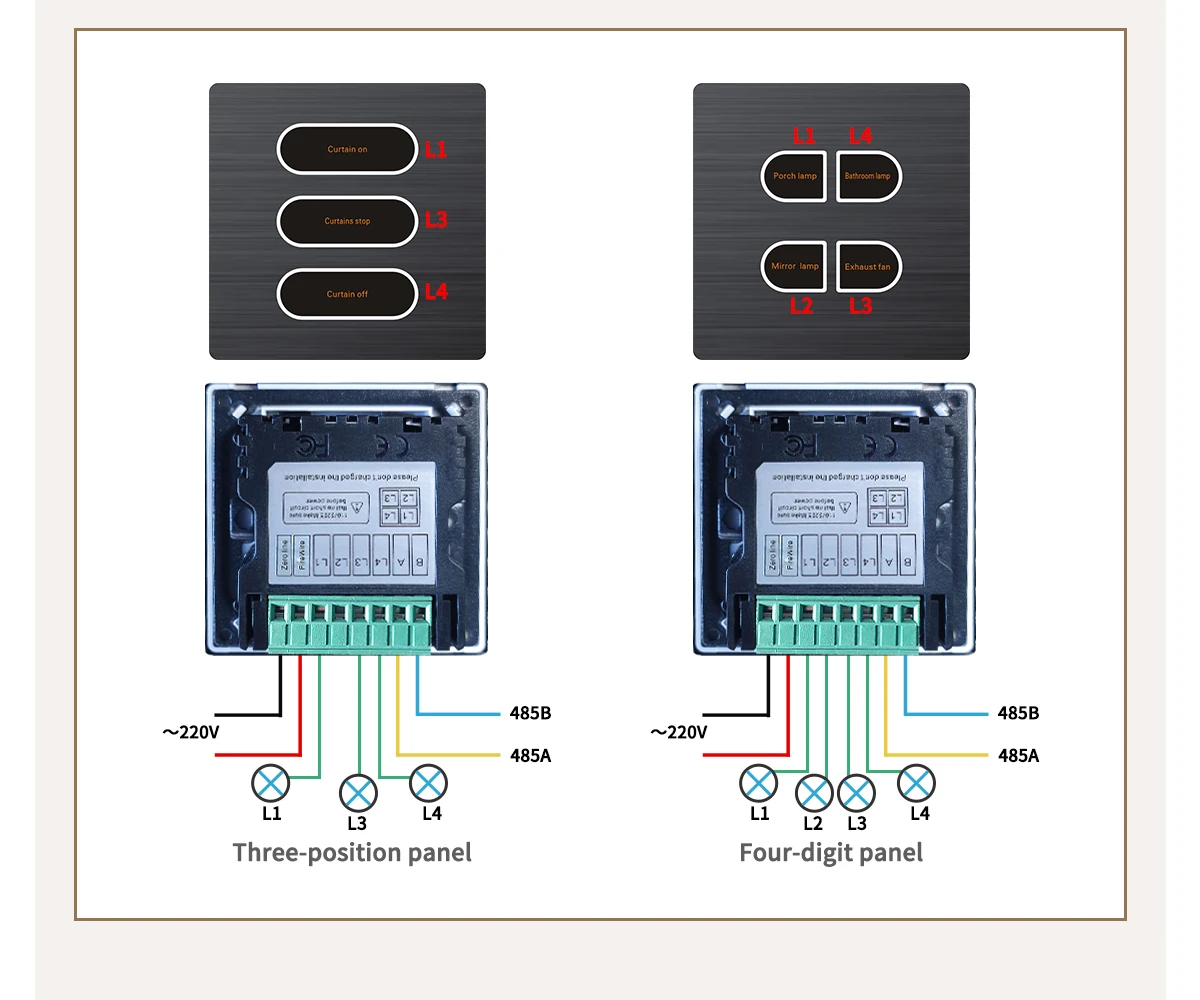

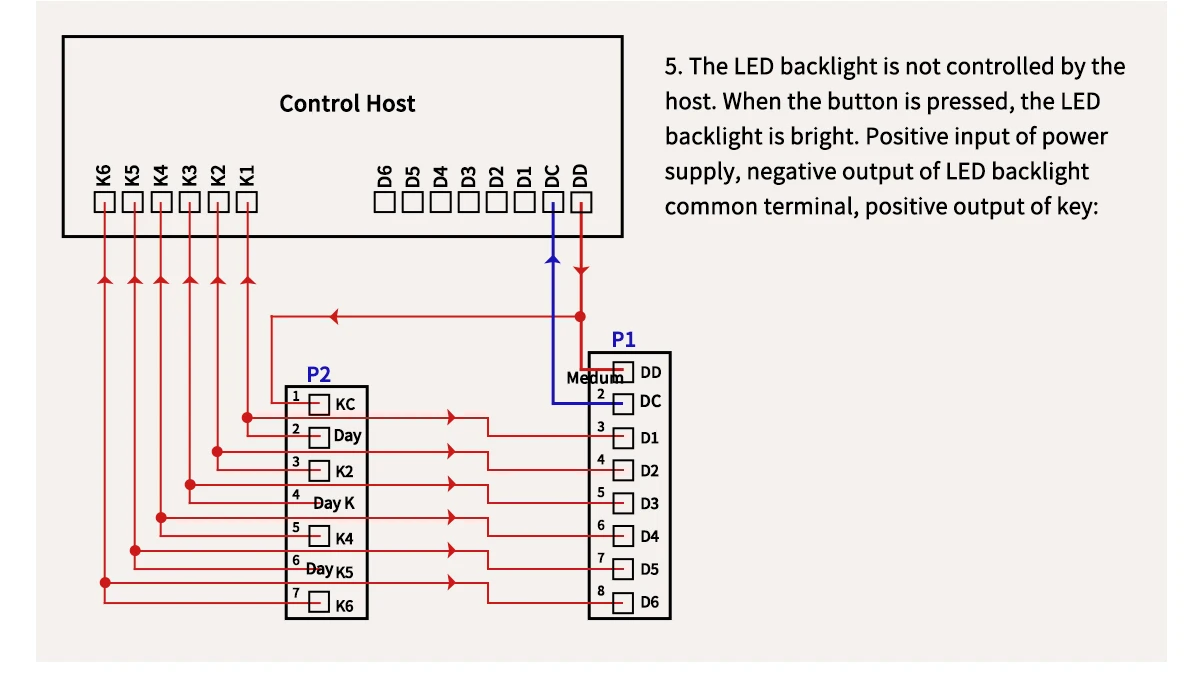

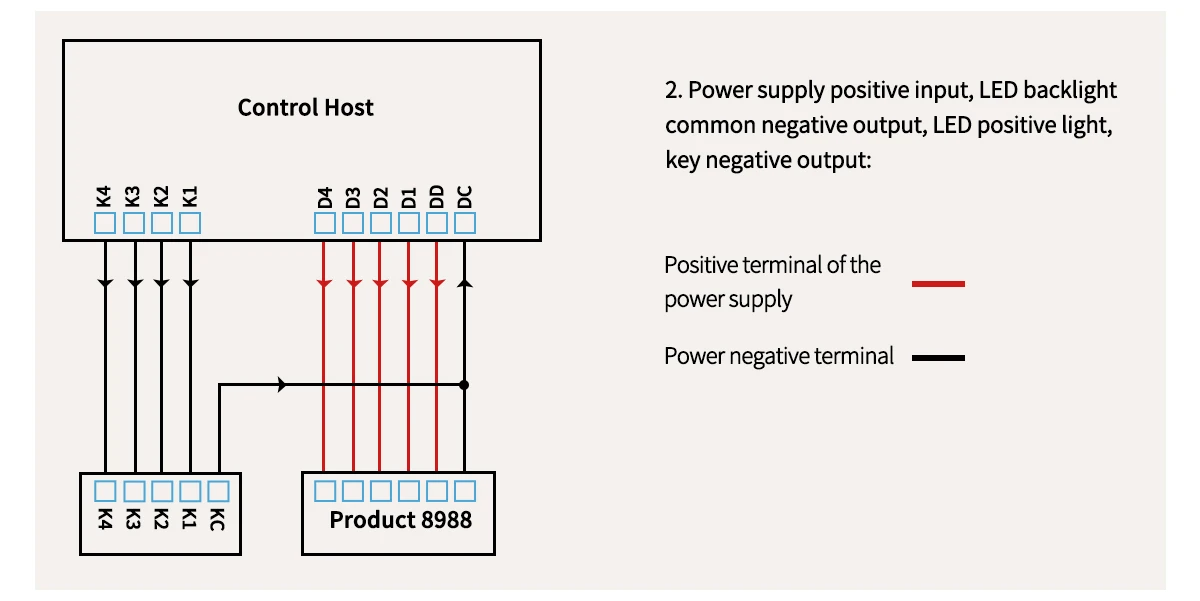

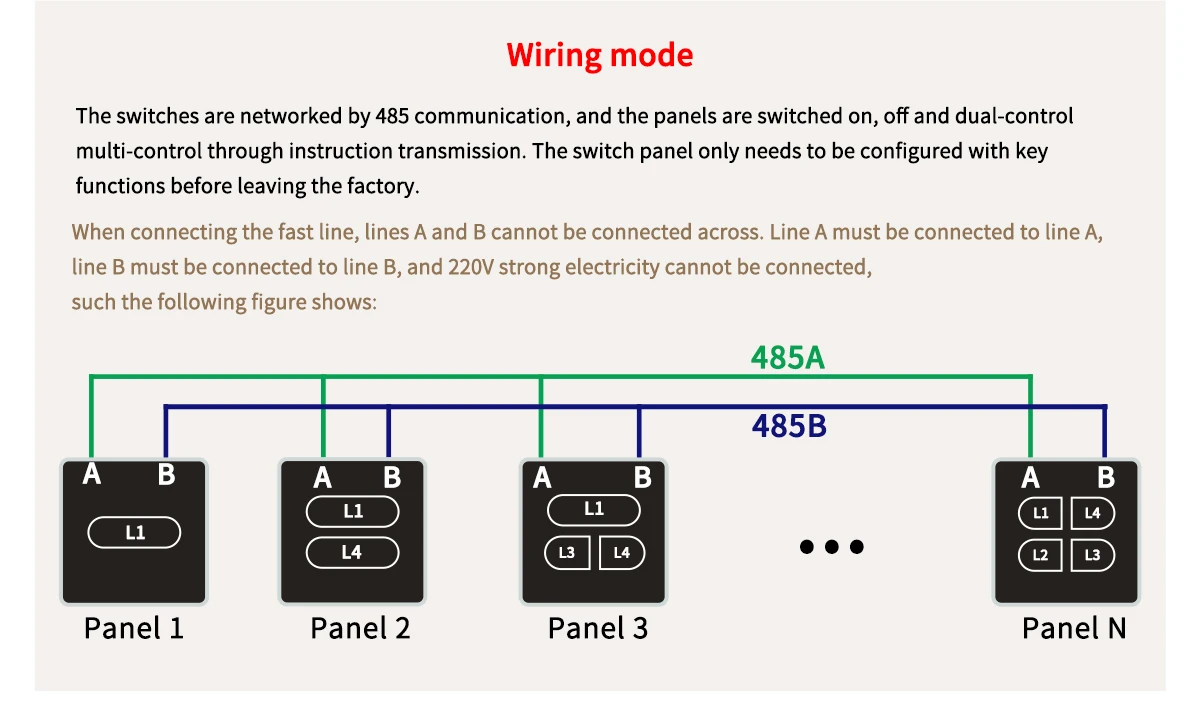

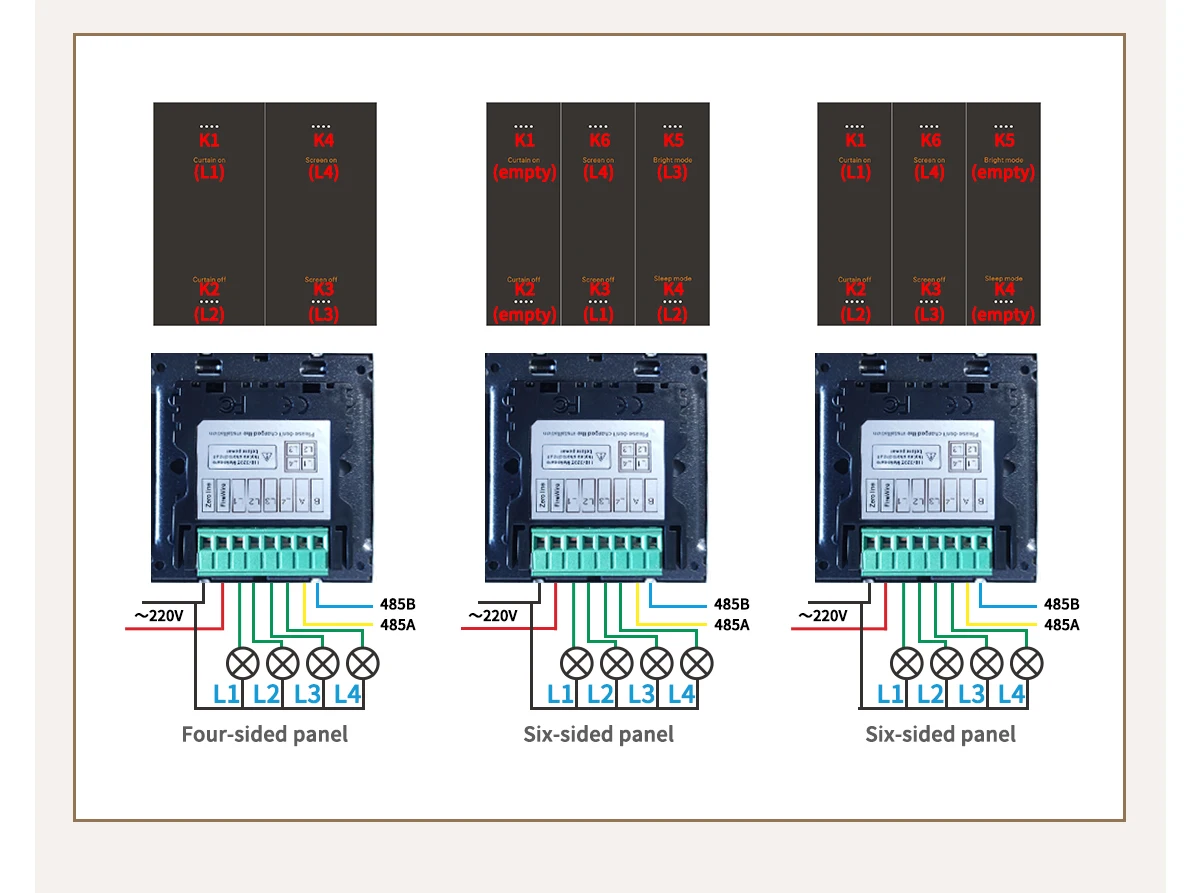

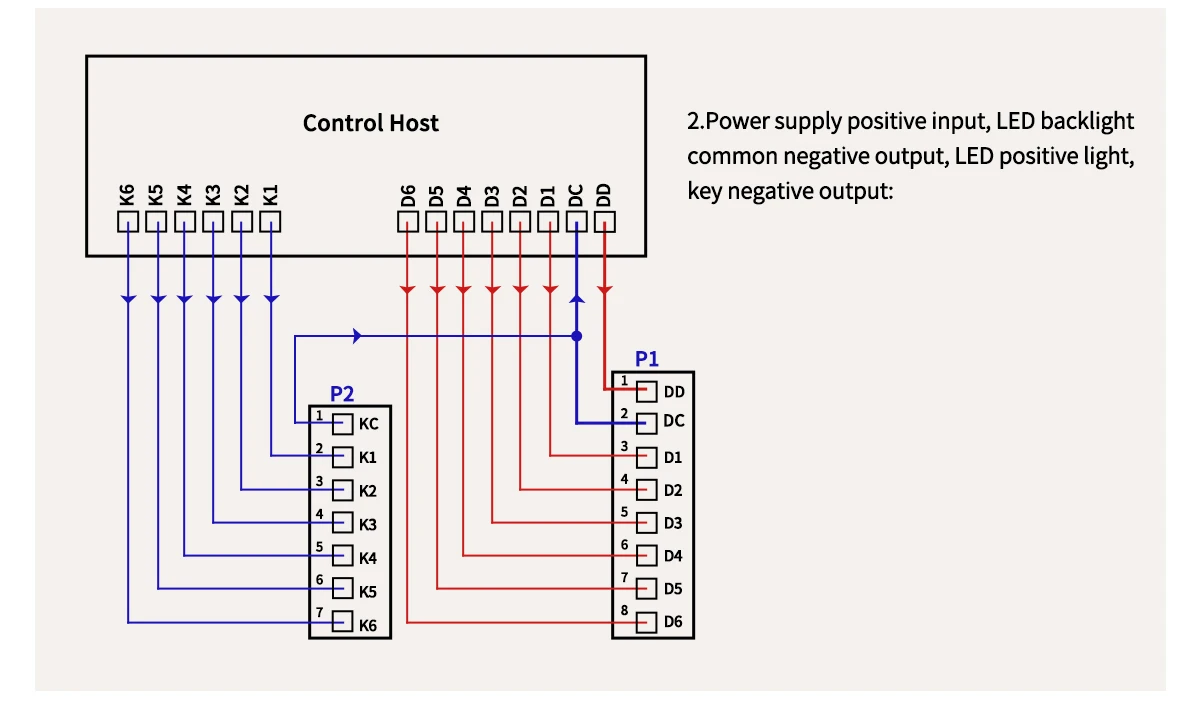

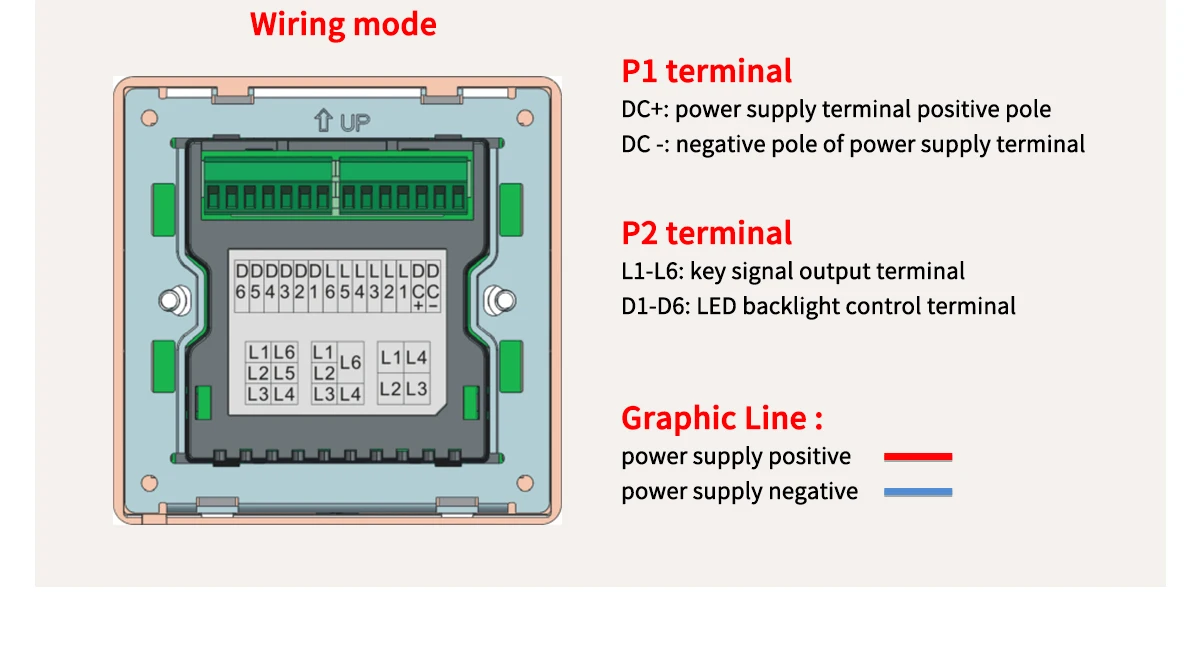

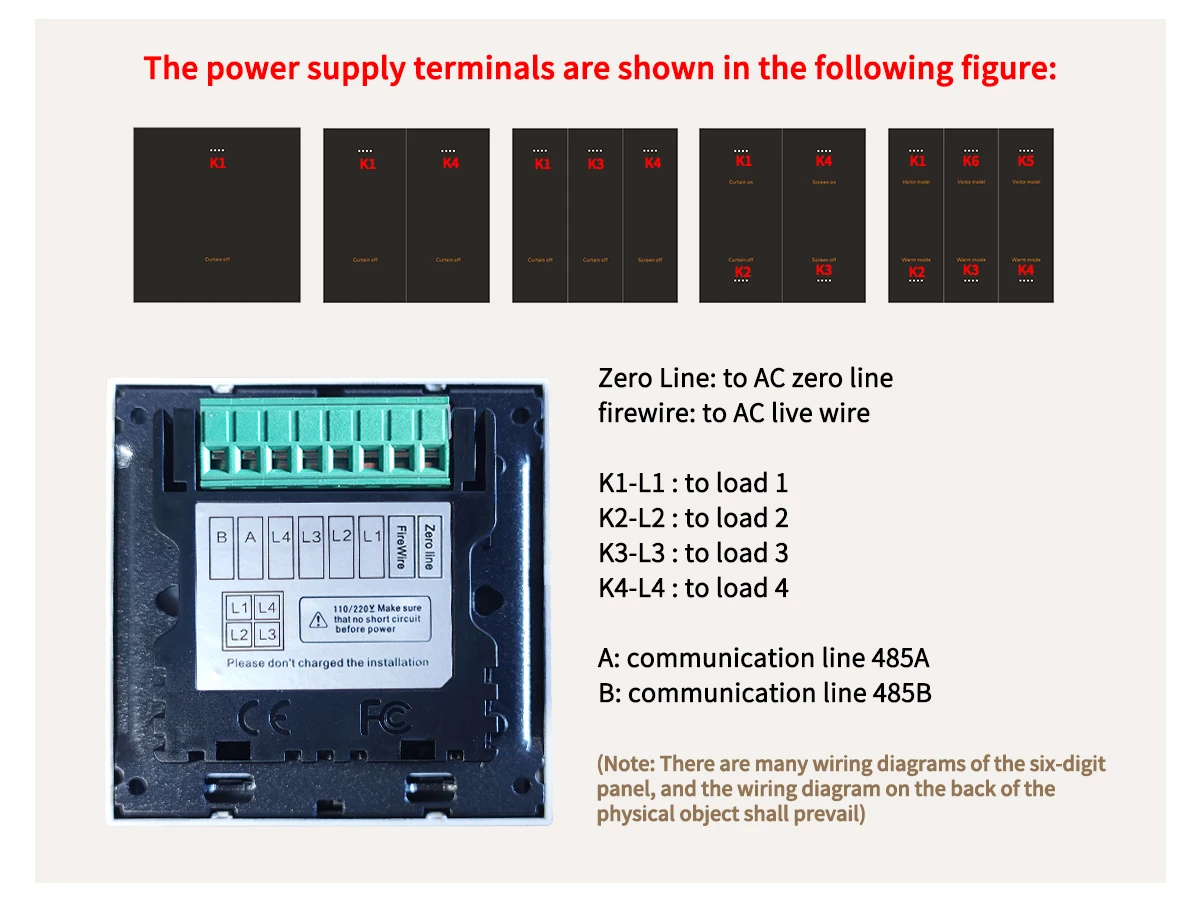

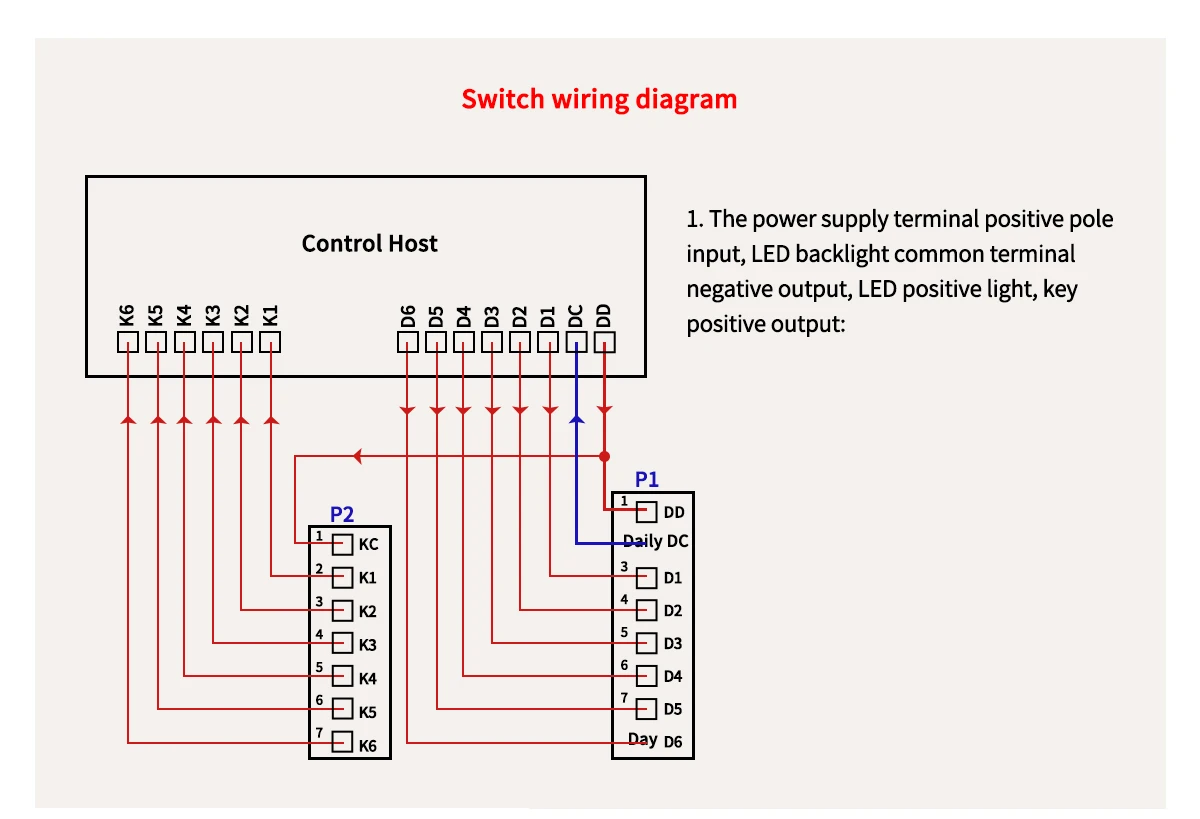

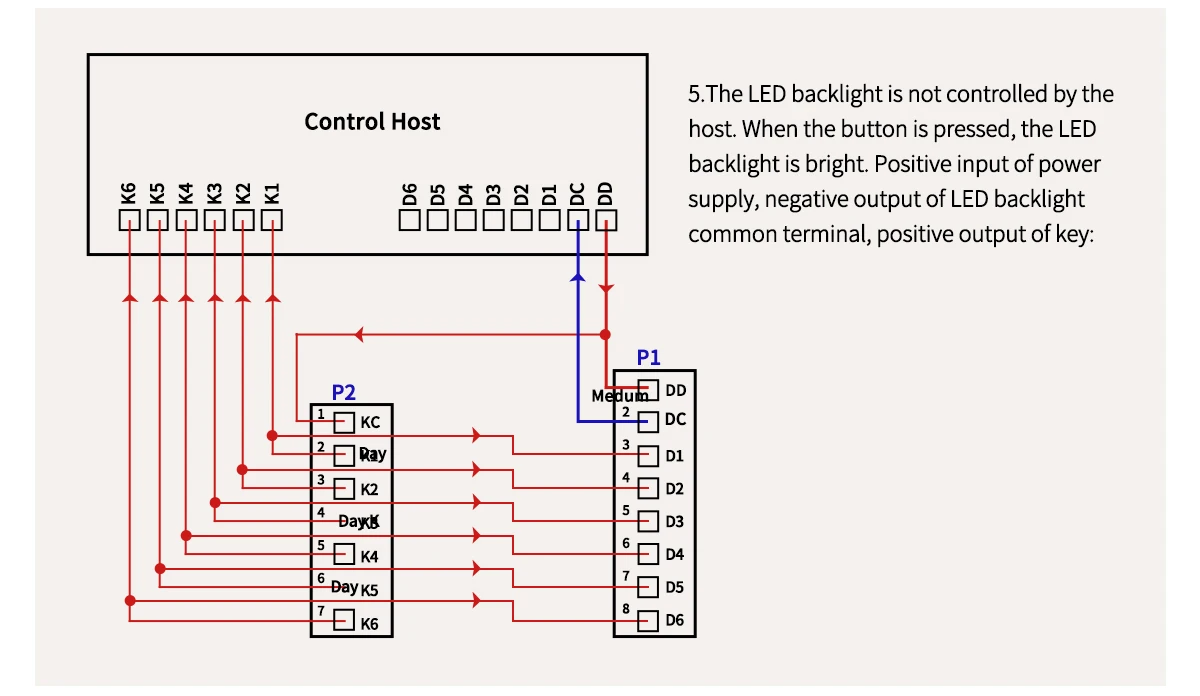

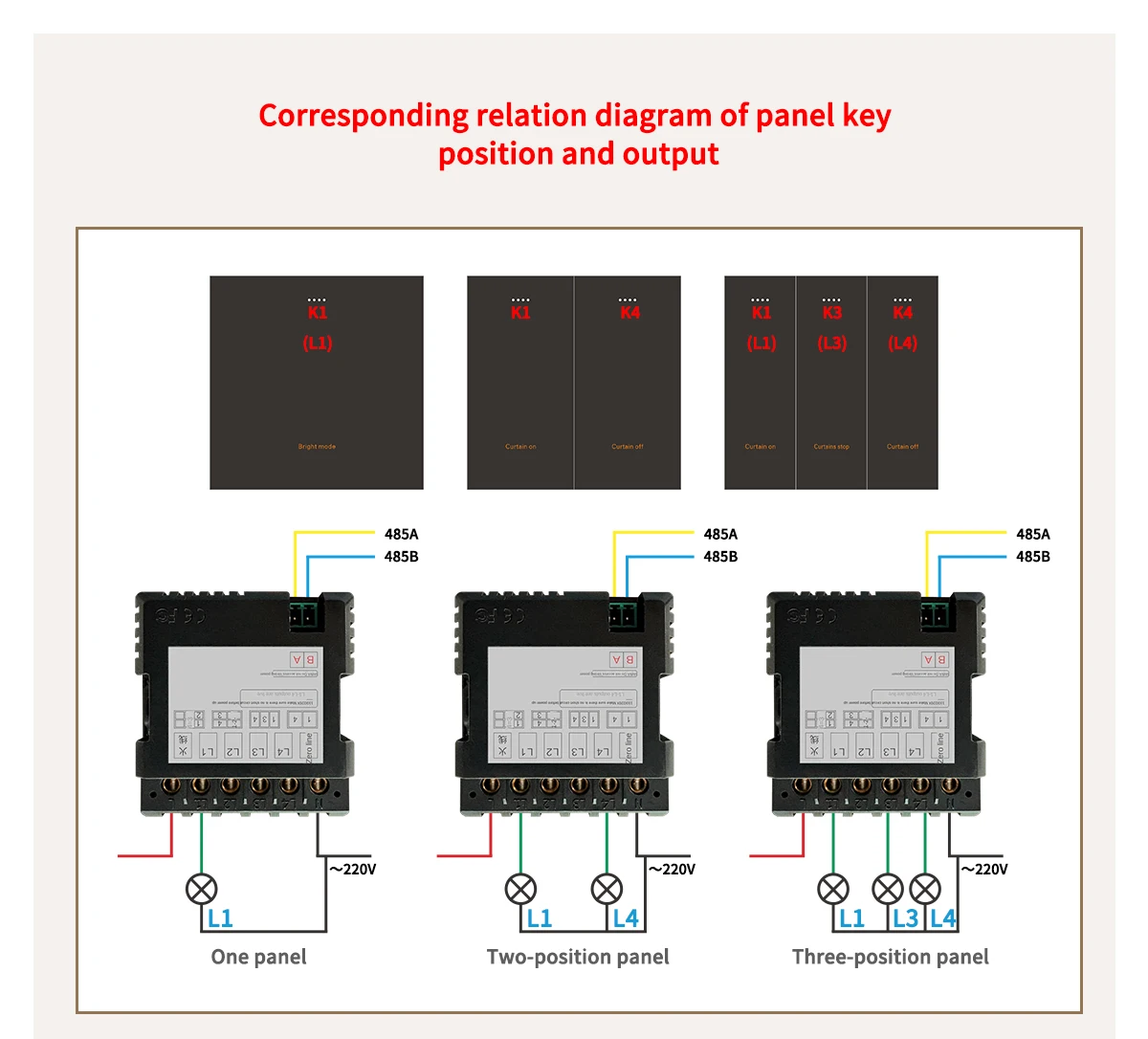

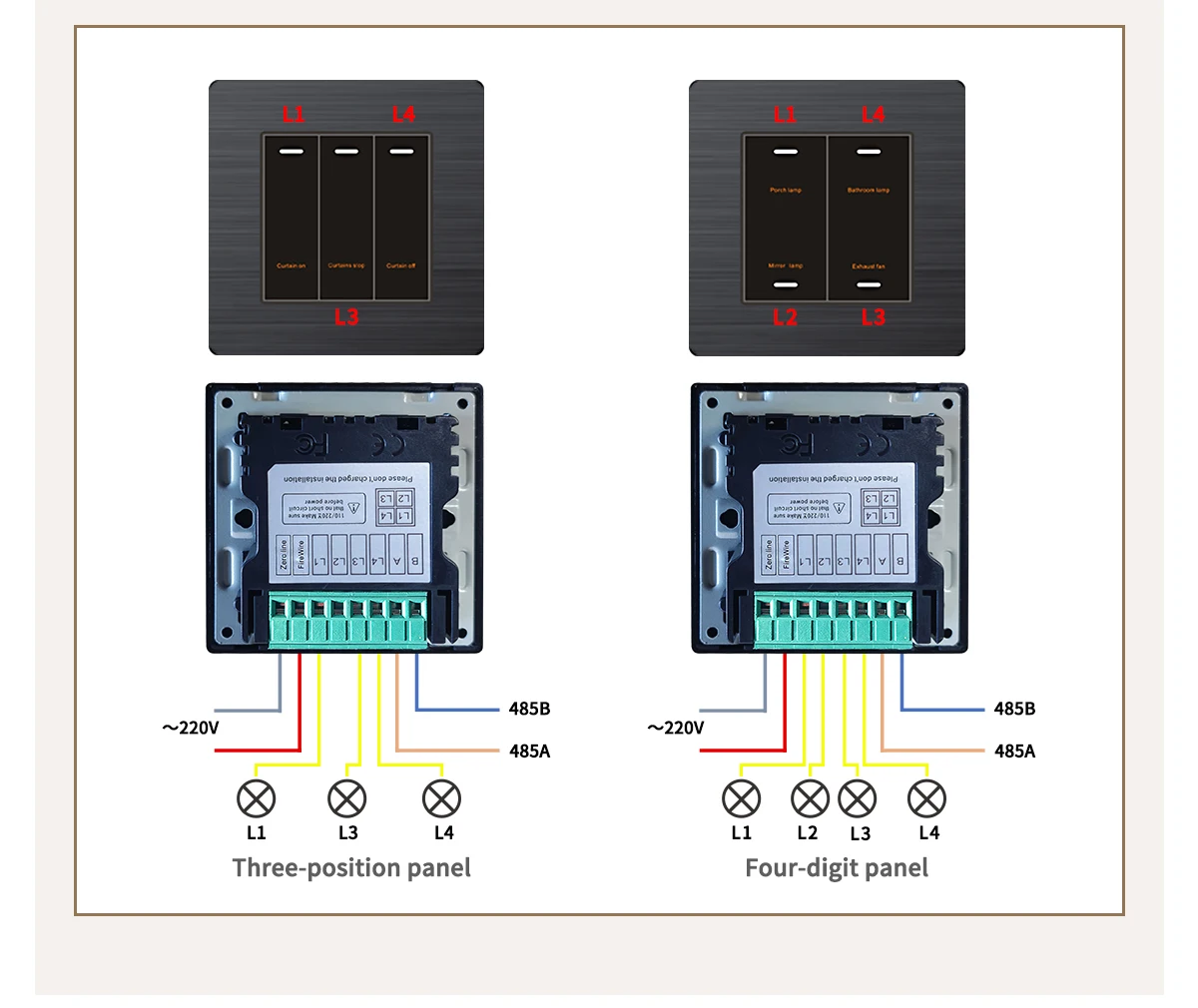

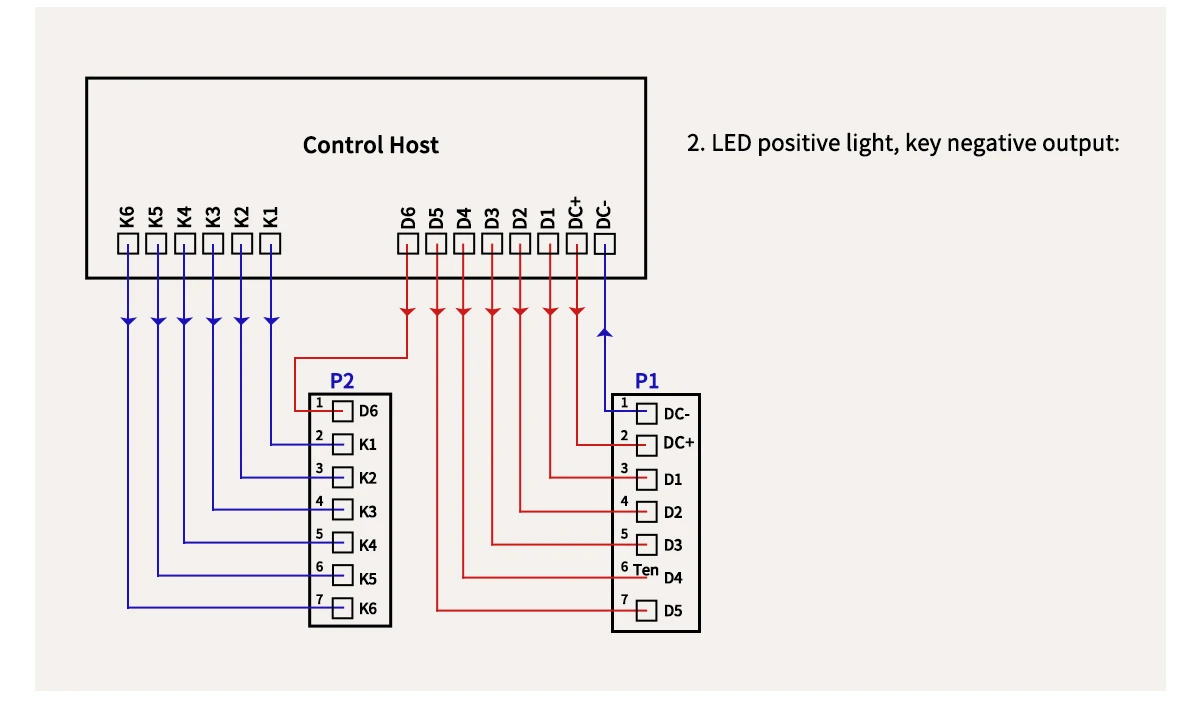

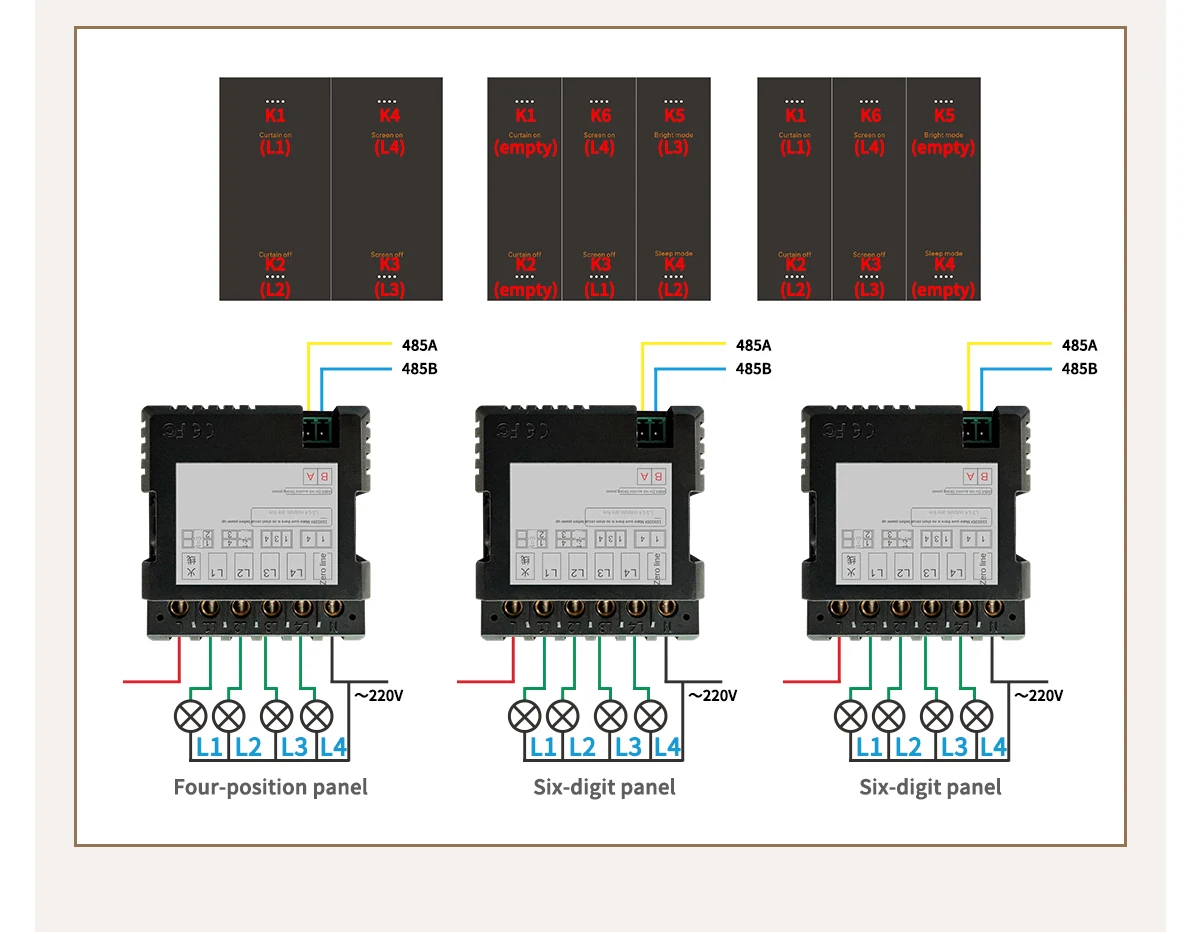

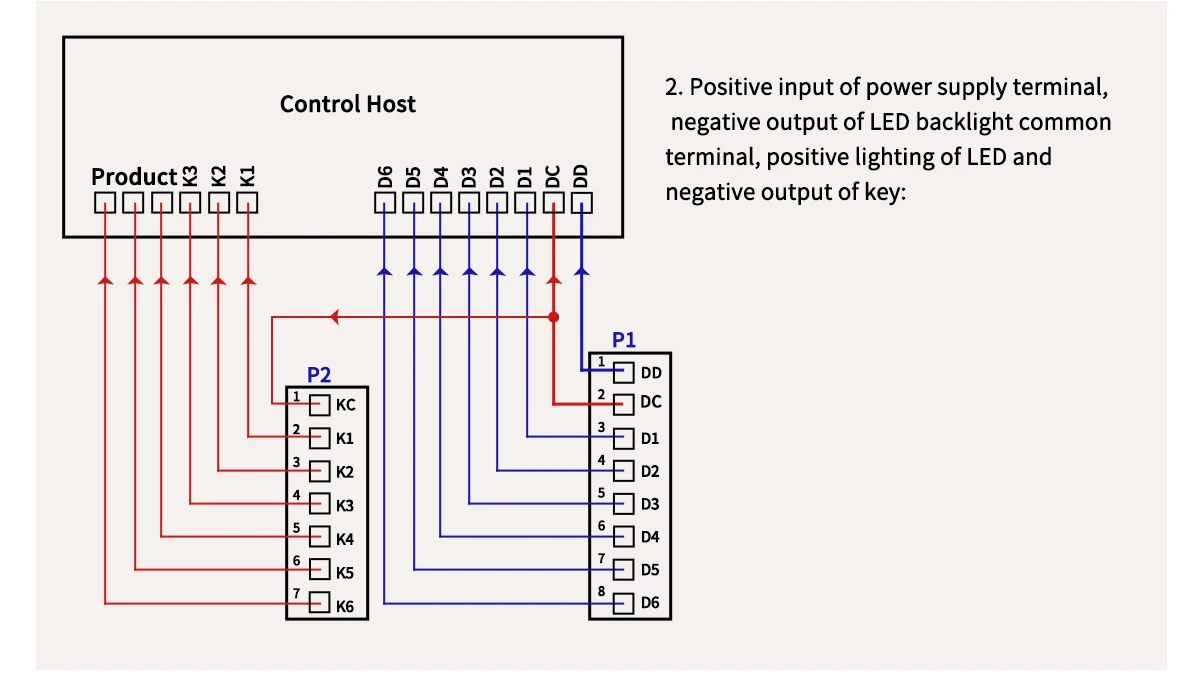

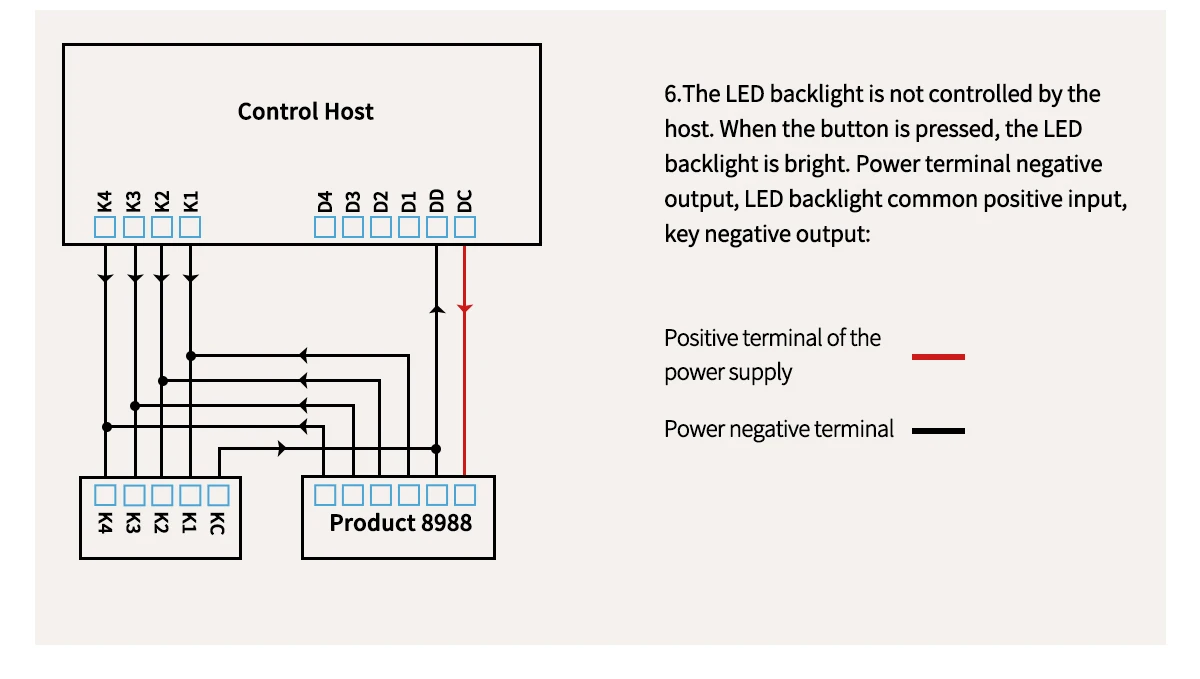

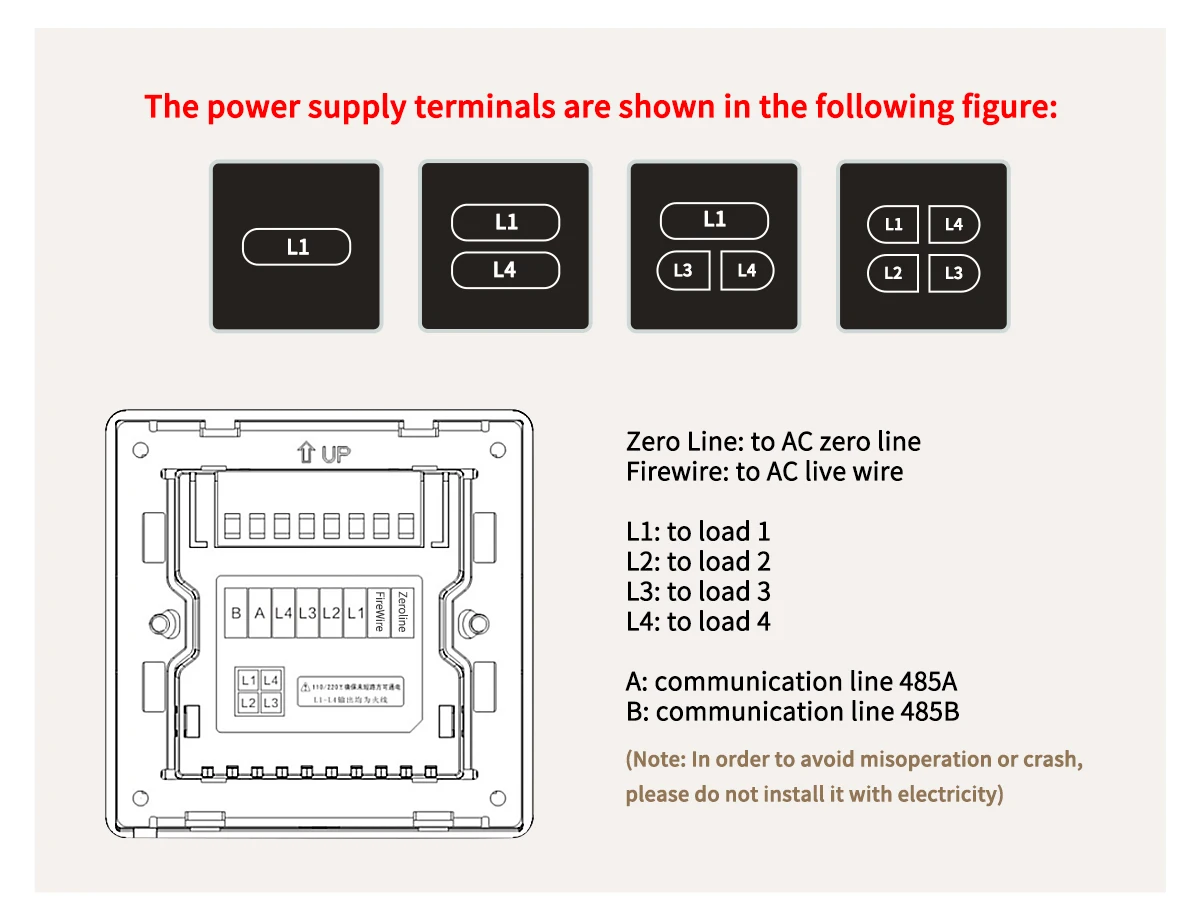

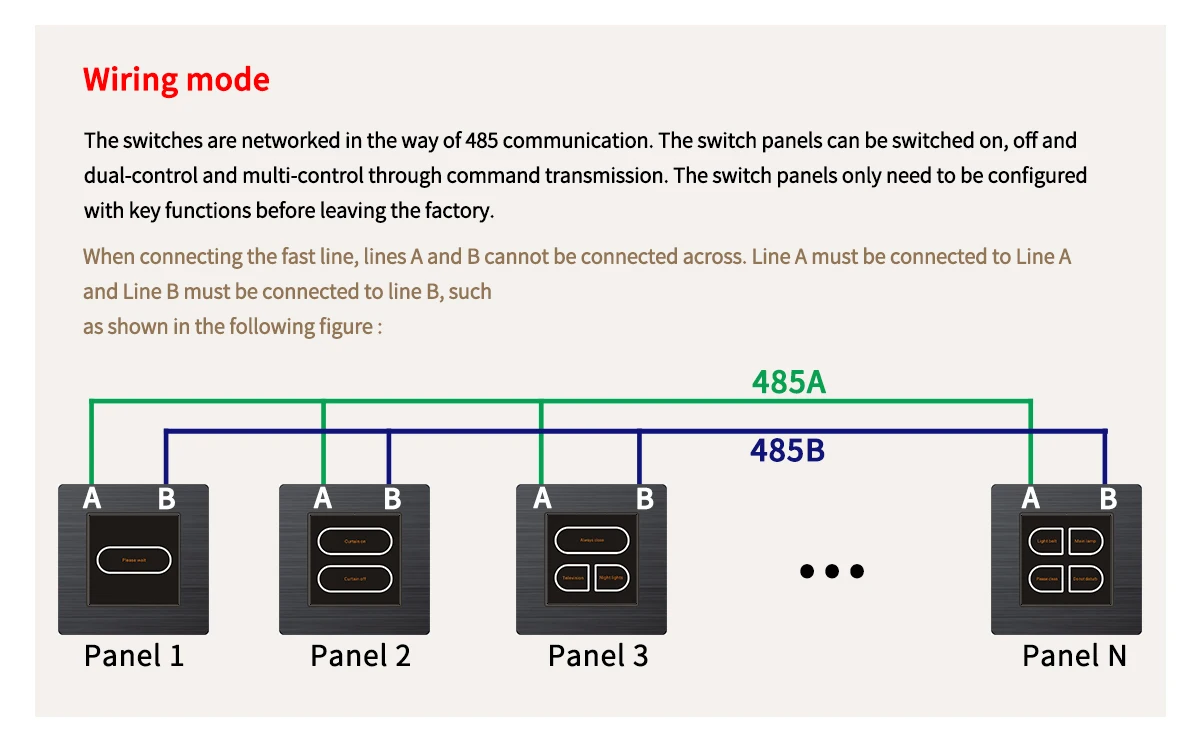

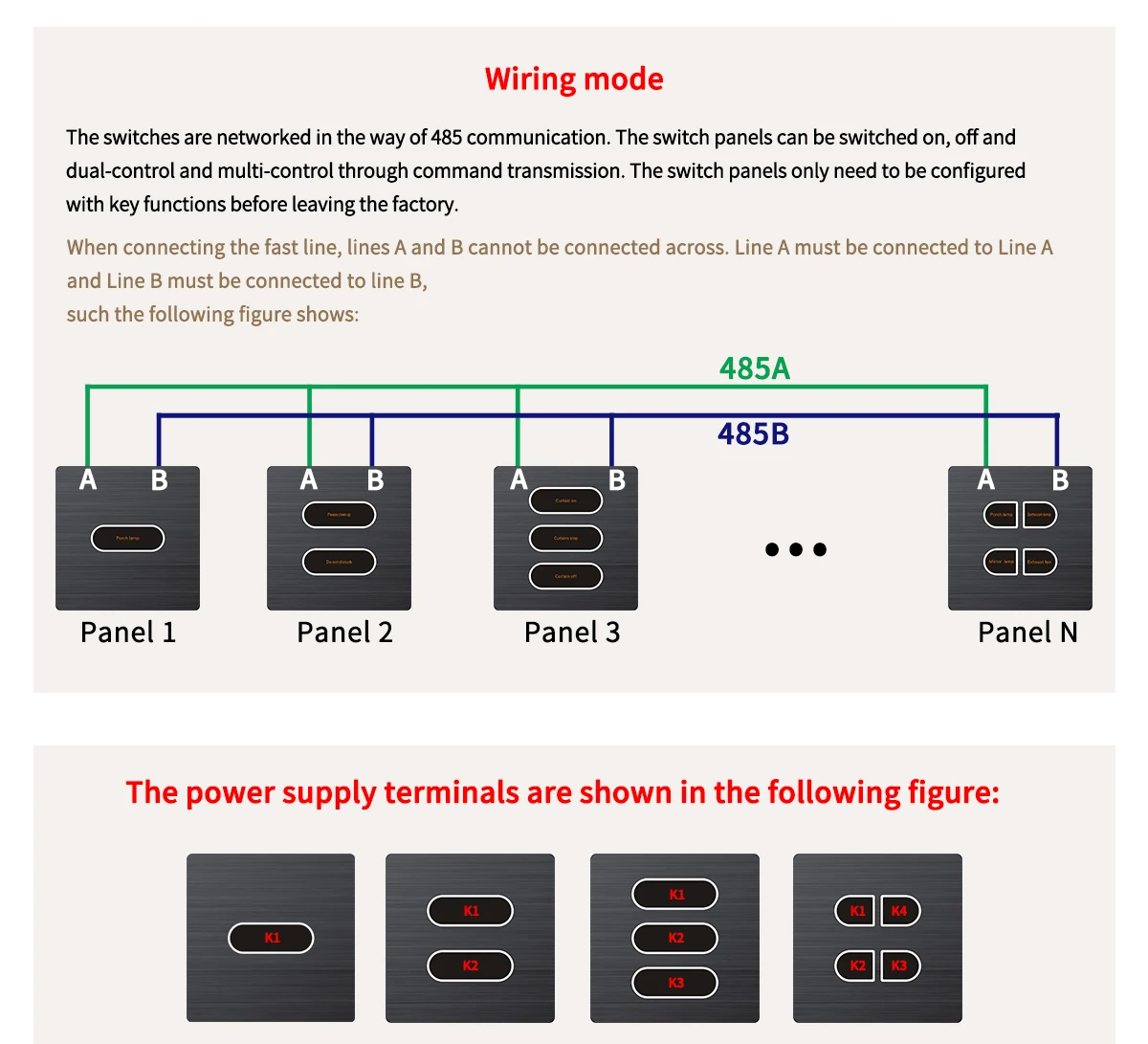

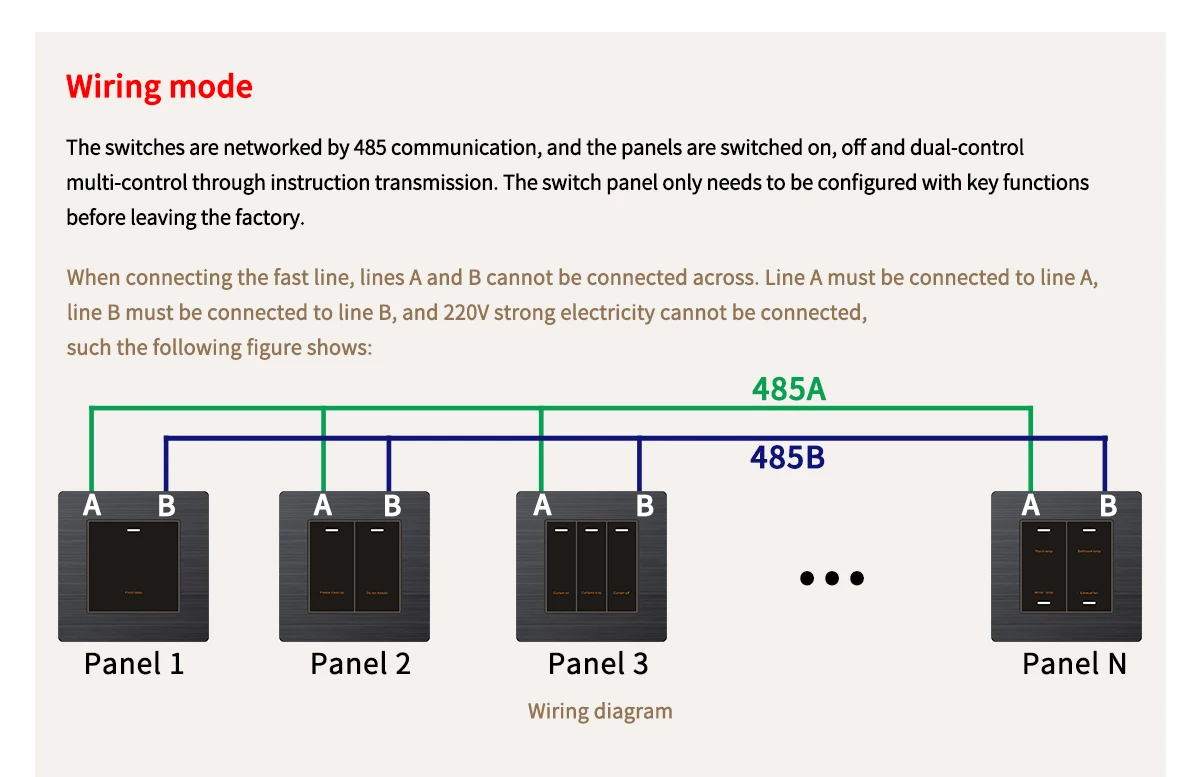

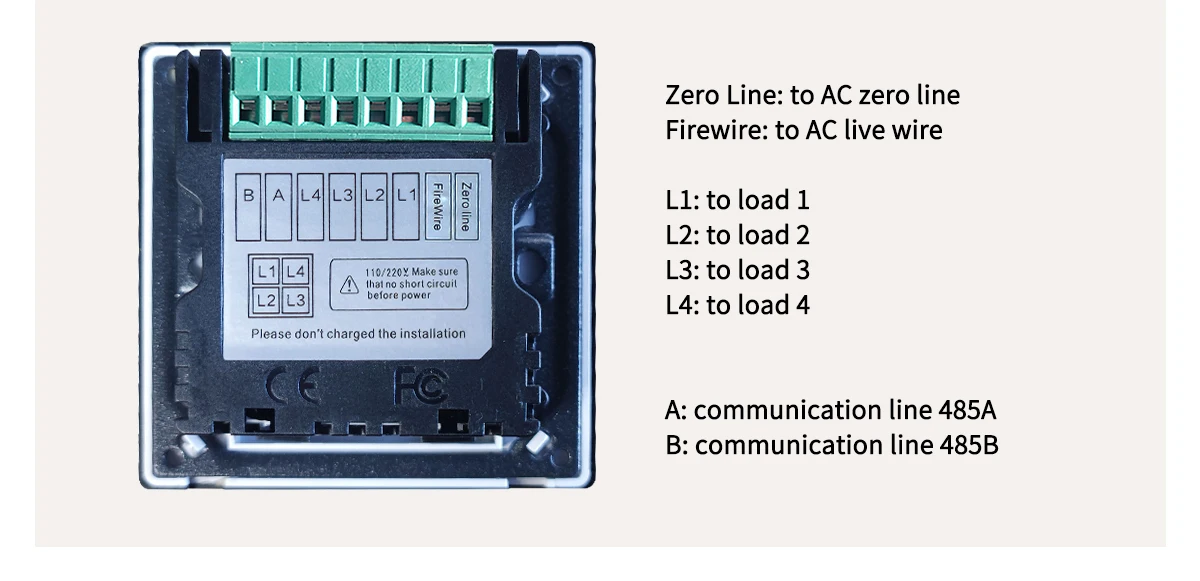

Three: Wiring method

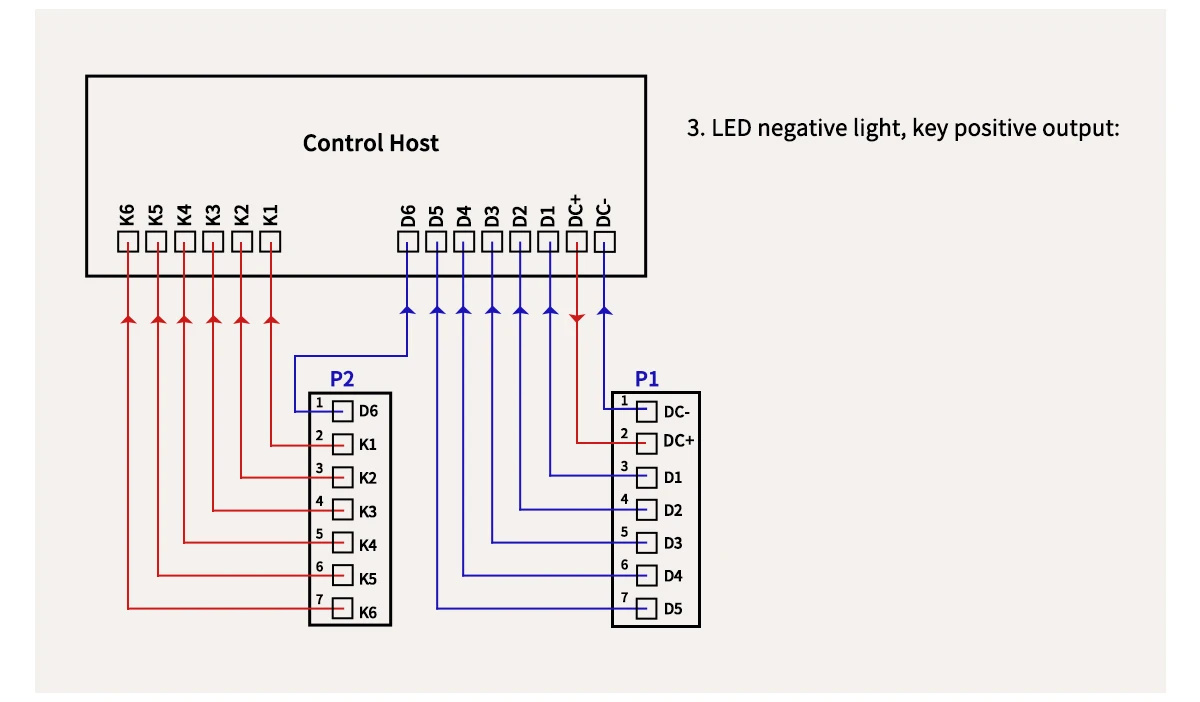

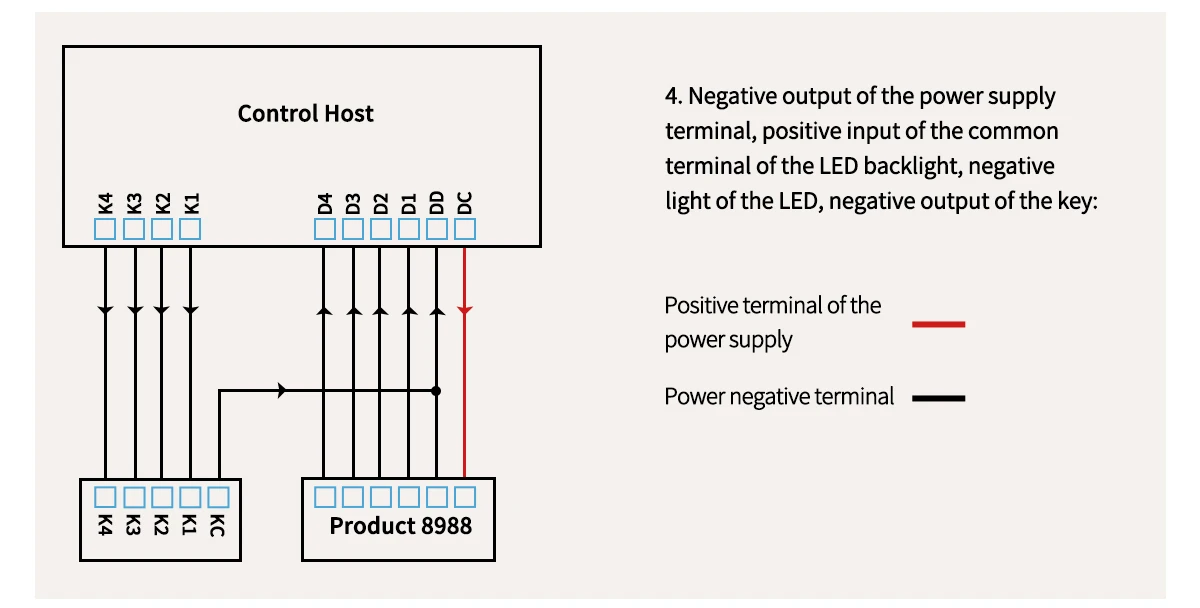

Connect the positive and negative poles of the switch power supply and connect it to the 485AB end of the customer control host.

Four: Panel and third-party communication protocol
         1.The command function only works when the address is set on the panel.
         2. Communication interface: RS485; 9600bps; Data bit 8; Stop position 1; No checksum.
         3. Command format: data header+data field+checksum
             a. Data header: fixed byte: 0xFE
               b. Data domain: including: data identifier+data length+command word+address+data
                    Among them, the data identifier is a fixed byte: 0x55
                    The data length does not include the header and checksum bytes.
                    Command characters are shown in Table 1
                     Address value range: 0x01-0FF
                     Data: Generally refers to the status value of keys or LED backlight status, and some  instructions have no data bytes.
              c. Verification: The XOR sum of all bytes between the data header and the verification byte (excluding the 0XFE of the data header and the verification byte itself).

        4. Command byte list: Table 1

Serial number Command word meaning
1 0x01 Set panel address
2 0x02 Set the status of the panel backlight
3 0x13 panel upload button status

      5:Command examples:

          1. Set the address of the panel (assuming address is 0X02): (Controller ->Panel)

Data header data identifier data length command word address verification
0xFE   0x55  0x04 0x01 0x02 52

                2. Set the status of panel backlight: (Controller ->Panel)

Data header data identifier data length command word  address  LED1 LED2 LED3 LED4 verification
0xFE 0x55  0x08 0x02 0x02 0x01  0x00 0x00 0x01 0x5D



Note: The status of the LED is 0x01 on and 0x00 off.



                3. Panel upload button status: (Panel ->Controller)

Data header data identifier data length command word address KEY1 KEY2 KEY3 KEY4 verification
0xFE 0x55 0x08 0x13 0x02 0x01 0x03 0x03 0x03 0x4e

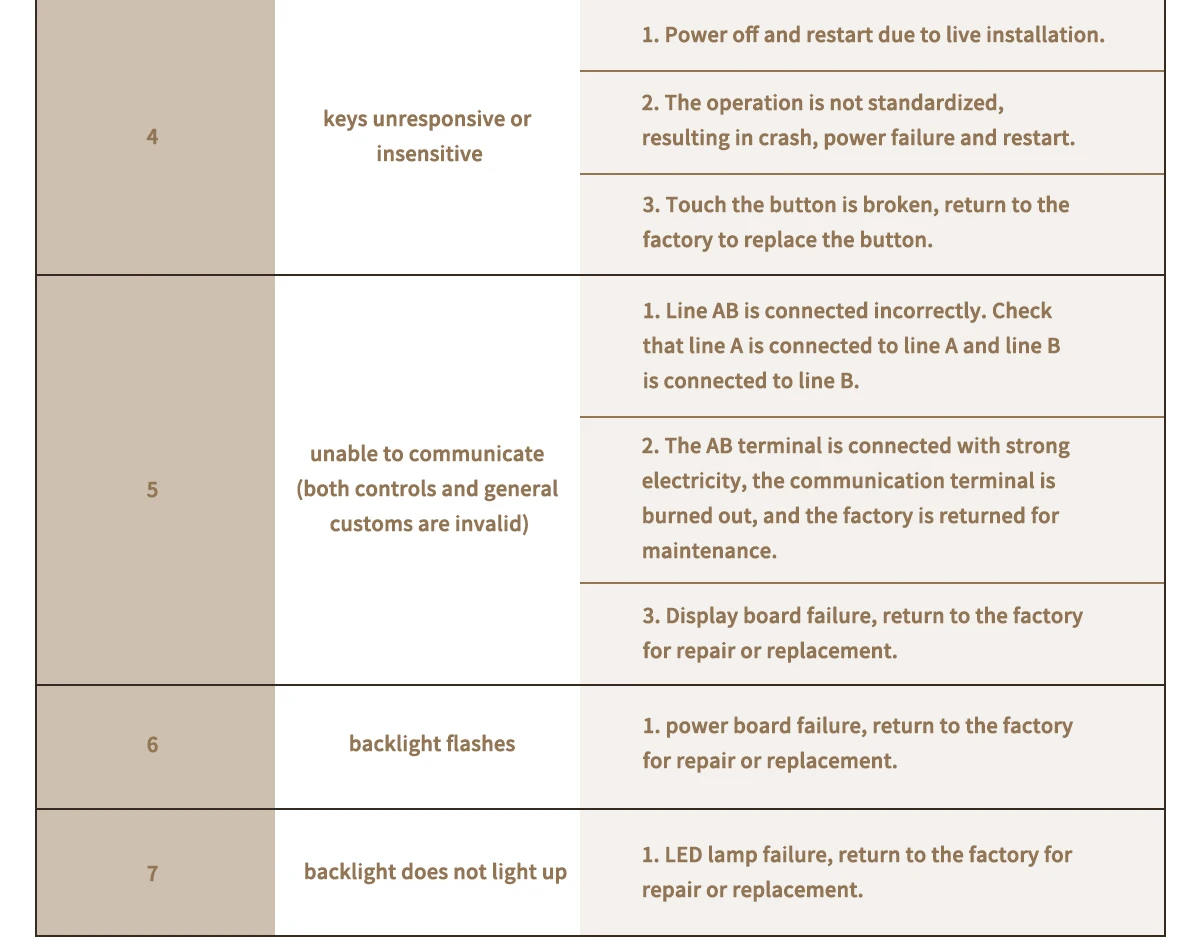

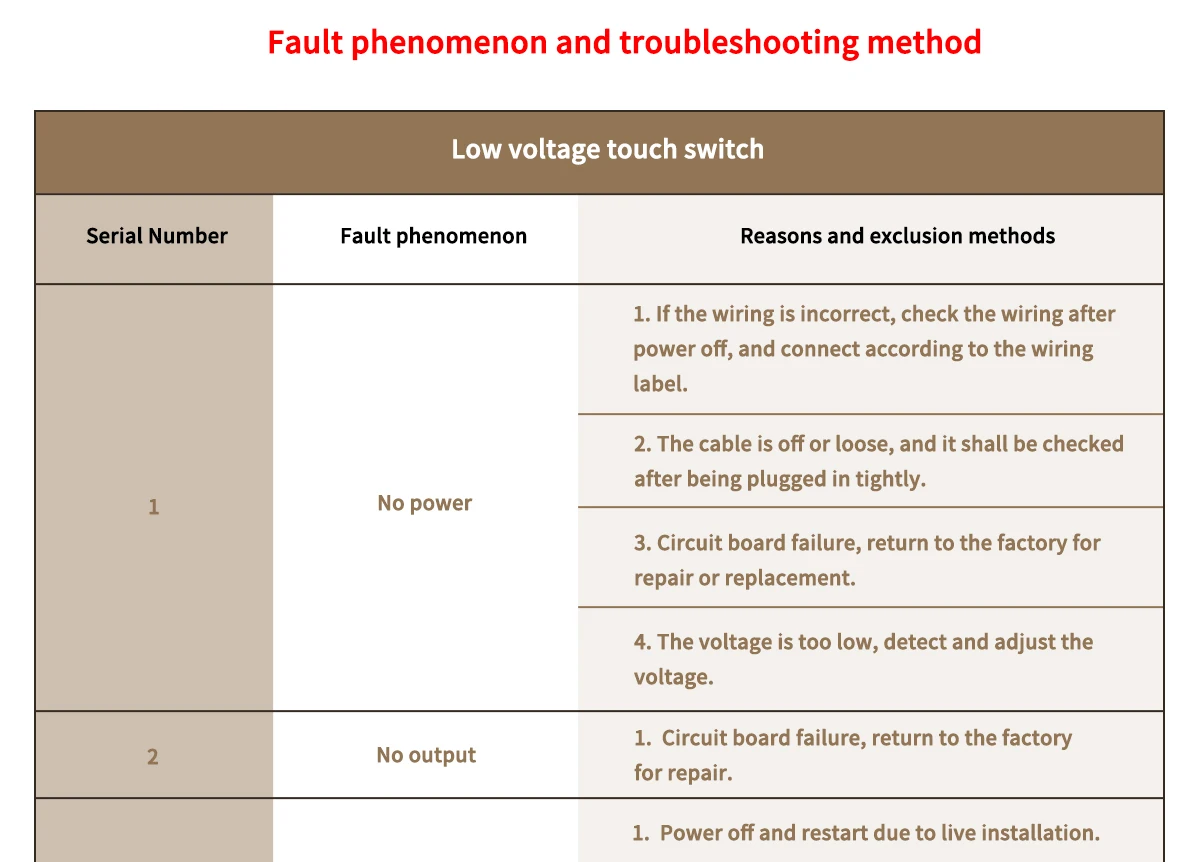

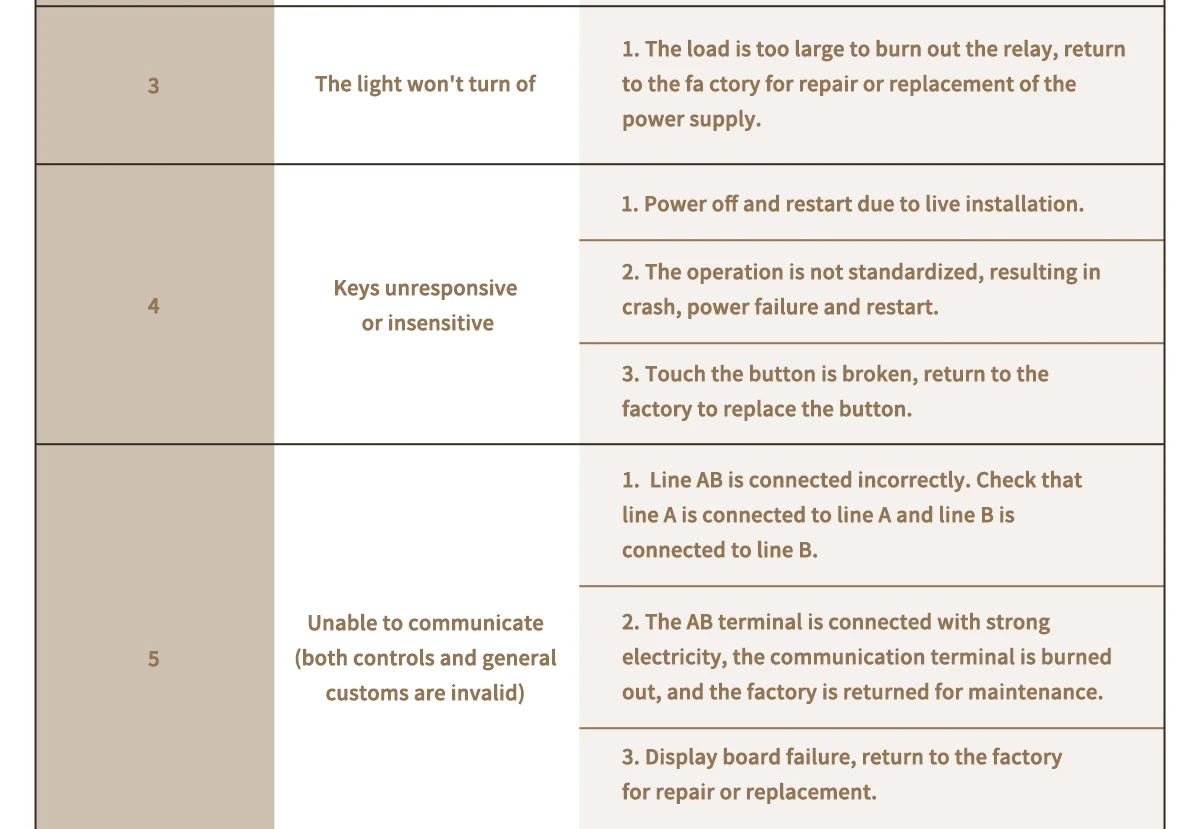

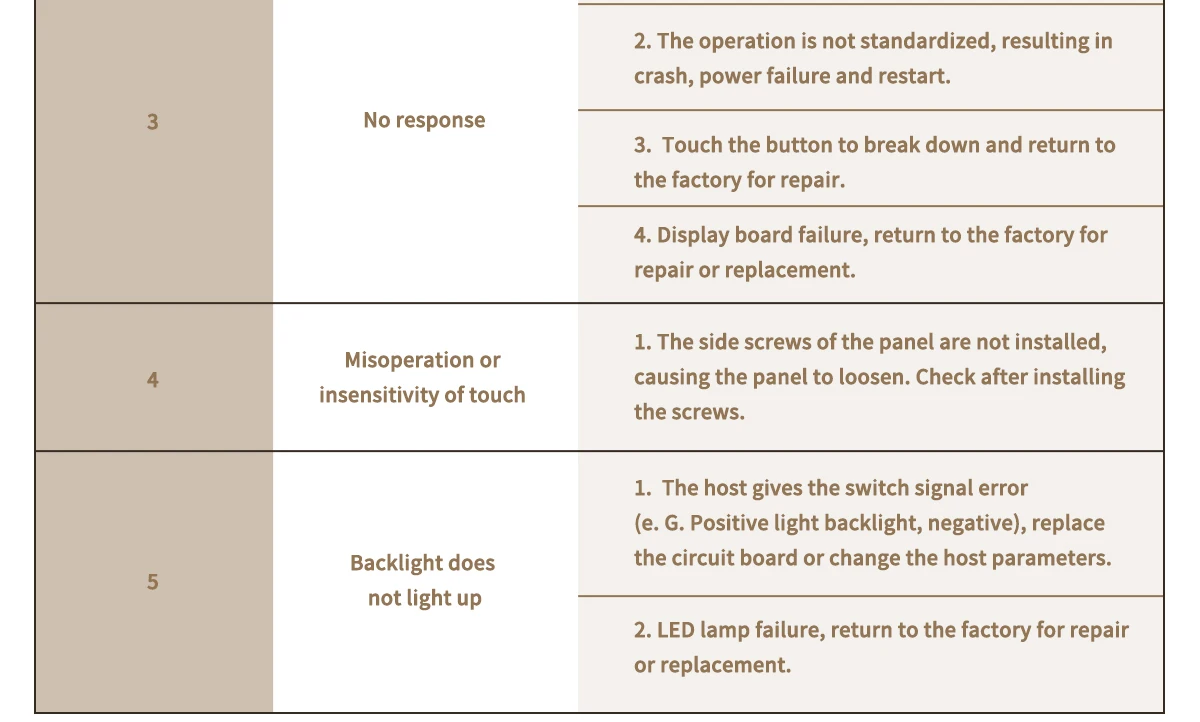

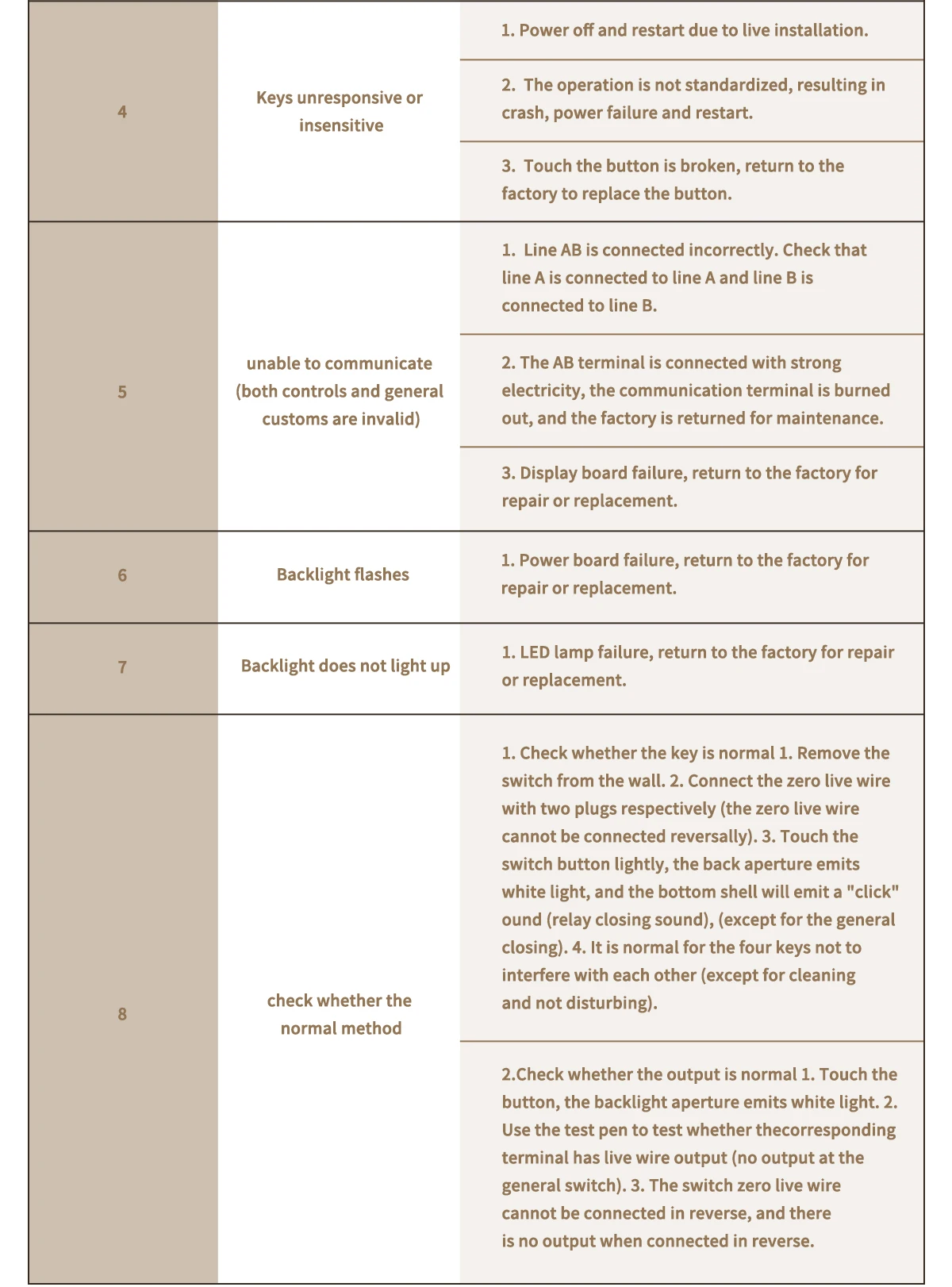

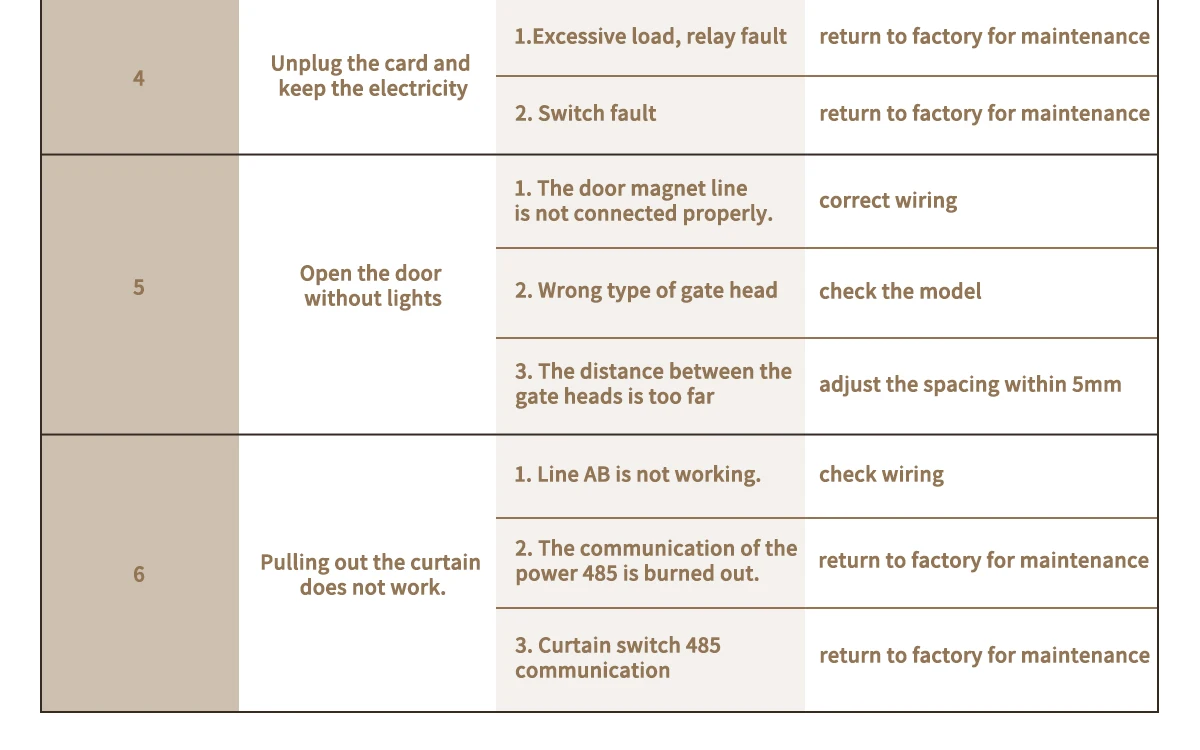

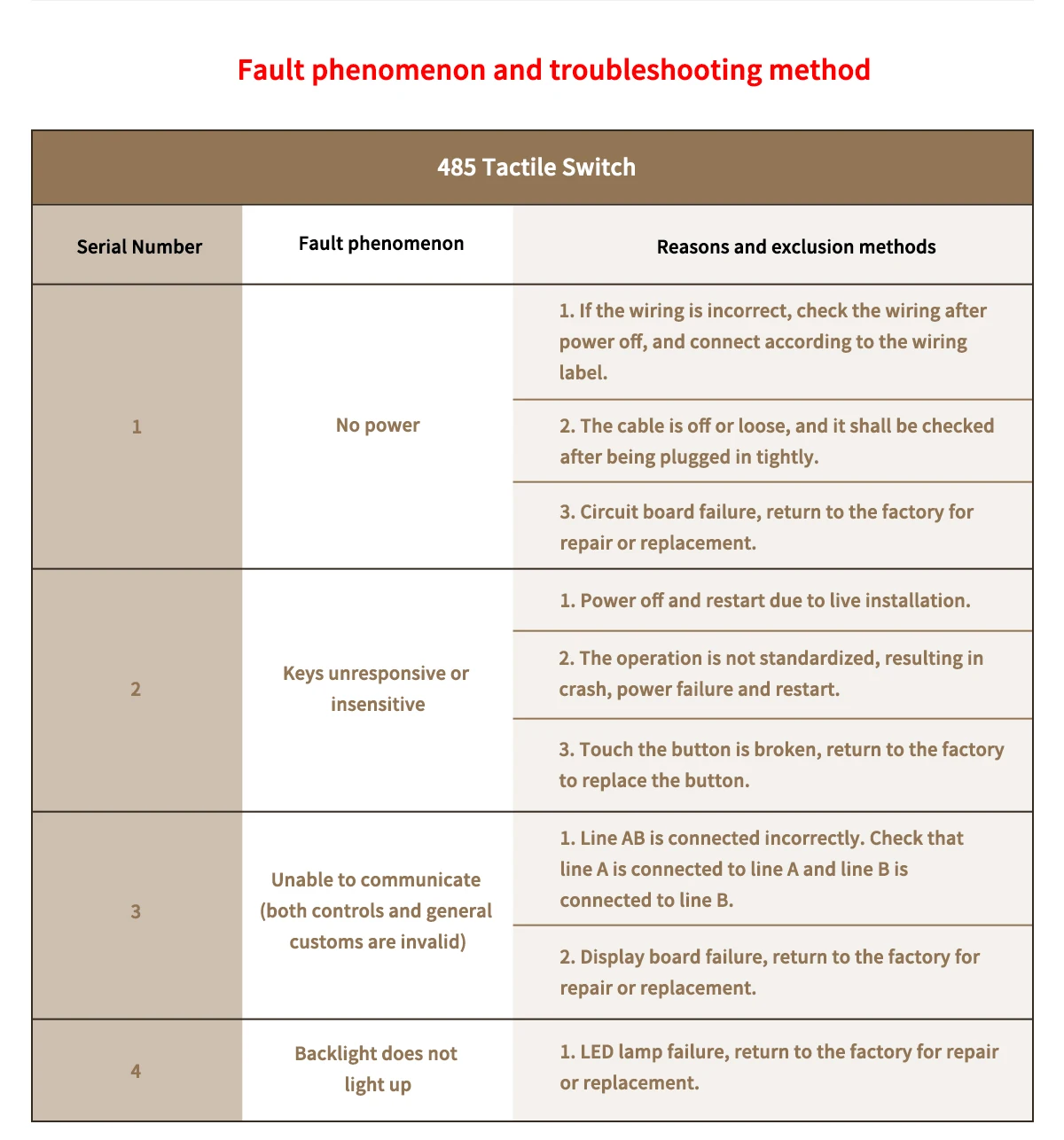

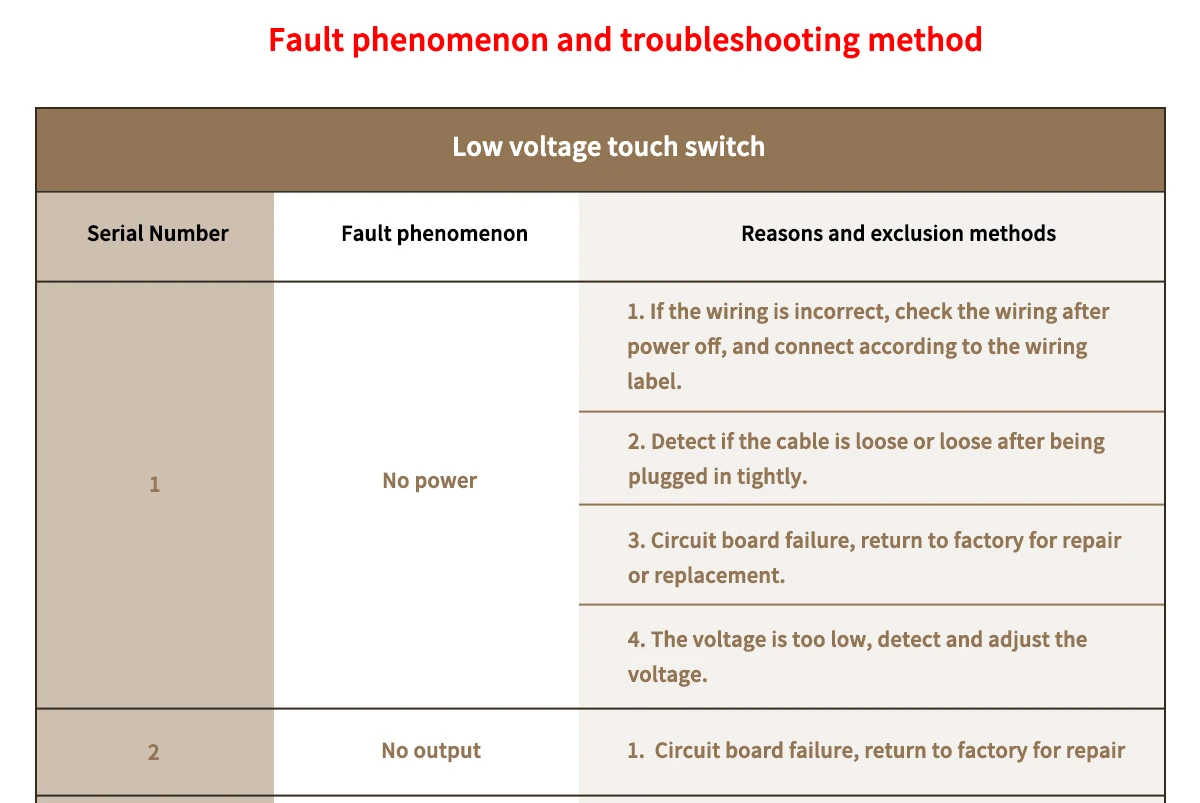

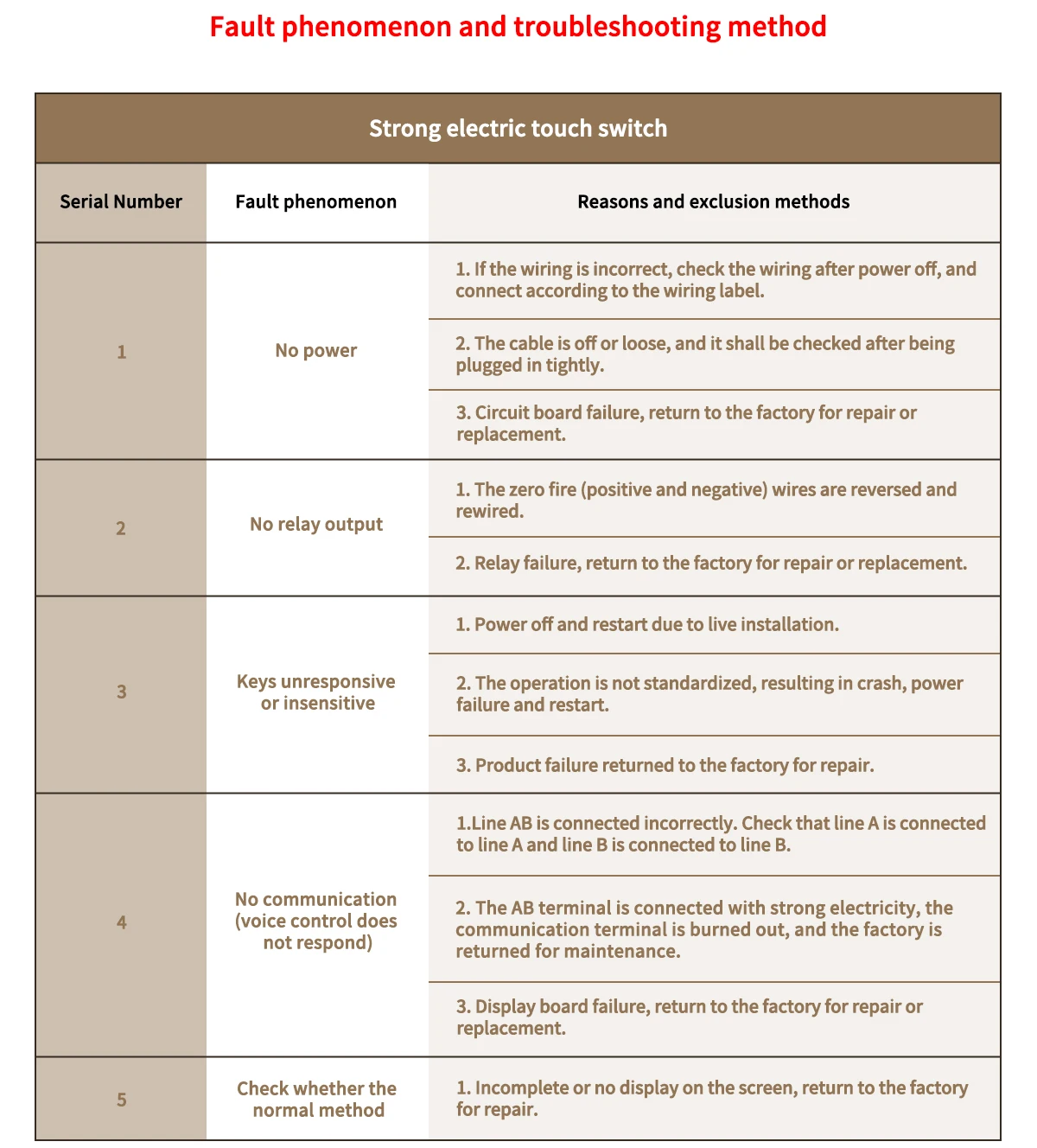

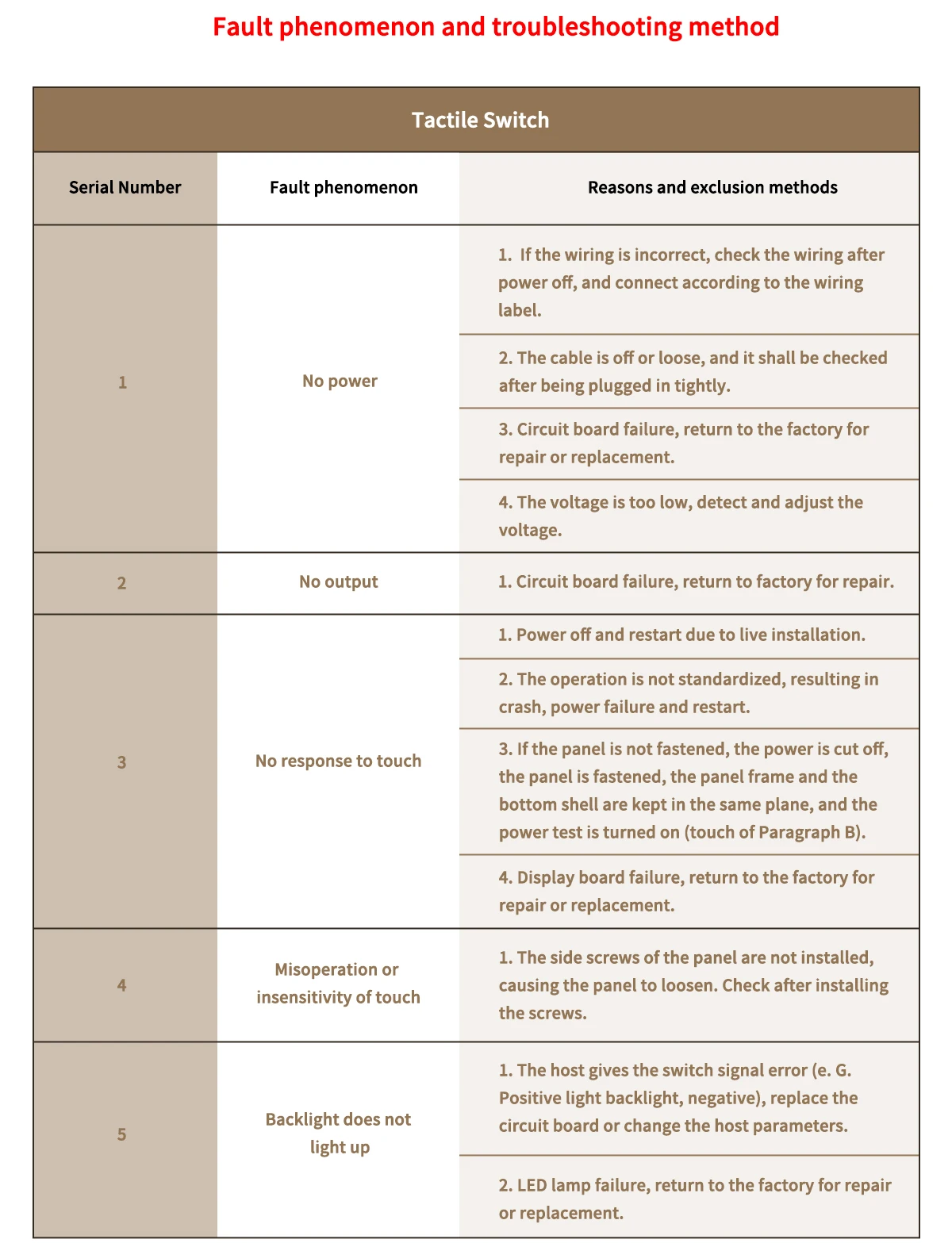

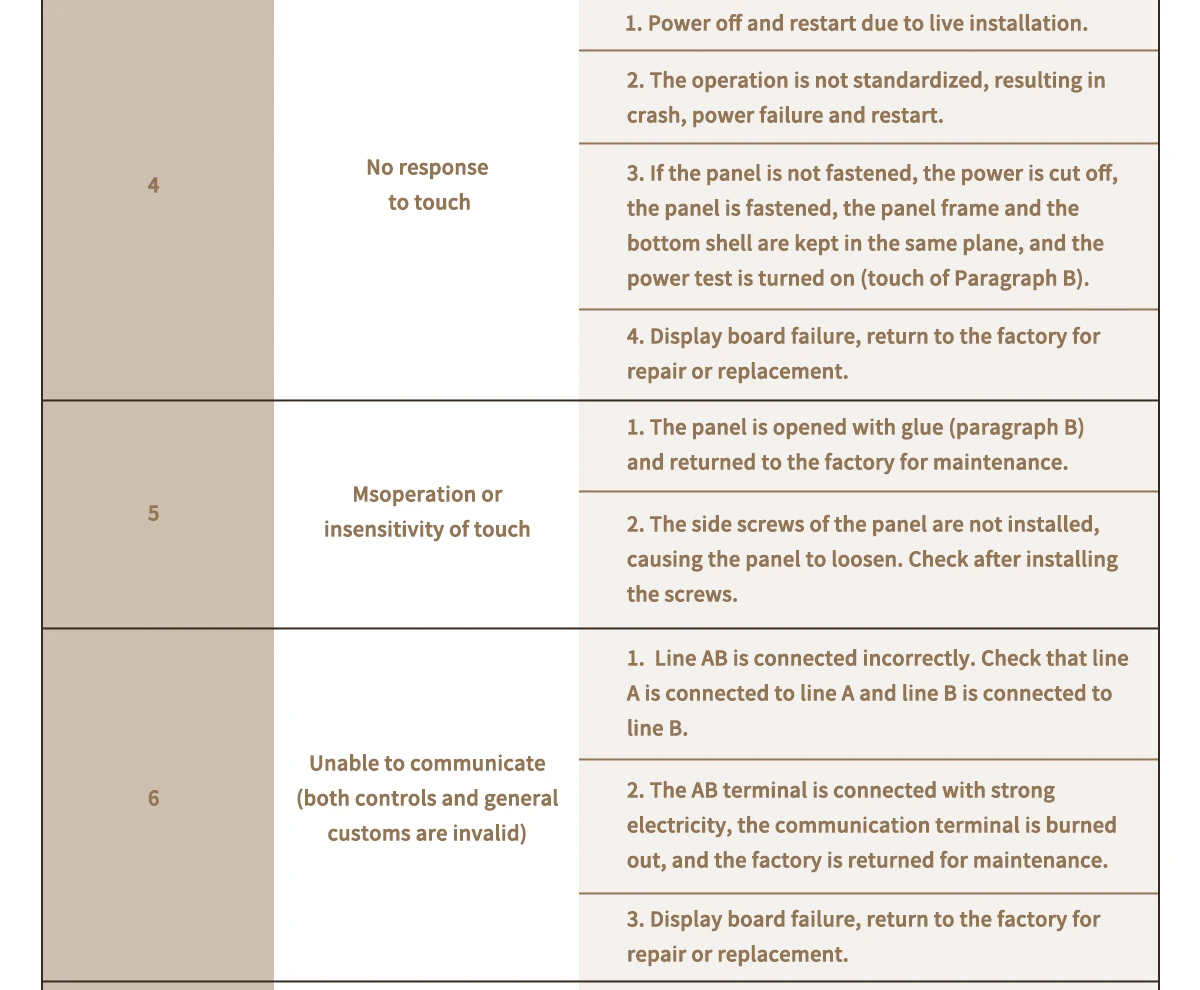

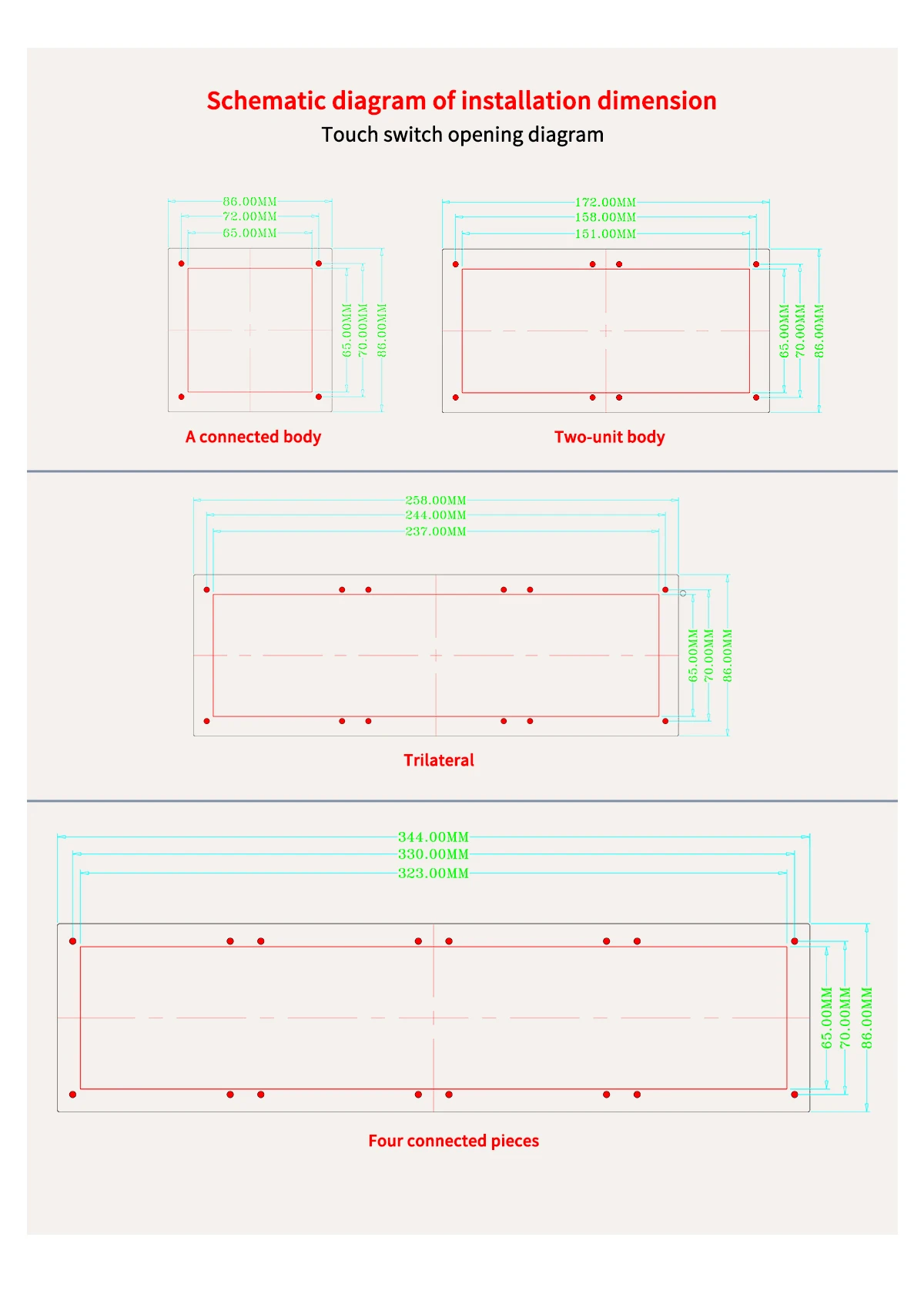

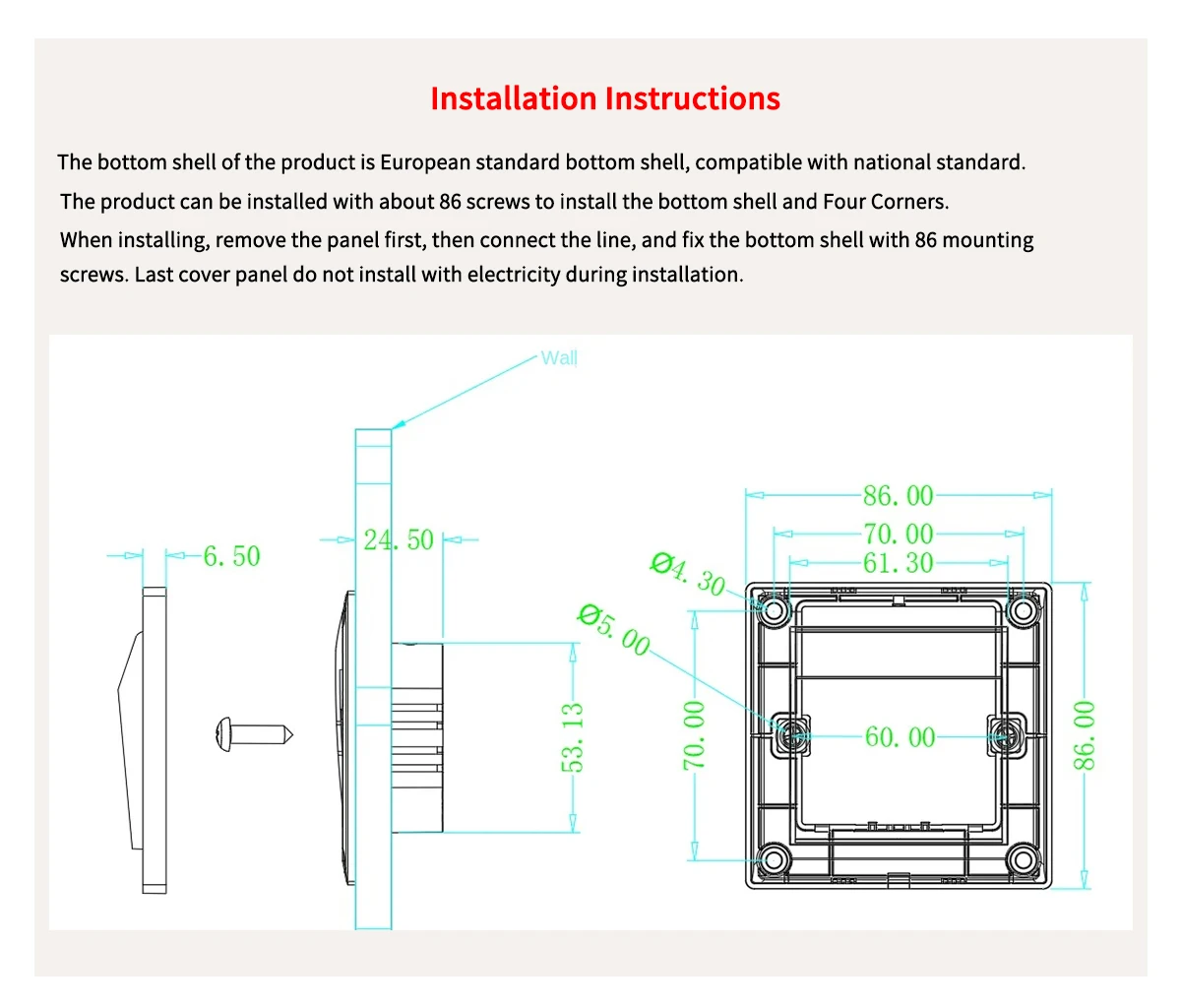

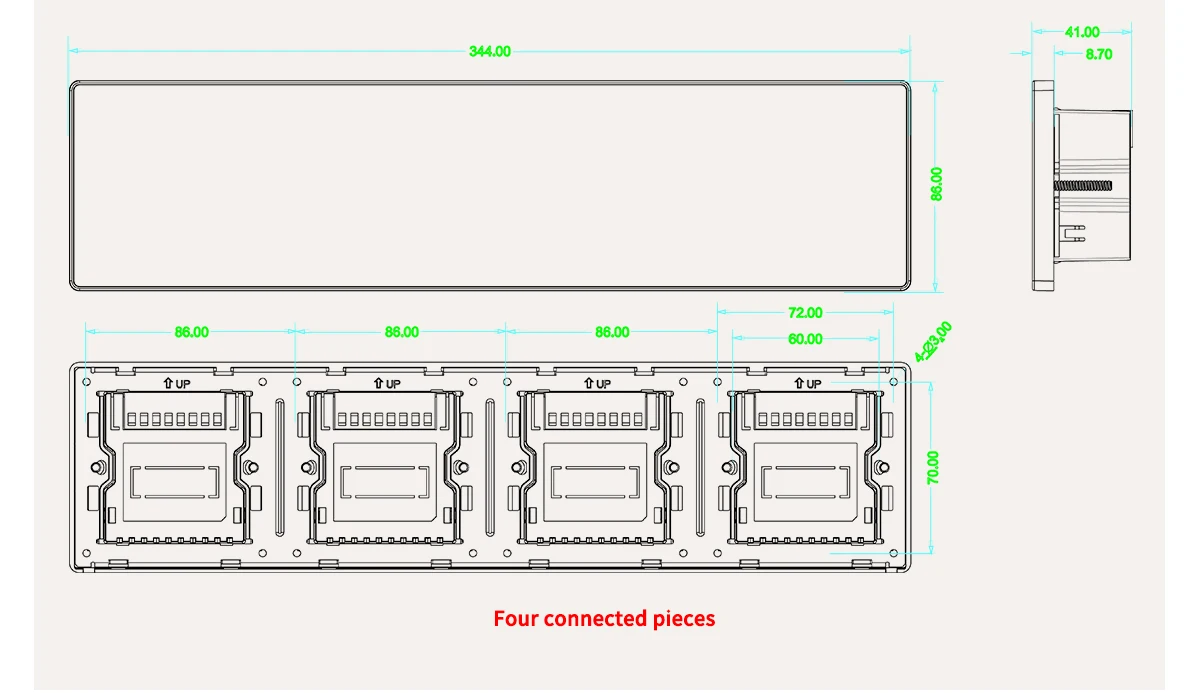

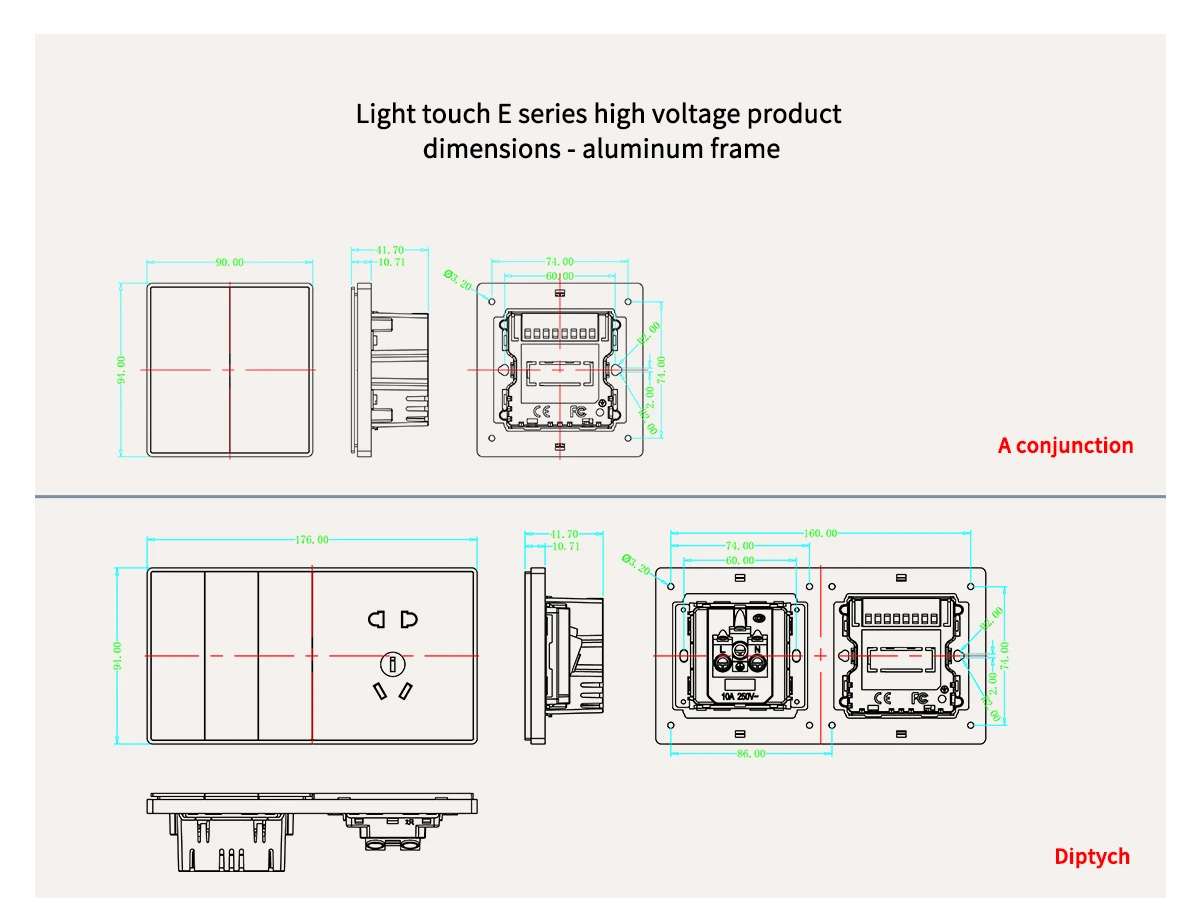

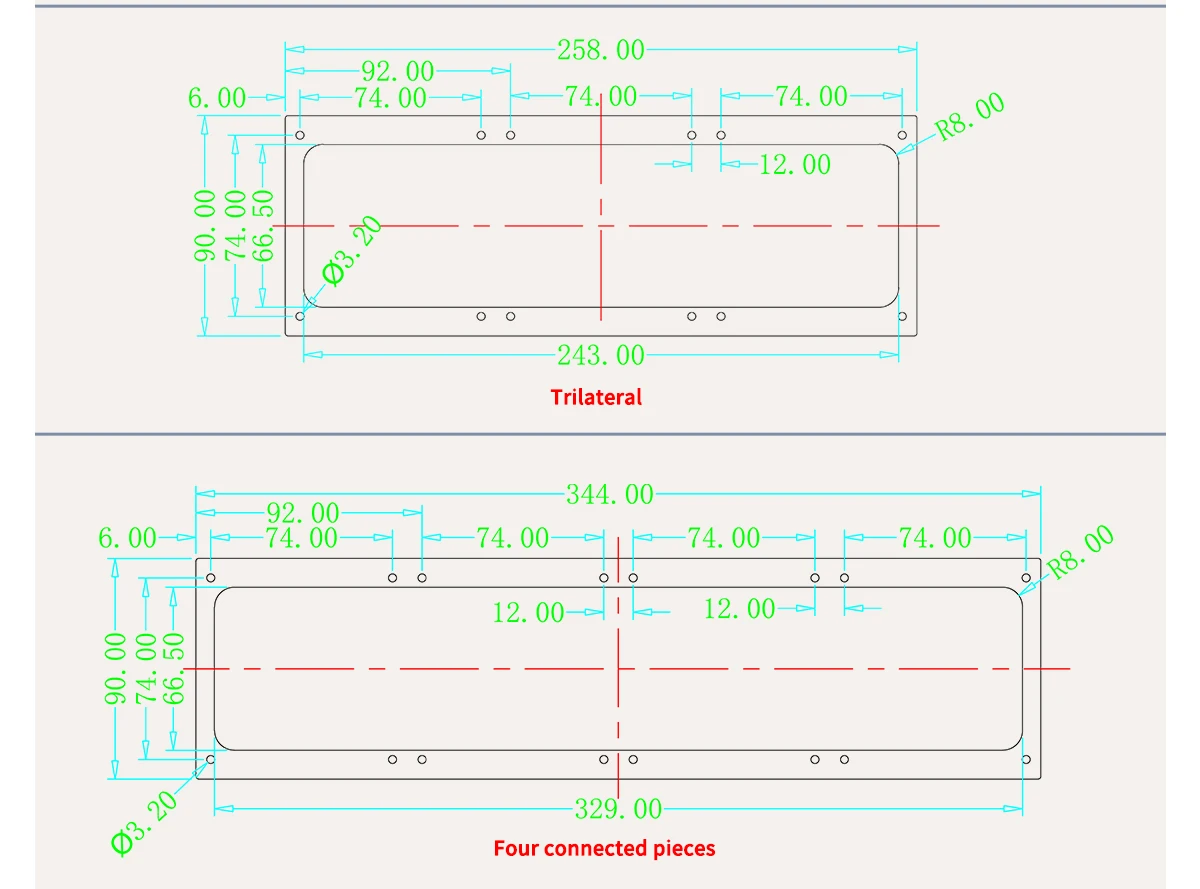

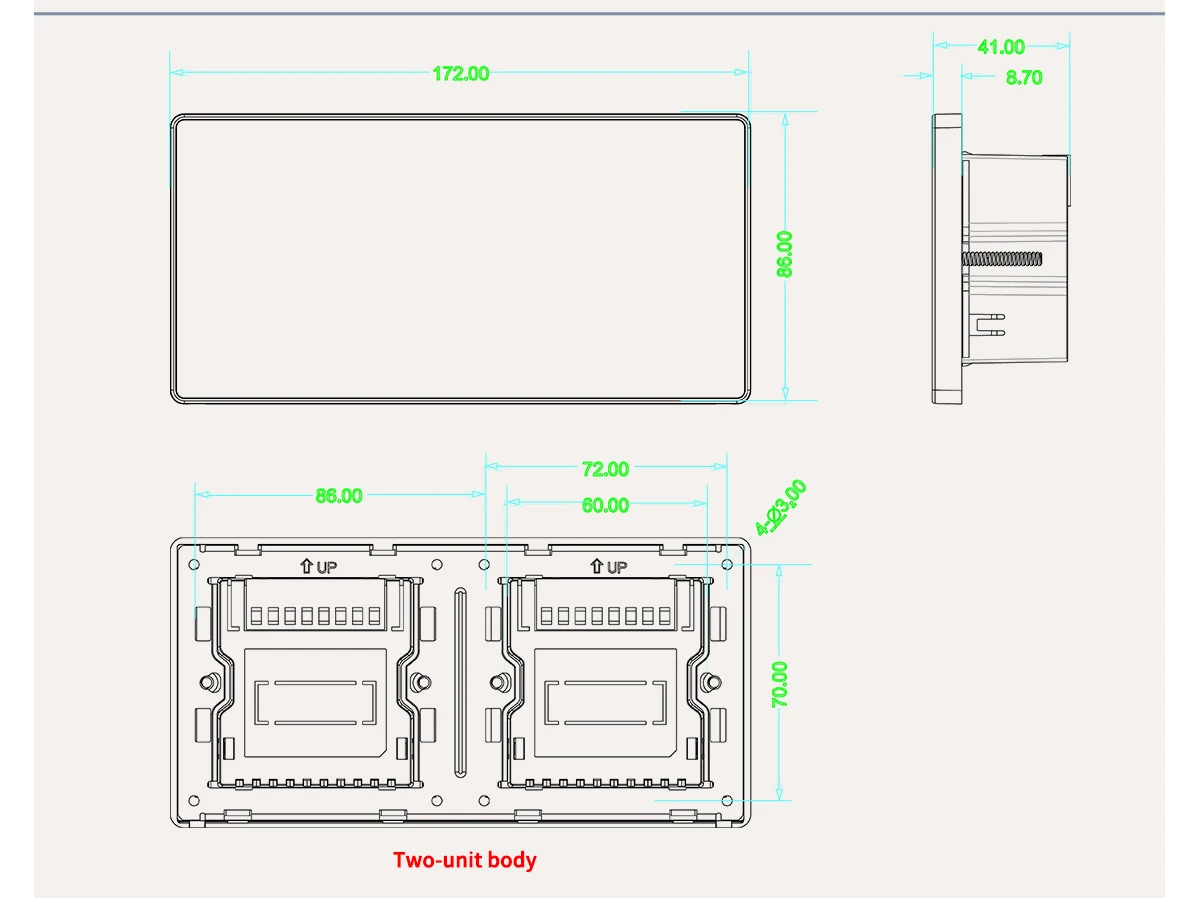

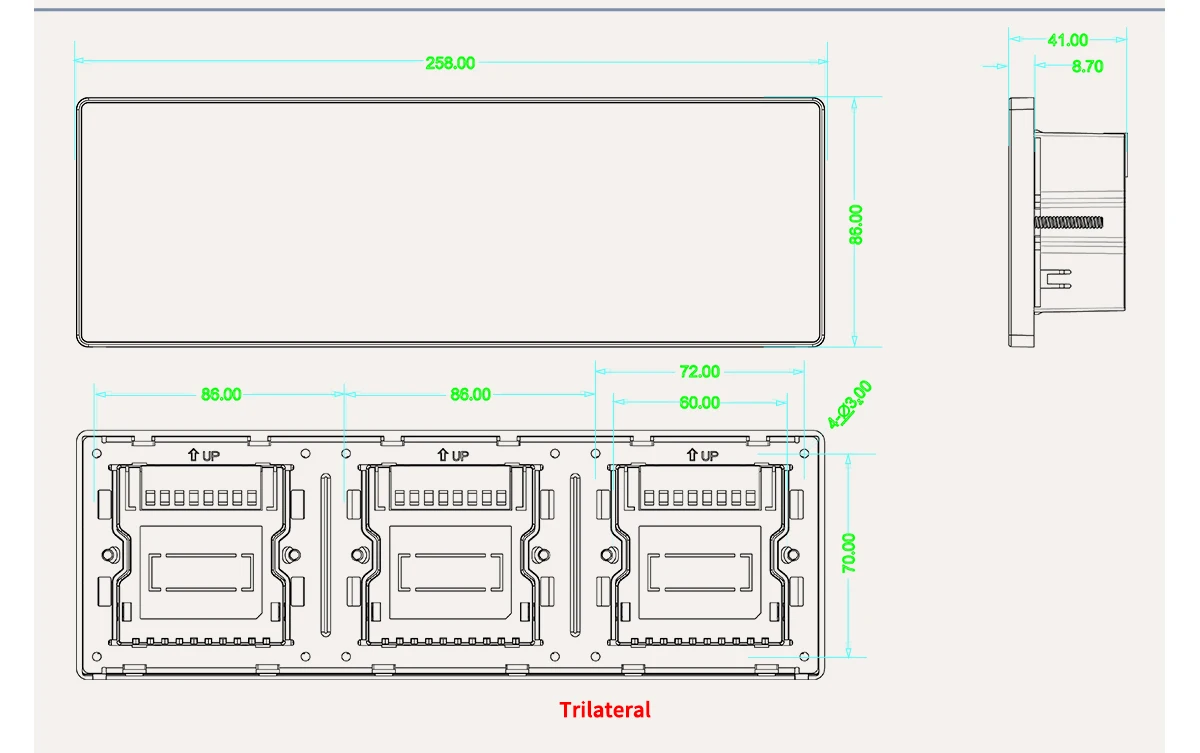

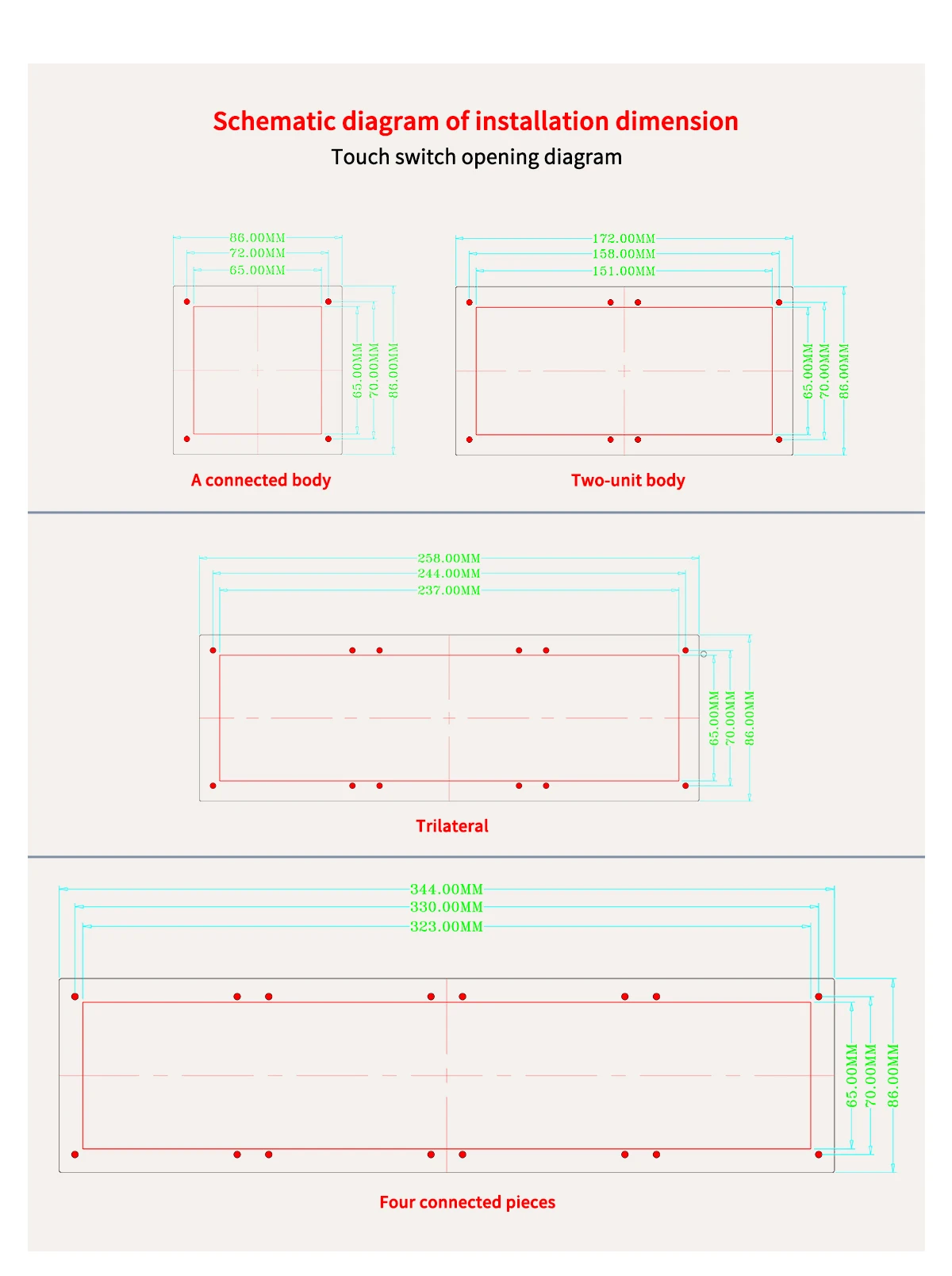

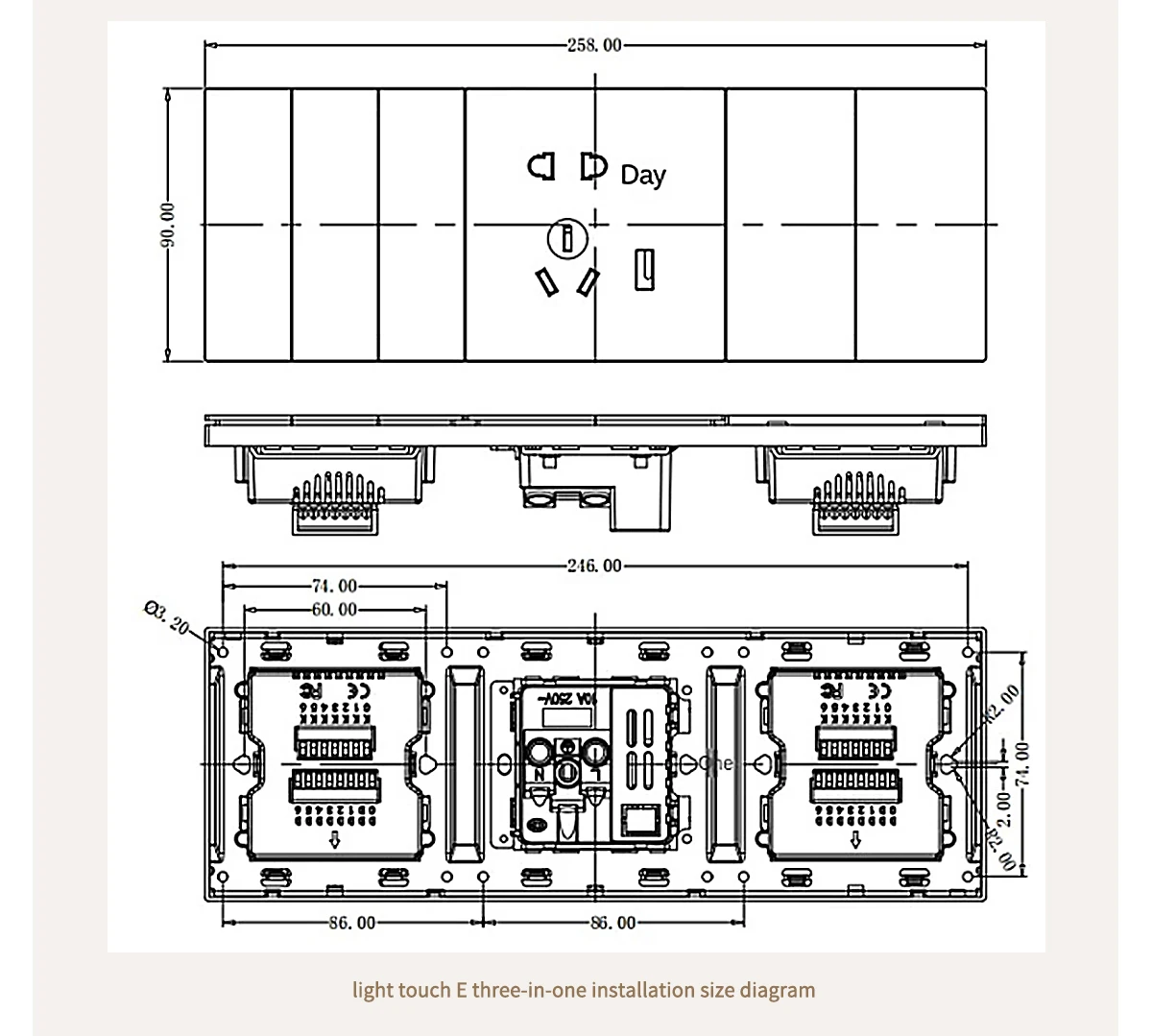

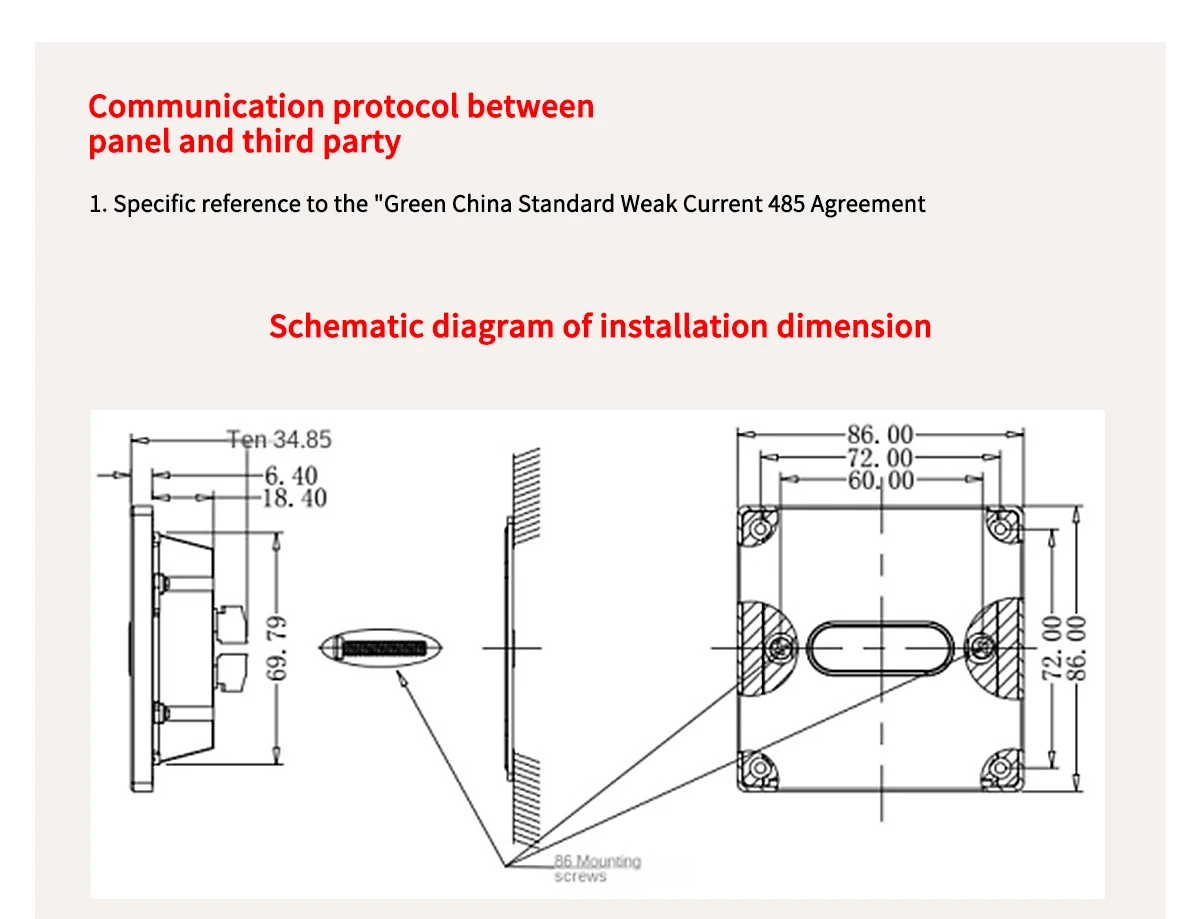

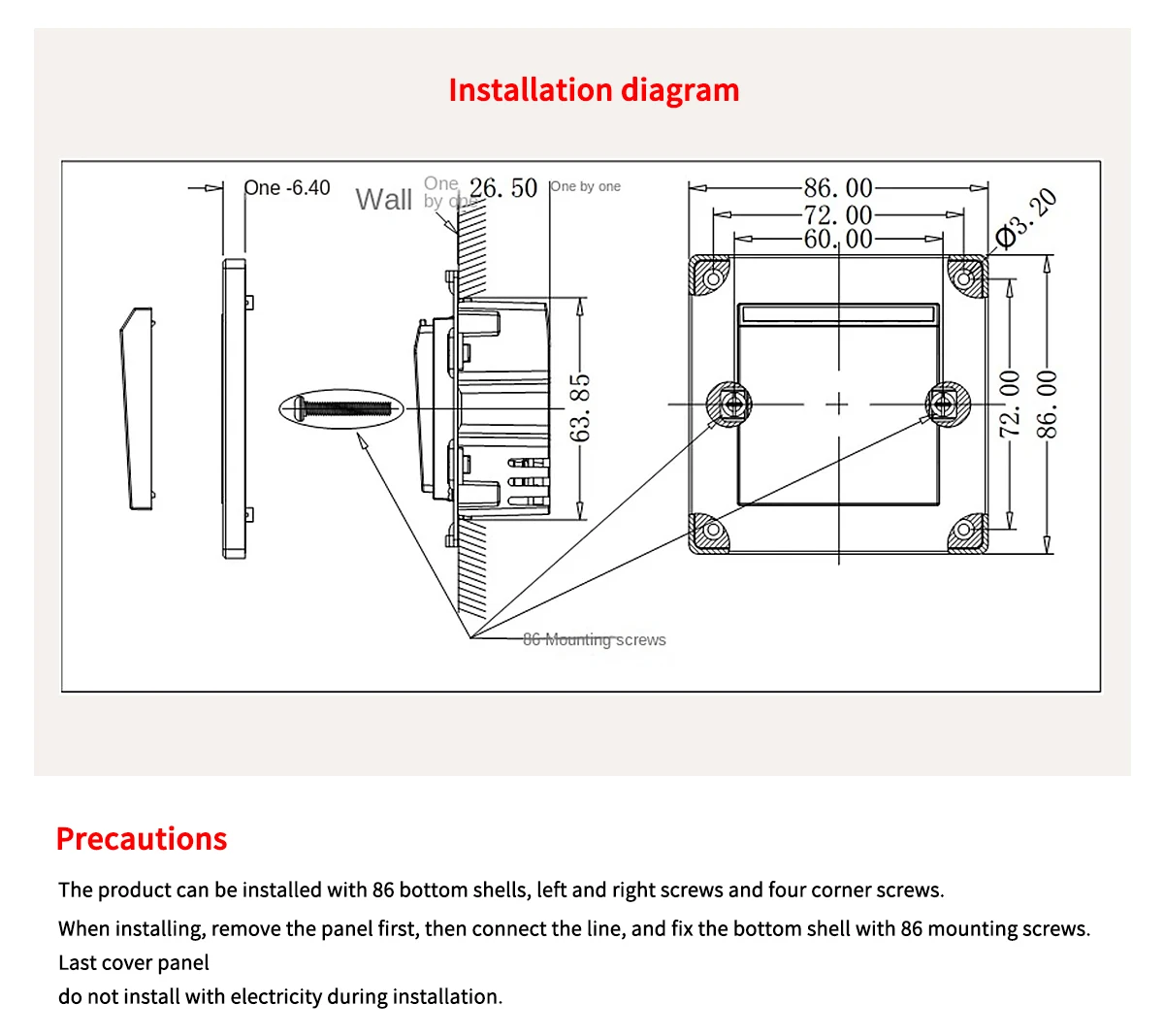

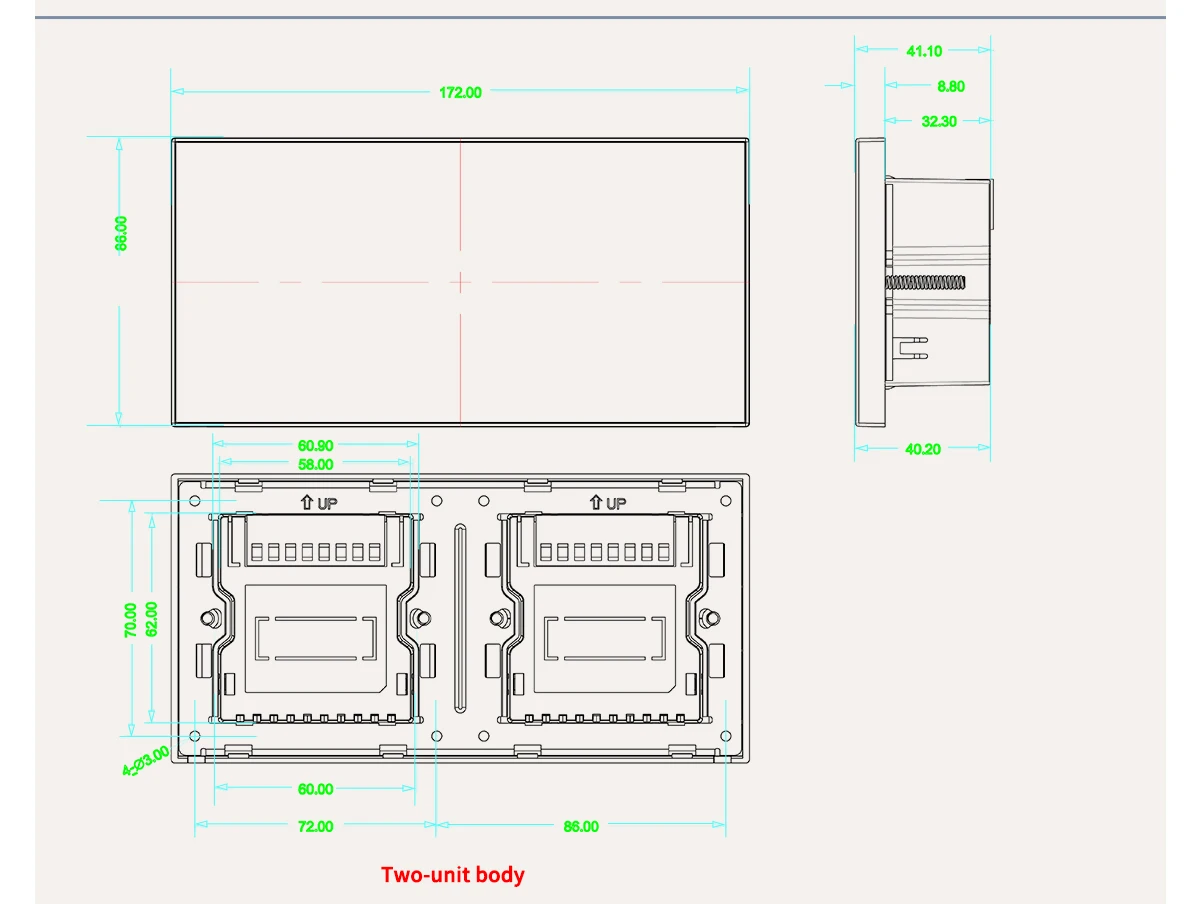

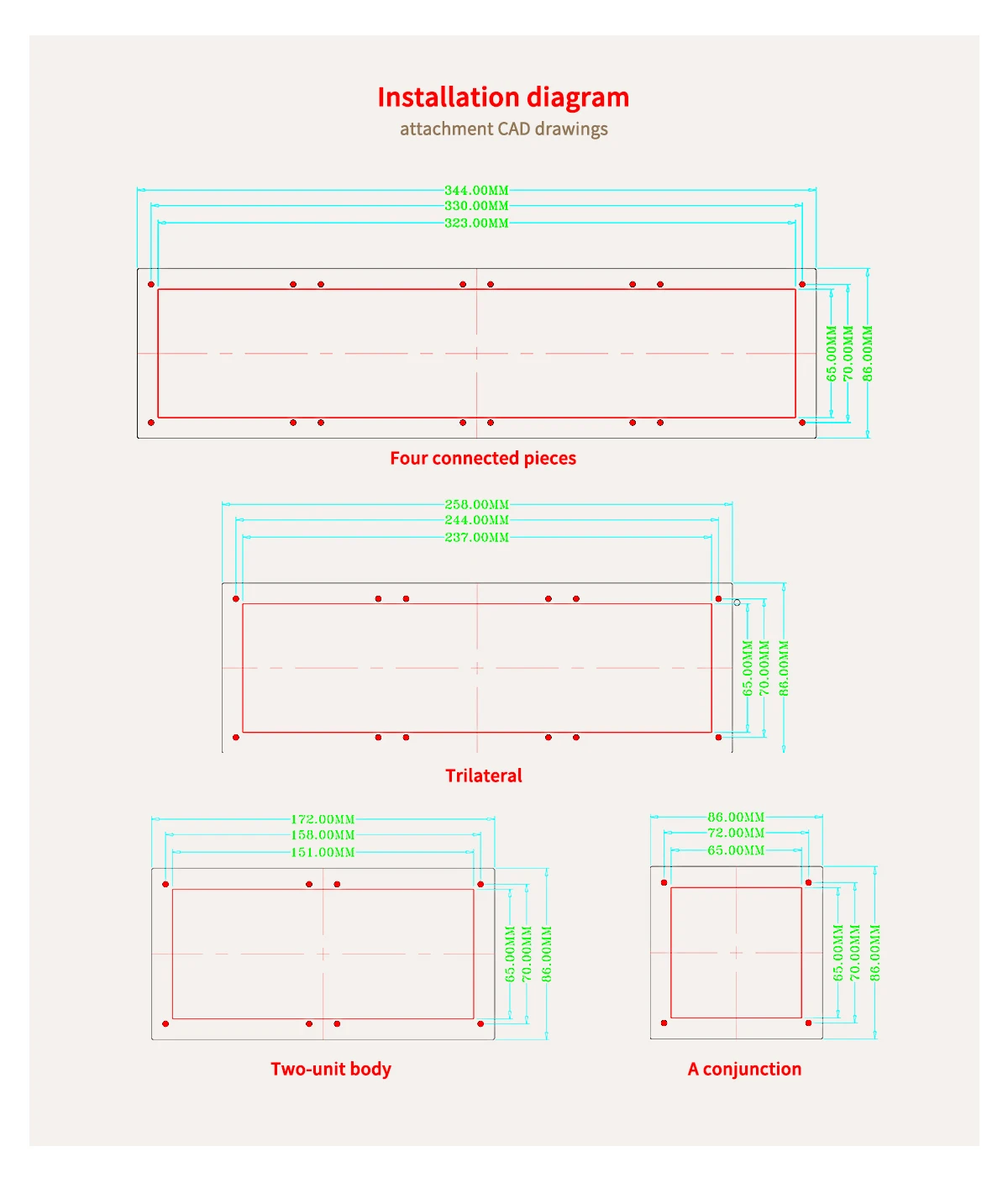

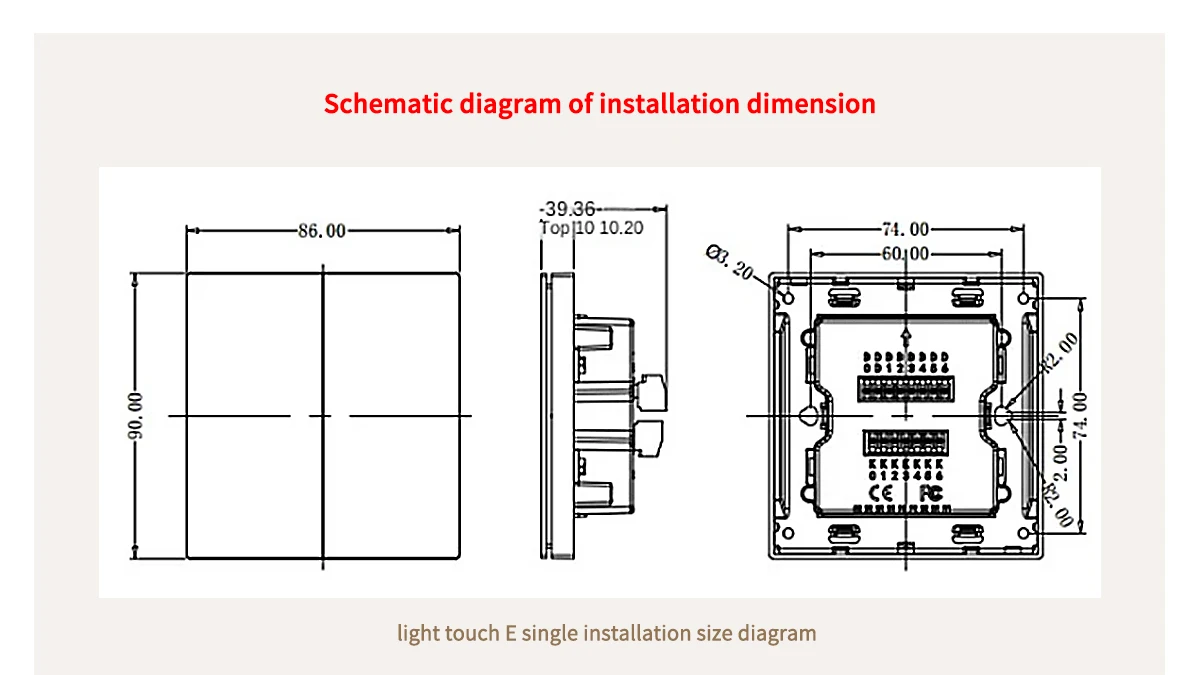

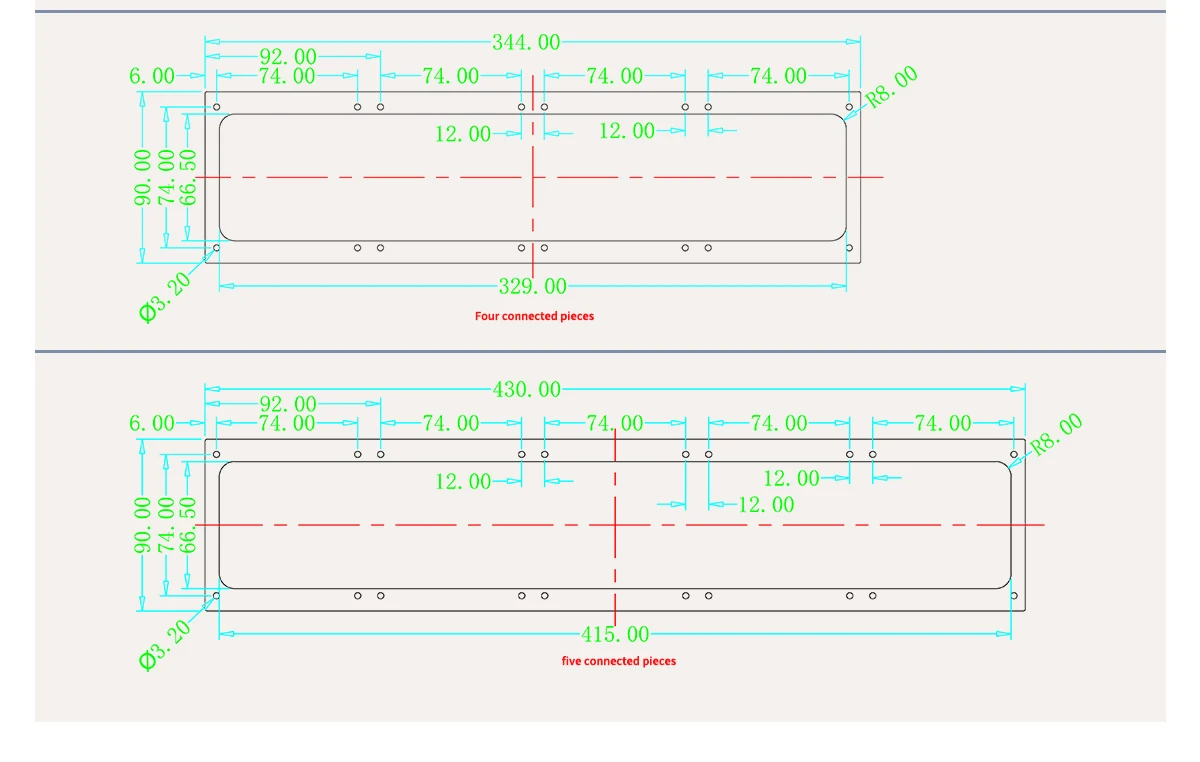

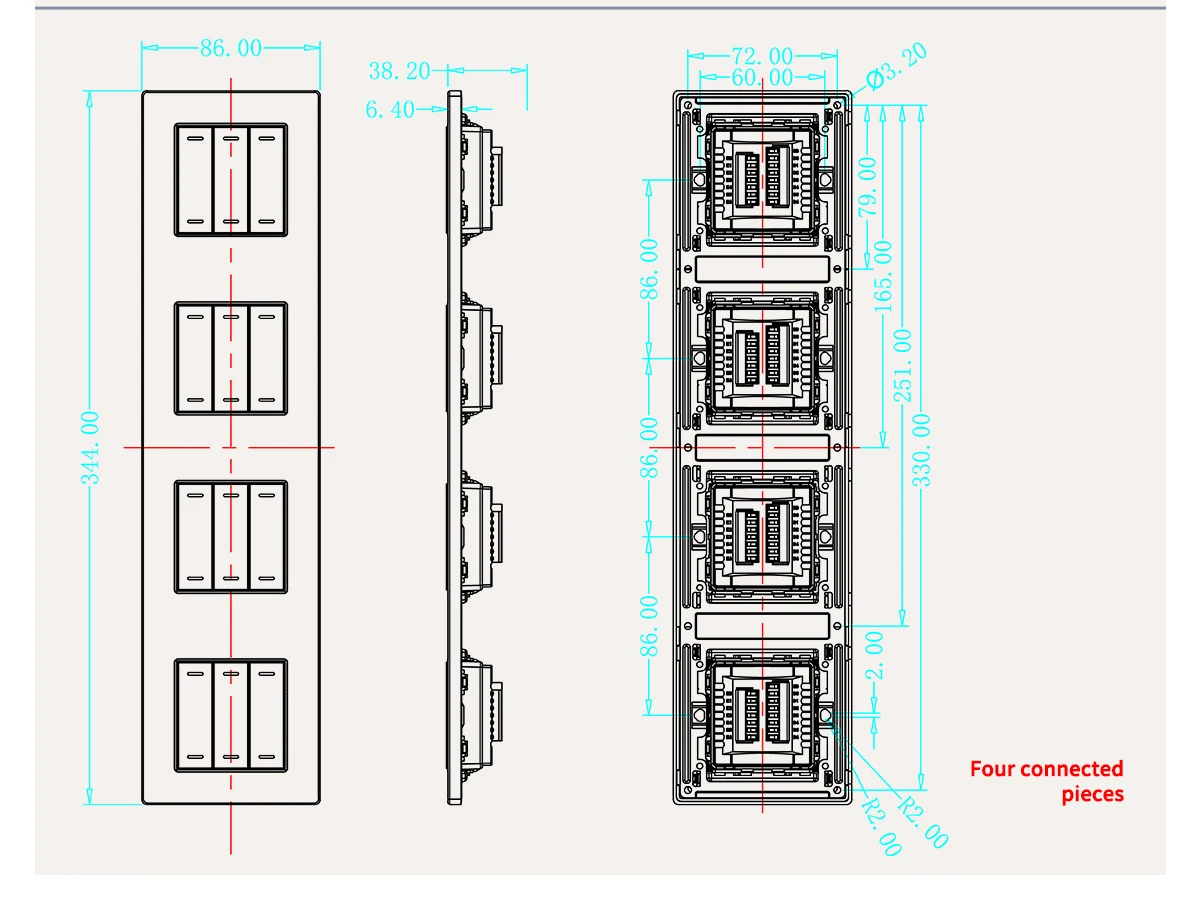

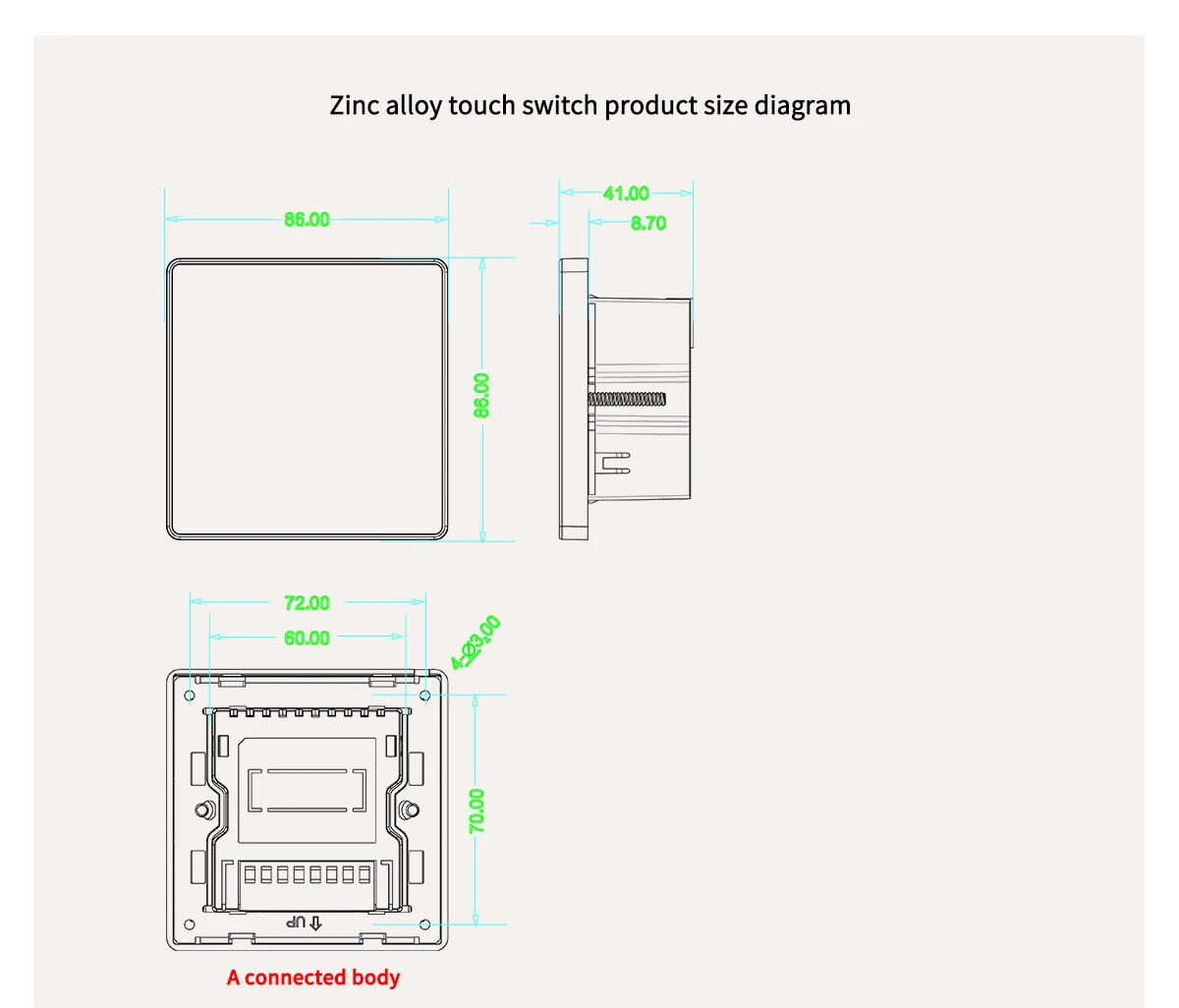

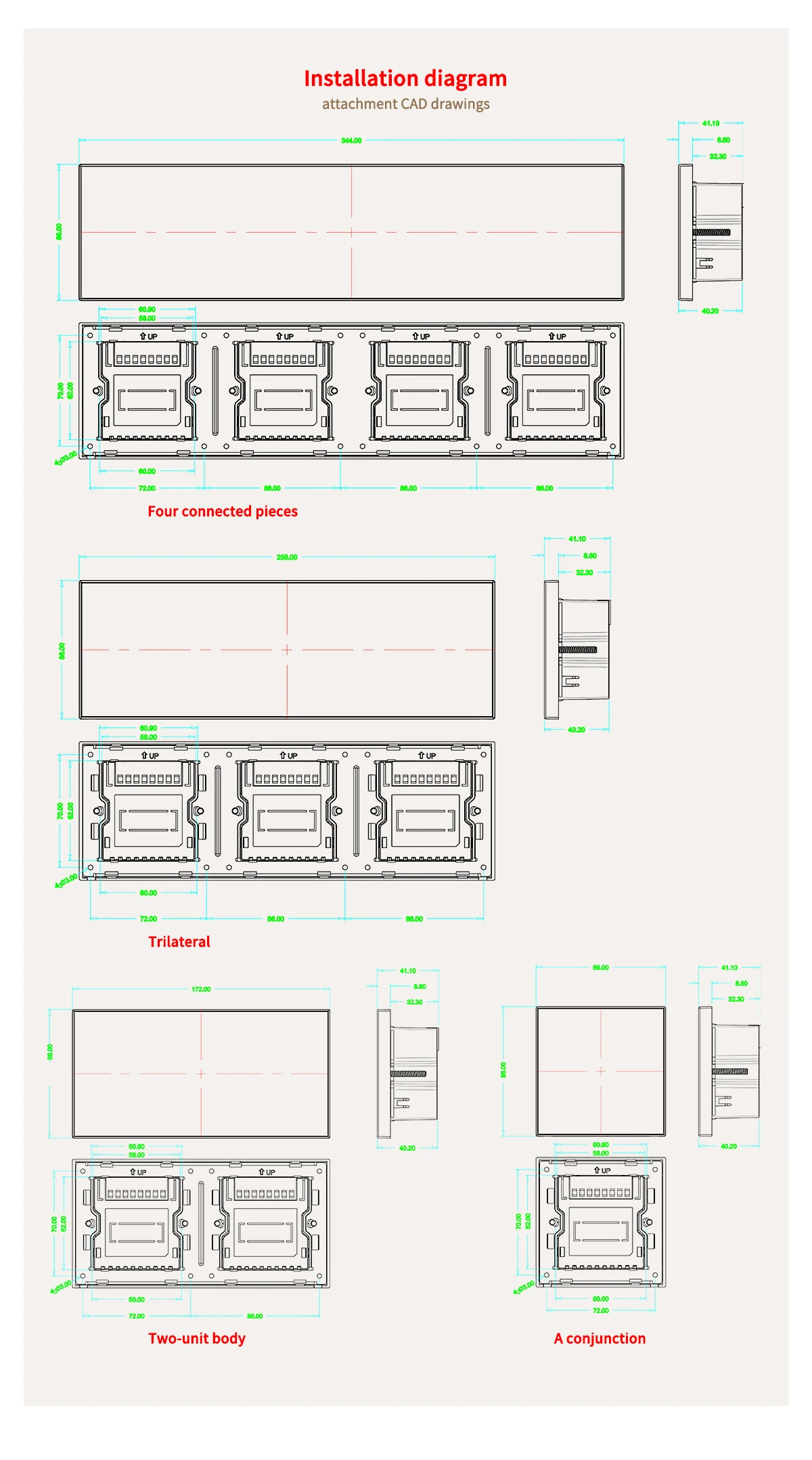

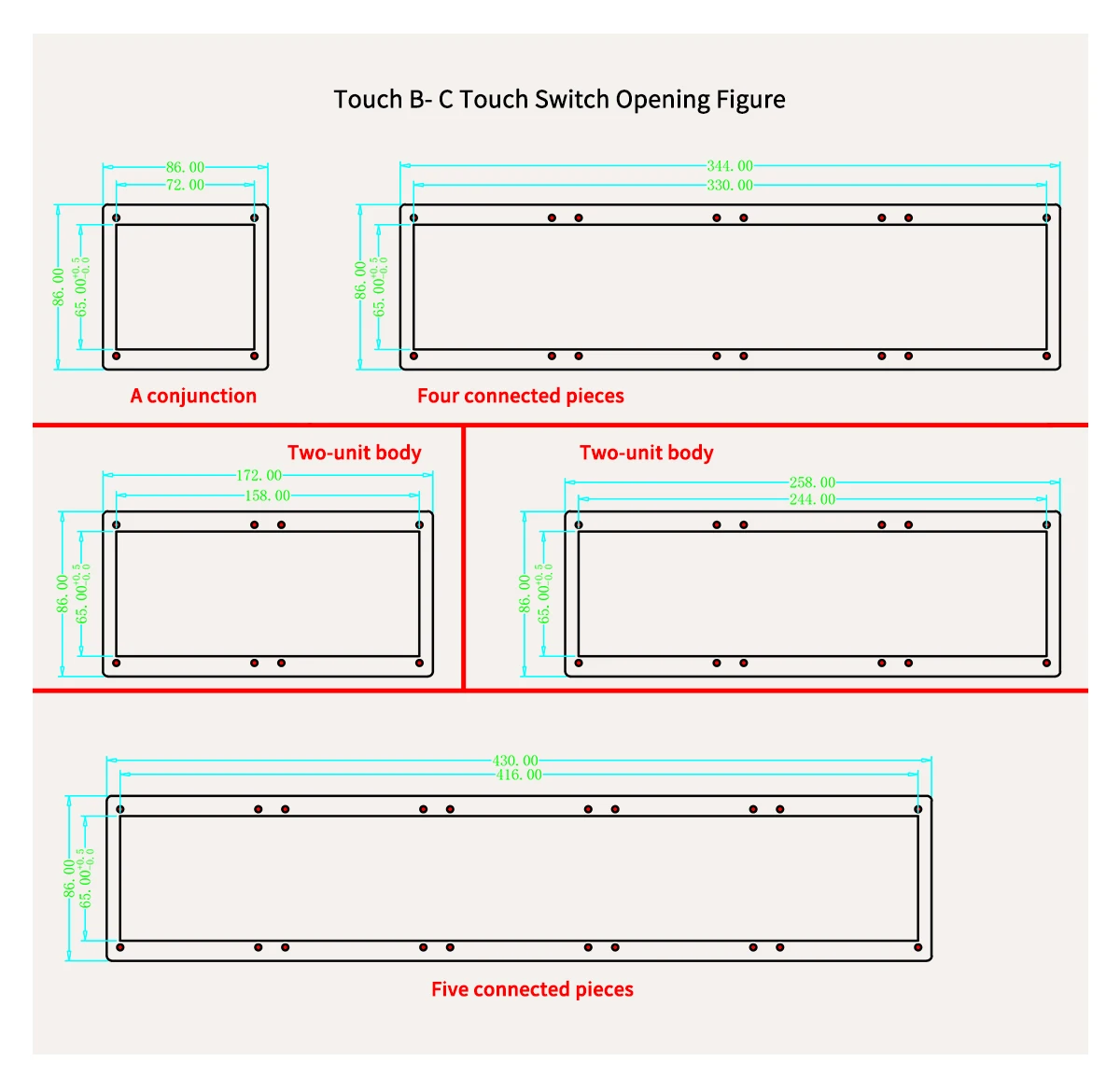

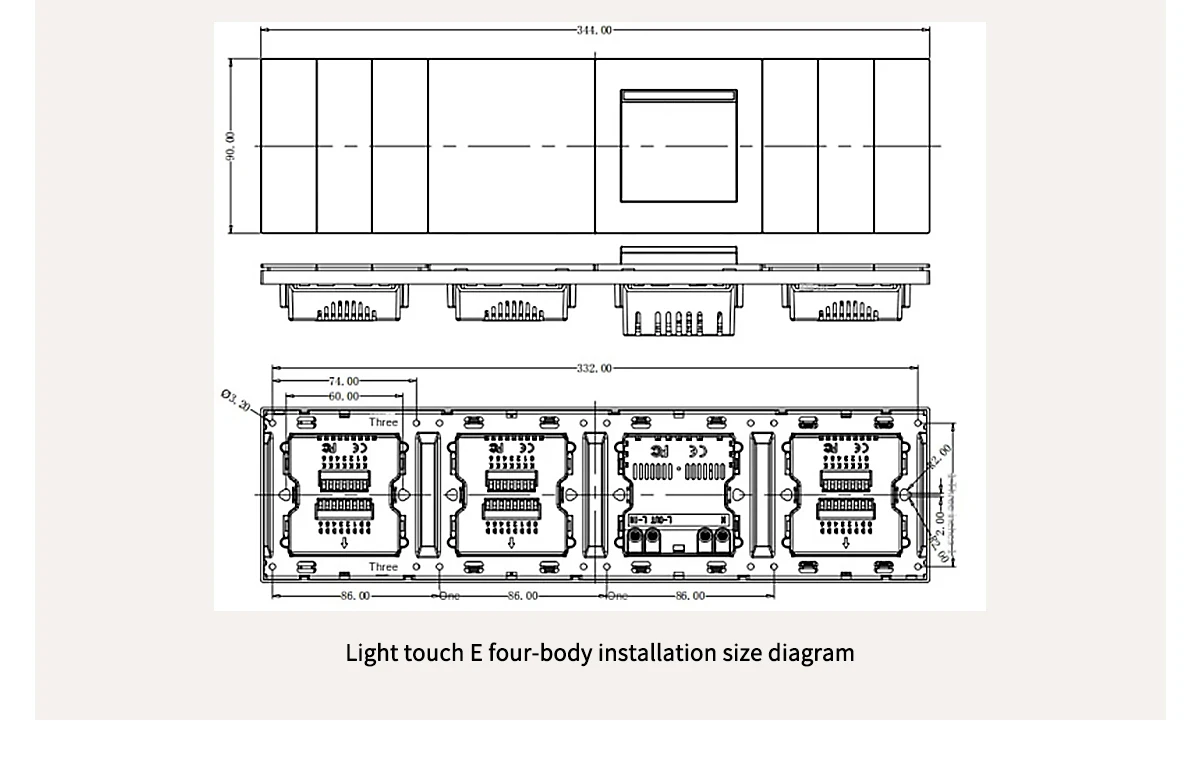

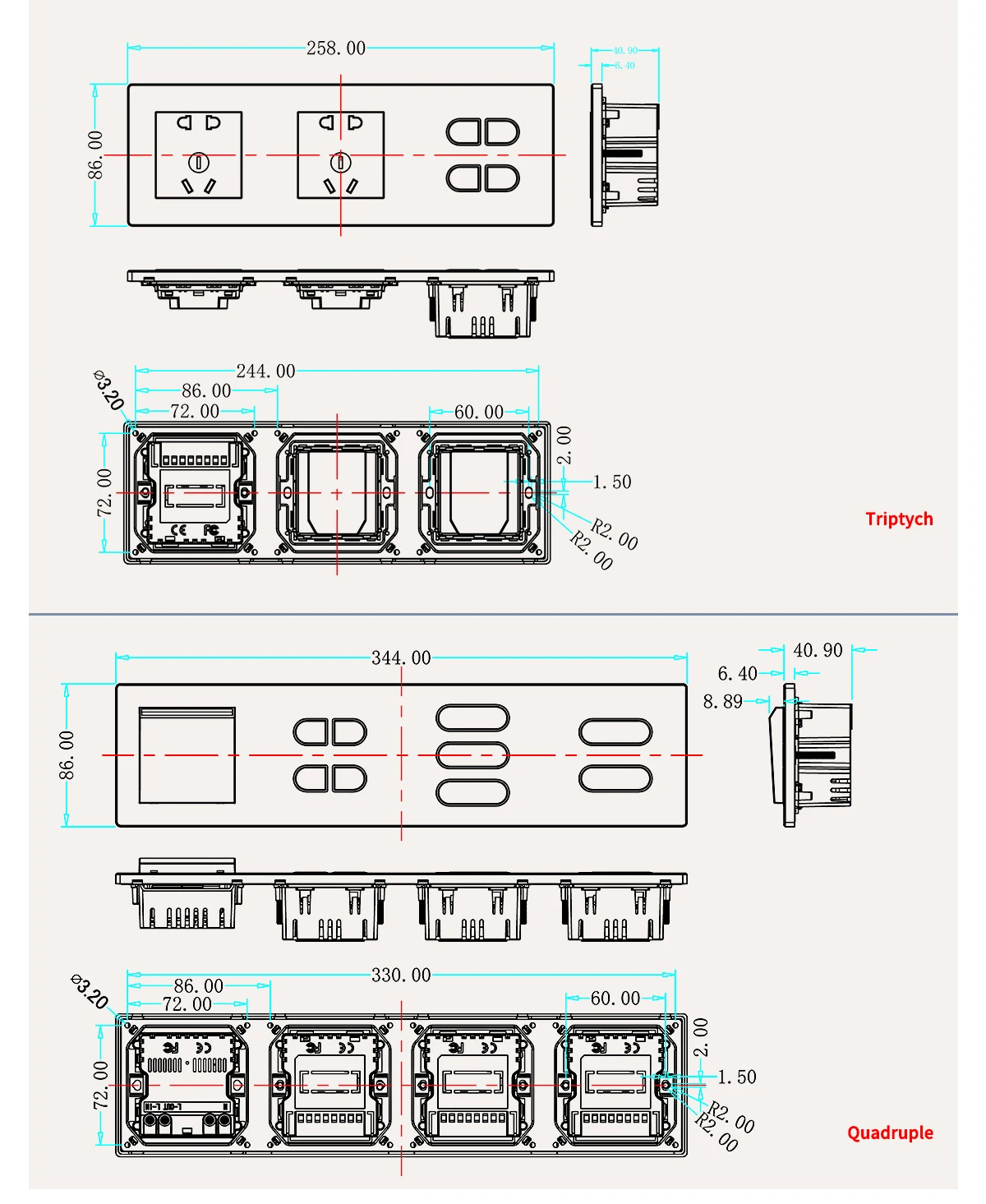

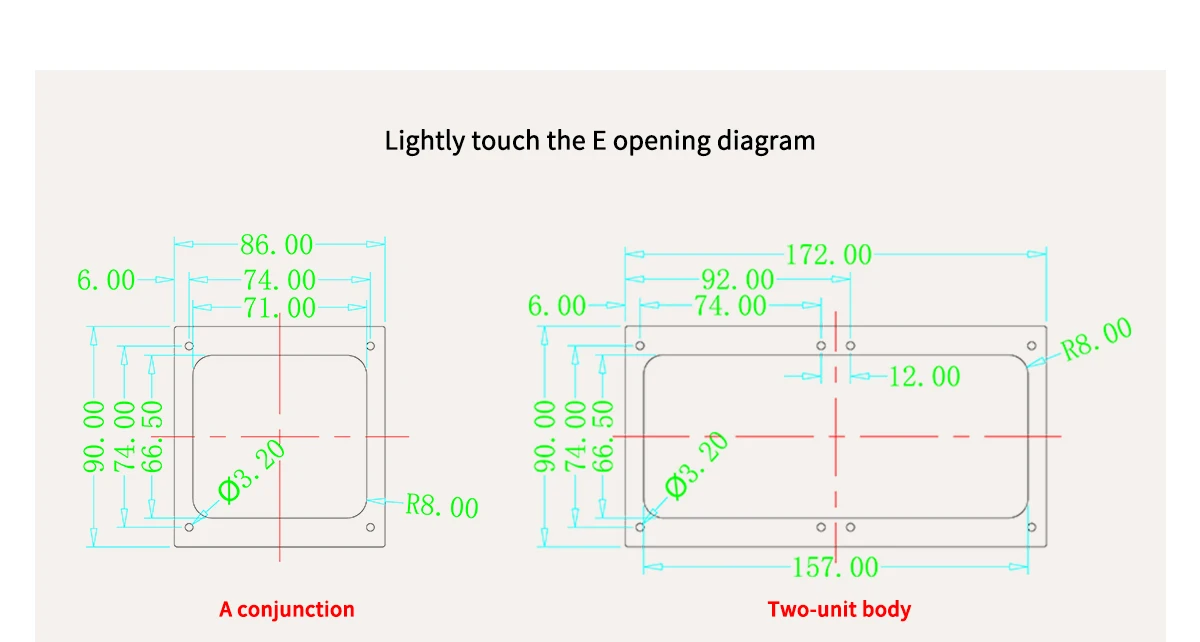

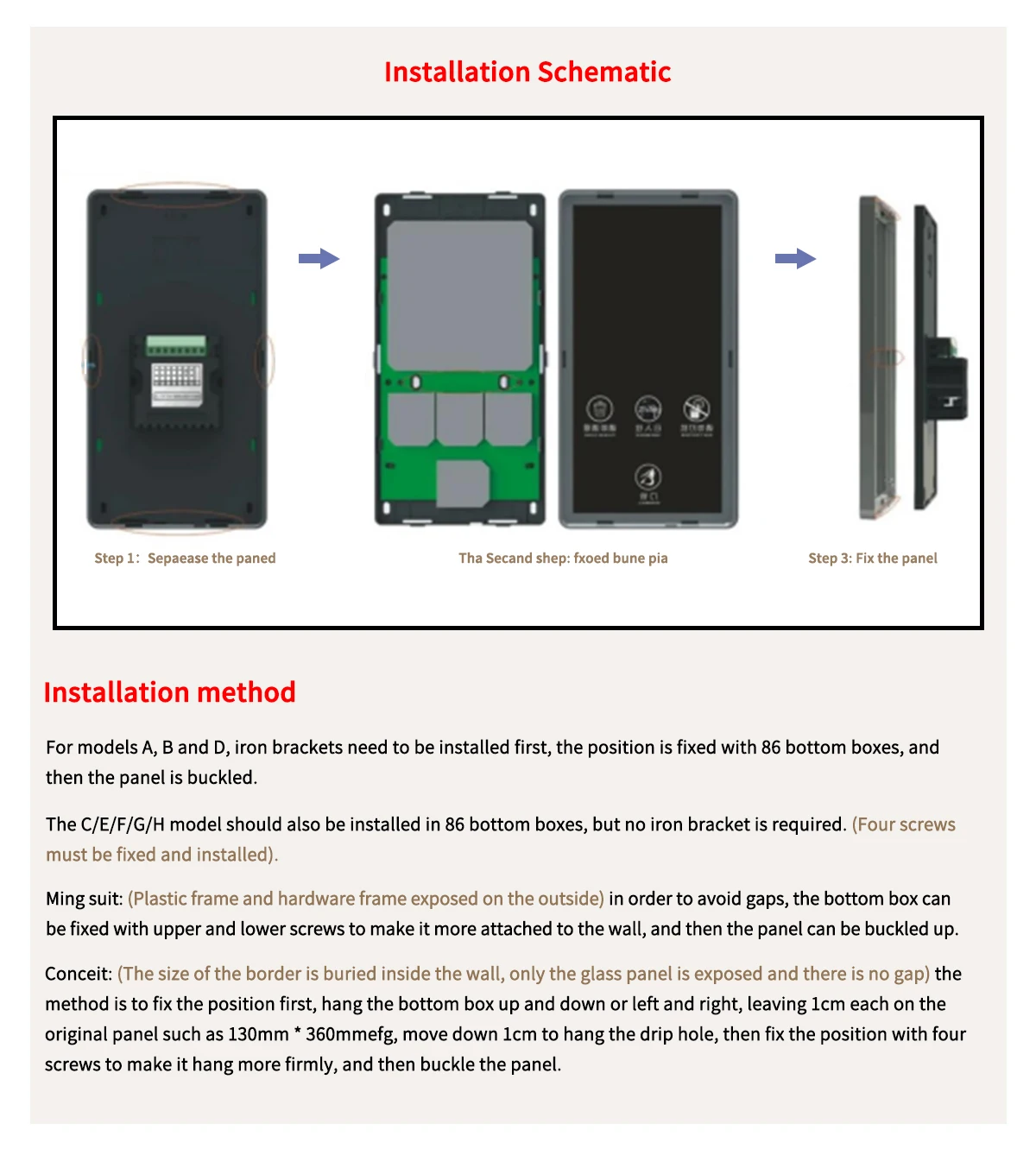

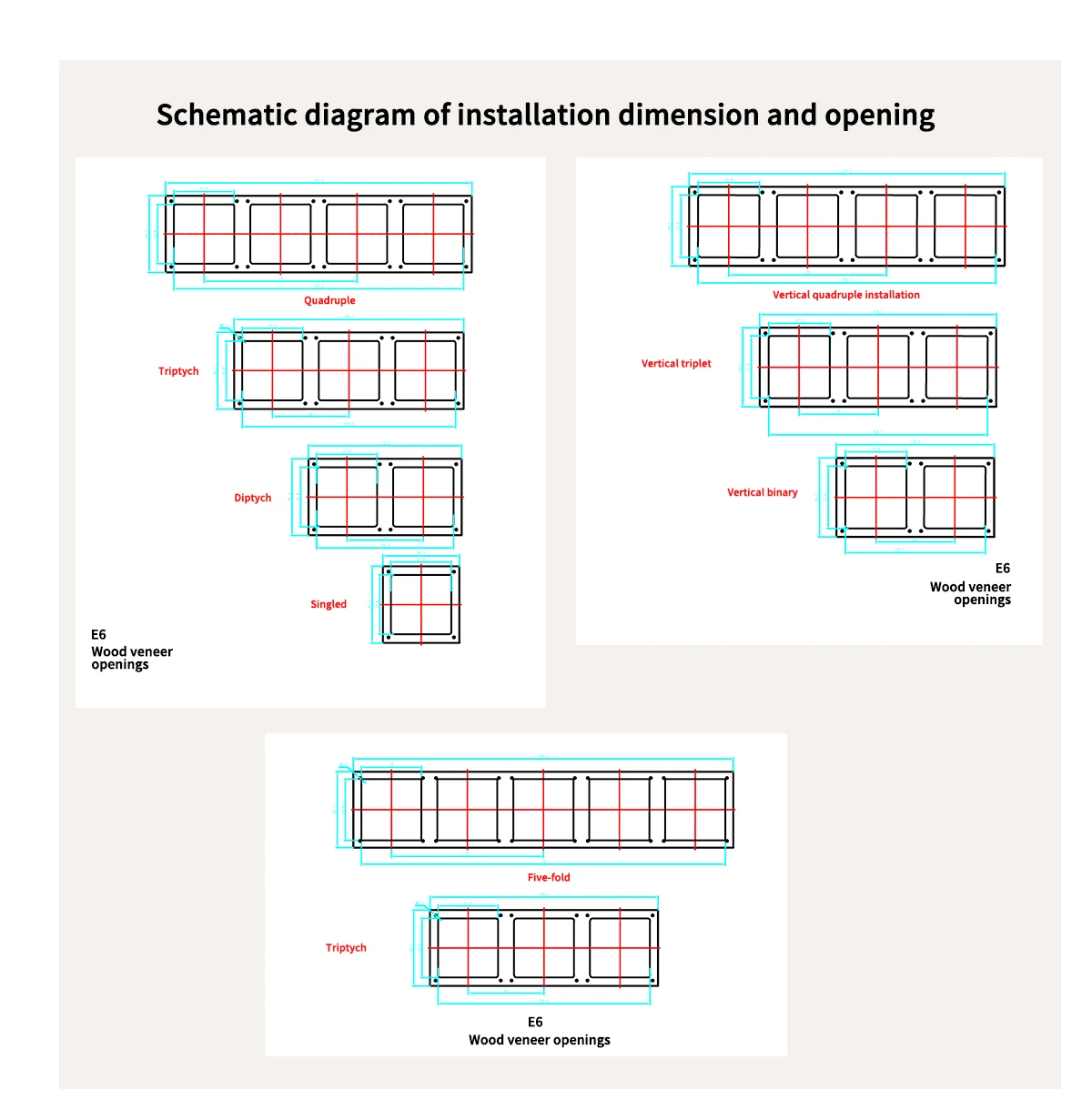

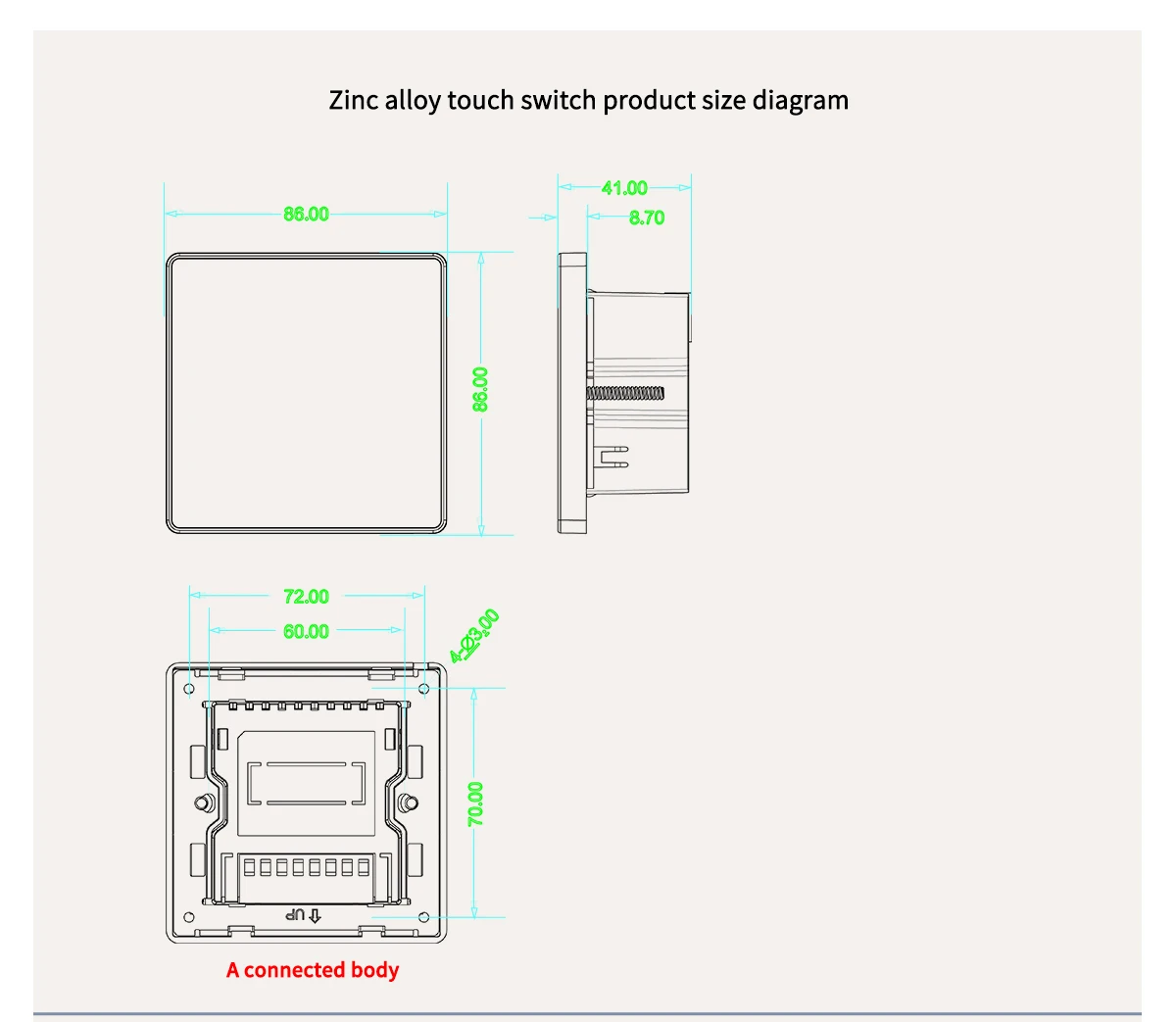

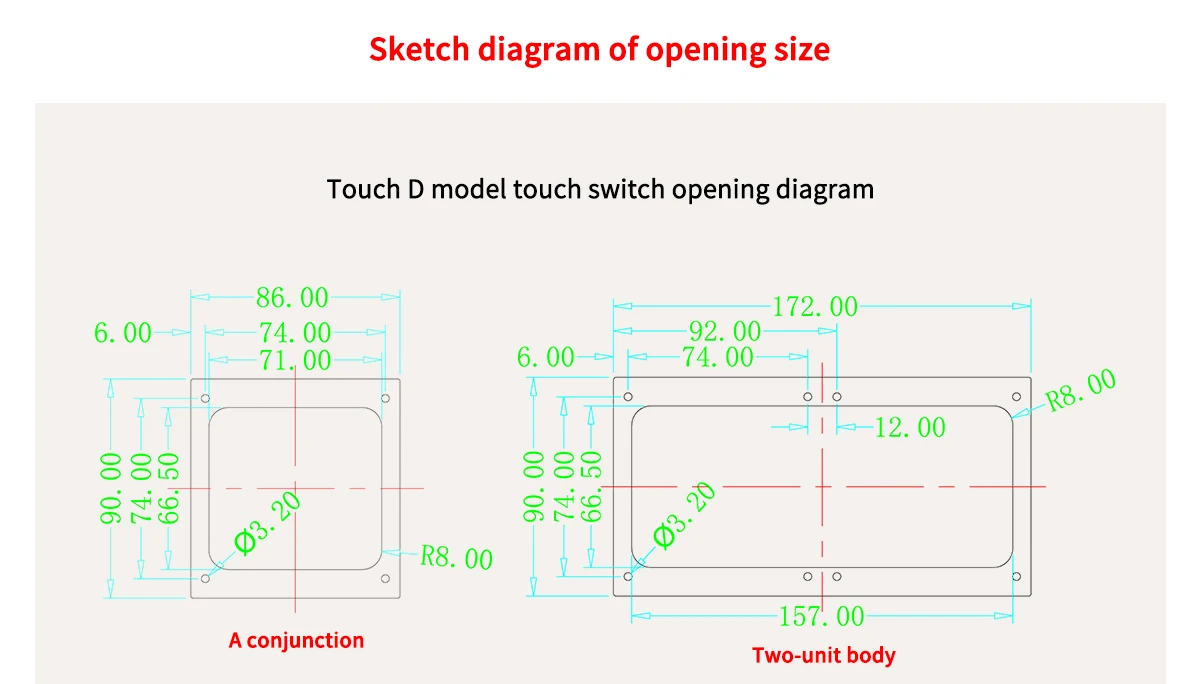

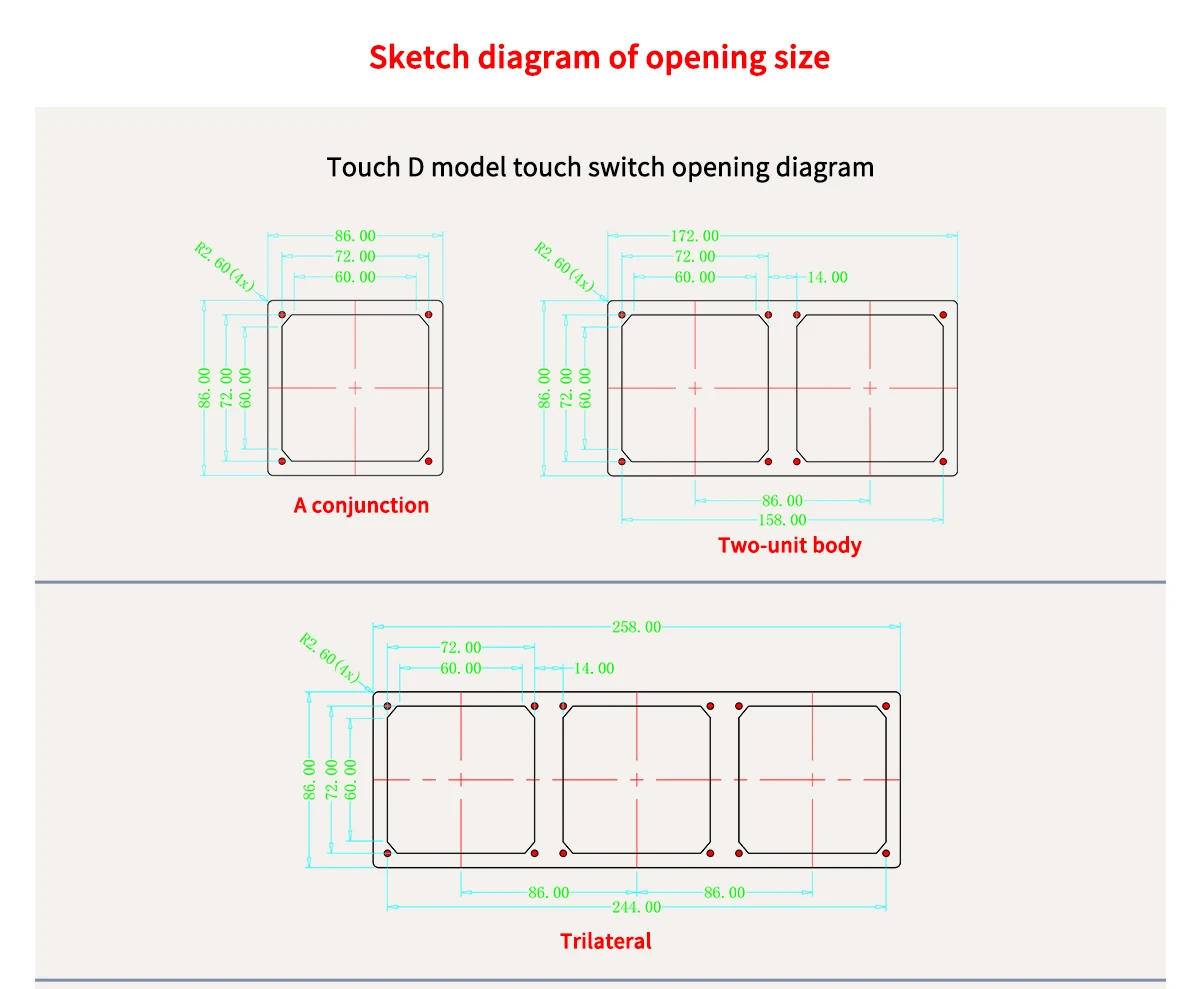

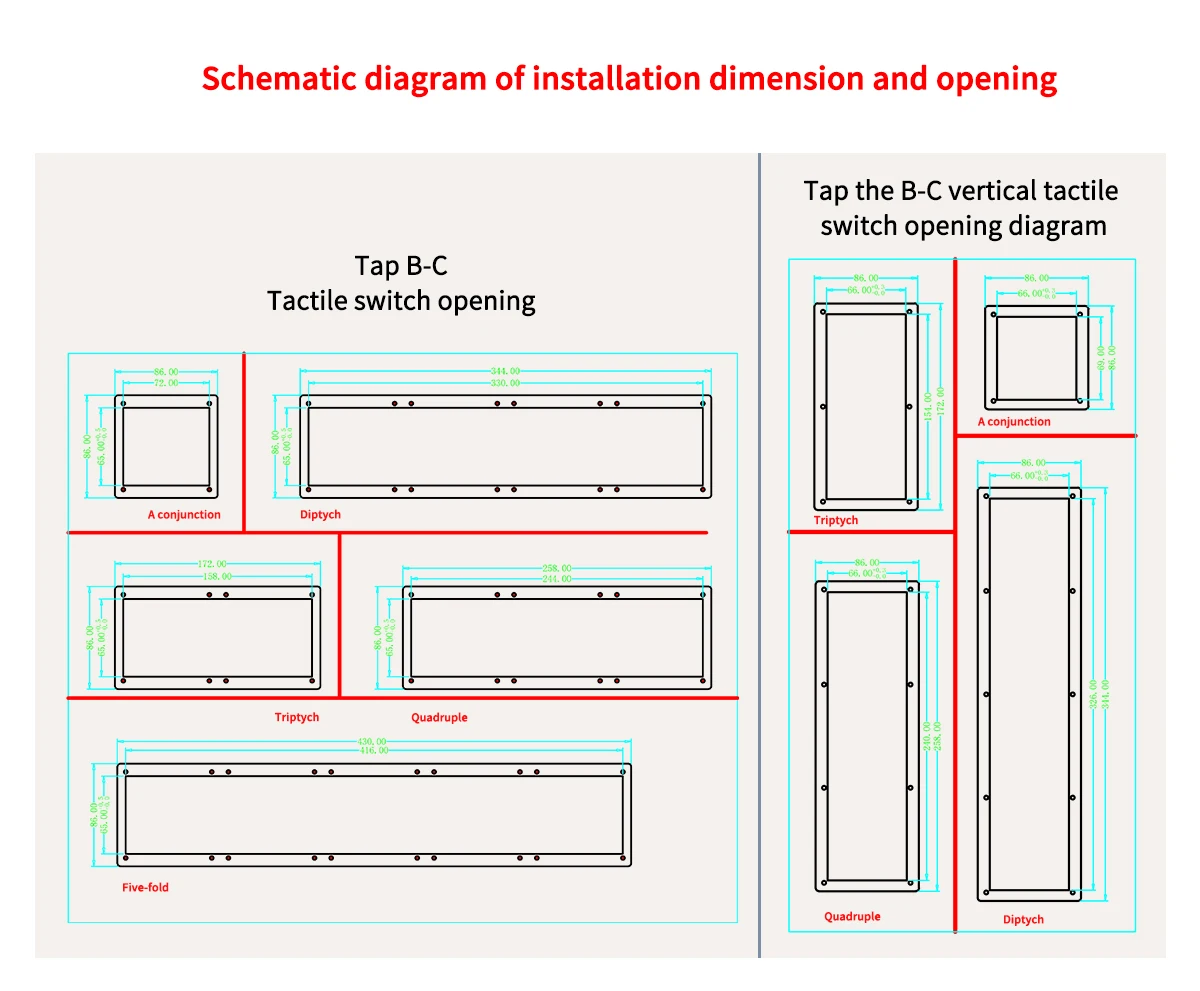

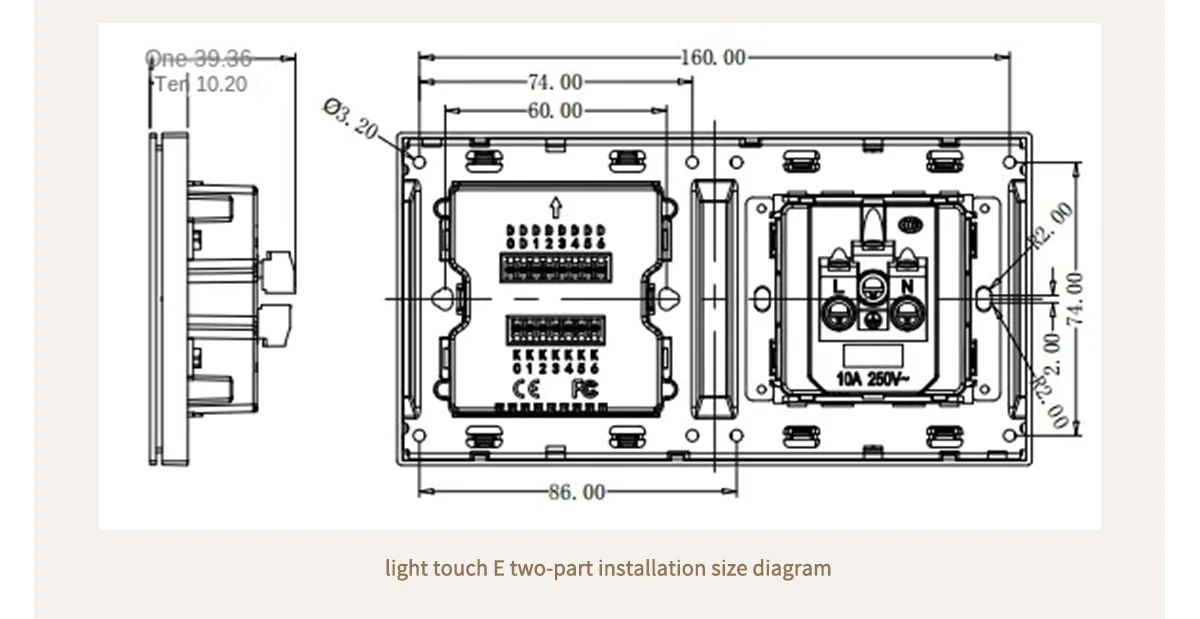

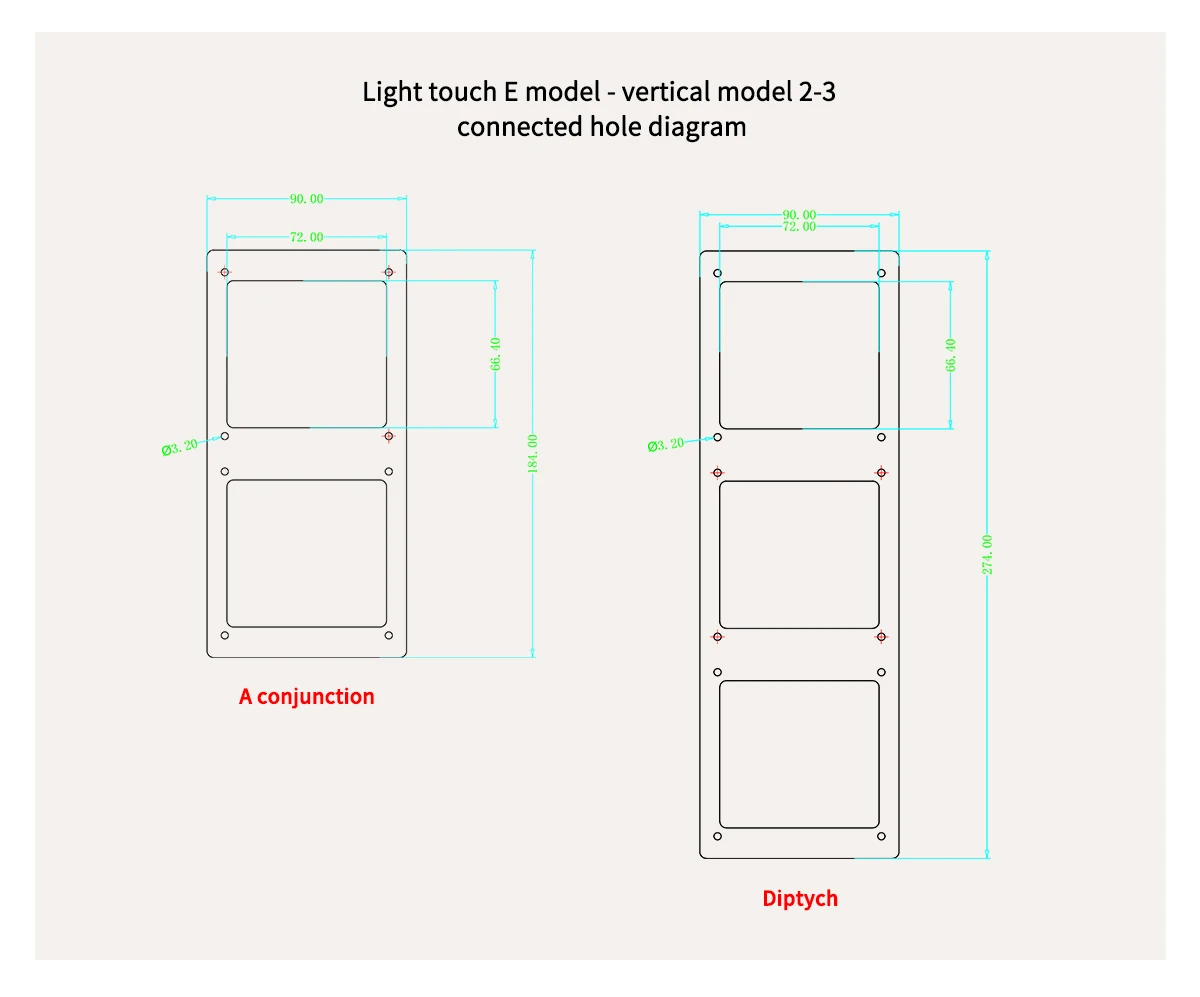

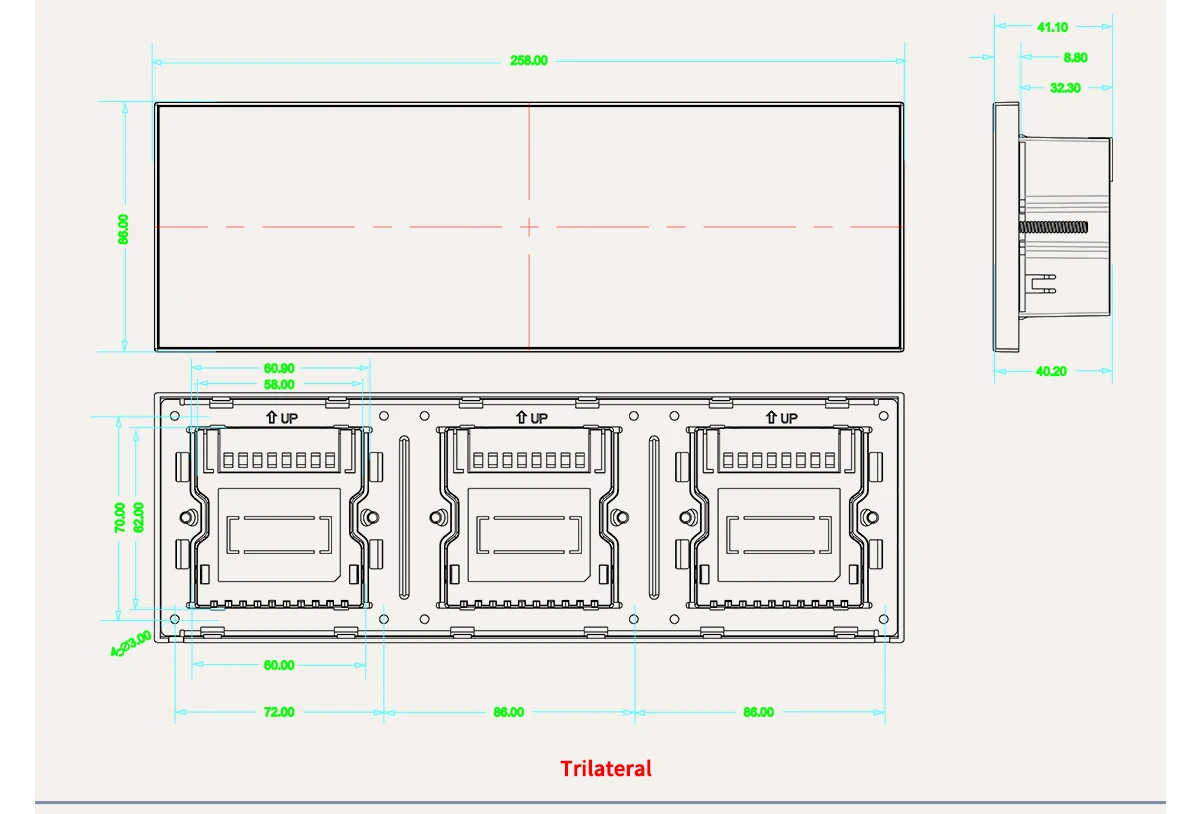

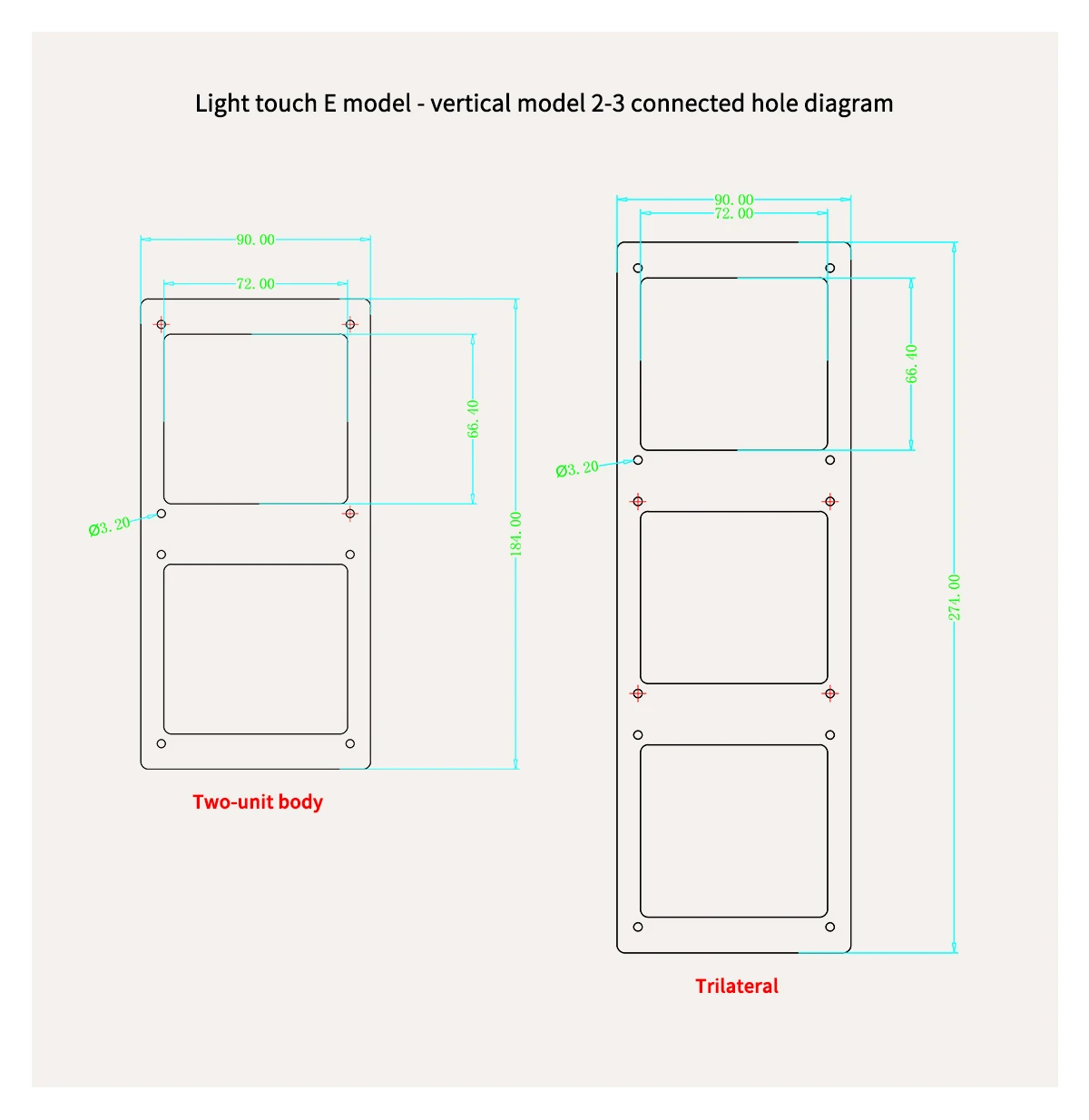

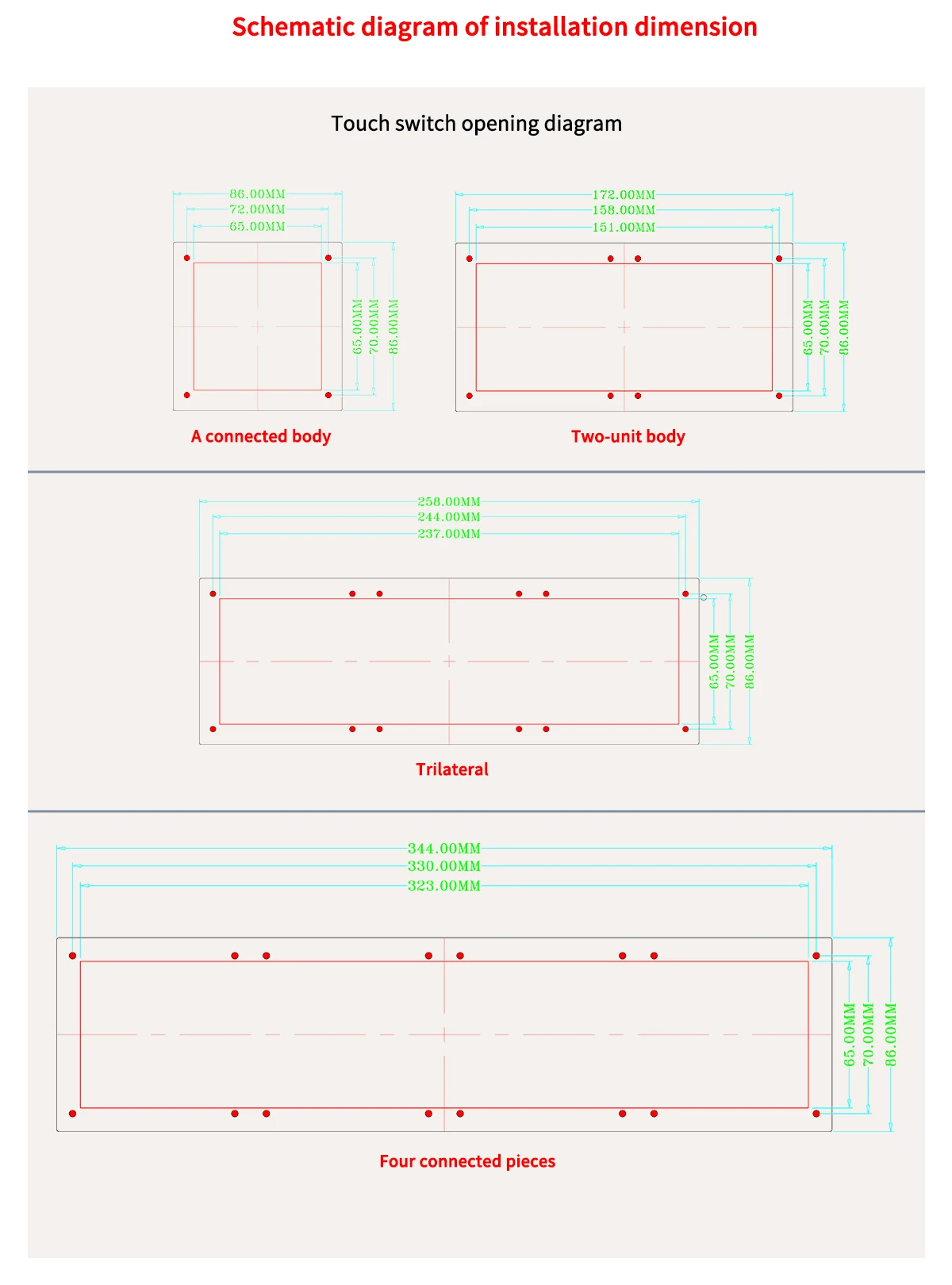

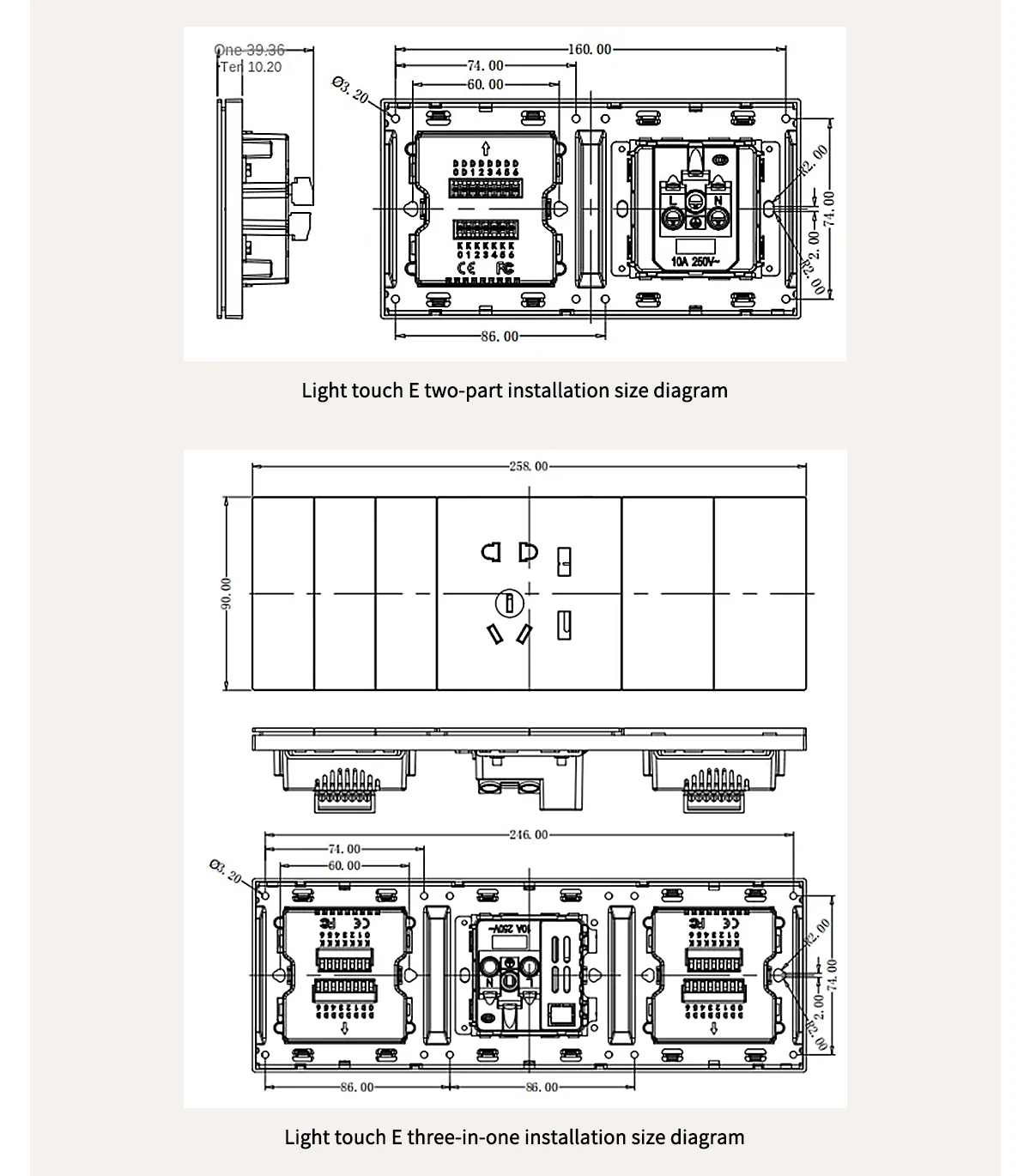

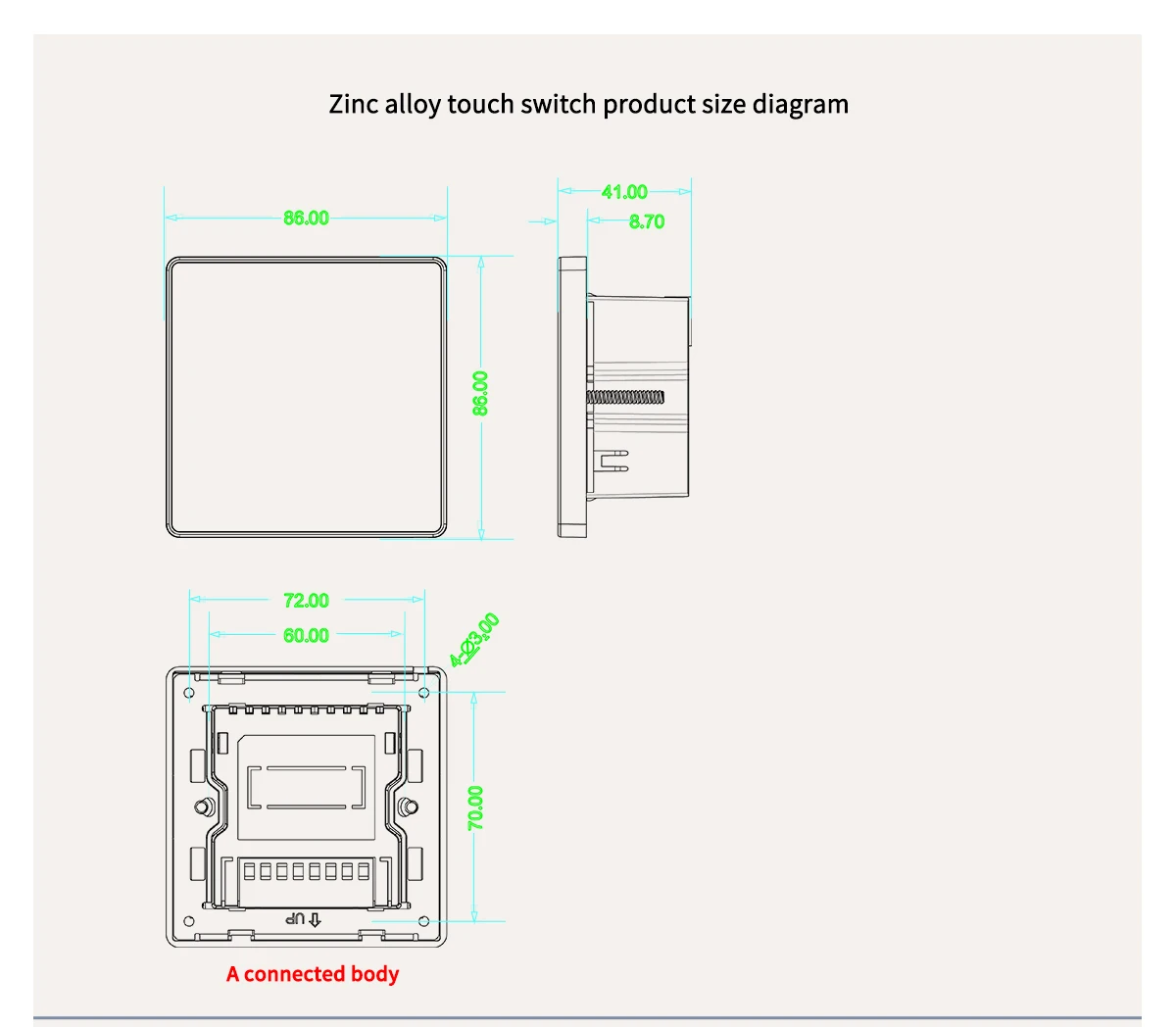

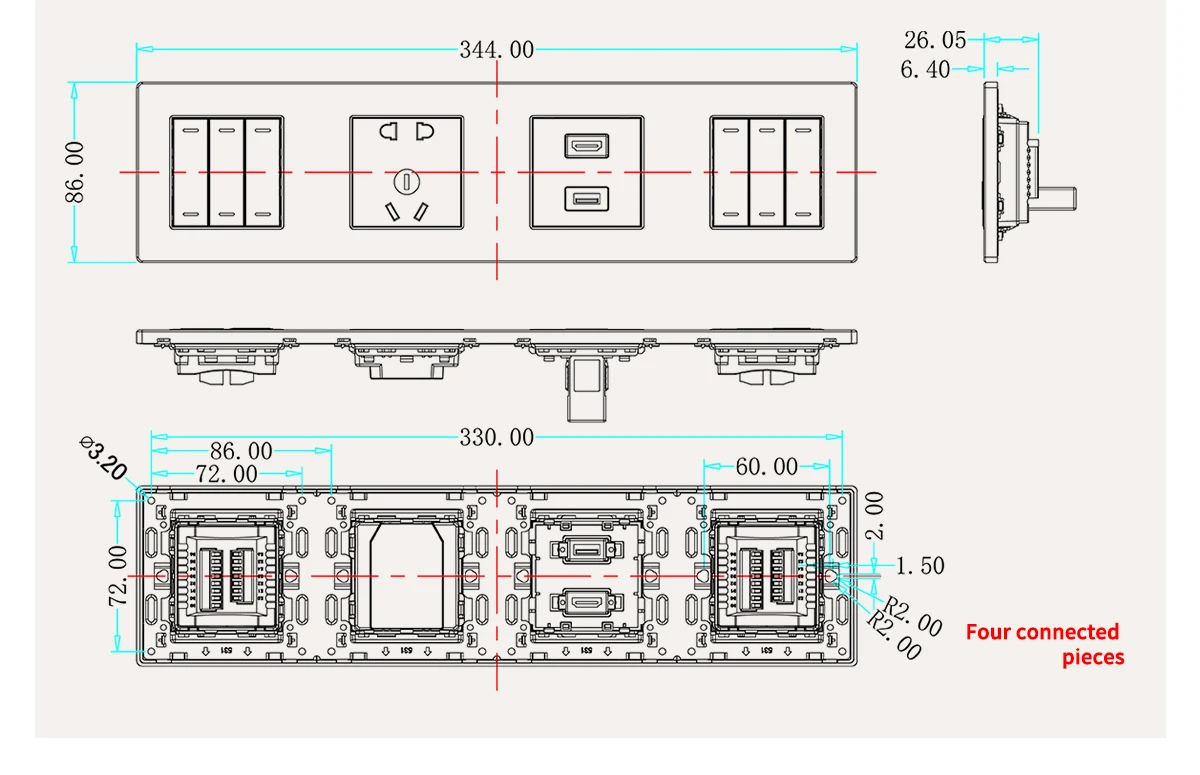

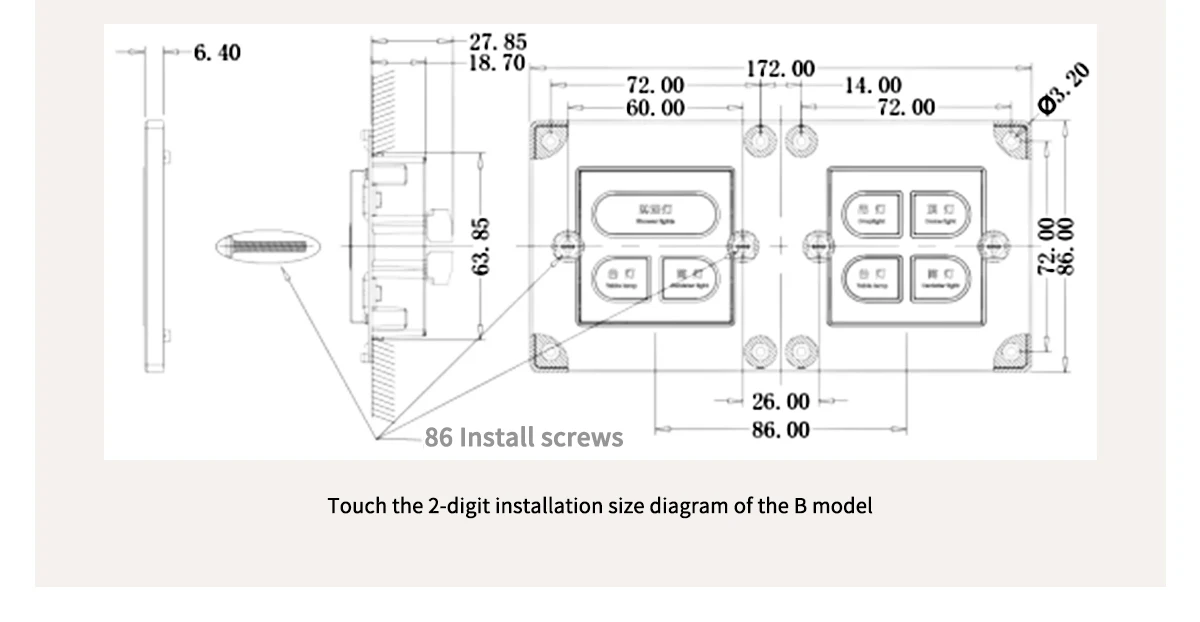

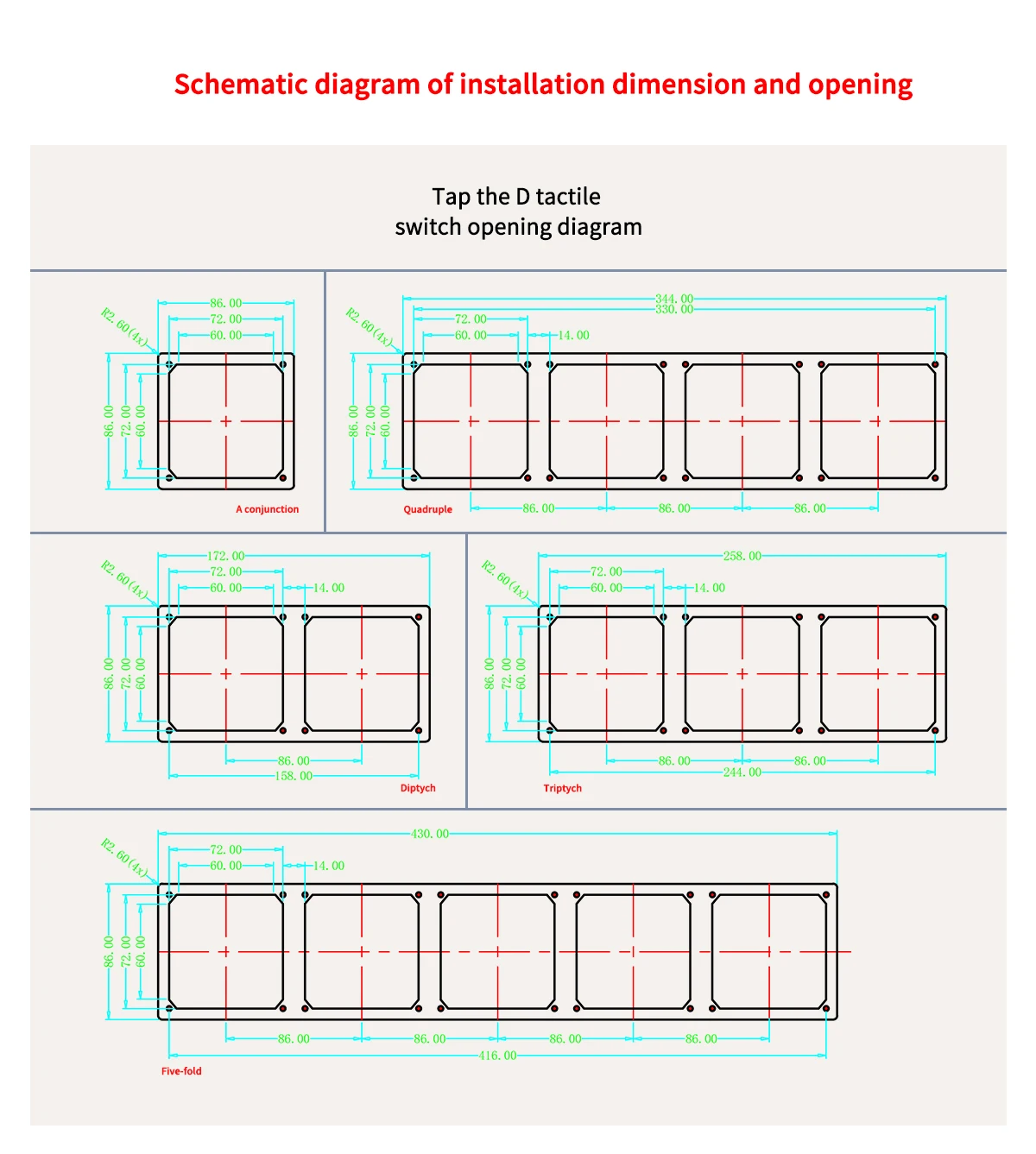

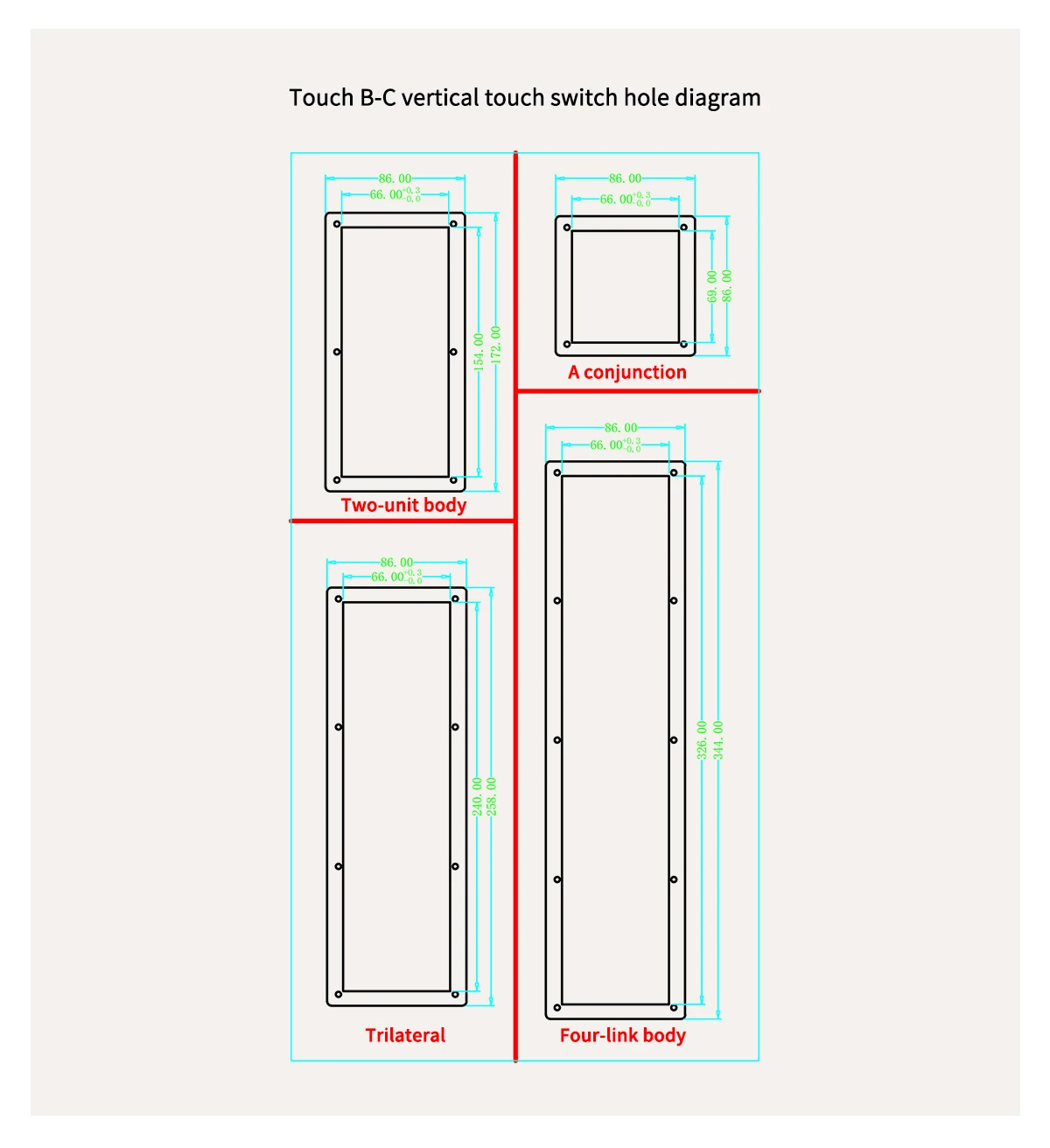

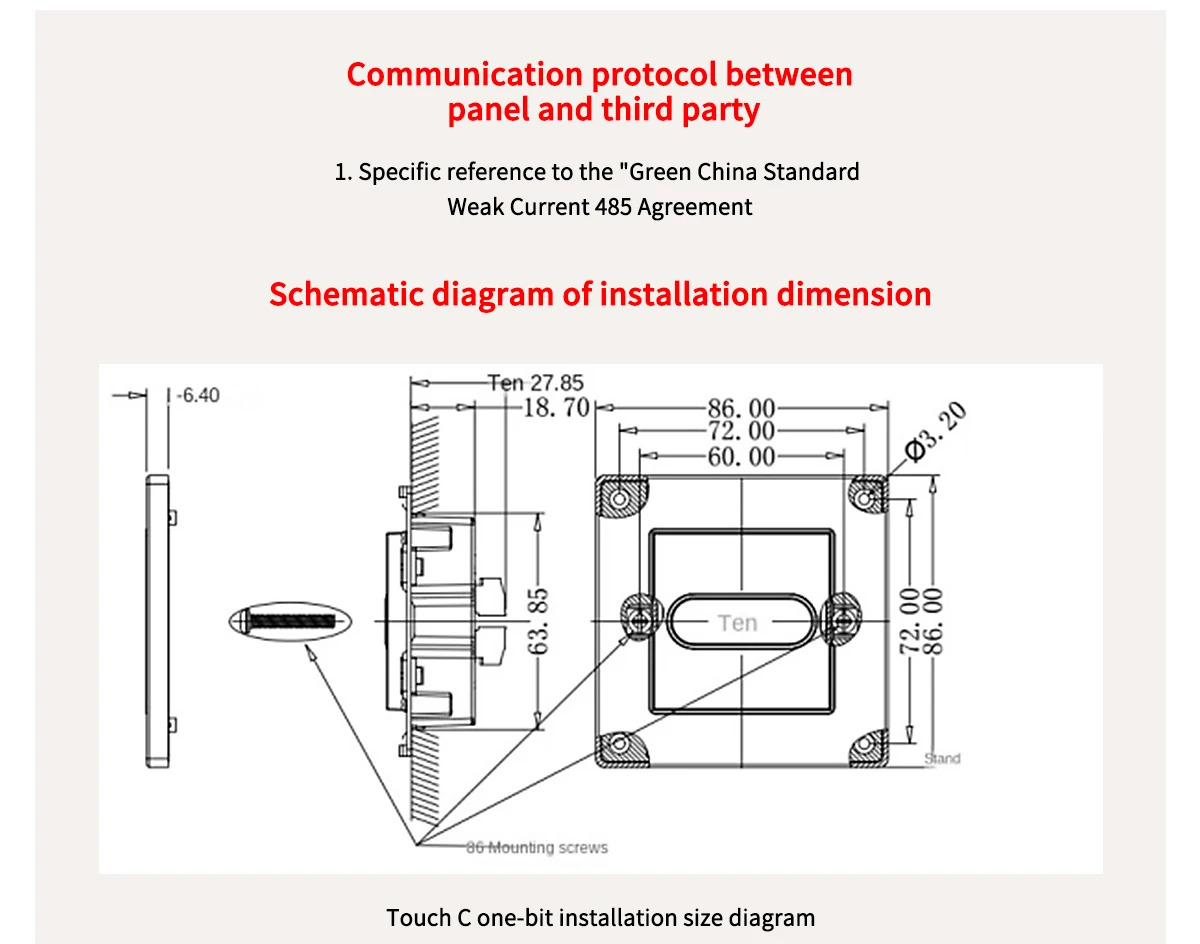

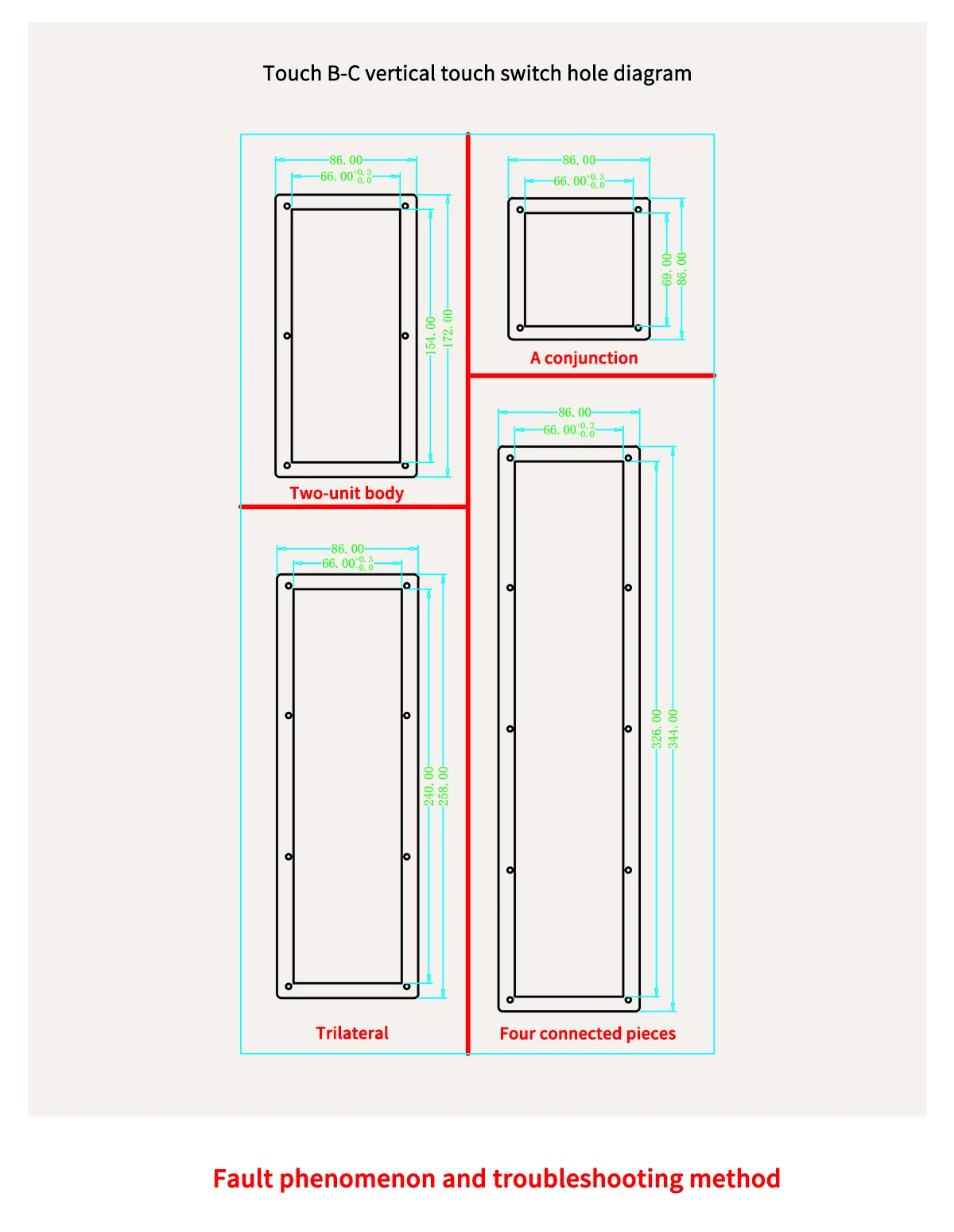

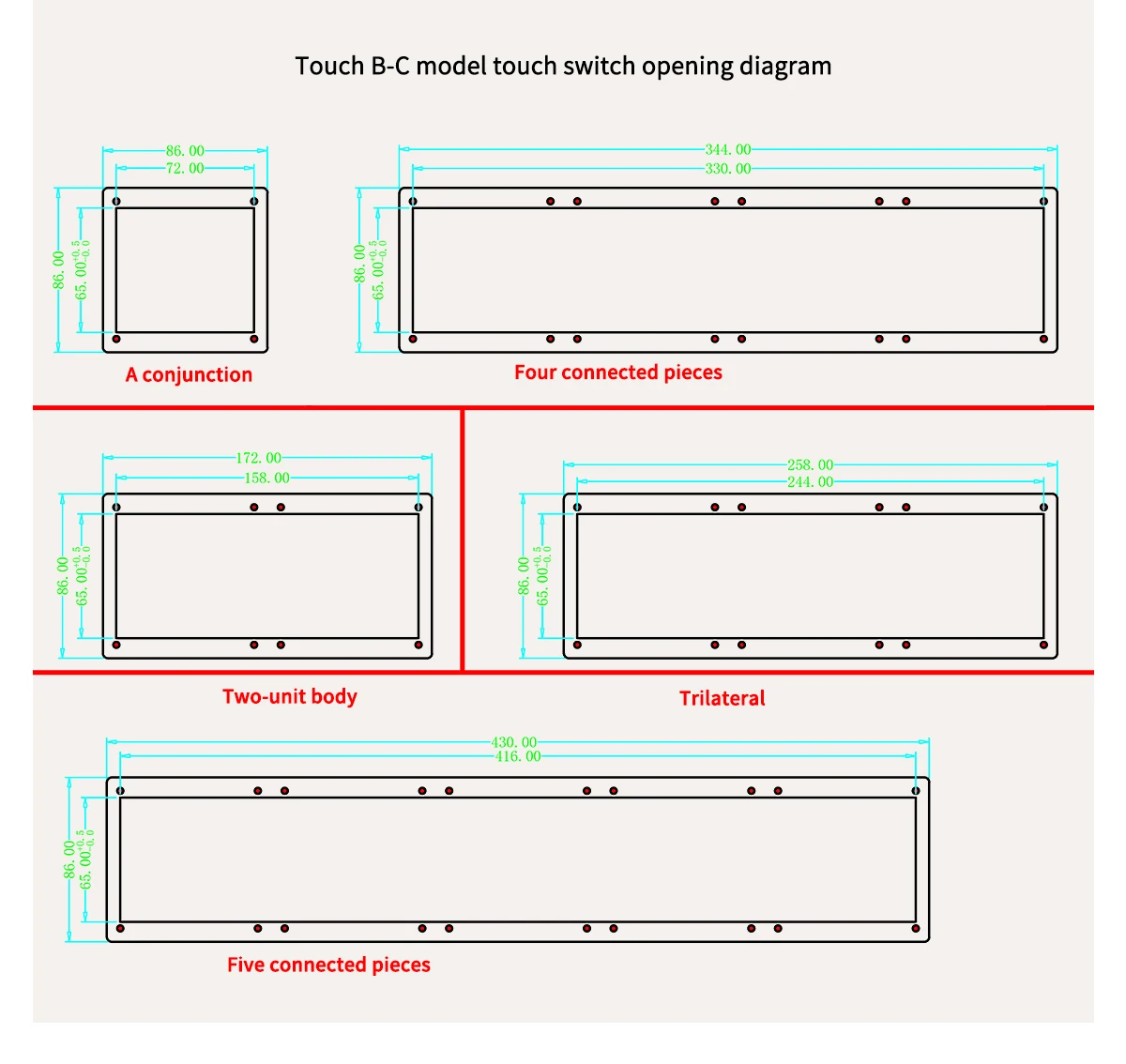

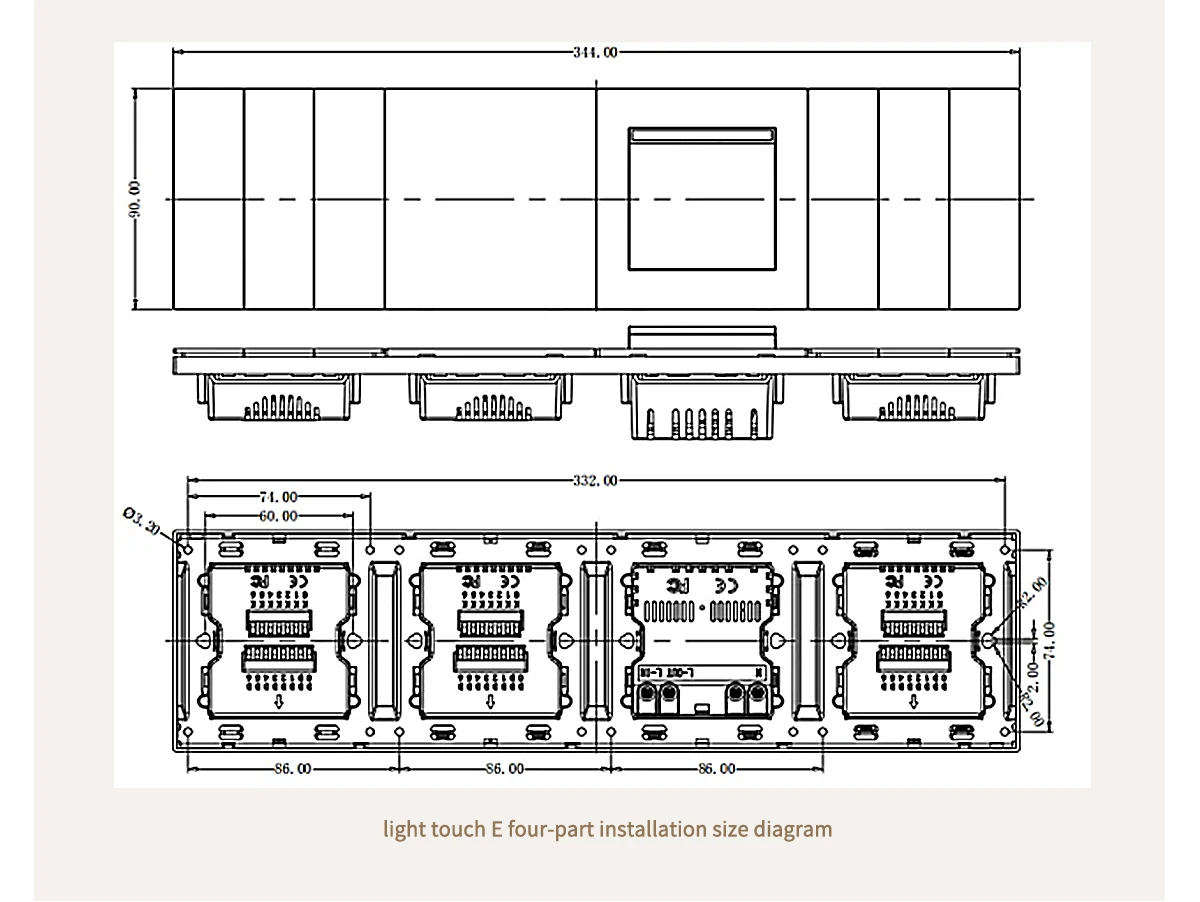

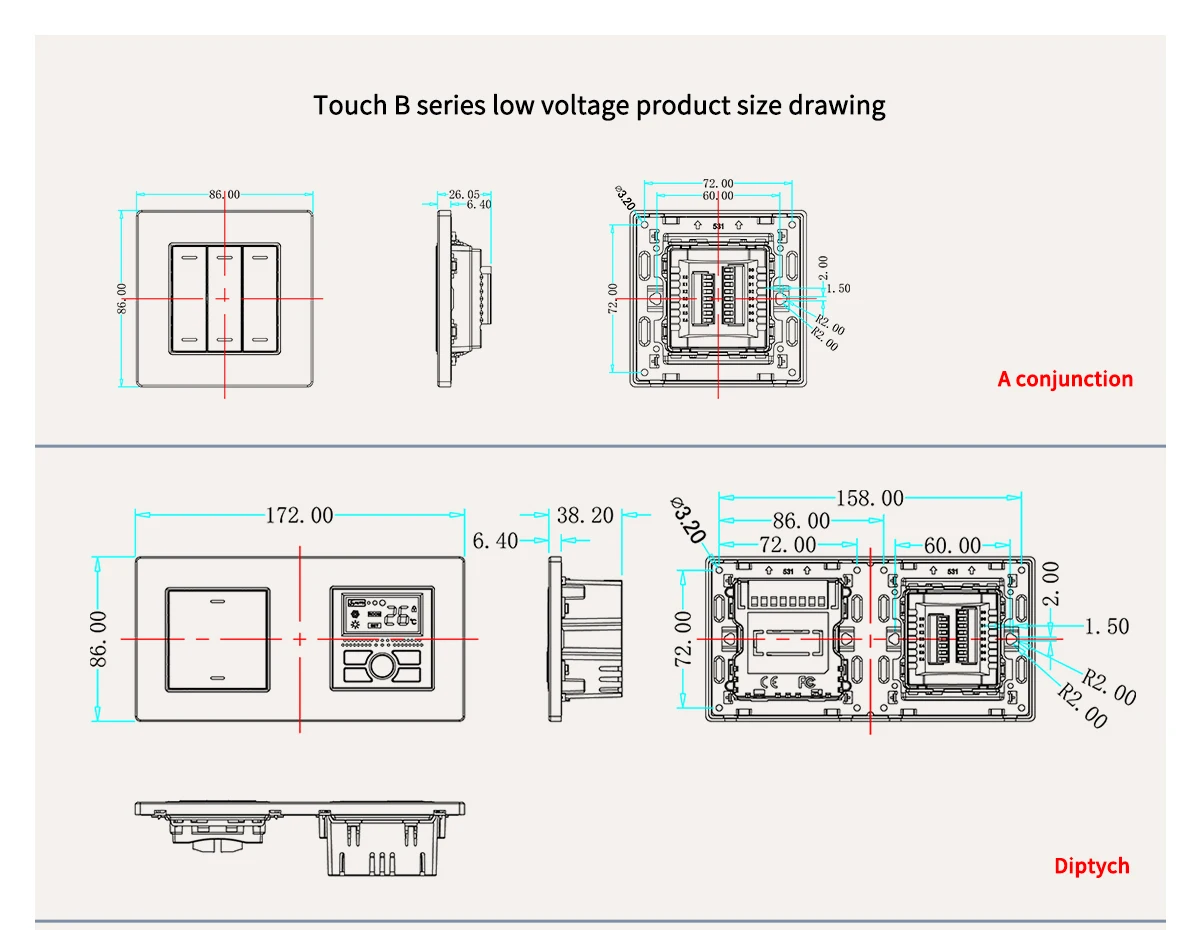

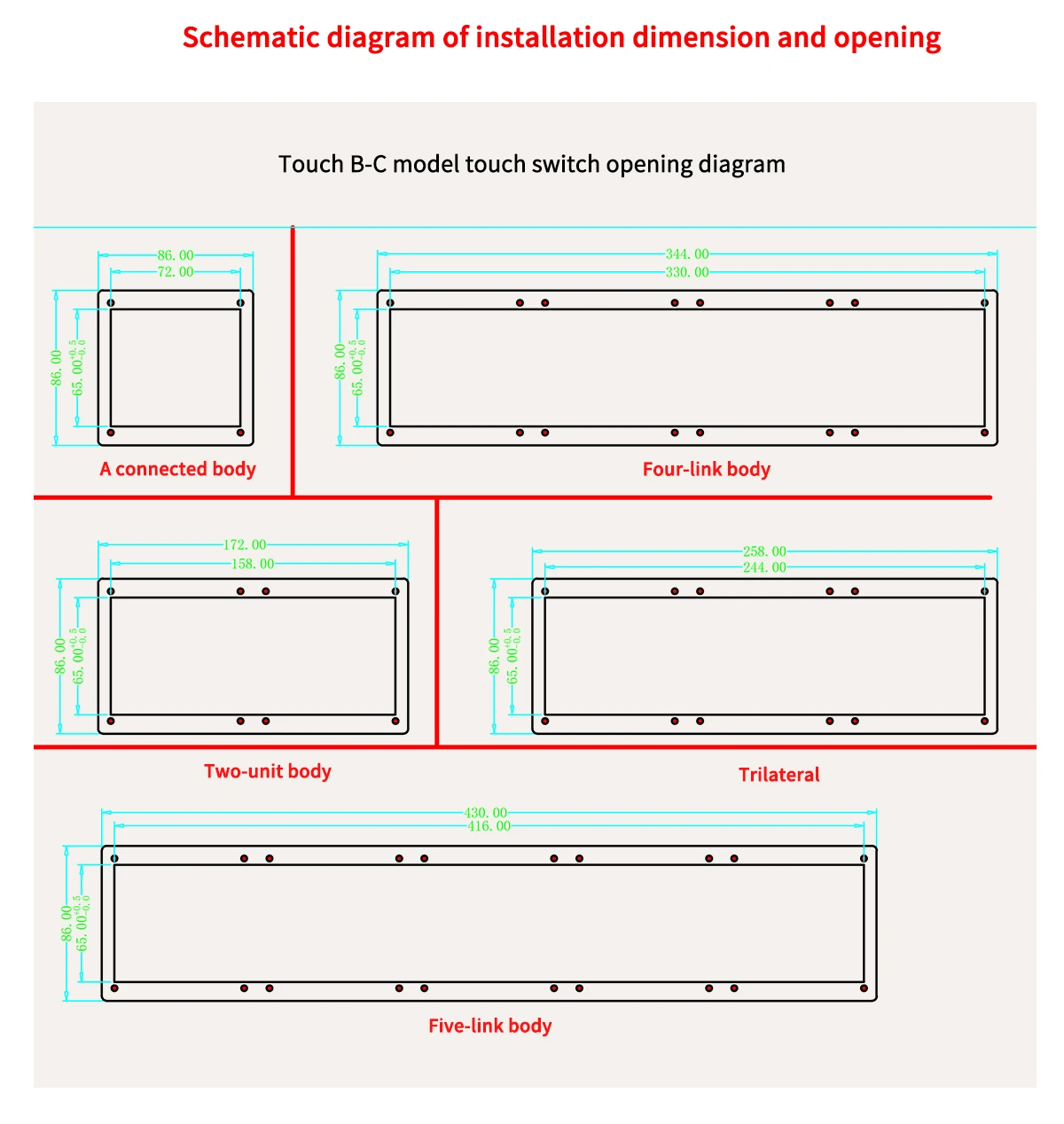

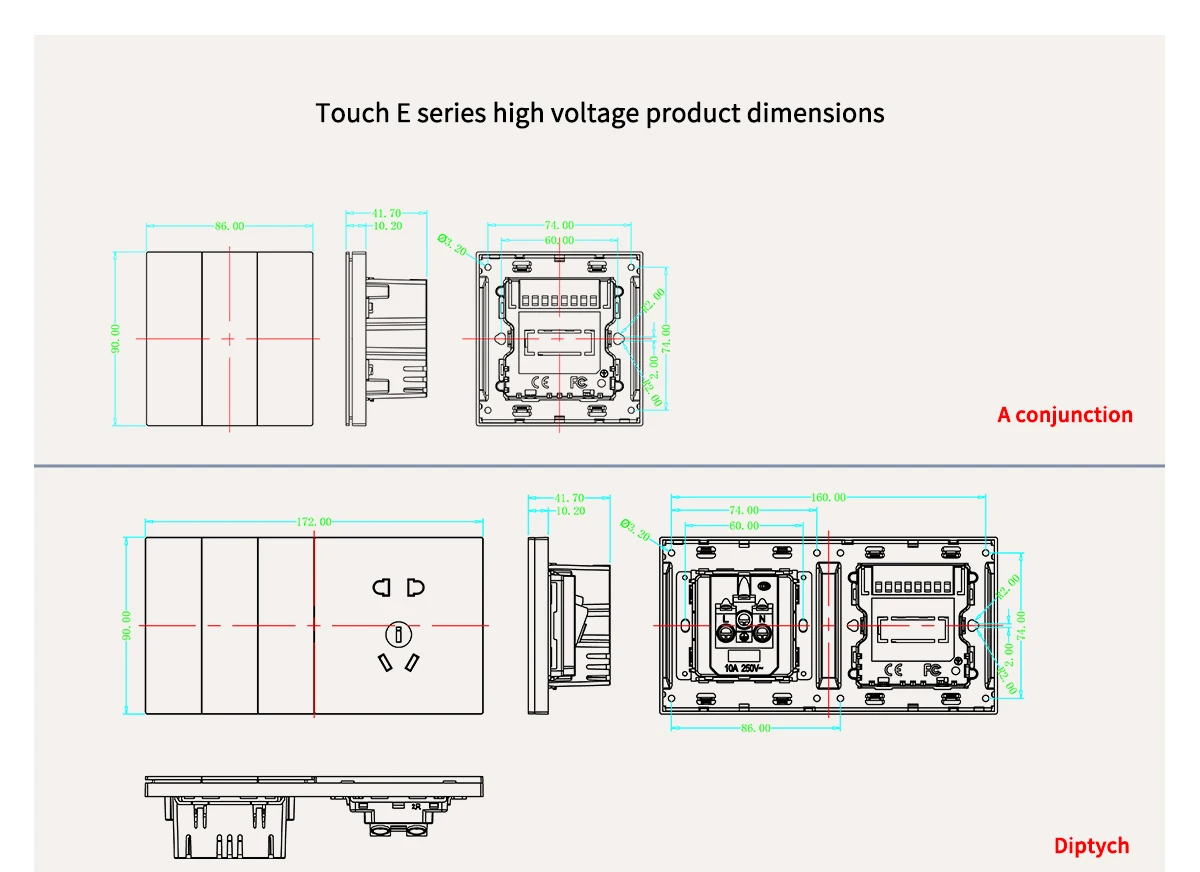

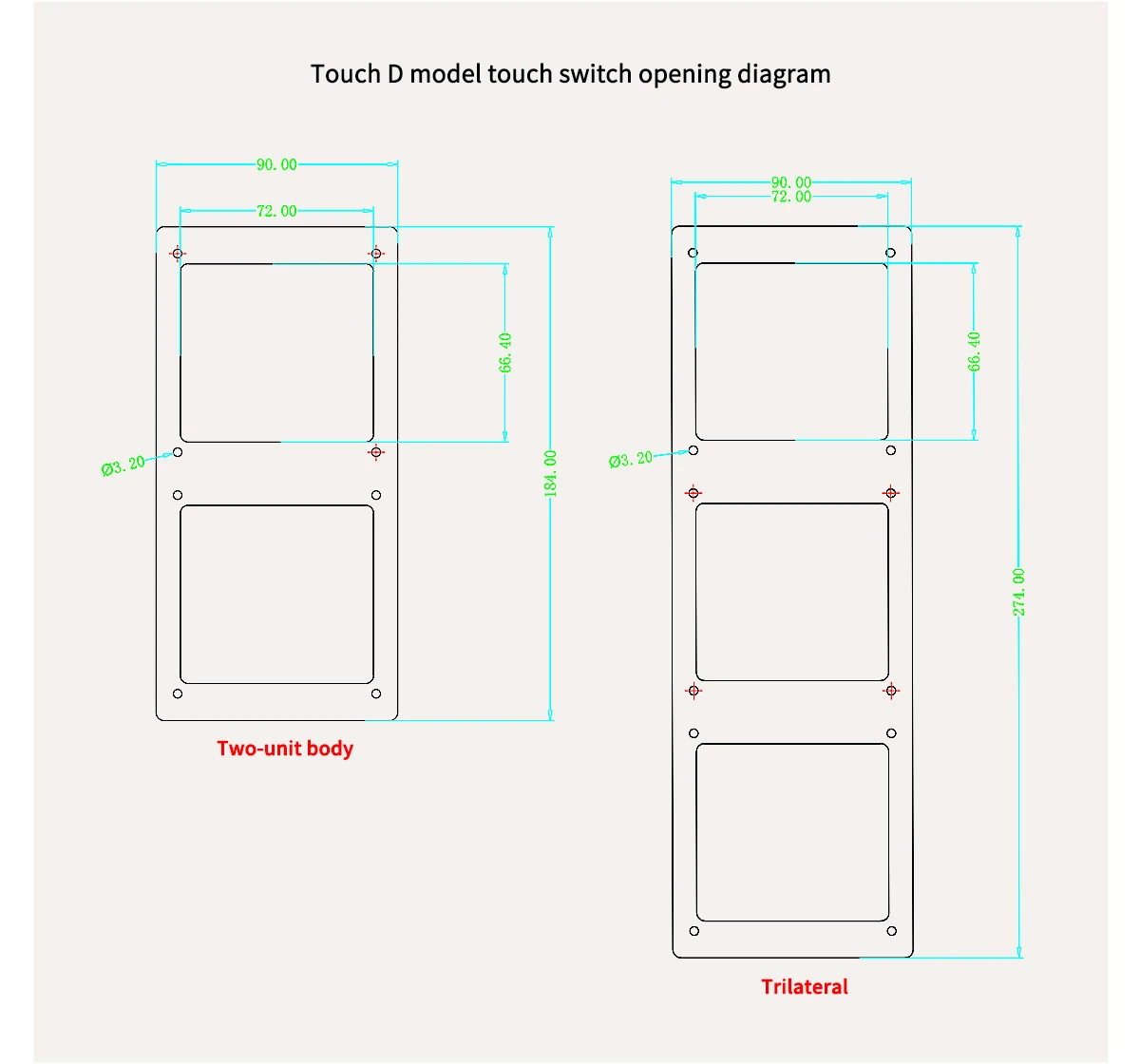

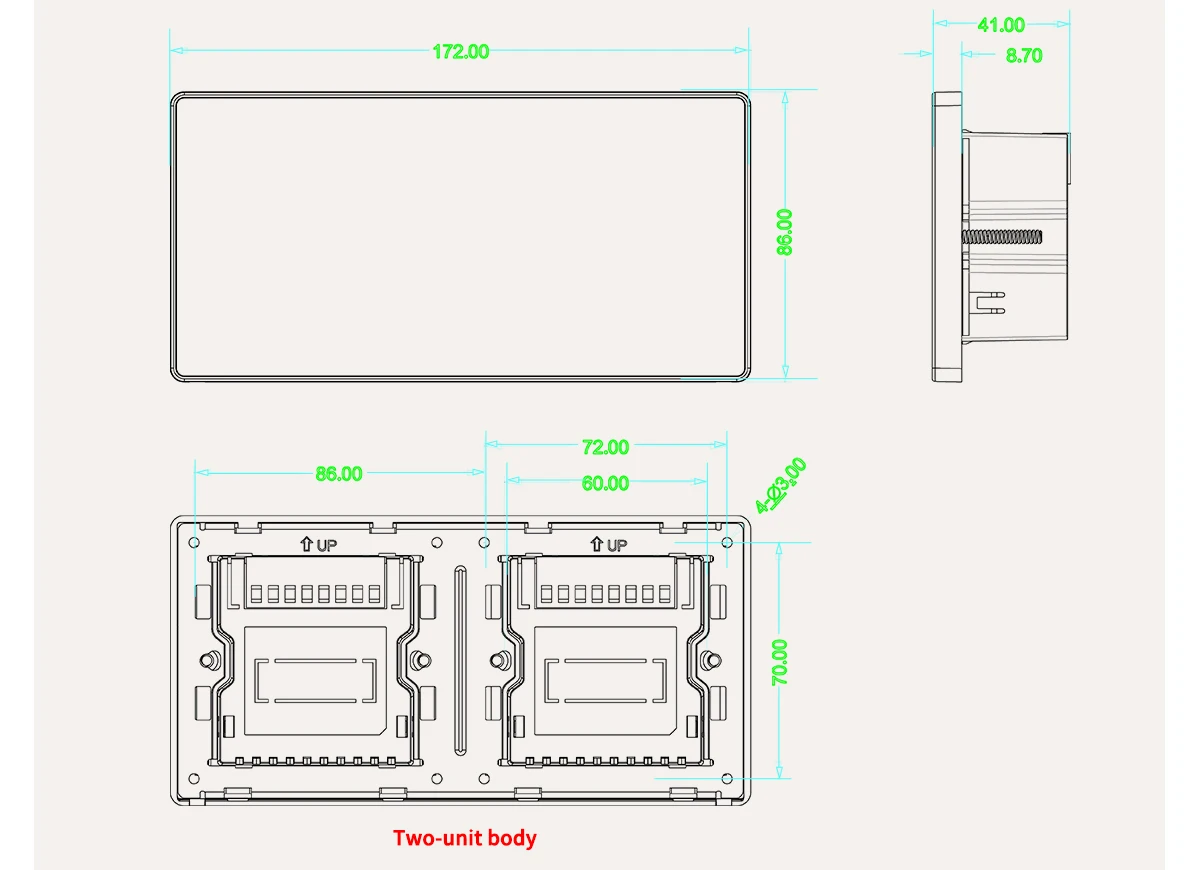

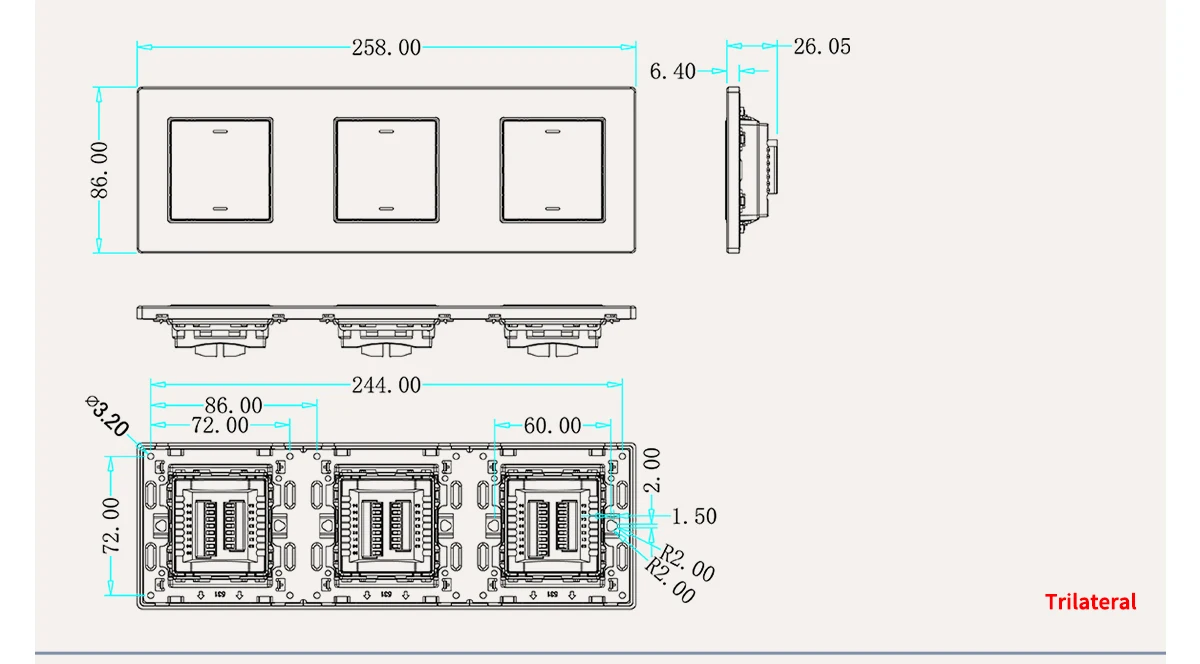

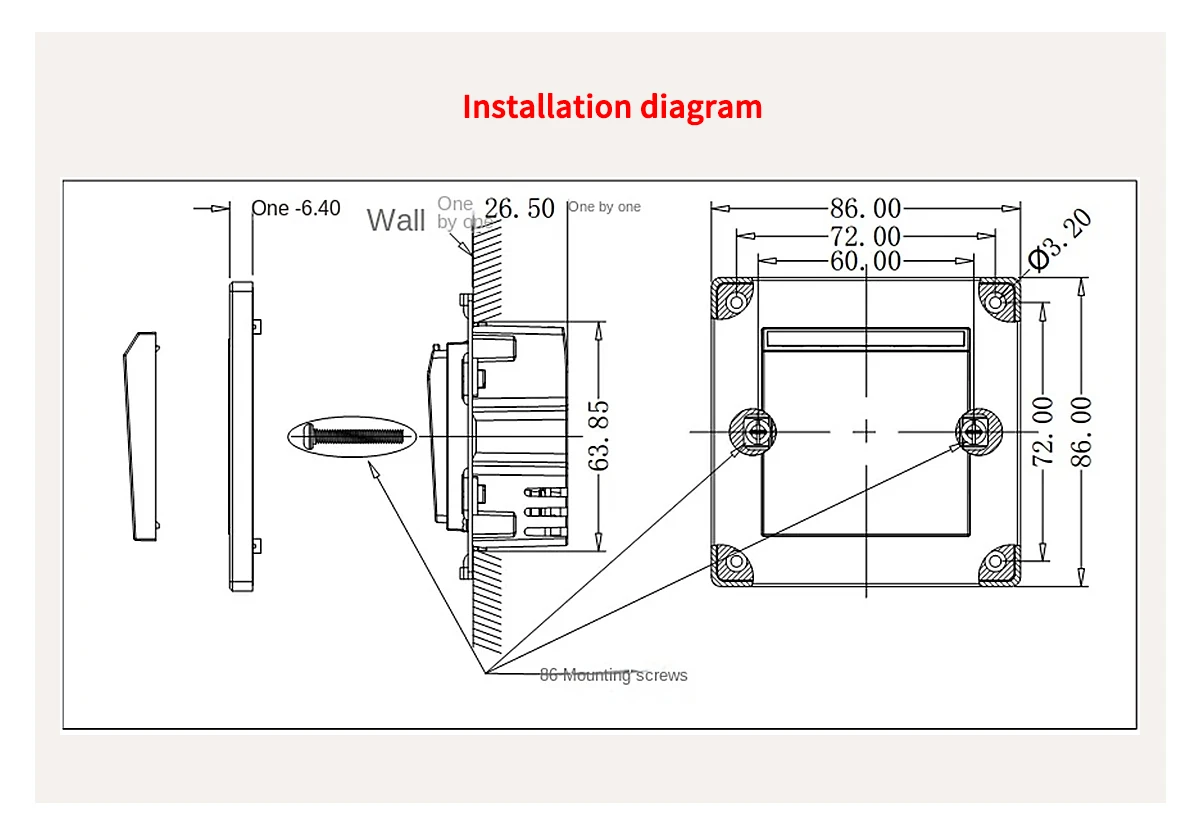

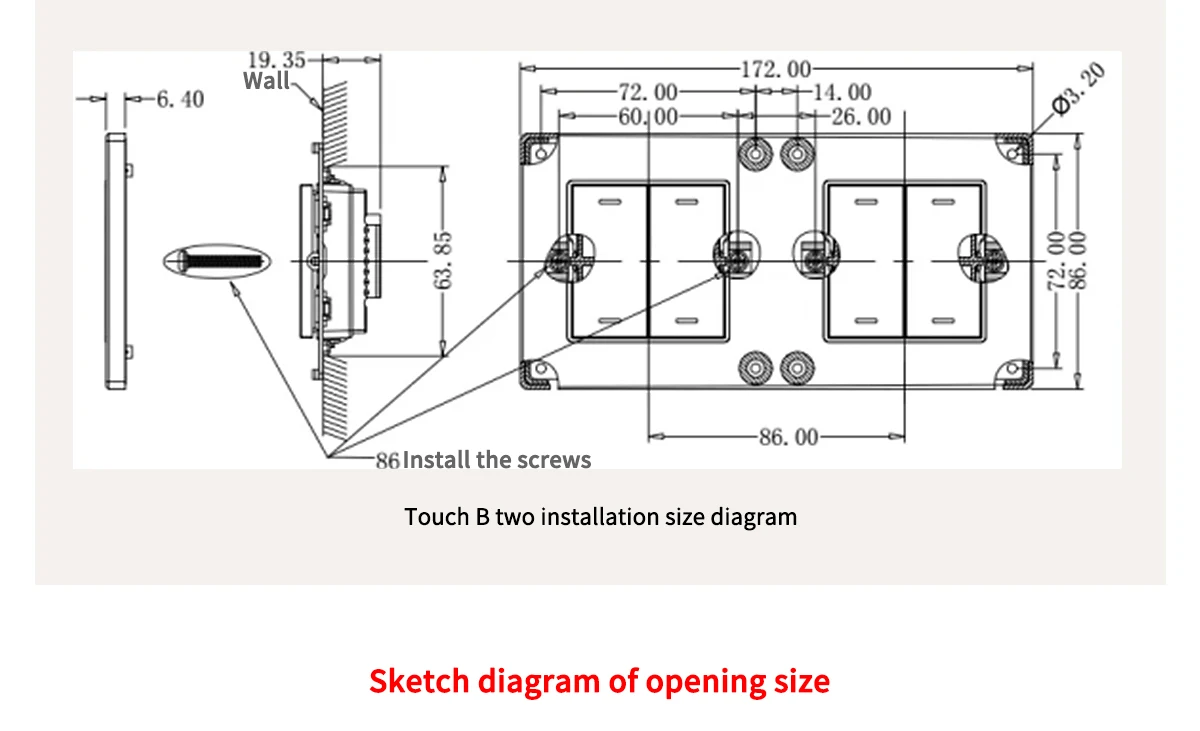

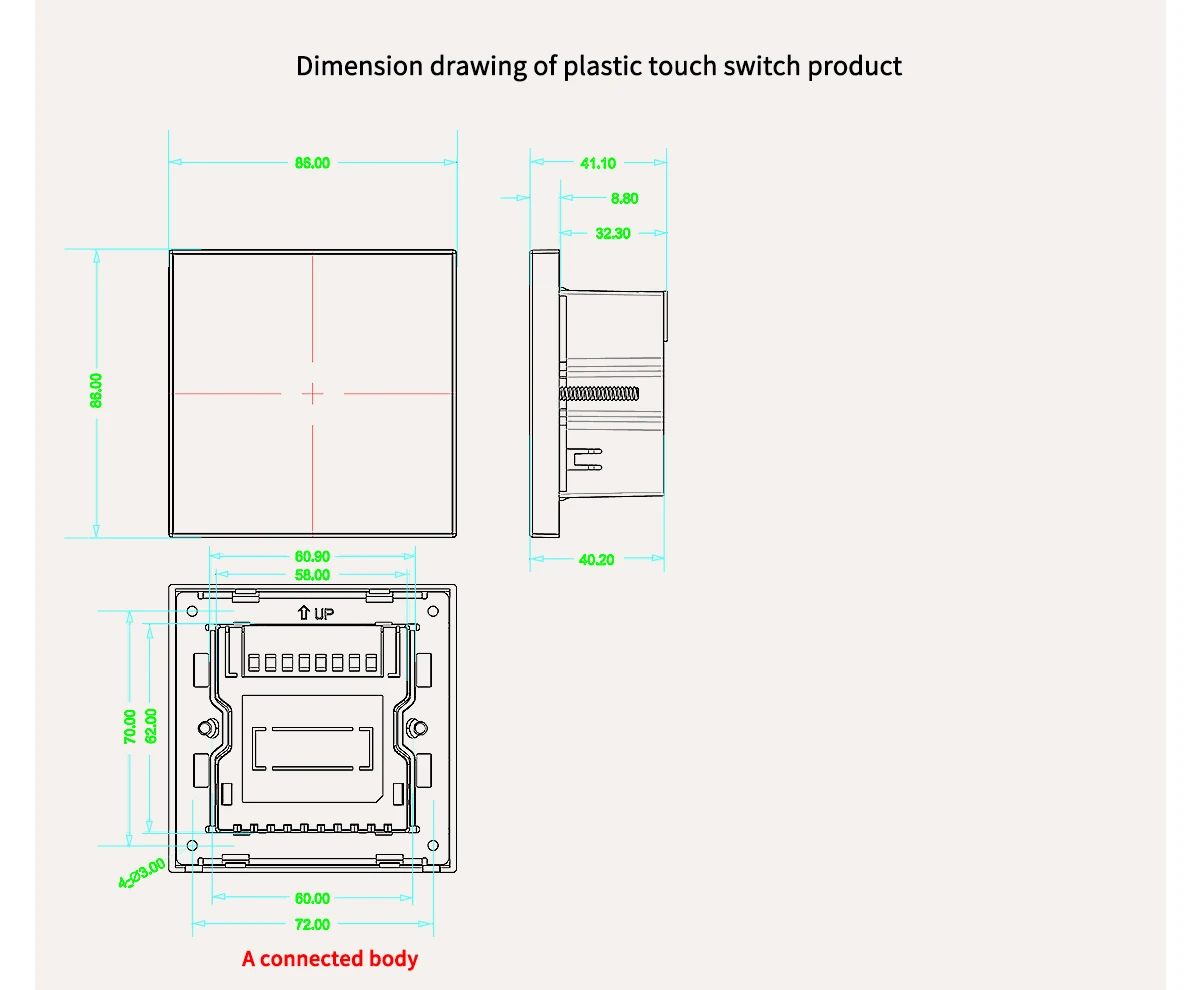

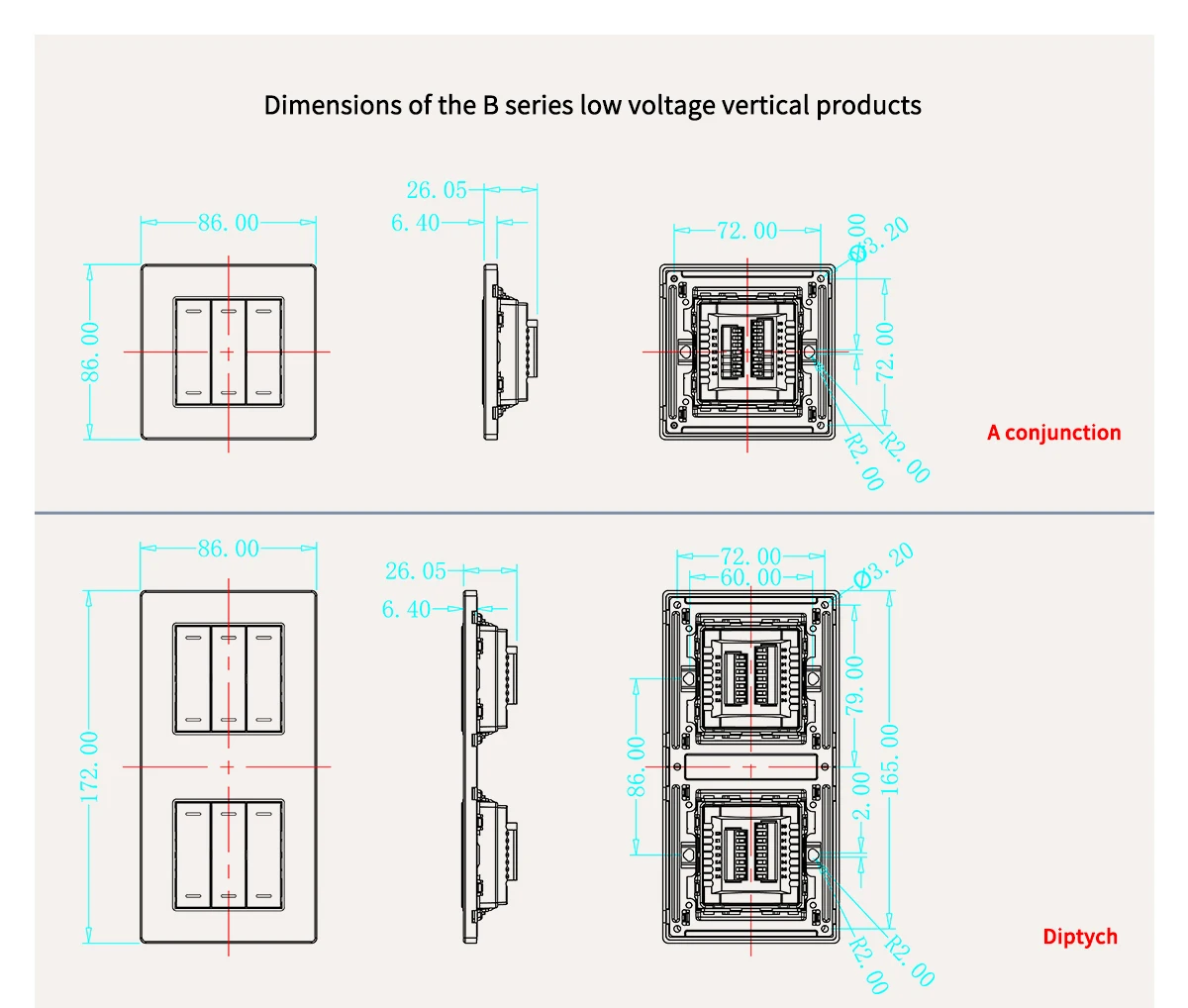

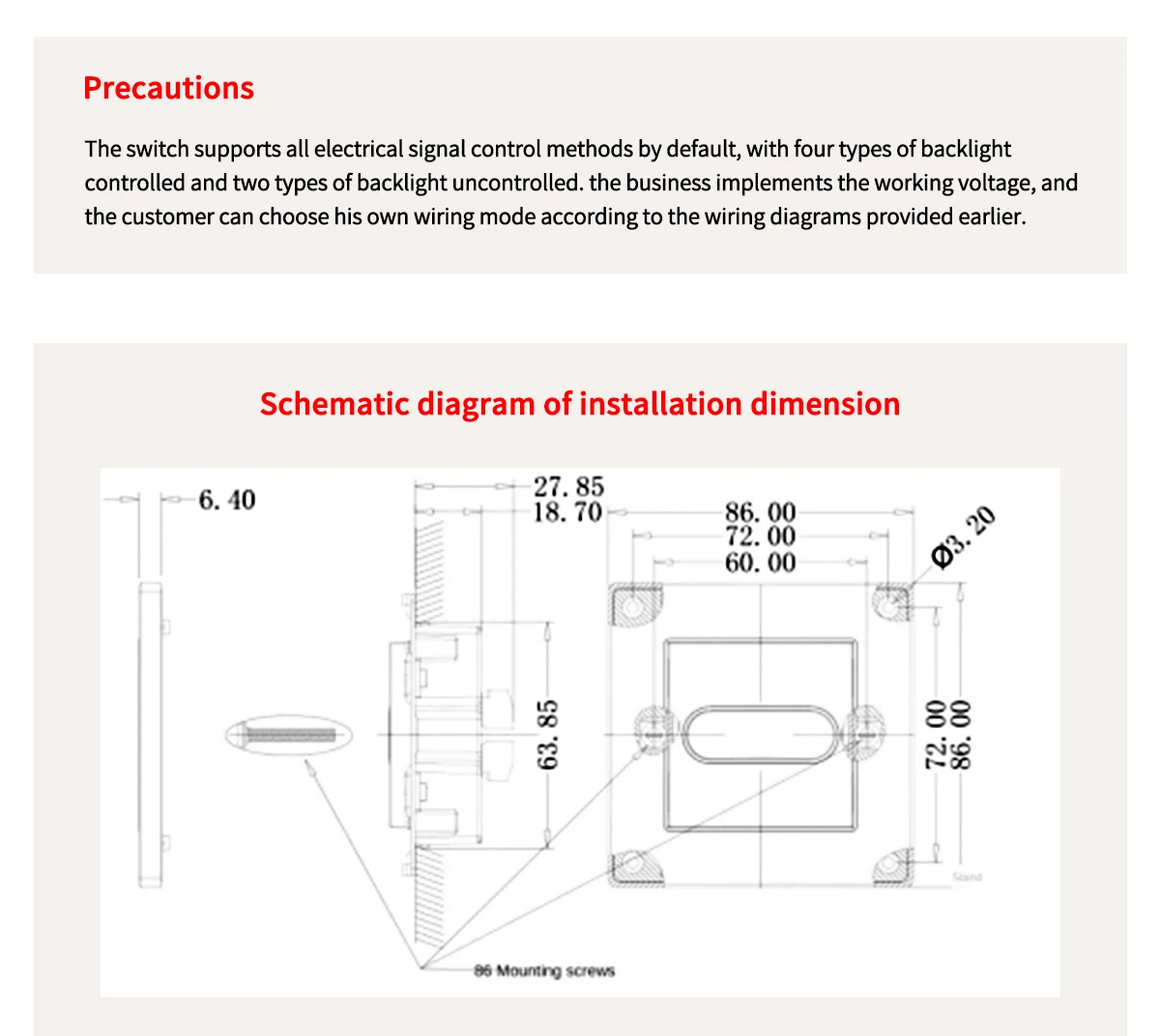

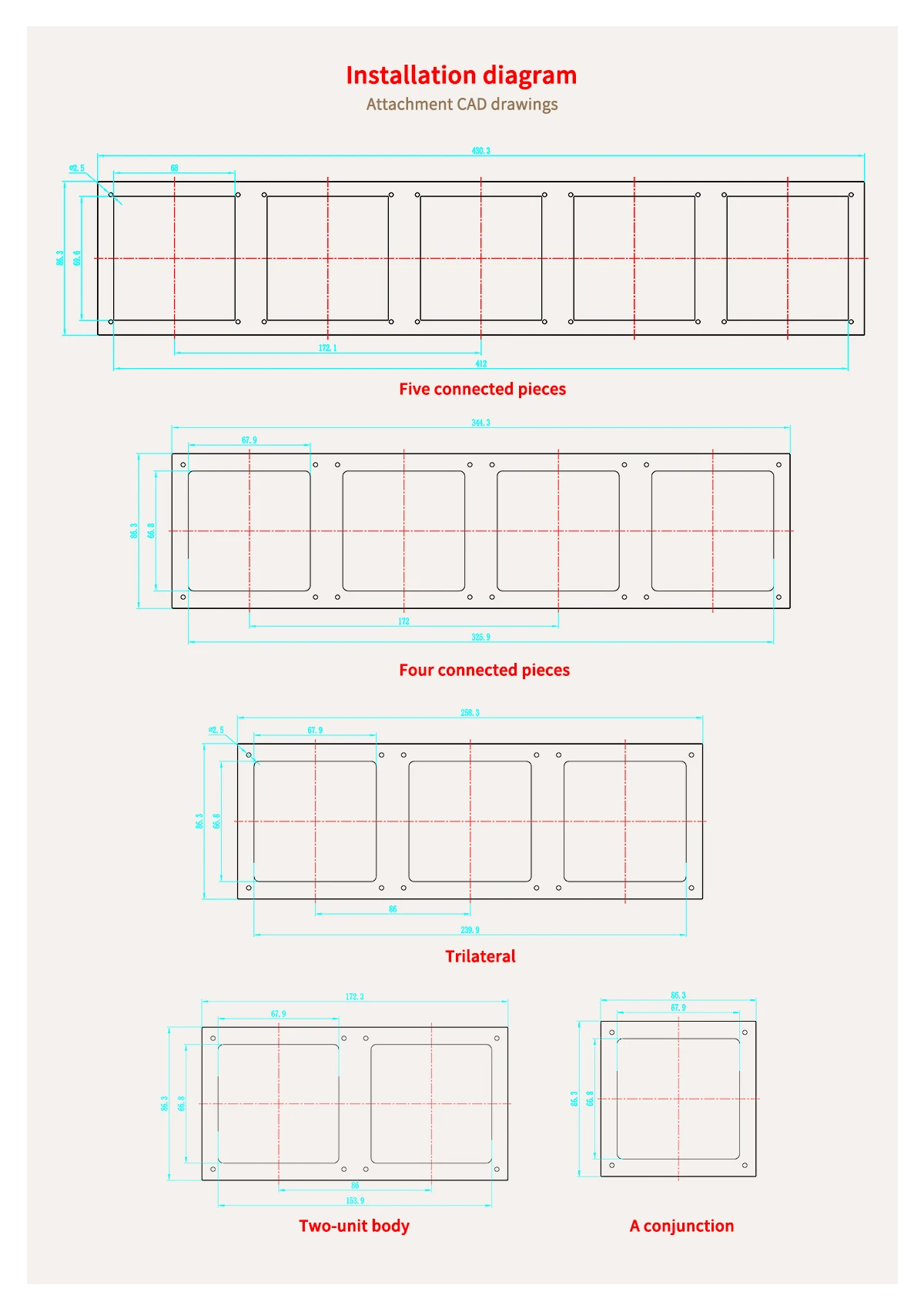

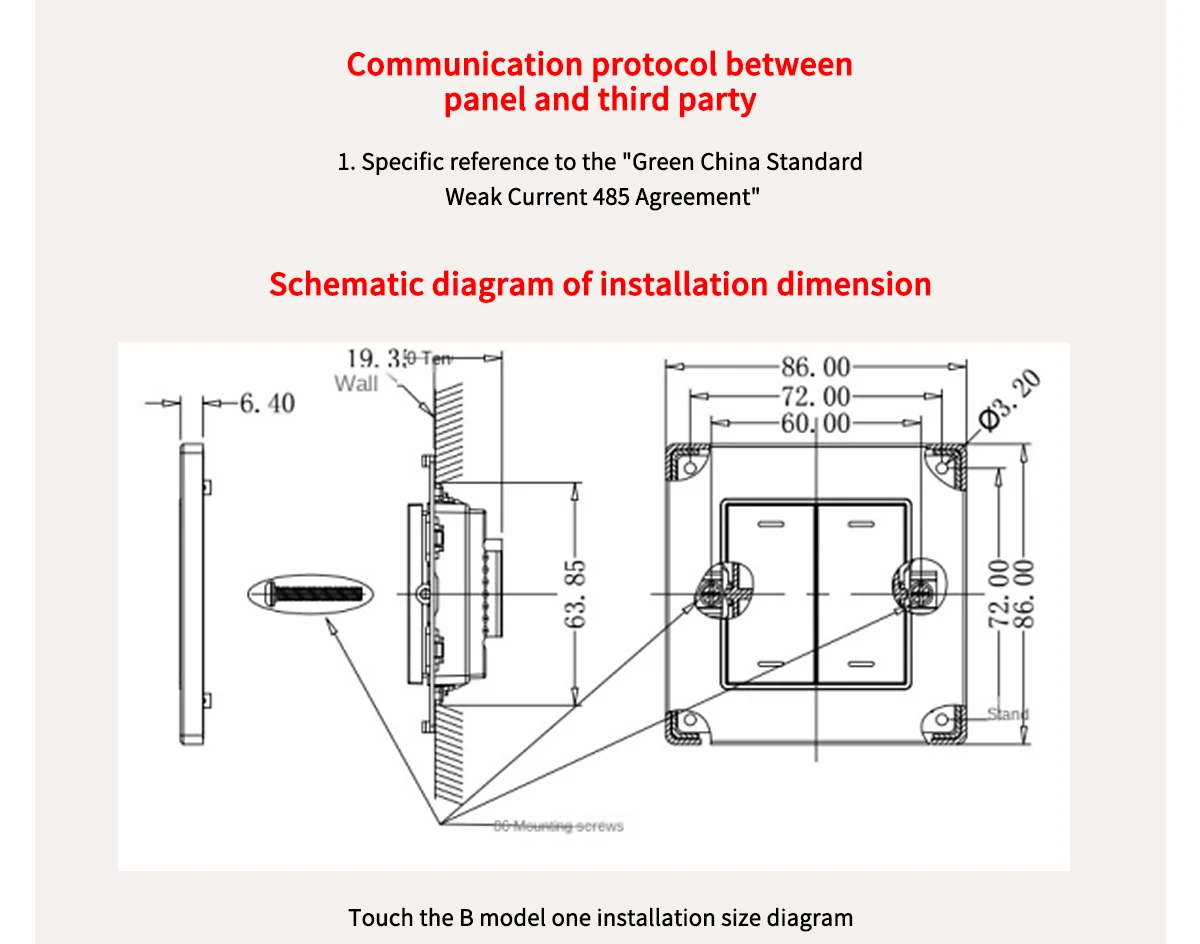

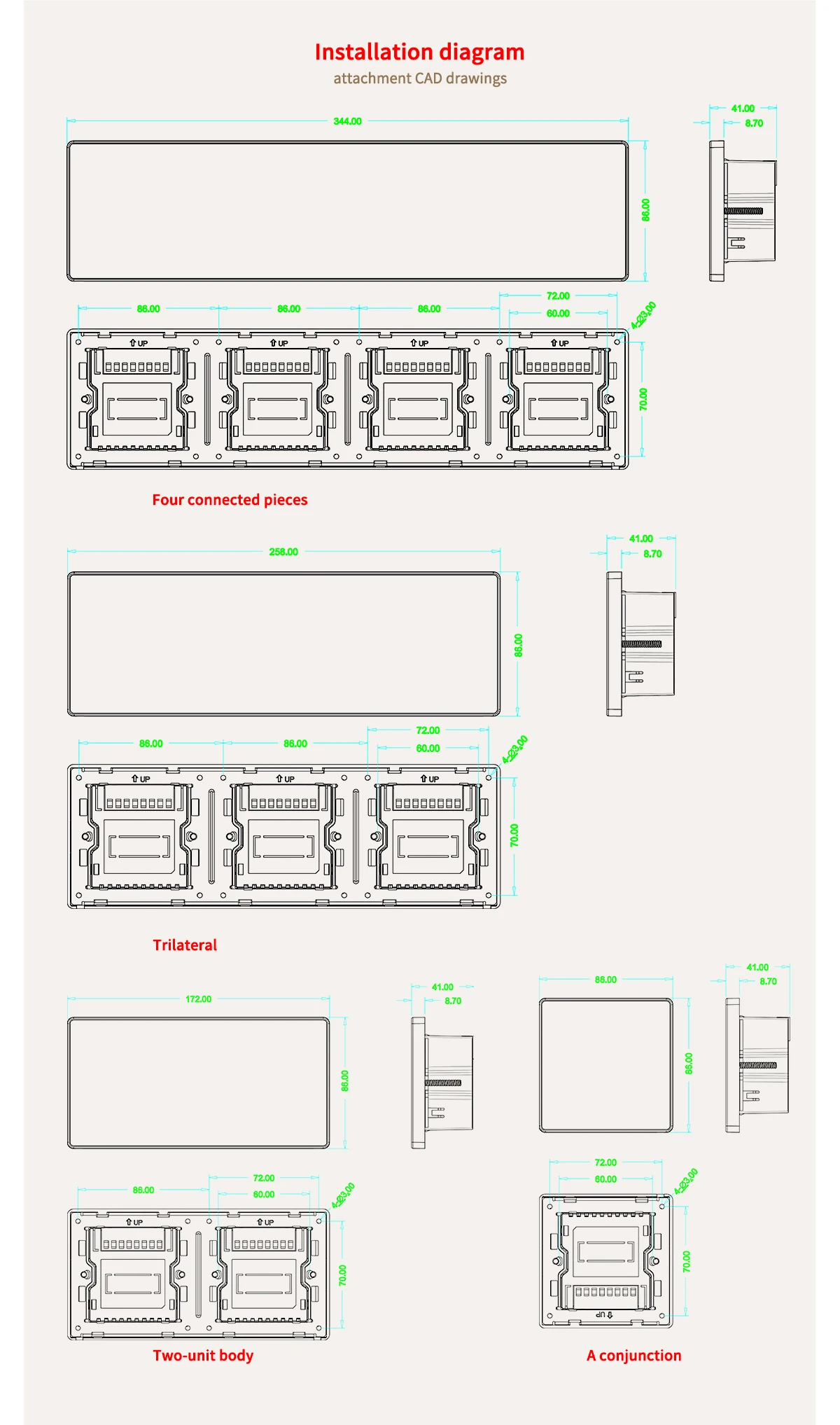

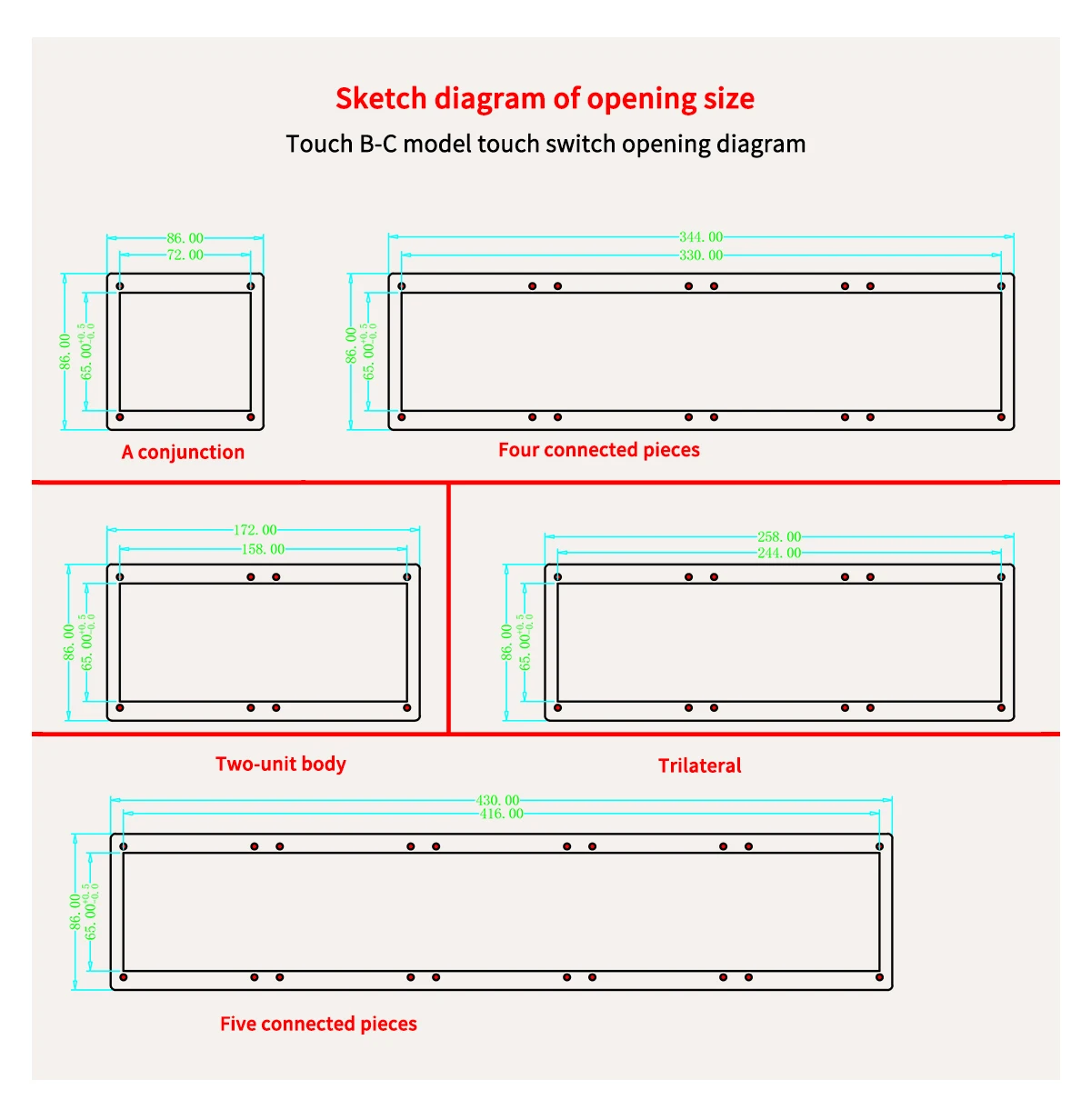

Five: Installation dimension diagram

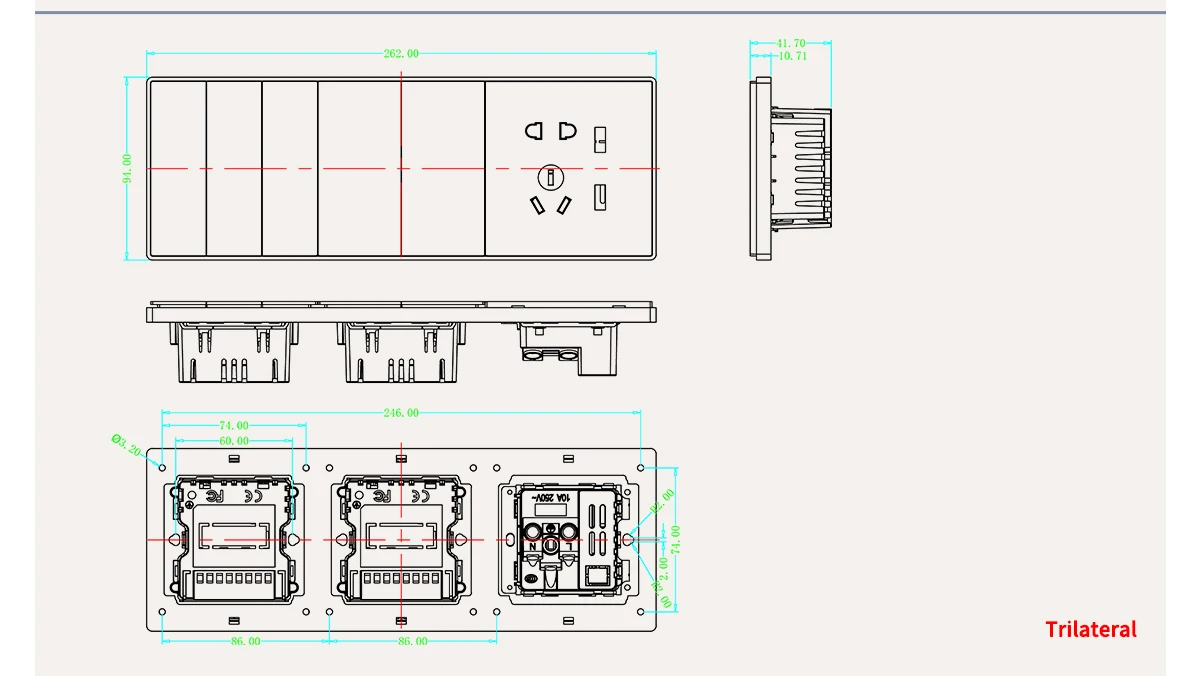

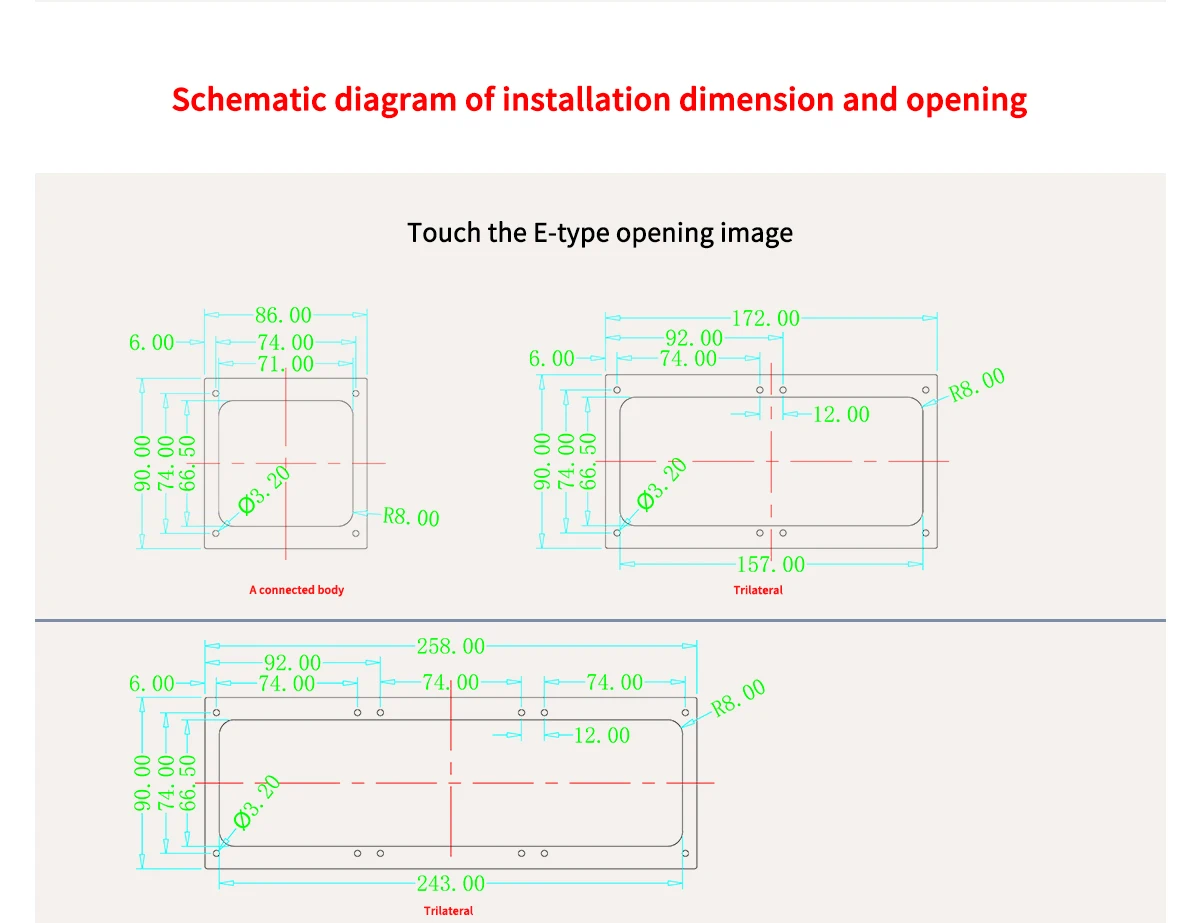

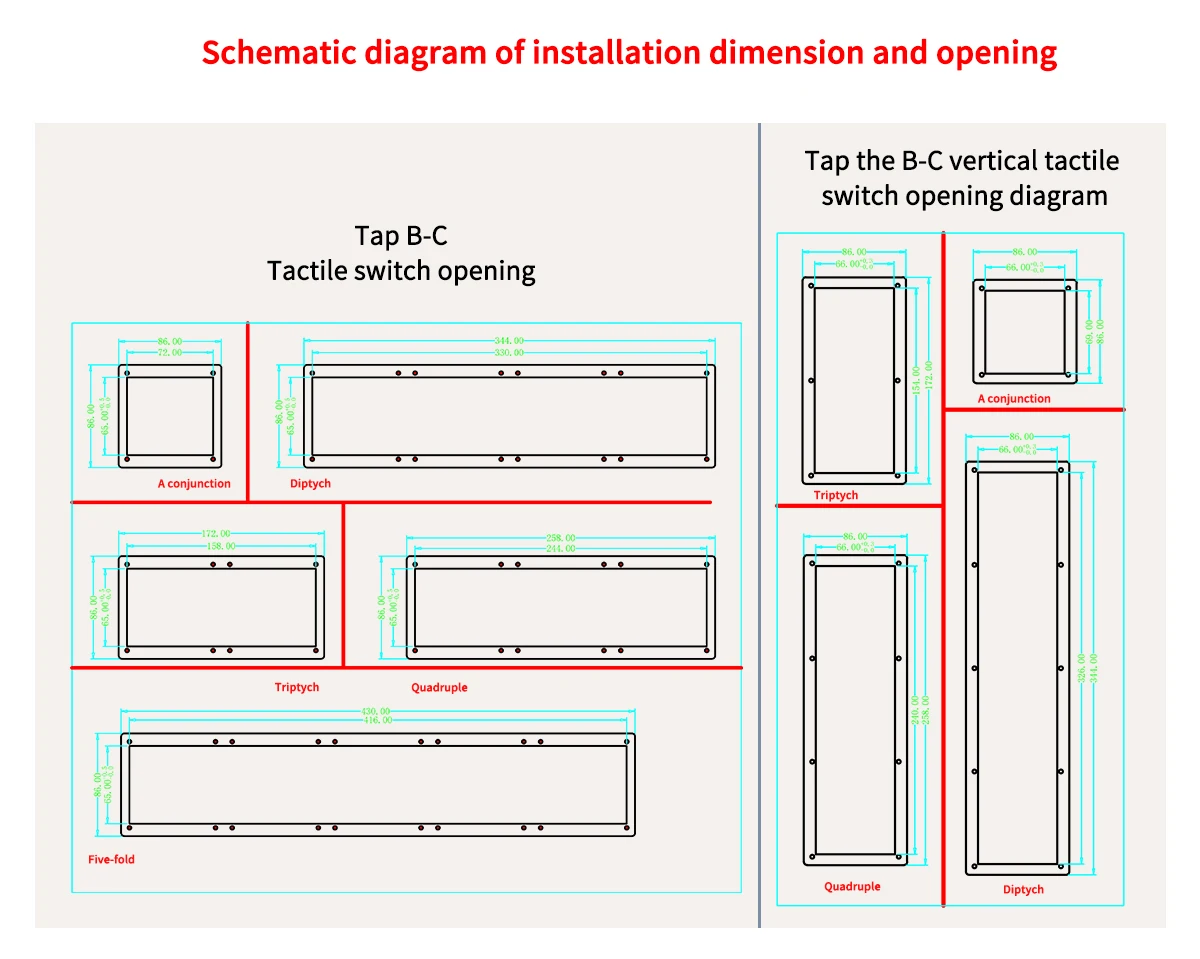

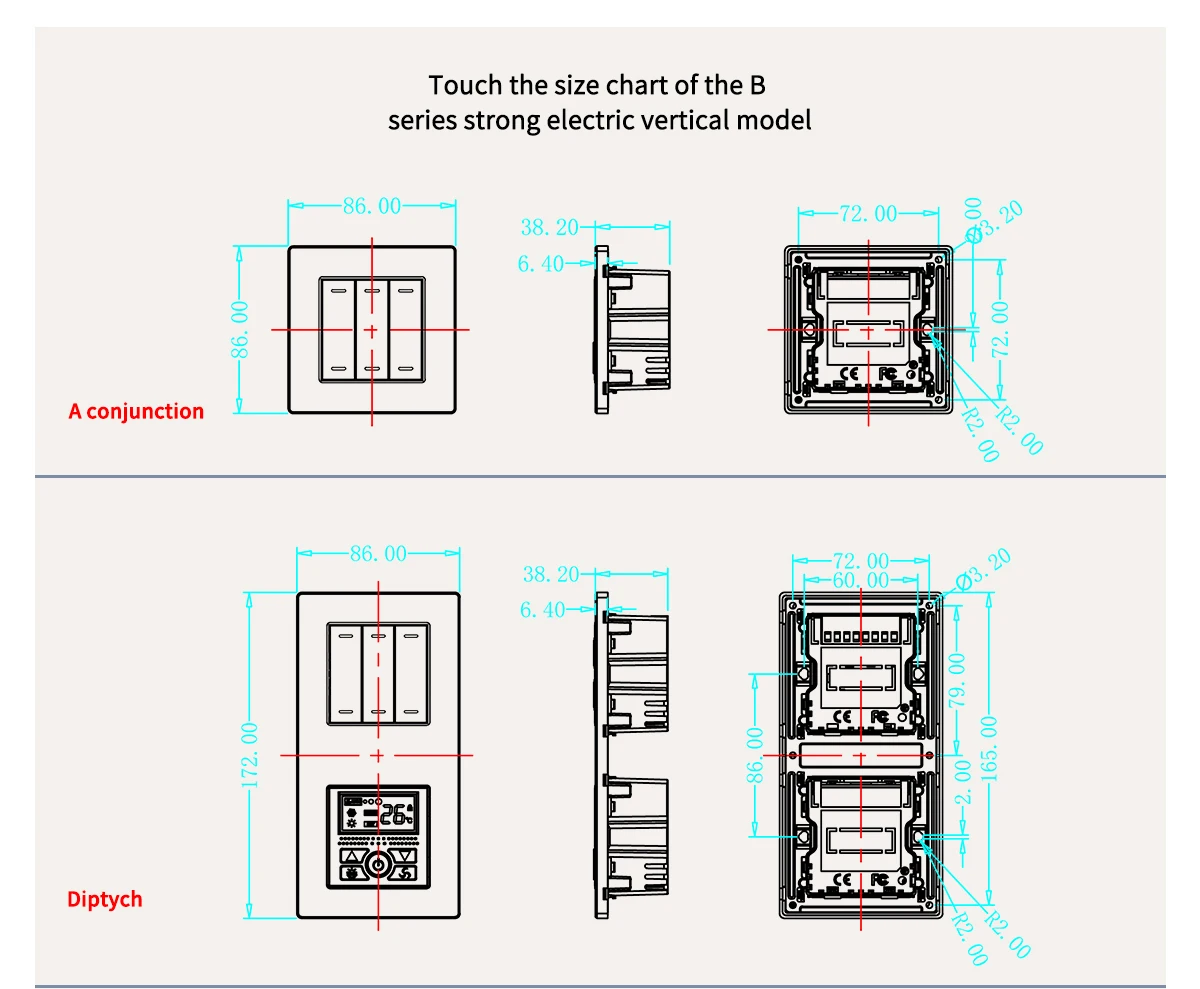

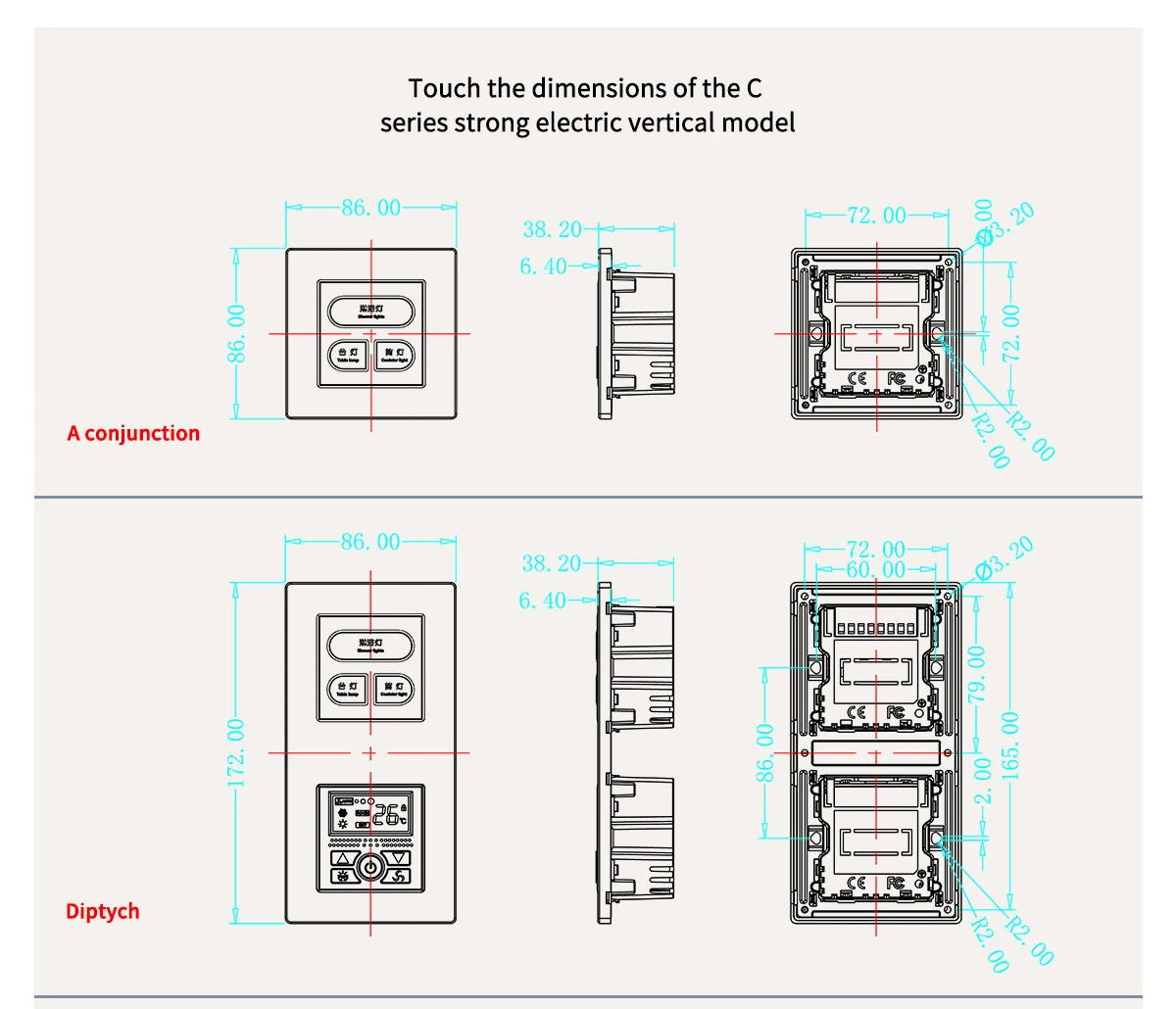

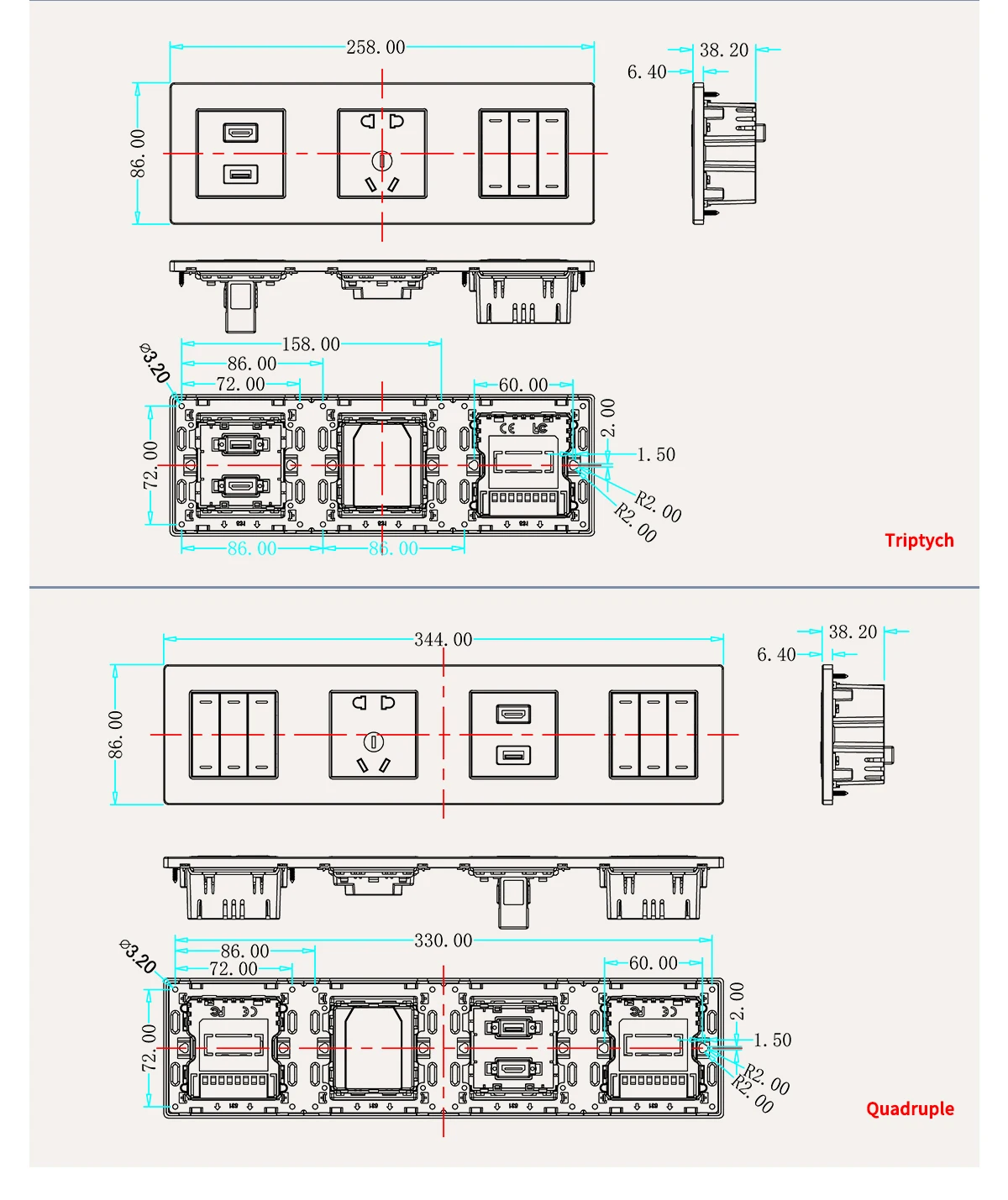

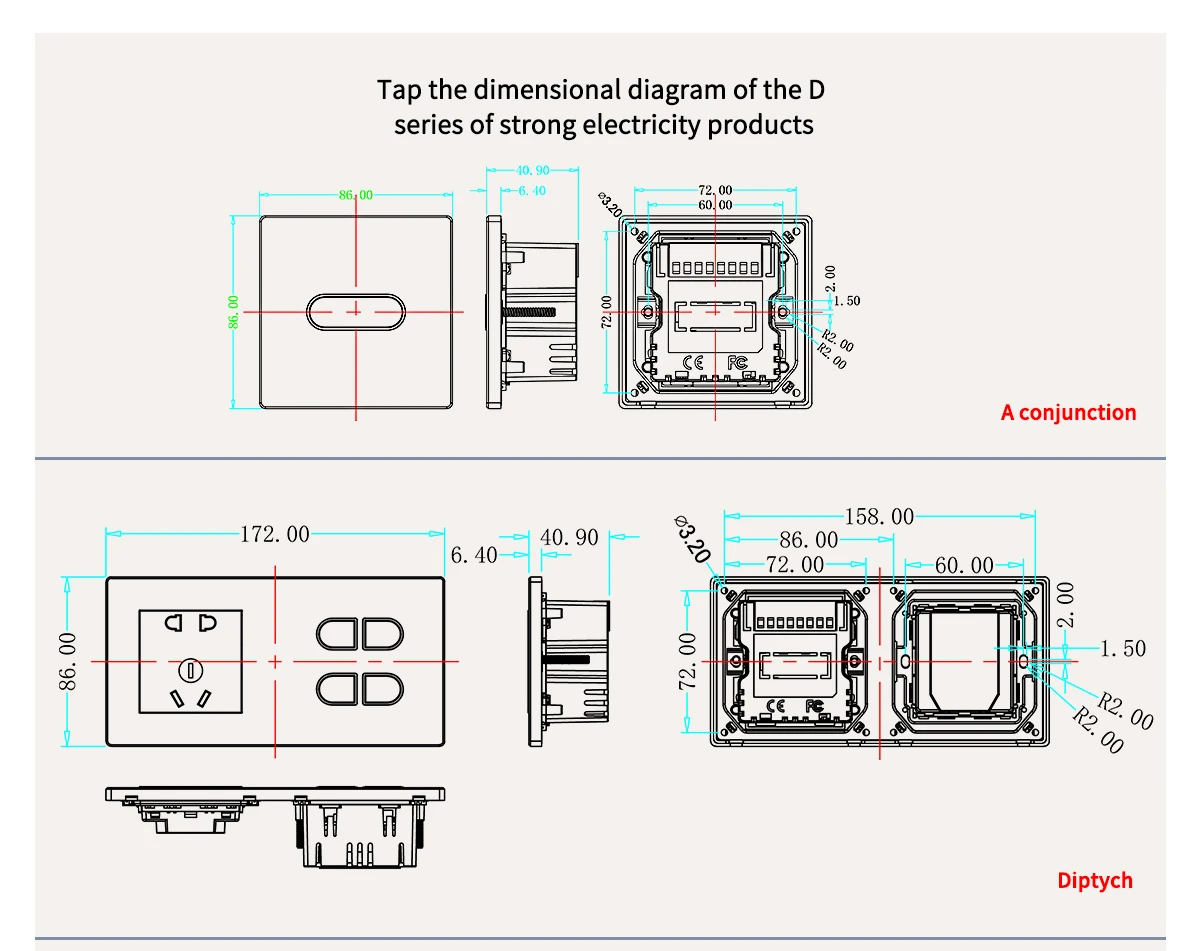

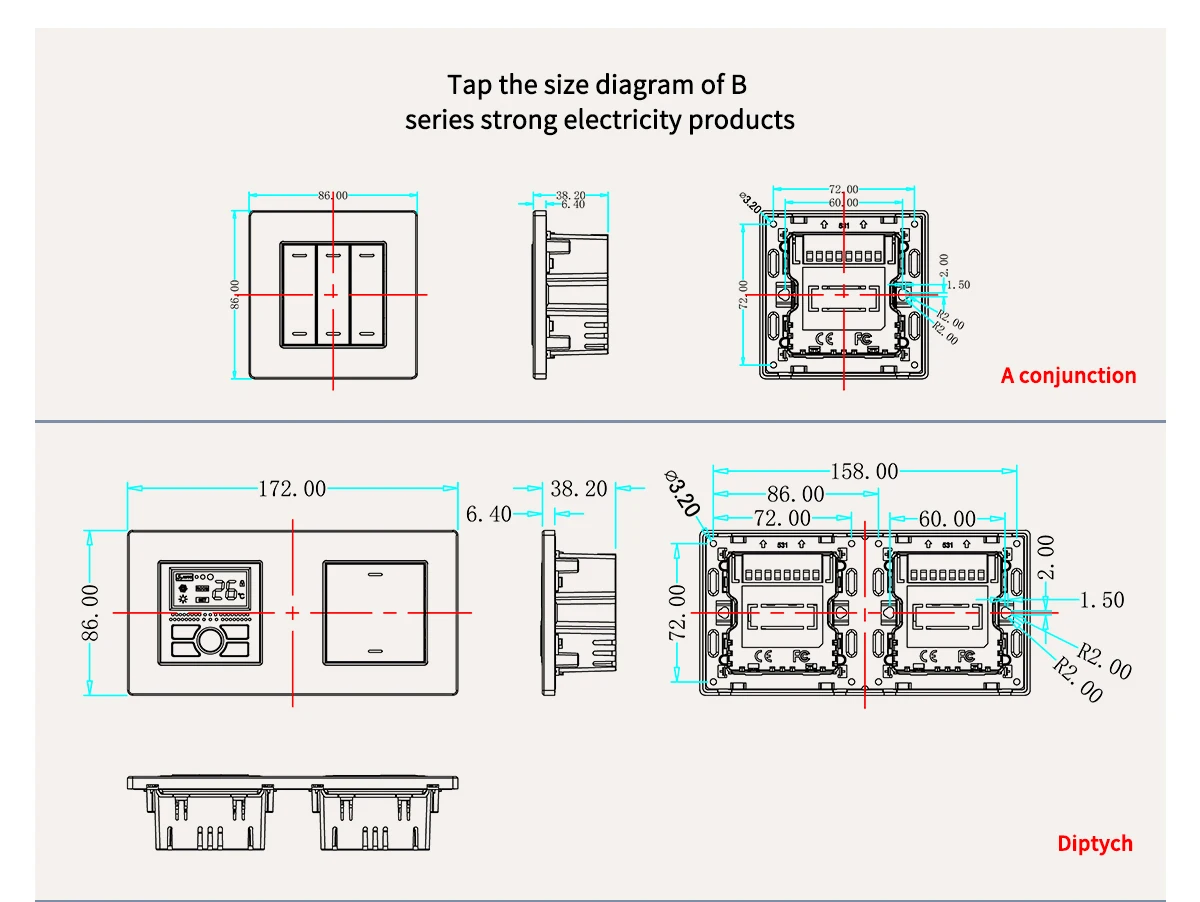

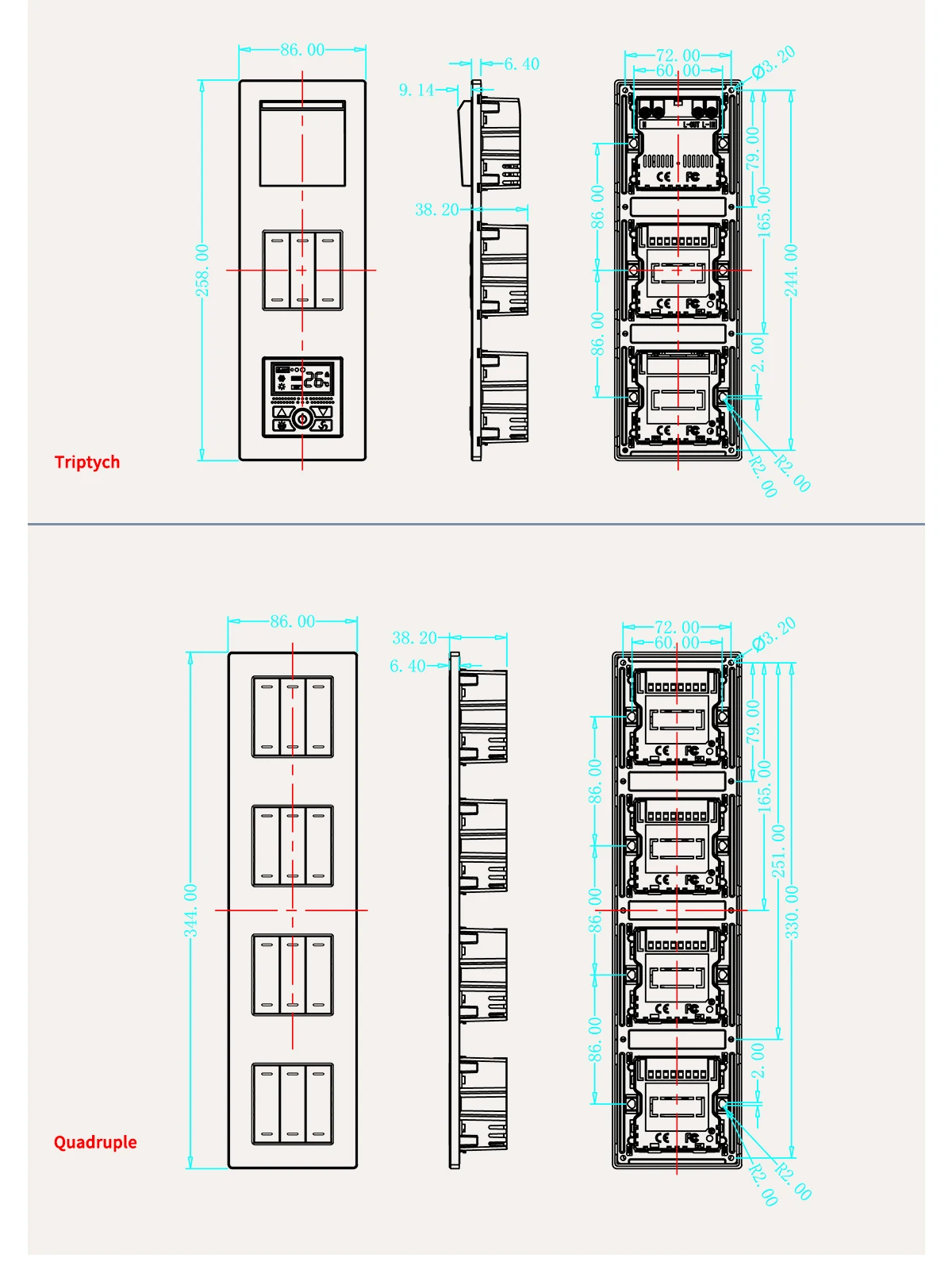

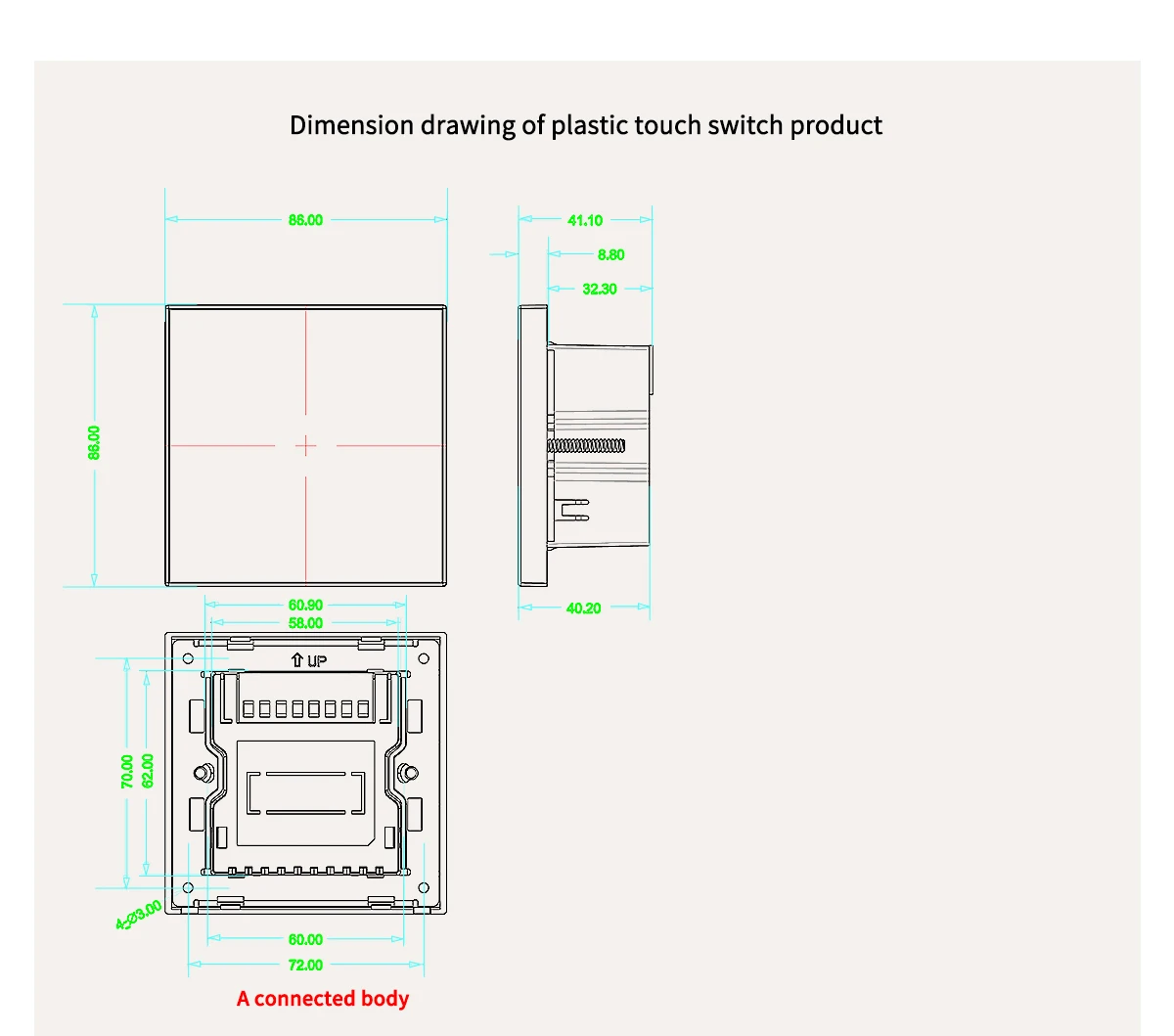

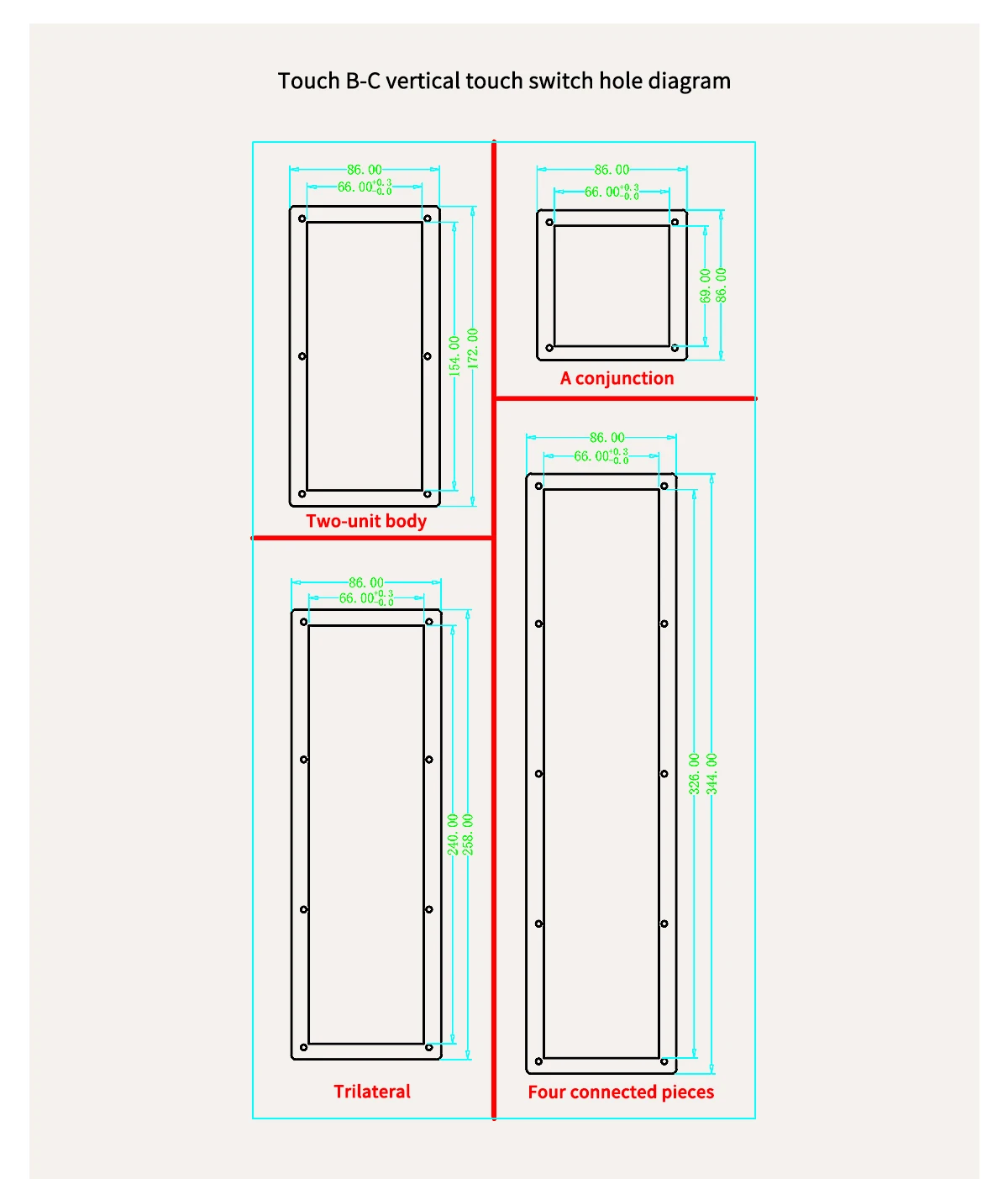

Schematic diagram of installation dimensions for touch C single unit

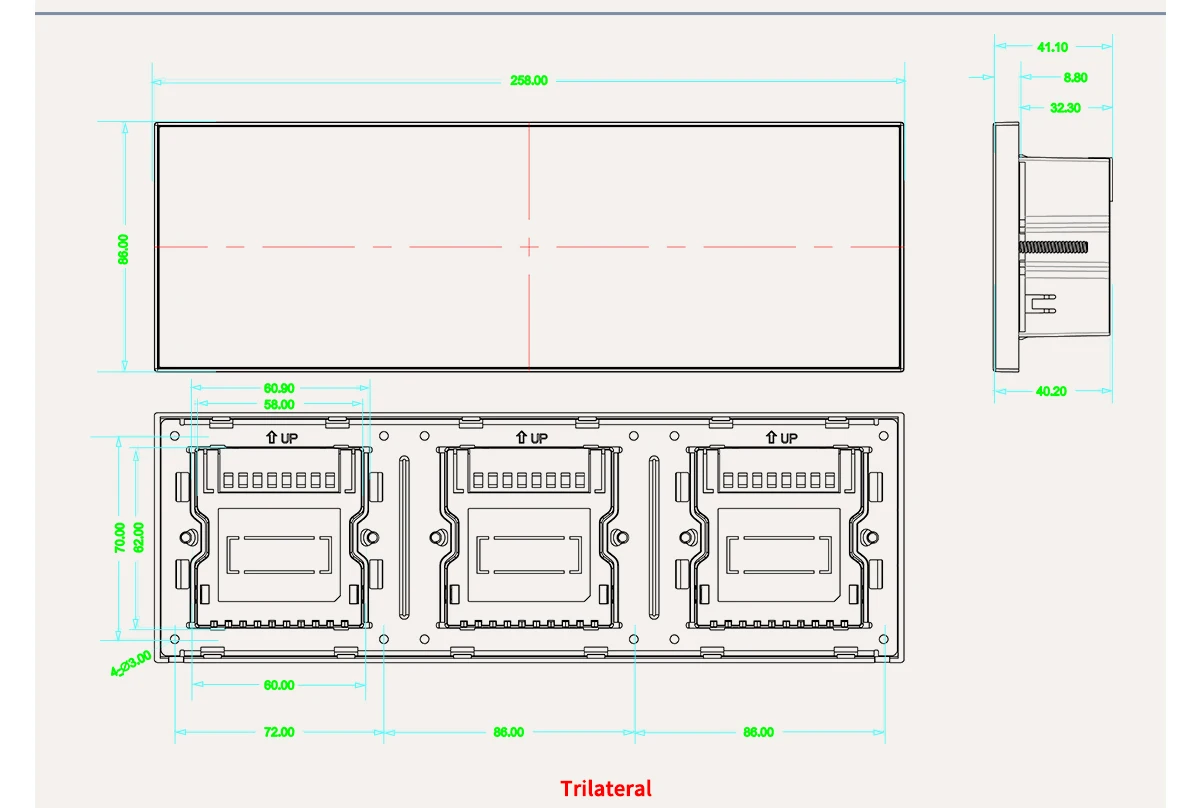

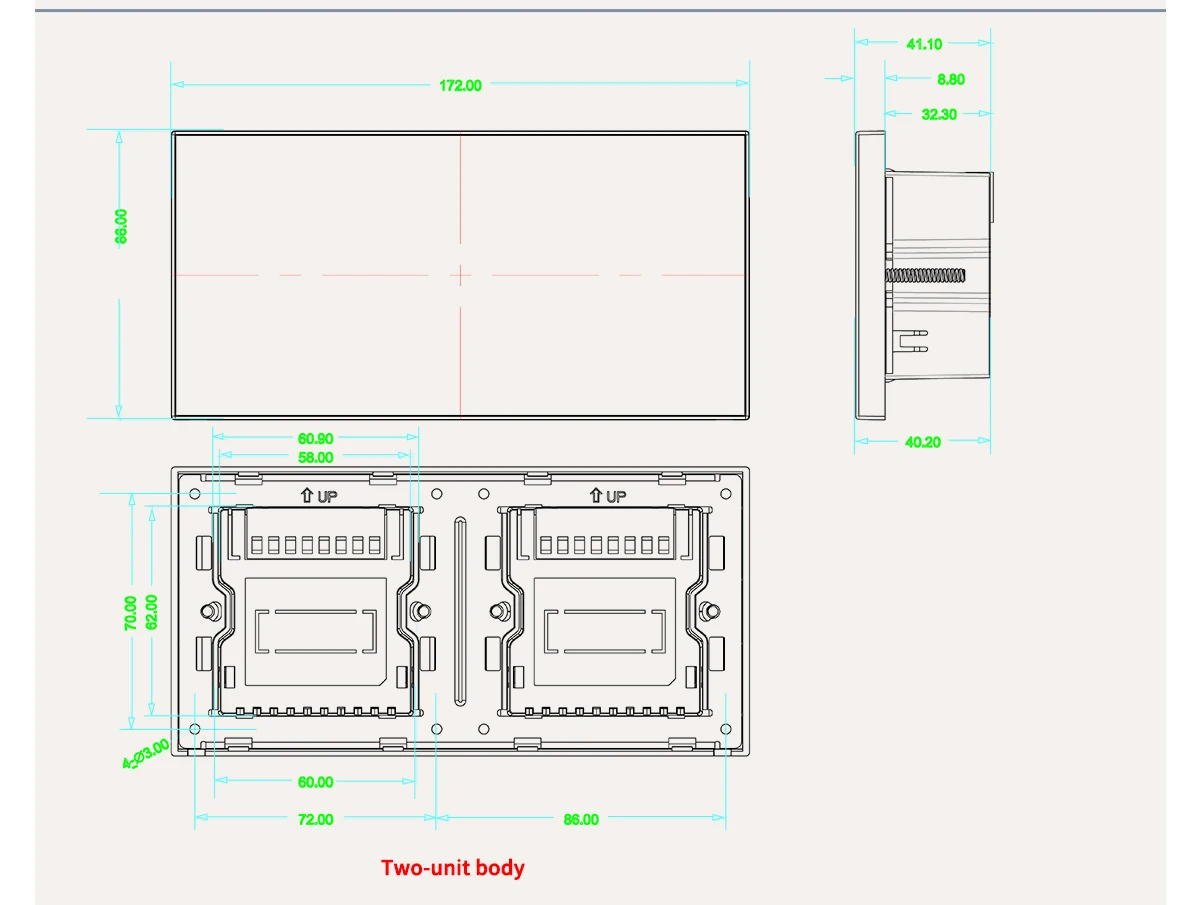

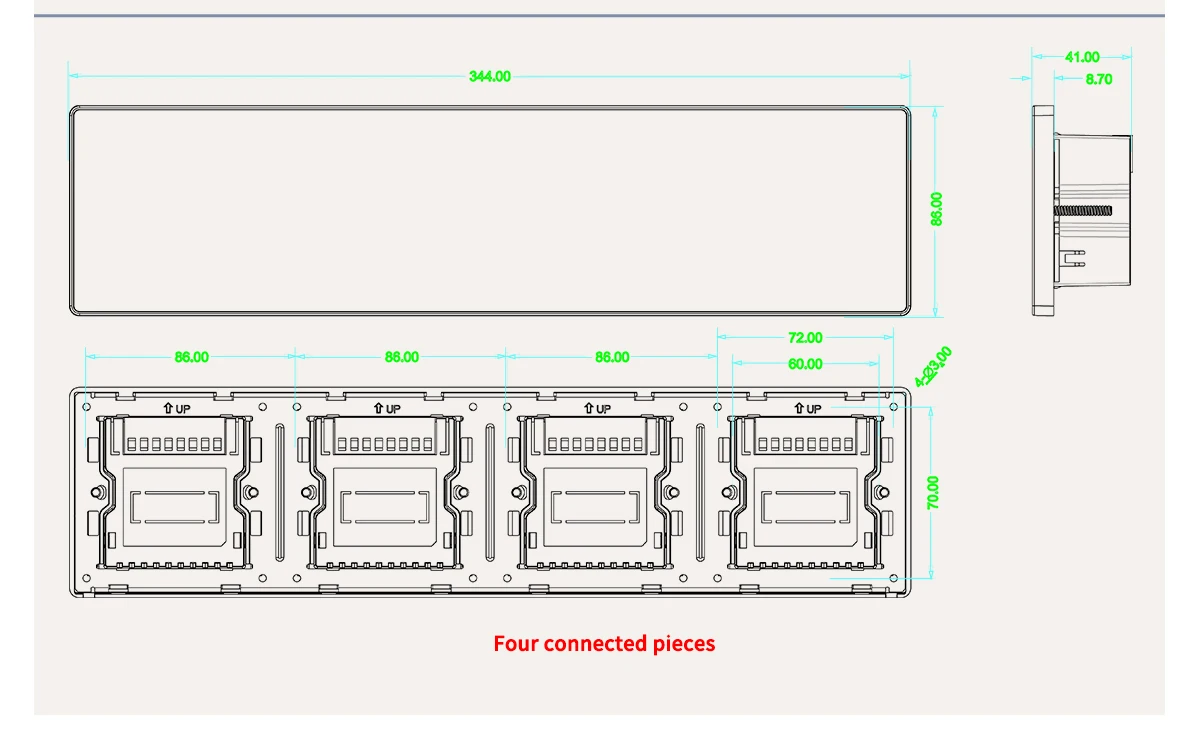

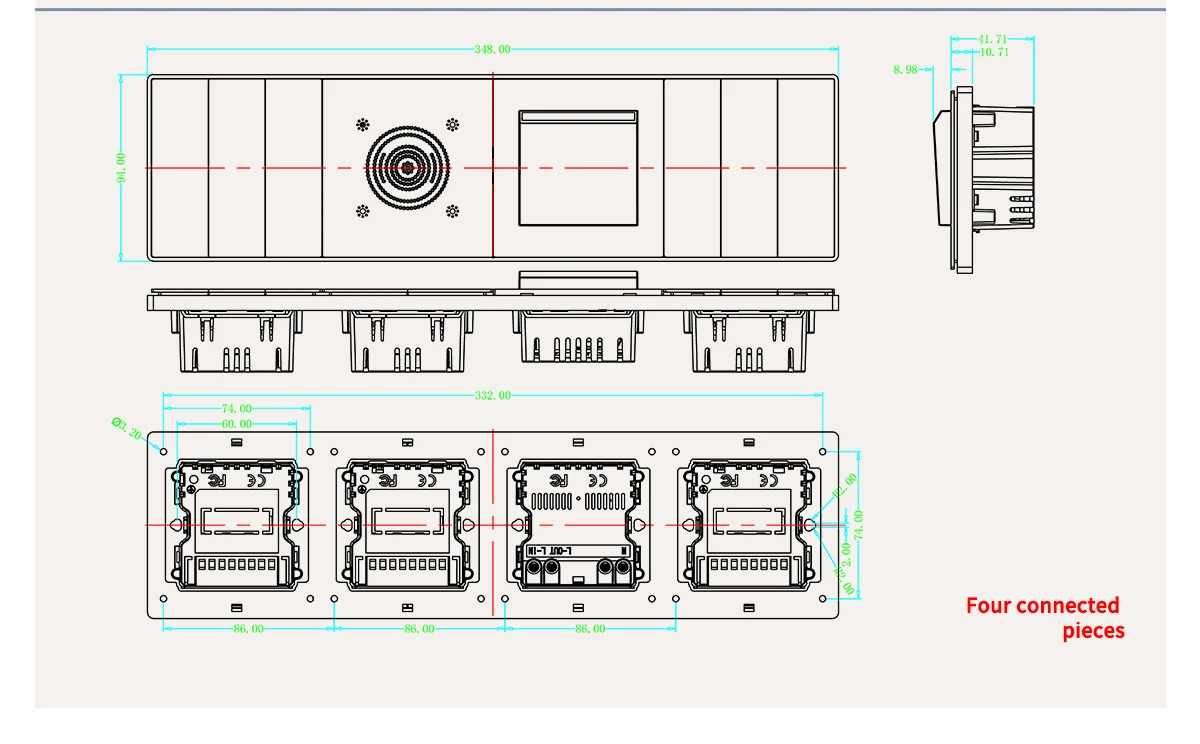

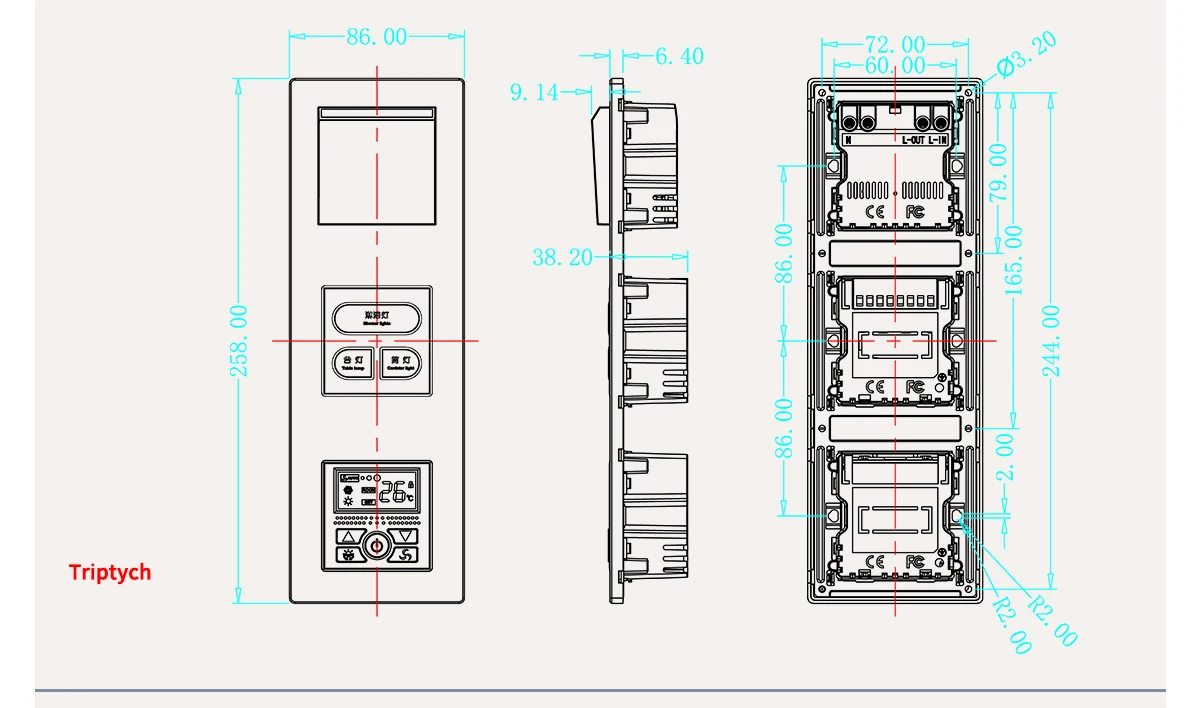

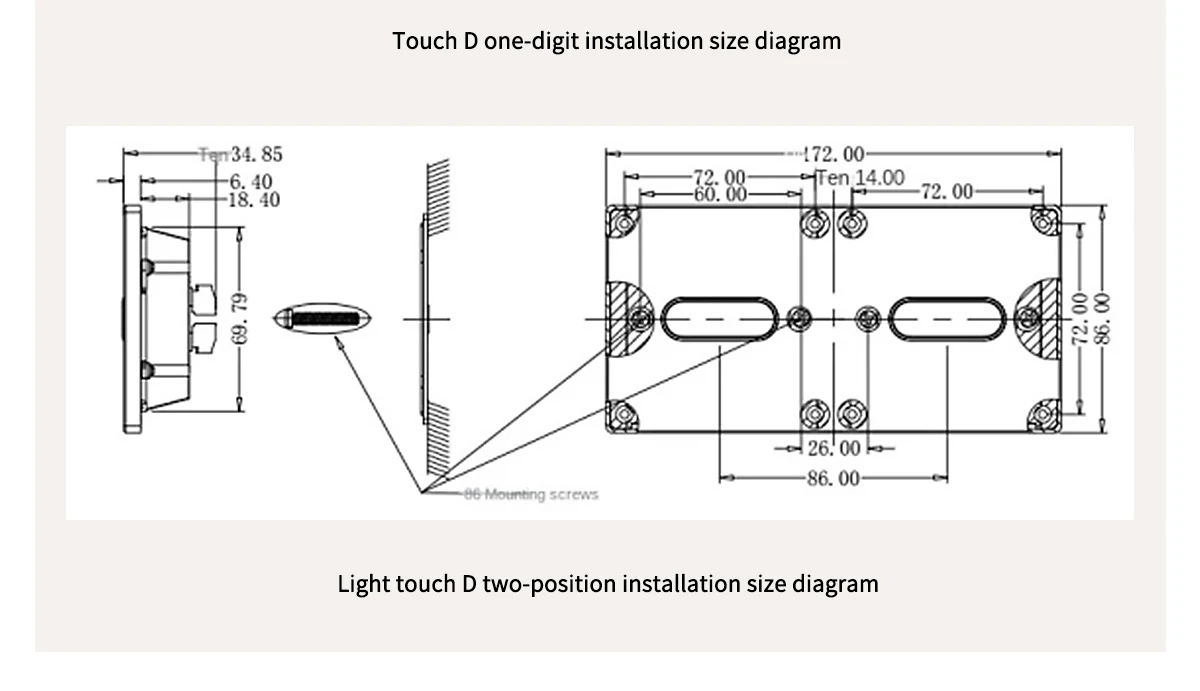

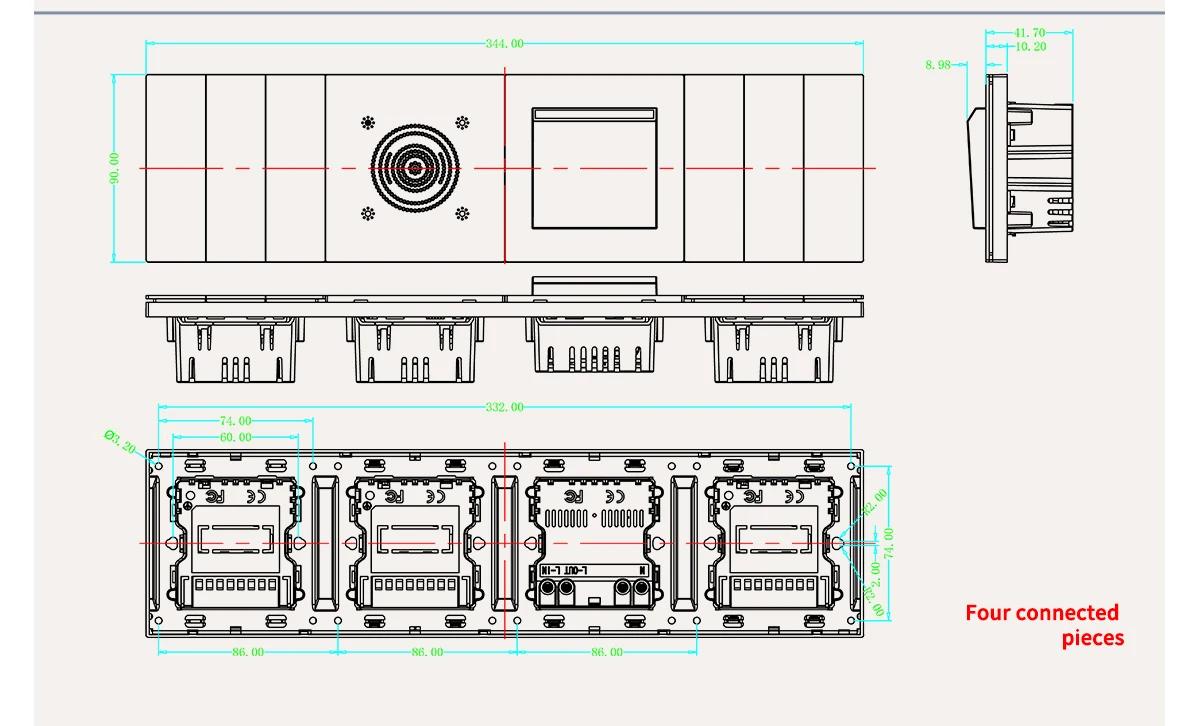

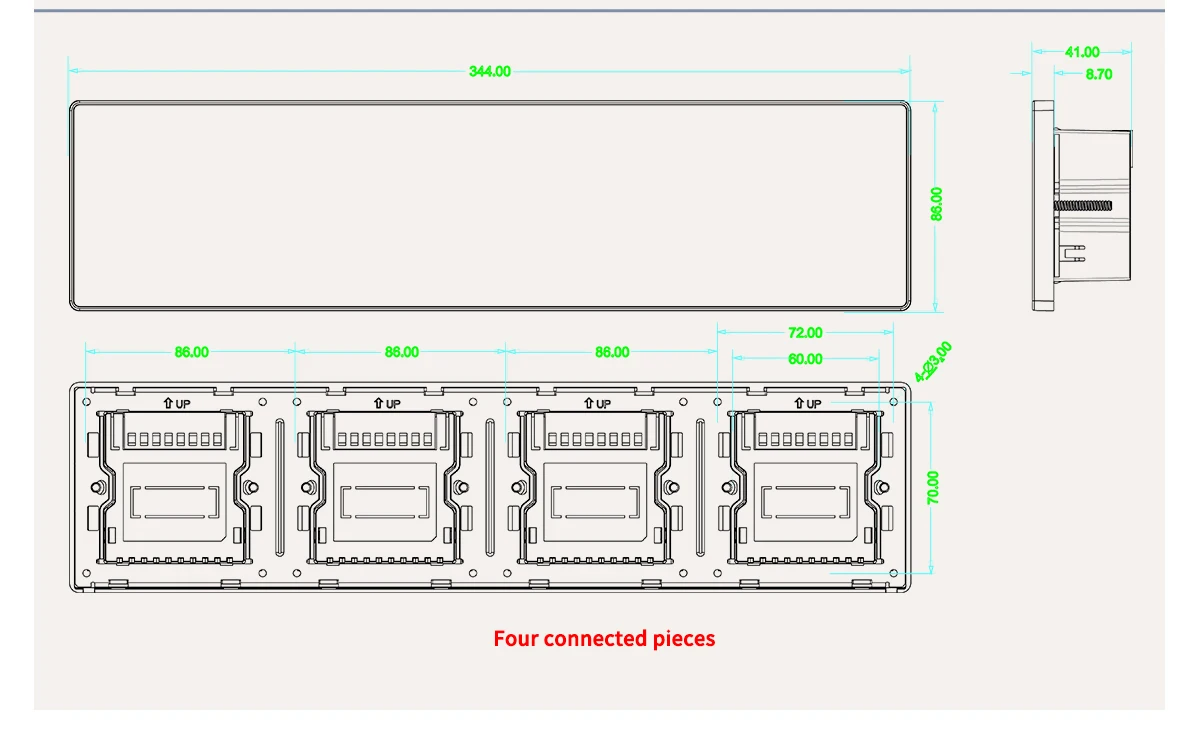

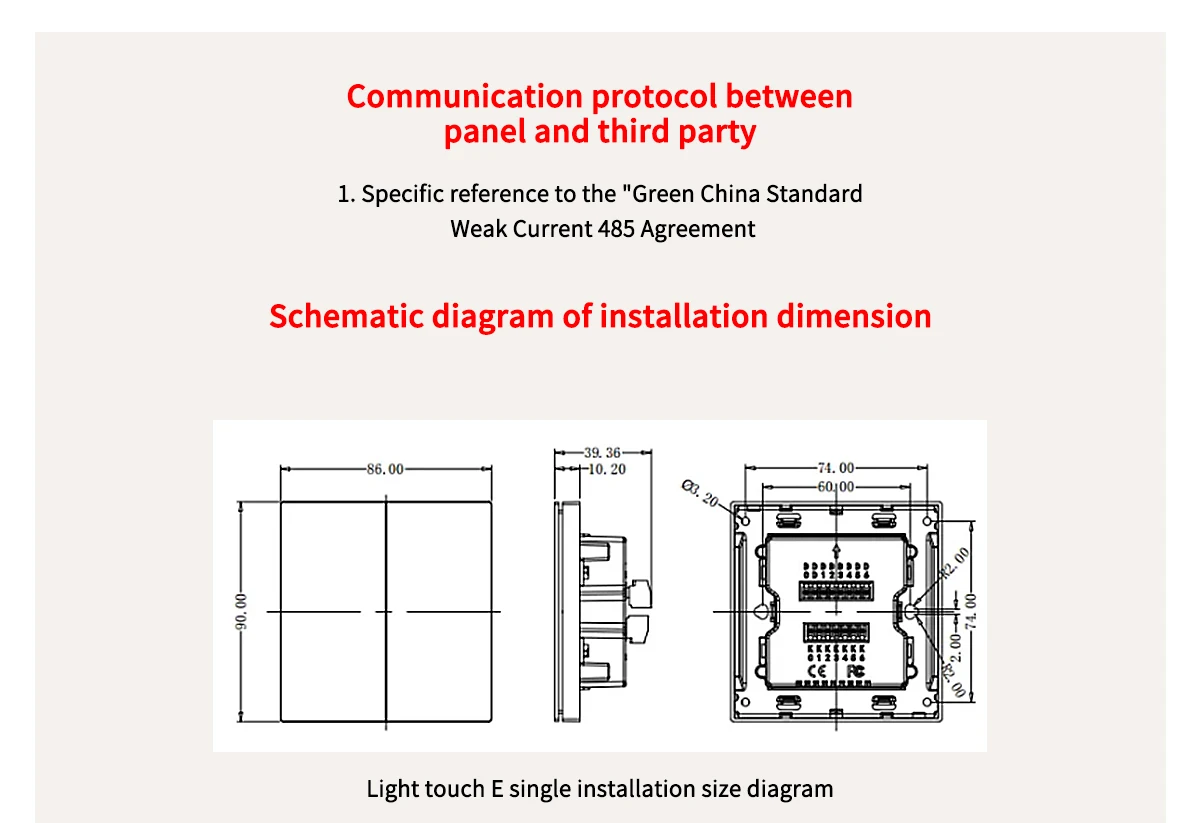

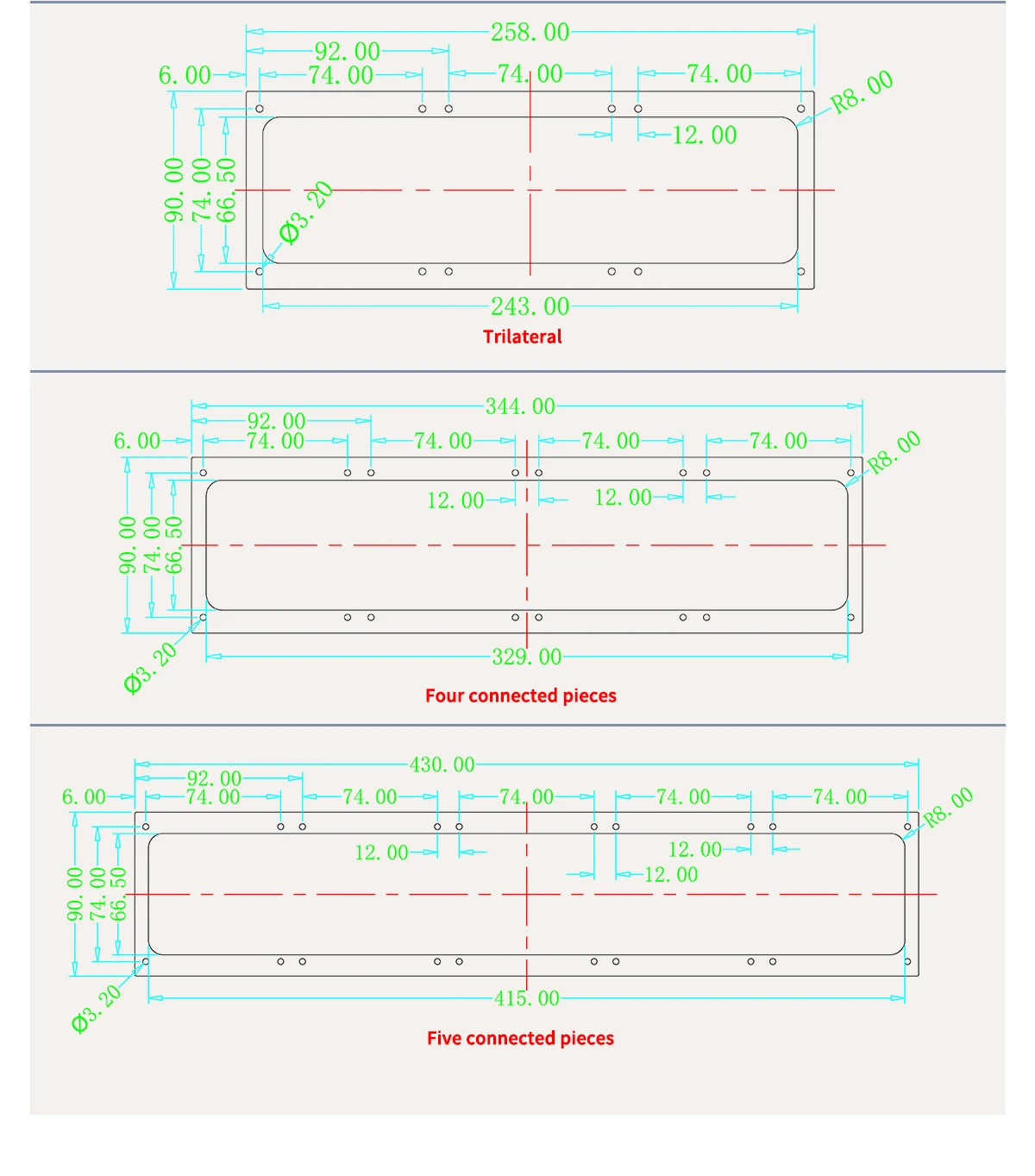

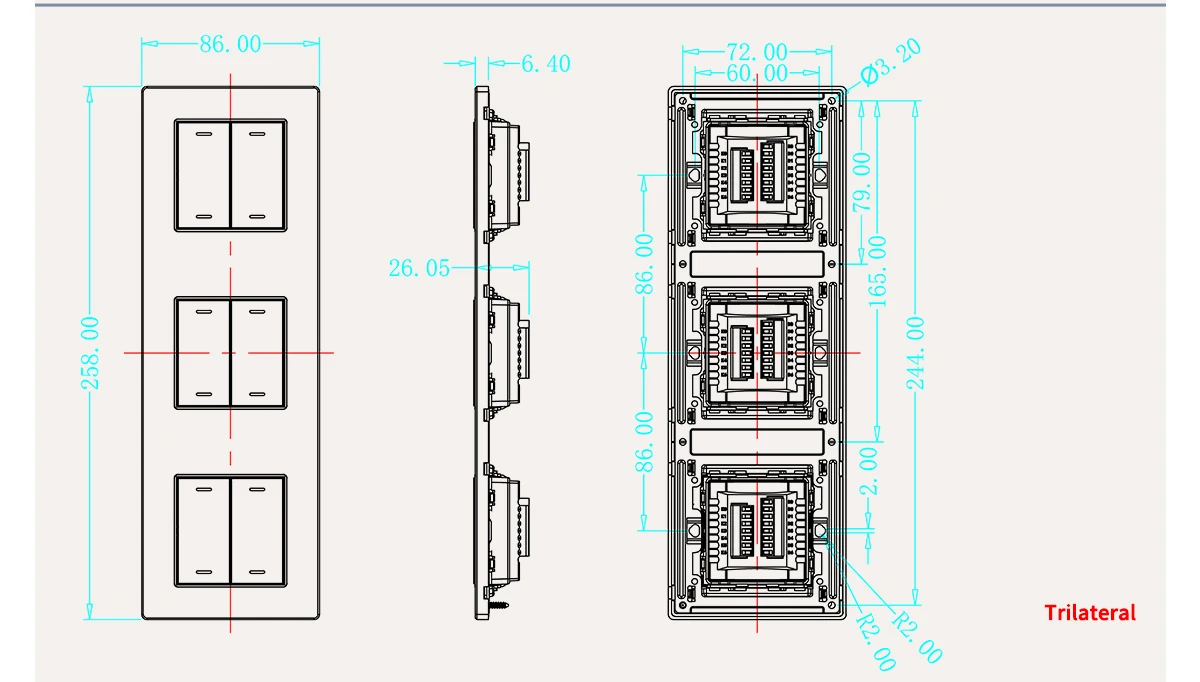

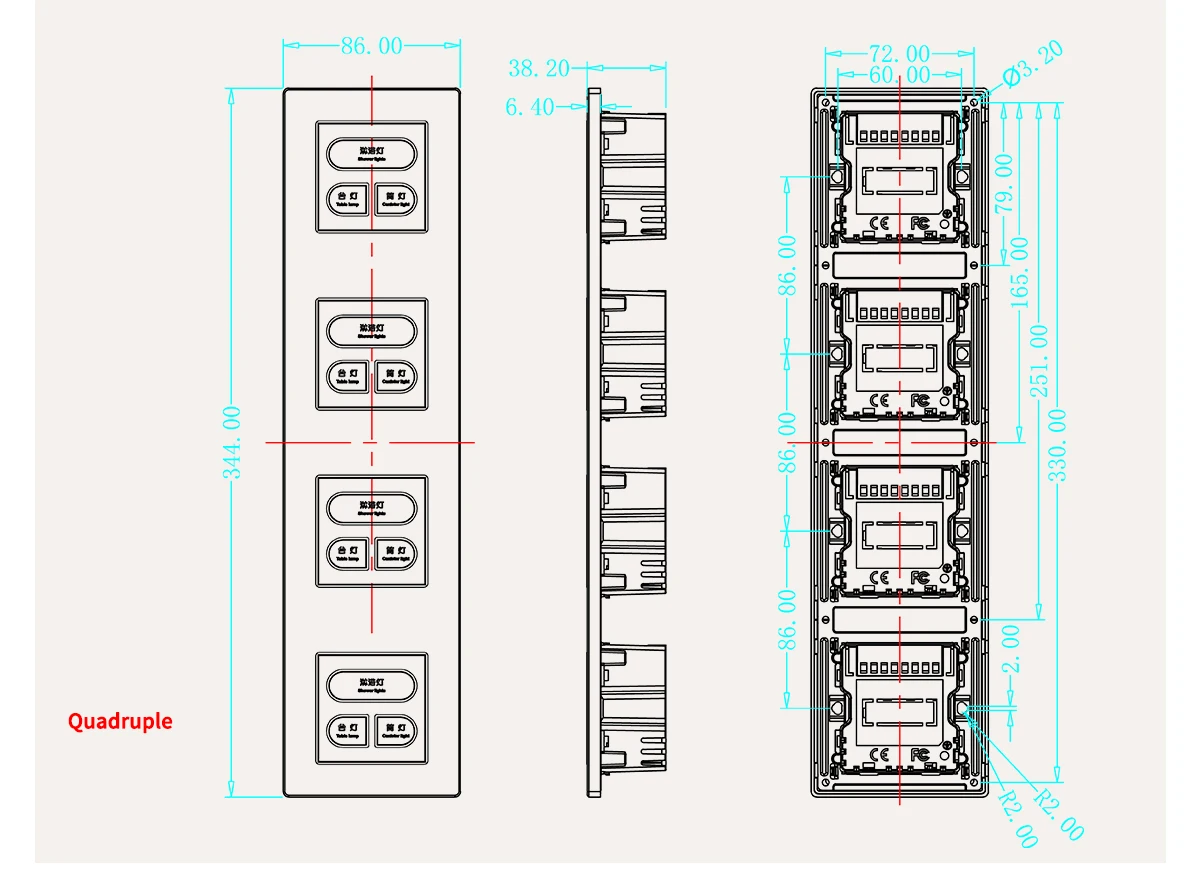

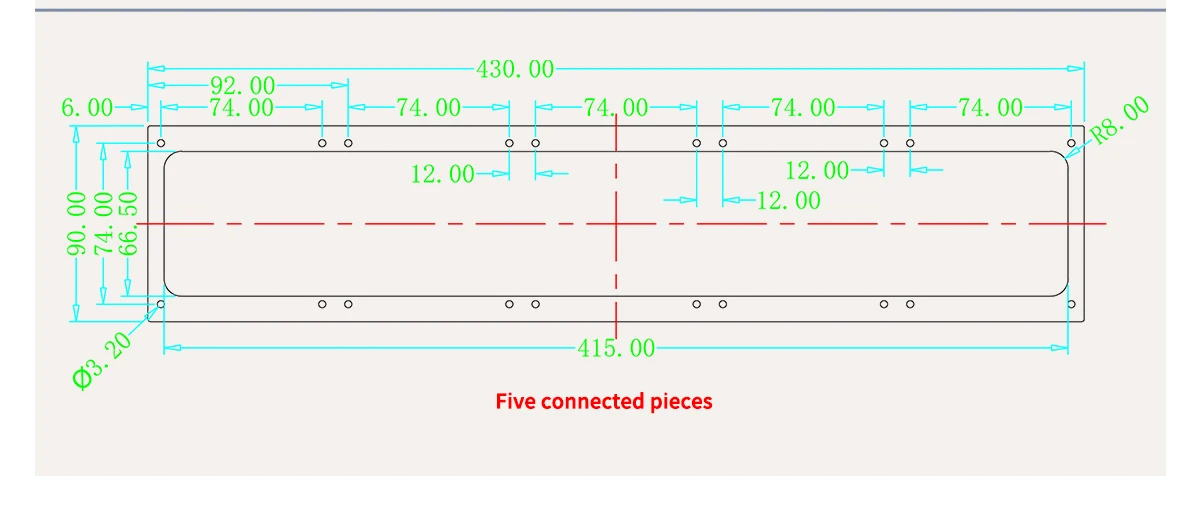

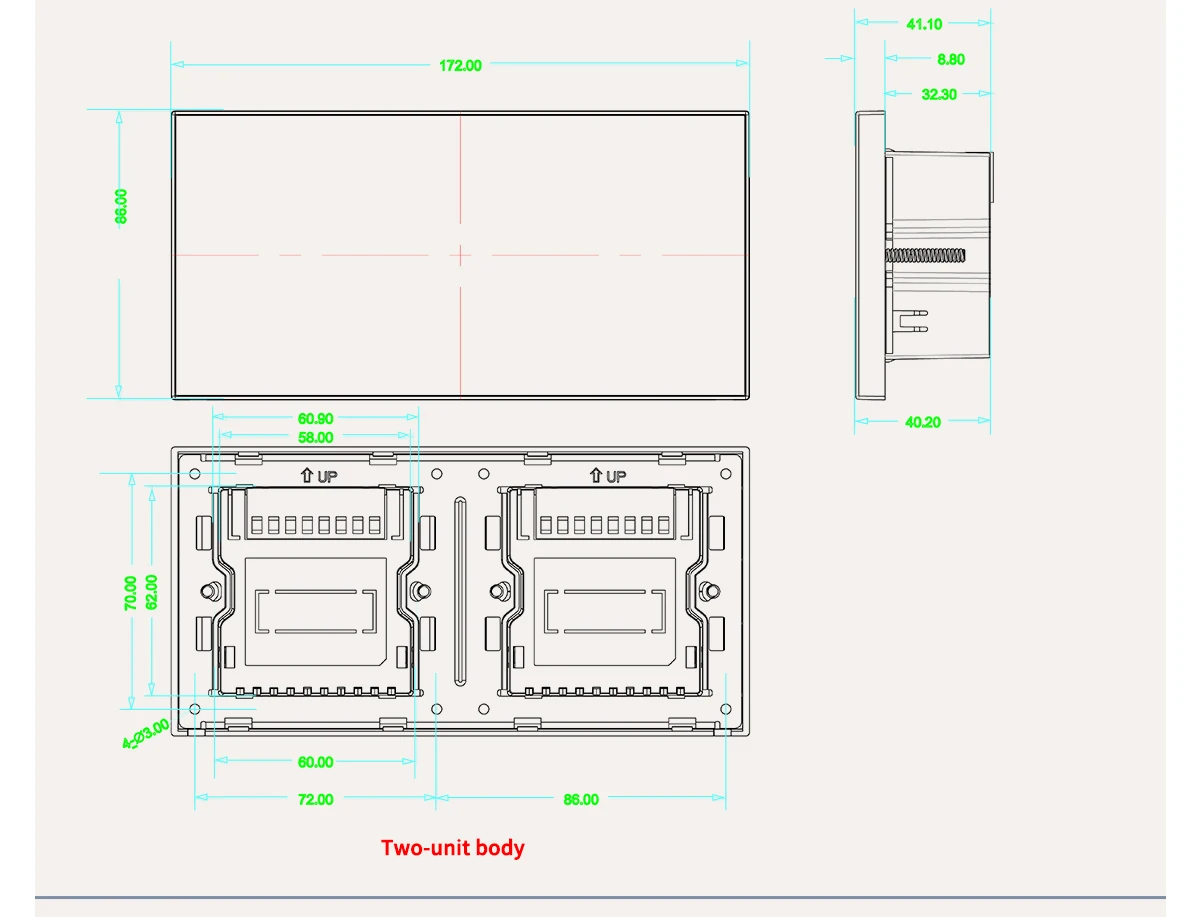

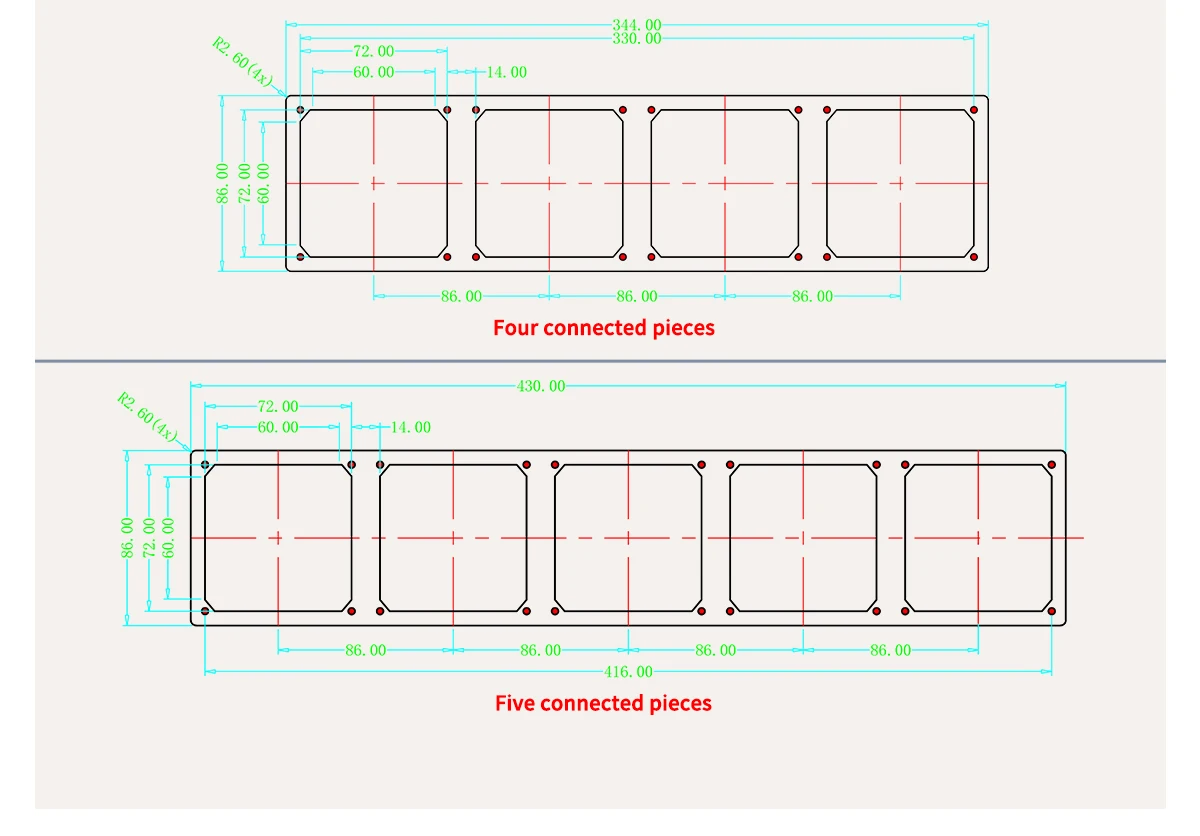

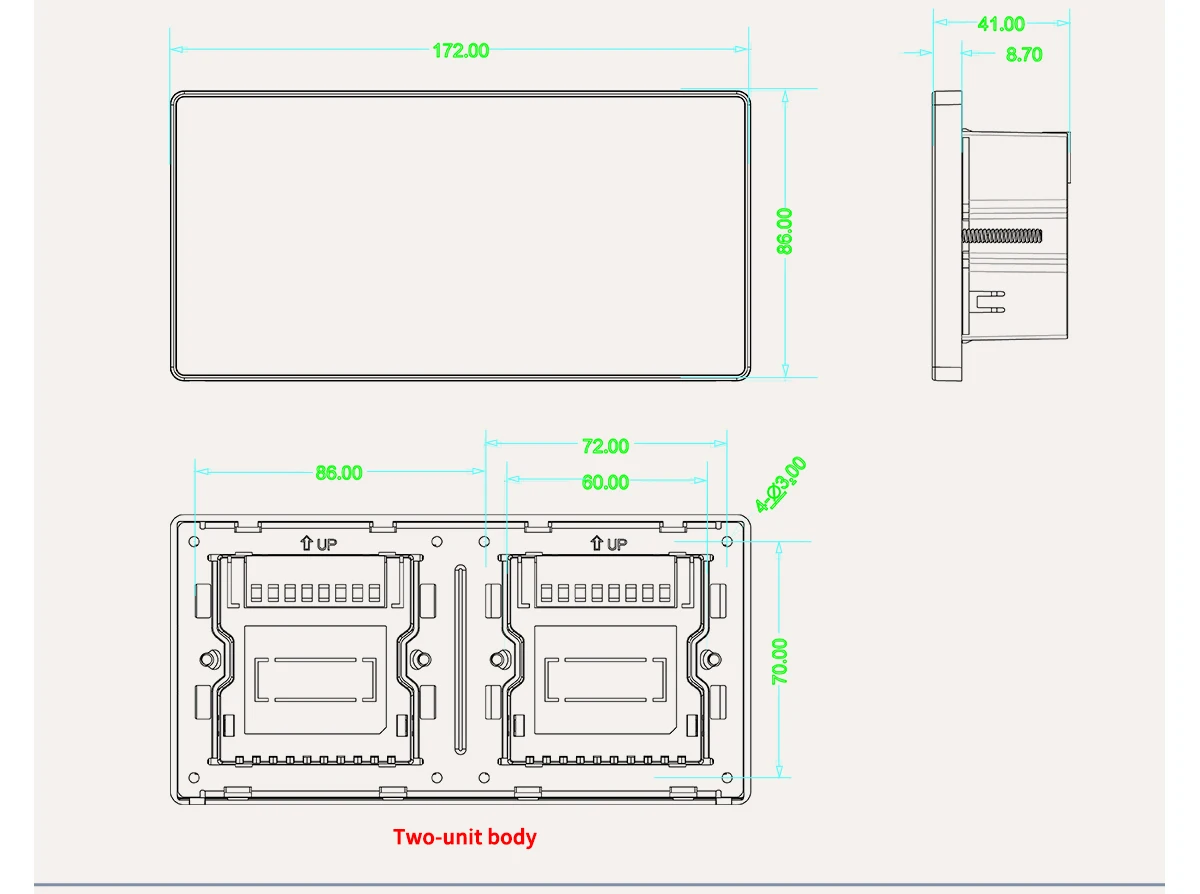

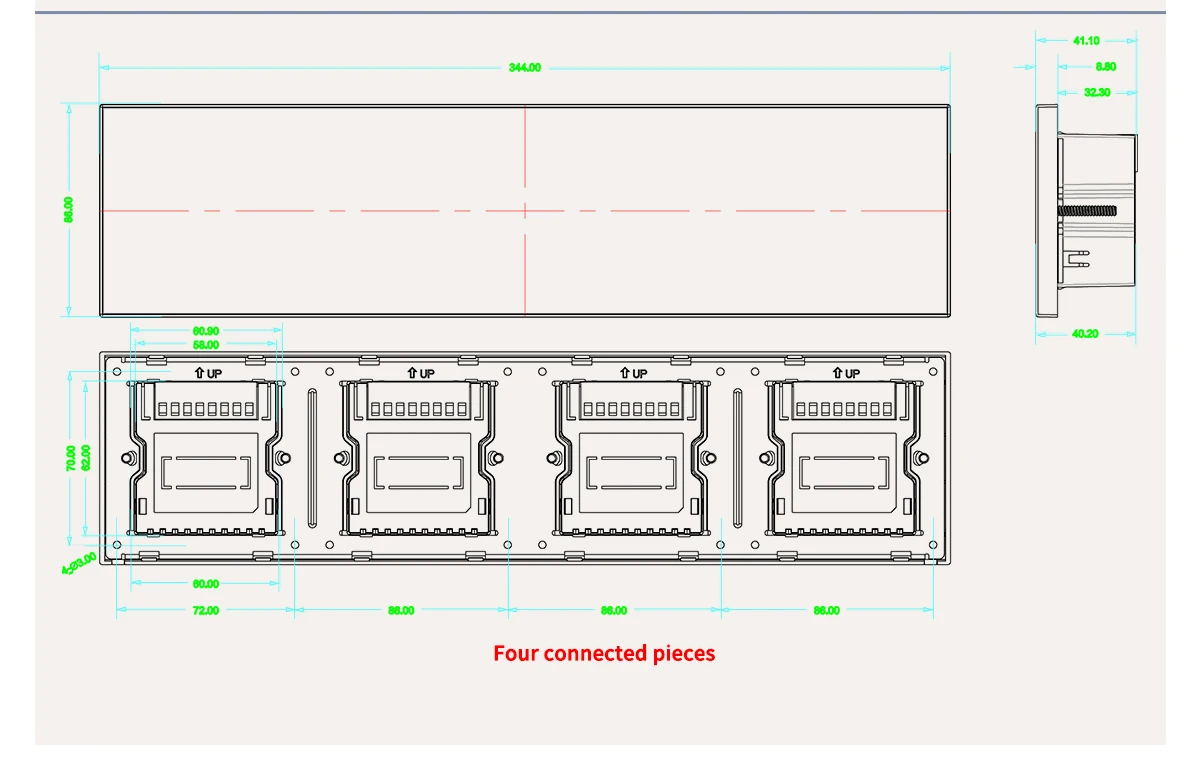

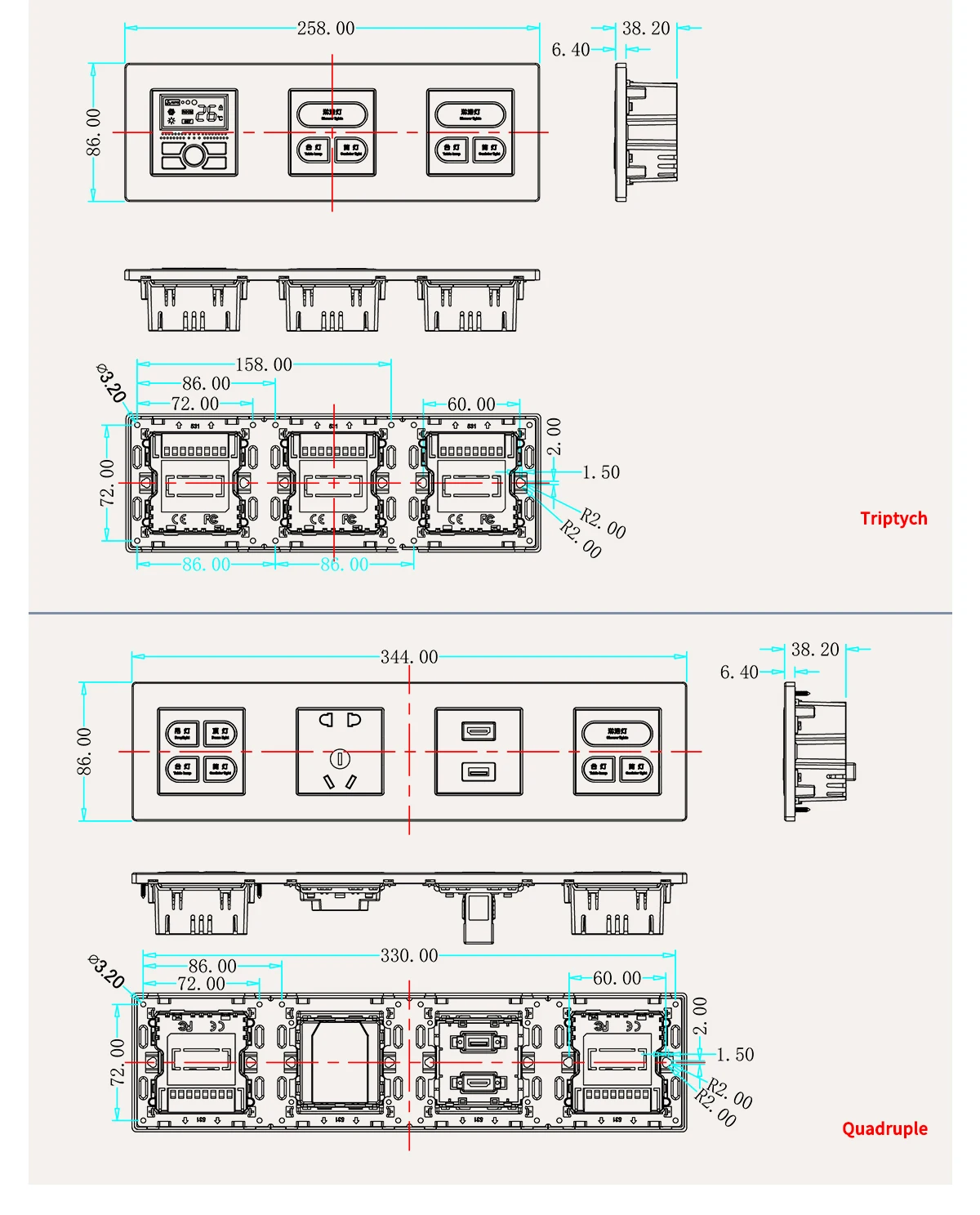

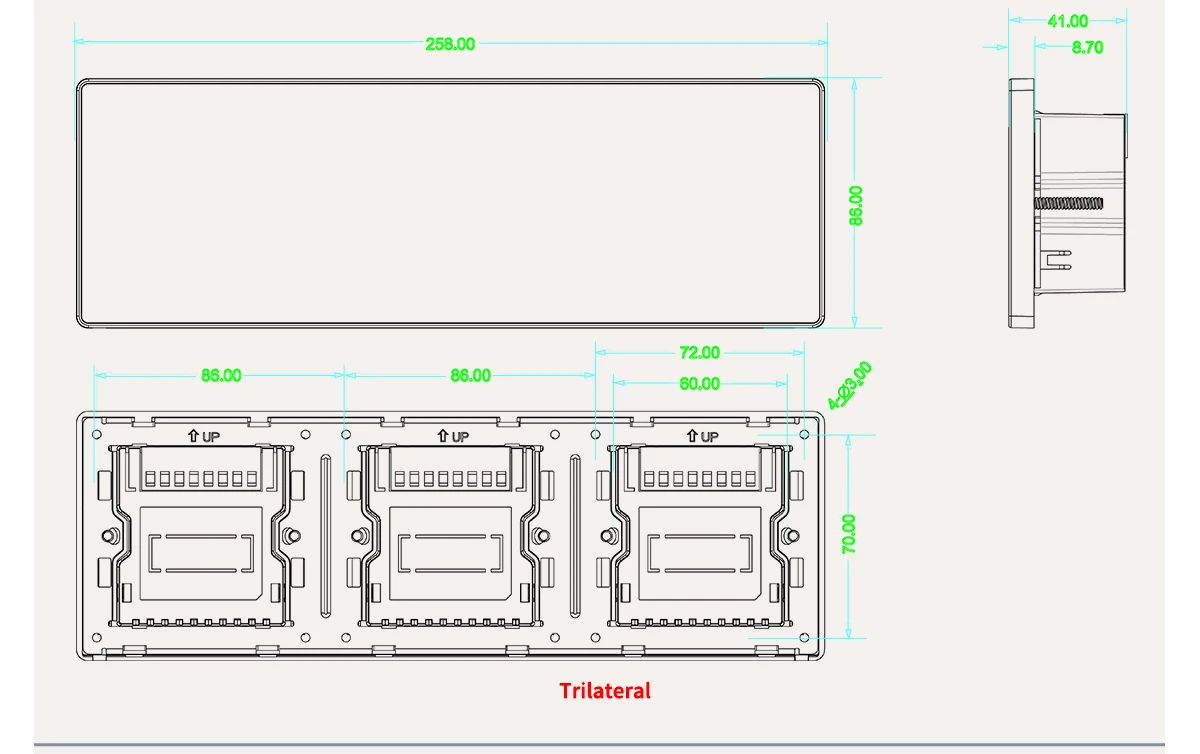

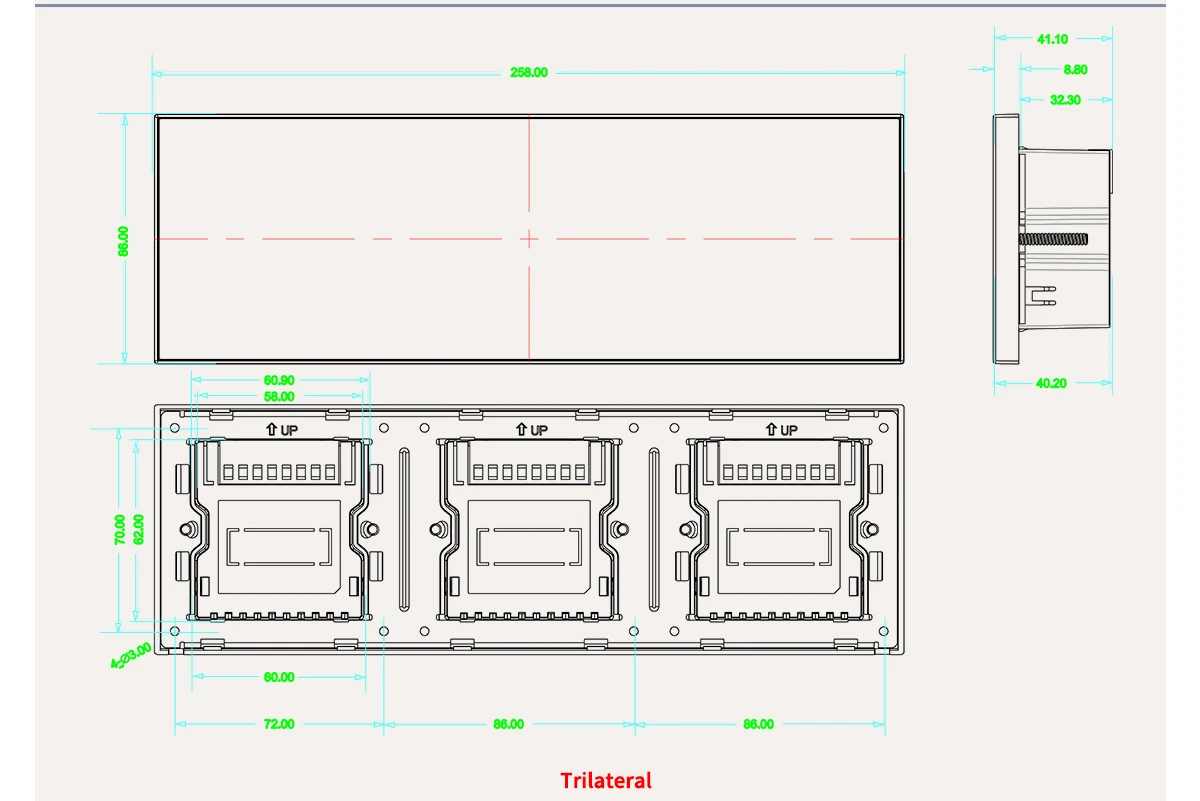

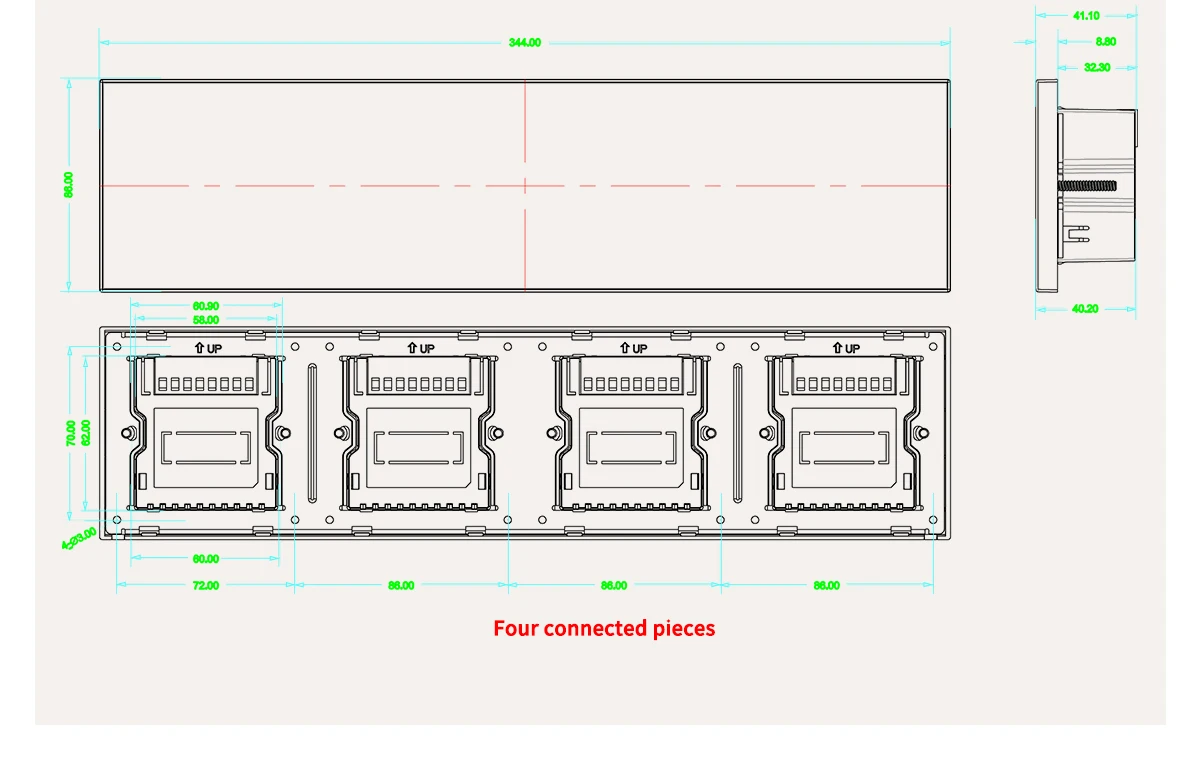

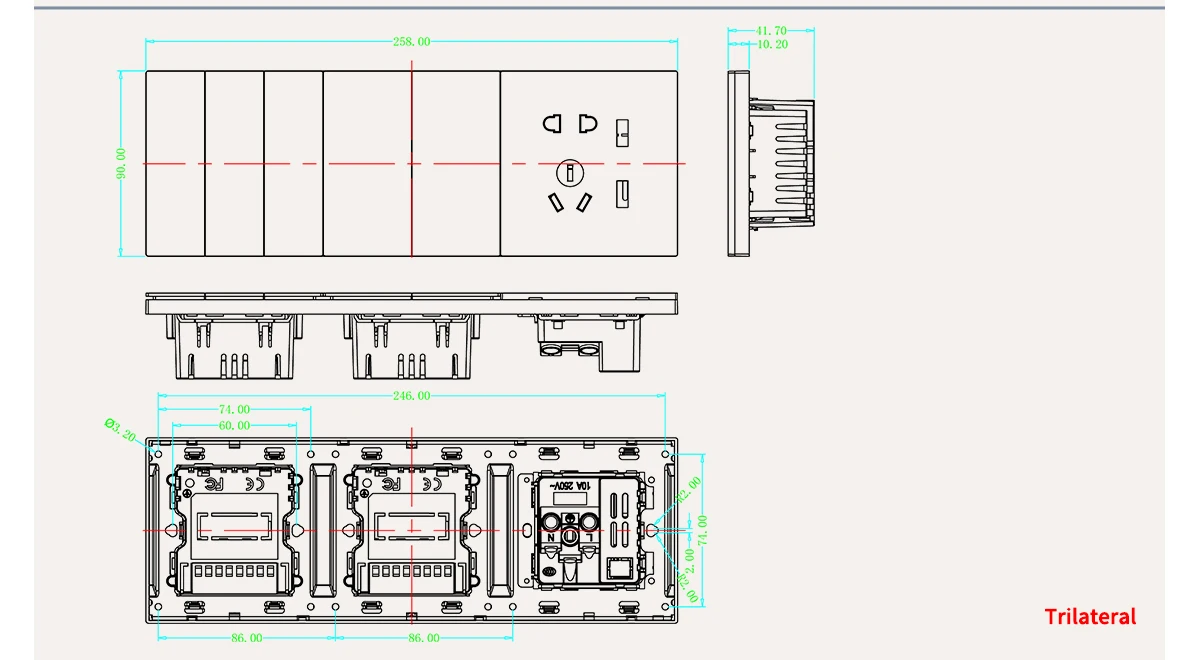

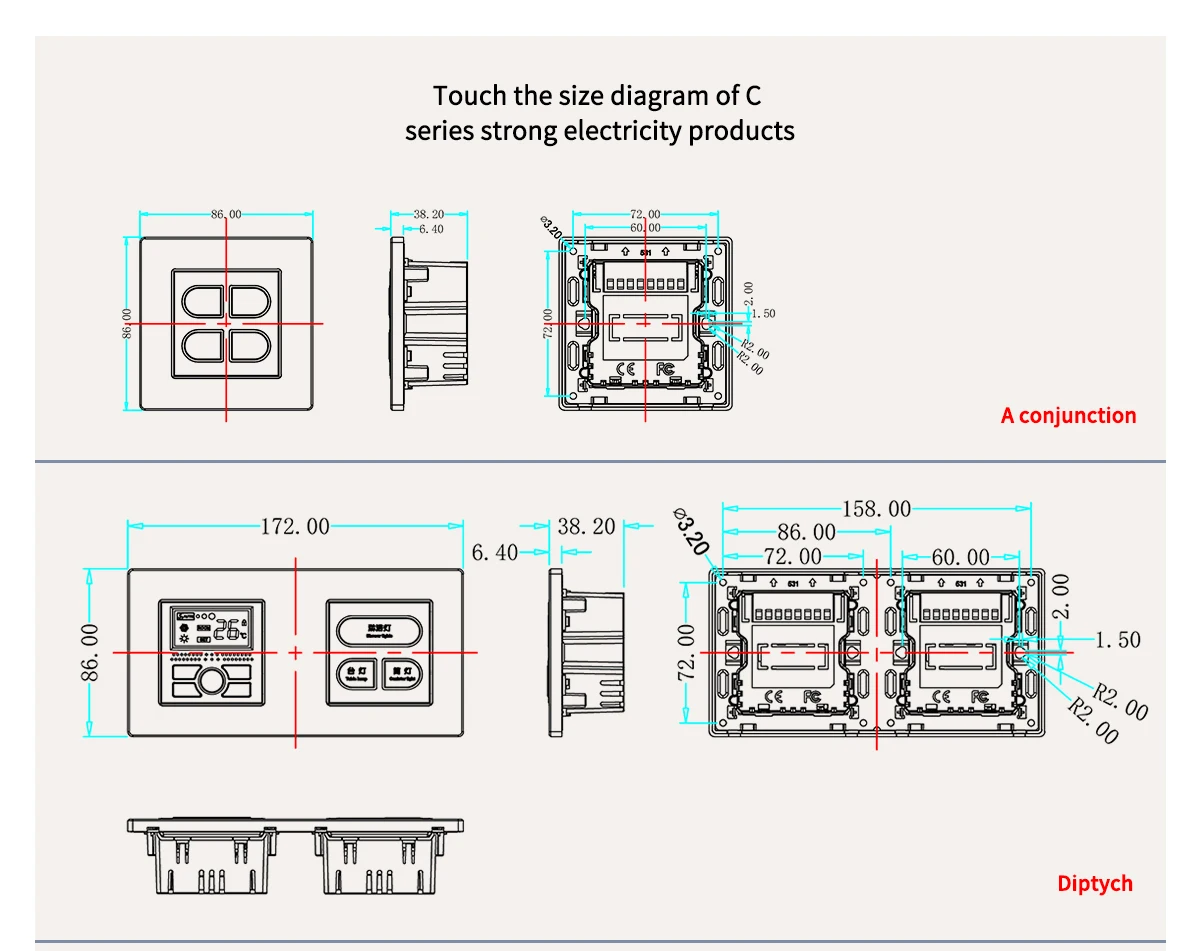

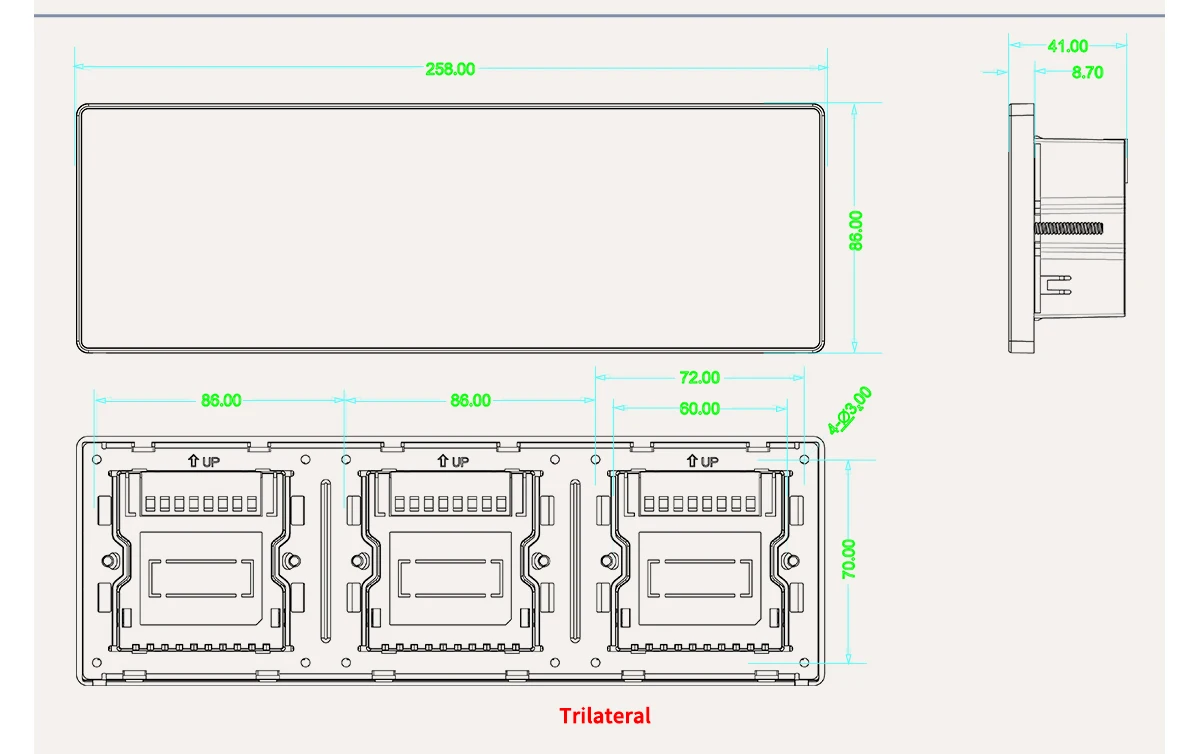

Schematic diagram of installation dimensions for touch connected C model

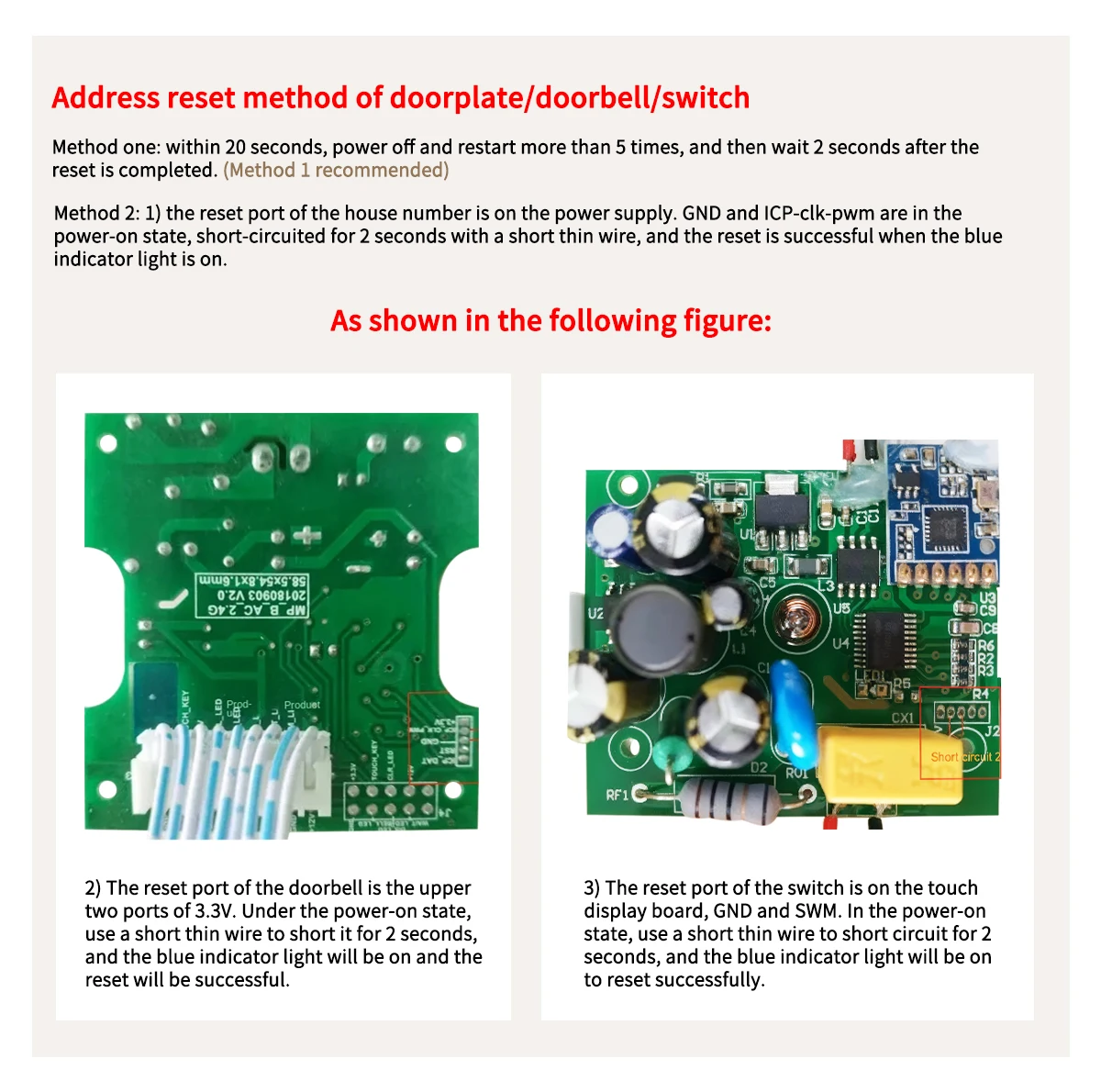

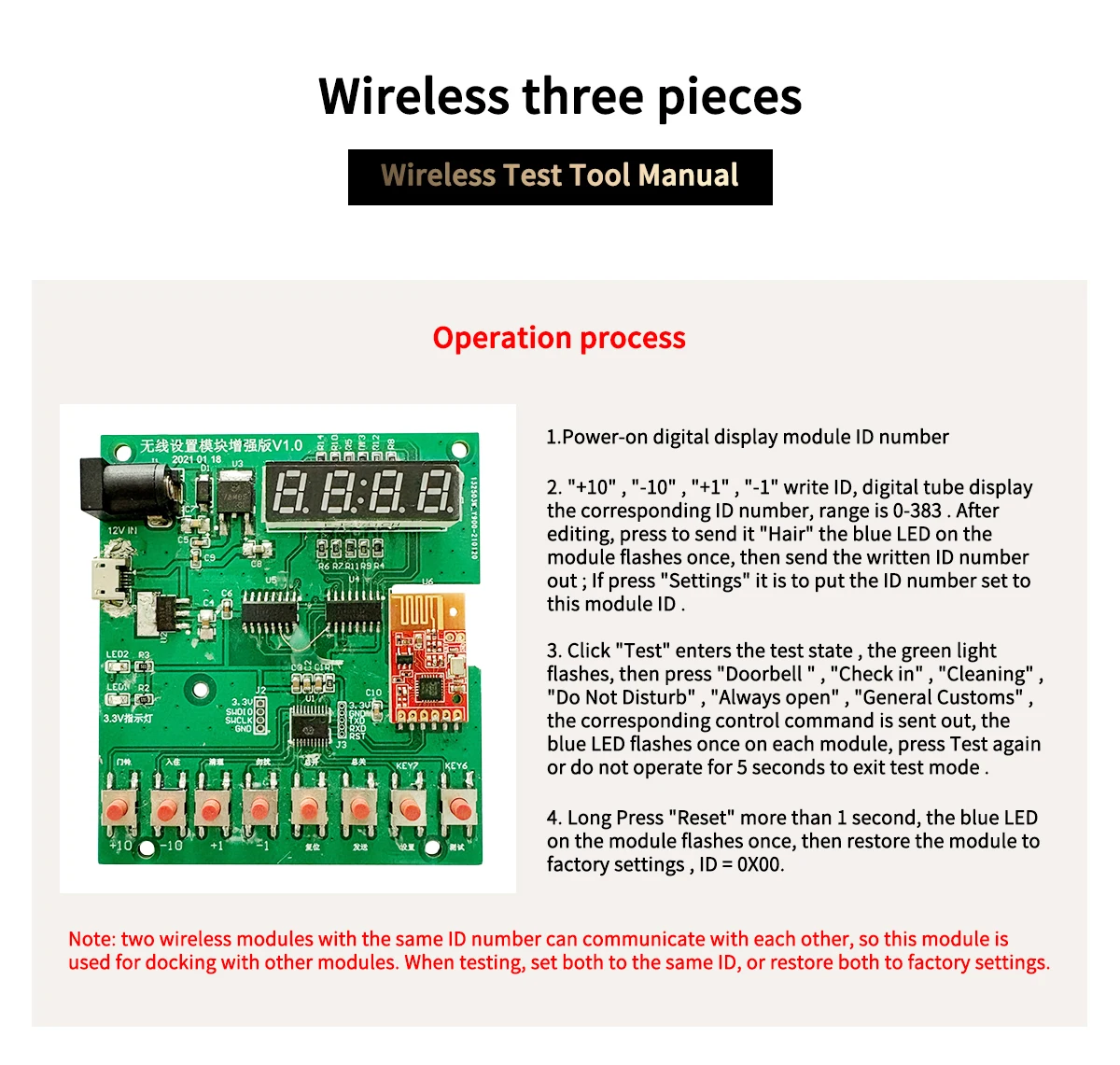

1.2.4G Wireless Touch Switch Manual

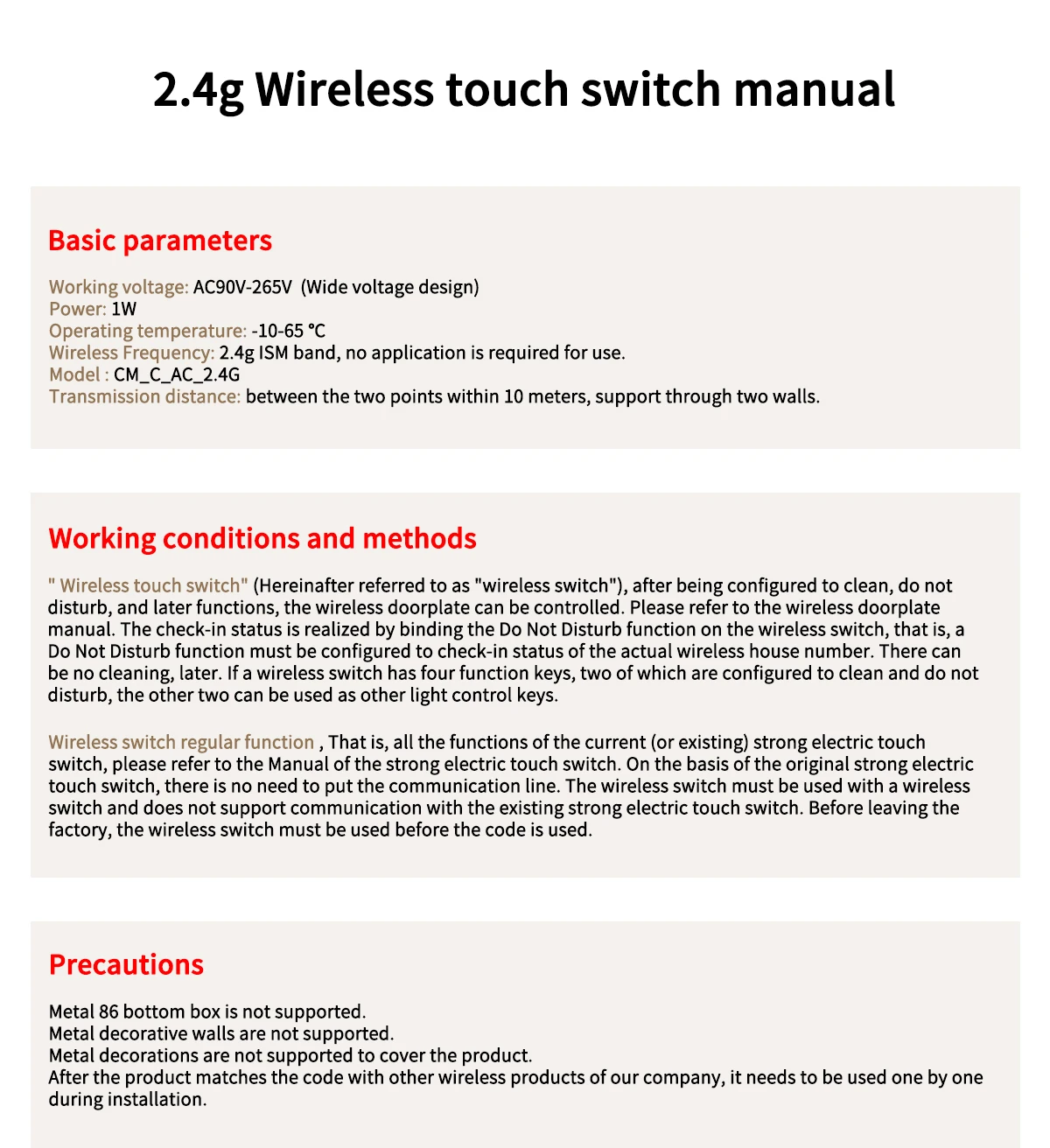

1、 Parameters
Working voltage: AC90V-265V (wide voltage design)
Power: 1W
Working temperature: -10-65 ℃
Wireless frequency: 2.4G ISM band, no application required for use
Model: CM_C_AC_2.4G
Transmission distance: Within 10 meters between two points, it supports passing through two walls.
2、 Working methods
The "wireless touch switch" (hereinafter referred to as the "wireless switch"), configured with the functions of cleaning, do not disturb, and later, can control the wireless door number. Please refer to the wireless door number manual. The check-in status is achieved by binding the Do Not Disturb function on the wireless switch, which means that in order to achieve the actual check-in status of the wireless door number, a Do Not Disturb function must be configured. It can be left uncleaned later. If a wireless switch has four function keys, two of which are configured as clear and do not disturb functions, the other two can be used as other light control buttons.
The conventional functions of wireless switches, including all functions of current (or existing) high-voltage touch switches, please refer to the high-voltage touch switch manual. On the basis of the original strong electric touch switch, there is no need to lay communication cables. Wireless switches must be used with wireless switches and do not support communication with existing high-voltage touch switches. Before leaving the factory, wireless switches must be coded before use.
3、 Precautions
1. Metal 86 bottom box is not supported.
2. Metal decorative walls are not supported.
3. Metal decorations are not supported to cover the product.
4. After matching the product with other wireless products of our company, they need to be used correspondingly during installation.

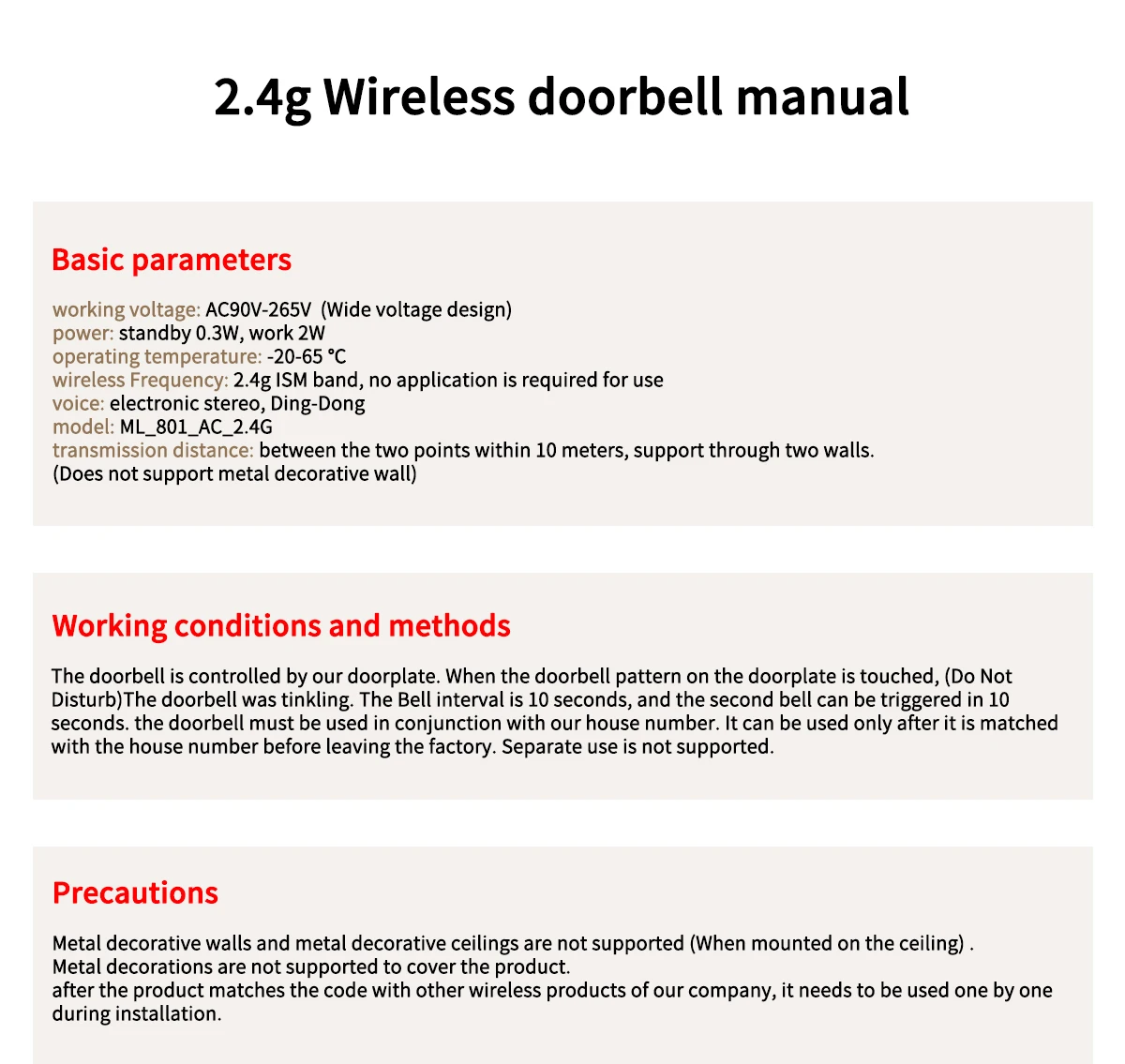

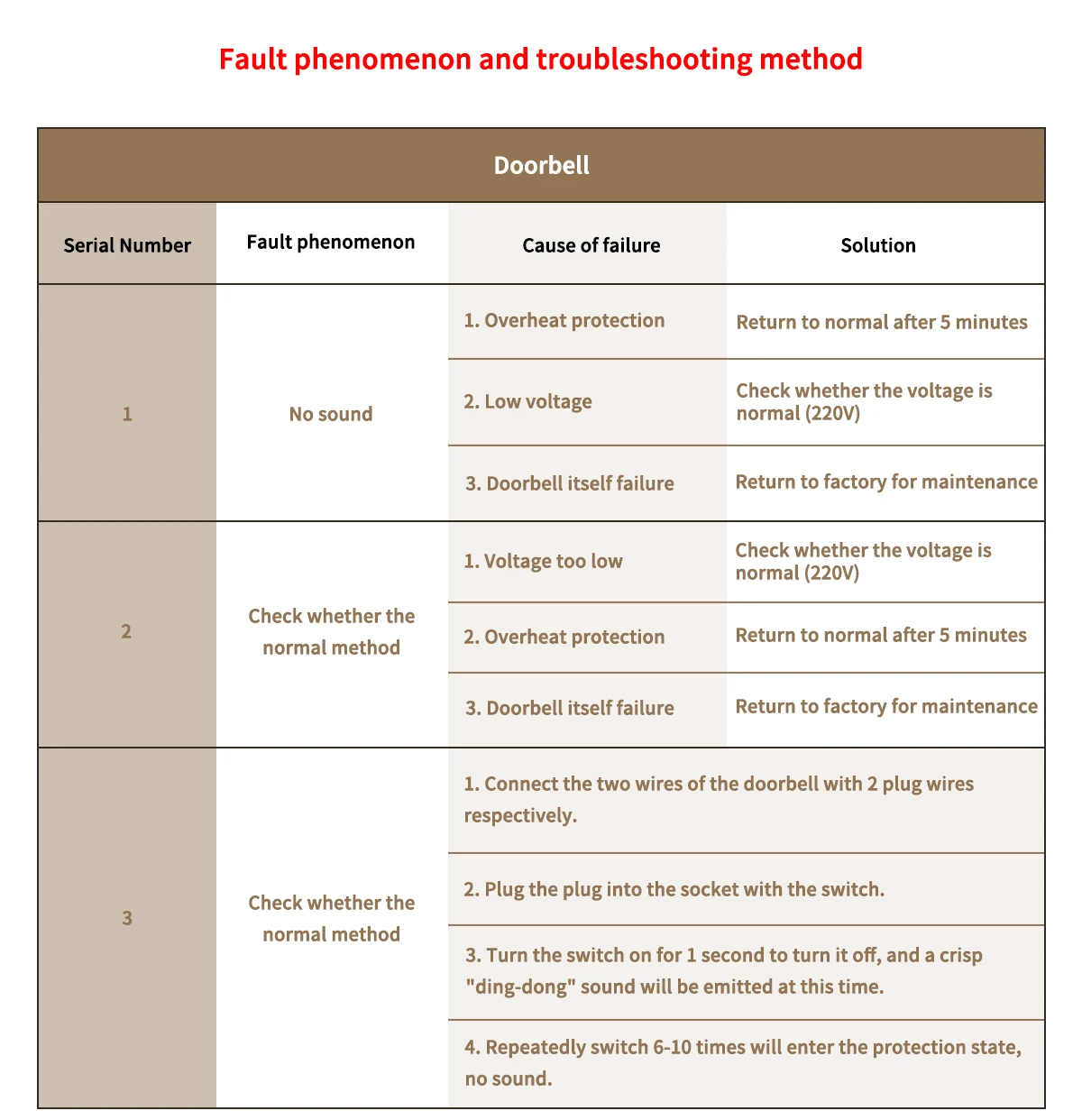

2.2.4G Wireless Doorbell Manual
1、 Parameters
Working voltage: AC90V-265V (wide voltage design)
Power: standby 0.3W, working 2W
Working temperature: -20-65 ℃
Wireless frequency: 2.4G ISM band, no application required for use
Sound: electronic stereo, ding dong two tone sound
Model: ML_801_S.4G
Transmission distance: Within 10 meters between two points, it supports passing through two walls. (Metal decorative walls are not supported)
2、 Working conditions and methods
The doorbell is controlled by our company's doorplate. When the doorbell pattern on the doorplate is touched (not in Do Not Disturb state), the doorbell will sound two beeps. The interval between ringing is 10 seconds, and the second ringing can only be triggered after 10 seconds. The doorbell must be used in conjunction with our company's doorplate. It must be matched with the doorplate before leaving the factory and cannot be used separately.
3、 Precautions
1. Metal decorative walls and metal decorative ceilings are not supported (when installed on ceilings).
2. Metal decorations are not supported to cover the product.
3. After matching the product with other wireless products of our company, they need to be used correspondingly during installation.



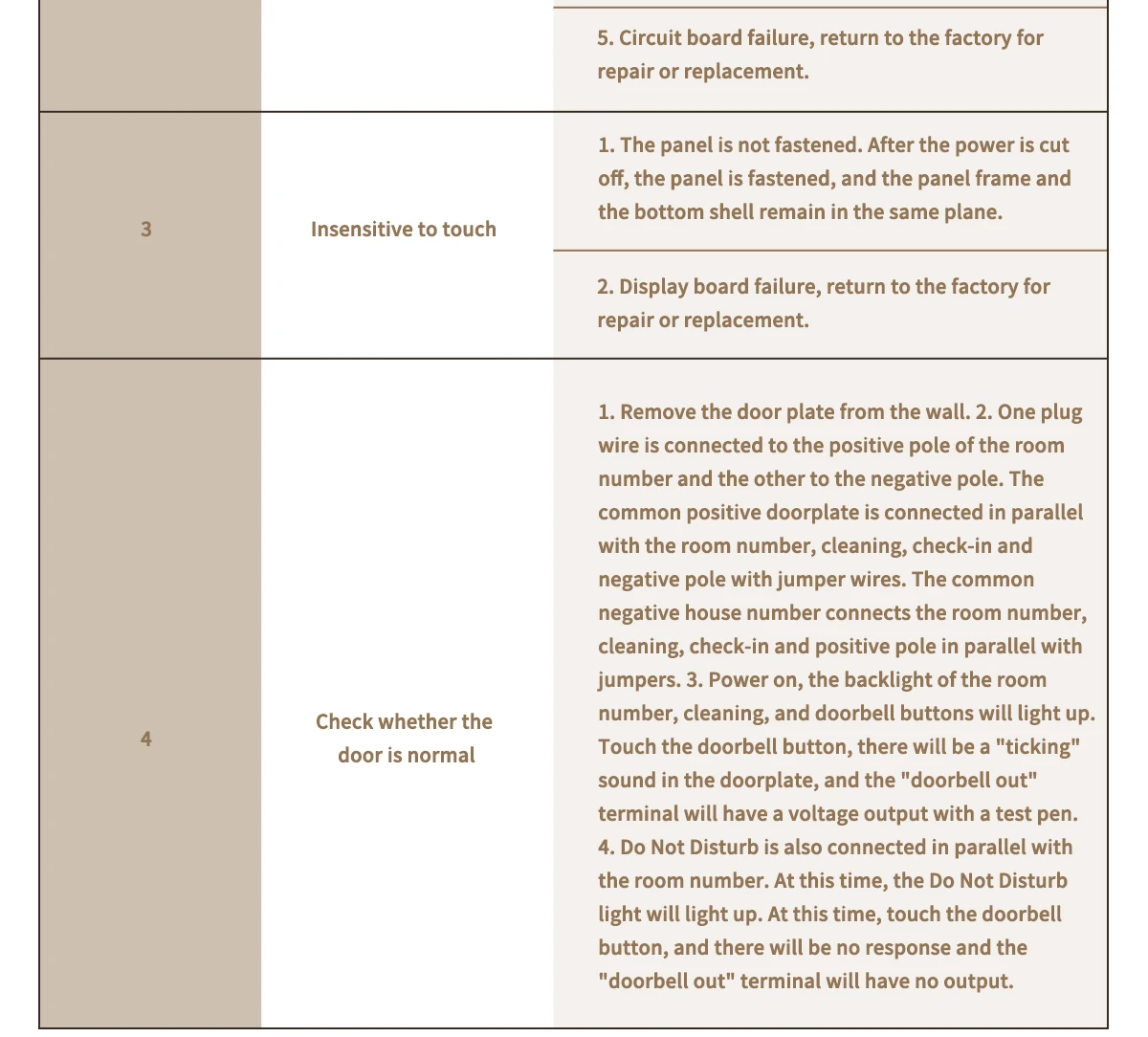

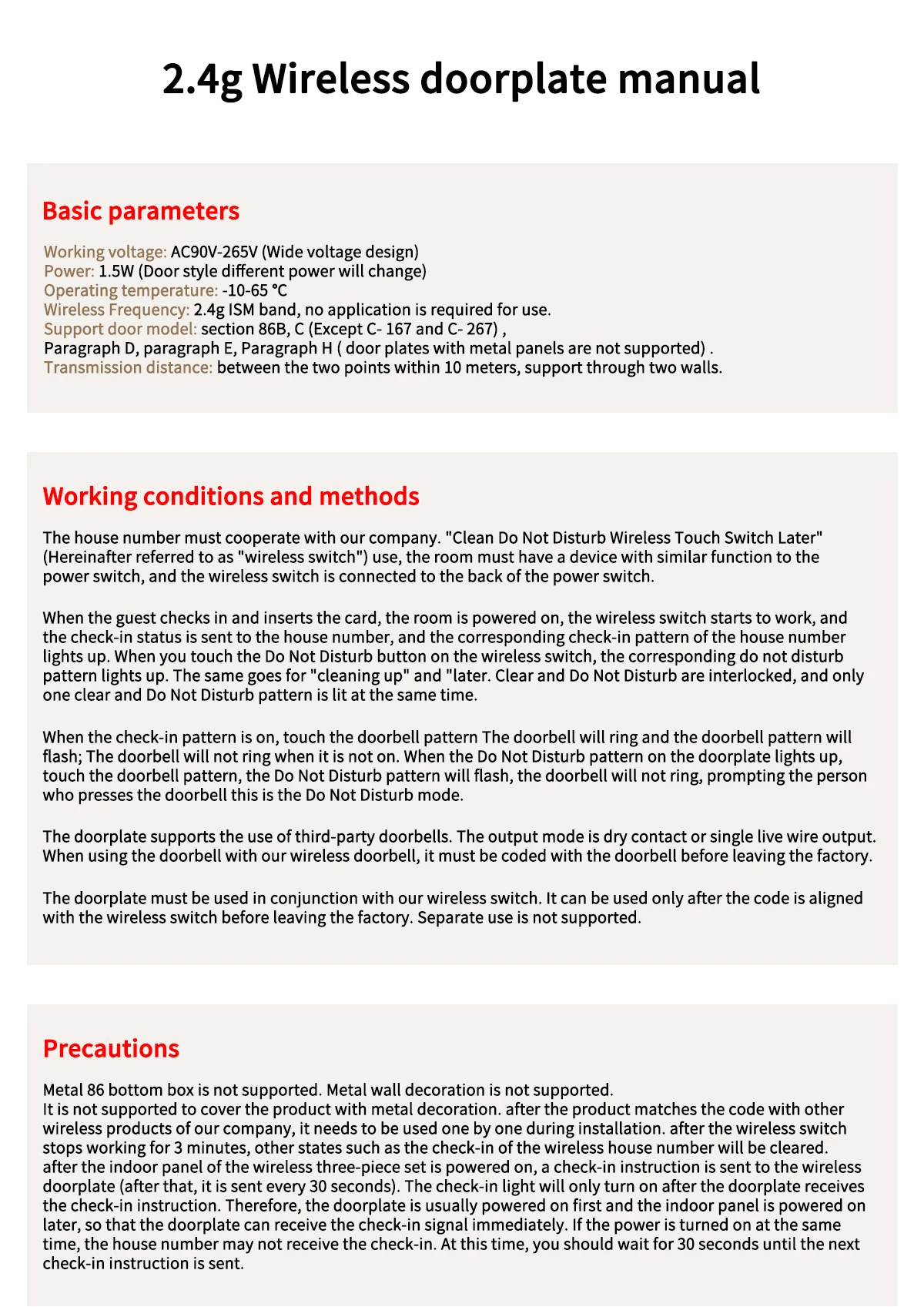

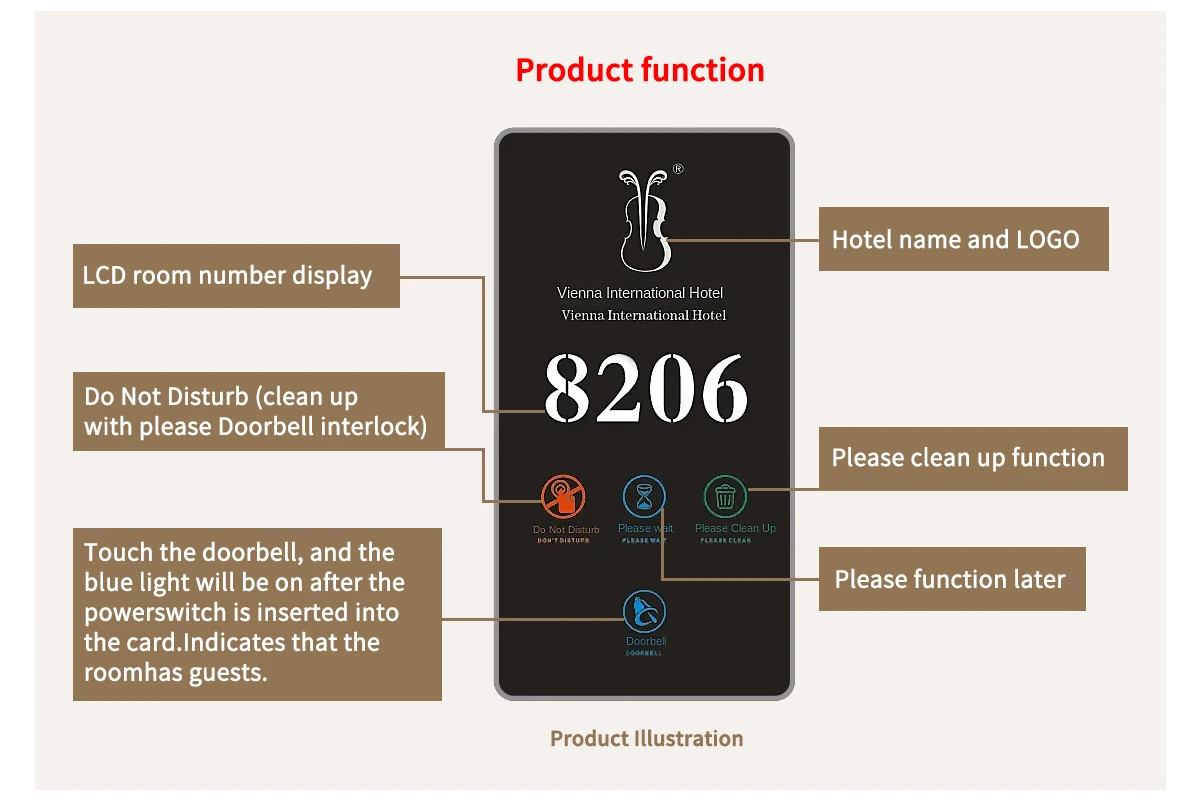

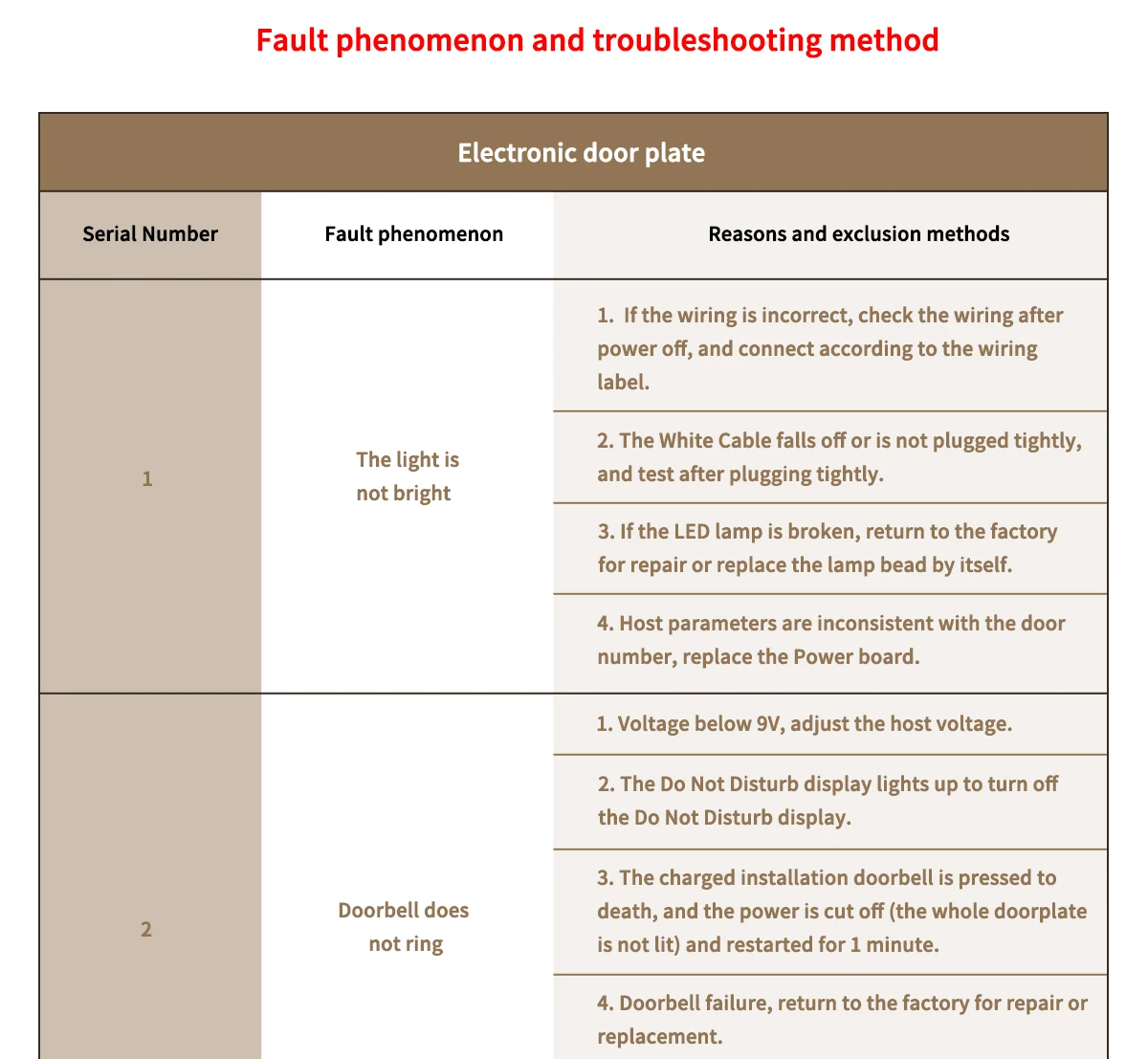

3.2.4G wireless doorplate manual
1、 Parameters
Working voltage: AC90V-265V (wide voltage design)
Power: 1.5W (power may vary depending on the style of the house number)
Working temperature: -10-65 ℃
Wireless frequency: 2.4G ISM band, no application required for use
Supported door number models: 86B, C (except C-167, C-267), D, E, H (do not support door numbers with metal panels)
Transmission distance: Within 10 meters between two points, it supports passing through two walls.
2、 Working conditions and methods

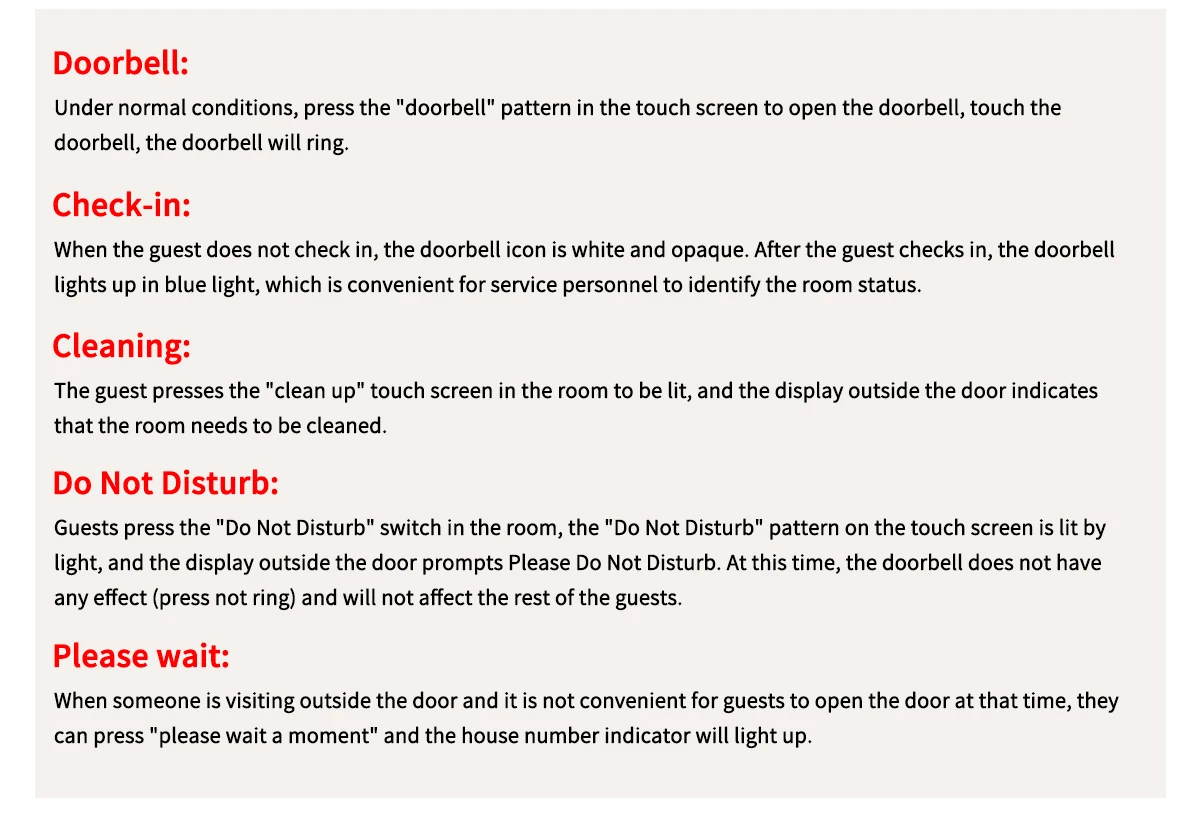

The doorplate must be used in conjunction with our company's "Do Not Disturb Later Wireless Touch Switch" (hereinafter referred to as the "wireless switch"). The room must have devices with similar functions to power switches, and the wireless switch should be connected behind the power switch.

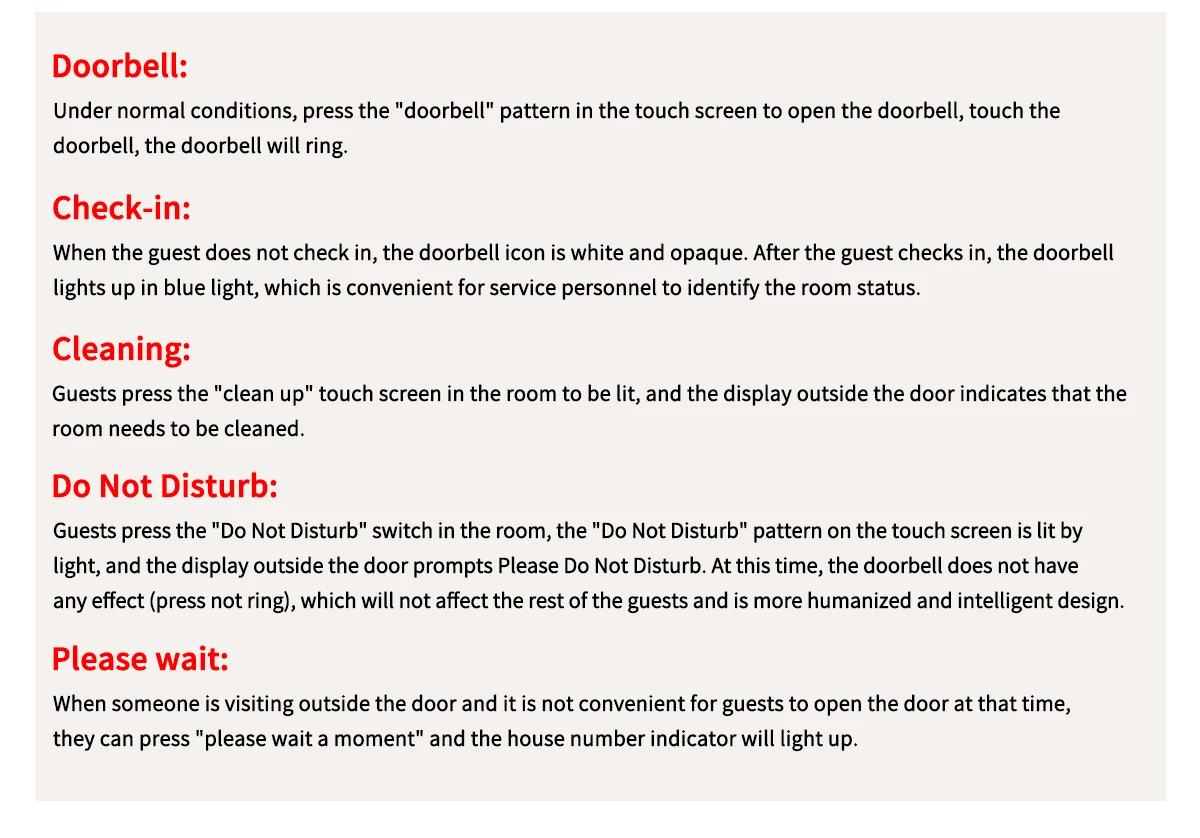

After the guest checks in and inserts the card, the room is powered on and the wireless switch starts working, sending the check-in status to the door number, and the corresponding check-in pattern lights up. When the Do Not Disturb button on the wireless switch is touched, the Do Not Disturb pattern corresponding to the door number lights up. On the contrary, the same goes for 'cleaning' and 'later'. Clear and Do Not Disturb are interlocked, and only one of the clear and Do Not Disturb patterns will light up simultaneously.
When the check-in pattern lights up, touching the doorbell pattern will sound and the doorbell pattern will flash; The doorbell won't ring when it's not lit up. When the Do Not Disturb pattern lights up on the doorbell, touch the doorbell pattern and the Do Not Disturb pattern will flash. The doorbell will not ring, indicating that the person who rings the doorbell is in Do Not Disturb mode.

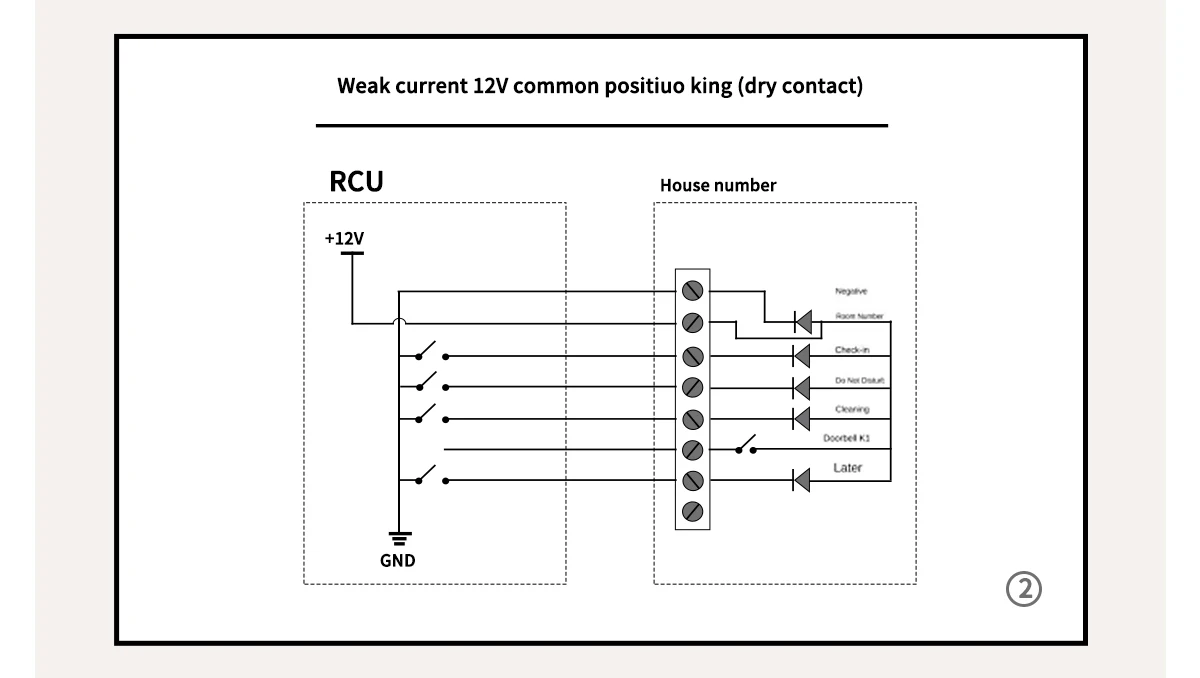

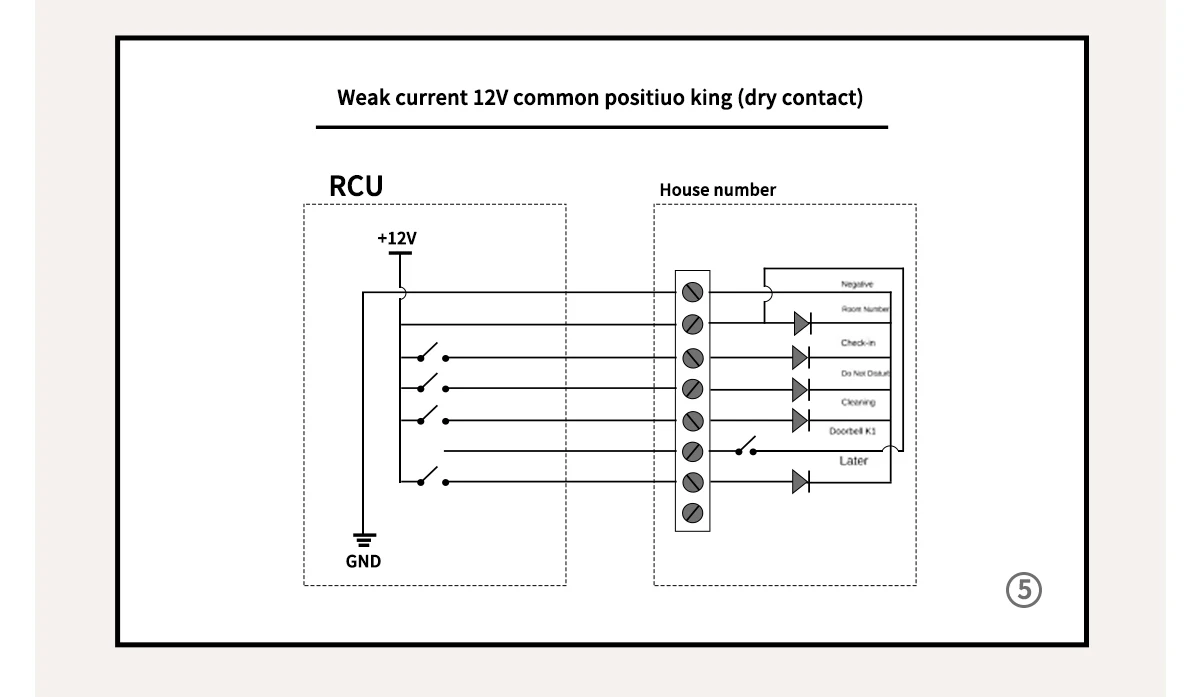

The doorplate supports use with third-party doorbells, and the output method is dry contact or single live wire output. When used with our wireless doorbell, it must be matched with the doorbell code before leaving the factory.
The doorplate must be used in conjunction with our wireless switch. It must be matched with the wireless switch before leaving the factory and cannot be used separately.
3、 Precautions
1. Metal 86 bottom box is not supported.
2. Metal decoration walls are not supported.
3. Metal decorations are not supported to cover the product.
4. After matching the product with other wireless products of our company, they need to be used correspondingly during installation.
5. After the wireless switch stops working for 3 minutes, the check-in and other statuses of the wireless door number will be cleared.
6. After the indoor panel of the wireless three piece set is powered on, a check-in command is sent to the wireless doorplate (every 30 seconds thereafter). The doorplate will only turn on the check-in light after receiving the check-in command. Therefore, the doorplate is usually powered on first, followed by the indoor panel, so that the doorplate can immediately receive the check-in signal. If the power is turned on at the same time, the house number may not have been received for check-in. At this time, you should wait for 30 seconds until the next check-in instruction is sent.
